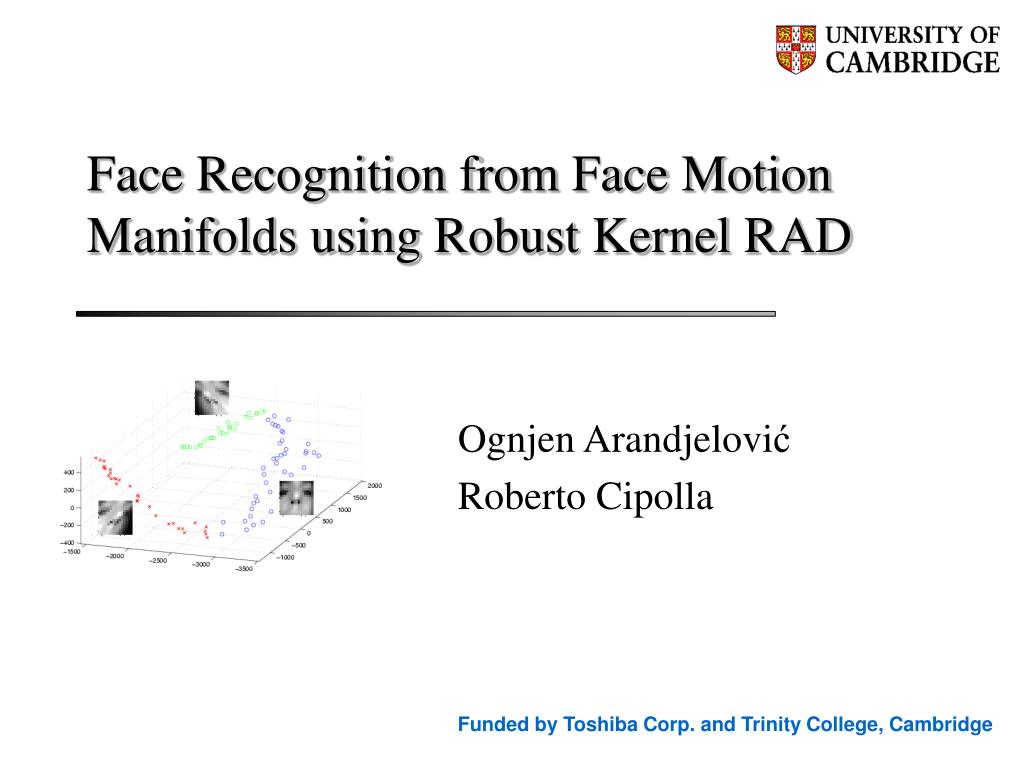

1. Face Recognition from Face Motion Manifolds using Robust Kernel RAD Ognjen Arandjelović Roberto Cipolla Funded by Toshiba Corp. and Trinity College, Cambridge

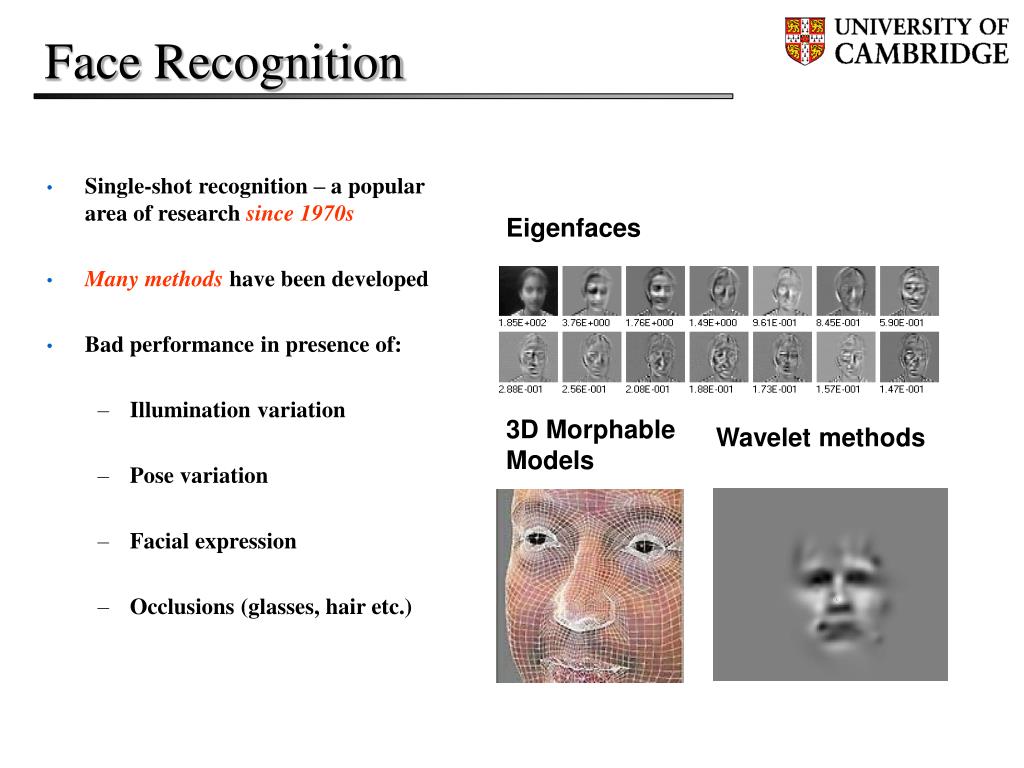

2. Eigenfaces 3D Morphable Models Wavelet methods Face Recognition • Single-shot recognition – a popular area of research since 1970s • Many methods have been developed • Bad performance in presence of: • Illumination variation • Pose variation • Facial expression • Occlusions (glasses, hair etc.)

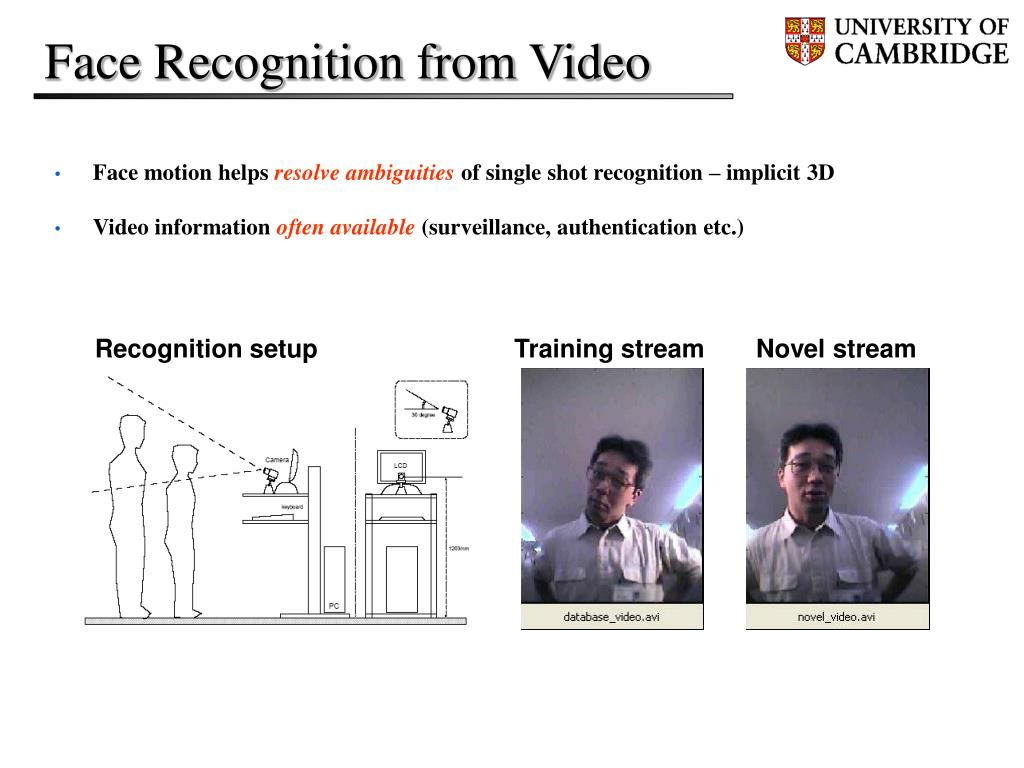

3. Recognition setup Training stream Novel stream Face Recognition from Video • Face motion helps resolve ambiguities of single shot recognition – implicit 3D • Video information often available (surveillance, authentication etc.)

4. Facial features Face pattern manifold Face region Face Manifolds • Face patterns describe manifolds which are: • Highly nonlinear, and • Noisy, but • Smooth

5. ? Limitations of Previous Work • In this work we address 3 fundamental questions: • How to model nonlinear manifolds of face motion • How to choose the distance measure • How and what noise sources to model

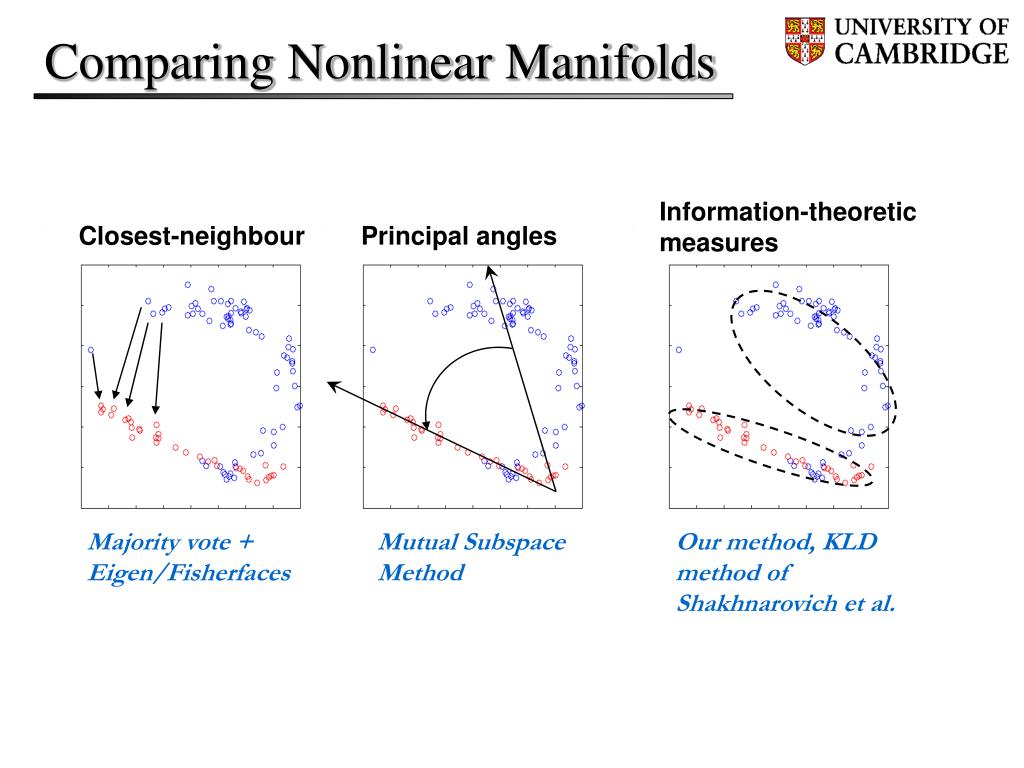

6. Information-theoretic measures Closest-neighbour Principal angles Majority vote + Eigen/Fisherfaces Mutual Subspace Method Our method, KLD method of Shakhnarovich et al. Comparing Nonlinear Manifolds

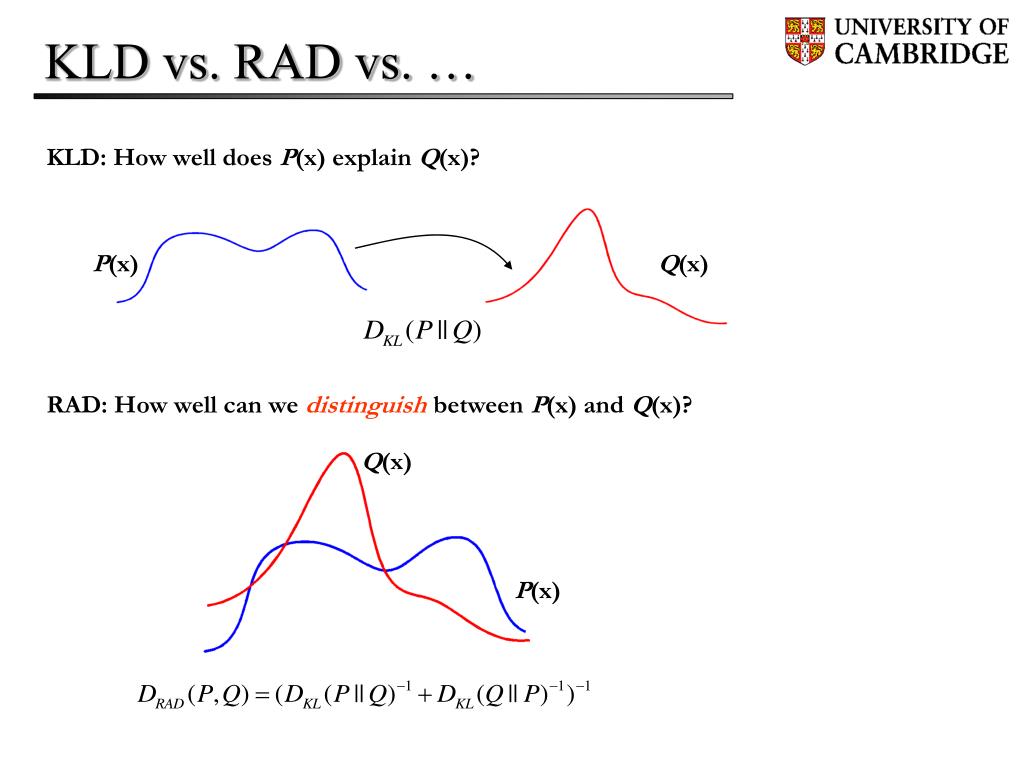

7. KLD: How well does P(x) explain Q(x)? P(x) Q(x) RAD: How well can we distinguish between P(x) and Q(x)? KLD vs. RAD vs. … Q(x) P(x)

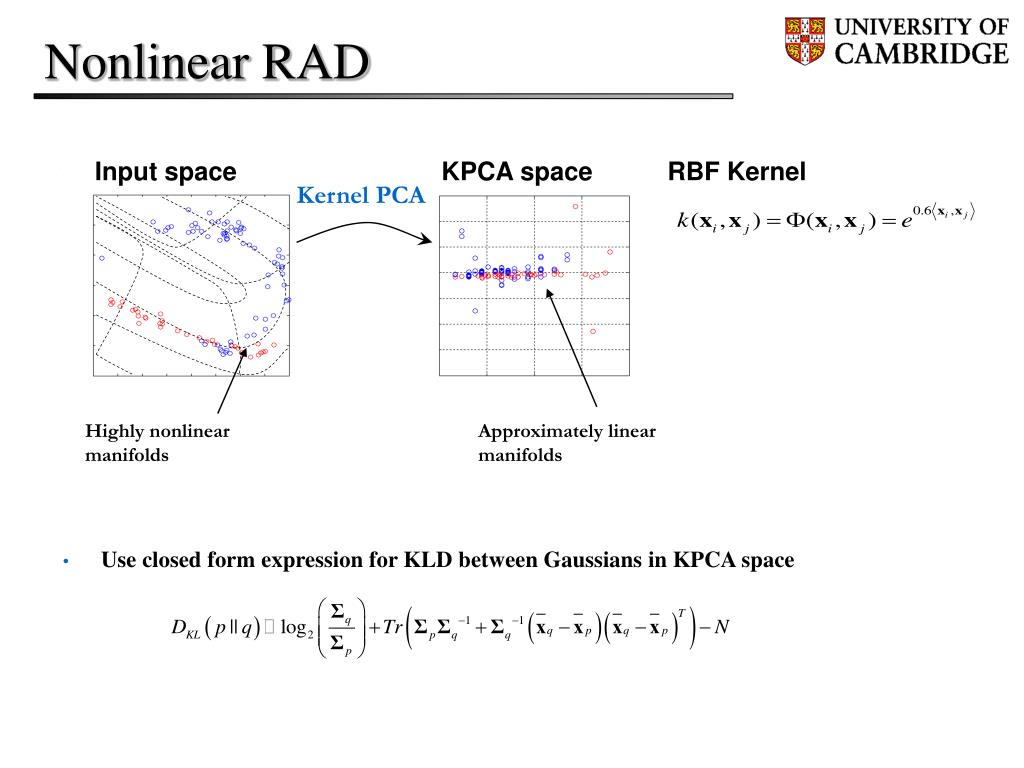

8. Input space KPCA space Kernel PCA Highly nonlinear manifolds Approximately linear manifolds Nonlinear RAD RBF Kernel • Use closed form expression for KLD between Gaussians in KPCA space

9. Translation manifold Skew manifold Rotation manifold Registration • Linear operations on images are highly nonlinear in the pattern space • Translation/rotation and weak perspective can be easily corrected for directly from point correspondences • We use the locations of pupils and nostrils to robustly estimate the optimal affine registration parameters

10. Detect features Crop & affine register faces Registration Method Used • Feature localization based on the combination of shape and pattern matching (Fukui et al. 1998)

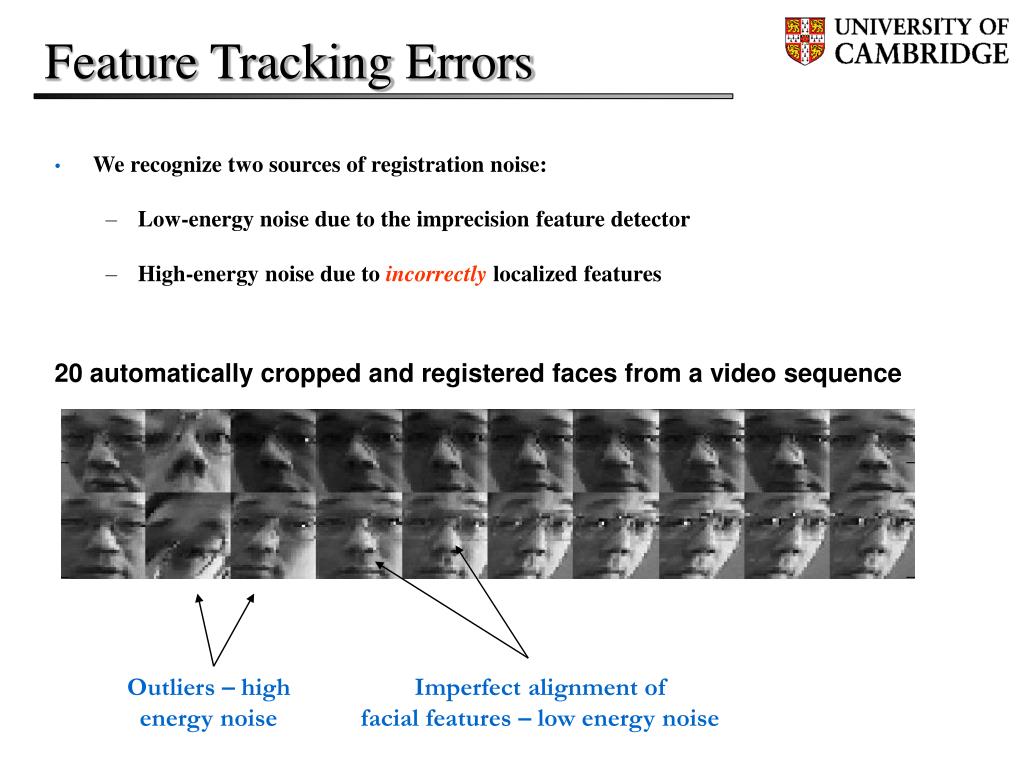

11. Feature Tracking Errors • We recognize two sources of registration noise: • Low-energy noise due to the imprecision feature detector • High-energy noise due to incorrectly localized features 20 automatically cropped and registered faces from a video sequence Outliers – high energy noise Imperfect alignment of facial features – low energy noise

12. Original data Original + synthetic data Low Energy Noise • Estimate misregistration manifold noise energy • Augment data with synthetically perturbed samples = thickening of the motion manifold • Synthetic data explicitly models the variation

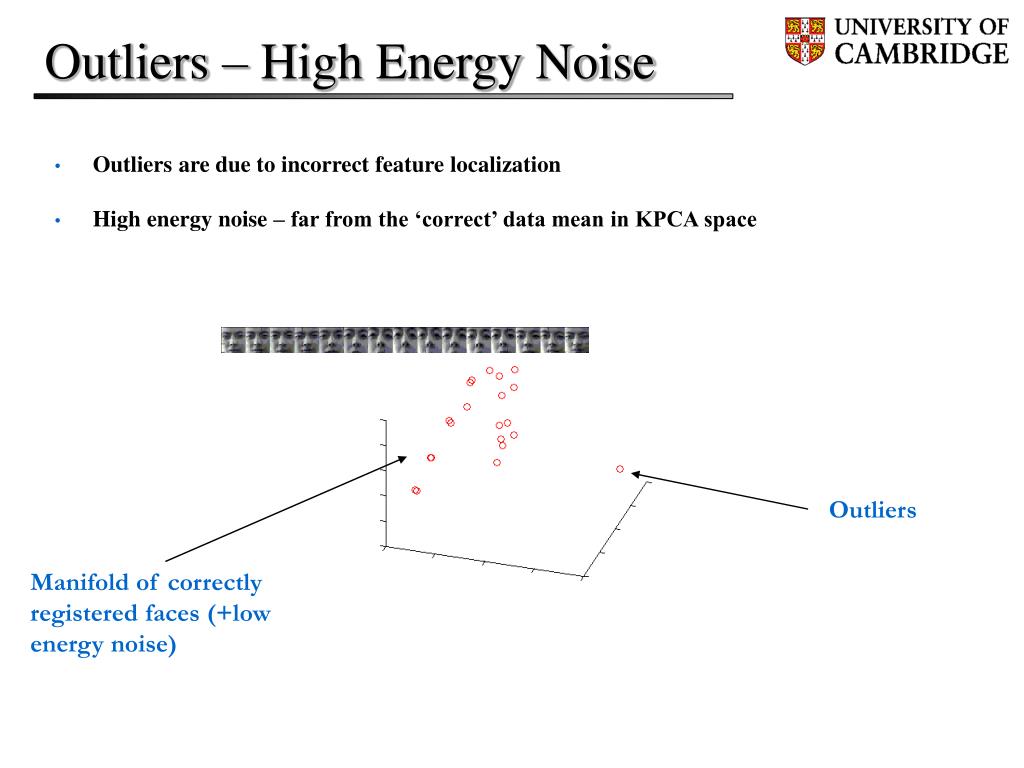

13. Outliers Manifold of correctly registered faces (+low energy noise) Outliers – High Energy Noise • Outliers are due to incorrect feature localization • High energy noise – far from the ‘correct’ data mean in KPCA space

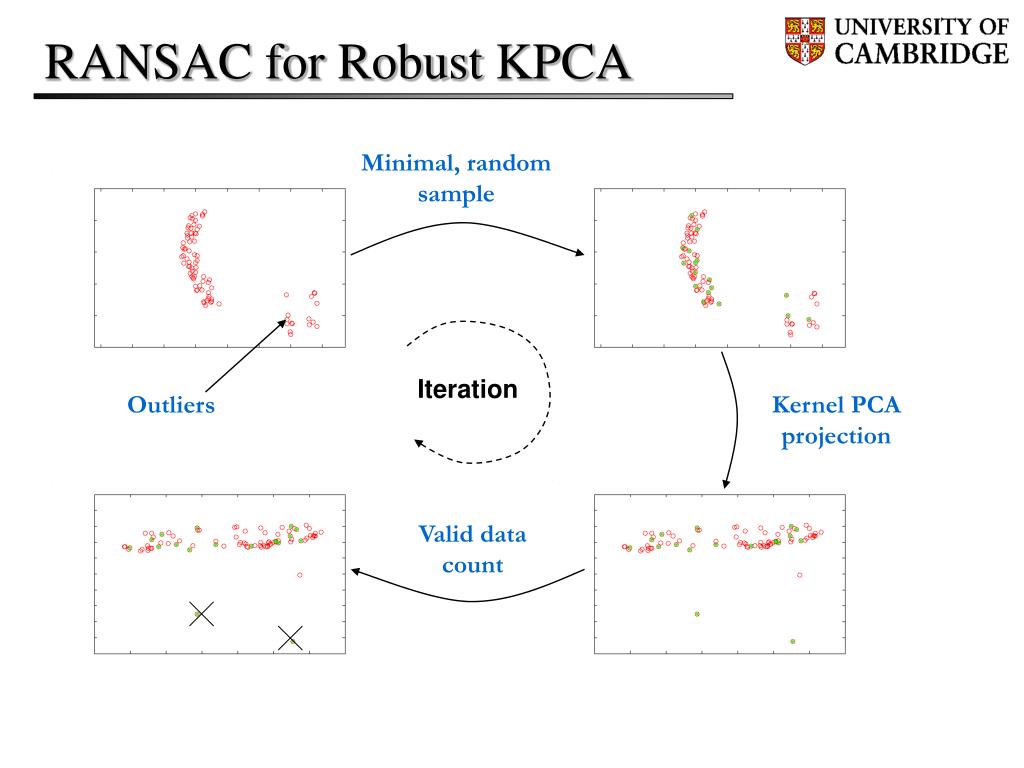

14. RANSAC for Robust KPCA Minimal, random sample Iteration Outliers Kernel PCA projection Valid data count

15. Algorithm: The Big Picture Input frames Original + synthetic data Valid data in KPCA space Distance

16. Face Video Database • No standard database exists – we collected our own data • 160 people, 10 different lighting conditions (each condition twice i.e. 20 video sequences per person)

17. Evaluation Results • Robust Kernel RAD outperformed other methods on all databases • Average recognition rate of 98%

18. Method Limitations / Future Work • Less pose sensitivity (why should input and reference distributions be similar?) • Illumination invariance is not addressed Same person, different illumination Novel person See Arandjelovićet al., BMVC 2004 For suggestions, questions etc. please contact me at:oa214@cam.ac.uk
