Presentation Transcript
slide1

Mining Anomalies Using Traffic Feature DistributionsAnukool LakhinaMark CrovellaChristophe Diotin ACM SIGCOMM 2005

Presented by:

Sailesh Kumar

overview

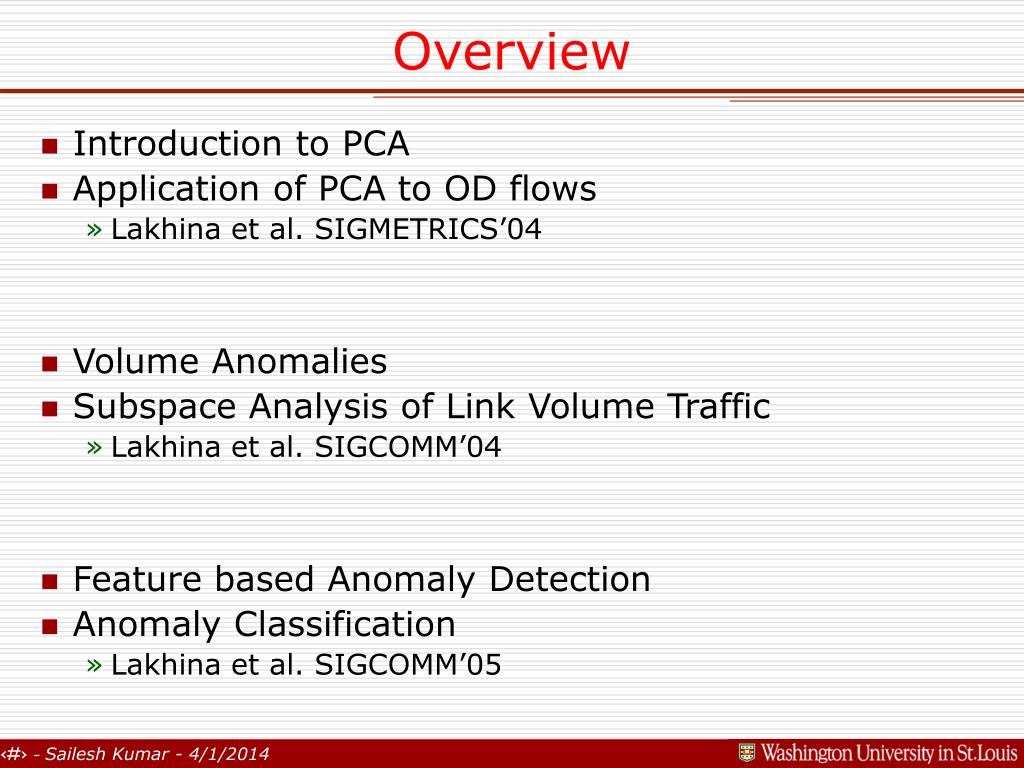

Overview
  • Introduction to PCA
  • Application of PCA to OD flows
    • Lakhina et al. SIGMETRICS’04
  • Volume Anomalies
  • Subspace Analysis of Link Volume Traffic
    • Lakhina et al. SIGCOMM’04
  • Feature based Anomaly Detection
  • Anomaly Classification
    • Lakhina et al. SIGCOMM’05
principal component analysis

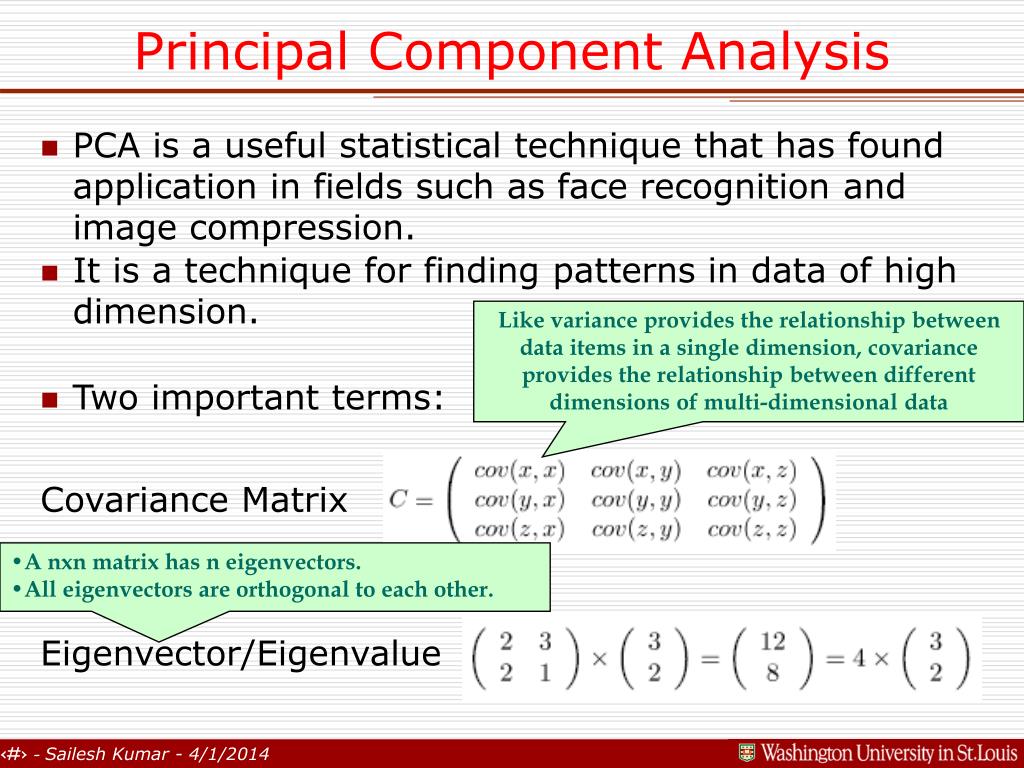

Principal Component Analysis
  • PCA is a useful statistical technique that has found application in fields such as face recognition and image compression.
  • It is a technique for finding patterns in data of high dimension.
  • Two important terms:

Covariance Matrix

Eigenvector/Eigenvalue

Like variance provides the relationship between data items in a single dimension, covariance provides the relationship between different dimensions of multi-dimensional data

  • A nxn matrix has n eigenvectors.
  • All eigenvectors are orthogonal to each other.
principal component analysis4

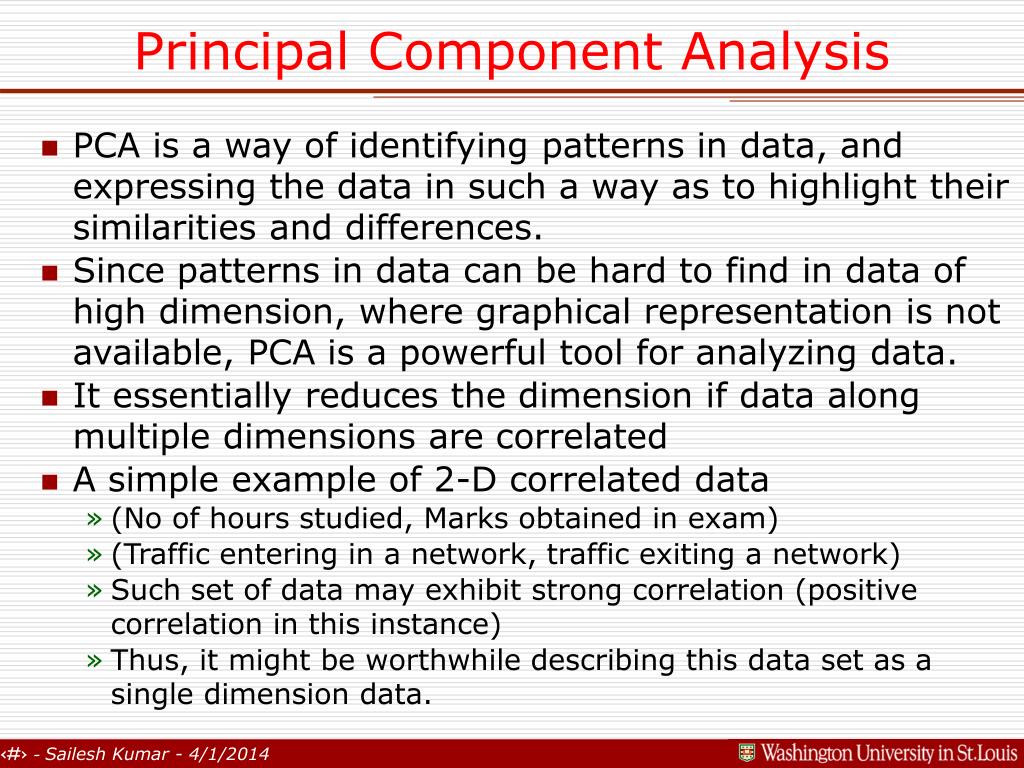

Principal Component Analysis
  • PCA is a way of identifying patterns in data, and expressing the data in such a way as to highlight their similarities and differences.
  • Since patterns in data can be hard to find in data of high dimension, where graphical representation is not available, PCA is a powerful tool for analyzing data.
  • It essentially reduces the dimension if data along multiple dimensions are correlated

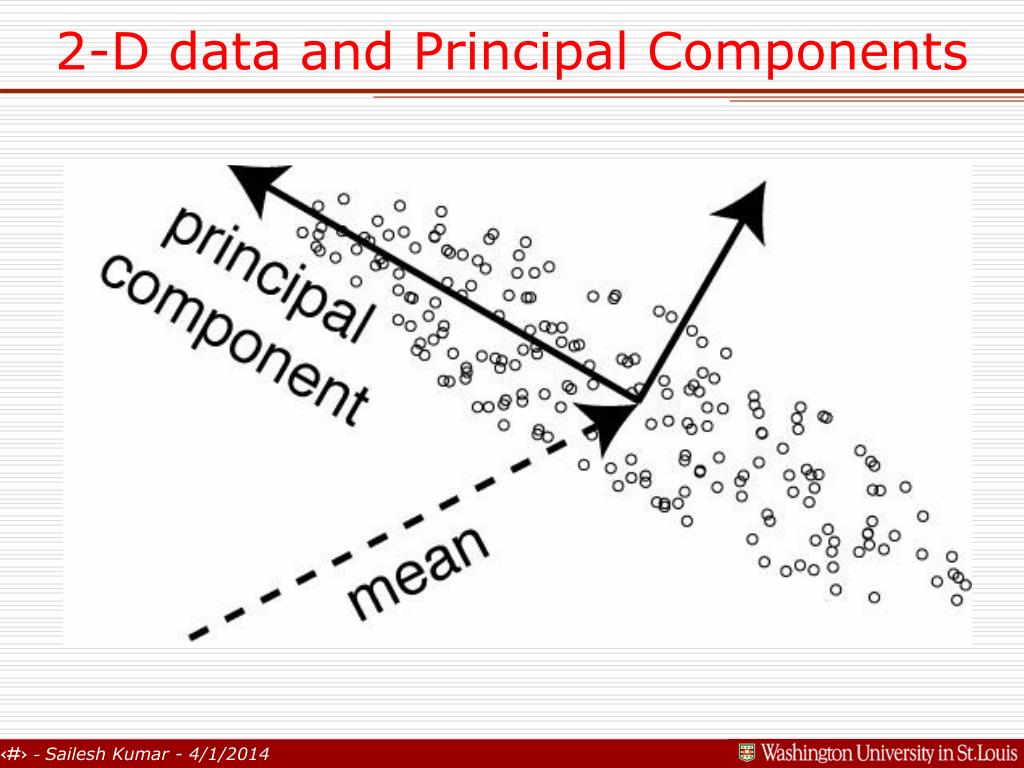

  • A simple example of 2-D correlated data
    • (No of hours studied, Marks obtained in exam)
    • (Traffic entering in a network, traffic exiting a network)
    • Such set of data may exhibit strong correlation (positive correlation in this instance)
    • Thus, it might be worthwhile describing this data set as a single dimension data.

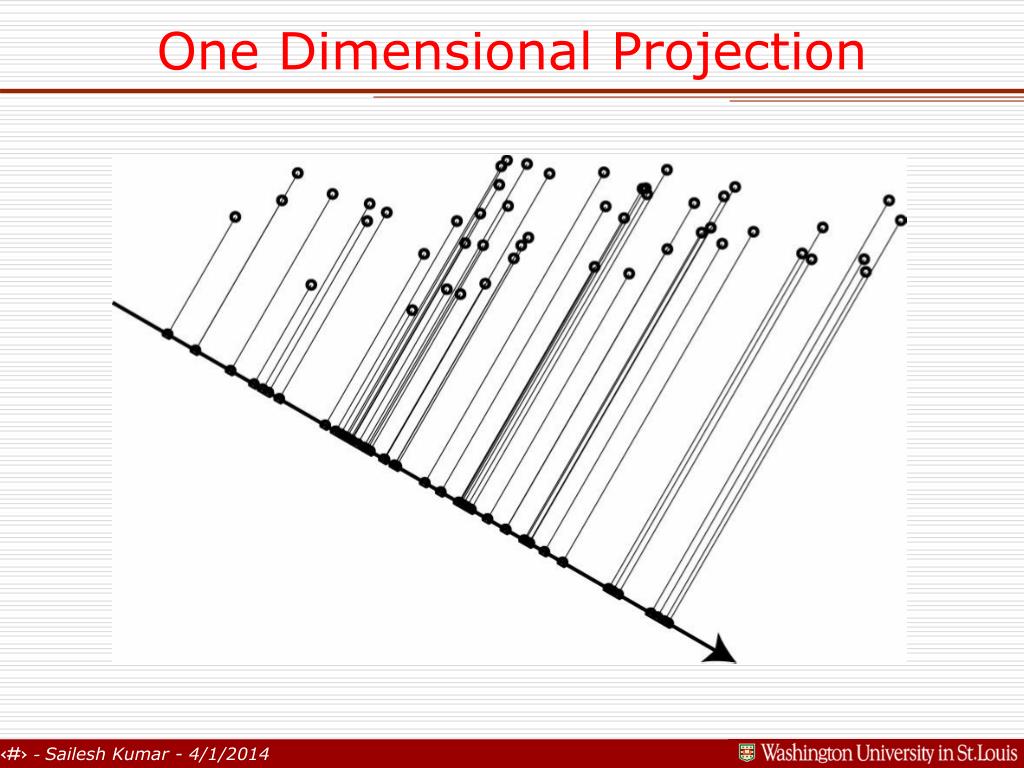

principal component analysis7

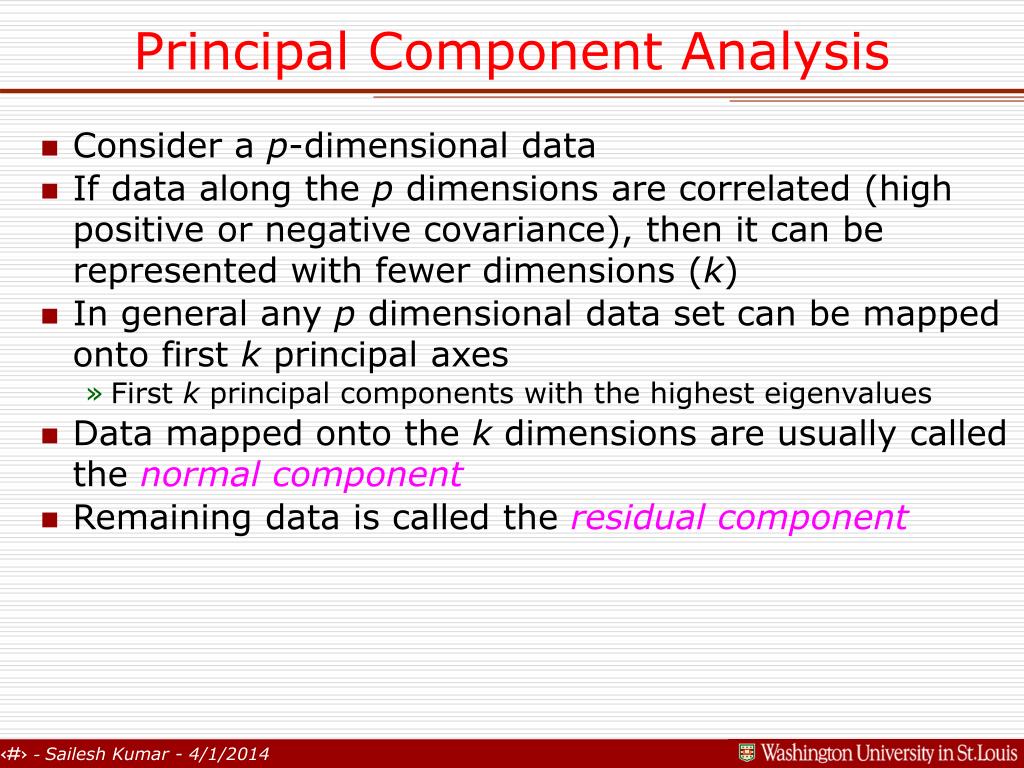

Principal Component Analysis
  • Consider a p-dimensional data
  • If data along the p dimensions are correlated (high positive or negative covariance), then it can be represented with fewer dimensions (k)
  • In general any p dimensional data set can be mapped onto first k principal axes
    • First k principal components with the highest eigenvalues
  • Data mapped onto the k dimensions are usually called the normal component
  • Remaining data is called the residual component
od flows

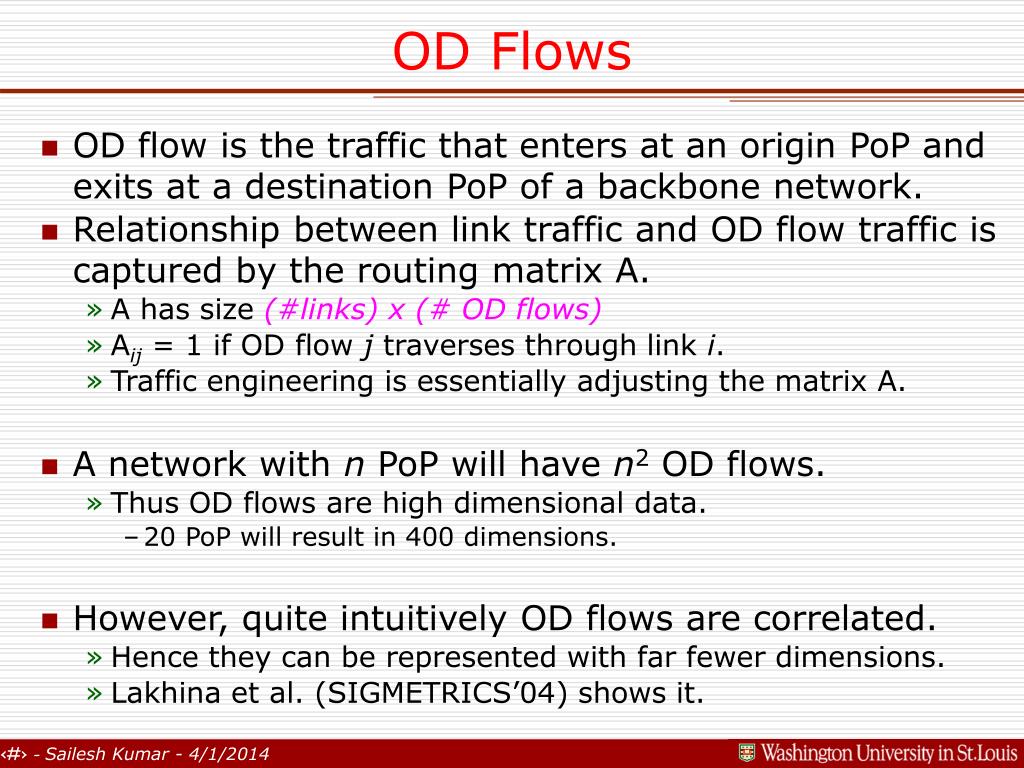

OD Flows
  • OD flow is the traffic that enters at an origin PoP and exits at a destination PoP of a backbone network.
  • Relationship between link traffic and OD flow traffic is captured by the routing matrix A.
    • A has size (#links) x (# OD flows)
    • Aij = 1 if OD flow j traverses through link i.
    • Traffic engineering is essentially adjusting the matrix A.
  • A network with n PoP will have n2 OD flows.
    • Thus OD flows are high dimensional data.
      • 20 PoP will result in 400 dimensions.
  • However, quite intuitively OD flows are correlated.
    • Hence they can be represented with far fewer dimensions.
    • Lakhina et al. (SIGMETRICS’04) shows it.
od flows9
OD Flows

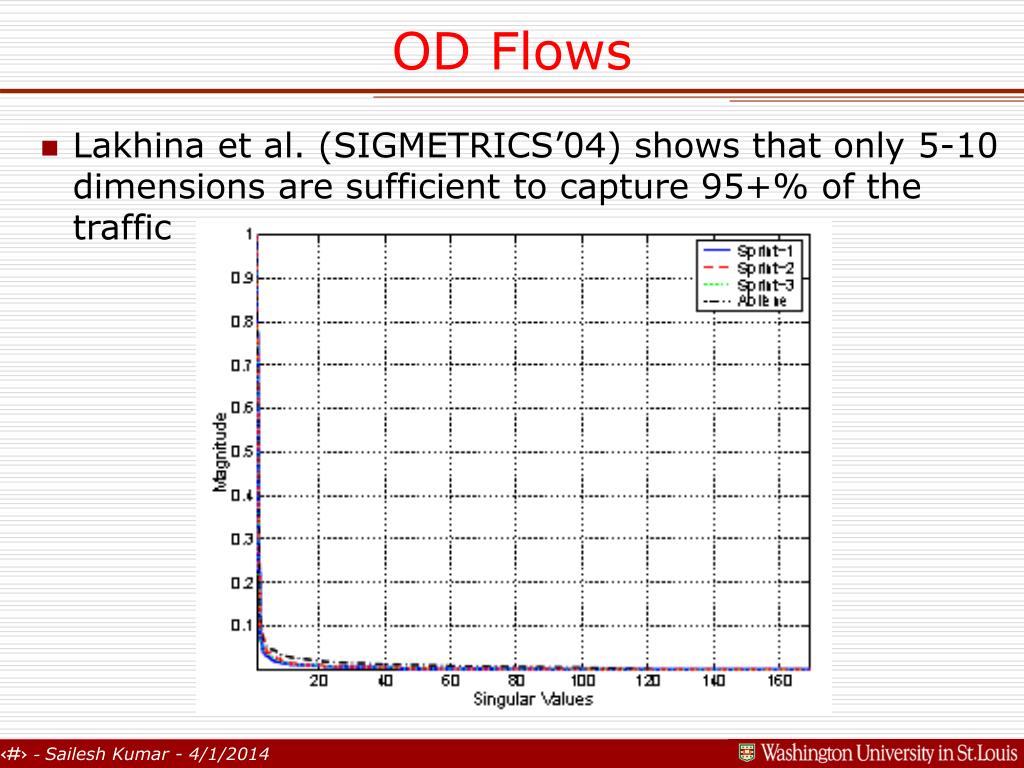

  • Lakhina et al. (SIGMETRICS’04) shows that only 5-10 dimensions are sufficient to capture 95+% of the traffic
why care about od flows

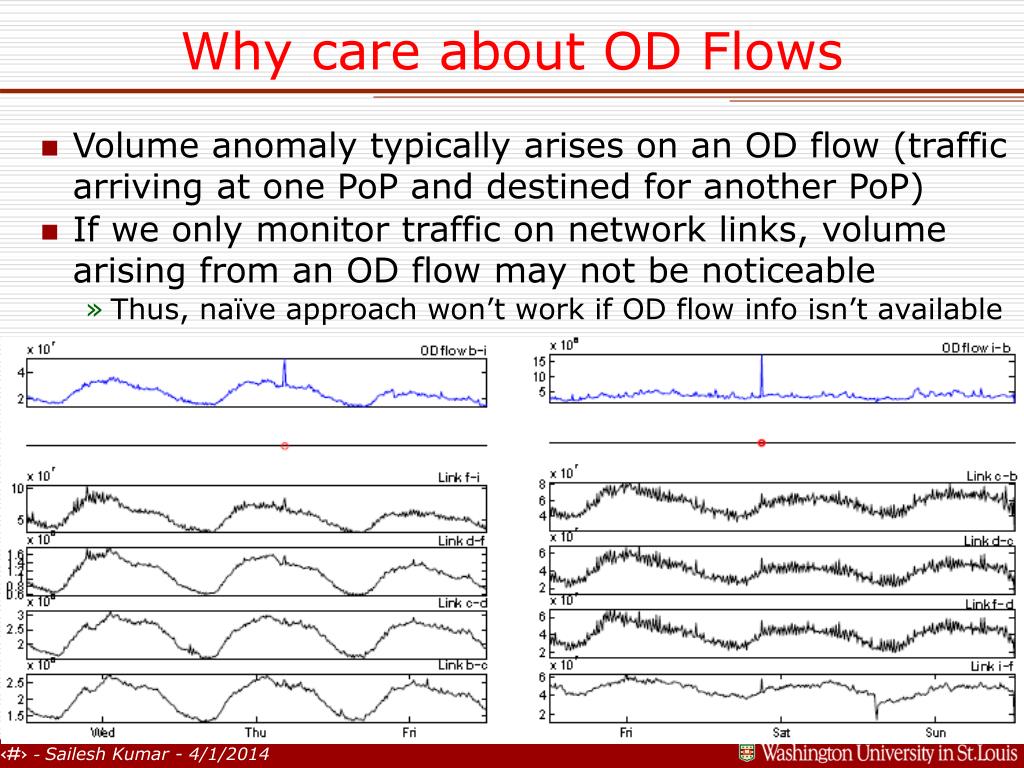

Why care about OD Flows
  • Volume anomaly typically arises on an OD flow (traffic arriving at one PoP and destined for another PoP)
  • If we only monitor traffic on network links, volume arising from an OD flow may not be noticeable
    • Thus, naïve approach won’t work if OD flow info isn’t available
subspace analysis of link traffic

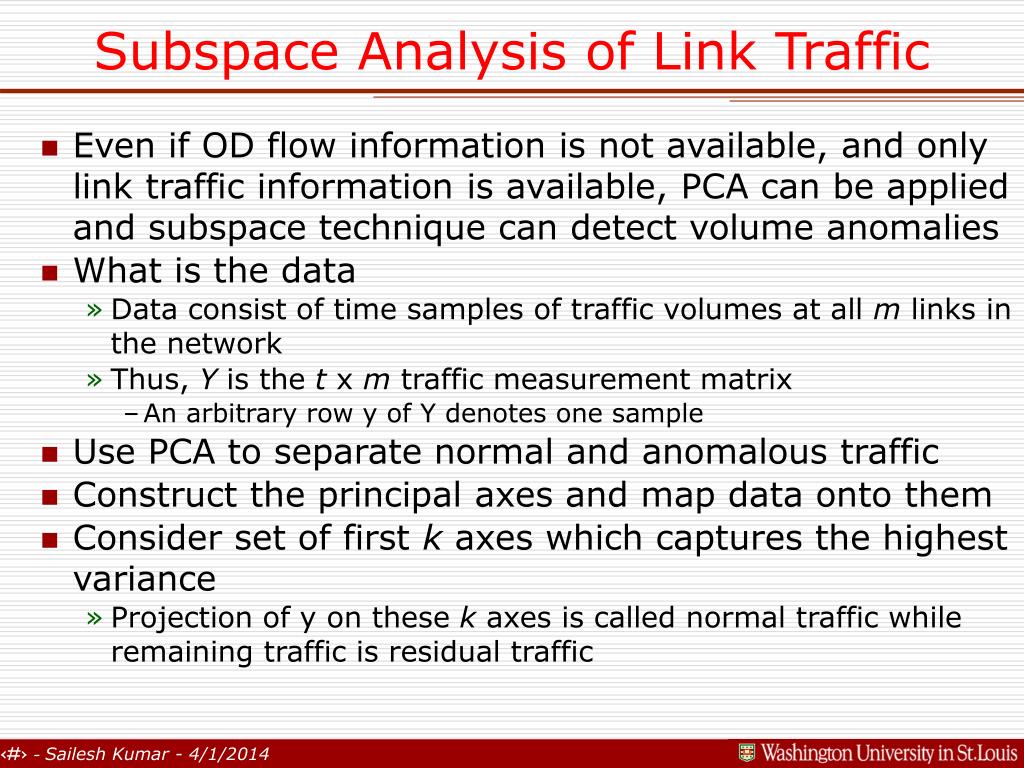

Subspace Analysis of Link Traffic
  • Even if OD flow information is not available, and only link traffic information is available, PCA can be applied and subspace technique can detect volume anomalies
  • What is the data
    • Data consist of time samples of traffic volumes at all m links in the network
    • Thus, Y is the t x m traffic measurement matrix
      • An arbitrary row y of Y denotes one sample
  • Use PCA to separate normal and anomalous traffic
  • Construct the principal axes and map data onto them
  • Consider set of first k axes which captures the highest variance
    • Projection of y on these k axes is called normal traffic while remaining traffic is residual traffic
subspace analysis of link traffic12

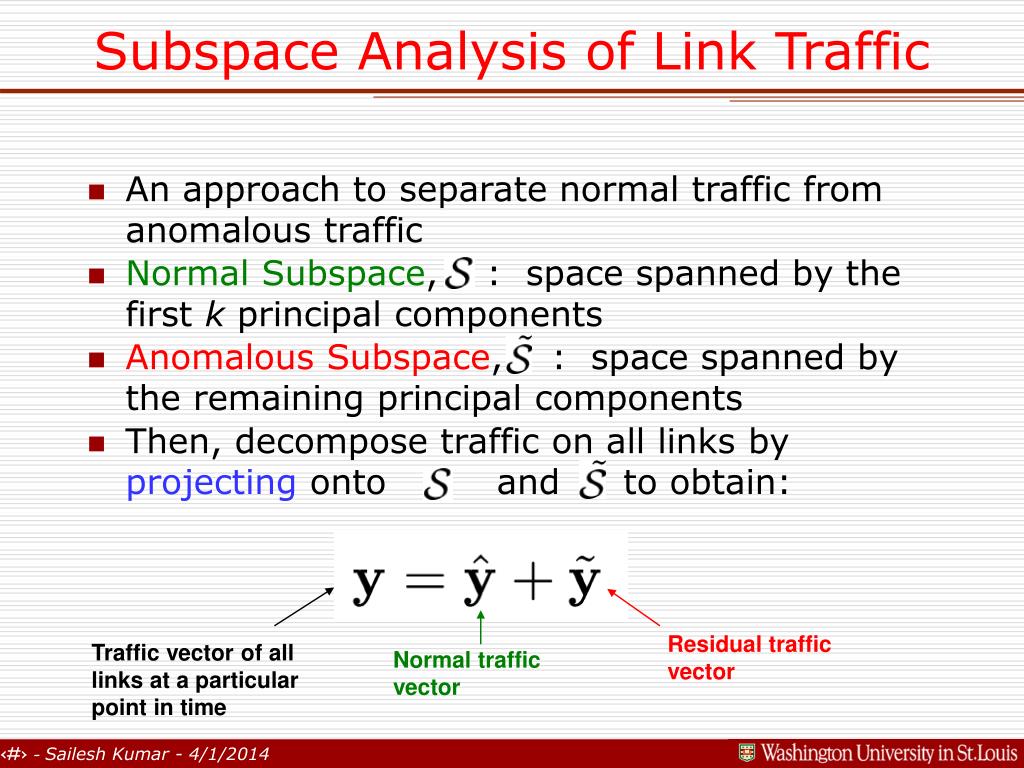

Subspace Analysis of Link Traffic
  • An approach to separate normal traffic from anomalous traffic
  • Normal Subspace, : space spanned by the first k principal components
  • Anomalous Subspace, : space spanned by the remaining principal components
  • Then, decompose traffic on all links by projecting onto and to obtain:

Residual trafficvector

Traffic vector of all links at a particular point in time

Normal trafficvector

subspace analysis results

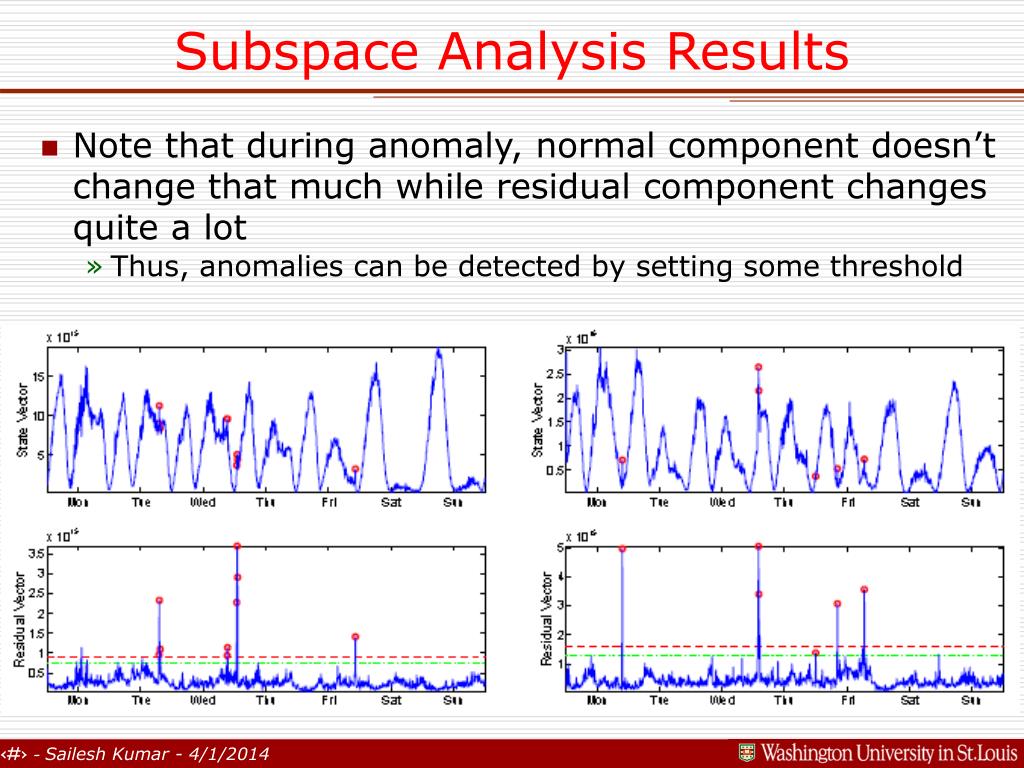

Subspace Analysis Results
  • Note that during anomaly, normal component doesn’t change that much while residual component changes quite a lot
    • Thus, anomalies can be detected by setting some threshold
background over

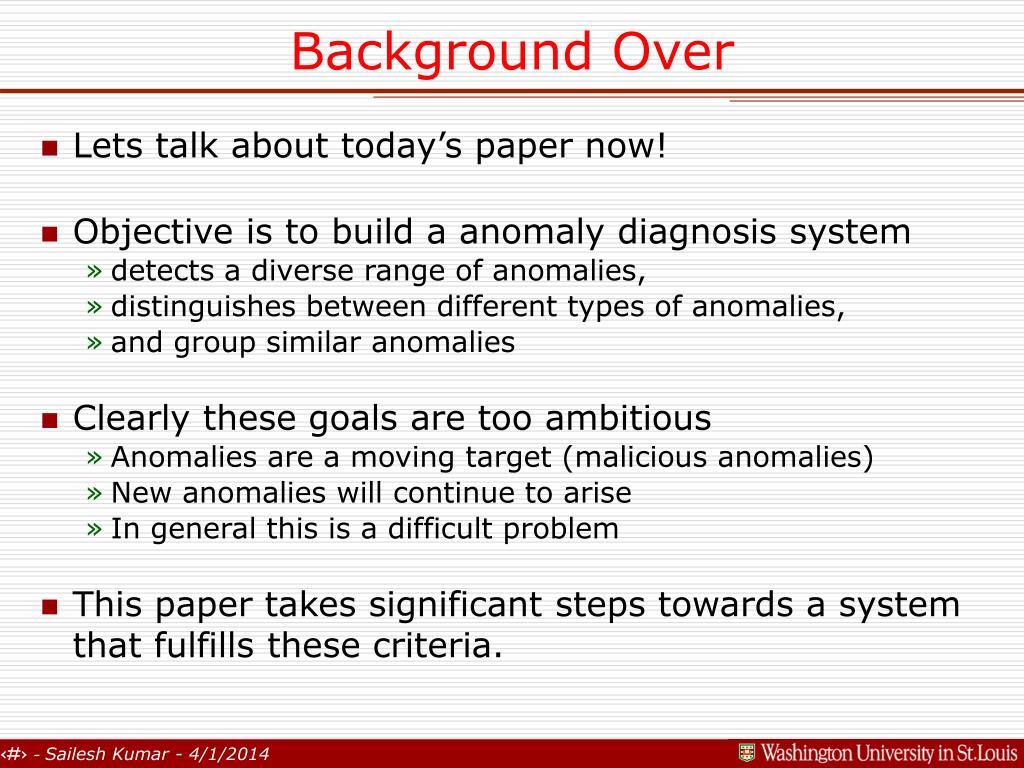

Background Over
  • Lets talk about today’s paper now!
  • Objective is to build a anomaly diagnosis system
    • detects a diverse range of anomalies,
    • distinguishes between different types of anomalies,
    • and group similar anomalies
  • Clearly these goals are too ambitious
    • Anomalies are a moving target (malicious anomalies)
    • New anomalies will continue to arise
    • In general this is a difficult problem
  • This paper takes significant steps towards a system that fulfills these criteria.
typical characteristics of anomaly
Typical Characteristics of Anomaly
  • Most Anomalies induce a change in distributional aspects of packet header fields (called features).
    • DOS attack – multiple source IP address concentrated on a single destination IP address
    • Network scan – dispersed distribution of destination addresses
    • Most worms/viruses also induce some change in distribution of certain features
    • However these changes can be very subtle and mining them is like searching for needles in a haystack
  • Unlike many previous approach, this paper aims to detect events which disturb the distribution of traffic features rather than traffic volume
limitations of volume based detection
Limitations of Volume Based Detection
  • Port scan anomaly (traffic feature changes, however traffic volume remains more or less the same)

We can use entropy to

capture the variations

in the traffic feature

  • Takes value 0 when distribution is maximally concentrated.
  • Takes value log2N when distribution is maximally dispersed.
effectiveness of feature entropy

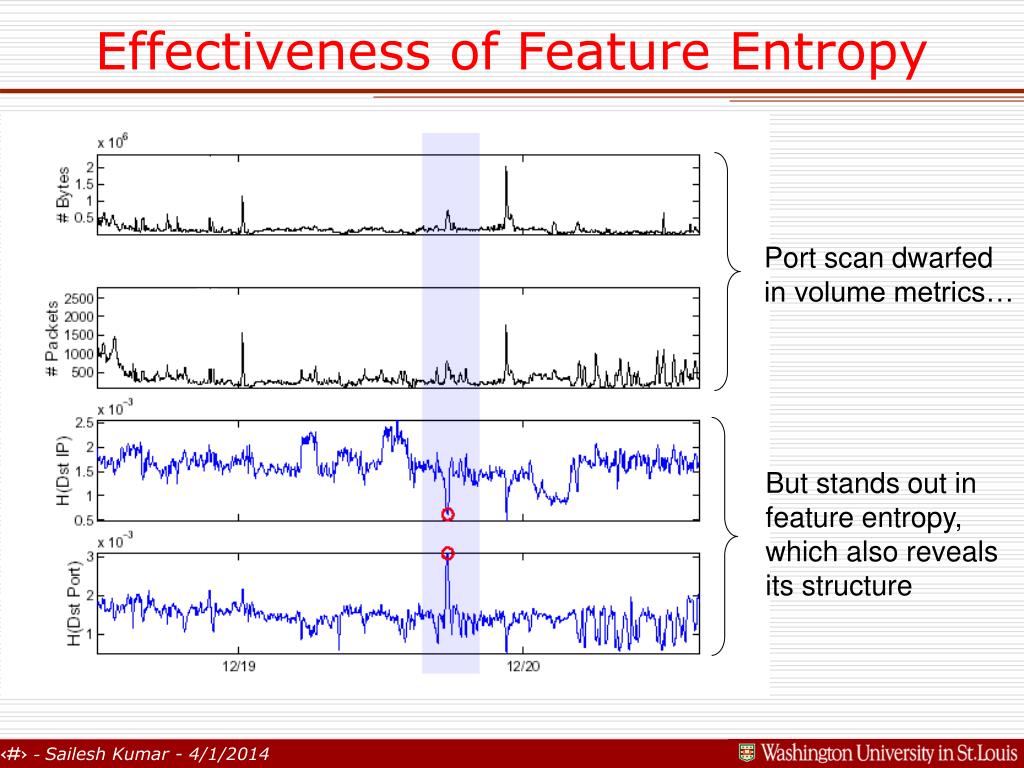

Effectiveness of Feature Entropy

Port scan dwarfed

in volume metrics…

But stands out in feature entropy, which also revealsits structure

entropy based scheme

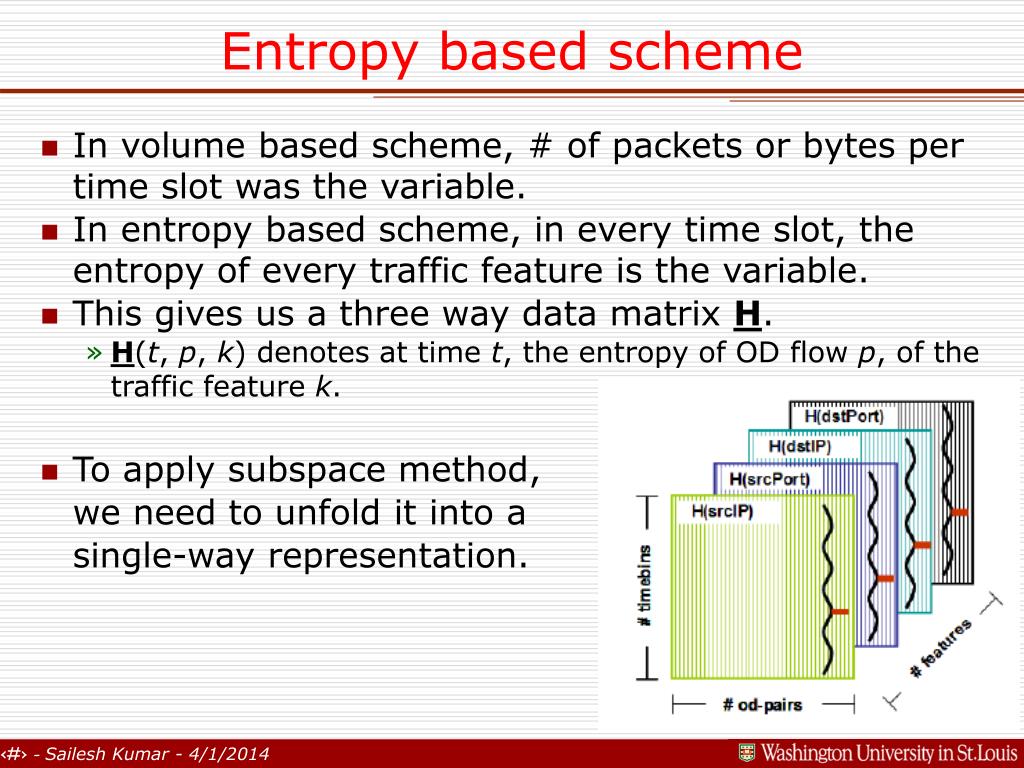

Entropy based scheme
  • In volume based scheme, # of packets or bytes per time slot was the variable.
  • In entropy based scheme, in every time slot, the entropy of every traffic feature is the variable.
  • This gives us a three way data matrix H.
    • H(t, p, k) denotes at time t, the entropy of OD flow p, of the traffic feature k.
  • To apply subspace method,

we need to unfold it into a

single-way representation.

multi way to single way

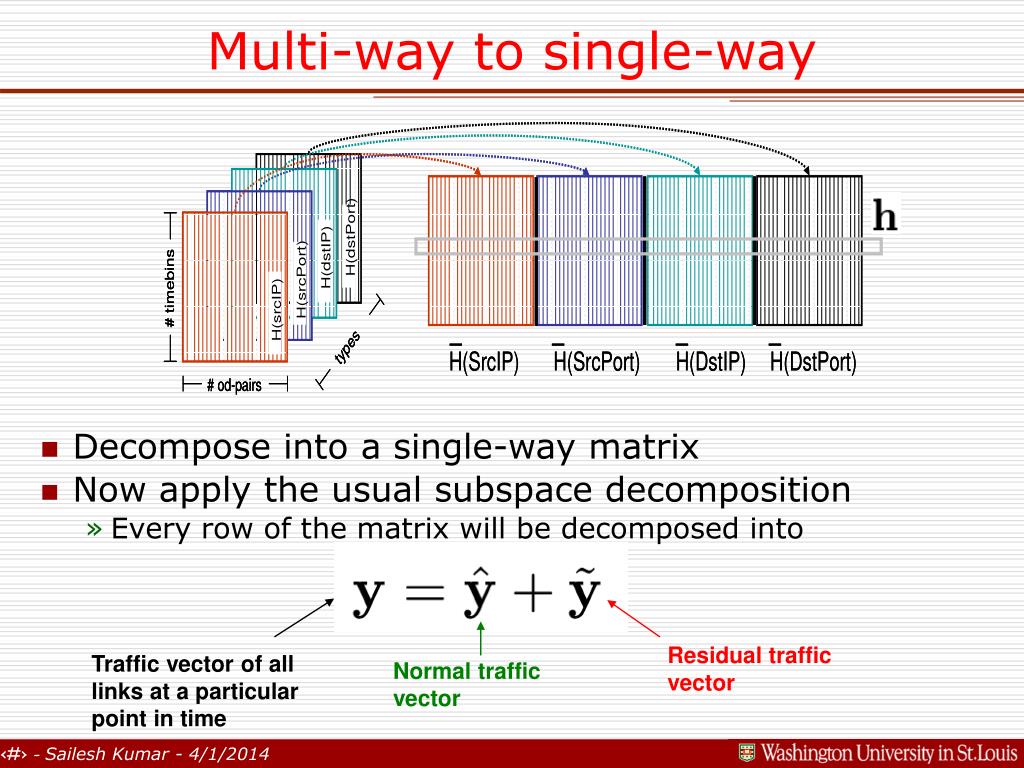

Multi-way to single-way
  • Decompose into a single-way matrix
  • Now apply the usual subspace decomposition
    • Every row of the matrix will be decomposed into

Residual trafficvector

Traffic vector of all links at a particular point in time

Normal trafficvector

benefits of using features od flow

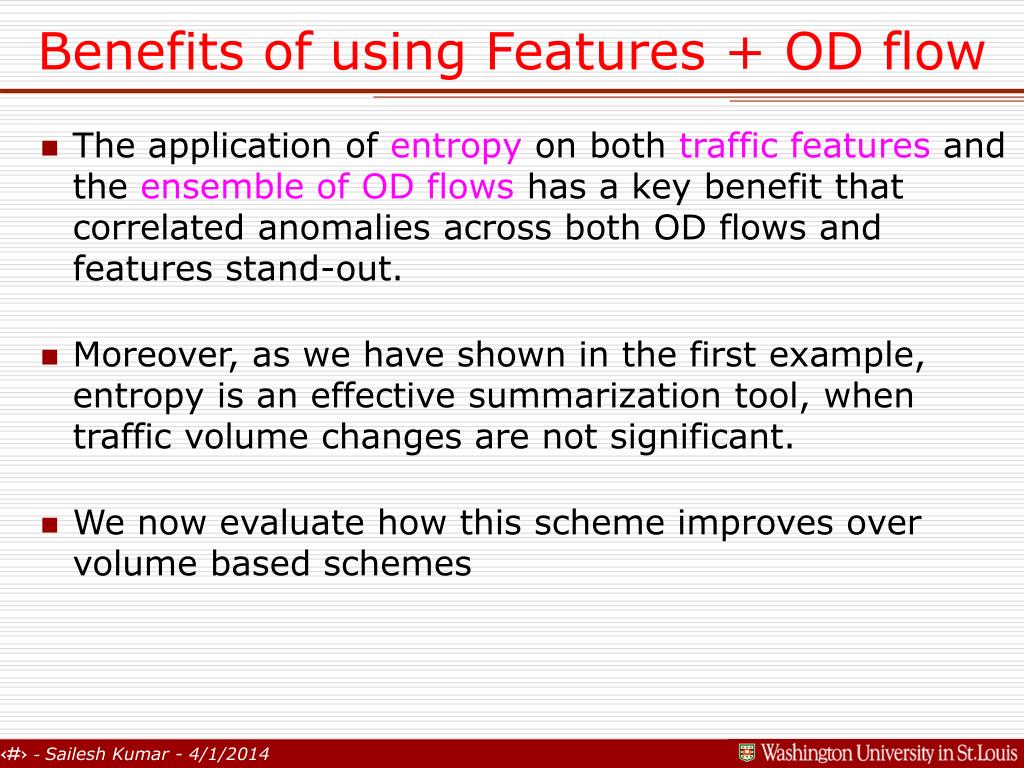

Benefits of using Features + OD flow
  • The application of entropy on both traffic features and the ensemble of OD flows has a key benefit that correlated anomalies across both OD flows and features stand-out.
  • Moreover, as we have shown in the first example, entropy is an effective summarization tool, when traffic volume changes are not significant.

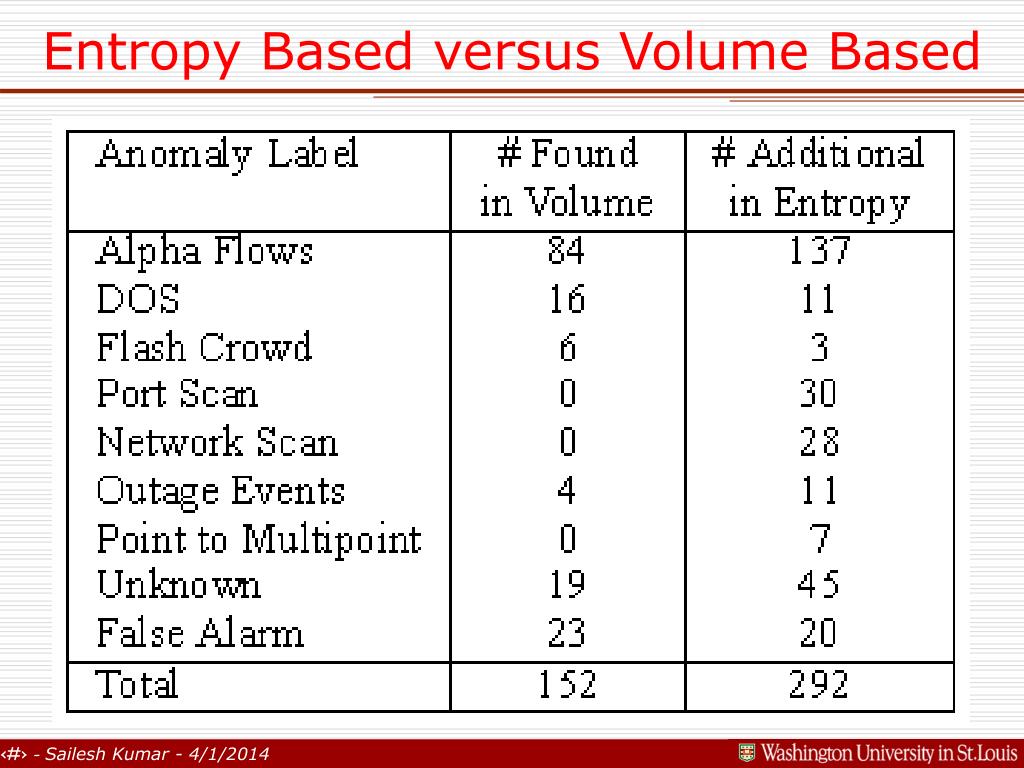

  • We now evaluate how this scheme improves over volume based schemes

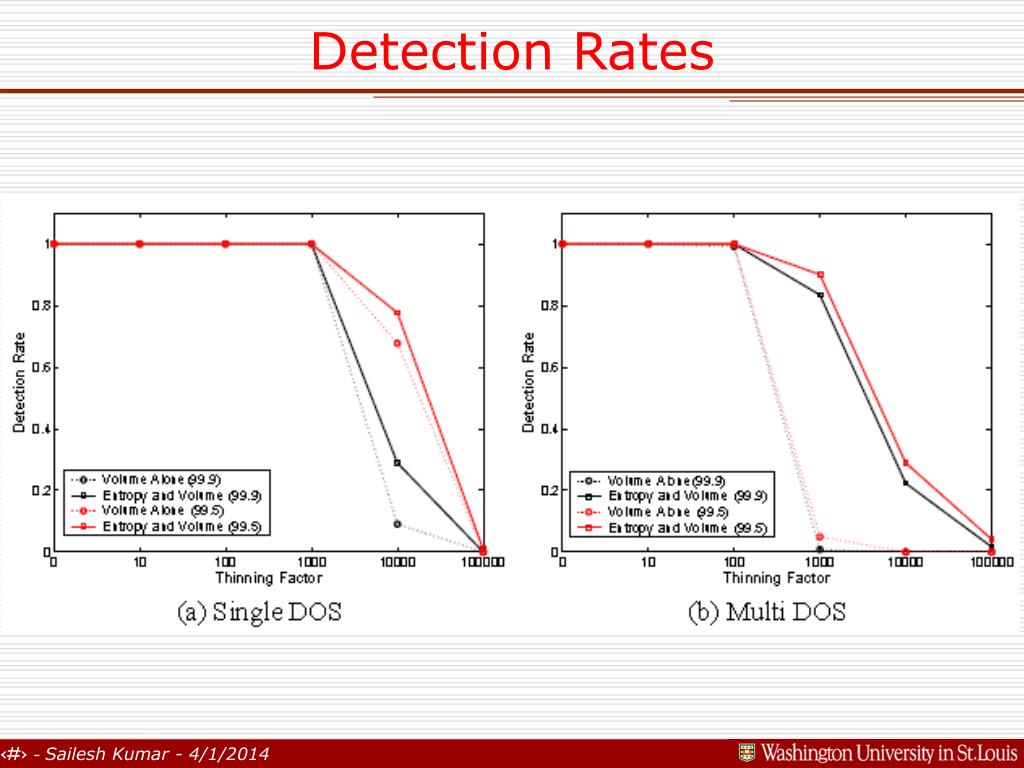

anomaly classification

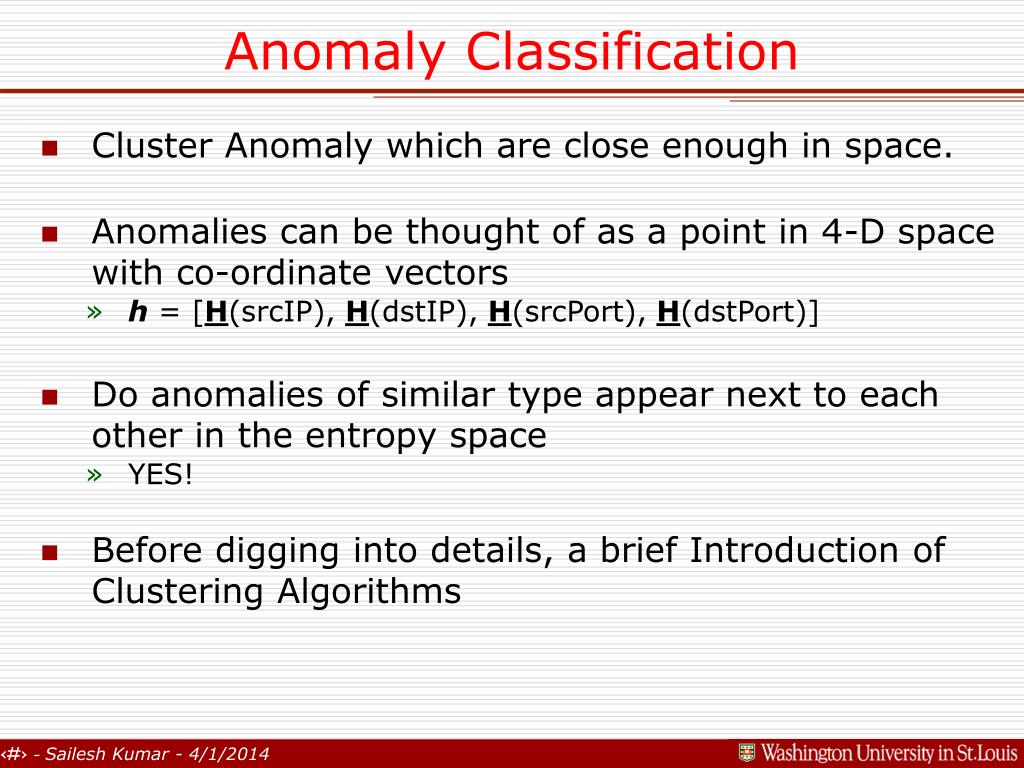

Anomaly Classification
  • Cluster Anomaly which are close enough in space.
  • Anomalies can be thought of as a point in 4-D space with co-ordinate vectors
    • h = [H(srcIP), H(dstIP), H(srcPort), H(dstPort)]
  • Do anomalies of similar type appear next to each other in the entropy space
    • YES!
  • Before digging into details, a brief Introduction of Clustering Algorithms
clustering algorithms
Clustering Algorithms
  • Objective is to cluster close enough data points
  • Two general approach to cluster
    • K-means and Hierarchical
  • K-means is one of the simplest unsupervised learning algorithm.
    • Place K points into the space represented by the data that are being clustered. These points form initial group centroids.
    • Assign each object to the group that has the closest centroid.
    • When all objects have been assigned, recalculate the positions of the K centroids.
    • Repeat Steps 2 and 3 until the centroids no longer move.
  • Hierarchical approach begins with one cluster and breaks it into multiple clusters OR begins with n clusters and merge different clusters
slide25

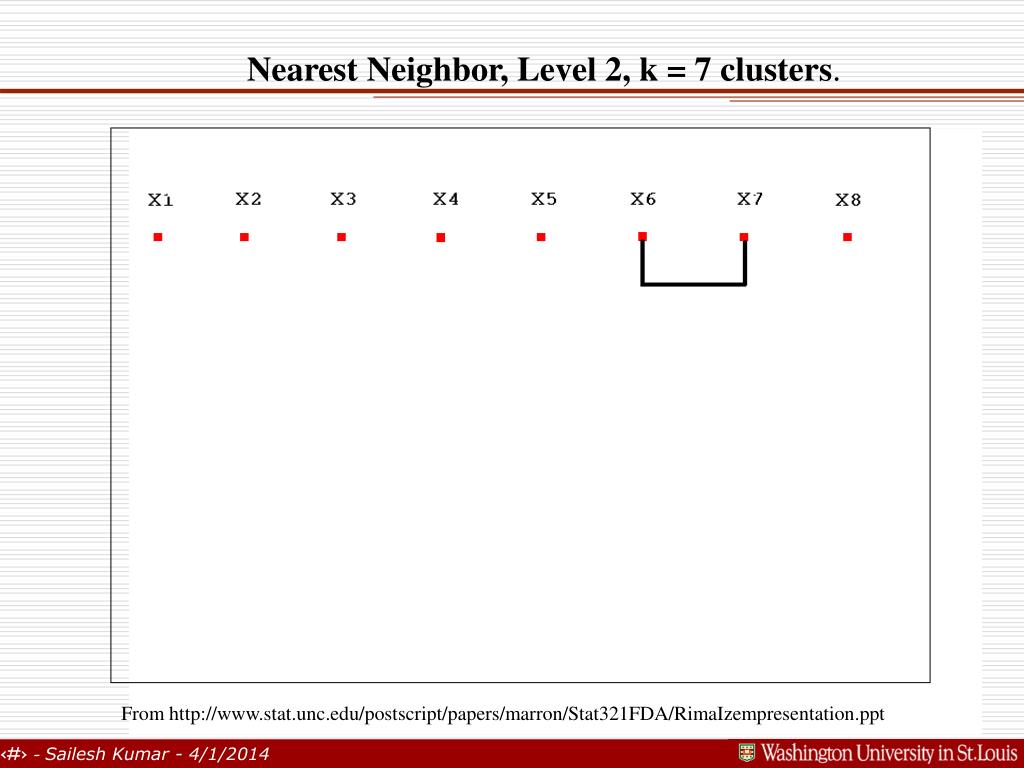

Nearest Neighbor, Level 2, k = 7 clusters.

From http://www.stat.unc.edu/postscript/papers/marron/Stat321FDA/RimaIzempresentation.ppt

slide26

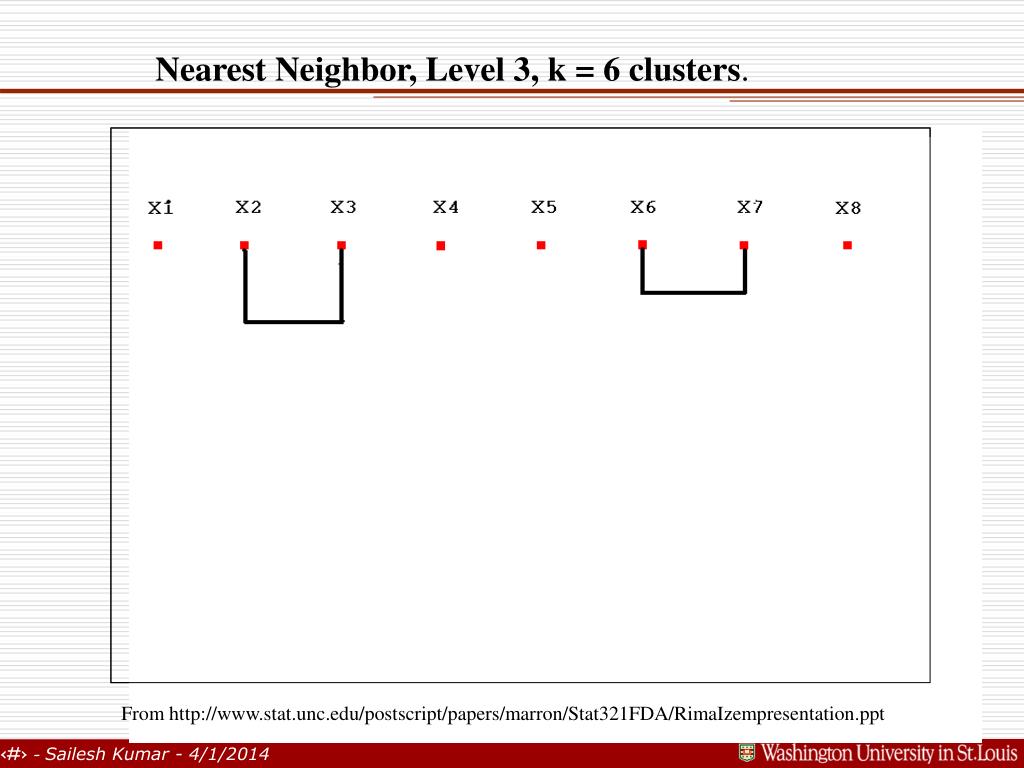

Nearest Neighbor, Level 3, k = 6 clusters.

From http://www.stat.unc.edu/postscript/papers/marron/Stat321FDA/RimaIzempresentation.ppt

slide27

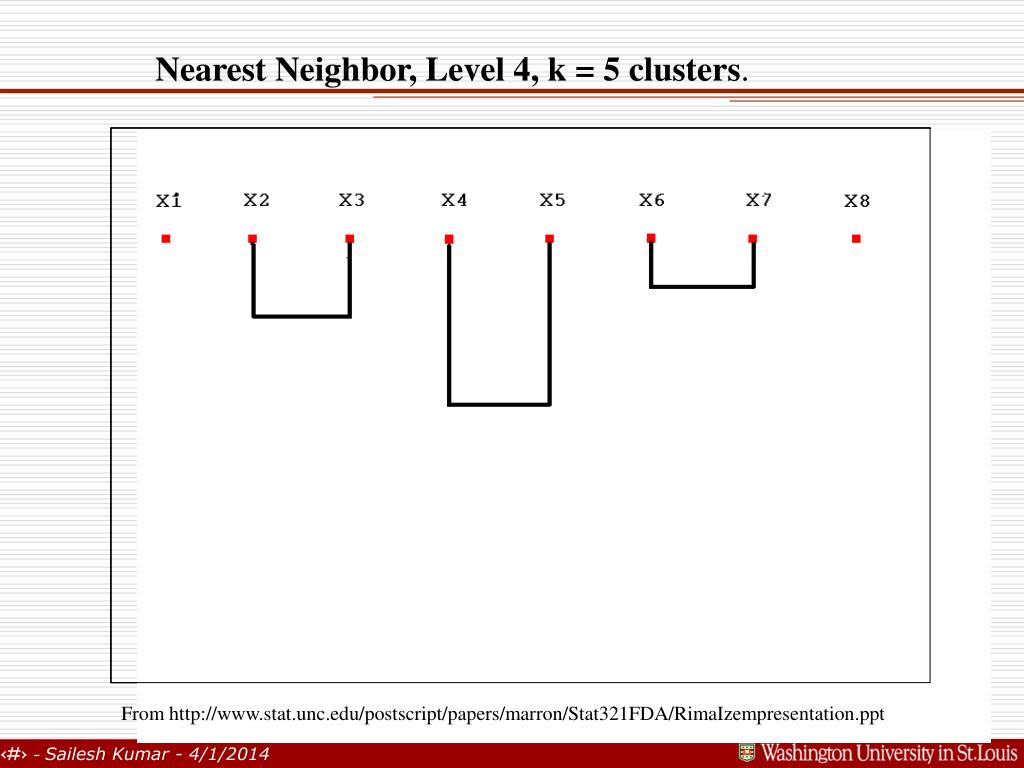

Nearest Neighbor, Level 4, k = 5 clusters.

From http://www.stat.unc.edu/postscript/papers/marron/Stat321FDA/RimaIzempresentation.ppt

slide28

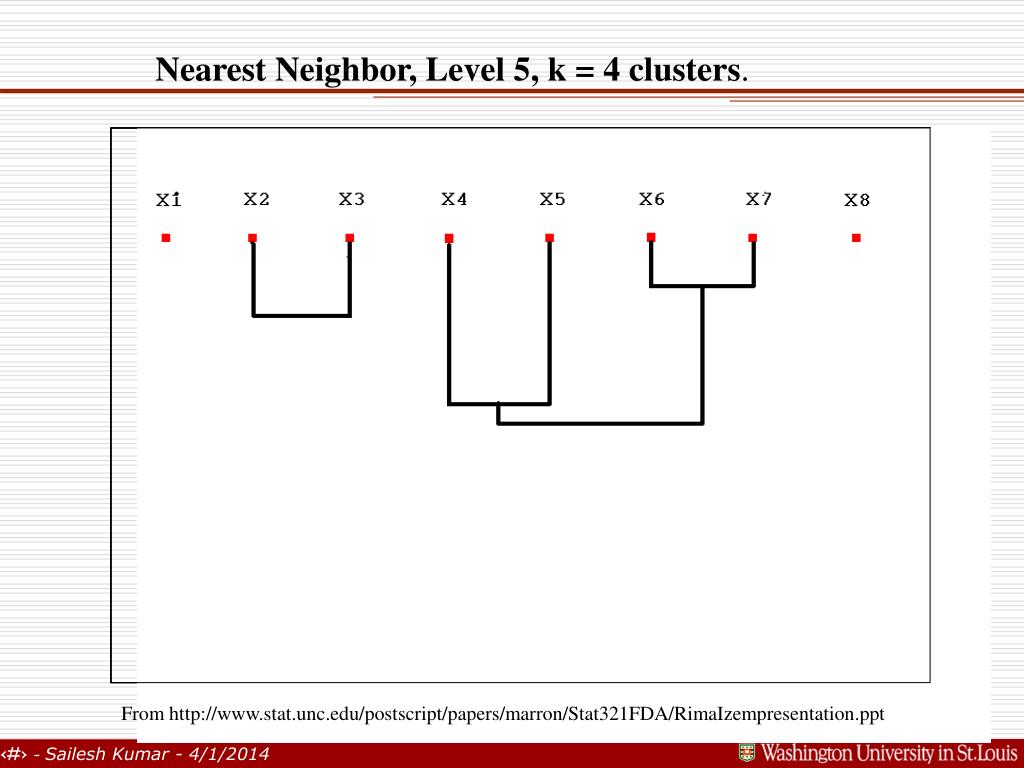

Nearest Neighbor, Level 5, k = 4 clusters.

From http://www.stat.unc.edu/postscript/papers/marron/Stat321FDA/RimaIzempresentation.ppt

slide29

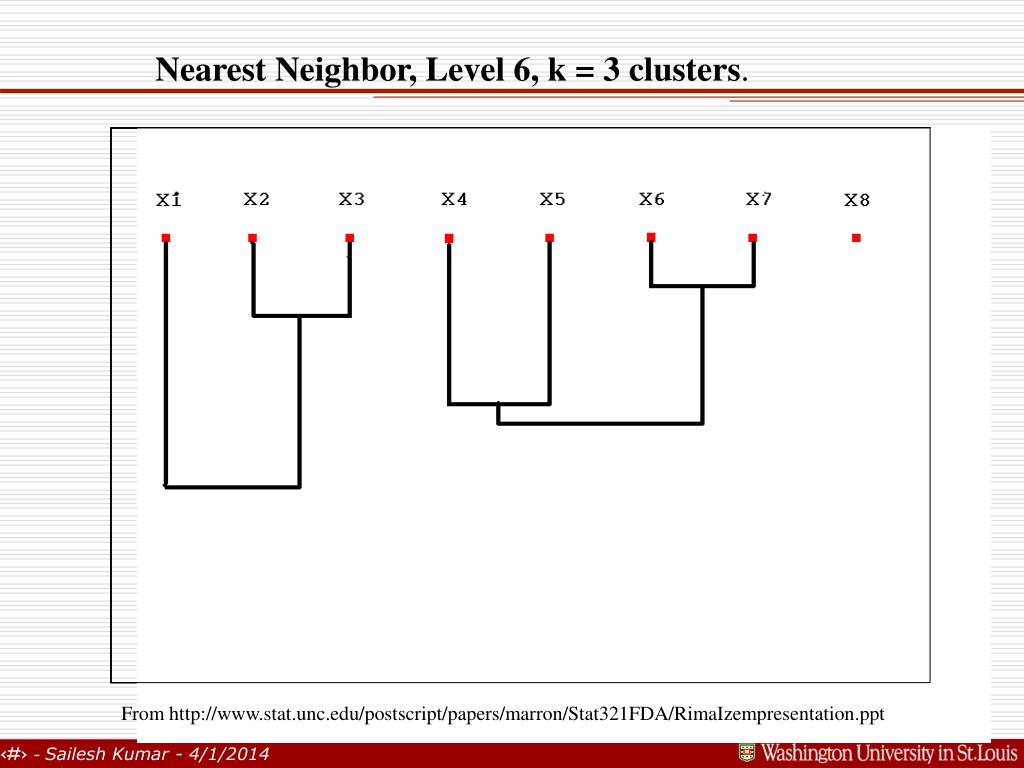

Nearest Neighbor, Level 6, k = 3 clusters.

From http://www.stat.unc.edu/postscript/papers/marron/Stat321FDA/RimaIzempresentation.ppt

slide30

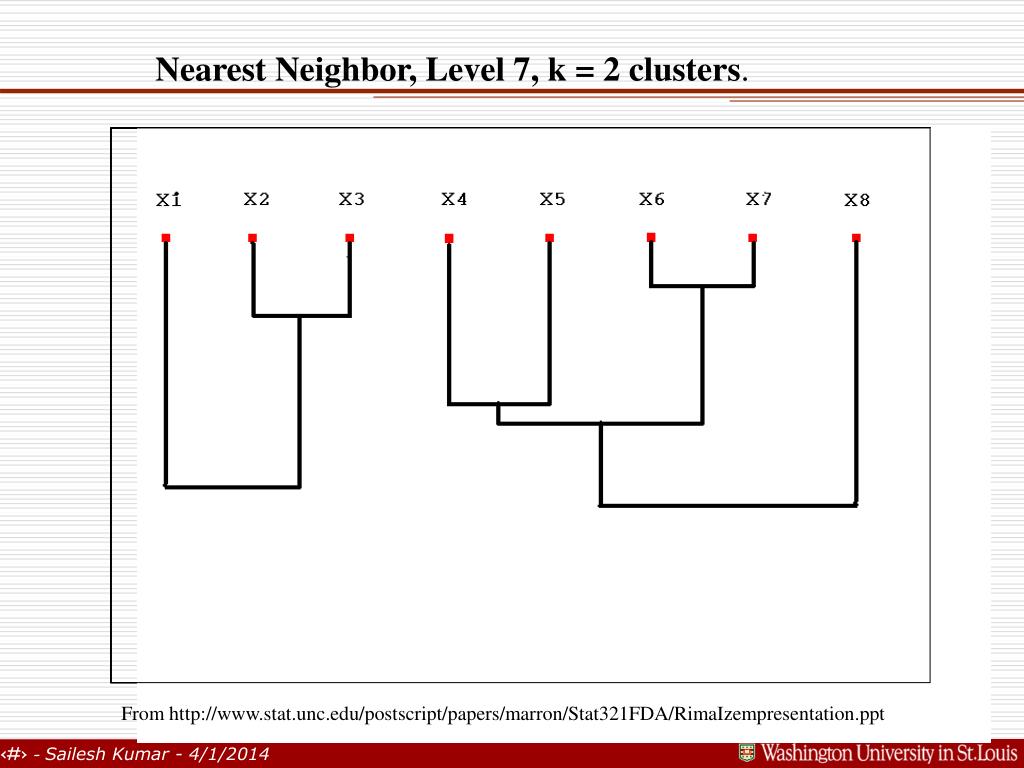

Nearest Neighbor, Level 7, k = 2 clusters.

From http://www.stat.unc.edu/postscript/papers/marron/Stat321FDA/RimaIzempresentation.ppt

slide31

Nearest Neighbor, Level 8, k = 1 cluster.

From http://www.stat.unc.edu/postscript/papers/marron/Stat321FDA/RimaIzempresentation.ppt

clustering anomalies
Clustering Anomalies

Known Labels

Cluster Results

Legend

Code Red Scanning

Single source DOS attack

Multi source DOS attack

(DstIP)

(SrcIP)

(SrcIP)

Summary: Correctly classified 292 of 296 injected anomalies

clustering anomalies33
Clustering Anomalies
  • Results of both clustering algorithms are consistent
  • Heuristics identify about 10 clusters in dataset

(DstIP)

(SrcIP)

(SrcPort)
