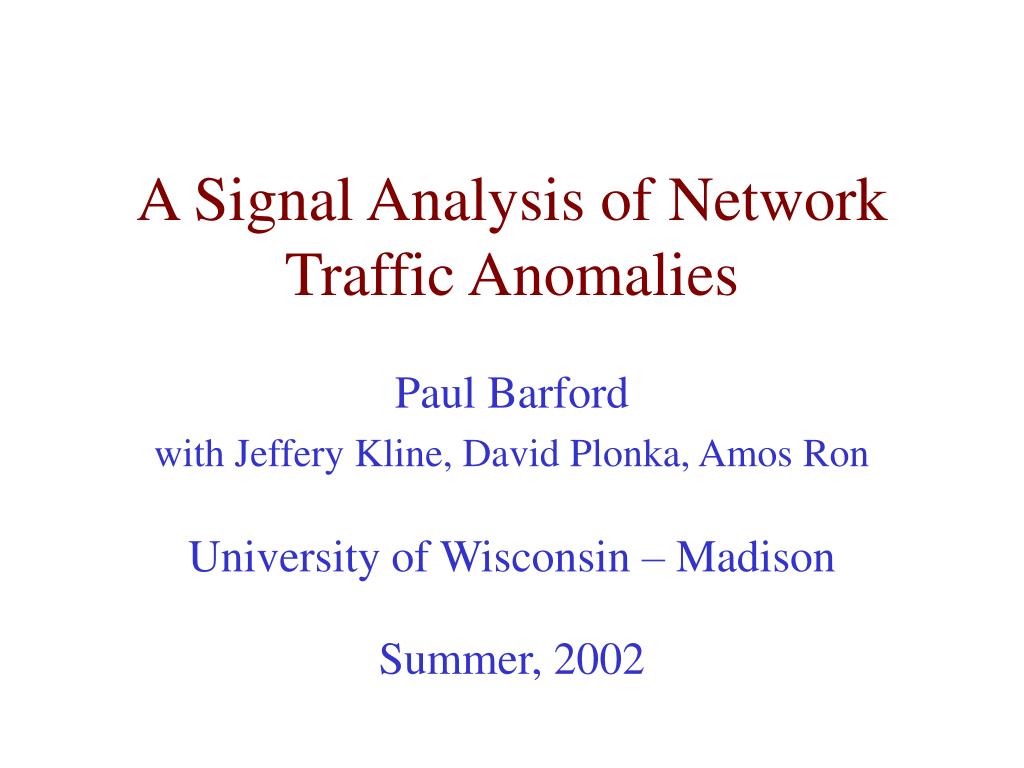

A Signal Analysis of Network Traffic Anomalies

Paul Barford

with Jeffery Kline, David Plonka, Amos Ron

University of Wisconsin – Madison

Summer, 2002

Motivation l.jpg

  • Traffic anomalies are a fact of life in computer networks

    • Outages, attacks, etc…

  • Anomaly detection and identification is challenging

    • Operators typically monitor by eye using SNMP or IP flows

      • Obviously, this does not scale!

    • Simple thresholding is ineffective

    • Some anomalies are obvious, other are not

  • Characteristics of anomalous behavior in IP traffic are not well understood

    • Do same types of anomalies have same characteristics?

    • Can characteristics be effectively used in detection systems?

Introduction l.jpg

  • Objective: Improve our understanding network traffic anomalies

  • Approach: Wavelet analysis of data set that includes IP flow data, SNMP data and a catalog of observed anomalies

  • Method: Integrated Measurement Analysis Platform for Internet Traffic (IMAPIT)

  • Results: We demonstrate how anomalies can be exposed using wavelets and develop new method for exposing short-lived events

Related work l.jpg
Related Work

  • Network traffic characterization

    • Eg. Caceres89, Leland93, Paxson97, Zhang01

      • Focus on typical behavior

    • Abry98 use wavelets to analyze LRD traffic

  • Fault and anomaly detection techniques

    • Eg. Feather93, Brutlag00

      • Focus on thresholds and time series models

    • Eg. Paxson99

      • Rule based tool for intrusion detection

    • Eg. Moore01

      • Backscatter technique can be used to identify DoS attacks

    • Eg. Huang01

      • Wavelet-based approach to detecting network performance problems

Simple network management protocol l.jpg
Simple Network Management Protocol

  • SNMP is the standard protocol for monitoring/managing networked systems

  • SNMP defines a set of MIB (management information base) data exported from routers

    • RFC2863

  • We sample High Capacity Interface using MRTG (Multi-Router Traffic Grapher) at 5 minute intervals

    • Archive byte and packet traffic in each direction

    • 64-bit counters on each of 15 WAN links

  • SNMP count precision is yet to be determined…

Ip flows l.jpg
IP Flows

  • An IP Flow is defined as a unidirectional series of packets between source/dest IP/port pair over a period of time

    • Exported by Lightweight Flow Accounting Protocol (LFAP) enabled routers (Cisco’s NetFlow, Juniper cflowd flow export)

  • We use FlowScan [Plonka00] to collect and post-process IP flow data collected at 5 minute intervals

    • Combines flow collection engine, database, visulaization tool

    • Provides a near real-time visualization of network traffic

    • Breaks down traffic into well known service or application

{SRC_IP/Port,DST_IP/Port,Pkts,Bytes,Start/End Time,TCP Flags,IP Prot …}

Our approach to data gathering l.jpg
Our Approach to Data Gathering

  • Consider anomalies in IP flow and SNMP data

    • Collected at UW border router (Juniper M10)

    • Archive of ~6 months worth of data (packets, bytes, flows)

    • Includes catalog of anomalies (after-the-fact analysis)

  • Group observed anomalies into four categories

    • Network anomalies (41)

      • Steep drop offs in service followed by quick return to normal behavior

    • Flash crowd anomalies (4)

      • Steep increase in service followed by slow return to normal behavior

    • Attack anomalies (46)

      • Steep increase in flows in one direction followed by quick return to normal behavior

    • Measurement anomalies (18)

      • Short-lived anomalies which are not network anomalies or attacks

Our approach to analysis l.jpg
Our Approach to Analysis

  • Wavelets provide a means for describing time series data that considers both frequency and time

    • Particularly useful for characterizing data with sharp spikes and discontinuities

      • More robust than Fourier analysis which only shows what frequencies exist in a signal

    • Tricky to determine which wavelets provide best resolution of signals in data

  • We use tools developed at UW which together make up IMAPIT

    • FlowScan software

    • The IDR Framenet software

Our wavelet system l.jpg
Our Wavelet System

  • After evaluating different candidates we selected a wavelet system called Pseudo Splines(4,1) Type 2.

    • A framelet system developed by Daubechies et al. ‘00

    • Very good frequency localization properties

  • Three output signals are extracted from input

    • Low Frequency (L): synthesis of all wavelet coefficients from level 9 and up

    • Mid Frequency (M): synthesis of wavelet coefficients 6, 7, 8

    • High Frequency (H): synthesis of wavelet coefficients 1 to 5

      • Thresholding (set to zero all coefficients whose absolute value is below a threshold) is used on these coefficients

Anomaly detection via deviation score l.jpg
Anomaly Detection via Deviation Score

  • We develop an automated means for identifying short-lived anomalies based on variability in H and M signals

    • Compute local variability (using specified window) of H and M parts of signal

    • Combine local variability of H and M signals (using a weighted sum) and normalize by total variability to get deviation score V

    • Apply threshold to V then measure peaks

  • Our analysis shows that V peaks over 2.0 indicate short-lived anomalies with high confidence

    • We threshold at V = 1.25 and set window size to ~3 hours

Deviation score evaluation l.jpg
Deviation Score Evaluation

  • How effective is deviation score at detecting anomalies?

    • Compare versus set of 39 anomalies

      • Set is unlikely to be complete so we don’t treat false-positives

    • Compare versus Holt-Winters Forecasting

      • Sophisticated time series technique

      • Requires some configuration

  • Holt-Winters reported many more positives and sometimes oscillated between values

Conclusion and next steps l.jpg
Conclusion and Next Steps

  • We present an evaluation of signal characteristics of network traffic anomalies

    • Using IP flow and SNMP data collected at UW border router

      • 106 anomalies have been grouped into four categories

    • IMAPIT developed to apply wavelet analysis to data

    • Deviation score developed to automate anomaly detection

  • Results

    • Characteristics of anomalies exposed using different filters and data

    • Deviation score is effective detection method

  • Future

    • Development of anomaly classification methods

    • Application of results in (distributed) detection systems
