The Rock Cycle

NASA video. The Rock Cycle. The three types of rocks Igneous sedimentary Metamorphic A ll types of rock are subject to processes that change one rock type into another. Igneous Rocks. Formed from cooled and solidified magma Intrustive

isabel
Download Presentation

The Rock Cycle

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. NASA video The Rock Cycle

  2. The three types of rocks • Igneous • sedimentary • Metamorphic All types of rock are subject to processes that change one rock type into another.

  3. Igneous Rocks Formed from cooled and solidified magma • Intrustive • formed from the cooling of magma within the earth’s crust • Cools and hardens slowly • Coarse grained- forms large, well-developed crystals • Extrusive • melted rock that hardens on the earth’s surface • Lava cools rapidly • fine grained rocks

  4. Composition of Igneous Rocks • Felsic- Rocks in the granite family • Light colored • High silica content • Low magnesium and iron content • Mafic- Rocks in the basalt family • dark colored • lower silica content • high mg and fe content • Andesitic - Medium Silica • Green, grey, or brown

  5. Sedimentary Rocks • rock formed from the debris of both other rocks and living matter. • 90% of the earth’s crust is made from igneous rock, but 75% of the world’s land surface is covered with thin layers of debris or sediments. • These sediments settle on the beds of oceans, lakes, and rivers, and recompacted over millions of years to form sedimentary rock.

  6. How are Sedimentary Rocks Formed? • DIAGENESIS- • the process that turns loose sediments into rock • COMPACTION- • the slow squeezing of sediment to form hard rock • CEMENTATION- • The binding together of compacted sediments by chemicals like calcite, silica, and iron

  7. 3 types of Sedimentary Rock: • CLASTIC- form from rock fragments weathered and eroded by glaciers, wind, rivers, and waves. • ORGANIC- rock made from the remains of plants and animals • CHEMICAL- rock made from chemicals dissolved in water

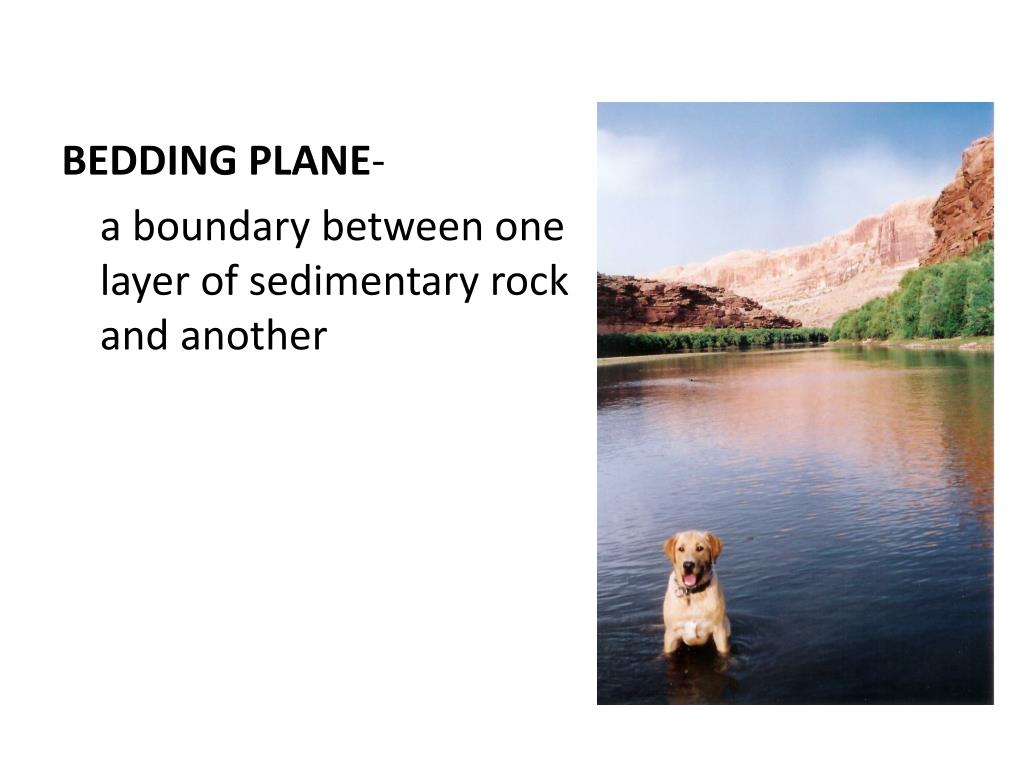

  8. BEDDING PLANE- a boundary between one layer of sedimentary rock and another

  9. Metamorphic Rocks • formed from other rocks as a result of intense heat, pressure, and chemical processes • most form deep beneath the surface of the earth • formed from existing igneous, sedimentary, or metamorphic rock

  10. Types of metamorphic formation: • Contact metamorphism: • when hot magma pushes through existing rock, changing the structure and composition of the rock. Only rocks near the magma are changed. • Regional metamorphism: • movement of one tectonic plate against another causes heat and pressure, affecting rocks over an area of many thousands of kilometers

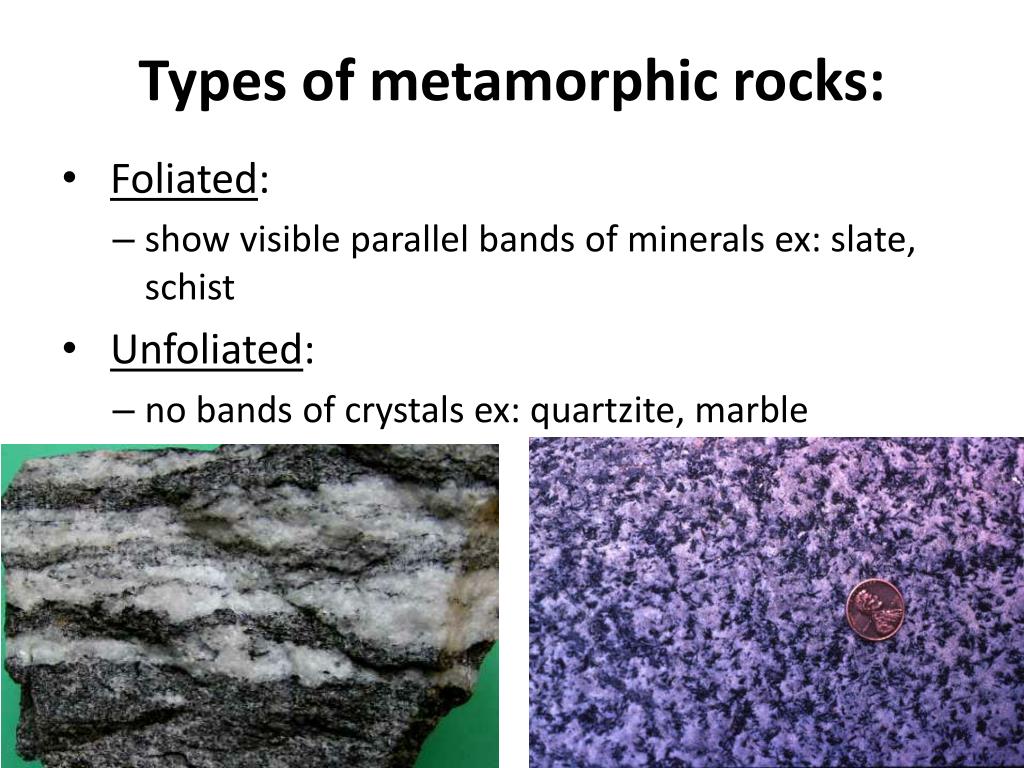

  11. Types of metamorphic rocks: • Foliated: • show visible parallel bands of minerals ex: slate, schist • Unfoliated: • no bands of crystals ex: quartzite, marble

  12. animation Interactive animation
