The Rock Cycle

The Rock Cycle. Rocks are any solid mass of mineral or mineral-like matter that occurs naturally on Earth. Types of Rocks. 3 types of interactions with Earth’s water, land, and air Metamorphic –heat and pressure Igneous – cooling and solidification of lava

elani
Download Presentation

The Rock Cycle

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. The Rock Cycle • Rocks are any solid mass of mineral or mineral-like matter that occurs naturally on Earth.

  2. Types of Rocks • 3 types of interactions with Earth’s water, land, and air • Metamorphic –heat and pressure • Igneous – cooling and solidification of lava • Sedimentary – compaction and cementation of sediments

  3. The Rock Cycle (cont’d) • The rock cycle does not always occur in a specific order. • Igneous rocks (Step 2) can directly become metamorphic rocks (Step 5).

  4. The Work of Streams • Erosion – water causes loose particles to be moved through abrasion, grinding, or by dissolving soluble material. • Sediment Transport – sediments are moved by the rivers and streams • In solution (dissolved load) • In suspension (suspended load) • Scooting or rolling along the bottom (bed load)

  5. Deposition • The settling of particles from the river is known as deposition. • Structures that form due to deposition • Deltas • Natural Levees

  6. Weathering of Rocks • 2 main types of weathering to rocks • Mechanical weathering requires physical forces to break rocks into smaller pieces. • Chemical weathering requires the transformation of rock into one or more new compounds.

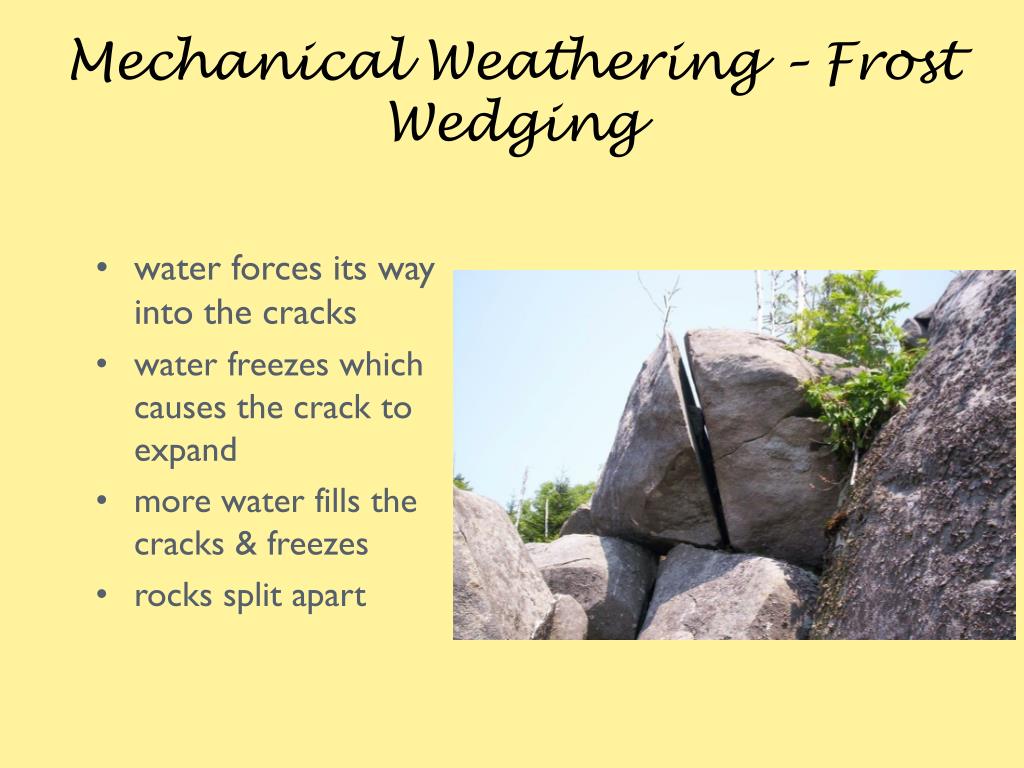

  7. Mechanical Weathering – Frost Wedging • water forces its way into the cracks • water freezes which causes the crack to expand • more water fills the cracks & freezes • rocks split apart

  8. Mechanical Weathering – Biological Activity • plants & animals burrow through the rock • humans blast rocks apart looking for minerals & deforestation • dead organisms produce acids that dissolves the rock

  9. Chemical Weathering – Water • Most important agent of chemical weathering • dissolves various gases from the atmosphere and soil • causes a reaction with minerals in the rocks • Oxygen reacts with the metals in the rocks to produce oxide (rust) to create a yellow to reddish-brown rocks • Acids dissolve away the surface of the rocks

  10. Longshore Current and Transport • Longshore Current – the movement of water parallel to the shoreline.

  11. Longshore Current and Transport • Longshore Transport – the movement of sand along the beach.

  12. Human Impacts • Seawall – designed to absorb power of incoming waves and tides and halt the retreat of a shoreline. • Works to save property behind the wall. • Causes the sediments in front of the wall to be swept in the ocean. • Further loss of beach prompts people to build a bigger, “better” wall to stop the erosion caused by the original seawall.

  13. Human Impacts • Breakwater • A wall built in the ocean to reduce the size of waves. More useful for protecting boats than preventing erosion.

  14. Human Impacts • Groins – designed to trap sediments in an area of the beach. • disrupt the longshore transport • the beach on the other side of the groin will continue to loose sediments

  15. Human Impacts • Beach Nourishment –adding sediment from another beach, offshore bar, island or inland area to increase the size of the beach. • Adding the wrong type can disrupt the natural processes. • The sediments may be contaminated with pollutants.

  16. Soil • 4 major components • Mineral matter – 45% • Organic matter (humus) – 5% • Water – 25% • Air – 25% • Soil texture - type and amount of different soils found in the soil. • texture determines how well the soil can grow crops

  17. Soil Formation • Parent Material – the rock that is below the soil is broken-down. • Time – increase in time  increase in the amount of soil and thickness of the layer • Climate – • wetter, hotter climates will break-down parent material quicker • Drier, colder climates will take the longest

  18. Soil Formation(cont’d) • Plants and burrowing animals – create soil faster by leaving larger amounts of organic material • Slope – steep slopes tend to have less soil • less water and less plants • mountain slopes that face the sun tend to have more soil
