  1. Electromagnetic Flowmeter • Why use flow meters • What is a magnetic flow meter • How do they work • How are the different from other meters • Items that will impact the use of mag meters • Benefits of good measurements

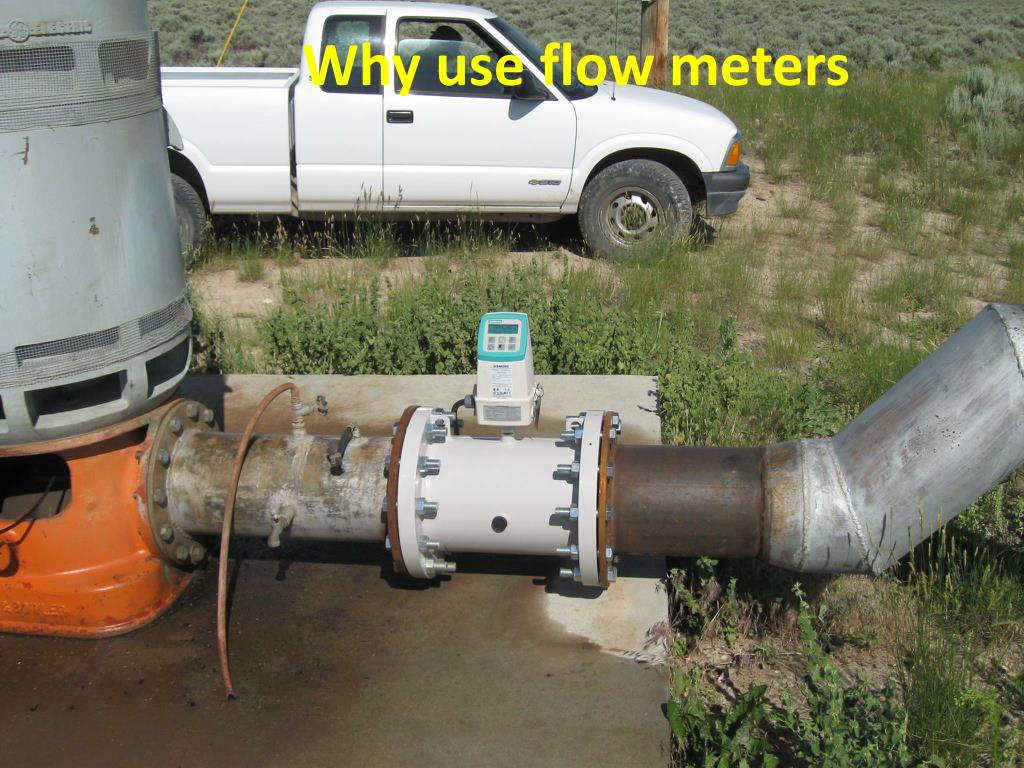

  2. Why use flow meters

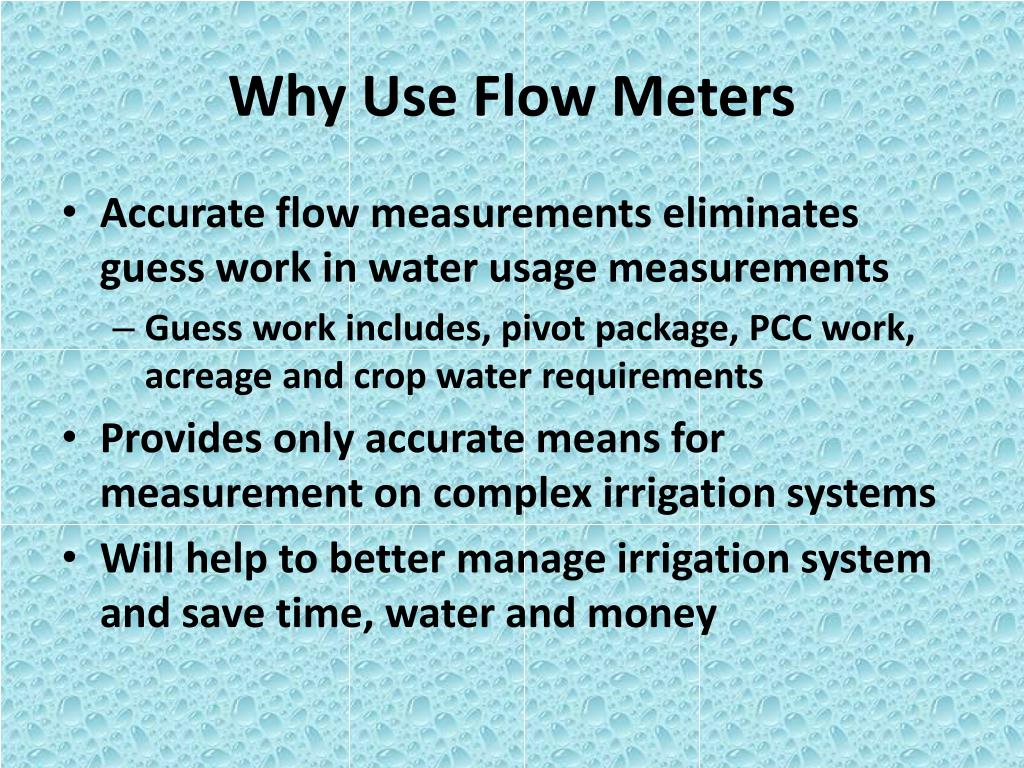

  3. Why Use Flow Meters • Accurateflow measurements eliminates guess work in water usage measurements • Guess work includes, pivot package, PCC work, acreage and crop water requirements • Provides only accurate means for measurement on complex irrigation systems • Will help to better manage irrigation system and save time, water and money

  4. How do mags Work? • Any electrical conductor moving in a magnetic field will have a voltage induced in it. (Faraday’s Law) • The induced voltage is directly proportional to the strength of the magnetic field, and the speed of the conductor moving through the field. • If the conductor is a fluid flowing through a fixed magnetic field, the voltage induced in the conductor will be directly proportional to the velocity of the conductor (flow stream). • Flow detection is very dependent on the sensitivity of the instrument that measures the weak induced voltage.

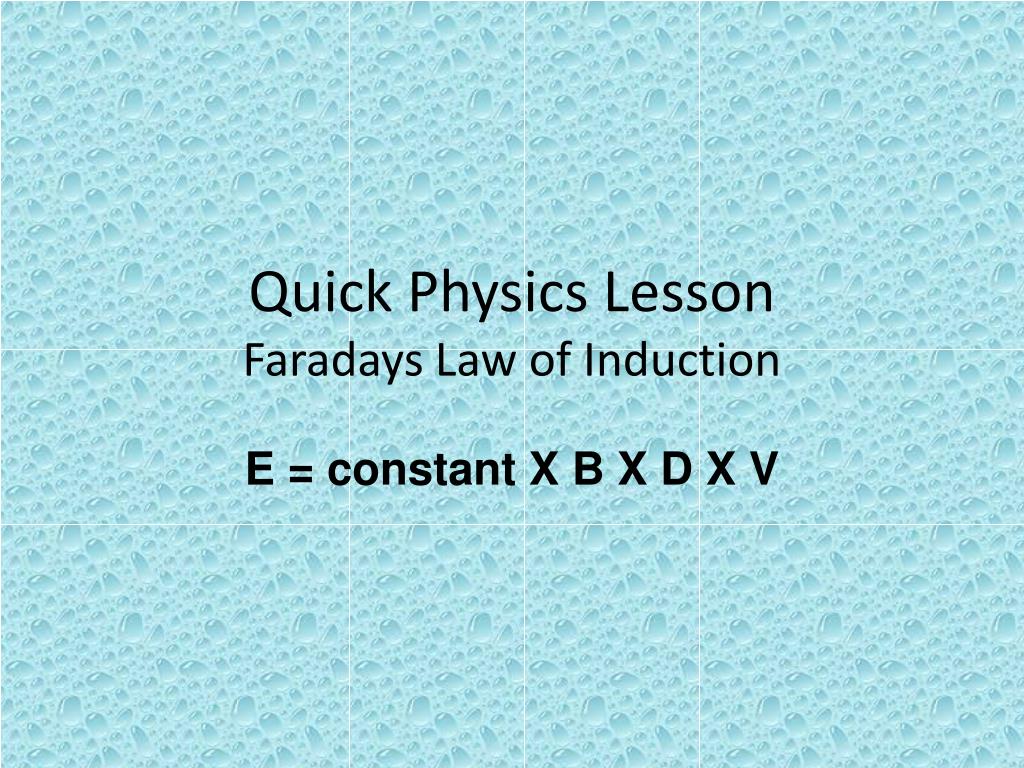

  5. Quick Physics LessonFaradays Law of Induction E = constant X B X D X V

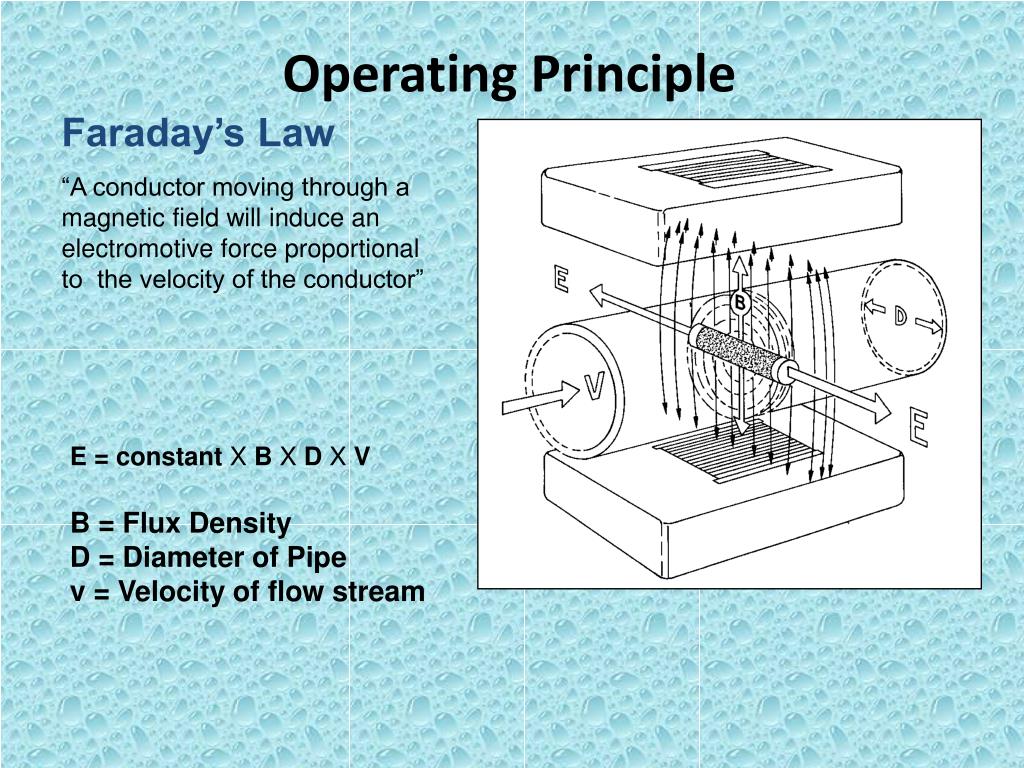

  6. Operating Principle Faraday’s Law “A conductor moving through a magnetic field will induce an electromotive force proportional to the velocity of the conductor” E = constant X B X D X V B = Flux Density D = Diameter of Pipe v = Velocity of flow stream

  7. Typical Magnetic flowmeter Sensor configuration

  8. How do mags work

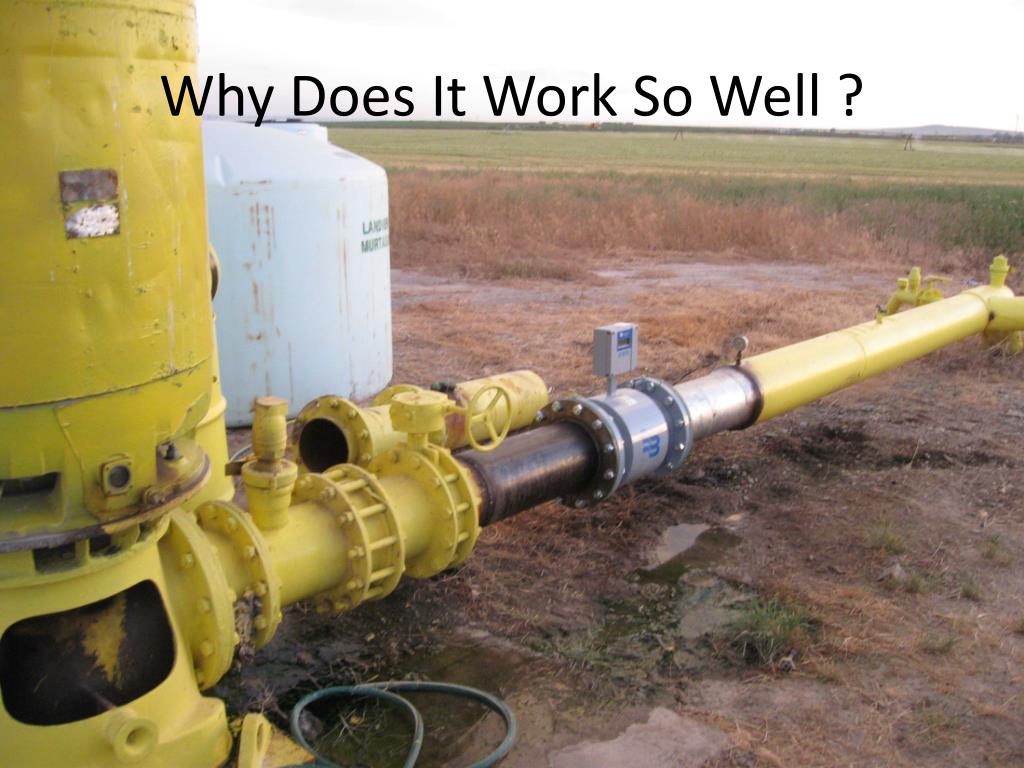

  9. Why Does It Work So Well ?

  10. Accuracy and Repeatability A Mag Meter averages the sum of the voltage of all particles: The result - a Mag Meter will produce superior accuracy and repeatability and is significantly less affected by pipe turbulences than force velocity type meter technologies commonly found in agriculture. • The voltage induced is a good average of the flow velocity because: • Water is made up of many particles. • Each particle generates a voltage based on its own velocity.

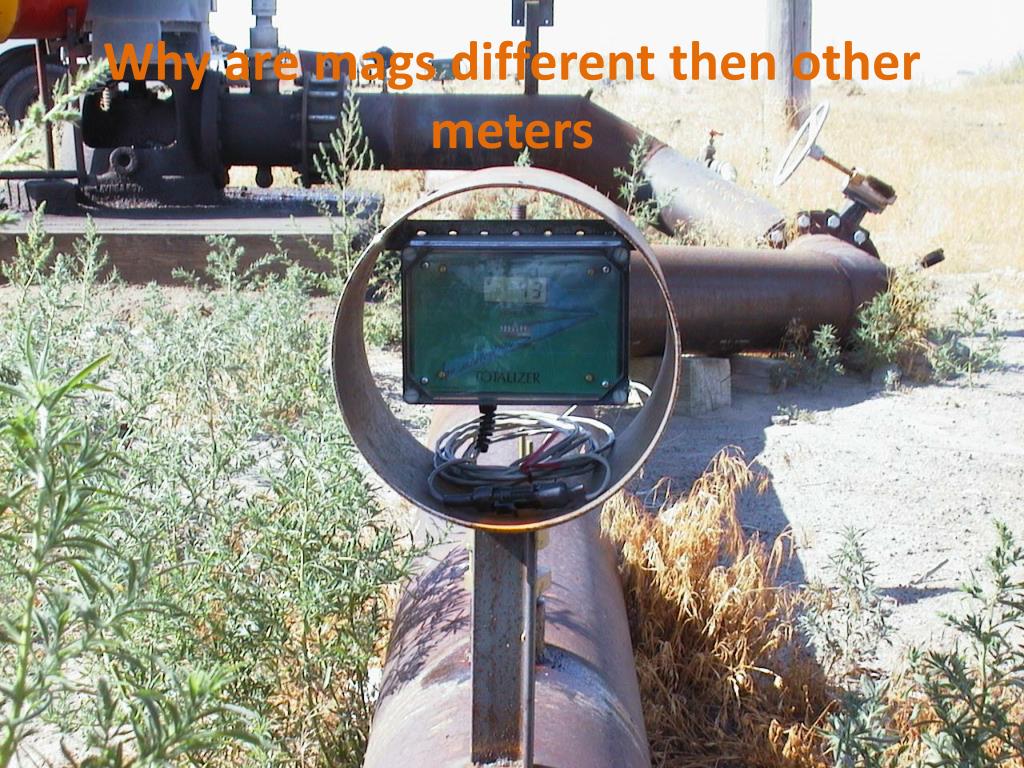

  11. Why are mags different then other meters

  12. Mags vs. Force Velocity meters • No moving parts = No mechanical failure • Minimal pressure loss across meter • Mechanical meters need enough energy in the water to accurately measure flows • Low flow measurements = large errors in accuracy • Low flow measurements are accurately measured with mag meters - velocity range 0.1-39 fps • Cost of mags are competitively priced with traditional mechanical meters and will typically last much longer

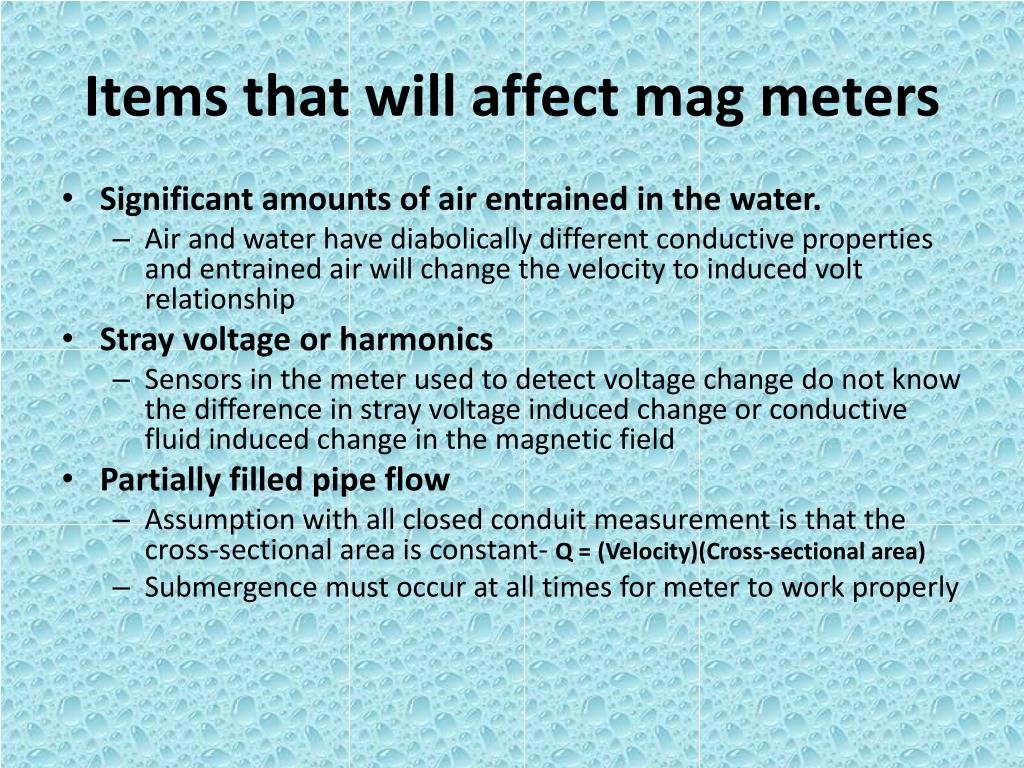

  13. Items that will affect mag meters • Significant amounts of air entrained in the water. • Air and water have diabolically different conductive properties and entrained air will change the velocity to induced volt relationship • Stray voltage or harmonics • Sensors in the meter used to detect voltage change do not know the difference in stray voltage induced change or conductive fluid induced change in the magnetic field • Partially filled pipe flow • Assumption with all closed conduit measurement is that the cross-sectional area is constant- Q = (Velocity)(Cross-sectional area) • Submergence must occur at all times for meter to work properly

  14. Mag meter highlights • Operates based on Faraday’s Law of electromagnetic induction. • Completely open flow tube design: • No moving parts • No wear • No maintenance • Not affected by the presence of solid particles in the liquid. No strainer required.

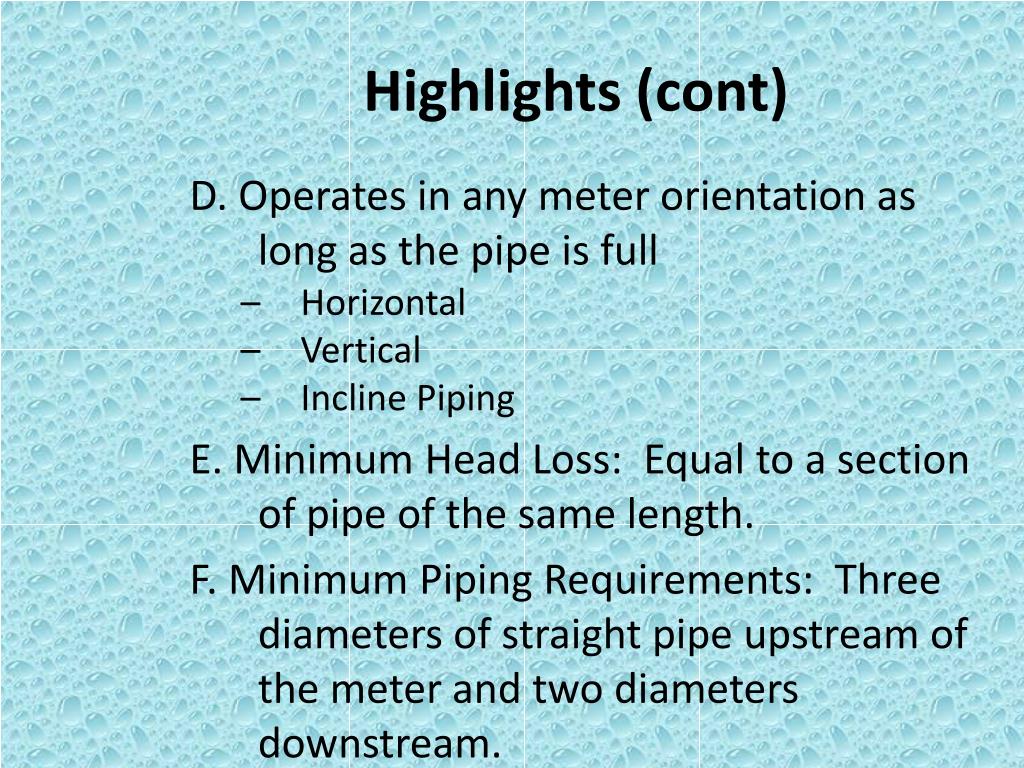

  15. Highlights (cont) • D. Operates in any meter orientation as long as the pipe is full • Horizontal • Vertical • Incline Piping • E. Minimum Head Loss: Equal to a section of pipe of the same length. • F. Minimum Piping Requirements: Three diameters of straight pipe upstream of the meter and two diameters downstream.

  16. Highlights (cont) • G. Bi-directional flow measurement capability. • H. Meter system includes two components: • Detector (Flow Tube) • Signal Amplifier (Electronic Converter)

  17. Benefits to Good measurements

  18. Quality measurements = Quality Data • Initial cost is substantial but will reduce costs over time for obtaining quality data. • Quality data will provide higher level of certainty in overall management of water resources. • Data will allow users the ability to monitor irrigation system with high degree of accuracy. • Data will provide feedback to users regarding wear on irrigation system and the ability to plan in advance for major pump and motor servicing. • Monitoring of pumping throughout a season will provide feedback on aquifer response due to pumping (drawdown in the well).
