A3.2 - Hexane and Bromine

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. A3.2 - Hexane and Bromine • Hexane and Bromine are mixed together in three tubes and each tube is then exposed to a different light level.

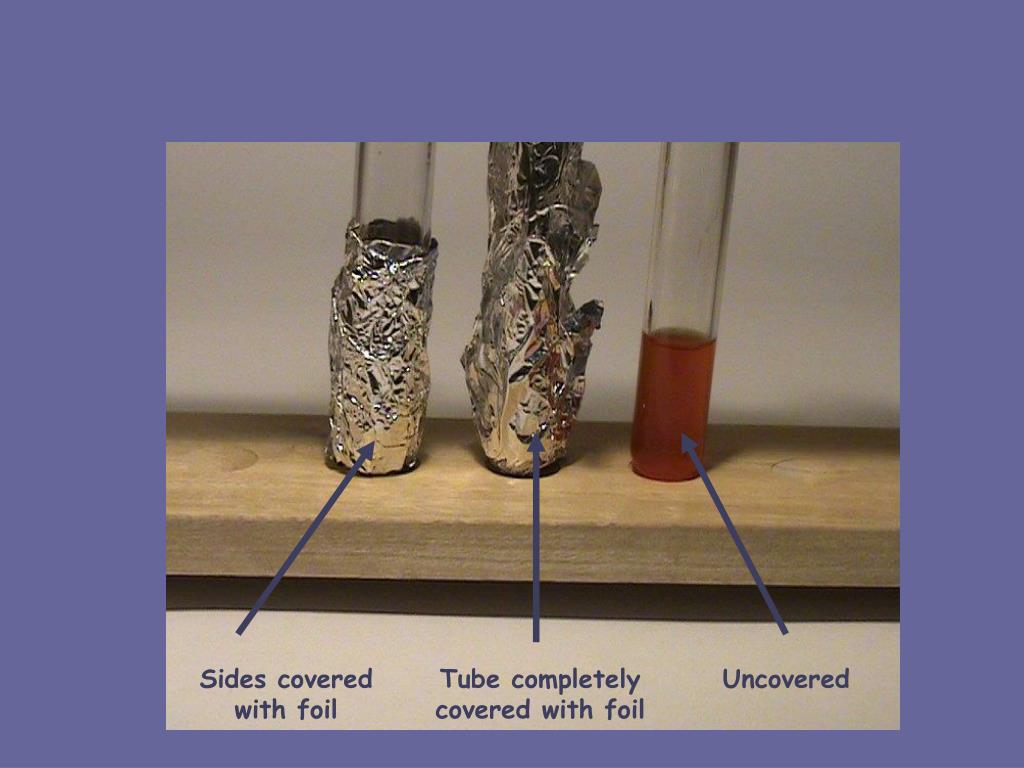

  2. Sides covered with foil Tube completely covered with foil Uncovered

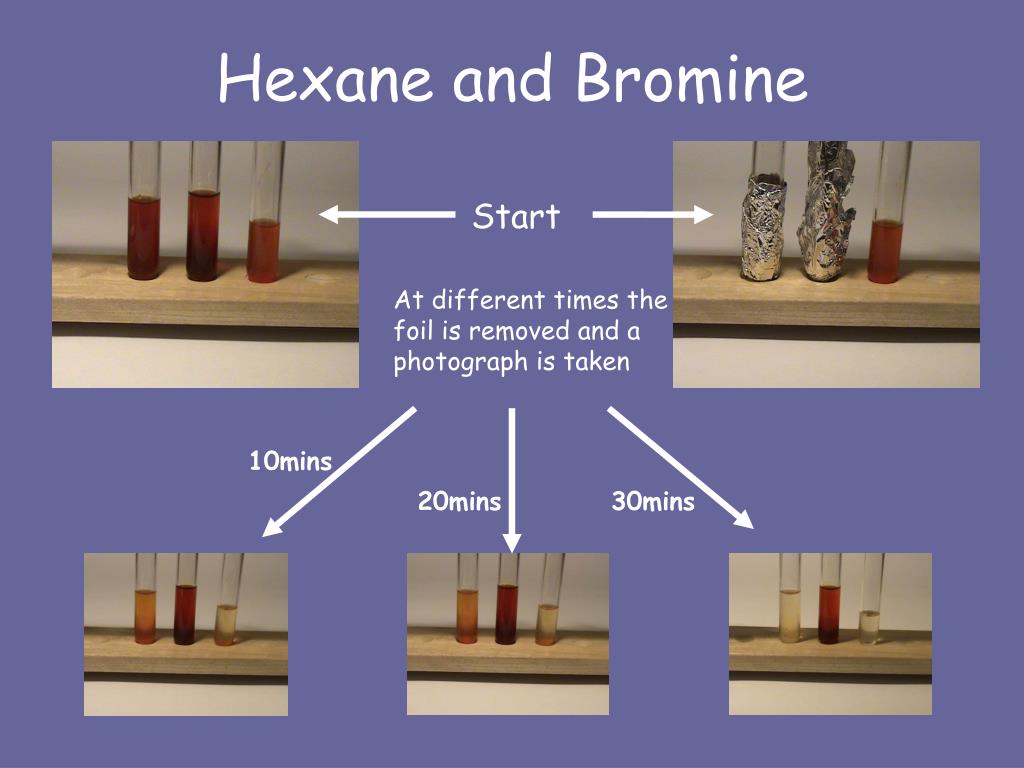

  3. Hexane and Bromine Start At different times the foil is removed and a photograph is taken 10mins 20mins 30mins

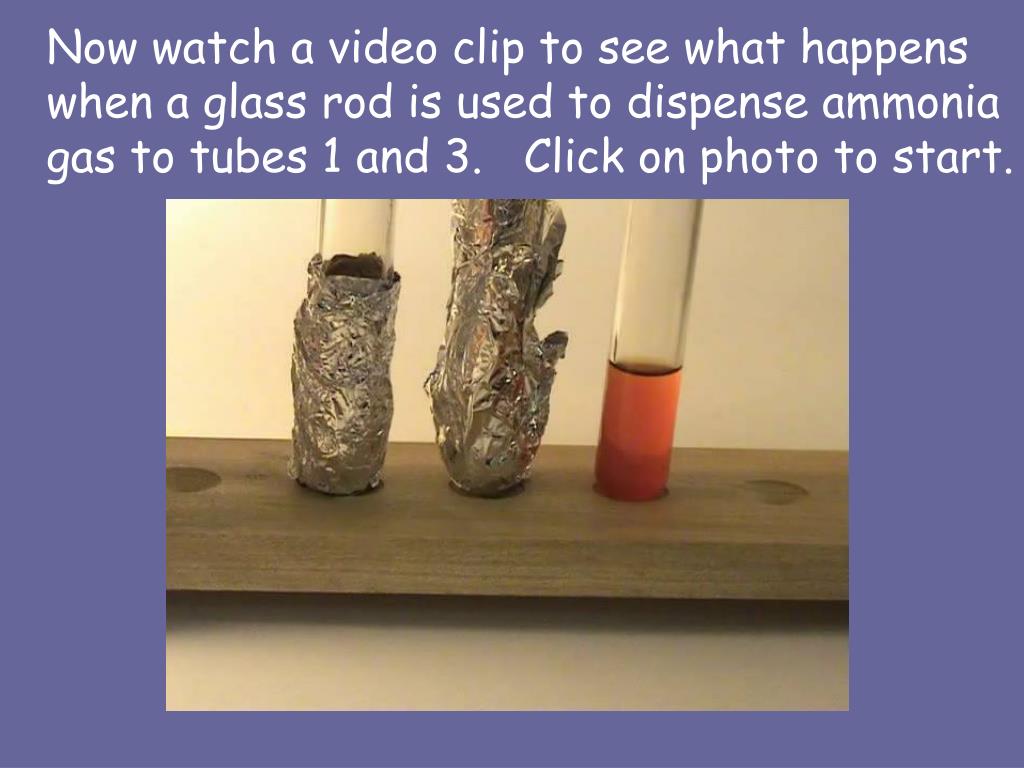

  4. Now watch a video clip to see what happens when a glass rod is used to dispense ammonia gas to tubes 1 and 3. Click on photo to start.

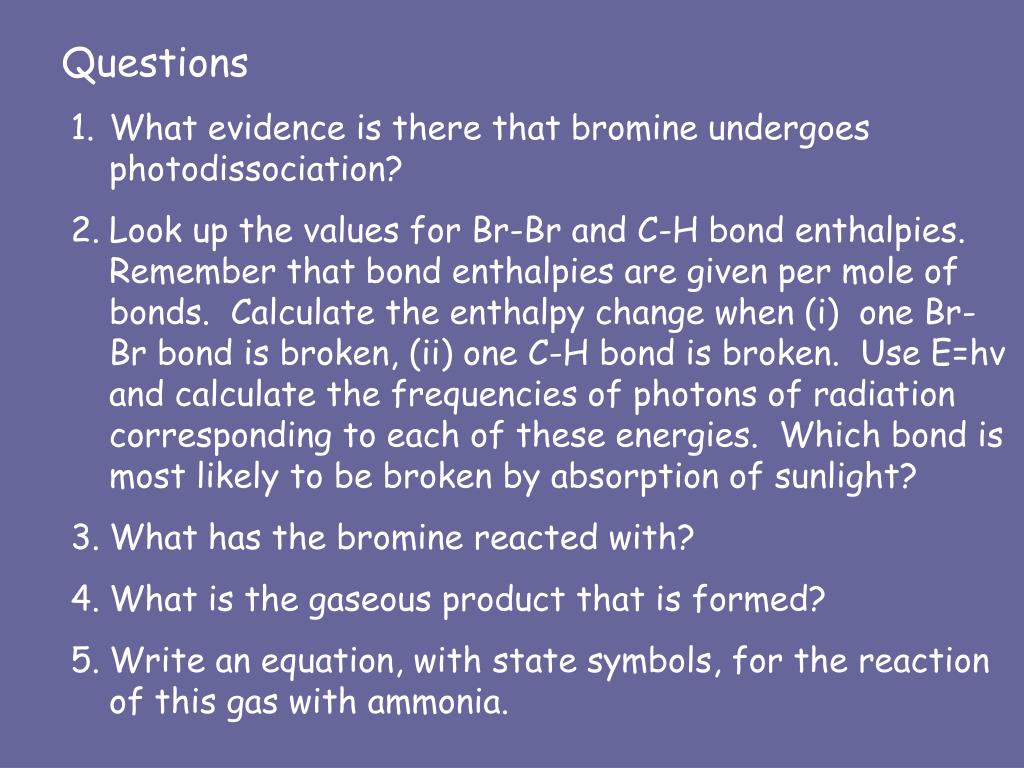

  5. Questions • What evidence is there that bromine undergoes photodissociation? • Look up the values for Br-Br and C-H bond enthalpies. Remember that bond enthalpies are given per mole of bonds. Calculate the enthalpy change when (i) one Br-Br bond is broken, (ii) one C-H bond is broken. Use E=hv and calculate the frequencies of photons of radiation corresponding to each of these energies. Which bond is most likely to be broken by absorption of sunlight? • What has the bromine reacted with? • What is the gaseous product that is formed? • Write an equation, with state symbols, for the reaction of this gas with ammonia.
