  1. WADL 2013 July 25–26, 2013 Indianapolis, Indiana USA Temporal Spread In ArchivedComposite Resources(work in progress) Scott G. Ainsworth Michael L. Nelson Old Dominion University Computer Science

  2. Contents • Motivation • Related work • Preliminary work • Temporal Spread • Future work • Conclusion Scott G. Ainsworth • Michael L. Nelson

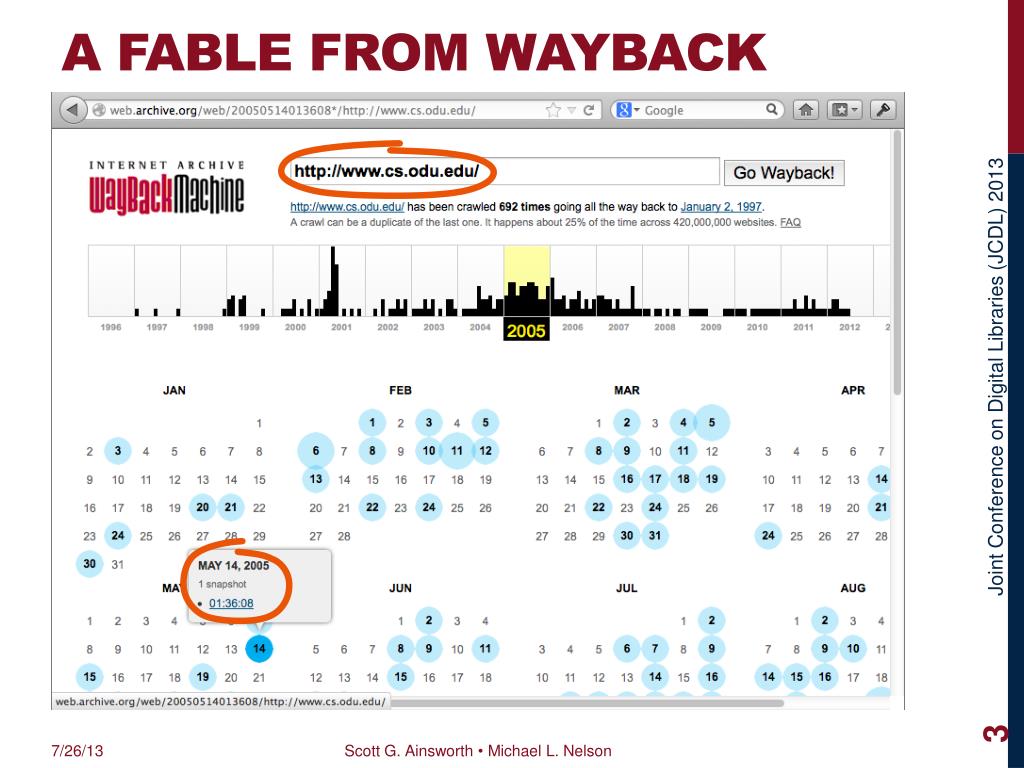

  3. A Fable from Wayback Scott G. Ainsworth • Michael L. Nelson

  4. Temporal Spread 2005-05-14 01:36:08 +9 days +7 months +18 days +18 days +2.1 years Scott G. Ainsworth • Michael L. Nelson

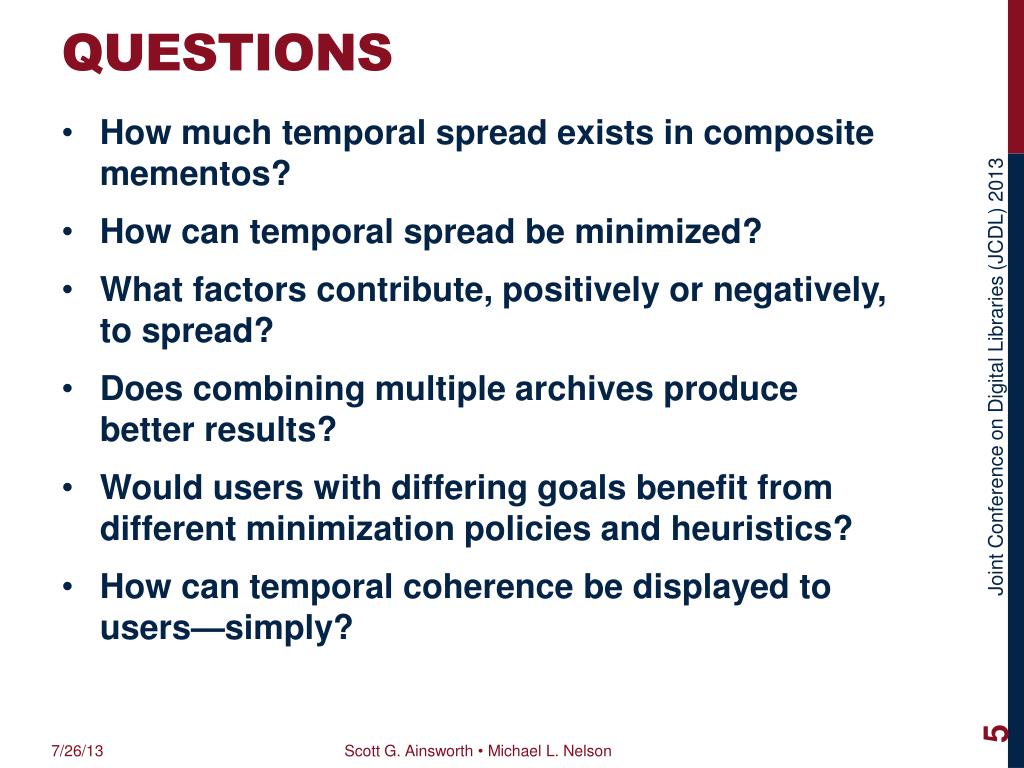

  5. Questions • How much temporal spread exists in composite mementos? • How can temporal spread be minimized? • What factors contribute, positively or negatively, to spread? • Does combining multiple archives produce better results? • Would users with differing goals benefit from different minimization policies and heuristics? • How can temporal coherence be displayed to users—simply? Scott G. Ainsworth • Michael L. Nelson

  6. Contents • Motivation • Related work • Preliminary work • Temporal Spread • Future work • Conclusion Scott G. Ainsworth • Michael L. Nelson

  7. Related Work • Control Crawl Data Quality, Future collections • Spaniolet al. – crawling strategy • Denev et al. – change rates by MIME type and depth • Ben Saad et al. – metadata from crawl used to select best results from archive • Our Focus: Existing Data Quality • Existing collections • Datetime selection policies Scott G. Ainsworth • Michael L. Nelson

  8. Related Work • Use Patterns • AlNoamonyet al. – Archive Access Patterns • Humans vs. Robots • Dip, dive, slide, & skim • Identifying Duplicates • Simple identity – images, other binary formats • direct comparison • Hash comparison • HTML, CSS (text) • Shingling, Jaccard distances, etc. • SimHash ⃪ most promise Scott G. Ainsworth • Michael L. Nelson

  9. Related work – Memento* • HTTP extension for datetime negotiation • Request • Response GET <timegate>/http://www.cs.odu.edu/ HTTP/1.1…Accept-Datetime: Sat, 10 May 2005 11:21:00 GMT… HTTP/1.1 200 OK…Memento-Datetime: Sat, 14 May 2005 01:36:08 GMT… *https://datatracker.ietf.org/doc/draft-vandesompel-memento/ Scott G. Ainsworth • Michael L. Nelson

  10. Contents • Motivation • Related work • Preliminary work • How much of the Web is archived • Temporal Drift • Temporal Spread • Future work • Conclusion Scott G. Ainsworth • Michael L. Nelson

  11. How much is Archived? Internet Archive Search Engine Other 35 – 90% At least one archived copy 17 – 49% 2 – 5 copies 1 – 8% 6 – 10 copies 8 – 63% > 10 copies JCDL’11 Scott G. Ainsworth • Michael L. Nelson

  12. Contents • Motivation • Related work • Preliminary work • How much of the Web is archived • Temporal Drift • Temporal Spread • Future work • Conclusion Scott G. Ainsworth • Michael L. Nelson

  13. Temporal Drift • Comparing two policies • Sliding –target datetime changes • Sticky – target datetime held steady Scott G. Ainsworth • Michael L. Nelson

  14. SLIDING TARGET 2005-05-14 01:36:08 Scott G. Ainsworth • Michael L. Nelson

  15. SLIDING TARGET 2005-04-22 00:17:52 Scott G. Ainsworth • Michael L. Nelson

  16. SLIDING TARGET 2005-03-31 09:16:10 Scott G. Ainsworth • Michael L. Nelson

  17. Temporal Drift What we Expected2005-05-14 @ 01:36:08 What we Got2005-03-31 @ 09:16:10 Scott G. Ainsworth • Michael L. Nelson

  18. Sticky Target • What if the target is held steady? • (Enabled by Memento API) Scott G. Ainsworth • Michael L. Nelson

  19. STICKY TARGET 2005-05-14 01:36:08 2005-05-14 MementoFox Extension Scott G. Ainsworth • Michael L. Nelson

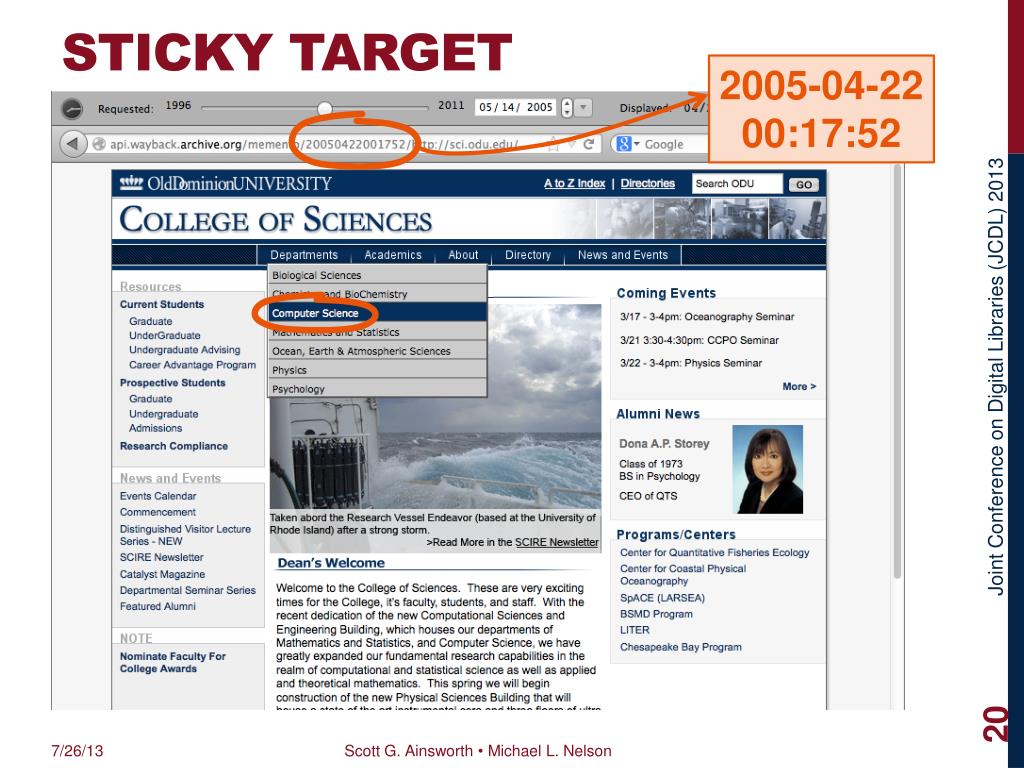

  20. STICKY TARGET 2005-04-22 00:17:52 Scott G. Ainsworth • Michael L. Nelson

  21. STICKY TARGET 2005-05-14 01:36:08 Scott G. Ainsworth • Michael L. Nelson

  22. Drift Comparison Scott G. Ainsworth • Michael L. Nelson

  23. Median Drift by Step JCDL’13 ● Sliding ● Sticky Median Drift (months) Step Number Scott G. Ainsworth • Michael L. Nelson

  24. Contents • Motivation • Related work • Preliminary work • How much of the Web is archived • Temporal Drift • Temporal Spread • Future work • Conclusion Scott G. Ainsworth • Michael L. Nelson

  25. Temporal Spread Scott G. Ainsworth • Michael L. Nelson

  26. Composite Memento Presentation STructure Scott G. Ainsworth • Michael L. Nelson

  27. Temporal Spread 2005-05-14 01:36:08 +9 days +7 months +18 days +18 days +2.1 years Scott G. Ainsworth • Michael L. Nelson

  28. Embedded Resources Scott G. Ainsworth • Michael L. Nelson

  29. Representing Spread Composite Memento Temporal Spread Chart Root Embedded Diff. Domain Reused Scott G. Ainsworth • Michael L. Nelson

  30. Temporal Spread – ODU CS Scott G. Ainsworth • Michael L. Nelson

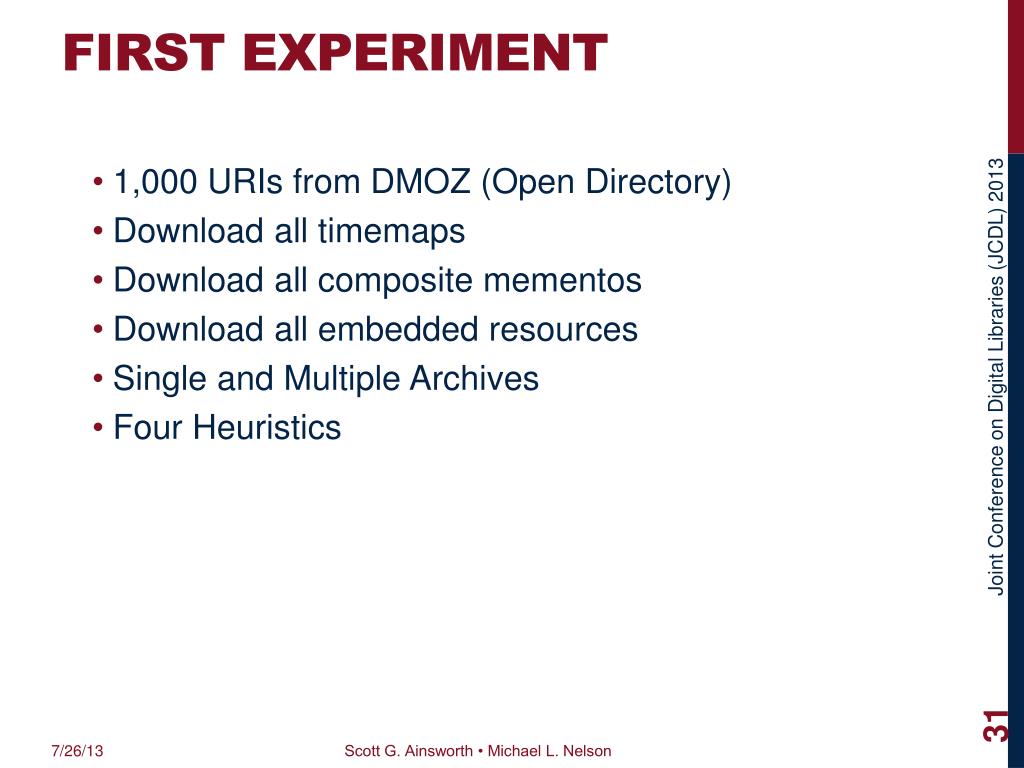

  31. First Experiment • 1,000 URIs from DMOZ (Open Directory) • Download all timemaps • Download all composite mementos • Download all embedded resources • Single and Multiple Archives • Four Heuristics Scott G. Ainsworth • Michael L. Nelson

  32. Preliminary Results Scott G. Ainsworth • Michael L. Nelson

  33. Single/Multi & Heuristics Scott G. Ainsworth • Michael L. Nelson

  34. Temporal Coherence 1 Memento, Bracketed Root Scott G. Ainsworth • Michael L. Nelson

  35. Temporal Coherence 1 Memento, Bracketed Root Scott G. Ainsworth • Michael L. Nelson

  36. Temporal Coherence 1 Memento, Bracketed Root Scott G. Ainsworth • Michael L. Nelson

  37. Temporal Coherence 1 Memento, Root Not Bracketed Scott G. Ainsworth • Michael L. Nelson

  38. Temporal Coherence 1 Memento, Root Not Bracketed Scott G. Ainsworth • Michael L. Nelson

  39. Temporal Coherence 1 Memento, No Last-Modified Scott G. Ainsworth • Michael L. Nelson

  40. Temporal Coherence 1 Memento, Before Root Scott G. Ainsworth • Michael L. Nelson

  41. Temporal Coherence 2 Mementos, Root Not Bracketed Scott G. Ainsworth • Michael L. Nelson

  42. Temporal Coherence 2 Mementos, Root Not Bracketed Scott G. Ainsworth • Michael L. Nelson

  43. Temporal Coherence 2 Mementos, Use Content – Similarity Scott G. Ainsworth • Michael L. Nelson

  44. Temporal Coherence 2 Mementos, Contents Equal or Equivalent Scott G. Ainsworth • Michael L. Nelson

  45. Temporal Coherence 2 Mementos, Contents Not Equal or Equivalent Scott G. Ainsworth • Michael L. Nelson

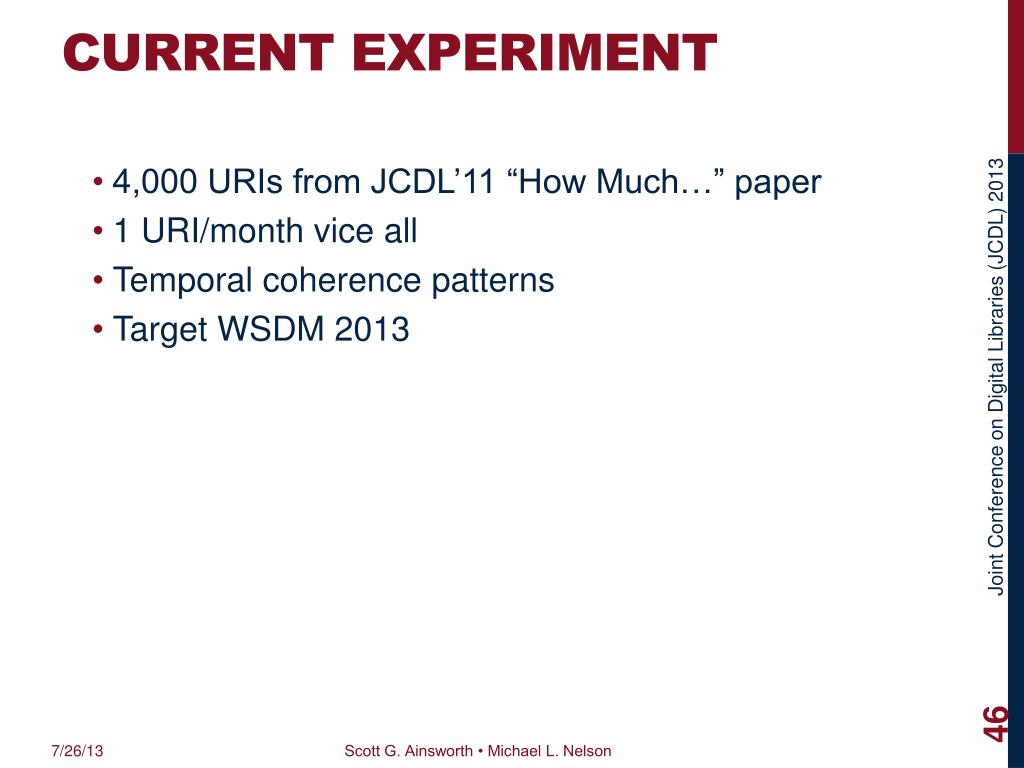

  46. Current Experiment • 4,000 URIs from JCDL’11 “How Much…” paper • 1 URI/month vice all • Temporal coherence patterns • Target WSDM 2013 Scott G. Ainsworth • Michael L. Nelson

  47. Current Experiment Scott G. Ainsworth • Michael L. Nelson

  48. Contents • Motivation • Related work • Preliminary work • Temporal Spread • Future work • Conclusion Scott G. Ainsworth • Michael L. Nelson

  49. Future Work • Timemaps, Redirection, Missing Mementos • Timemaps only tell part of the story • URI-R redirection (302 from source) • URI-M redirection (Archive action) • Mementos in timemaps but not accessible • Policies must consider user needs • Leave it missing • Show “best” substitute Scott G. Ainsworth • Michael L. Nelson

  50. Future Work • Similarity & Duplication • Delta are currently | root – embedded | • If bracketing mementos are identical,should delta be zero? • HTML is usually modified by the archive • Can’t check for equality • Shingling? SimHash? +30d –30d 0 Scott G. Ainsworth • Michael L. Nelson
