  1. Optical Network Link Budgets EE 548 Spring 2005

  2. Reference Model

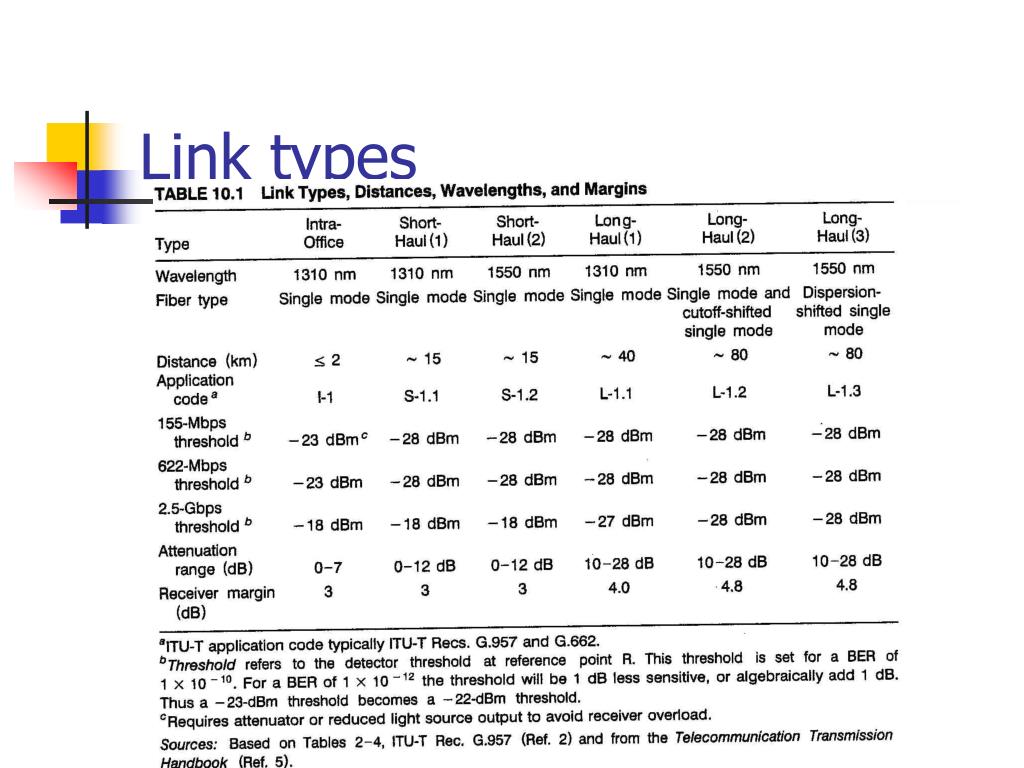

  3. Link types

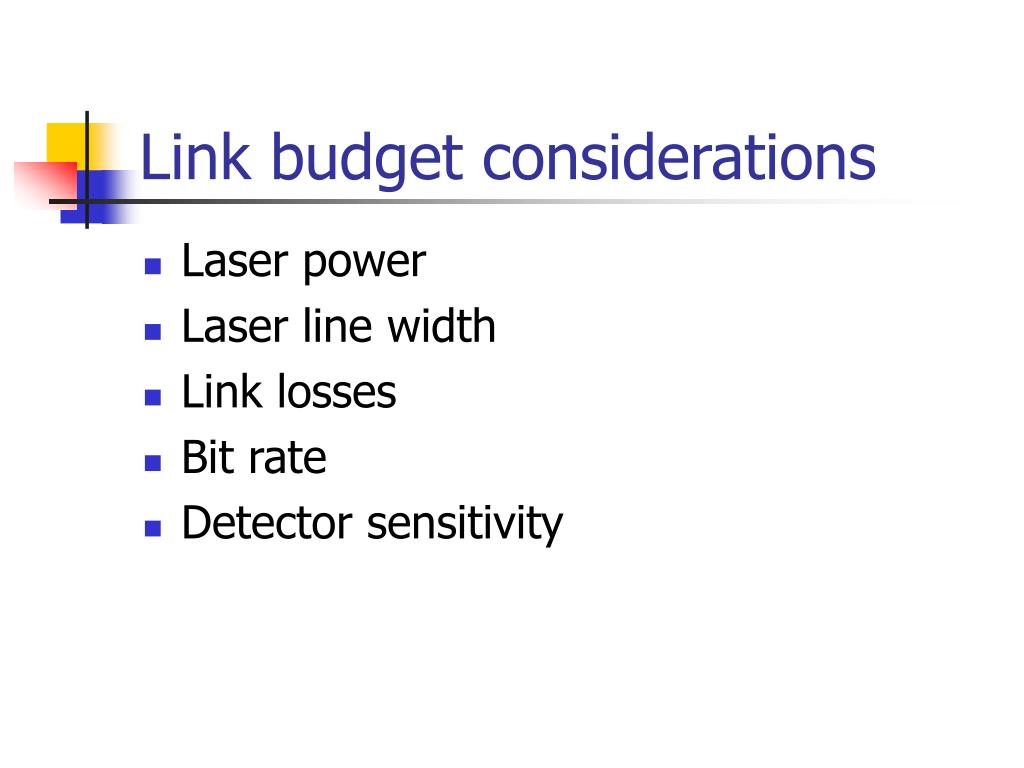

  4. Link budget considerations • Laser power • Laser line width • Link losses • Bit rate • Detector sensitivity

  5. Impairments • Connector and splice losses • Fiber attenuation • Polarization mode dispersion (PMD) • Chromatic dispersion • Filter losses • Splitter losses • Isolator losses

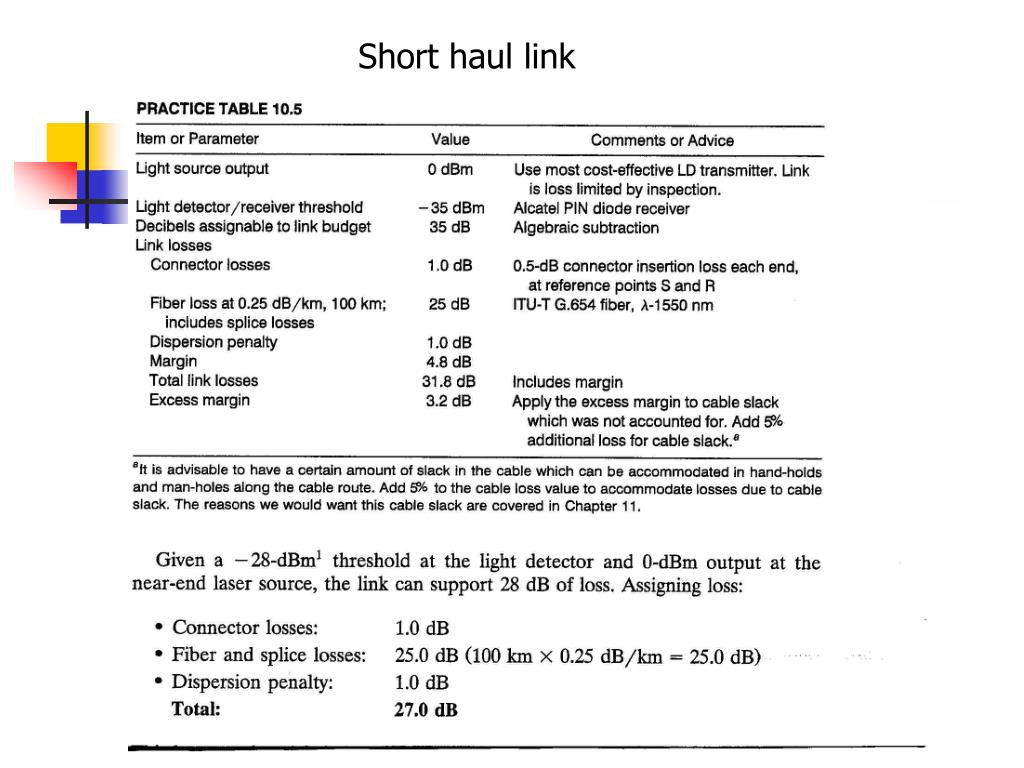

  6. Short haul link

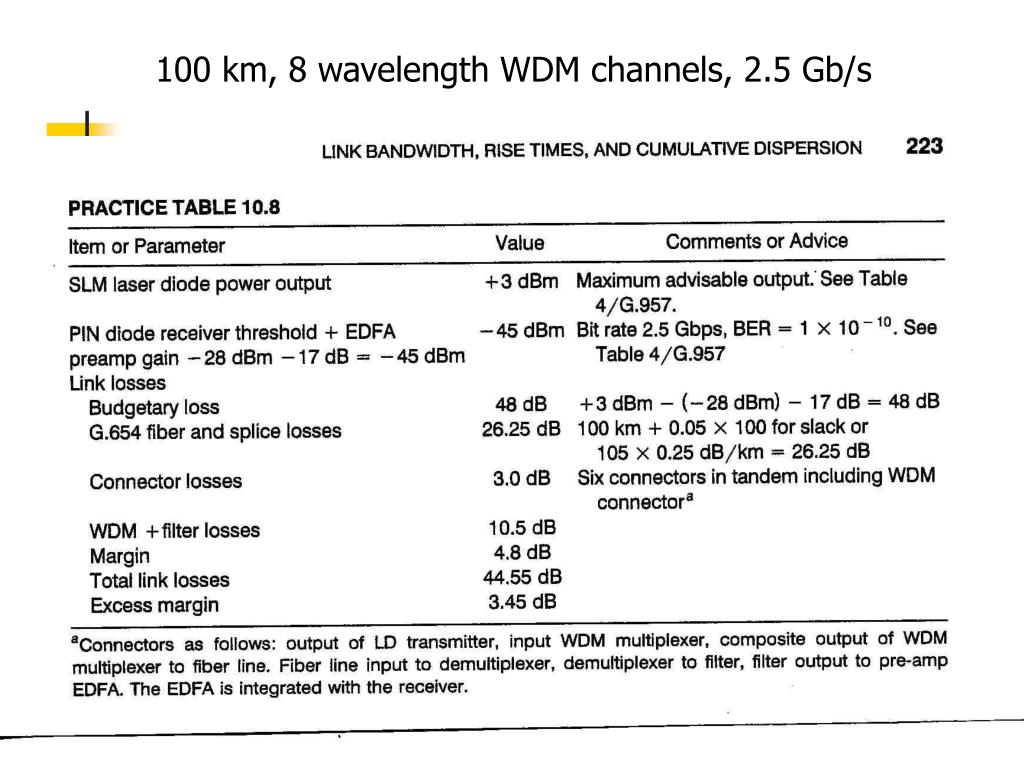

  7. 100 km, 8 wavelength WDM channels, 2.5 Gb/s

  8. Long haul network case study

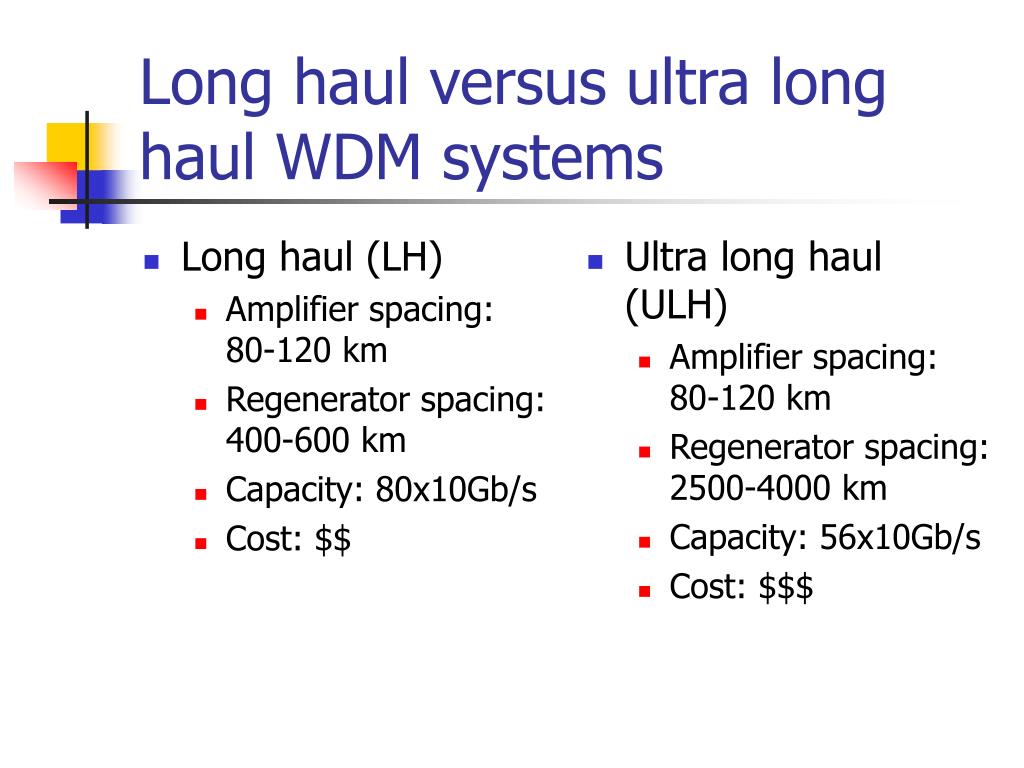

  9. Long haul (LH) Amplifier spacing: 80-120 km Regenerator spacing: 400-600 km Capacity: 80x10Gb/s Cost: $$ Ultra long haul (ULH) Amplifier spacing: 80-120 km Regenerator spacing: 2500-4000 km Capacity: 56x10Gb/s Cost: $$$ Long haul versus ultra long haul WDM systems
