1. Using GUI Ripping for Automated Testing of Android Apps Domenico Amalfitano Salvatore De Carmine Anna Rita Fasolino Porfirio Tramontana Dipartimento di Informatica e Sistemistica University of Naples Federico II, Italy AtifMemon Department of Computer Science University of Maryland

2. Motivation • Android is a very popular operative system and framework for mobile devices • Its diffusion is increasing: recently it overtook ioS and Symbian in terms of diffusion • Over than 500,000 apps are now on the Google Play market • The most part of the apps are realized by single programmers or little teams and lacks in quality • Android apps are often developed according to an evolutionary life cycle, with very frequent releases via Google Play • Bugs causing failures and, in particular, crashes are very common • There is a strong need for testing automation processes and tools • In this talk, our techniques and tool supporting a process of Android GUI Testing Automation will be presented

3. Androidapps • An Android application is composed of several types of Java components instantiated at run-time: • Activities, Services, Intents, Broadcast Receivers and Content Providers. • An Activitycomponent: • is responsible for presenting a visual user interface; • provides a screen with which the users can interact in order to do something. • An Android application usually includes one or more Activity classes that extend the base Activity class provided by the Android development framework. • Android Applications are Event-Driven Systems • Three types of events can be triggered: • user events (such as Click, MouseOver, etc.); • events related to the lifecycle of the Activity classes • onStart, on Pause, onResume, onStop, onDestroy, … • events that are triggered by other input sources • such as GPS receiver, phone, network, etc.

4. Existingapproaches to AndroidTesting Automation • JUnit Testing • Android Testing Framework • Supports the coding of executable test classes • Classes supporting the instrumentation and monitoring of Android apps are provided in the Android framework itself • Libraries such as Robotiumand Monkeyrunner extends the framework • Random Testing • Monkey (included in the Android framework) supports the randomly automatic exploration of Android apps • Model Based Testing • TEMA Tools (Takala, Katara, Harty, 2011) represent a first tentative of approach for the generation of test code from a design model of Android app

5. Android GUI Ripping • We propose a technique and a tool for: • Automatic exploration of the GUI of an Android application via a systematic Ripping approach • Similar to approachesadopted for Web crawling • Crash testing • GUI model reverse engineering • JUnit test case generation

6. Android GUI RippingAlgorithm • Customizable • Selection of types of events to be fired • Adoption of a GUI traversing strategy (e.g. depth first, breadth first, etc.) • Termination criteria used to stop the GUI traversal • Setting of specificpreconditions • Efficient • Provides heuristic solutions to the well known problem of GUI interface states and events explosion • GUI exploration criteria based on a Interface Equivalence Criterion

7. RippingAlgorithm ≡ ≡ Rotate Click Pages Click New Post Press Menu Click Refresh … Click About Click Save Click Add Account Crash … Click Edit … … Task List Initialization; while (Task List Is Not Empty) { Extract a Task From The Task List; Execute the Task; Abstract the Current GUI Abstract State; Update the GUI Tree Model; if (GUI Exploration Criterion) then { Define New Tasks ; Add New Tasks To The Task List; } } Task List Initialization; while (Task List Is Not Empty) { Extract a Task From The Task List; Execute the Task; Abstract the Current GUI Abstract State; Update the GUI Tree Model; if (GUI Exploration Criterion) then { Define New Tasks ; Add New Tasks To The Task List; } }

8. Crash TestingProcess • Preconconditions are set by generating a Snapshot Image of the device for the emulator • In the task execution step, the GUI Ripping algorithm is executed

9. A Demonstrationalexample • Measured metrics • Effectiveness • Number of crashes found • Number of different bugs causing crashes • LOCs coverage • Efficiency • Number of test cases • Number of events • Ripping time • Android for Wordpress • A Wordpress client for Android • 334 classes, ~10,000 LOCs • More than 250,000 downloads • A set of three preconditions • No Login • Single Blog • Multiple Blogs • Comparison between Ripping and Random Testing with Monkey

10. Results

11. Bugs and Crashes • The 14 crashes found by the Ripping process belongs to four different bugs • Bugs have been submitted to the bug tracking system and accepted/fixed by the programmer • Monkey was able to find only one of these bugs

12. Conclusions and Future Works • Our technique supports the execution of completely automatic generation and execution of test cases for Android applications. In our preliminary demonstration example: • Real bugs and crashes have been detected; • Good level of code coverage has been reached; • Testing time is compatible with smoke testing processes; • Reusable test cases has been automatically generated; • Our technique demonstrates its effectiveness with respect to standard Random testing tools such as Monkey

13. Future Works • This presentation covers the first part of a larger project on testing automation of Android applications • Some future works • Publication of the tool • As a standalone tool • As a service • A preliminary demo is available at http://wpage.unina.it/ptramont/GUIRipperWiki.htm • Further experiments with more applications and ripping parameters • Delay Time, ripping strategy (depth first/breadth first, activity equivalence criteria, maximum depth), input generation strategies, … • Sensor event testing

14. Time is over ... Is there any question?

18. Output

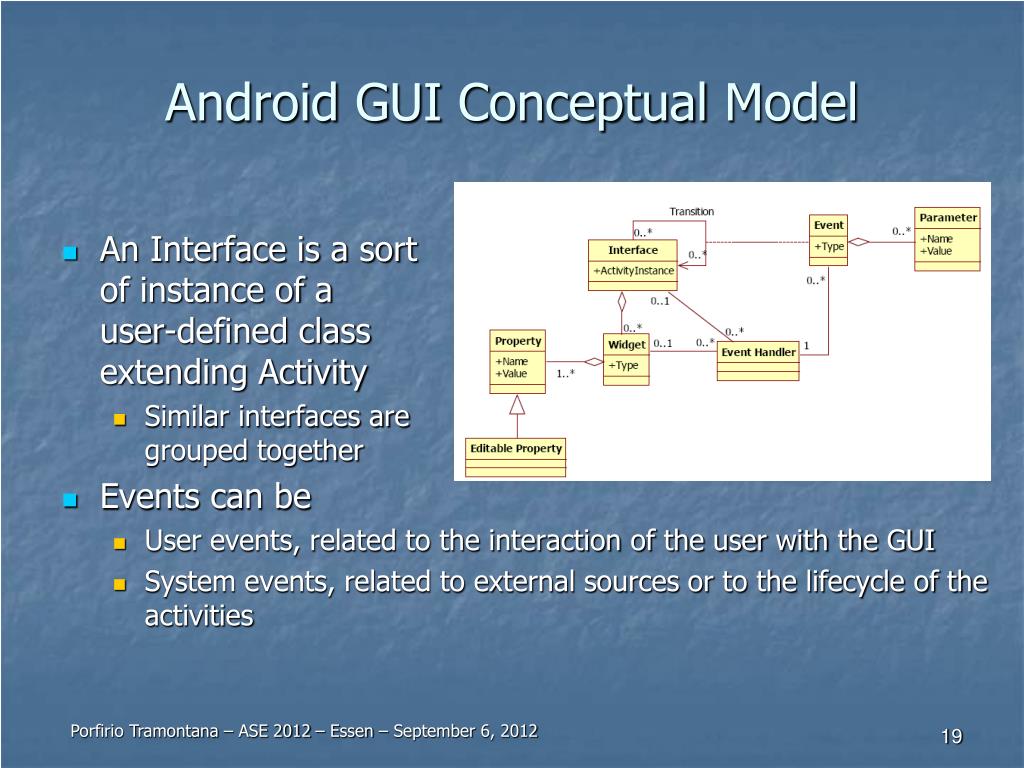

19. Android GUI Conceptual Model • An Interface is a sort of instance of a user-defined class extending Activity • Similar interfaces are grouped together • Events can be • User events, related to the interaction of the user with the GUI • System events, related to external sources or to the lifecycle of the activities

20. An example of FSM

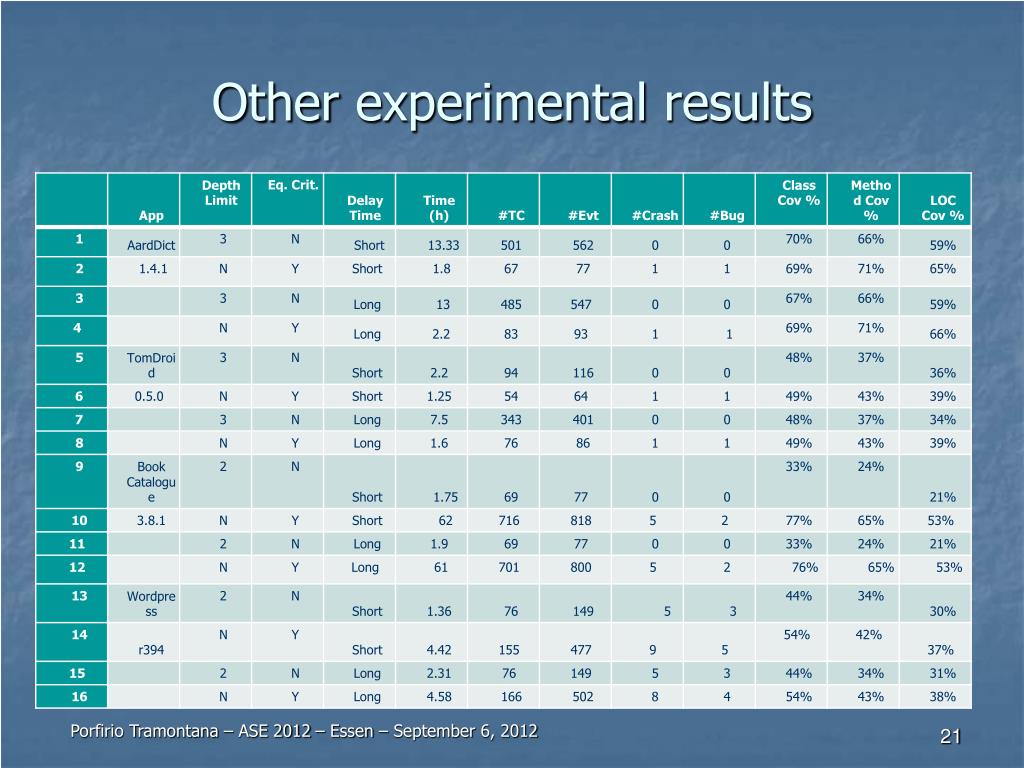

21. Otherexperimentalresults
