  1. Web Services with Apache CXF Part 1: SOAP Web Services Robert Thornton

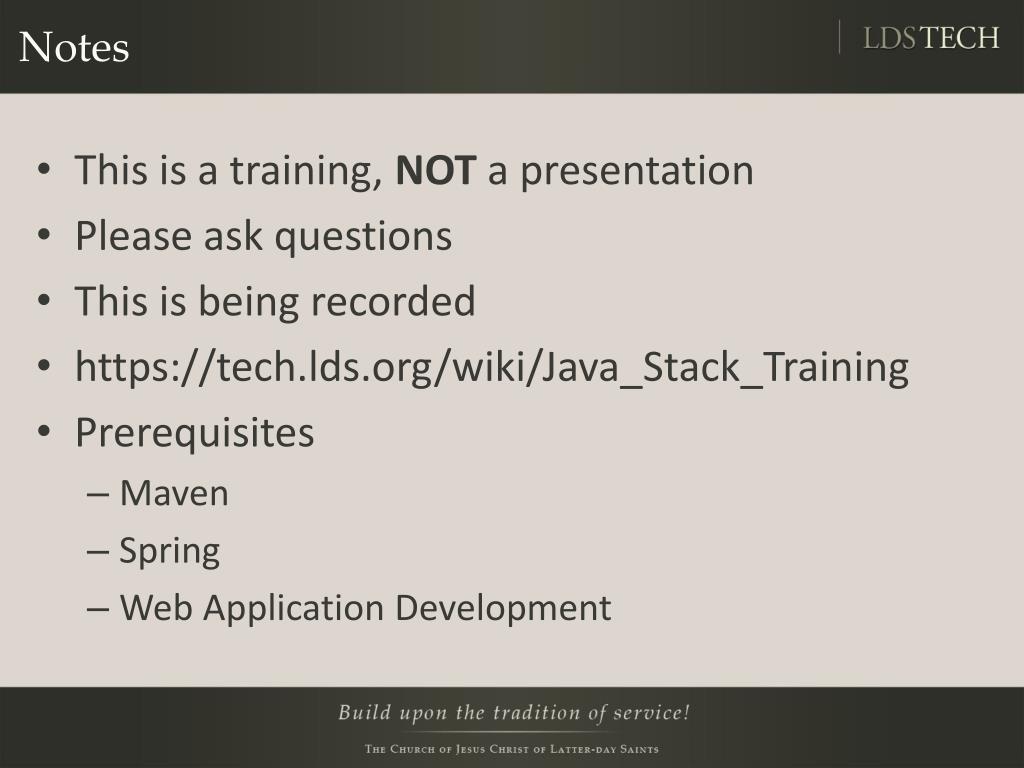

  2. Notes • This is a training, NOT a presentation • Please ask questions • This is being recorded • https://tech.lds.org/wiki/Java_Stack_Training • Prerequisites • Maven • Spring • Web Application Development

  3. Objectives At the end of this presentation, the participant will be able to: • Describe the role of Apache CXF in building SOAP web services. • Understand the basic characteristics and terminology of a SOAP web service. • Describe the pros and cons of SOAP vs. REST. • Use Apache CXF and Spring to produce a SOAP HTTP endpoint in a Java web application. • Be able to consume a SOAP HTTP web service within an integration test. • Be able to identify the purpose and components of a SOAP WSDL document.

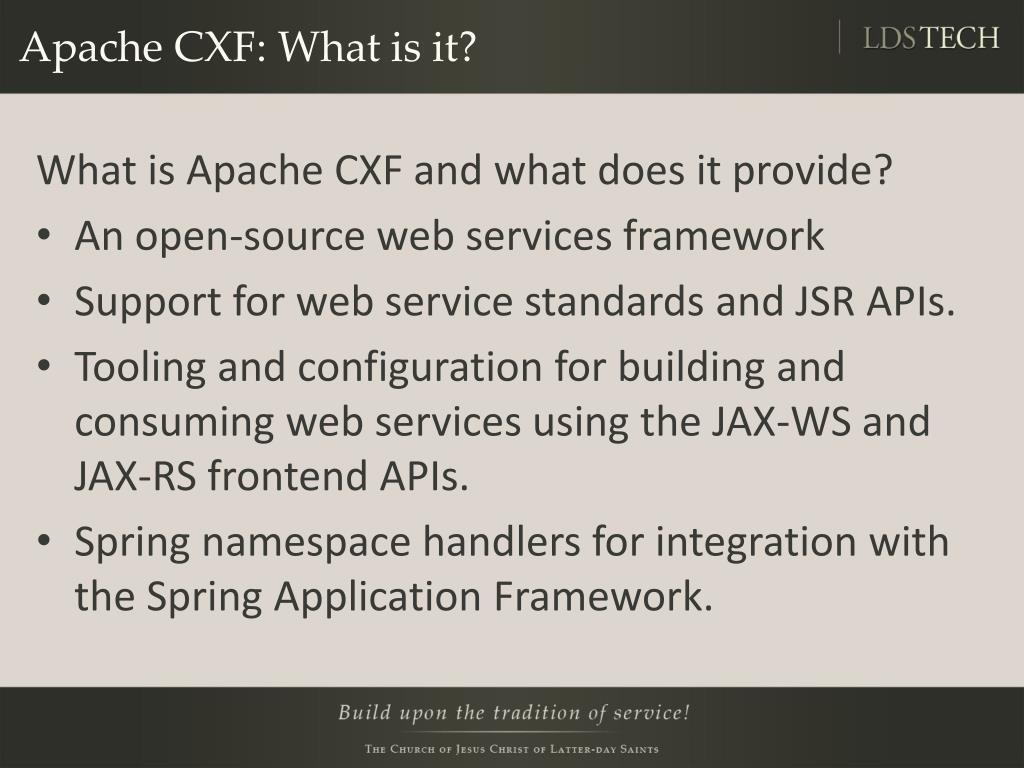

  4. Apache CXF: What is it? What is Apache CXF and what does it provide? • An open-source web services framework • Support for web service standards and JSR APIs. • Tooling and configuration for building and consuming web services using the JAX-WS and JAX-RS frontend APIs. • Spring namespace handlers for integration with the Spring Application Framework.

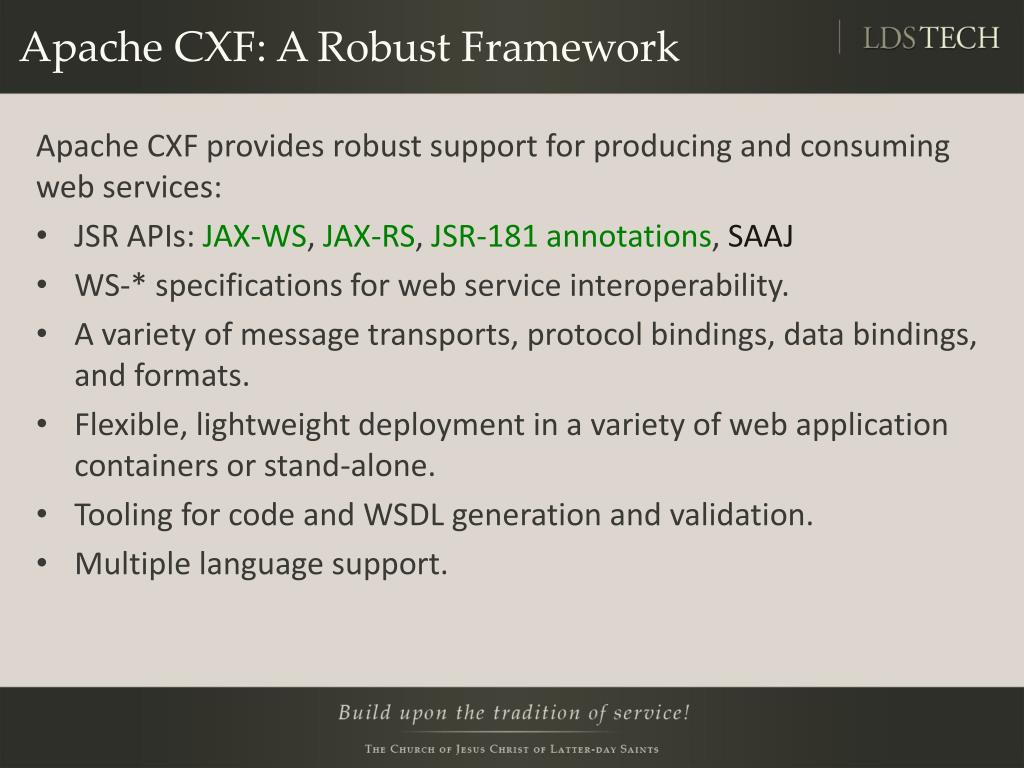

  5. Apache CXF: A Robust Framework Apache CXF provides robust support for producing and consuming web services: • JSR APIs: JAX-WS, JAX-RS, JSR-181 annotations, SAAJ • WS-* specifications for web service interoperability. • A variety of message transports, protocol bindings, data bindings, and formats. • Flexible, lightweight deployment in a variety of web application containers or stand-alone. • Tooling for code and WSDL generation and validation. • Multiple language support.

  6. Apache CXF: Help, I’m drowning! With all these features, how do I choose?

  7. Apache CXF: Recommendations The Java Stack recommends the following two basic feature sets for using CXF to produce and consume web services in Java applications: • Option #1: JAX-WS, using the SOAP protocol over HTTP transport with JAXB data binding. • Option #2: JAX-RS using REST over HTTP with JAXB, XML, or JSON data binding. This training will focus on producing and consuming SOAP web services with JAX-WS. A future training session will cover JAX-RS.

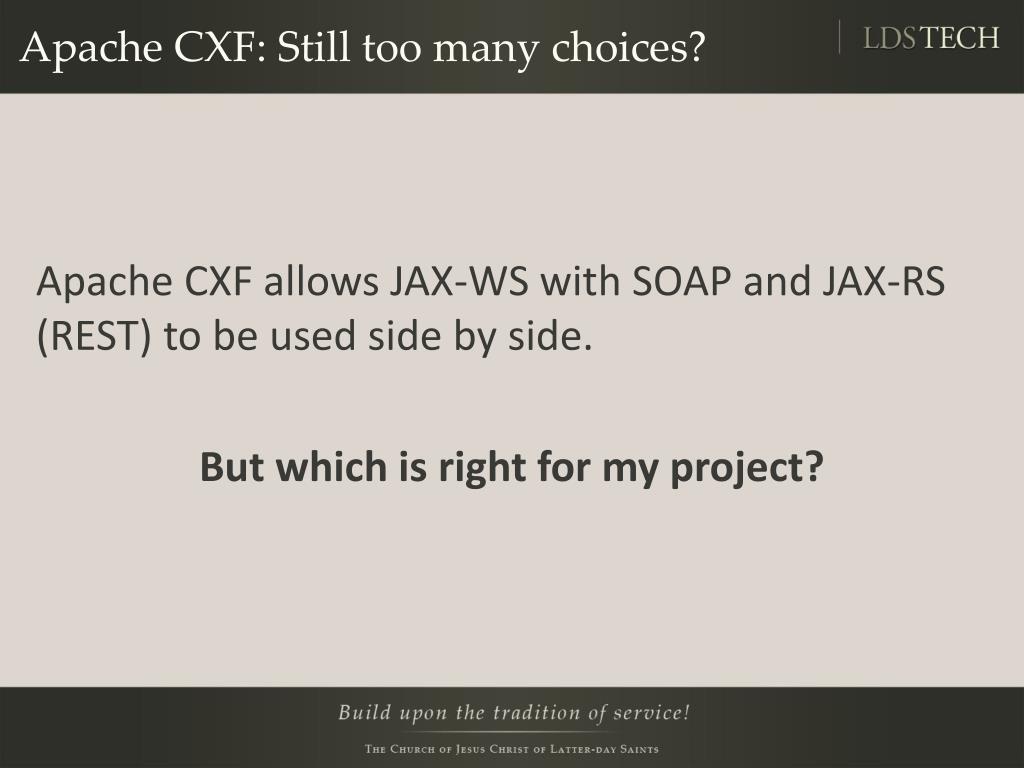

  8. Apache CXF: Still too many choices? Apache CXF allows JAX-WS with SOAP and JAX-RS (REST) to be used side by side. But which is right for my project?

  9. SOAP vs. REST: An Overview Both SOAP and REST are front-end technologies. That is, their services are exposed within the view layer of an application. SOAP • Supports a variety of transports (HTTP, JMS, etc.) • Integrates with a variety of web service standards. • Typically used to pass contractually structured data between applications. REST • Simple point-to-point communication using well-established HTTP verbs, protocols, and standards. • Often used to faciliate dynamic HTML page creation.

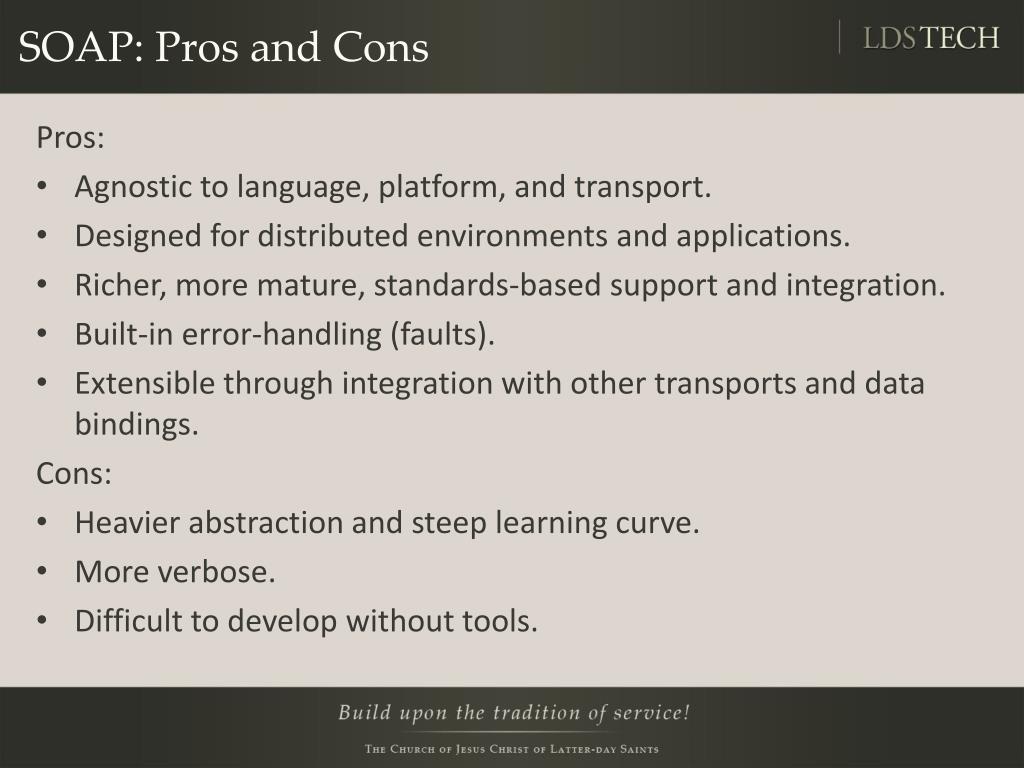

  10. SOAP: Pros and Cons Pros: • Agnostic to language, platform, and transport. • Designed for distributed environments and applications. • Richer, more mature, standards-based support and integration. • Built-in error-handling (faults). • Extensible through integration with other transports and data bindings. Cons: • Heavier abstraction and steep learning curve. • More verbose. • Difficult to develop without tools.

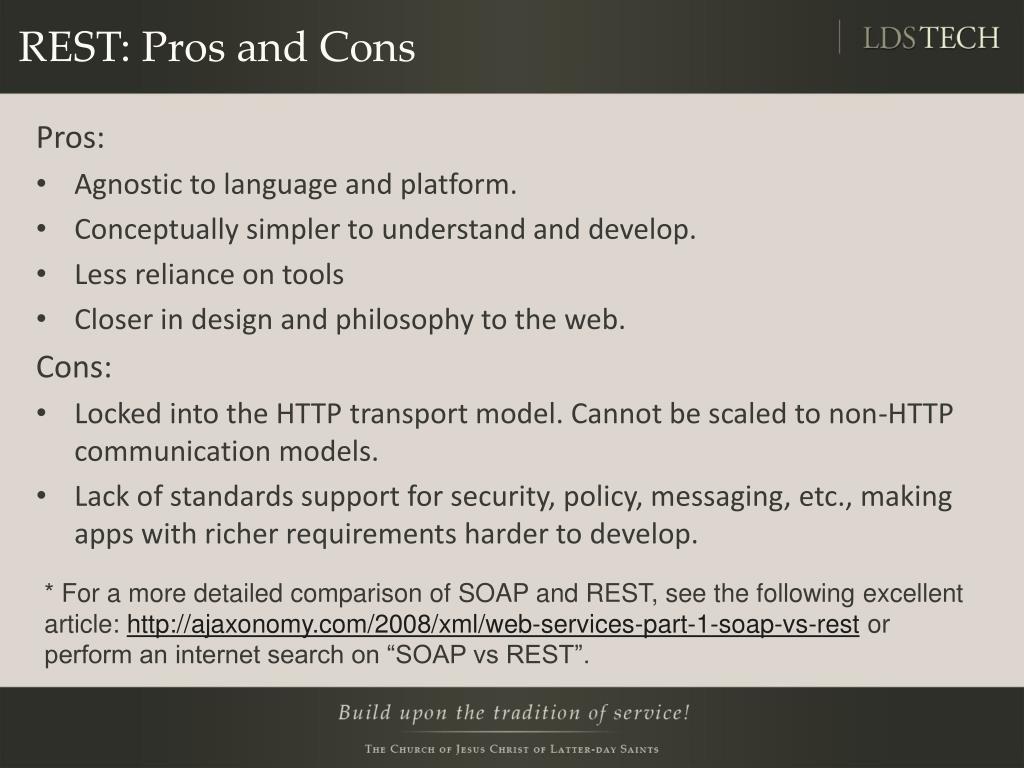

  11. REST: Pros and Cons Pros: • Agnostic to language and platform. • Conceptually simpler to understand and develop. • Less reliance on tools • Closer in design and philosophy to the web. Cons: • Locked into the HTTP transport model. Cannot be scaled to non-HTTP communication models. • Lack of standards support for security, policy, messaging, etc., making apps with richer requirements harder to develop. * For a more detailed comparison of SOAP and REST, see the following excellent article:http://ajaxonomy.com/2008/xml/web-services-part-1-soap-vs-rest or perform an internet search on “SOAP vs REST”.

  12. SOAP vs. REST: Summary • Know your deployment environment and infrastructure. • Will your service be distributed? • Will communication need to pass through non-HTTP boundaries? • Know your interoperability and scalability requirements. • Who will be consuming your service? • Will you need to support non-HTTP transports (e.g. JMS, SMTP, POP3) now or in the future?

  13. And now for a song…. ¯ Oh, I wish I were a little bar of … SOAP! ¯

  14. JAX-WS and SOAP Essential Terminology: • WSDL • Web Service Namespace URI • Endpoint URL or Port • Service Endpoint Interface (SEI) • Operation • Message • Envelope

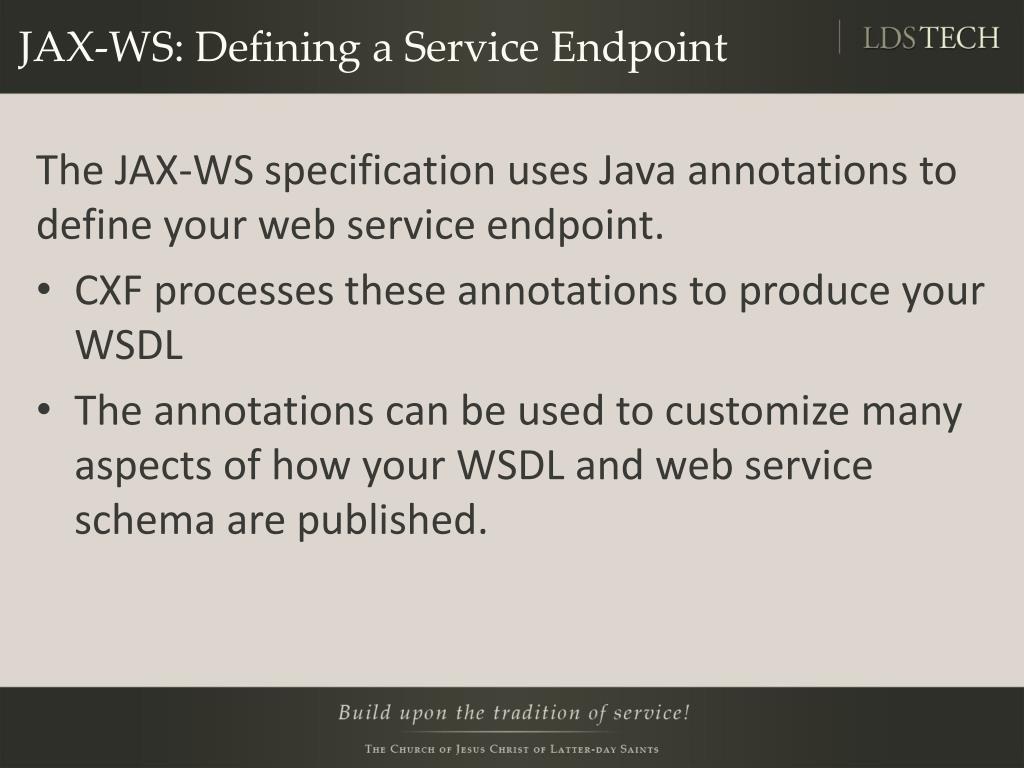

  15. JAX-WS: Defining a Service Endpoint The JAX-WS specification uses Java annotations to define your web service endpoint. • CXF processes these annotations to produce your WSDL • The annotations can be used to customize many aspects of how your WSDL and web service schema are published.

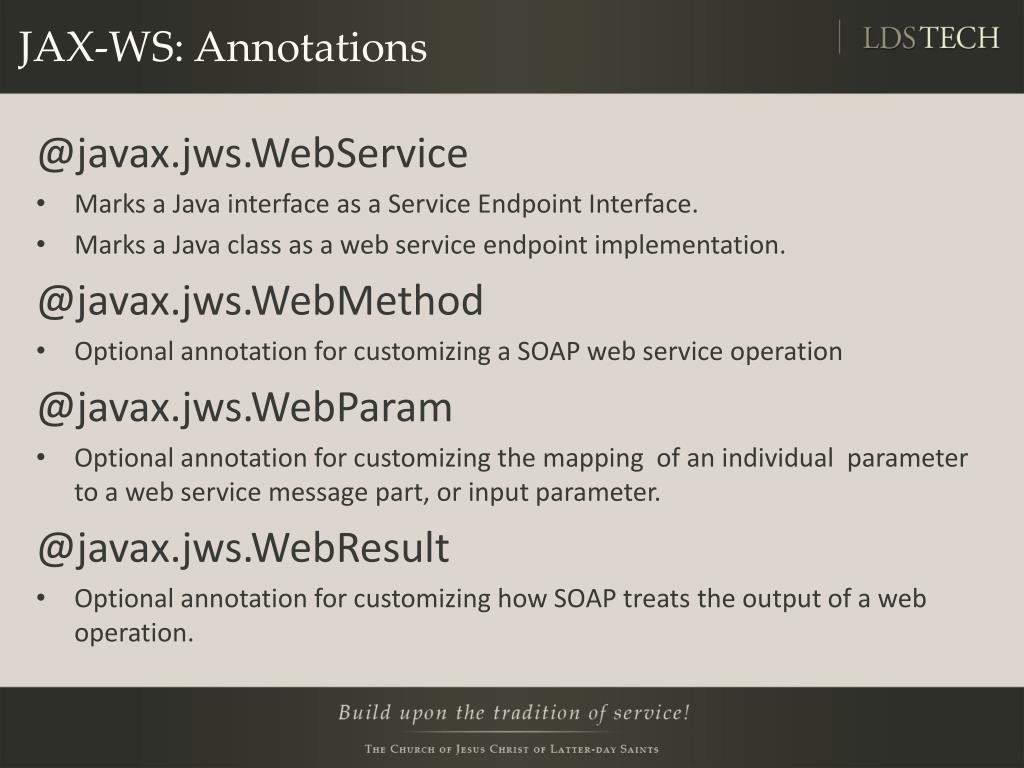

  16. JAX-WS: Annotations @javax.jws.WebService • Marks a Java interface as a Service Endpoint Interface. • Marks a Java class as a web service endpoint implementation. @javax.jws.WebMethod • Optional annotation for customizing a SOAP web service operation @javax.jws.WebParam • Optional annotation for customizing the mapping of an individual parameter to a web service message part, or input parameter. @javax.jws.WebResult • Optional annotation for customizing how SOAP treats the output of a web operation.

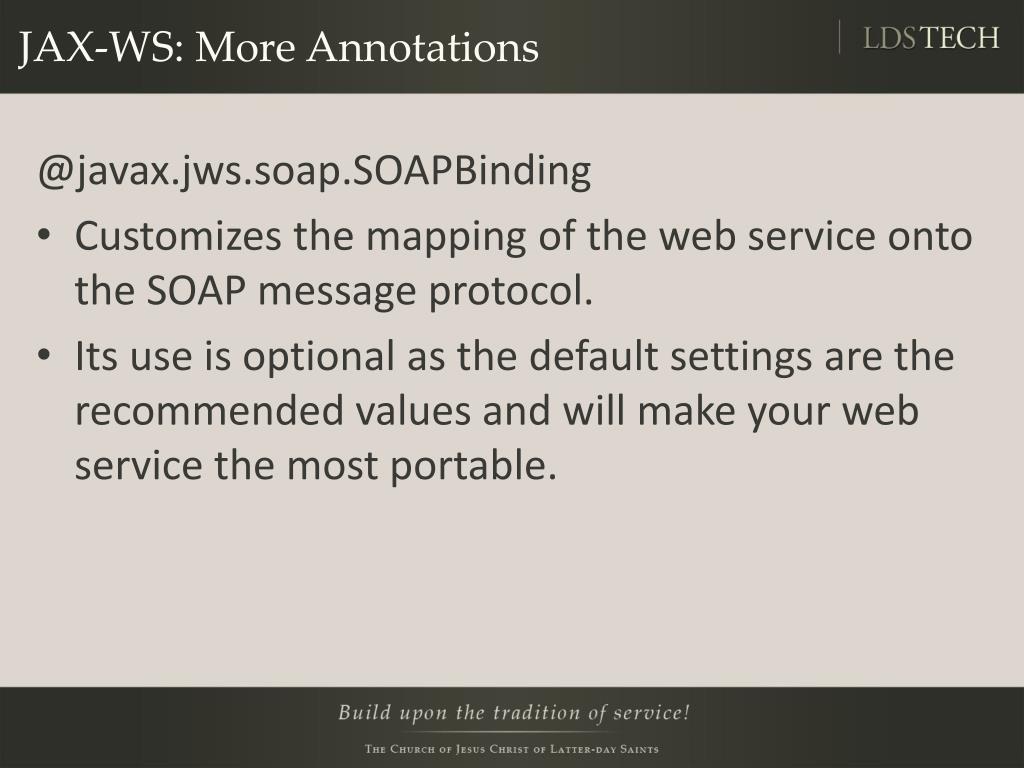

  17. JAX-WS: More Annotations @javax.jws.soap.SOAPBinding • Customizes the mapping of the web service onto the SOAP message protocol. • Its use is optional as the default settings are the recommended values and will make your web service the most portable.

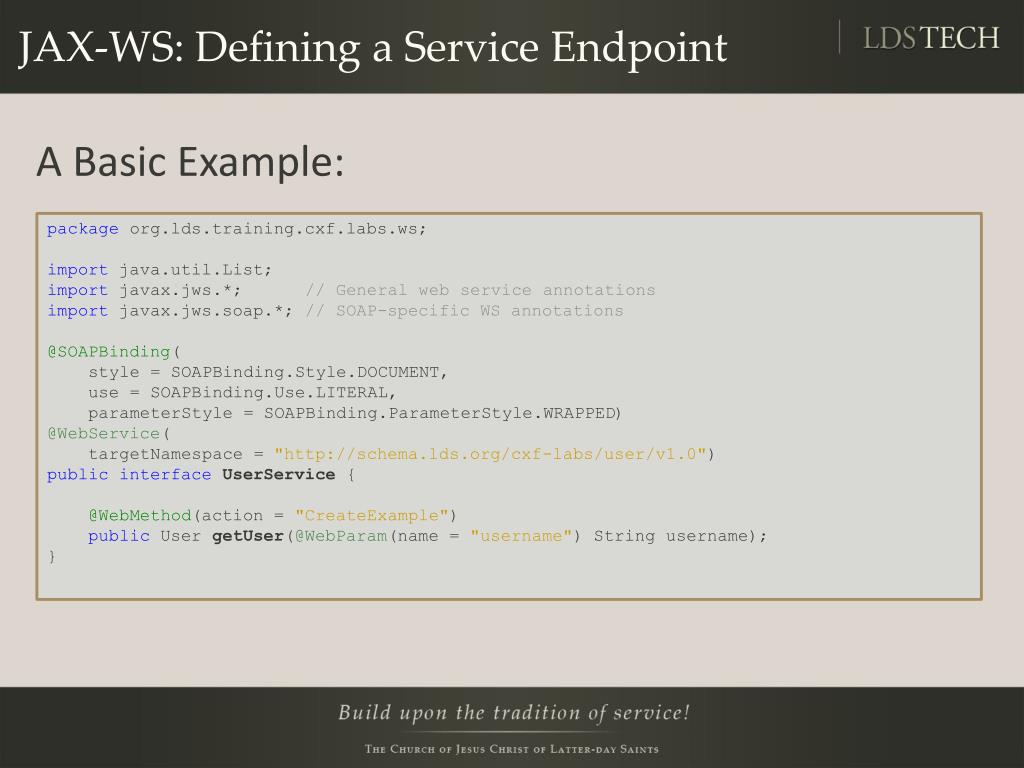

  18. JAX-WS: Defining a Service Endpoint A Basic Example: package org.lds.training.cxf.labs.ws; importjava.util.List; importjavax.jws.*; // General web service annotations importjavax.jws.soap.*; // SOAP-specific WS annotations @SOAPBinding( style = SOAPBinding.Style.DOCUMENT, use = SOAPBinding.Use.LITERAL, parameterStyle = SOAPBinding.ParameterStyle.WRAPPED) @WebService( targetNamespace = "http://schema.lds.org/cxf-labs/user/v1.0") publicinterfaceUserService { @WebMethod(action = "CreateExample") public User getUser(@WebParam(name = "username") String username); }

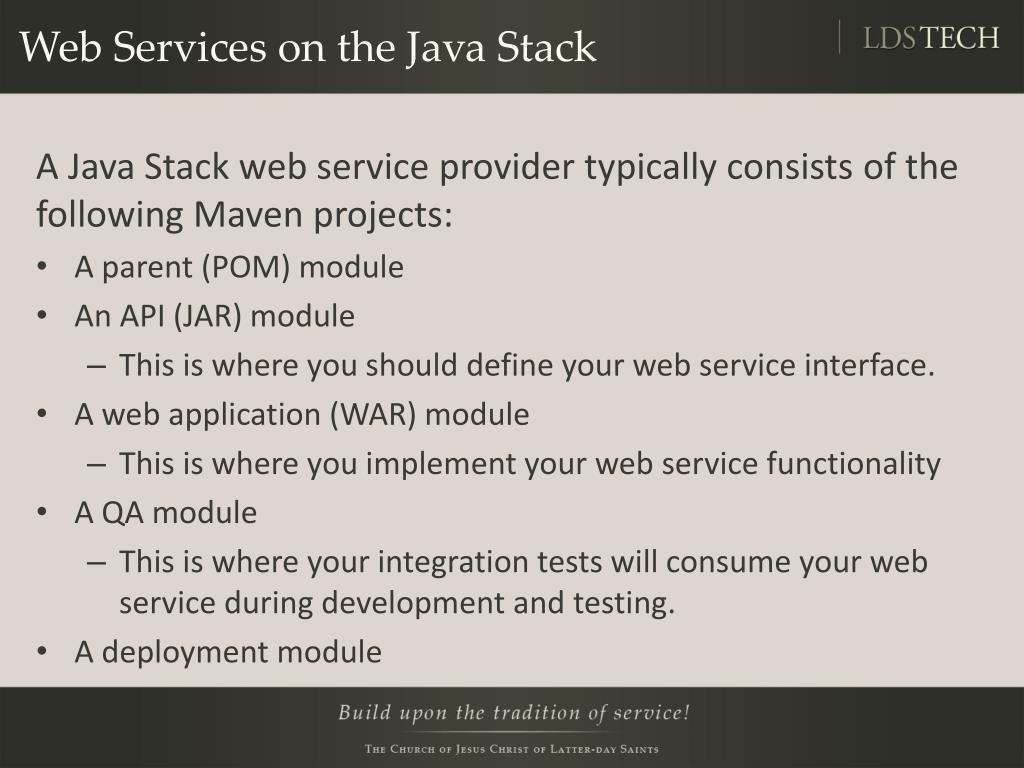

  19. Web Services on the Java Stack A Java Stack web service provider typically consists of the following Maven projects: • A parent (POM) module • An API (JAR) module • This is where you should define your web service interface. • A web application (WAR) module • This is where you implement your web service functionality • A QA module • This is where your integration tests will consume your web service during development and testing. • A deployment module

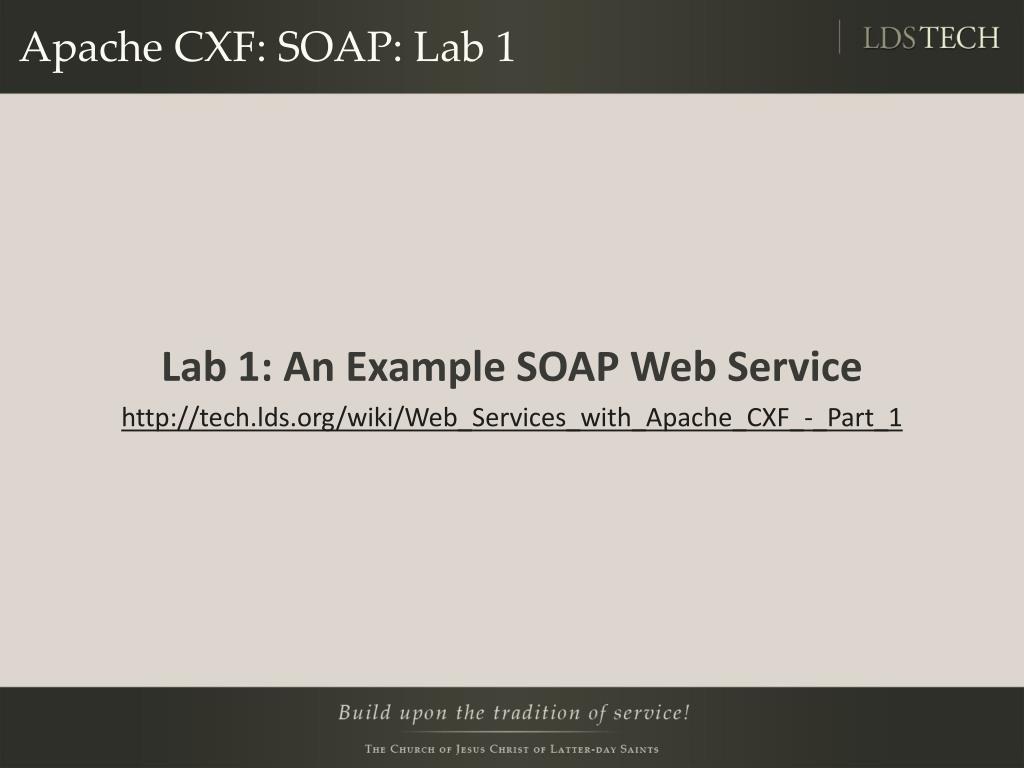

  20. Apache CXF: SOAP: Lab 1 Lab 1: An Example SOAP Web Service http://tech.lds.org/wiki/Web_Services_with_Apache_CXF_-_Part_1

  21. Namespace Handlers For Spring bean configuration, the Java Stack defines two namespace handlers for JAX-WS web services: • <stack-ws:produce/> • Used in the web application to configure the JAX-WS web service bean. • <stack-ws:consume/> • Used in a QA module or other application to configure a JAX-WS client proxy bean.

  22. Configuring a Web Service Provider Attributes to <stack-ws:produce/> • implementor • The bean name of the endpoint implementation class • secured • Whether to secure the web service with LDS Account. • address • The endpoint address where the service will be published. • authentication-manager-ref • allows customization of the authentication manager

  23. Configuring a Web Service Client Attributes to <stack-ws:consume/> • service-class • The bean name of the endpoint implementation class. • endpoint • The published endpoint service address. • user, password, password-type • For user authentication. Both plain text and digest passwords are supported. • wam-authenticator, wam-cookie-resolver-ref • Provides authentication through WAM • ssl-trust-server • Specifies whether the server’s SSL cert should be automatically trusted.

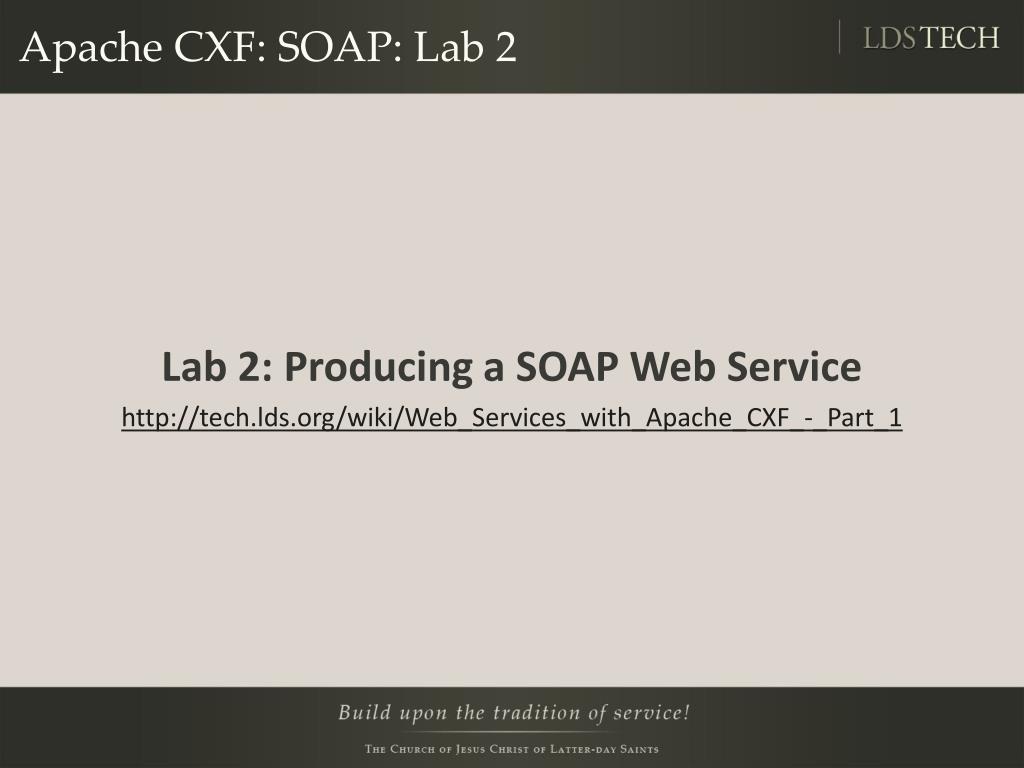

  24. Apache CXF: SOAP: Lab 2 Lab 2: Producing a SOAP Web Service http://tech.lds.org/wiki/Web_Services_with_Apache_CXF_-_Part_1

  25. Apache CXF: SOAP: Lab 3 Lab 3: Consuming a SOAP Web Service http://tech.lds.org/wiki/Web_Services_with_Apache_CXF_-_Part_1

  26. Resources On the web: • http://cxf.apache.org • http://www.w3.org/TR/soap/ • http://en.wikipedia.org/wiki/Cxf • http://en.wikipedia.org/wiki/SOAP • http://ajaxonomy.com/2008/xml/web-services-part-1-soap-vs-rest In Print: • Developing Web Services with Apache CXF and Axis 2, Kent Kai Iok Tong, TipTech Development, 2005-2010. ISBN: 978-0-557-25432-3
