Presentation Transcript

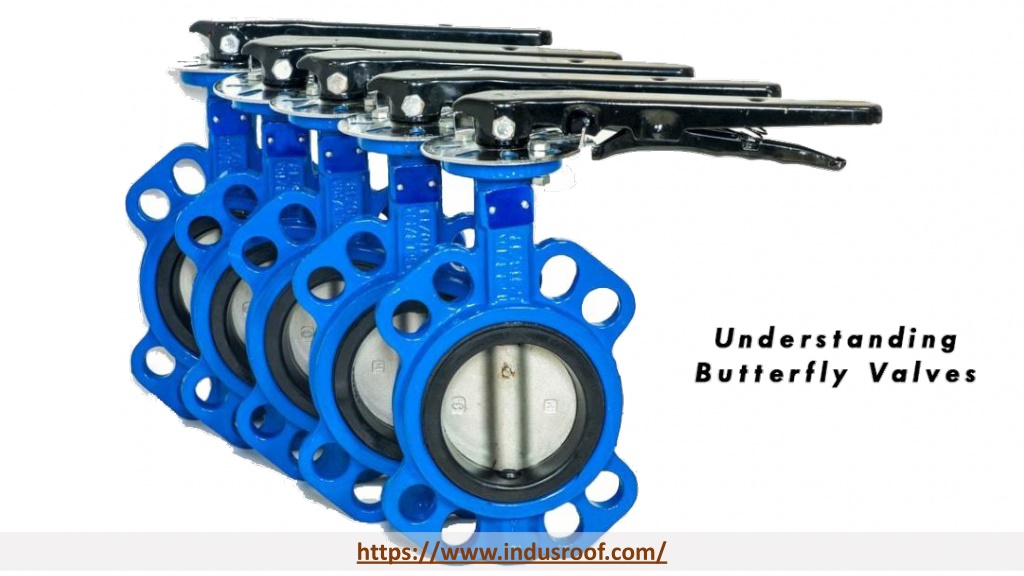

  1. https://www.indusroof.com/

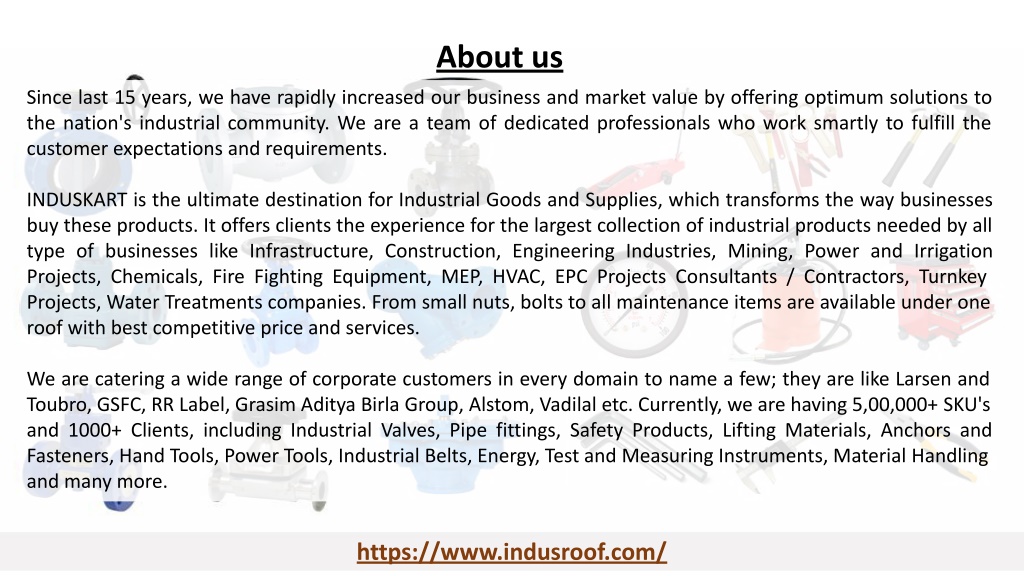

  2. About us Since last 15 years, we have rapidly increased our business and market value by offering optimum solutions to the nation's industrial community. We are a team of dedicated professionals who work smartly to fulfill the customer expectations and requirements. INDUSKART is the ultimate destination for Industrial Goods and Supplies, which transforms the way businesses buy these products. It offers clients the experience for the largest collection of industrial products needed by all type of businesses like Infrastructure, Construction, Engineering Industries, Mining, Power and Irrigation Projects, Chemicals, Fire Fighting Equipment, MEP, HVAC, EPC Projects Consultants / Contractors, Turnkey Projects, Water Treatments companies. From small nuts, bolts to all maintenance items are available under one roof with best competitive price and services. We are catering a wide range of corporate customers in every domain to name a few; they are like Larsen and Toubro, GSFC, RR Label, Grasim Aditya Birla Group, Alstom, Vadilal etc. Currently, we are having 5,00,000+ SKU's and 1000+ Clients, including Industrial Valves, Pipe fittings, Safety Products, Lifting Materials, Anchors and Fasteners, Hand Tools, Power Tools, Industrial Belts, Energy, Test and Measuring Instruments, Material Handling and many more. https://www.indusroof.com/

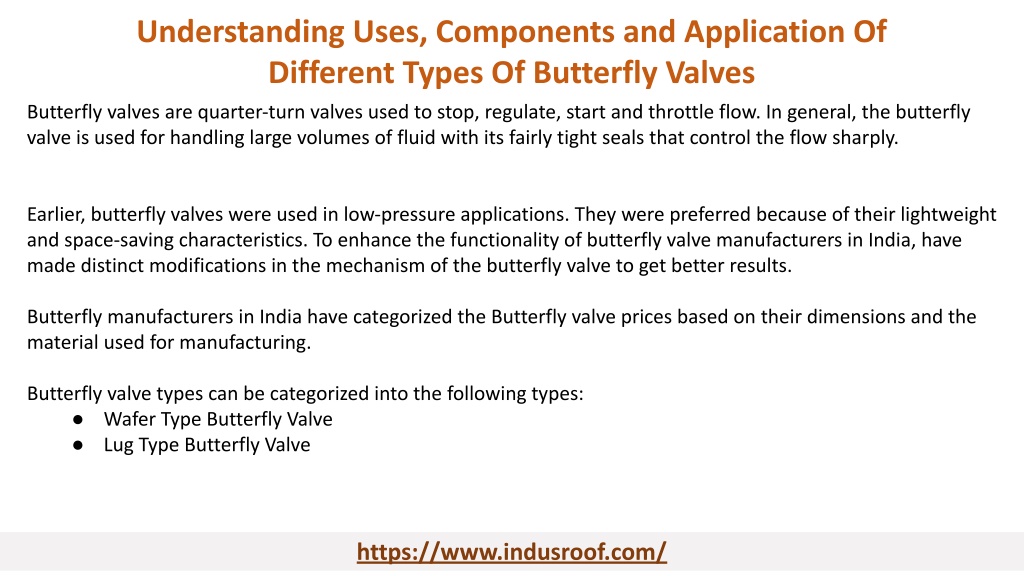

  3. Understanding Uses, Components and Application Of Different Types Of Butterfly Valves Butterfly valves are quarter-turn valves used to stop, regulate, start and throttle flow. In general, the butterfly valve is used for handling large volumes of fluid with its fairly tight seals that control the flow sharply. Earlier, butterfly valves were used in low-pressure applications. They were preferred because of their lightweight and space-saving characteristics. To enhance the functionality of butterfly valve manufacturers in India, have made distinct modifications in the mechanism of the butterfly valve to get better results. Butterfly manufacturers in India have categorized the Butterfly valve prices based on their dimensions and the material used for manufacturing. Butterfly valve types can be categorized into the following types: ● Wafer Type Butterfly Valve ● Lug Type Butterfly Valve https://www.indusroof.com/

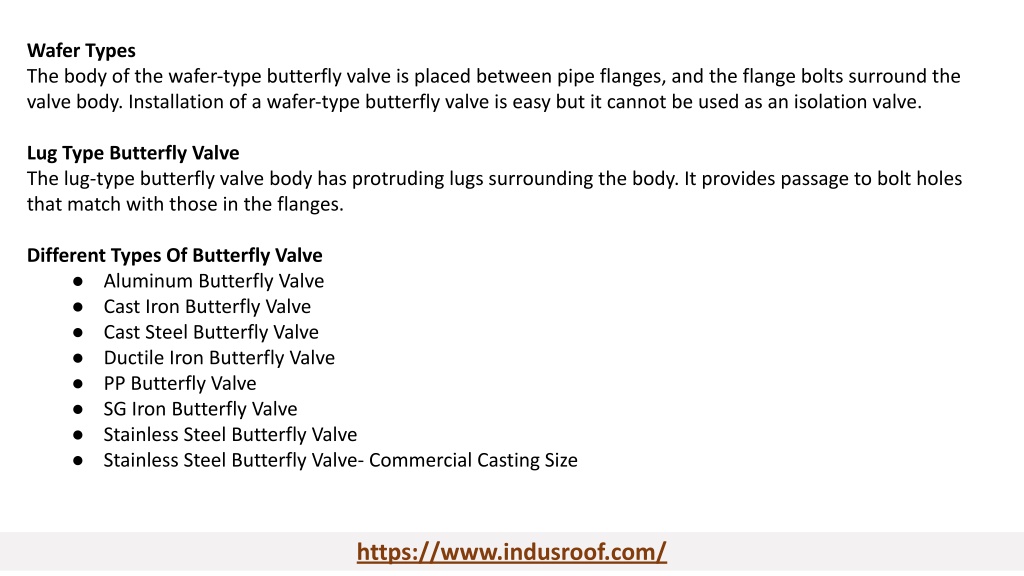

  4. Wafer Types The body of the wafer-type butterfly valve is placed between pipe flanges, and the flange bolts surround the valve body. Installation of a wafer-type butterfly valve is easy but it cannot be used as an isolation valve. Lug Type Butterfly Valve The lug-type butterfly valve body has protruding lugs surrounding the body. It provides passage to bolt holes that match with those in the flanges. Different Types Of Butterfly Valve ● Aluminum Butterfly Valve ● Cast Iron Butterfly Valve ● Cast Steel Butterfly Valve ● Ductile Iron Butterfly Valve ● PP Butterfly Valve ● SG Iron Butterfly Valve ● Stainless Steel Butterfly Valve ● Stainless Steel Butterfly Valve- Commercial Casting Size https://www.indusroof.com/

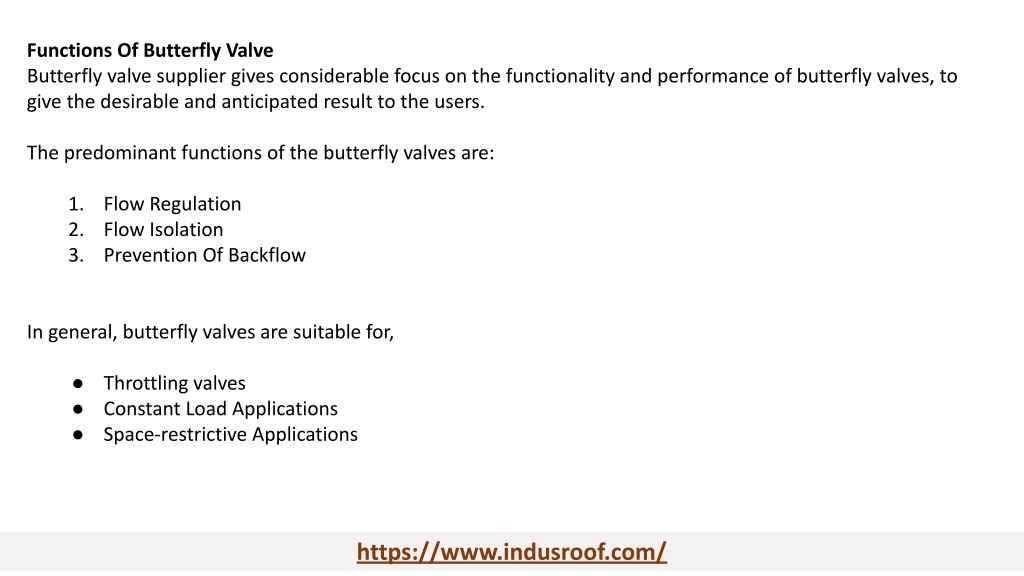

  5. Functions Of Butterfly Valve Butterfly valve supplier gives considerable focus on the functionality and performance of butterfly valves, to give the desirable and anticipated result to the users. The predominant functions of the butterfly valves are: 1. 2. 3. Flow Regulation Flow Isolation Prevention Of Backflow In general, butterfly valves are suitable for, ● Throttling valves ● Constant Load Applications ● Space-restrictive Applications https://www.indusroof.com/

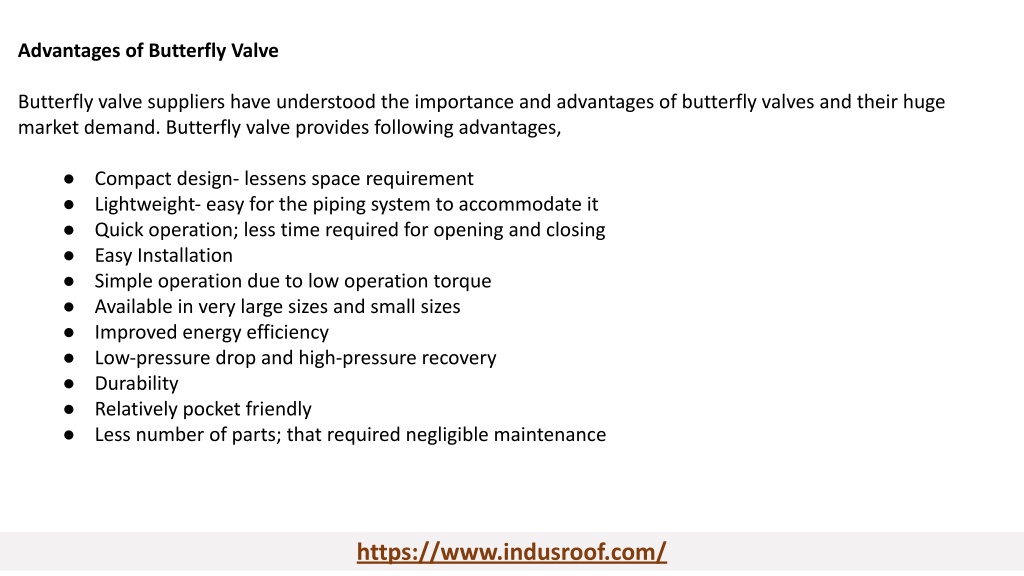

  6. Advantages of Butterfly Valve Butterfly valve suppliers have understood the importance and advantages of butterfly valves and their huge market demand. Butterfly valve provides following advantages, ● Compact design- lessens space requirement ● Lightweight- easy for the piping system to accommodate it ● Quick operation; less time required for opening and closing ● Easy Installation ● Simple operation due to low operation torque ● Available in very large sizes and small sizes ● Improved energy efficiency ● Low-pressure drop and high-pressure recovery ● Durability ● Relatively pocket friendly ● Less number of parts; that required negligible maintenance https://www.indusroof.com/

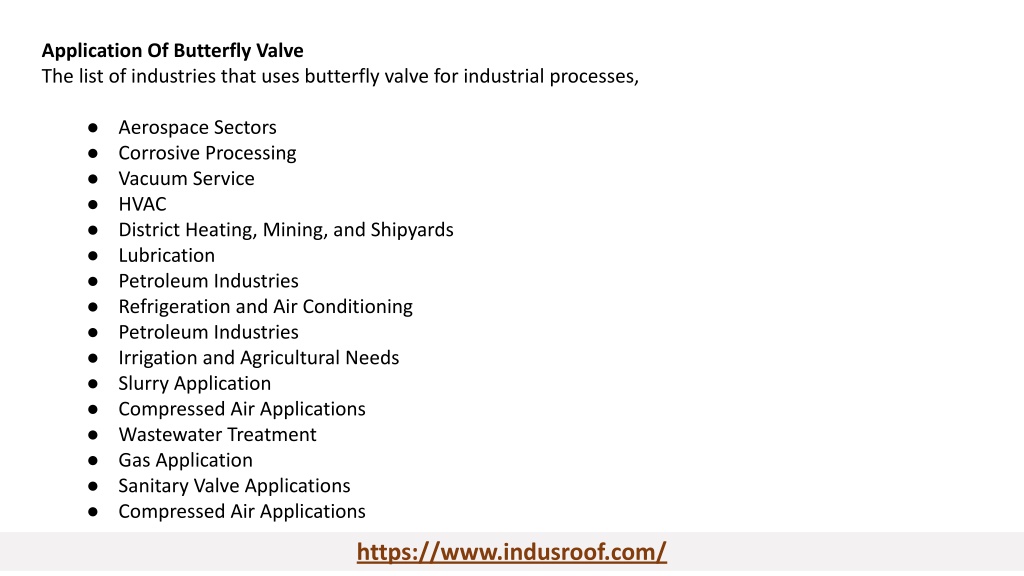

  7. Application Of Butterfly Valve The list of industries that uses butterfly valve for industrial processes, ● Aerospace Sectors ● Corrosive Processing ● Vacuum Service ● HVAC ● District Heating, Mining, and Shipyards ● Lubrication ● Petroleum Industries ● Refrigeration and Air Conditioning ● Petroleum Industries ● Irrigation and Agricultural Needs ● Slurry Application ● Compressed Air Applications ● Wastewater Treatment ● Gas Application ● Sanitary Valve Applications ● Compressed Air Applications https://www.indusroof.com/

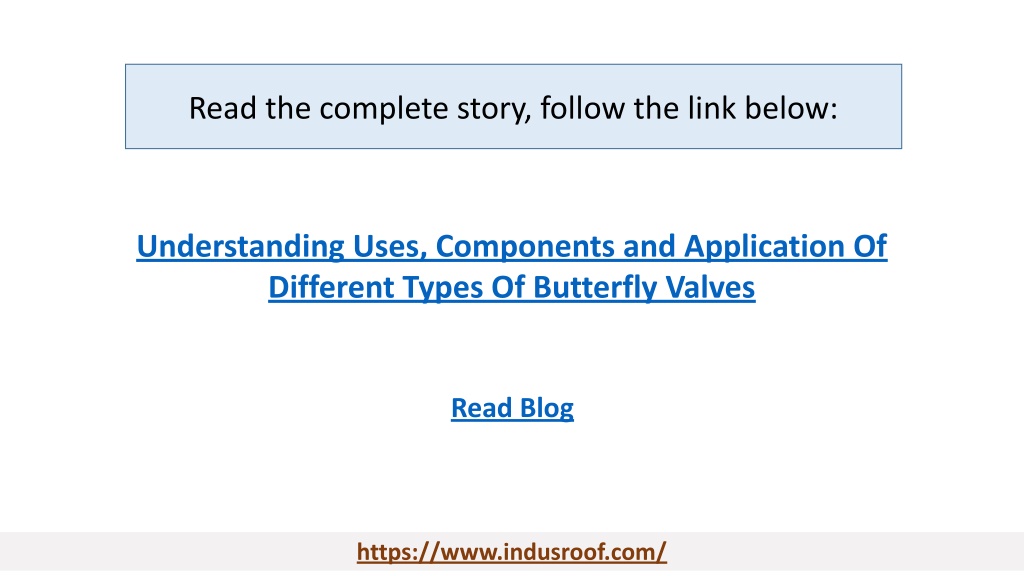

  8. Read the complete story, follow the link below: Understanding Uses, Components and Application Of Different Types Of Butterfly Valves Read Blog https://www.indusroof.com/
