slurry design
Slurry Design
  • Basic principle of handling solids :
  • pump and motor are separated
  • motor is filled with clean liquid
  • During operation clean liquid approx. 2-10l/h will be dosed in motor circulation => volume of dosed in clean liquid will flow from motor to pump => particles or liquid from pump cannot enter into motor

Heat exchanger

Dose in 2 - 10l/h clean liquid

handling solids with slurry design

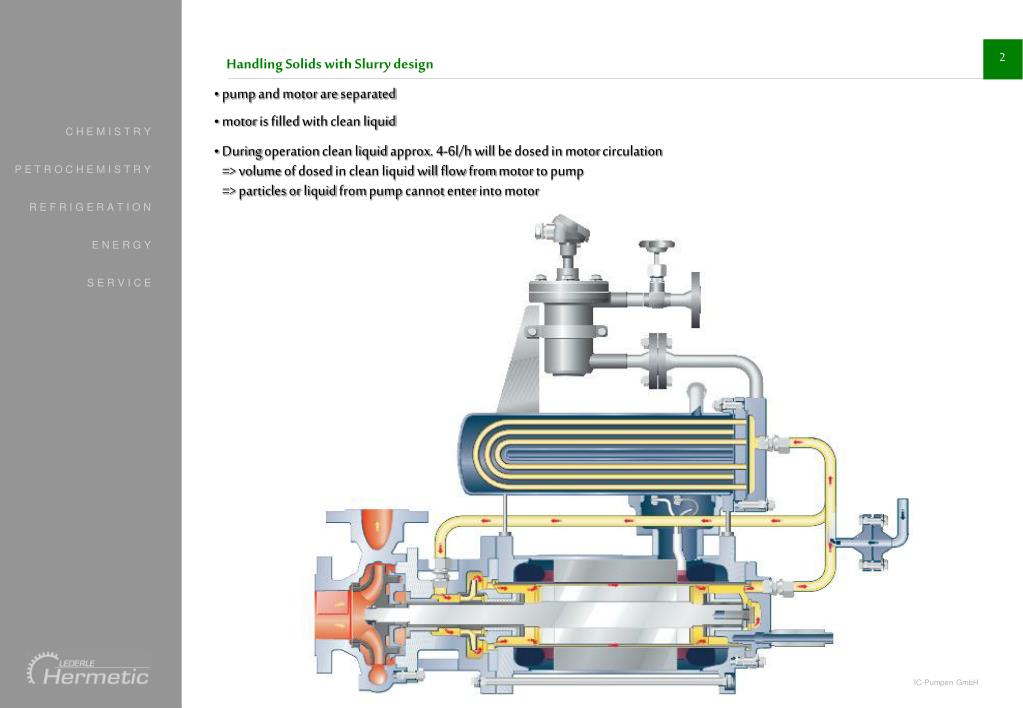

Handling Solids with Slurry design
  • pump andmotorareseparated
  • motorisfilledwith clean liquid
  • Duringoperation clean liquid approx. 4-6l/h will bedosed in motorcirculation => volumeofdosed in clean liquid will flowfrommotorto pump => particlesor liquid from pump cannot enter intomotor

Dosing pump, 4-6l/h
