Presentation Transcript
slide1

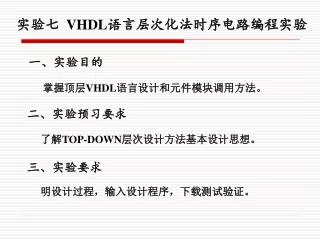

实验七 VHDL语言层次化法时序电路编程实验

一、实验目的

掌握顶层VHDL语言设计和元件模块调用方法。

二、实验预习要求

了解TOP-DOWN层次设计方法基本设计思想。

三、实验要求

明设计过程,输入设计程序,下载测试验证。

slide2

四、实验内容

基础实验:

1.试用4位2进制和7段译码模块设计1个显示0-F的程序;

提高实验:

2.试用26进制加法计数和组合电路模块设计1个显示英文字母的程序。

slide3

五、实验步骤

1.0-F显示电路设计

(1)4位2进制加法计数器设计

①输入设计

slide11

③时序仿真

④下载测试

slide12

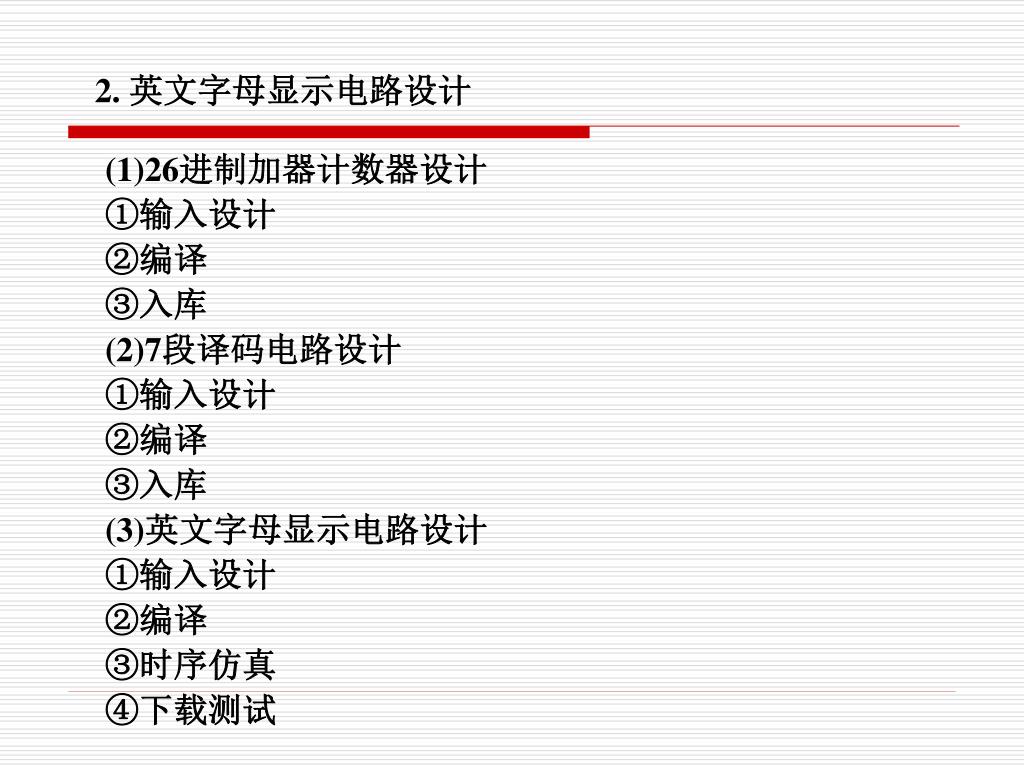

2.英文字母显示电路设计

(1)26进制加器计数器设计

①输入设计

②编译

③入库

(2)7段译码电路设计

①输入设计

②编译

③入库

(3)英文字母显示电路设计

①输入设计

②编译

③时序仿真

④下载测试

slide13

六、实验报告要求

写出顶层和模块程序,总结层次化设计到最后下载测试的整个过程,画出仿真图,总结说明实验结果。

slide14

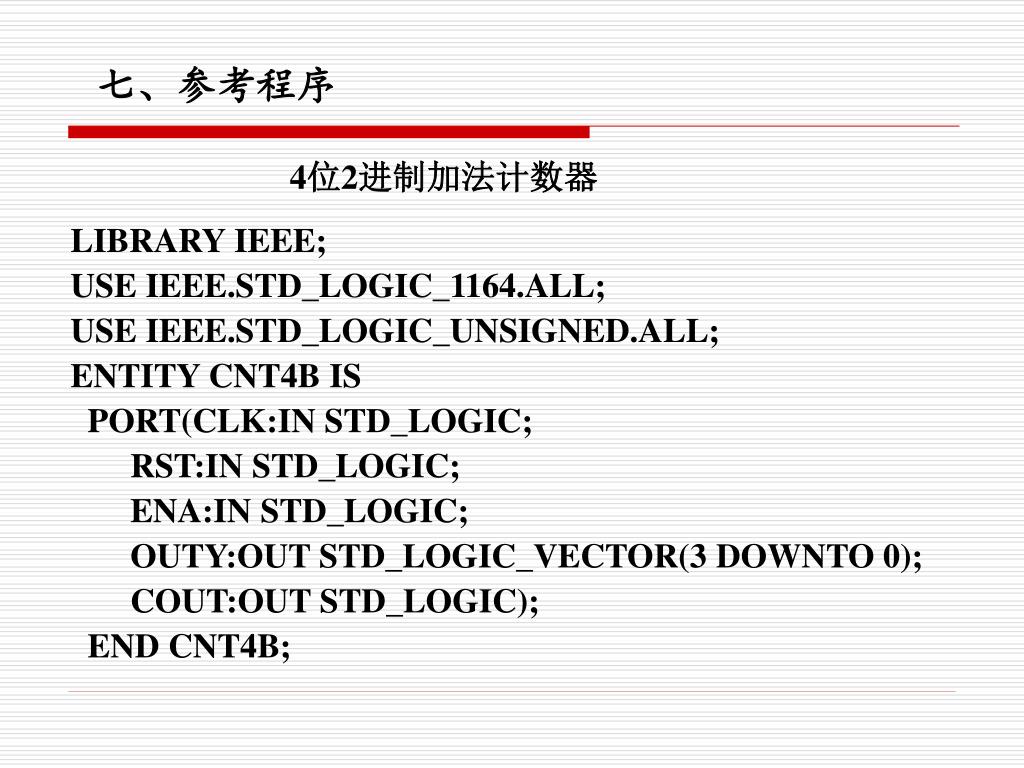

七、参考程序

4位2进制加法计数器

LIBRARY IEEE;

USE IEEE.STD_LOGIC_1164.ALL;

USE IEEE.STD_LOGIC_UNSIGNED.ALL;

ENTITY CNT4B IS

PORT(CLK:IN STD_LOGIC;

RST:IN STD_LOGIC;

ENA:IN STD_LOGIC;

OUTY:OUT STD_LOGIC_VECTOR(3 DOWNTO 0);

COUT:OUT STD_LOGIC);

END CNT4B;

slide15

ARCHITECTURE BEHAV OF CNT4B IS

SIGNAL CQI: STD_LOGIC_VECTOR(3 DOWNTO 0);

BEGIN

P_REG:PROCESS(CLK,RST,ENA)

BEGIN

IF RST='1'THEN CQI<="0000";

ELSIF CLK'EVENT AND CLK='1'THEN

IF ENA='1' THEN CQI<=CQI+1;

ELSE CQI <= "0000";

END IF; END IF; OUTY<=CQI;

END PROCESS P_REG;

COUT<=CQI(0) AND CQI(1) AND CQI(2) AND CQI(3);

END BEHAV;

slide16

7段译码电路程序

LIBRARY IEEE;

USE IEEE.STD_LOGIC_1164.ALL;

ENTITY DECL7S IS

PORT(A:IN STD_LOGIC_VECTOR(3 DOWNTO 0);

LED7S:OUT STD_LOGIC_VECTOR(6 DOWNTO 0) );

END DECL7S;

ARCHITECTURE ONE OF DECL7S IS

BEGIN

PROCESS(A)

BEGIN

CASE A IS

WHEN "0000"=> LED7S <= "0111111";

WHEN "0001"=> LED7S <= "0000110";

WHEN "0010"=> LED7S <= "1011011";

WHEN "0011"=> LED7S <= "1001111";

slide17

WHEN "0100"=> LED7S <= "1100110";

WHEN "0101"=> LED7S <= "1101101";

WHEN "0110"=> LED7S <= "1111101";

WHEN "0111"=> LED7S <= "0000111";

WHEN "1000"=> LED7S <= "1111111";

WHEN "1001"=> LED7S <= "1101111";

WHEN "1010"=> LED7S <= "1110111";

WHEN "1011"=> LED7S <= "1111100";

WHEN "1100"=> LED7S <= "0111001";

WHEN "1101"=> LED7S <= "1011110";

WHEN "1110"=> LED7S <= "1111001";

WHEN "1111"=> LED7S <= "1110001";

END CASE;

END PROCESS;

END ;

slide18

0-F显示电路参考程序

library ieee;

use ieee.std_logic_1164.all;

ENTITY TOPF IS

PORT(CLKQ:IN Std_Logic;

OUTQ:OUT Std_Logic_VECTOR(6 DOWNTO 0));

END TOPF;

ARCHITECTURE FD1 OF TOPF IS

COMPONENT CNT4B --调用CNT4B模块

PORT(CLK:IN Std_Logic;

Q:OUT Std_Logic_VECTOR(3 DOWNTO 0));

END COMPONENT;

slide19

COMPONENT DECL7S --调用DECL7S模块

PORT(A:IN Std_Logic_VECTOR(3 DOWNTO 0);

LED7S:OUT Std_Logic_VECTOR(6 DOWNTO 0));

END COMPONENT;

SIGNAL AA: Std_Logic_VECTOR(3 DOWNTO 0);

BEGIN

U1:CNT4B PORT MAP(CLK=>CLKQ,Q=>AA);

U2:DECL7S PORT MAP(A=>AA,LED7S=>OUTQ);

END FD1;
