  1. SC200x Peripherals Broadband Entertainment Division DTV Source Applications July 2001

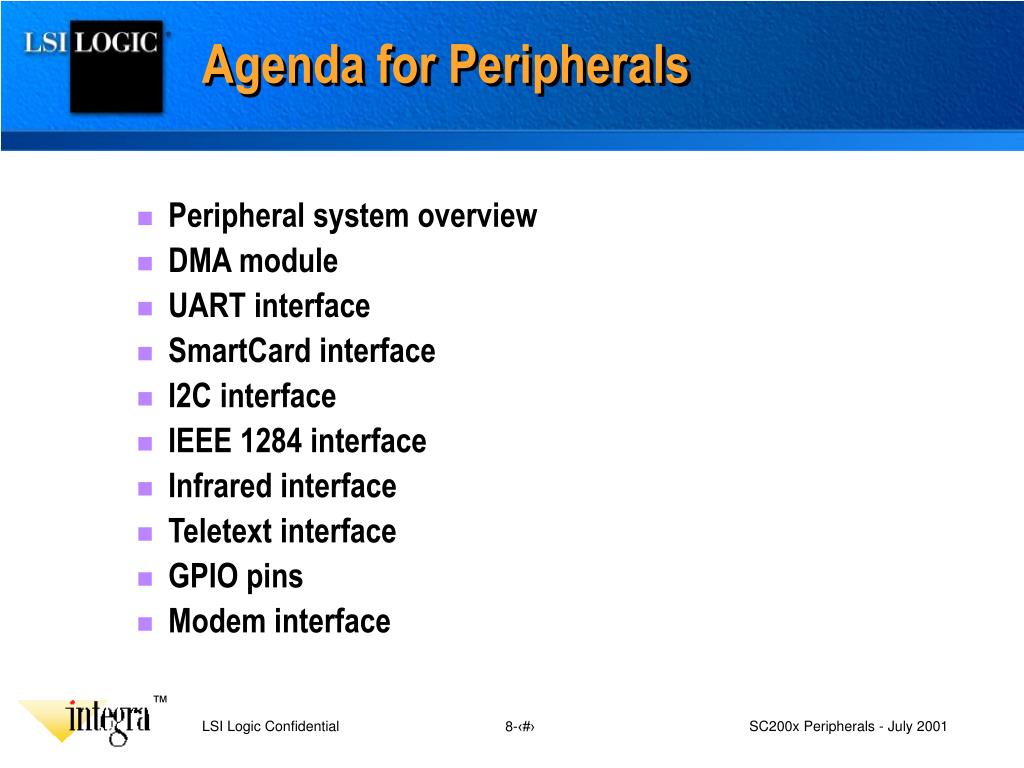

  2. Agenda for Peripherals • Peripheral system overview • DMA module • UART interface • SmartCard interface • I2C interface • IEEE 1284 interface • Infrared interface • Teletext interface • GPIO pins • Modem interface

  3. Peripheral System Overview

  4. Peripheral System Detail

  5. Peripheral Interrupts • Peripheral Interrupt Status • Two status/enable/acknowledge registers • All peripheral interrupts are route to 15 I-Bus interrupts • Submodule peripheral reset control is provided

  6. DMA Module • Two DMA channels • Each one has an RX and TX engine • All engines operate concurrently • Handles DMA transfers between SDRAM-B and UART 0/1, SmartCard 0/1 or 1284 port • Automatically checks RX and TX ready status in the required peripheral • Peripheral interrupts can be disabled • DMA interrupts should be enabled

  7. UART Interfaces • Two identical UART Interfaces U0 and U1 • Subset of the industry standard 8251 UART • Asynchronous, Full Duplex operation • Built in Baud Rate Generator (BRG) providing TX and RX clock • 16-byte TX and RX FIFOs • Operation • Each UART has the following pins: • TXD - Transmit Data, RXD - Receive Data, RTS - Request to Send, CTS - Clear to Send, DTR - Data Terminal Ready, DSR - Data Set Ready • IRDA modulator/demodulatormode support requires external transmit/receive device

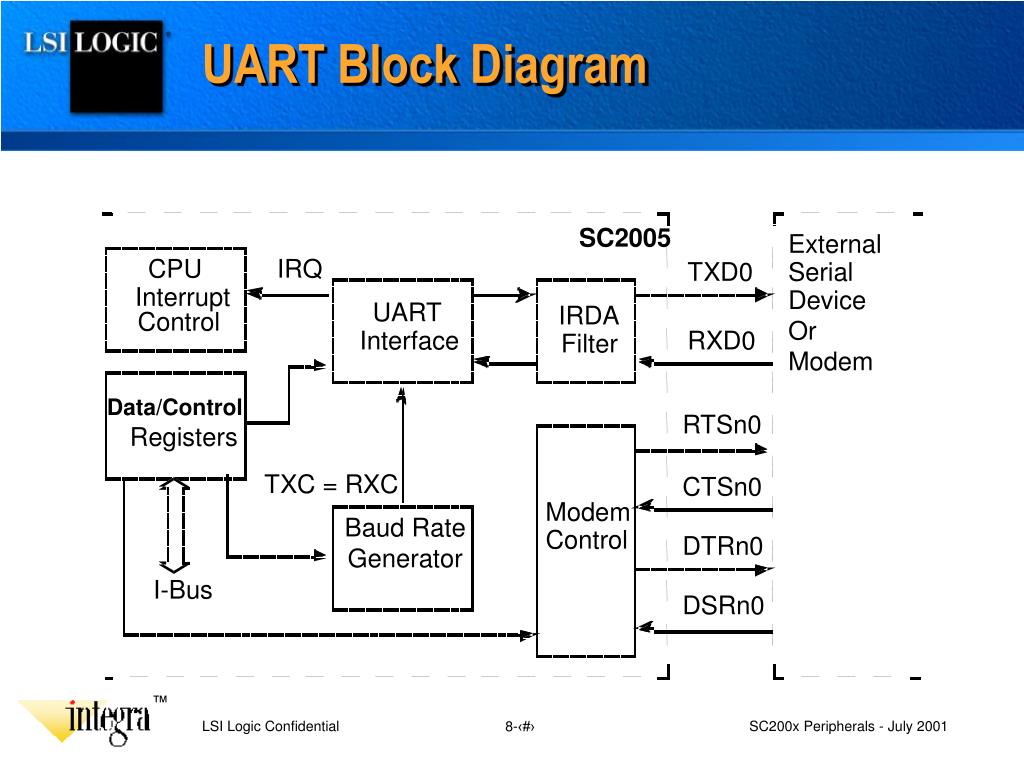

  8. UART Block Diagram SC2005 External CPU IRQ TXD0 Serial Interrupt Device Or Modem UART IRDA Control Interface RXD0 Filter Data/Control RTSn0 Registers TXC = RXC CTSn0 Modem Baud Rate Control DTRn0 Generator I-Bus DSRn0

  9. Modem Interface • Interfaces to proprietary Codecs (available from SGS-Thomson and Analog Devices) • Used by the on-chip soft modem (2400 baud, V.22bis), which is controlled by the internal CPU • SCLK and Frame Sync are derived from the external Codec • Contains a 32 bit Shift Register controlled by the CPU • Six wire interface shared with UART ports • 16 bit samples are transferred synchronously after each Frame Sync • The CPU can DMA blocks of data from this interface

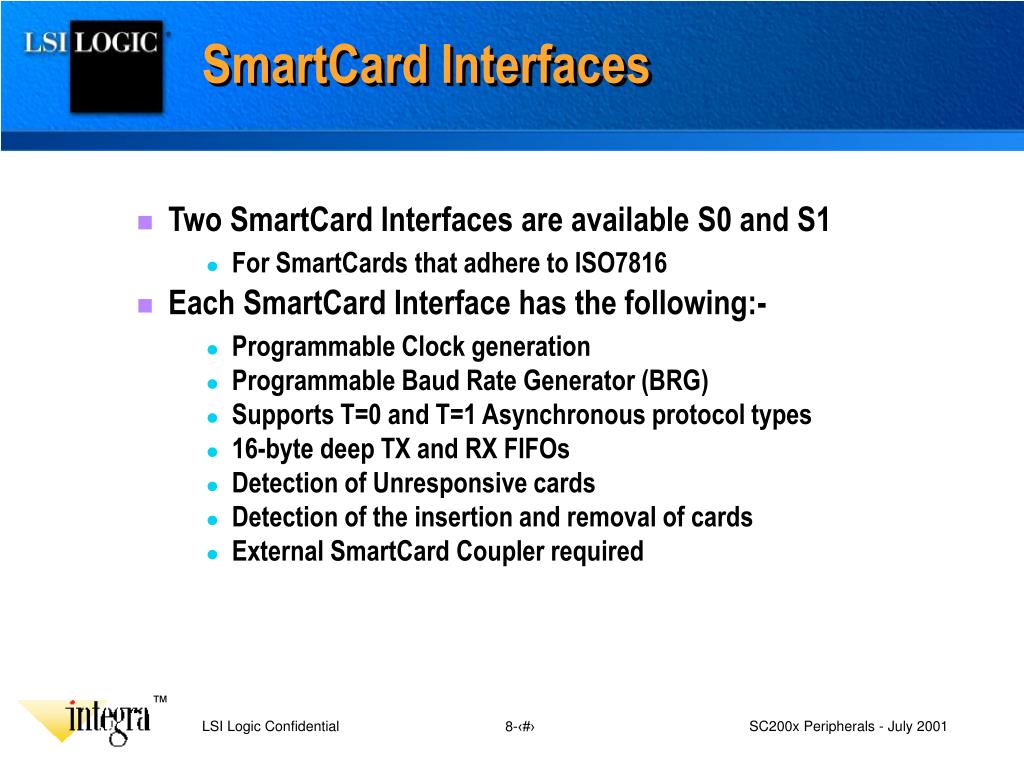

  10. SmartCard Interfaces • Two SmartCard Interfaces are available S0 and S1 • For SmartCards that adhere to ISO7816 • Each SmartCard Interface has the following:- • Programmable Clock generation • Programmable Baud Rate Generator (BRG) • Supports T=0 and T=1 Asynchronous protocol types • 16-byte deep TX and RX FIFOs • Detection of Unresponsive cards • Detection of the insertion and removal of cards • External SmartCard Coupler required

  11. SmartCard Interfaces • 4 reset methods available:- • Global Reset • SmartCard Interface Software Reset • SmartCard Card Reset • SmartCard RX FIFO/TX FIFO Reset • Clock Generator provides several clock frequencies: • 54MHz /2 ../3 ../4 ../6 ../8 ../12 ../16 • SmartCard typically uses a Baud rate of Clock/372 • SmartCard Interface generates an even parity bit when transmitting (bug in parity detection being fixed in SC2005-A)

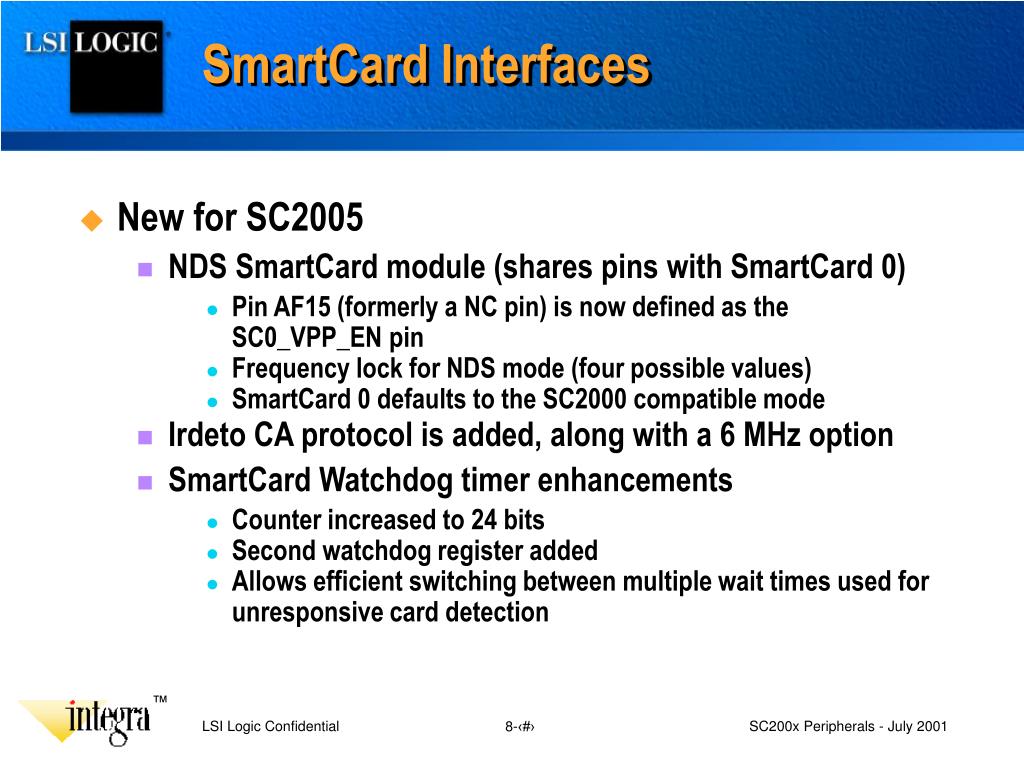

  12. SmartCard Interfaces New for SC2005 NDS SmartCard module (shares pins with SmartCard 0) Pin AF15 (formerly a NC pin) is now defined as the SC0_VPP_EN pin Frequency lock for NDS mode (four possible values) SmartCard 0 defaults to the SC2000 compatible mode Irdeto CA protocol is added, along with a 6 MHz option SmartCard Watchdog timer enhancements Counter increased to 24 bits Second watchdog register added Allows efficient switching between multiple wait times used for unresponsive card detection

  13. SmartCard Interfaces • The watchdog timer consists of a 24-bit up-counter and 2 watchdog registers. • Counter starts counting ½ character after the parity bit • Timer can generate interrupt whenever count exceeds register timeout value

  14. Serial Host Interface (Formerly called I2C) • Operates in Master or Slave mode • 2 wire (clock and data) bidirectional interface • Two modes of operation, Philips 80C652 compatible or 4-byte FIFO • Multi-Master • 8 bit Data-Shift Transfer Register • Programmable bit rate • Internal ‘spike’ filtering

  15. IEEE 1284 Interface • Features • Parallel I/O Port • Operates as a peripheral slave device • Support for internal DMA Controller • Operation • Parallel I/O Port (PA) interrupts the CPU • CPU reads the PA Registers • CPU can set the PA to DMA mode • CPU commands DMA Controller to start transactions • The Parallel I/O Port asserts DMA requests • The Parallel I/O Port sends/receives data through the DMA Controller concurrent with IEEE1284 Interface activity

  16. IEEE 1284 Interface IEEE 1284 Parallel Port compliance The Port supports the following modes: Compatible Mode Reverse (from SC2000 to host) data transaction in Nibble Mode Reverse data transaction in Byte Mode Reverse and forward (from host to SC2000) data transaction in ECP (Extended Capability Port) Mode. RLE (Run Length Encoding) data compression/decompression supported EPP Mode is NOT supported.

  17. Infrared Interfaces • Two I/R Receivers IR0 and IR1 with the following features • Configurable Receive Filter sample rate • Configurable Level Change notification • Time Stamping of each level change to the CPU • Different Coding schemes are supported • Single I/R Transmitter IRT with the following features:- • Configurable basic transmit bearer clock frequency • Simple interface to the CPU for pulse and silence periods • Double Buffering from the CPU • Notification to the CPU if FIFO is not full • Both share signals with GPIO

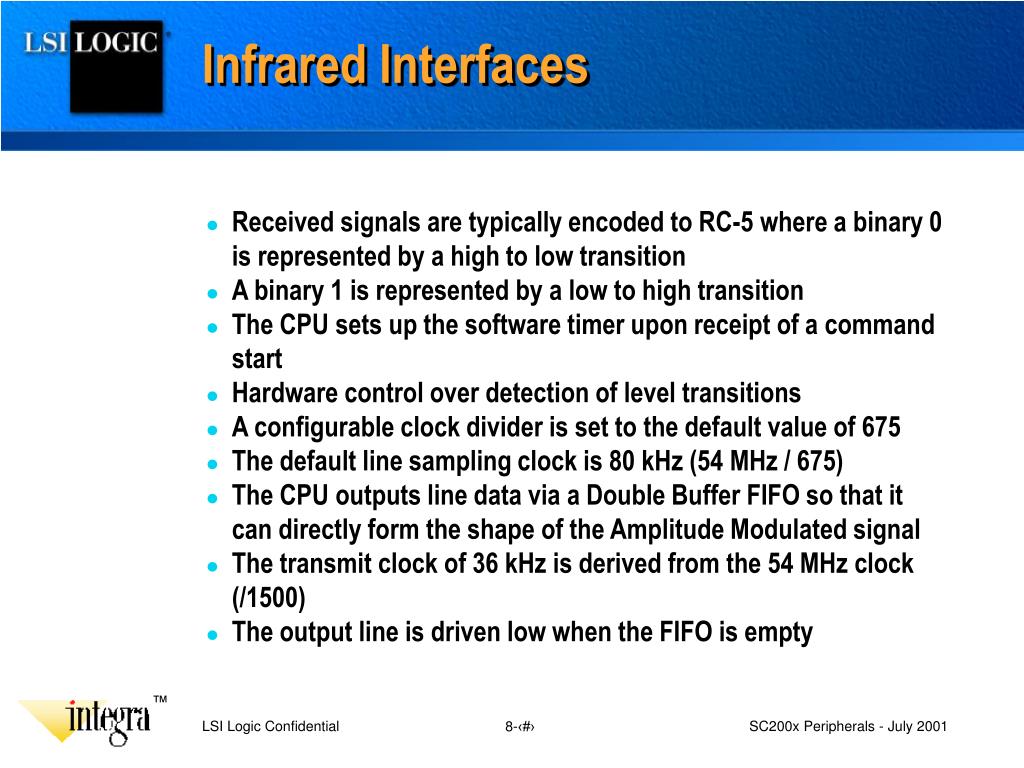

  18. Infrared Interfaces • Received signals are typically encoded to RC-5 where a binary 0 is represented by a high to low transition • A binary 1 is represented by a low to high transition • The CPU sets up the software timer upon receipt of a command start • Hardware control over detection of level transitions • A configurable clock divider is set to the default value of 675 • The default line sampling clock is 80 kHz (54 MHz / 675) • The CPU outputs line data via a Double Buffer FIFO so that it can directly form the shape of the Amplitude Modulated signal • The transmit clock of 36 kHz is derived from the 54 MHz clock (/1500) • The output line is driven low when the FIFO is empty

  19. Teletext Interface • Two line interface - Teletext Data out and Teletext Request in (shared with GPIO pins) • 64-byte Data FIFO (16 words each of 4 bytes) • Direct Interface to the SDRAM Controller • Programmable SDRAM fetch Start Address • Transfers PES Format Teletext Data from SDRAM-B • Block Length of 46 bytes (1 DVB Teletext Data Unit) • FIFO Read Control handles requests from external device • New Teletext Line fetches will start when there are 48 bytes free in the buffer

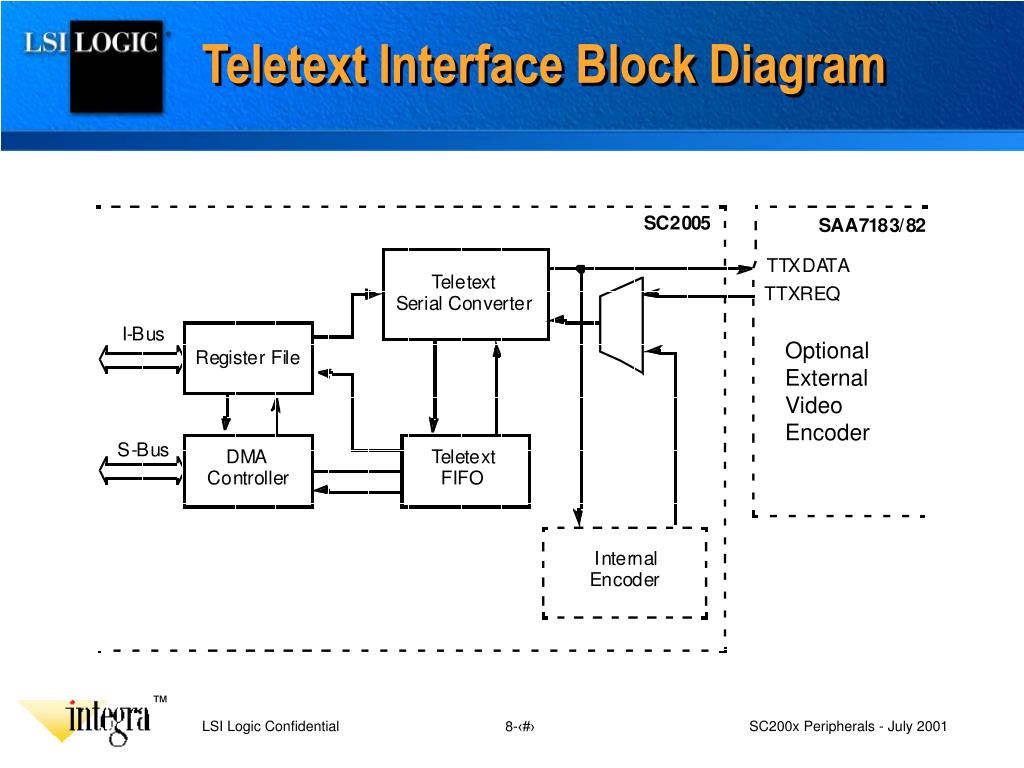

  20. Teletext Interface Block Diagram Optional External Video Encoder

  21. GPIO Pins • There are 50 General Purpose I/O pins (most are shared with other functions) • GPIO[16:0] UART, SmartCard, IR, I2C • GPIO[23:17] Channel data • GPIO[31:24] Dedicated GPIOs • GPIO[49:32] 1284/Aux port • GPIO[31:28] can be used as interrupt inputs • The GPIOs are configured as GPIO inputs at power up
