  1. Bony FishesComparing and Contrasting

  2. Objectives • Cartilagenous fish vs. Bony fish • Explain how body and mouth shape relates to function • Compare three types of fish muscles • Demonstrate an understanding of key functional aspects of the respiratory system of fishes

  3. Cartilaginous vs. Bony Fish • 23,000 species • That’s 96% of all fishes • 75-100 new species each year • Have cycloid or ctenoid scales • Thin, flexible and overlapping • Covered by thin layer of skin and mucus • Operculum • Gill cover

  4. Cartilaginous vs. Bony Fish • Terminal mouth • Located at anterior end • Teeth attached to jawbone • Swim bladder • Gas filled sac • Adjusts buoyancy • Compensates for the heavy skeleton

  5. Body Shape: streamlined • Body shape is directly related to lifestyle • Here are some examples: • Sharks, tunas, marlins are streamlined  fast

  6. Body Shape: Laterally Compressed • Leisurely swimming around coral reefs, kelp beds, rocky reefs • Still capable of short bursts of speed Whitespotted Damselfish Butterfly Fish Wrass

  7. Body Shape: Laterally Flattened • Flat and adapted to live on bottom • Lie on one side with both eyes on top • Begin life with eye on either side • Eyes migrate together as they grow older Flounder Halibut

  8. Body Shape: Elongated • Live in narrow spaces in rocks or coral reefs Trumpet Fish Fimbrated Moray Eel

  9. Body Shape: Camouflage Stonefish Pipefish (can you find them in the eel grass?)

  10. Stonefish eating a trigger fish

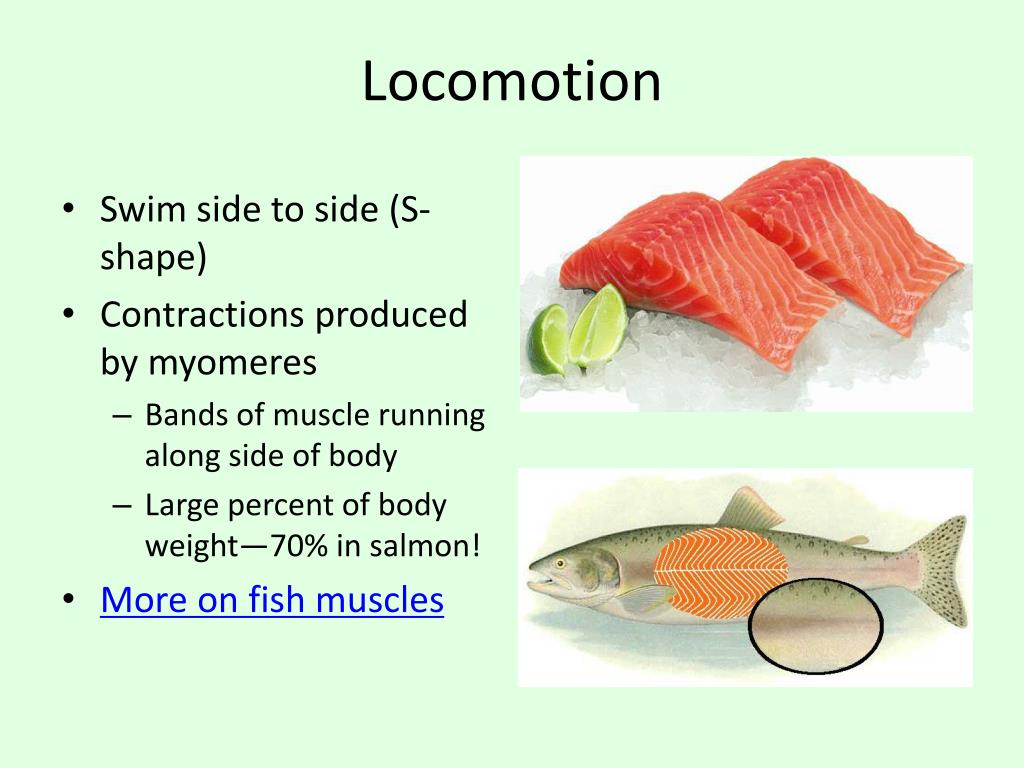

  11. Locomotion • Swim side to side (S-shape) • Contractions produced by myomeres • Bands of muscle running along side of body • Large percent of body weight—70% in salmon! • More on fish muscles

  12. Fish Muscles • 3 types • Red, pink, and white • Most fish have a combo of 2 or 3 types • What makes the red muscles red? • A lot of capillaries  a lot of blood flow • Different types of muscles have different jobs. Tuna

  13. Red vs. Pink vs. White Muscle • Red muscle • Slow muscle • A lot of oxygen (hemoglobin) • steady, constant-effort swimming • Open ocean swimmers (tuna, mako) • White muscle • Fast muscle • Reduced blood  less oxygen • anaerobic, works for short periods of time • Quick bursts of movement • Pink Muscle • Intermediate; continued high speed swimming for 20-30 minutes

  14. The Tuna: A Swimming Machine • Never stop swimming • Cover vast distances • 7,000 miles! • Northern bluefin cross Atlantic in 119 days (40 miles/day) • Endurance swimmers • Capable of high speed bursts • It’s all about the adaptations . . .

  15. Tuna: Streamlined Perfection • Body temperature: can maintain a core temp of 77°F in water temp of 45°F. • Lack scales • Smooth and slippery • Eyes • Lie flush with body; don’t protrude • Fins • Stiff, smooth, narrow • Tuck into body groove when not in use • Keels, finlets and corselet • Direct water flow over body to reduce resistance

  16. Tuna: Streamlined Perfection • Force water over gills by just opening mouth • Have lost muscles to push water over gills • Must swim to breathe—no swim bladder • Opening mouth detracts from streamlining • Developed grooves in tongue to help channel water through mouth and over gill slits • High tails with swept back tips • Adapted for propulsion with least possible effort • Ability to sense and make use of eddies in water • Slide past eddies that would slow them down • gain thrust by “pushing off” eddies

  17. Old School Fishing

  18. Different type of swimming • Surgeon fish • Swim mainly by moving pectoral fins—not bodies • Perfect for hovering and precise movements

  19. Feeding: Shape of Mouth • Protrusible jaws allow flexibility in feeding habits • Mostly carnivores • Very diverse in the ways they feed • Capture prey • sediments; water column; rocks; off other organisms; chase prey; sit and wait A 20 lb Tiger Fish from the Congo, Africa

  20. What does this fish eat? • Barracuda • Uses teeth to tear off chunks of prey

  21. What does this fish eat? • Long billed butterfly fish • Long snout, small mouth feeds on very small prey

  22. What does this fish eat? • Interesting facts about the parrotfish • Grind up coral and extract algae from its polyps.

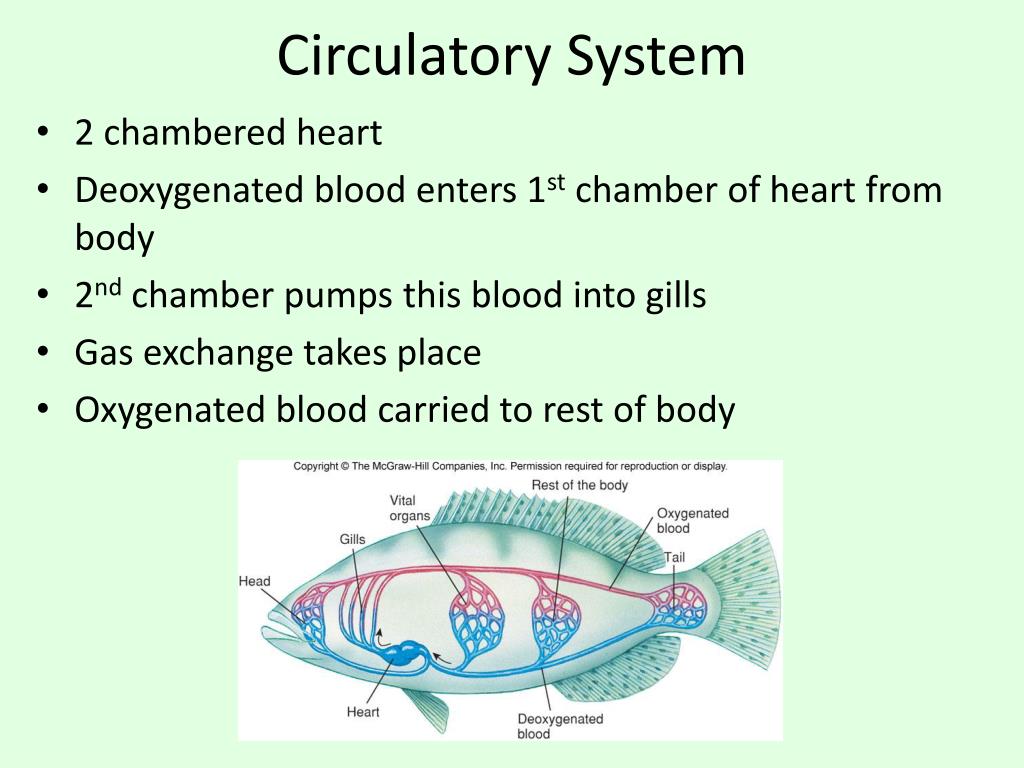

  23. Circulatory System • 2 chambered heart • Deoxygenated blood enters 1st chamber of heart from body • 2nd chamber pumps this blood into gills • Gas exchange takes place • Oxygenated blood carried to rest of body

  24. Respiratory System • What is the percentage of oxygen in our atmosphere? • 200,000 parts per million, or 21% • What is the percentage of dissolved oxygen in water? • 4-8 parts per million, less than 1% • Takes a lot of work for fish to pull oxygen out of the water

  25. Respiratory System • Must keep gills irrigated • Swimming, opening & closing of mouth • Each gill has rows of filaments with lamellae (increases surface area) • Oxygen diffuses from sea water to blood • Water and blood flow in opposite directions  boosting diffusion rate

  26. Osmoregulation

  27. Make sure you have done your reading! • This is what I have NOT covered in lecture: • Nervous system and sensory organs • Behavior • Reproduction and life history
