  1. ELECTRONIC DATA HIGHWAY - EDH Brazilian Model for EDI / ISPS CODE PORT OF SANTOS Prof Eduardo M. Dias Eng. Márcio R. B. de Lima Azevedo

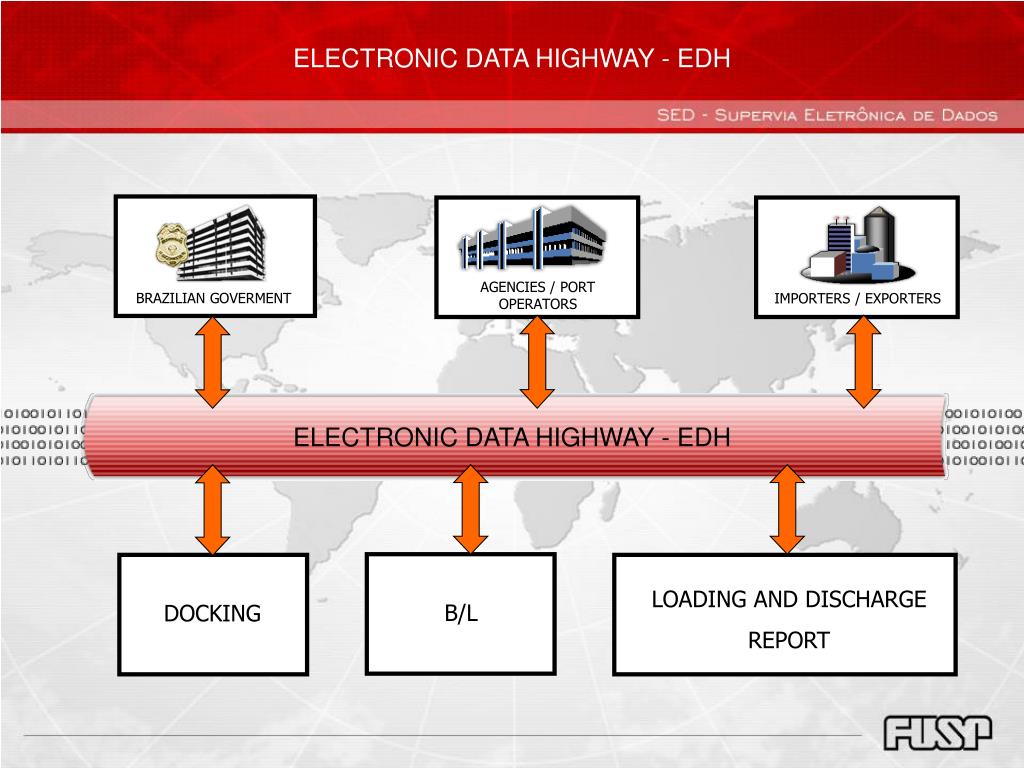

  2. ELECTRONIC DATA HIGHWAY - EDH AGENCIES / PORT OPERATORS BRAZILIAN GOVERMENT IMPORTERS / EXPORTERS ELECTRONIC DATA HIGHWAY - EDH LOADING AND DISCHARGE REPORT B/L DOCKING

  3. Brazilian Model for EDI DATA CENTER GOVERNMENT OFFICES EDI VANS DATA

  4. STAGE 1 SHIPOWNERS CUSTOMS PORT OPERATORS EDI PRIVATE PORT COMMUNITY BRAZILIAN TRADING SYSTEM

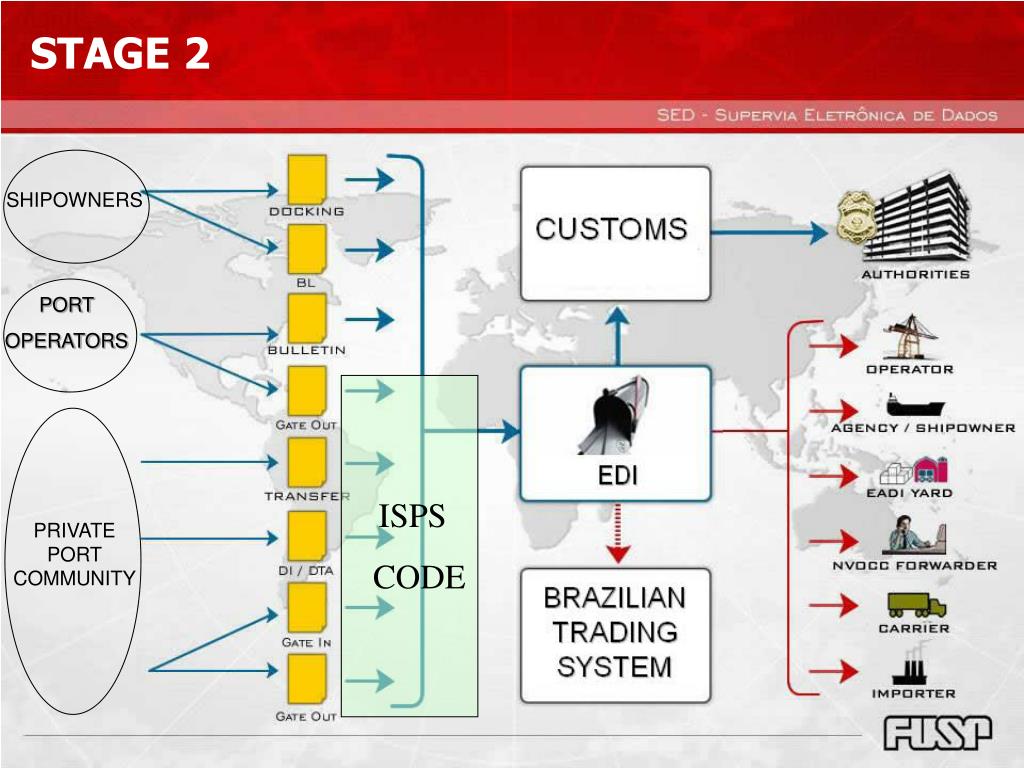

  5. STAGE 2 SHIPOWNERS PORT OPERATORS ISPS CODE PRIVATE PORT COMMUNITY

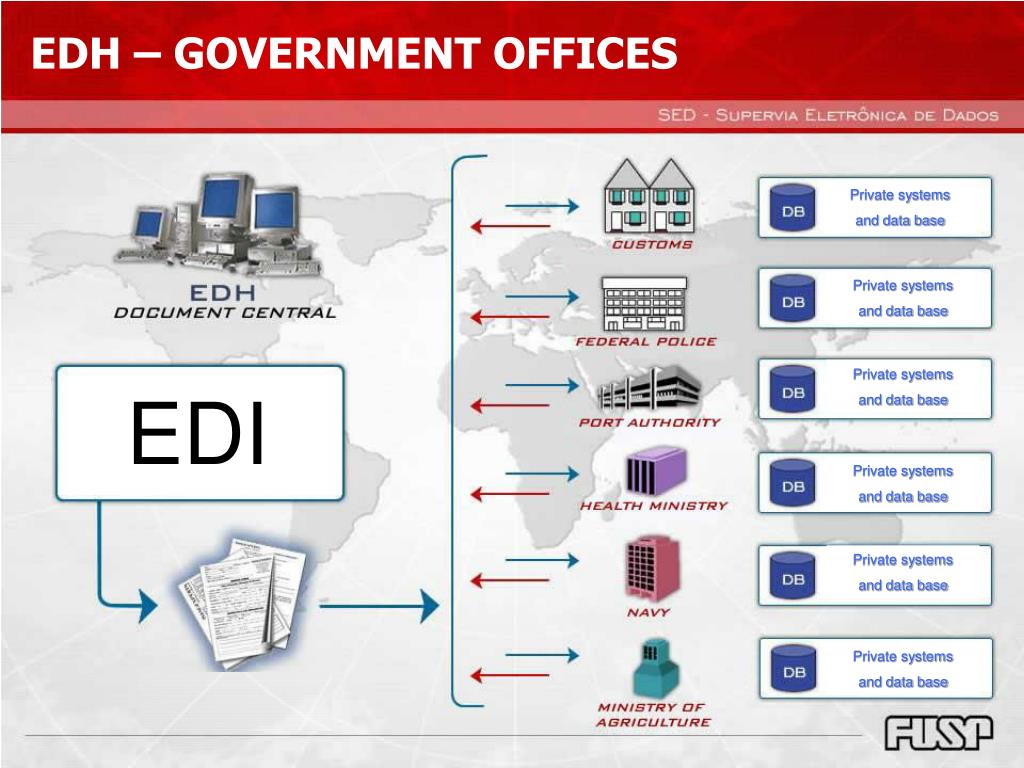

  6. EDH – GOVERNMENT OFFICES Private systems and data base Private systems and data base Private systems and data base EDI Private systems and data base Private systems and data base Private systems and data base

  7. ELECTRONIC DATA HIGHWAY - EDH Cargo control / ISPS CODE STAGE II

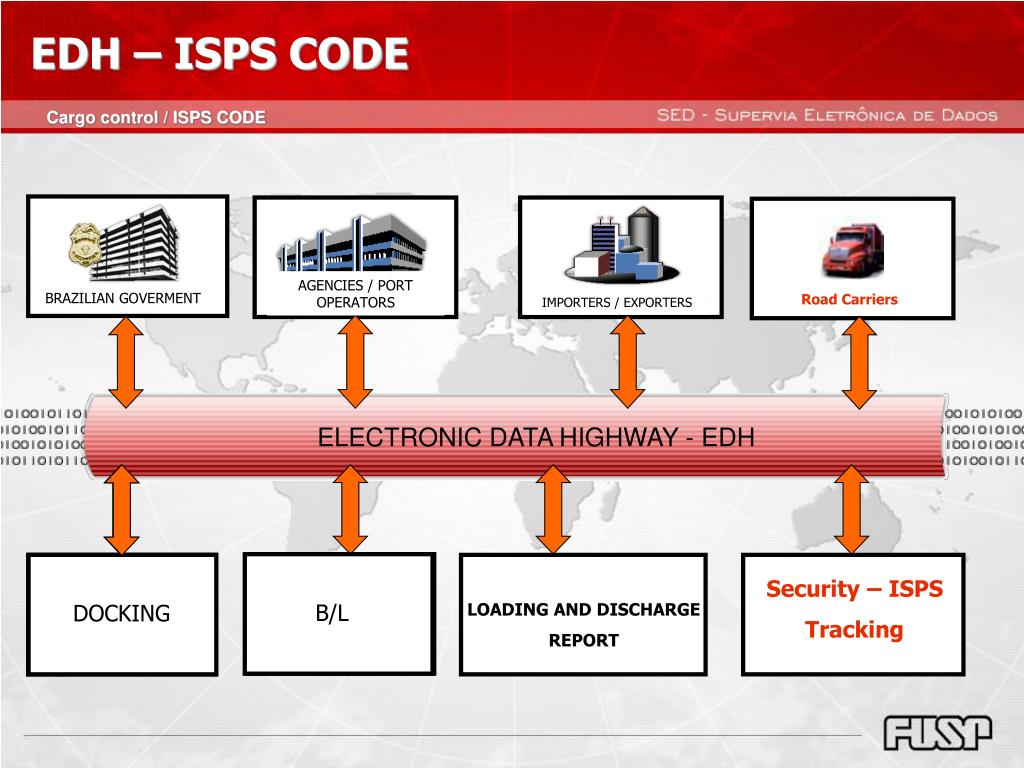

  8. EDH – ISPS CODE Cargo control / ISPS CODE AGENCIES / PORT OPERATORS BRAZILIAN GOVERMENT Órgãos de Governo Operadores Logísticos Importadores e Exportadores Road Carriers IMPORTERS / EXPORTERS ELECTRONIC DATA HIGHWAY - EDH Boletim de Descarga e Embarque Security – ISPS Tracking Manifesto de Carga B/L Atracação DOCKING LOADING AND DISCHARGE REPORT

  9. VEHICLE CONTROL

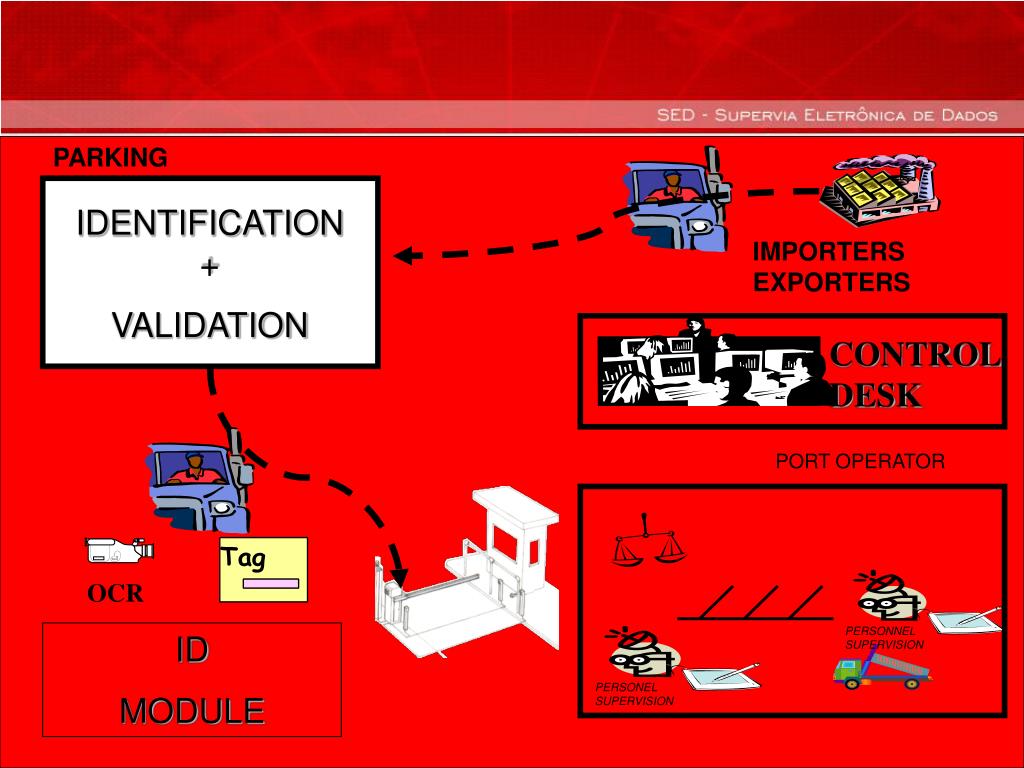

  10. Tag OCR PERSONNEL SUPERVISION PERSONEL SUPERVISION PARKING IDENTIFICATION + VALIDATION IMPORTERS EXPORTERS CONTROL DESK PORT OPERATOR ID MODULE

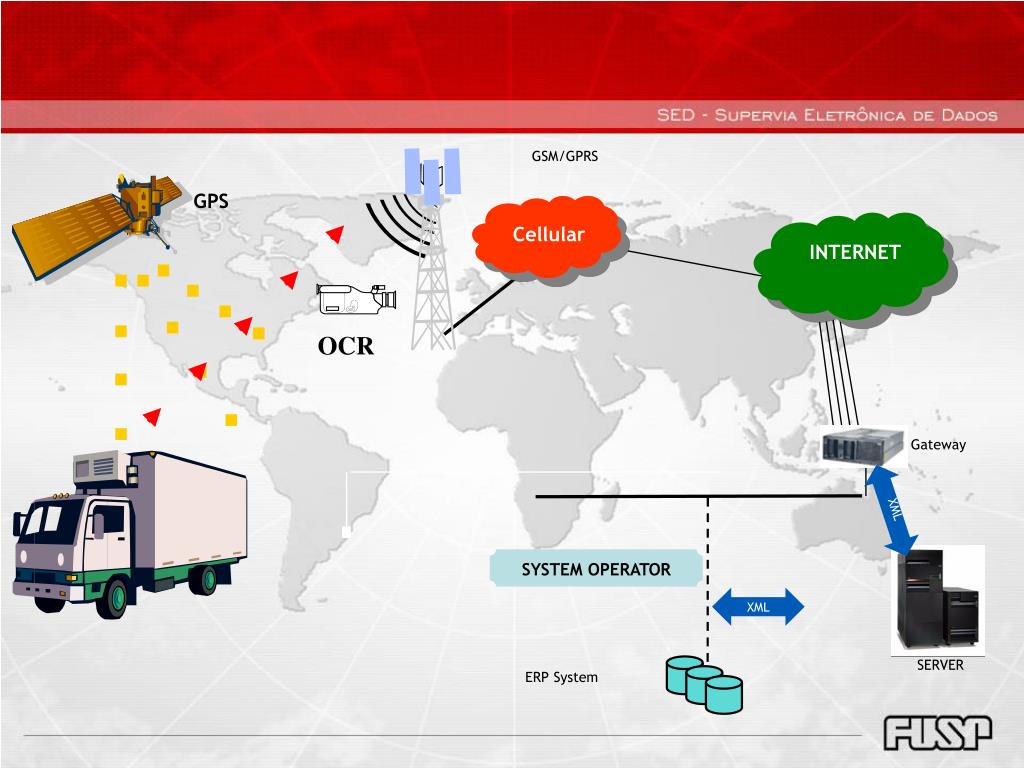

  11. GSM/GPRS GPS Cellular INTERNET XML Gateway SERVER SYSTEM OPERATOR OCR XML ERP System

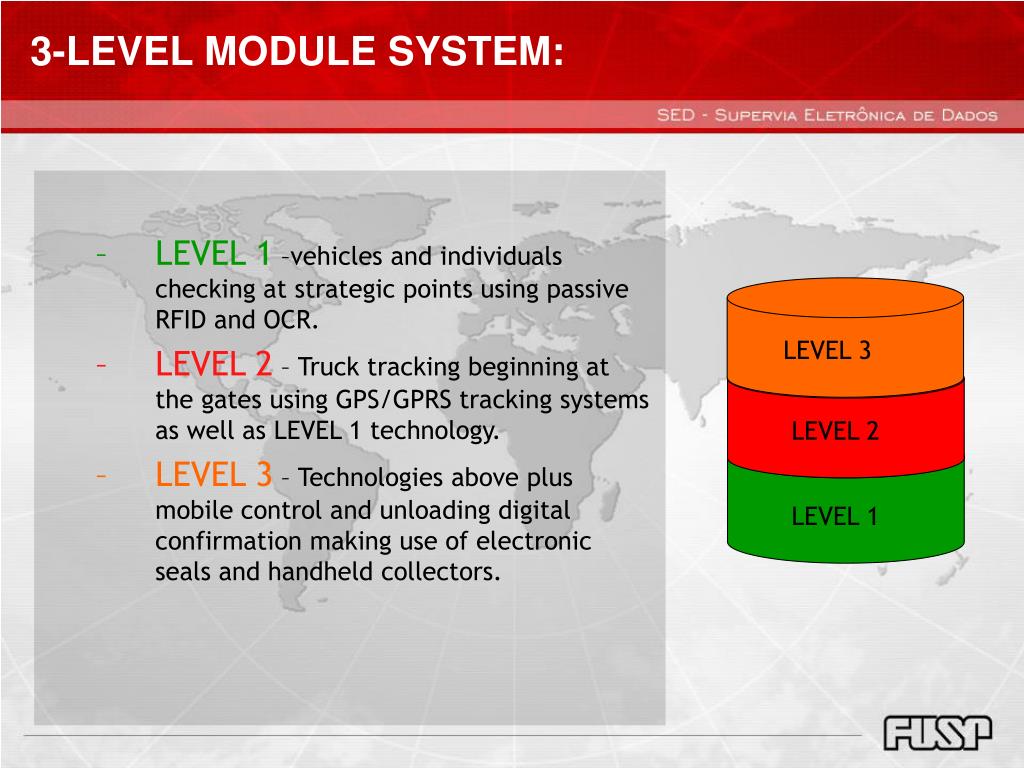

  12. LEVEL 3 LEVEL 2 LEVEL 1 3-LEVEL MODULE SYSTEM: • LEVEL 1 –vehicles and individuals checking at strategic points using passive RFID and OCR. • LEVEL 2 – Truck tracking beginning at the gates using GPS/GPRS tracking systems as well as LEVEL 1 technology. • LEVEL 3 – Technologies above plus mobile control and unloading digital confirmation making use of electronic seals and handheld collectors.

  13. ELECTRONIC SEAL

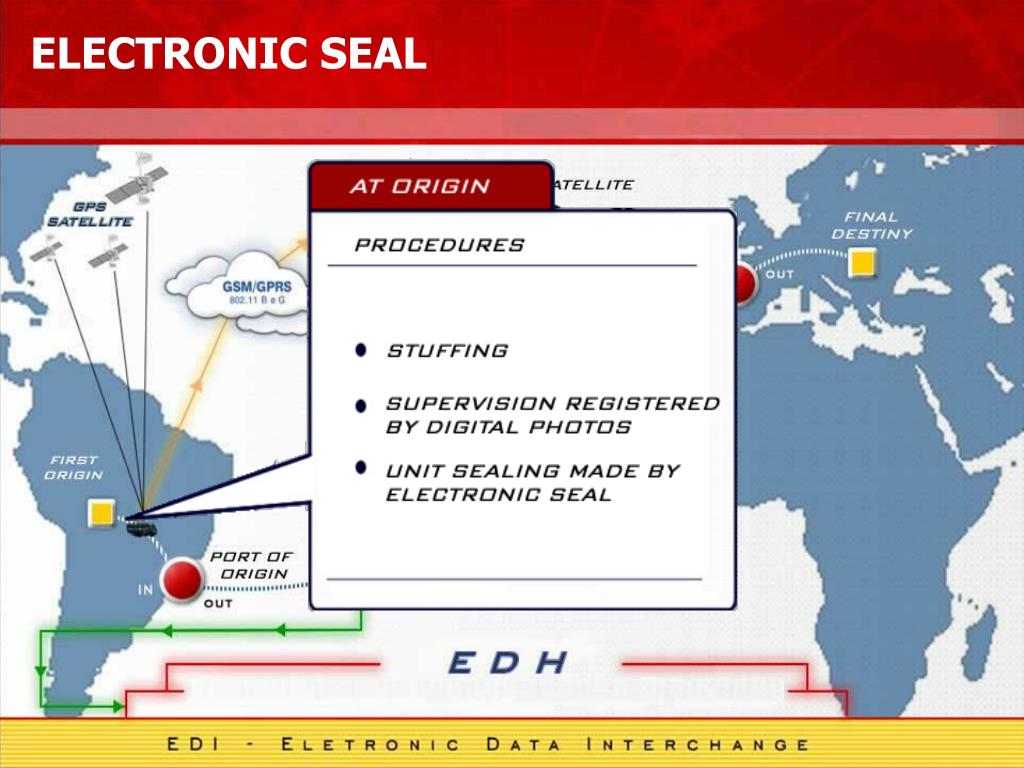

  14. ELECTRONIC SEAL

  15. E-SEAL + AVL (Auto. Vehicle Location)

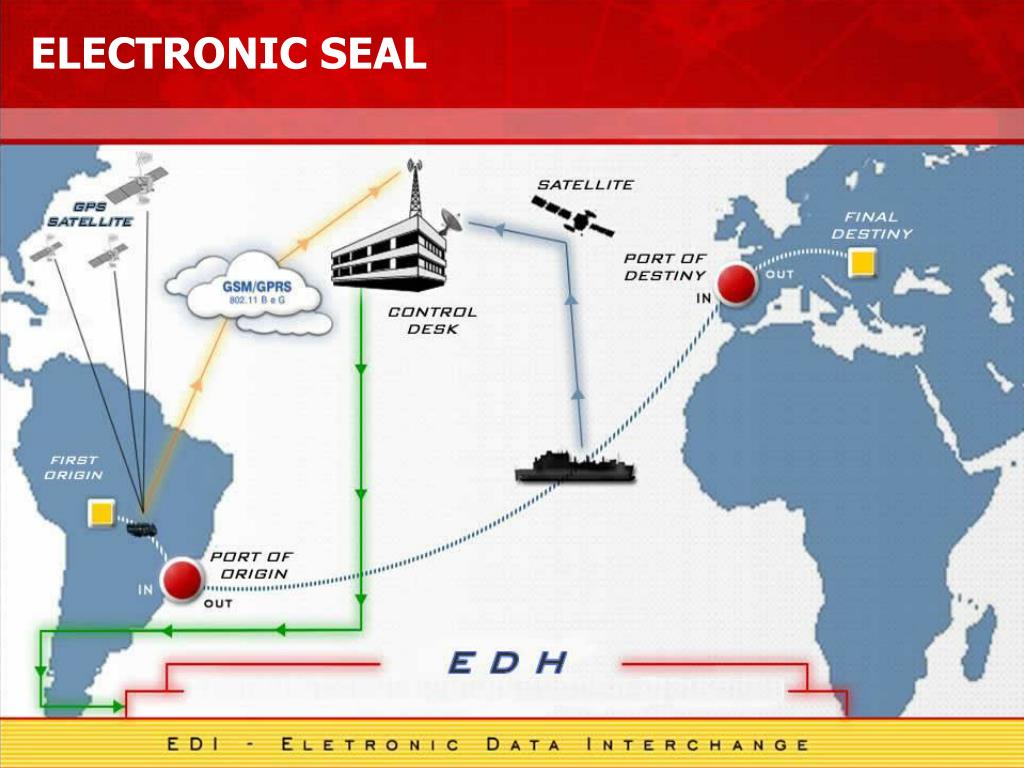

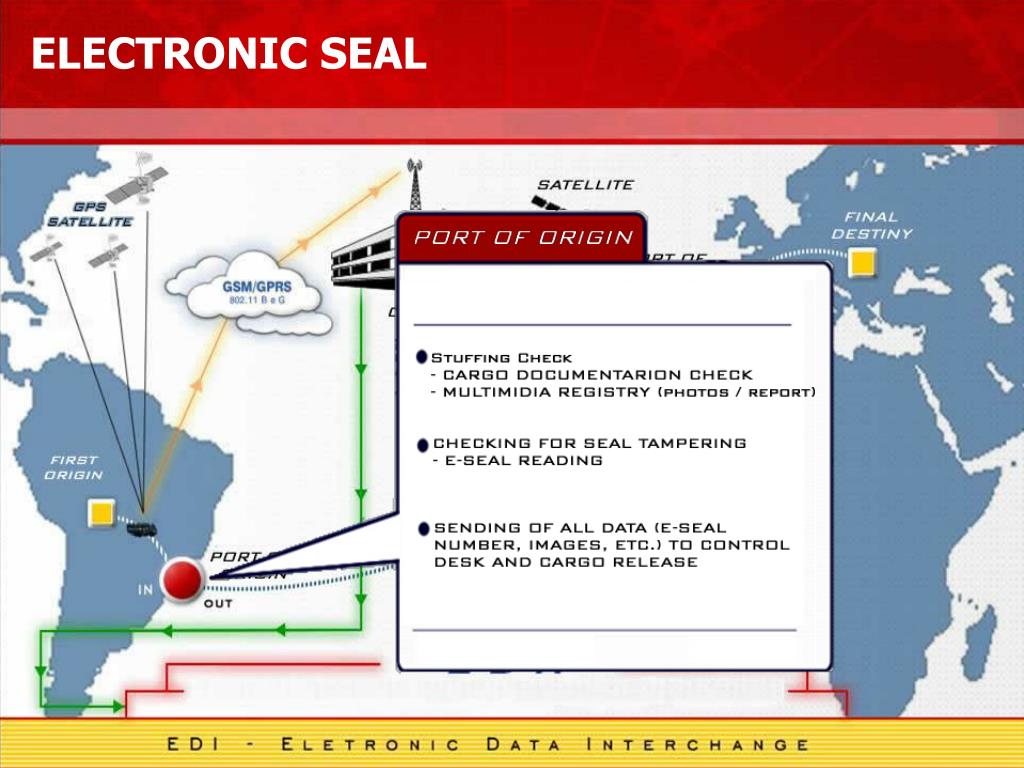

  16. ELECTRONIC SEAL

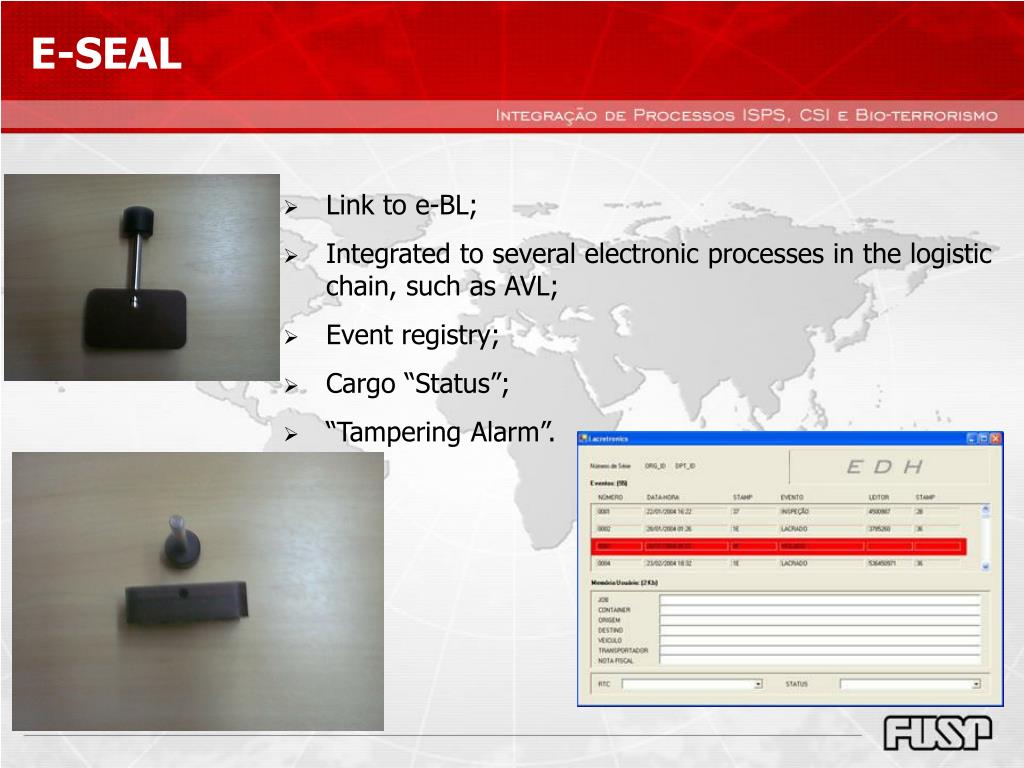

  17. E-SEAL • Link to e-BL; • Integrated to several electronic processes in the logistic chain, such as AVL; • Event registry; • Cargo “Status”; • “Tampering Alarm”.

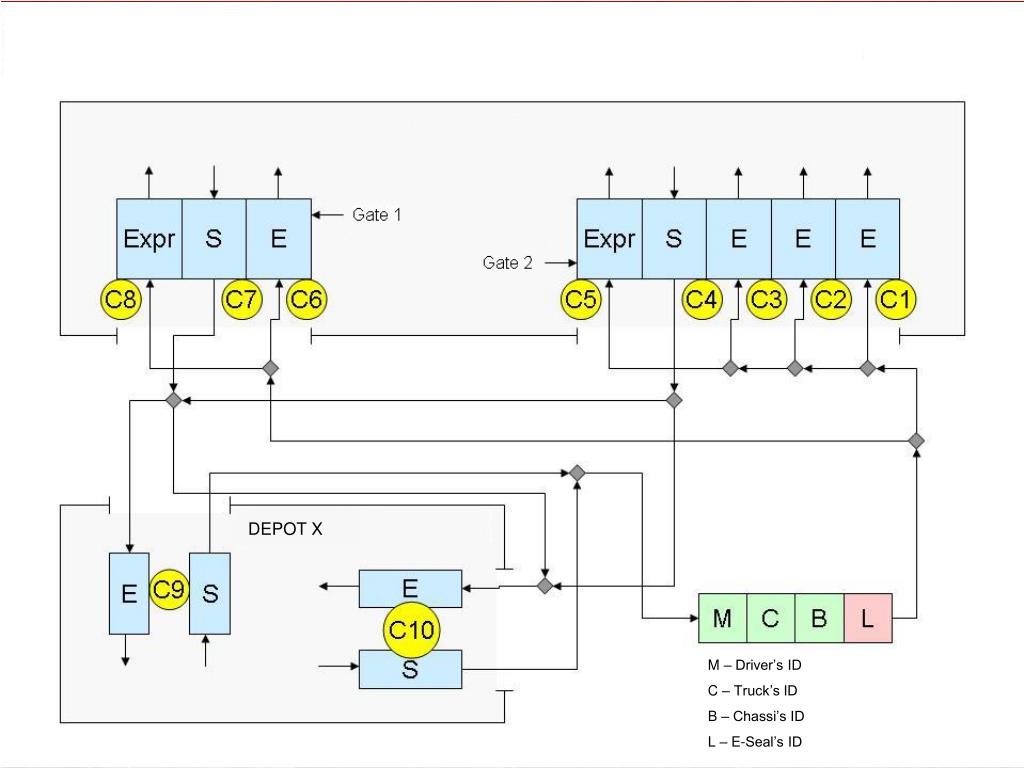

  18. Exemplo de Fluxo Operacional DEPOT X M – Driver’s ID C – Truck’s ID B – Chassi’s ID L – E-Seal’s ID

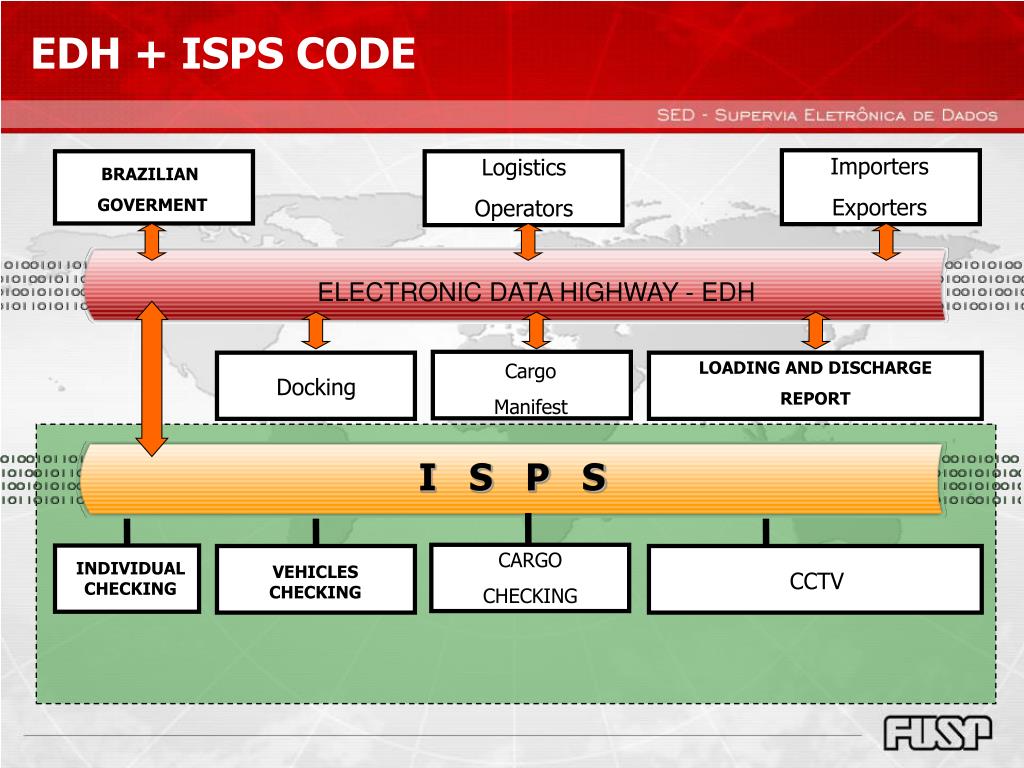

  19. EDH + ISPS CODE Importers Exporters Logistics Operators Órgãos de Governo BRAZILIAN GOVERMENT ELECTRONIC DATA HIGHWAY - EDH LOADING AND DISCHARGE REPORT Cargo Manifest Docking I S P S CARGO CHECKING INDIVIDUAL CHECKING VEHICLES CHECKING CCTV

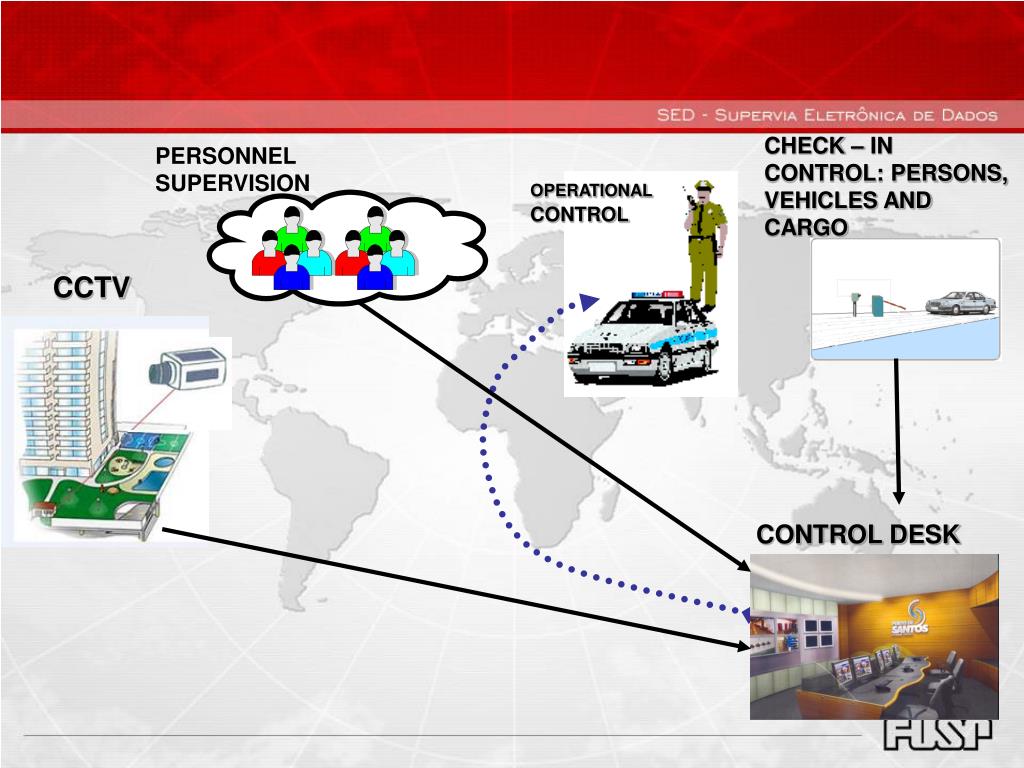

  20. CHECK – IN CONTROL: PERSONS, VEHICLES AND CARGO PERSONNEL SUPERVISION OPERATIONALCONTROL CCTV CONTROL DESK

  21. Thank you e.dias@pea.usp.br marcio@seaboxtech.com.br
