Epidemics

1. Epidemics by Charles Yang & Ted Pongthawornkamol 9/16/20 Epidemics, CS 598 IG, Fall 2004

2. Prelude: Multicasting • Many protocols • MBONE, 6BONE, XTP, etc. • Principally designed for scalability • Fault tolerance really isn’t addressed Epidemics, CS 598 IG, Fall 2004

3. Multicasting (cont…) • Scalable Reliable Multicast • But as graph shows, not that scalable Epidemics, CS 598 IG, Fall 2004

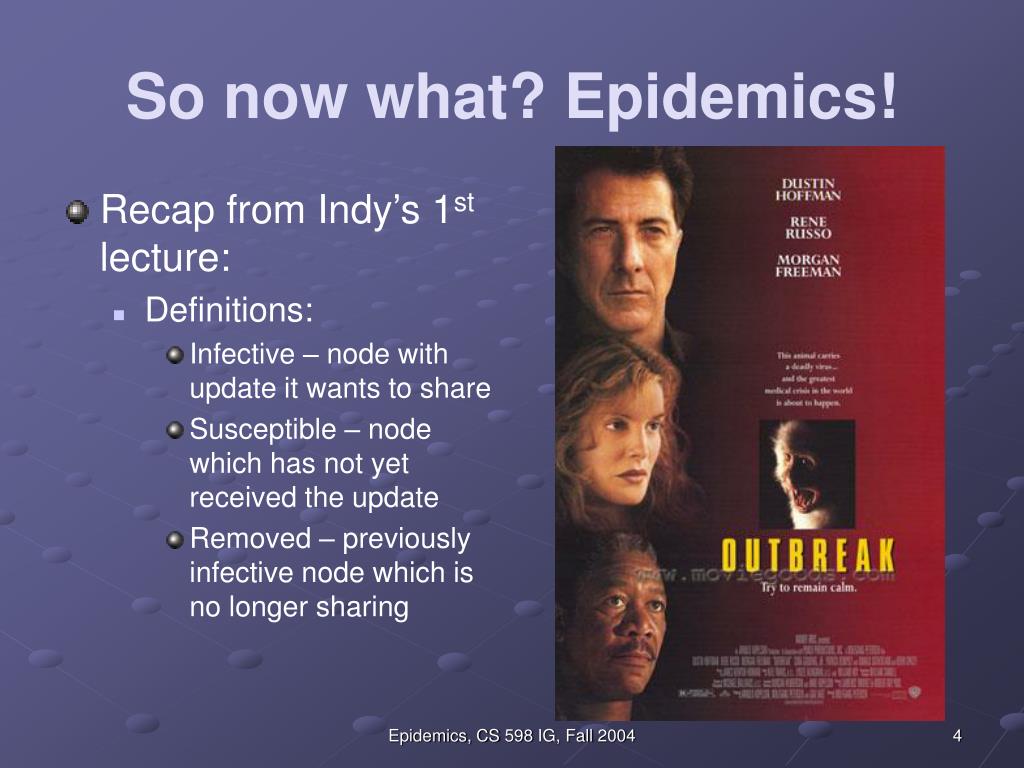

4. So now what? Epidemics! • Recap from Indy’s 1st lecture: • Definitions: • Infective – node with update it wants to share • Susceptible – node which has not yet received the update • Removed – previously infective node which is no longer sharing Epidemics, CS 598 IG, Fall 2004

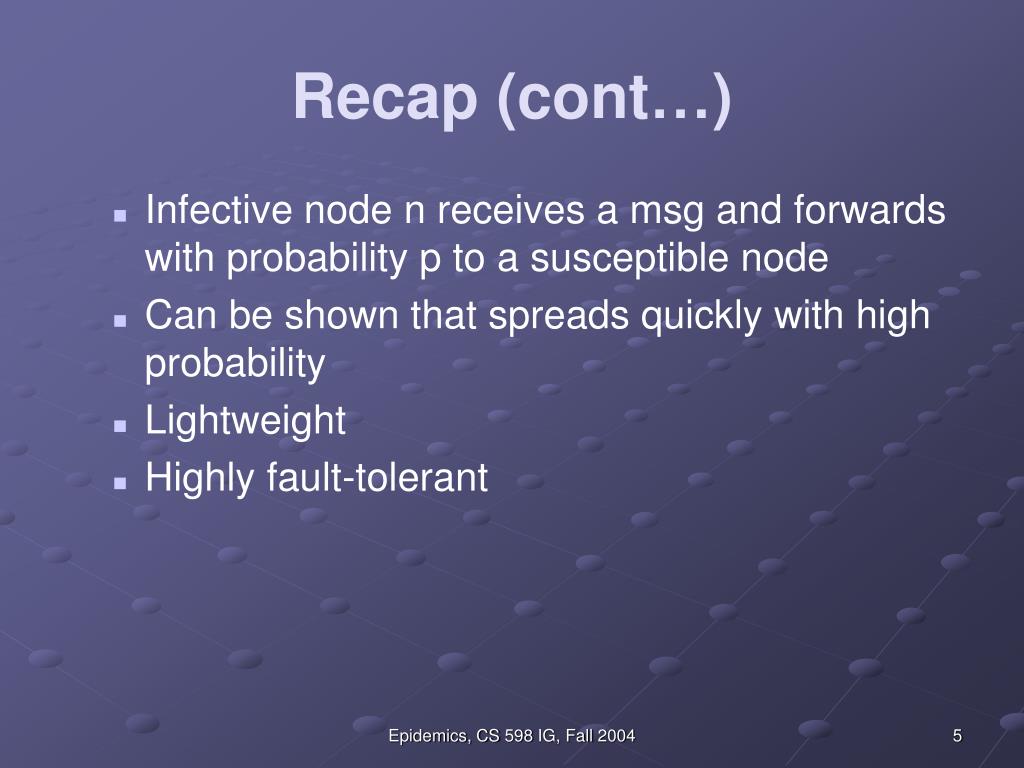

5. Recap (cont…) • Infective node n receives a msg and forwards with probability p to a susceptible node • Can be shown that spreads quickly with high probability • Lightweight • Highly fault-tolerant Epidemics, CS 598 IG, Fall 2004

6. Outline of Presentation • Epidemic Algorithms for Replicated Database Maintenance • Bimodal Multicast • Gossip-Based Ad Hoc Routing Epidemics, CS 598 IG, Fall 2004

7. Epidemic Algorithms for Replicated Database Maintenance • Xerox’s Corporite Internet (CIN), Clearinghouse Servers, about 1986-1987 • Name resolution service • several hundred ethernets, connected by gateways and phone lines • DB’s were filling up bandwidth for replication Epidemics, CS 598 IG, Fall 2004

8. The Problem • Inject an update at one server, and have it propagate to all other servers • how to make it robust and scale well? • important factors: • convergence time – time req’d for update to propagate to all sites • network traffic – traffic req’d to propagate a single update (want to minimize!) Epidemics, CS 598 IG, Fall 2004

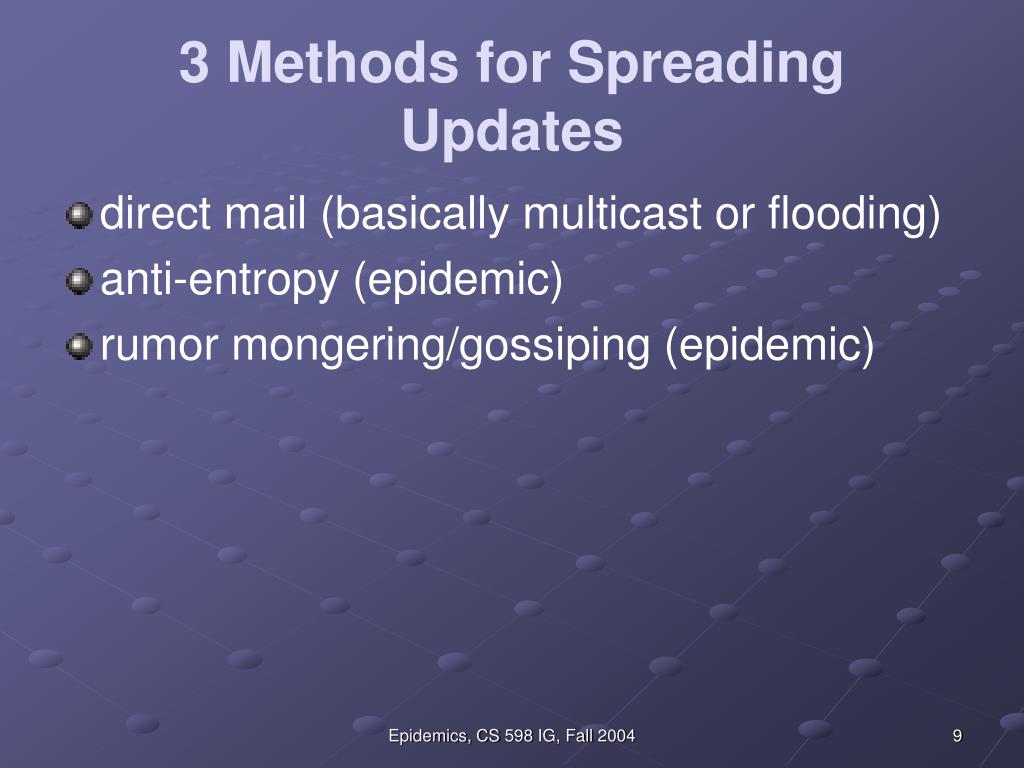

9. 3 Methods for Spreading Updates • direct mail (basically multicast or flooding) • anti-entropy (epidemic) • rumor mongering/gossiping (epidemic) Epidemics, CS 598 IG, Fall 2004

10. CIN’s Initial Configuration • Direct Mail to send updates • Anti-entropy to bring DB’s to sync • Re-mailing if previous anti-entropy disagreed • Anti-entropy Run once/day between 12am to 6am • Eventually, anti-entropy couldn’t complete in allowed time due to traffic • For instance, for a domain stored at 300 sites, 90,000 messages might be introduced 1 night Epidemics, CS 598 IG, Fall 2004

11. Direct Mail s Epidemics, CS 598 IG, Fall 2004

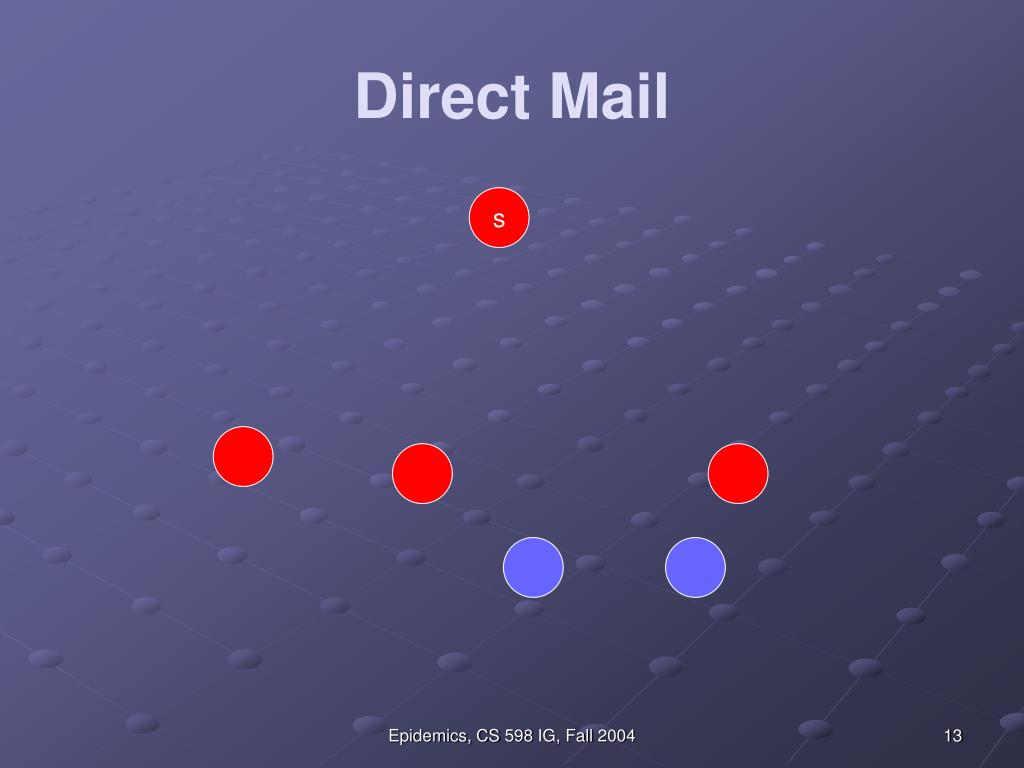

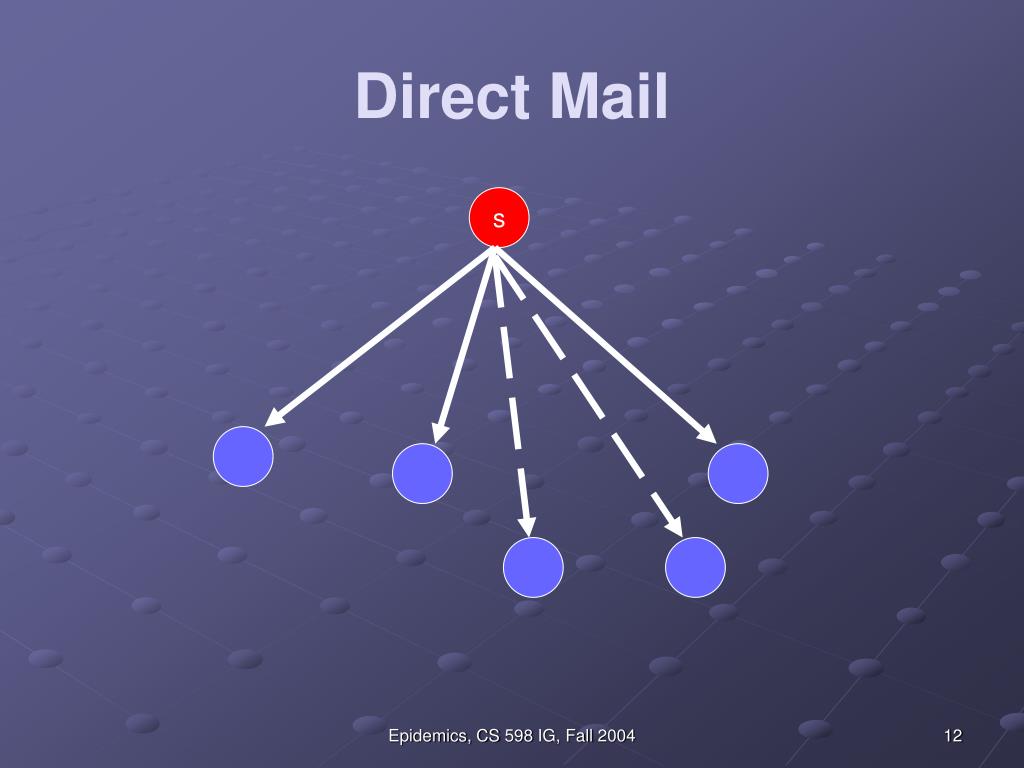

12. Direct Mail s Epidemics, CS 598 IG, Fall 2004

13. Direct Mail s Epidemics, CS 598 IG, Fall 2004

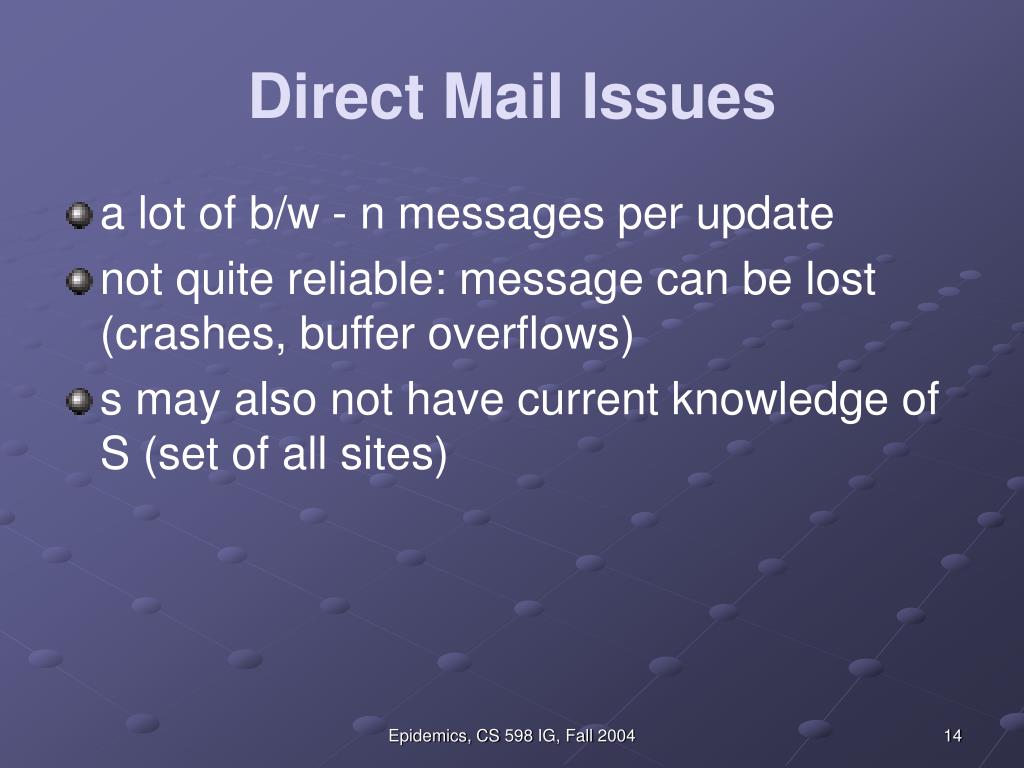

14. Direct Mail Issues • a lot of b/w - n messages per update • not quite reliable: message can be lost (crashes, buffer overflows) • s may also not have current knowledge of S (set of all sites) Epidemics, CS 598 IG, Fall 2004

15. Anti Entropy • Run in bg to recover from errors • initially from direct mail, later from rumor mongering • Executed periodically FOR SOME s’  S DO ResolveDifference[s, s’] ENDLOOP Epidemics, CS 598 IG, Fall 2004

16. Anti-Entropy (after direct mail) s Epidemics, CS 598 IG, Fall 2004

17. Anti-Entropy (Cycle 1, start) s Epidemics, CS 598 IG, Fall 2004

18. Anti-Entropy (Cycle 1, end) s Epidemics, CS 598 IG, Fall 2004

19. Anti-Entropy (Cycle 2, start) s Epidemics, CS 598 IG, Fall 2004

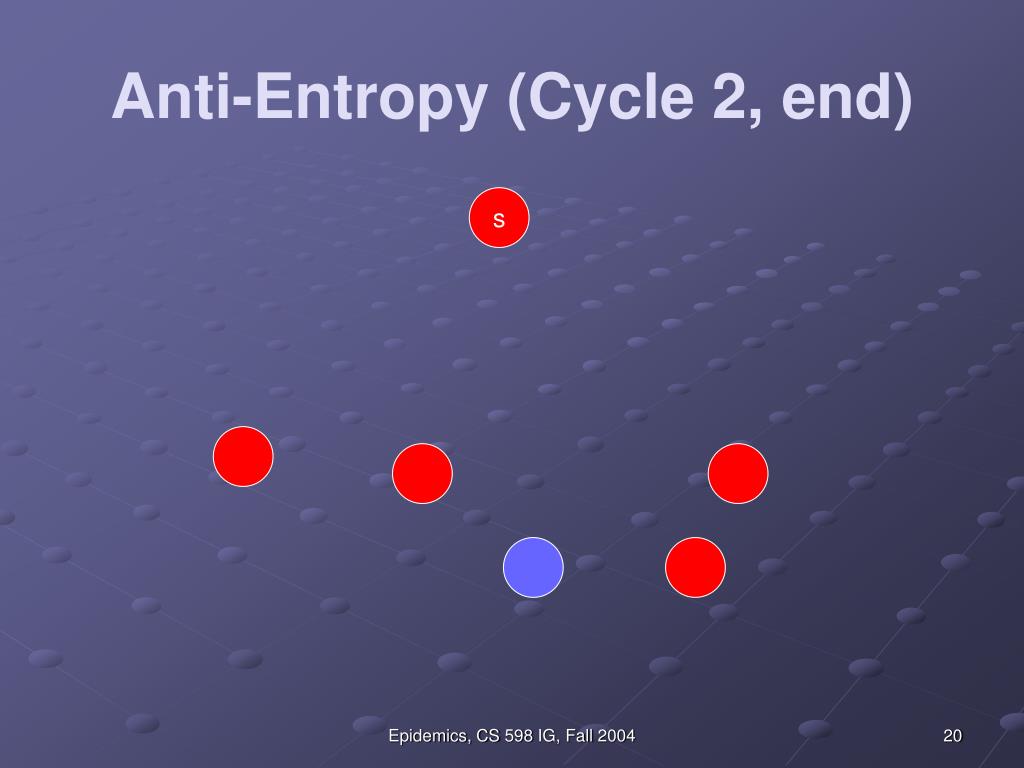

20. Anti-Entropy (Cycle 2, end) s Epidemics, CS 598 IG, Fall 2004

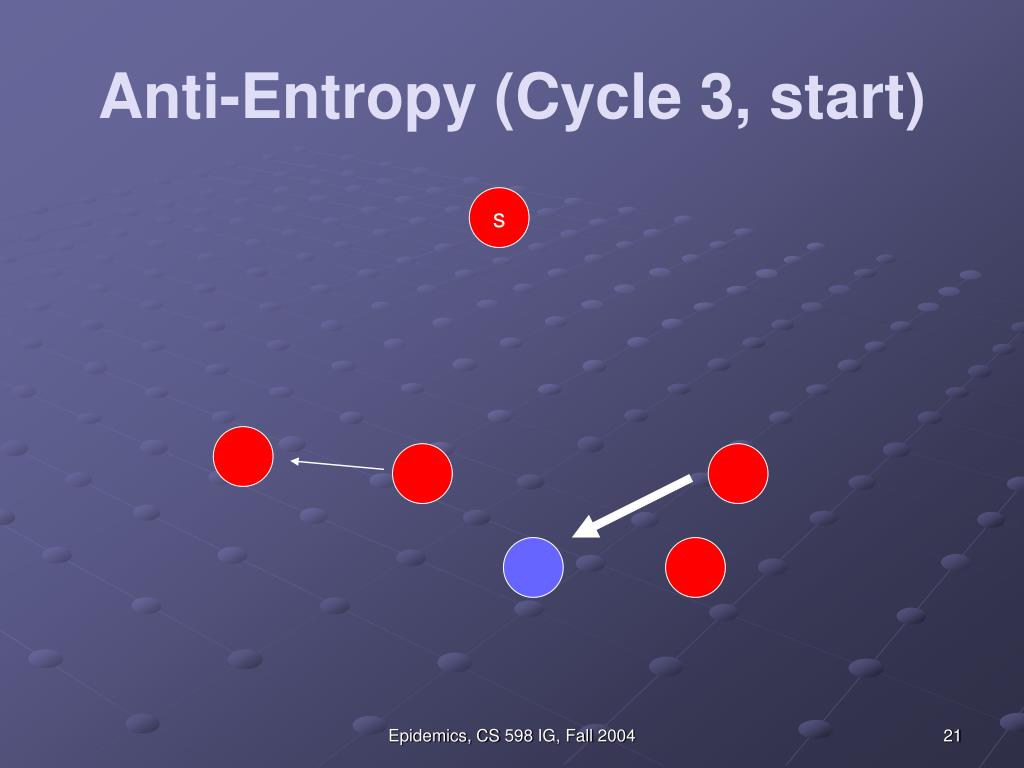

21. Anti-Entropy (Cycle 3, start) s Epidemics, CS 598 IG, Fall 2004

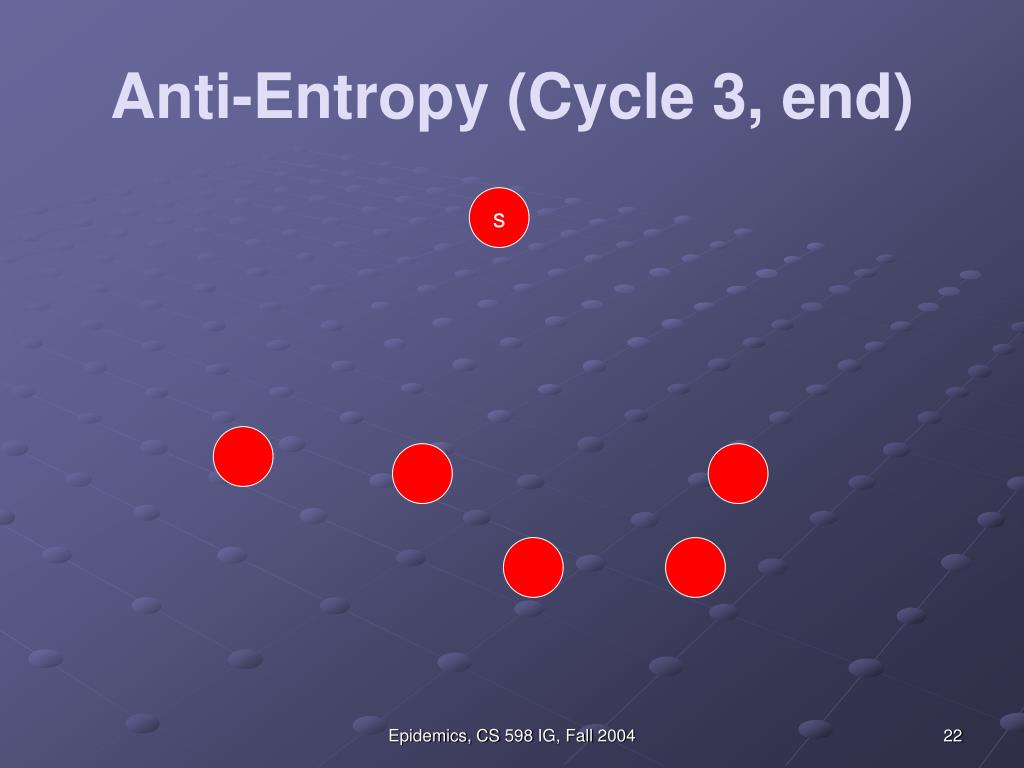

22. Anti-Entropy (Cycle 3, end) s Epidemics, CS 598 IG, Fall 2004

23. Anti Entropy (cont…) • Assume s’ is chosen uniformly (talk about spatial distribs later) • slow and expensive, but reliable • since usually used as backup, the # of susceptible sites is small • Pull, Push-pull, push Epidemics, CS 598 IG, Fall 2004

24. Pull • pi is prob that site remains susceptible in ithcycle • A site remains susceptible after i+1stcycle if: • it was susceptible after ith cycle • and it contacted a susceptible site in i+1st cycle  pi+1 = (pi)2, • converges rapidly to 0 when pi is small • In other words: very unlikely that susceptible sites will remain after a while Epidemics, CS 598 IG, Fall 2004

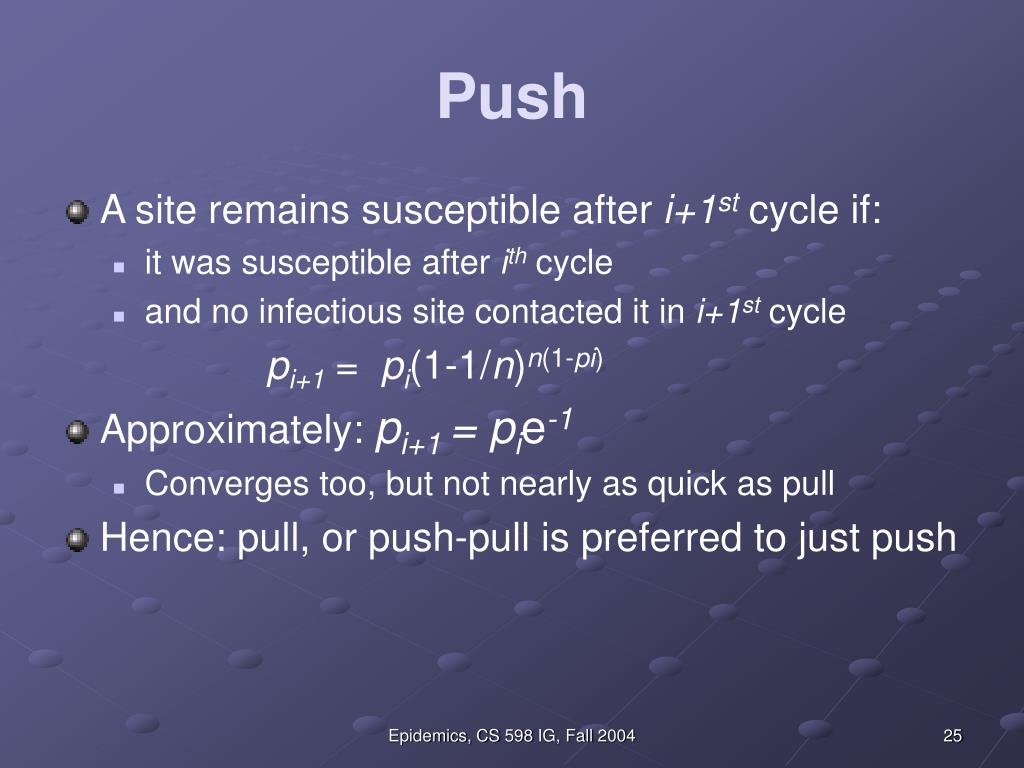

25. Push • A site remains susceptible after i+1stcycle if: • it was susceptible after ith cycle • and no infectious site contacted it in i+1st cycle pi+1 = pi(1-1/n)n(1-pi) • Approximately: pi+1 = pie-1 • Converges too, but not nearly as quick as pull • Hence: pull, or push-pull is preferred to just push Epidemics, CS 598 IG, Fall 2004

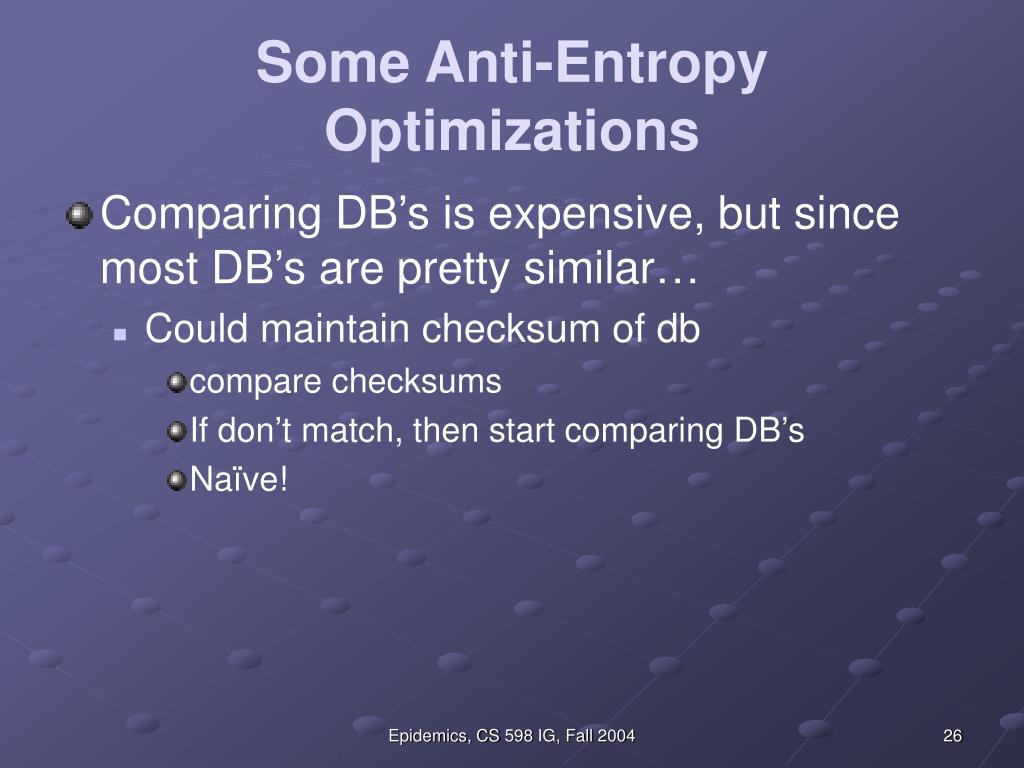

26. Some Anti-Entropy Optimizations • Comparing DB’s is expensive, but since most DB’s are pretty similar… • Could maintain checksum of db • compare checksums • If don’t match, then start comparing DB’s • Naïve! Epidemics, CS 598 IG, Fall 2004

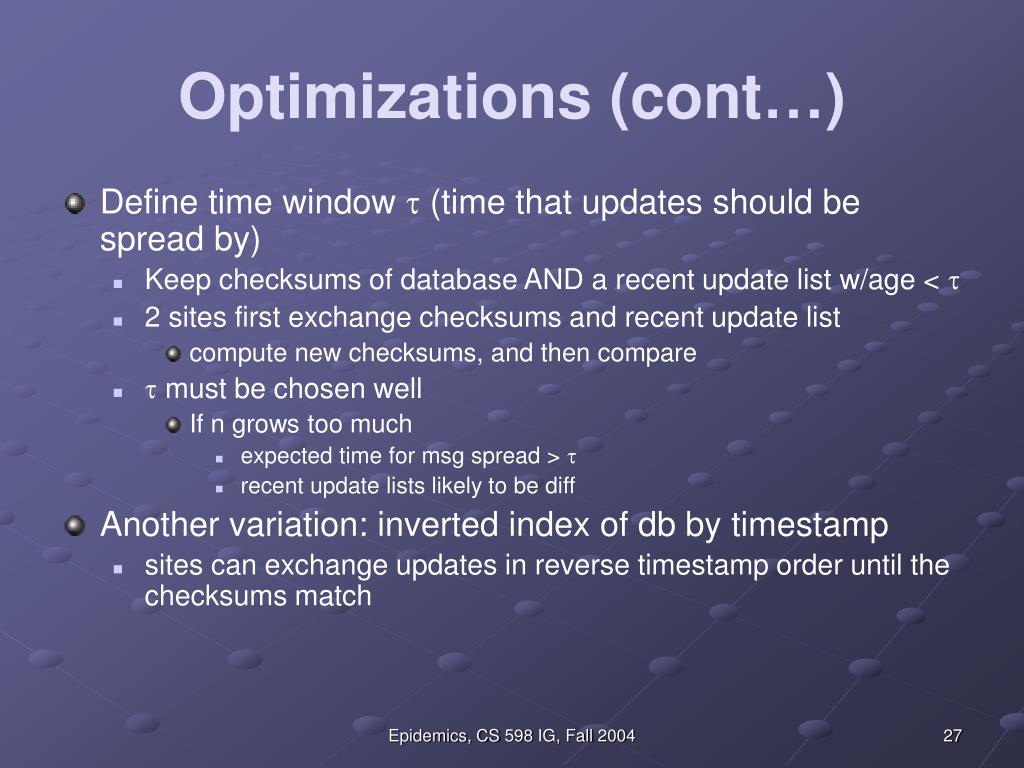

27. Optimizations (cont…) • Define time window  (time that updates should be spread by) • Keep checksums of database AND a recent update list w/age <  • 2 sites first exchange checksums and recent update list • compute new checksums, and then compare •  must be chosen well • If n grows too much • expected time for msg spread >  • recent update lists likely to be diff • Another variation: inverted index of db by timestamp • sites can exchange updates in reverse timestamp order until the checksums match Epidemics, CS 598 IG, Fall 2004

28. Complex Epidemics / Rumor Mongering / Gossip • Replace multicasting • At the expense of slightly larger convergence time • And a distinct, though very small probability of failure • Called complex just to distinguish from simple epidemics like anti-entropy Epidemics, CS 598 IG, Fall 2004

29. Basic (Complex) Epidemic • Susceptible site receives a hot rumor and becomes infective • Randomly shares with another susceptible site • “Uniform at Random” • When contacts a site that knows rumor already • probability 1/k lose interest in sharing the rumor (and become removed) • After a while, high probability that everyone knows Epidemics, CS 598 IG, Fall 2004

30. Can model with differential equations (fun!) • s+i+r=1 • Differentiate… Epidemics, CS 598 IG, Fall 2004

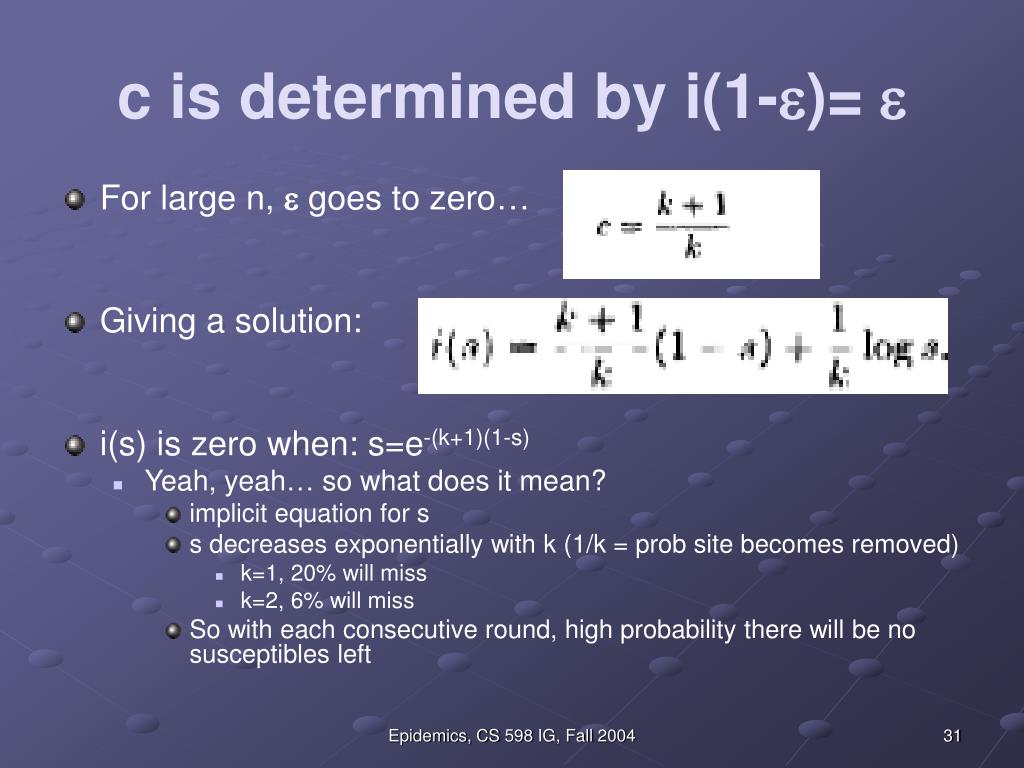

31. c is determined by i(1-)= • For large n,  goes to zero… • Giving a solution: • i(s) is zero when: s=e-(k+1)(1-s) • Yeah, yeah… so what does it mean? • implicit equation for s • s decreases exponentially with k (1/k = prob site becomes removed) • k=1, 20% will miss • k=2, 6% will miss • So with each consecutive round, high probability there will be no susceptibles left Epidemics, CS 598 IG, Fall 2004

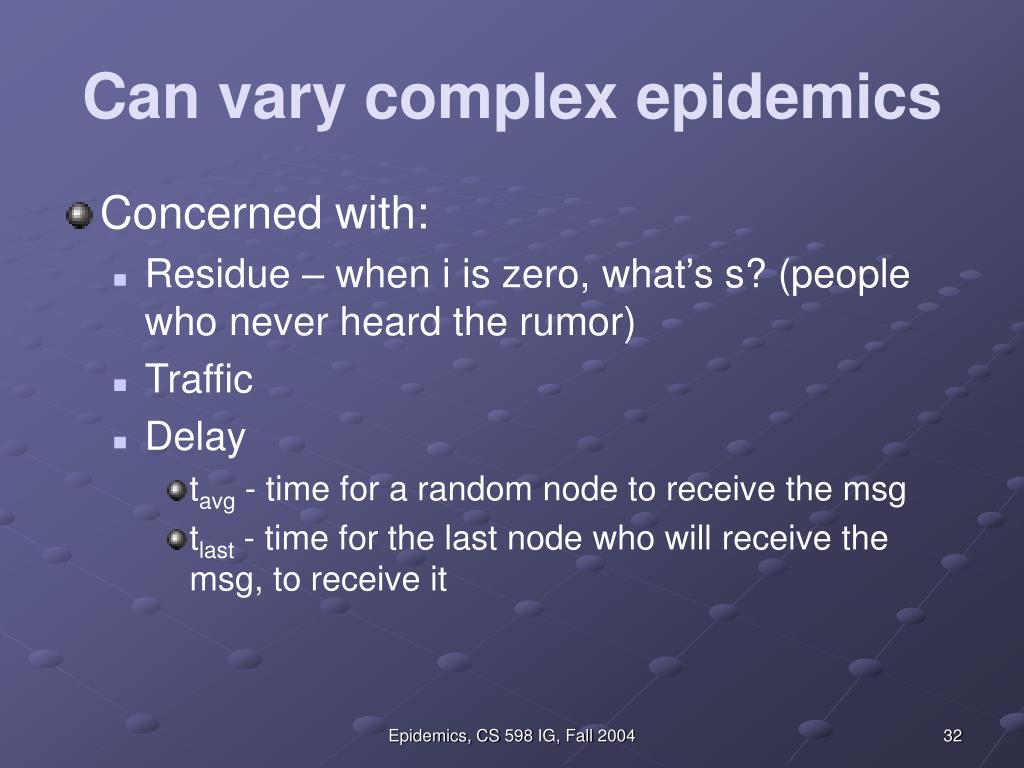

32. Can vary complex epidemics • Concerned with: • Residue – when i is zero, what’s s? (people who never heard the rumor) • Traffic • Delay • tavg - time for a random node to receive the msg • tlast - time for the last node who will receive the msg, to receive it Epidemics, CS 598 IG, Fall 2004

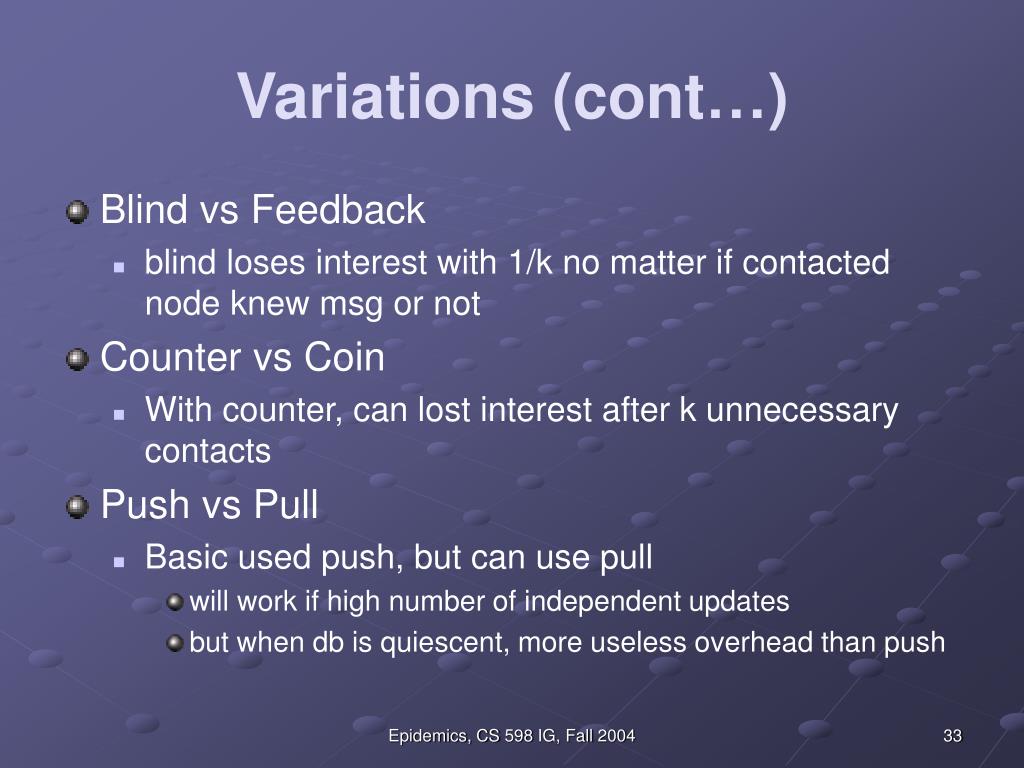

33. Variations (cont…) • Blind vs Feedback • blind loses interest with 1/k no matter if contacted node knew msg or not • Counter vs Coin • With counter, can lost interest after k unnecessary contacts • Push vs Pull • Basic used push, but can use pull • will work if high number of independent updates • but when db is quiescent, more useless overhead than push Epidemics, CS 598 IG, Fall 2004

34.  Variations (cont…) • Minimization • Use a push and pull together, and if both sides know update, then the site with smaller counter is incremented (equality, both incremented) • Connection limit • If there’s a lot of updates, need a connection limit • Pull gets worse but push gets better! • Hunting • If one connection rejected, try another Epidemics, CS 598 IG, Fall 2004

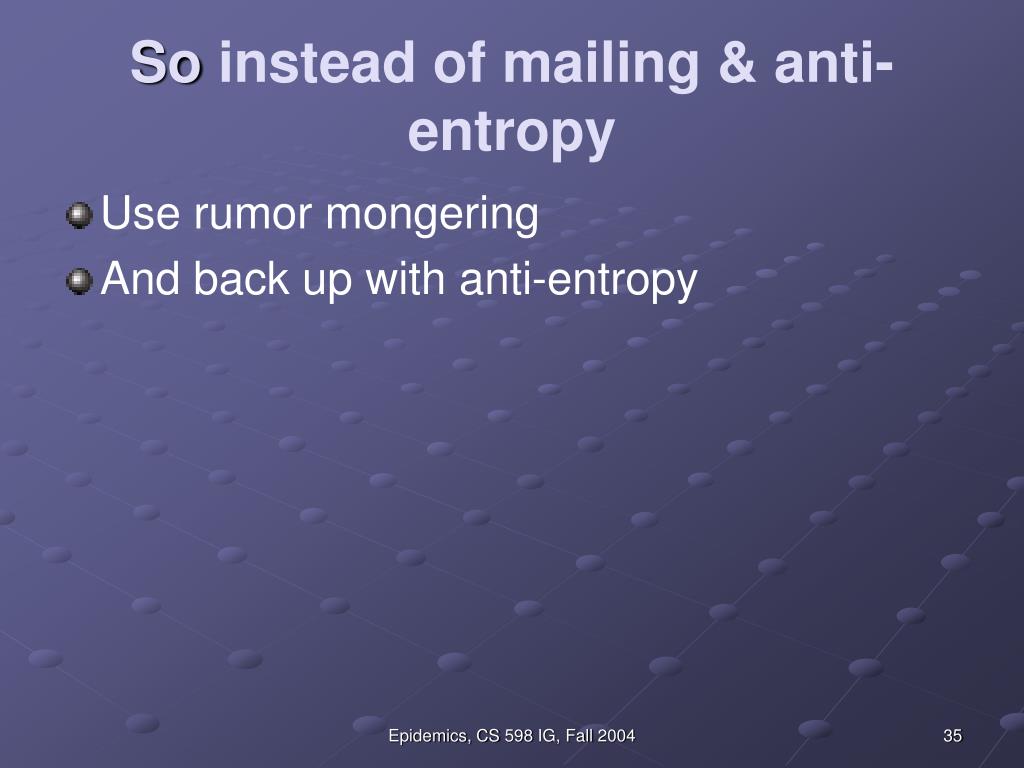

35. So instead of mailing & anti-entropy • Use rumor mongering • And back up with anti-entropy Epidemics, CS 598 IG, Fall 2004

36. Death Certificates • With anti-entropy, deletion doesn’t really work • absence of entry will be replaced by an old version • Death Certificates • carry timestamps • when compared with older entry, the older entry is deleted • they take up space • but if you delete them, risk chance of seeing old resurrected data • Enter: Dormant Death Certificates Epidemics, CS 598 IG, Fall 2004

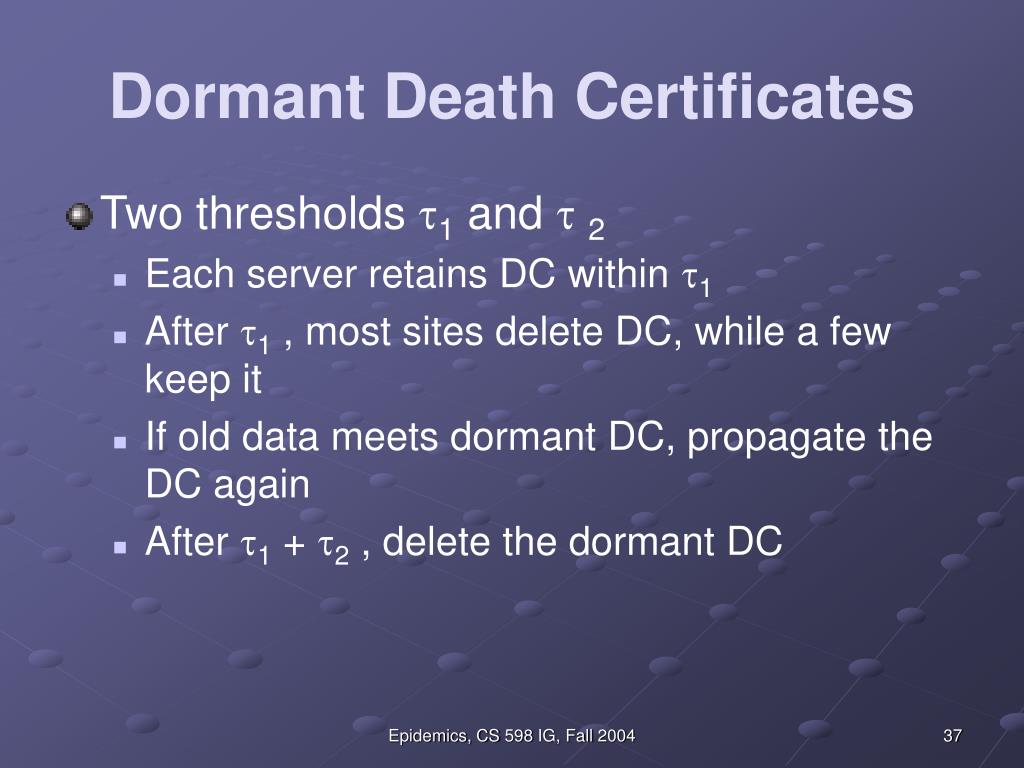

37. Dormant Death Certificates • Two thresholds 1 and 2 • Each server retains DC within 1 • After 1 , most sites delete DC, while a few keep it • If old data meets dormant DC, propagate the DC again • After 1 + 2 , delete the dormant DC Epidemics, CS 598 IG, Fall 2004

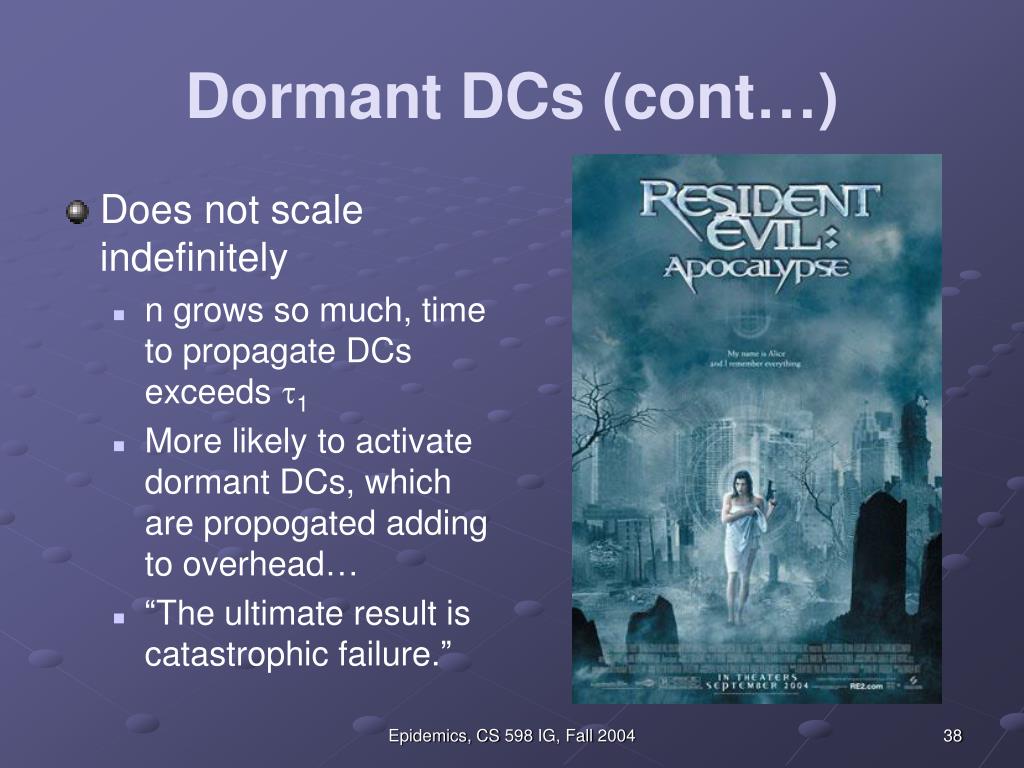

38. Dormant DCs (cont…) • Does not scale indefinitely • n grows so much, time to propagate DCs exceeds 1 • More likely to activate dormant DCs, which are propogated adding to overhead… • “The ultimate result is catastrophic failure.” Epidemics, CS 598 IG, Fall 2004

39. Dormant DCs (cont…) • Don’t spread dormant DC • And if reactivated, can reset timestamp • But this is wrong (might cancel a legitimate update) • So use second ts called activation timestamp which is set if it’s reactivated Epidemics, CS 598 IG, Fall 2004

40. Spatial Distributions • networks aren’t heterogeneous • some links are slower than others • can be broken up into different types of zones • we want to favor locality as we spread updates to minimize traffic Epidemics, CS 598 IG, Fall 2004

41. Spatial Distributions (cont…) • probability of connecting to a site at distance d is 1/da, where a is to be determined • intuitively, a indicates the amount of locality you’re going to be connecting at • So: increase in a -> increase in locality • w/ increased locality, need to compensate in order to “break out of” locality • more connections • more rounds • Also generalized to more more dimensions 1/d-2D Epidemics, CS 598 IG, Fall 2004

42. Spatial Distribution • Anti-Entropy • notice Bushey (trans-Atlantic) traffic • uniform (75.74) vs a=2 (2.38) • For gossiping: • since rumors eventually become inactive, it needs to spread a lot in the beginning • hence, pump up k Epidemics, CS 598 IG, Fall 2004

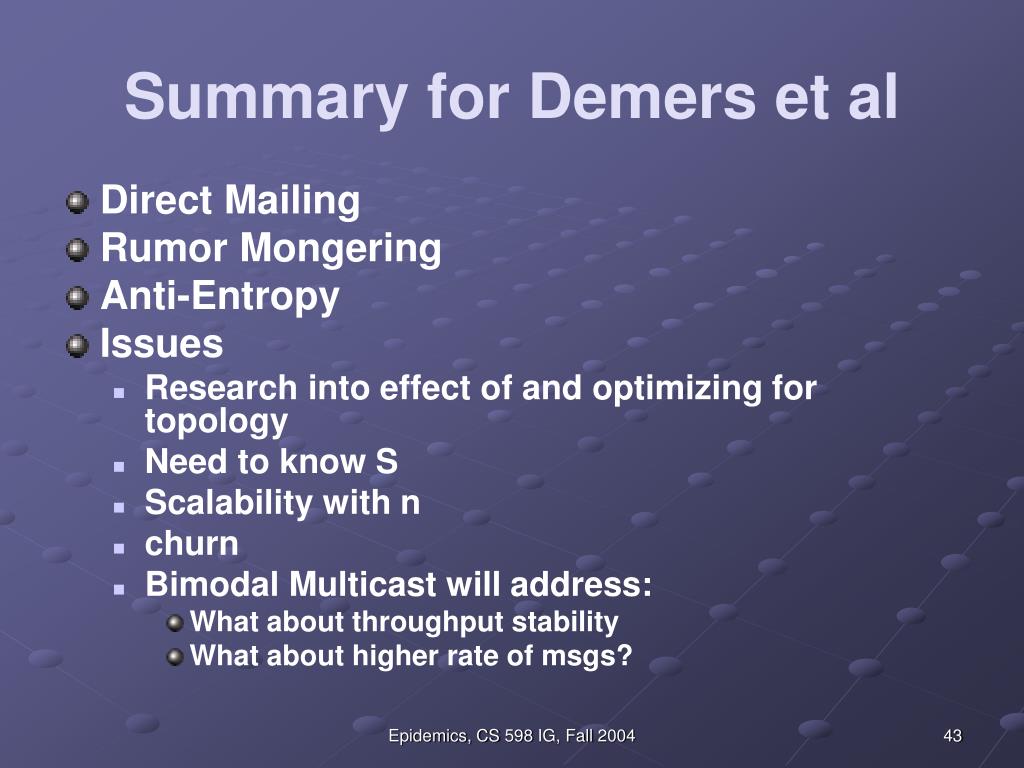

43. Summary for Demers et al • Direct Mailing • Rumor Mongering • Anti-Entropy • Issues • Research into effect of and optimizing for topology • Need to know S • Scalability with n • churn • Bimodal Multicast will address: • What about throughput stability • What about higher rate of msgs? Epidemics, CS 598 IG, Fall 2004

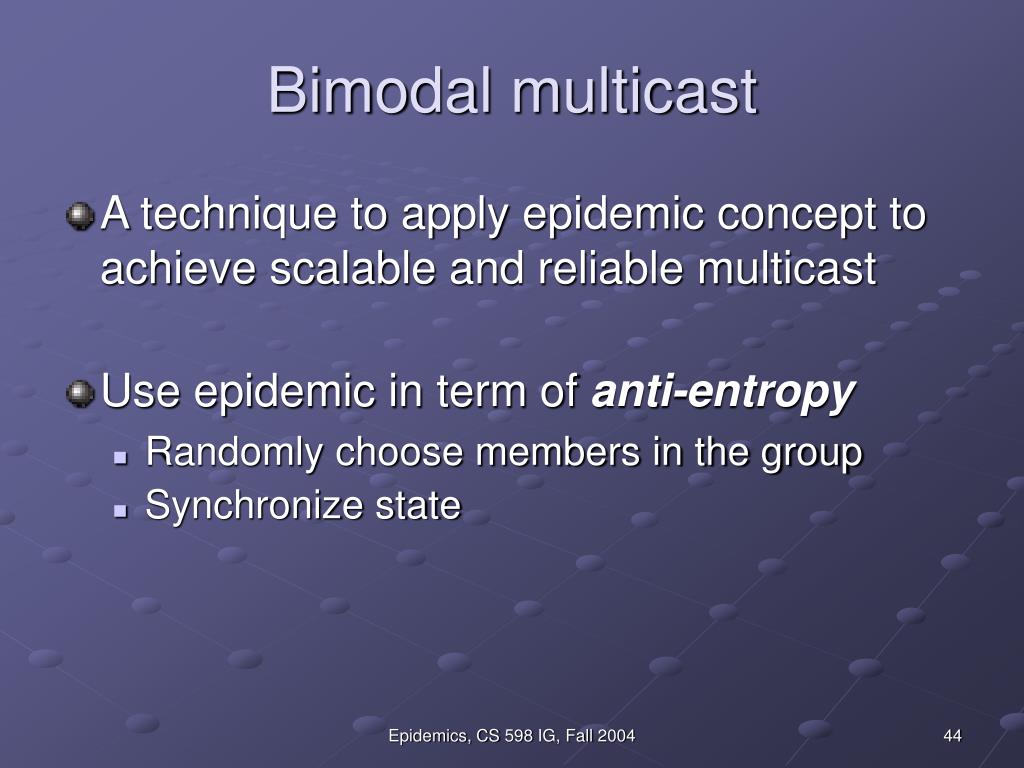

44. Bimodal multicast • A technique to apply epidemic concept to achieve scalable and reliable multicast • Use epidemic in term of anti-entropy • Randomly choose members in the group • Synchronize state Epidemics, CS 598 IG, Fall 2004

45. Two classes of multicast • strong reliability • atomicity • delivery ordering • virtual synchrony • security • real-time • more overhead, unpredictable behavior under some situations • best-effort reliability • scalable • provide no end-to-end delivery • No strong membership view • Certain level failure discovery • SRM,MUSE,RMTP,etc. Epidemics, CS 598 IG, Fall 2004

46. Multicast : Examples • Virtual synchrony • Strong reliable • significant degradation even just few node failures • suitable for small groups, limited to short bursts of multicasts • SRM • Best-effort reliable • Error-prone to stochastic failures • Meltdown can occur in large network • None of them addresses stability problem under failures Epidemics, CS 598 IG, Fall 2004

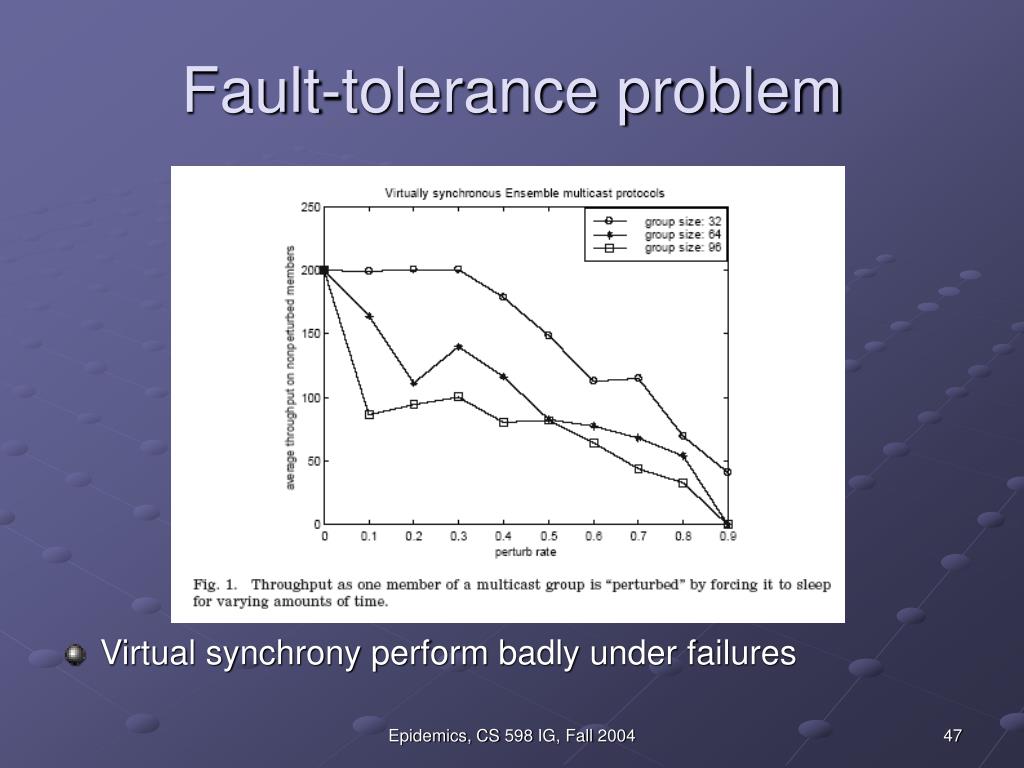

47. Fault-tolerance problem • Virtual synchrony perform badly under failures Epidemics, CS 598 IG, Fall 2004

48. Bimodal multicast • Also called probabilistic broadcast (pbcast) • fill the gap between two approaches • scalable • predictably reliable even under bad conditions • Complement with existing mechanism, such as Virtual Synchrony • Atomic • Provide stability • Throughput stability • Multicast stability Epidemics, CS 598 IG, Fall 2004

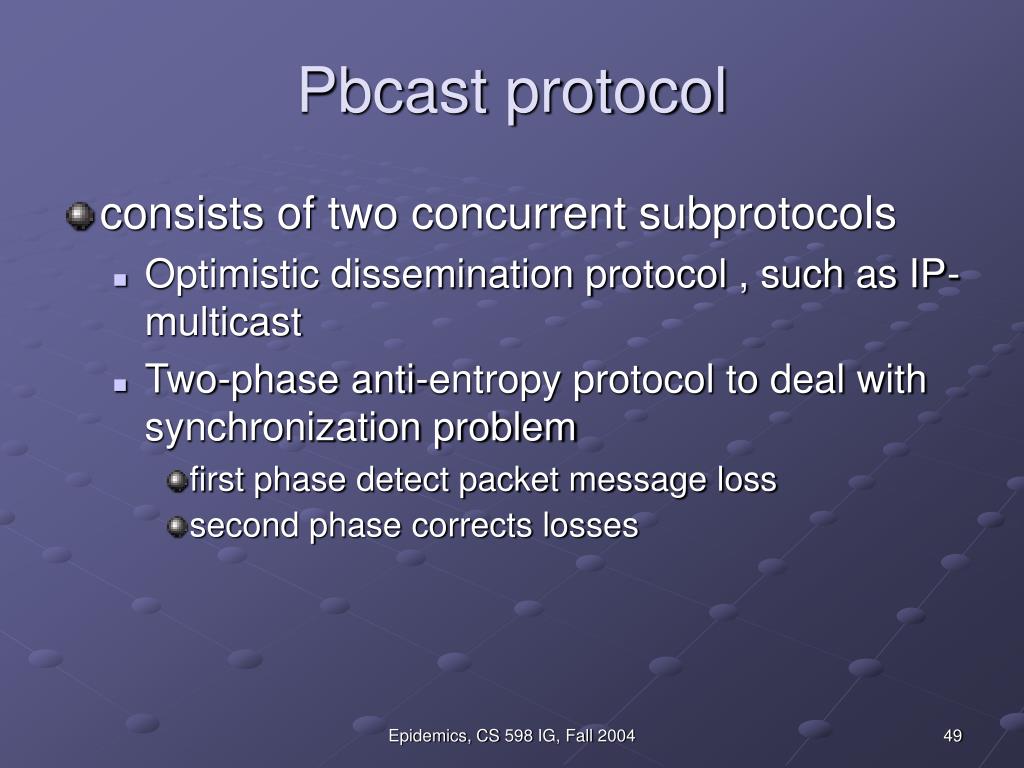

49. Pbcast protocol • consists of two concurrent subprotocols • Optimistic dissemination protocol , such as IP-multicast • Two-phase anti-entropy protocol to deal with synchronization problem • first phase detect packet message loss • second phase corrects losses Epidemics, CS 598 IG, Fall 2004

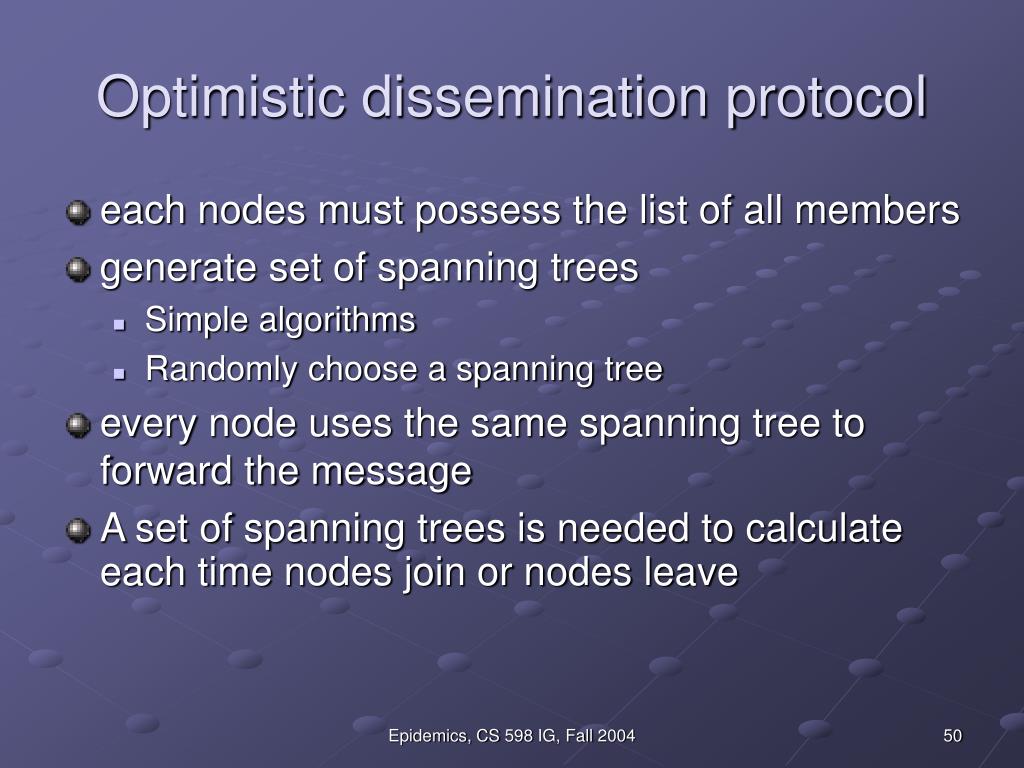

50. Optimistic dissemination protocol • each nodes must possess the list of all members • generate set of spanning trees • Simple algorithms • Randomly choose a spanning tree • every node uses the same spanning tree to forward the message • A set of spanning trees is needed to calculate each time nodes join or nodes leave Epidemics, CS 598 IG, Fall 2004
