Kovar (shown in Blue). Properties of Copper. Thermal Expansion of Copper. Thermal expansion of Molybdenum. TE=4.535 x 10 -6 per deg C at 400 C. Glass used with Kovar. Code 7070. Comparison of Filler Materials. Sn – Ag Solder Shear Strength= 2,700 psi Tensile Strength= 5,800 psi

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Kovar (shown in Blue)' - idola


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
thermal expansion of molybdenum
Thermal expansion of Molybdenum

TE=4.535 x 10-6 per deg C at 400 C

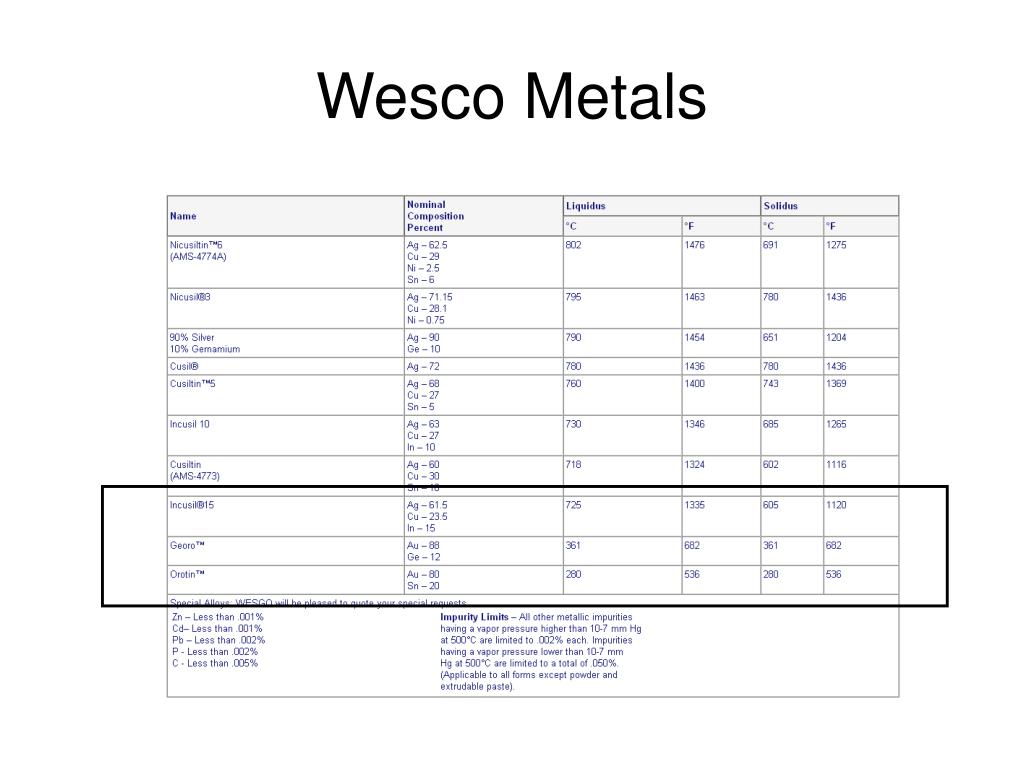

comparison of filler materials

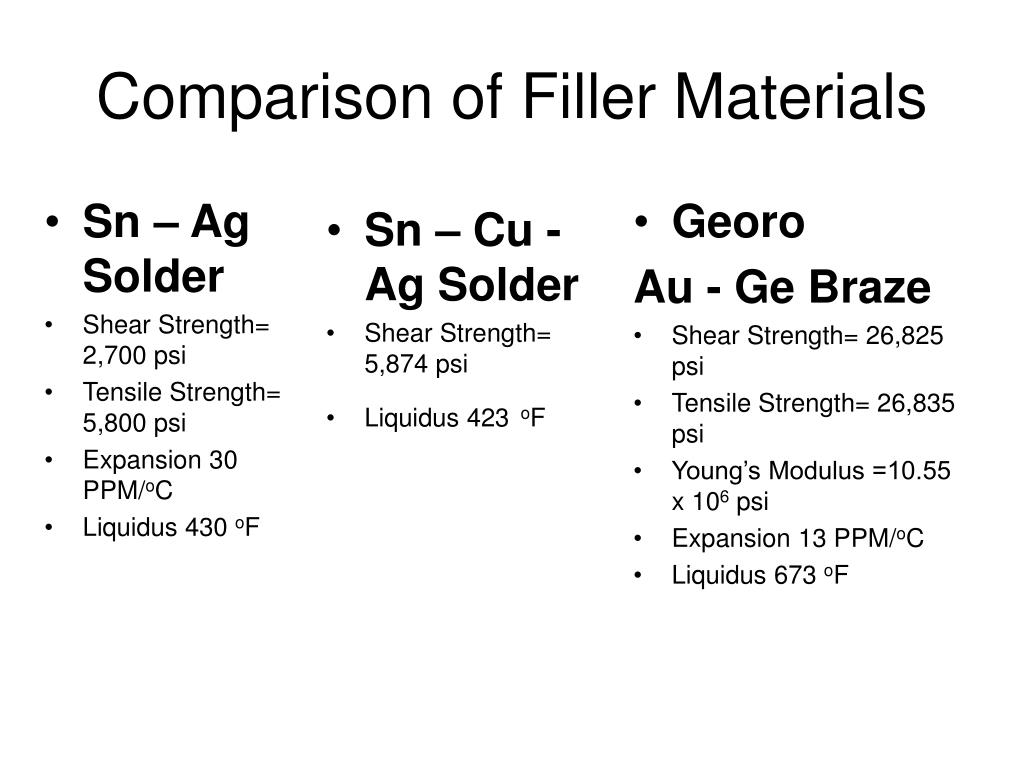

Comparison of Filler Materials
  • Sn – Ag Solder
  • Shear Strength= 2,700 psi
  • Tensile Strength= 5,800 psi
  • Expansion 30 PPM/oC
  • Liquidus 430 oF
  • Georo

Au - Ge Braze

  • Shear Strength= 26,825 psi
  • Tensile Strength= 26,835 psi
  • Young’s Modulus =10.55 x 106 psi
  • Expansion 13 PPM/oC
  • Liquidus 673 oF
  • Sn – Cu - Ag Solder
  • Shear Strength= 5,874 psi
  • Liquidus 423oF
