Presentation Transcript
Respiratory system l.jpg

Respiratory System


Describe the structure of the respiratory system.10.01

Analyze the function of the respiratory system. 10.02

Identify characteristics and treatment of common respiratory disorders. 10.03

Respiratory system2 l.jpg
Respiratory System

Includes the nasal cavity, pharynx, larynx, trachea, bronchi, alveoli, lungs, and pleura.

Nasal cavity l.jpg
Nasal Cavity

Nasal Septum=divides nasal cavities into R and L sides

Cilia- the hairs in your nose, trap larger dirt particles.

Slide4 l.jpg

Sinuses- cavities in the skull

Connected to the nasal cavity, by ducts

Lined with mucous membrane to warm and moisten air

Sinuses give resonance to the voice.

Slide5 l.jpg


The throat

Common passageway for air and food

5” long

When food is swallowed, the Epiglottis closes over the opening to the larynx preventing food from entering the lungs


Meet the larynx l.jpg
Meet the Larynx

Larynx- voice box

Triangular chamber below the pharynx

Within the larynx are vocal cords

Epiglottis covers larynx during swallowing

Adam’s apple

Produces sound

Made of cartilage fibrous plates

Meet the trachea l.jpg
Meet the Trachea


4 ½ in. long.

Walls are alternate bands of membrane and C shaped rings of hyaline cartilage to keep trachea open and more rigid

Lined with ciliated mucous membrane.

Coughing and expectoration gets rid of dust-laden mucous.

Did someone say bronchi and bronchioles are next l.jpg
Did Someone say Bronchi and Bronchioles are next?

Lower end of trachea divides into R and L bronchus

Become bronchial tubes and bronchioles as braonches enter lungs

Passageway for air from trachea to alveoli in lungs

Alveoli l.jpg

Clusters of thin-walled sacs made of single layer epithelial tissue

Inner surfaces covered with Surfactant to keep alveoli from collapsing

Each alveolus surrounded by capillaries

O2 and CO2 exchange takes place between the alveoli and capillaries (diffusion)

Lovely lungs l.jpg
Lovely Lungs

Fill the thoracic cavity

Upper part=apex

Lower part=base

Lung tissue porous and spongy –it floats

R lung=larger and shorter displaced by the liver and has 3 lobes

L lung smaller displaced by the heart and has 2 lobes

Pretty pleura l.jpg
Pretty Pleura

Thin, moist slippery membrane that covers the lungs.

Double walled sac.

Space is pleural cavity filled with pleural fluid to prevent friction.

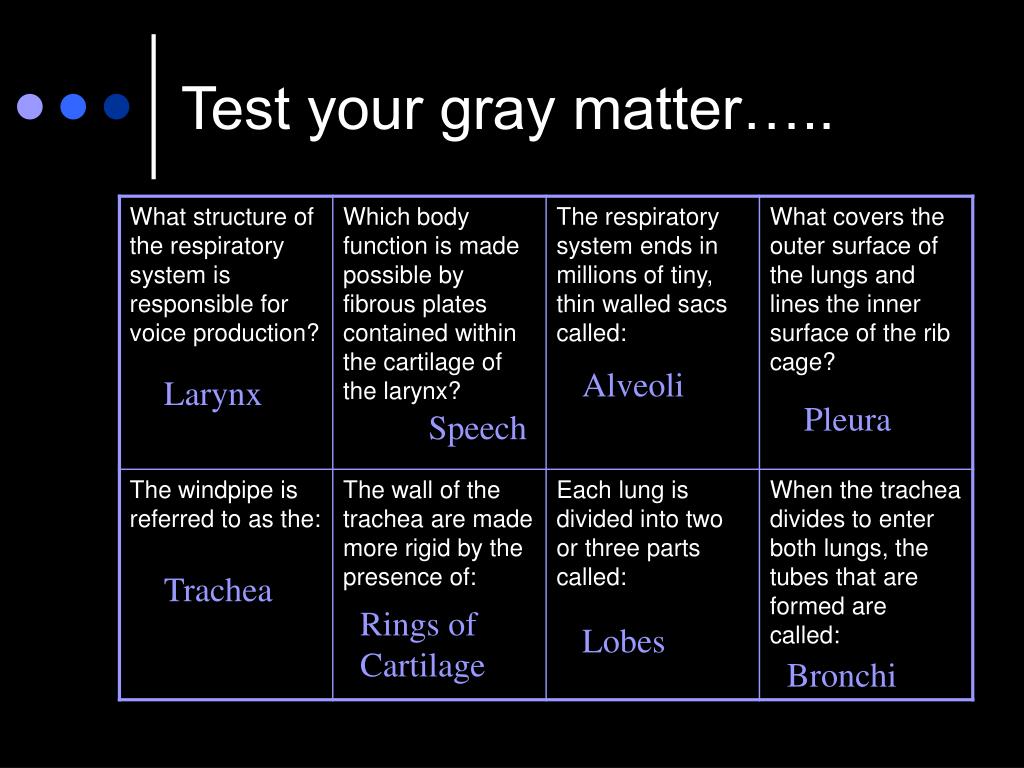

Test your gray matter l.jpg
Test your gray matter…..






Rings of Cartilage



Slide13 l.jpg

The partition that separated the nose into right and left cavities is the:

The medical name for the throat is the:



That s all for now l.jpg
That’s all for now…. cavities is the:

Function of the respiratory system l.jpg

Function of the Respiratory System cavities is the:

External respiration, internal respiration , and cellular respiration

Production of sound (vocal cords)

Pulmonary ventilation breathing l.jpg
Pulmonary Ventilation (Breathing) cavities is the:

Inspiration Inhalation

Intercostal muscles lift ribs outward, sternum rises and the diaphragm contracts and moves downward this increases the volume of the lungs and air rushes in.

Pulmonary ventilation l.jpg
Pulmonary Ventilation cavities is the:


Opposite action takes place.

Exhalation is a passive process

Respiratory movements l.jpg
Respiratory Movements cavities is the:

1 inspiration + 1 expiration=1 respiration

Normal adult = 14-20

Respirations per minute

Increases with exercise, body temperature, certain diseases.

Age-newborm= 40-60/min

Sleep= respiration 

Emotion can  or  rate

Coughing l.jpg
Coughing cavities is the:

Deep breath followed by forceful expulsion of air – to clear lower respiratory tract

Hiccups – spasm of the diaphragm and spasmotic closure of the glottis- irritation to diaphragm or phrenic nerve.

Slide20 l.jpg

Sneezing cavities is the:

Air forced through nose to clear respiratory tract


Deep prolonged breath that fills the lungs, increases oxygen within the blood

Control breathing breathing controlled by neural and chemical factors l.jpg
Control Breathing cavities is the:Breathing controlled by neural and chemical factors.

  • Neural Factors

  • Respiratory center located in the Medulla Oblongata

  •  on CO2 or  O2 in the blood will trigger respiratory center

  • Phrenic Nerve- stimulates the diaphragm

Chemical Factors

Depends on the levels of CO2 in the blood (respiratory center in the brain)

Chemoreceptors in aorta and carotid arteries sensitive to the amount of blood O2

Test your gray matter22 l.jpg
Test your gray matter cavities is the:

Carbon dioxide in the blood

CO2 level in blood

Filtering in the air


Trachea, bronchi, alveoli



Respiratory disorders l.jpg

Respiratory Disorders cavities is the:

Common cold l.jpg
Common Cold cavities is the:

Contagious viral respiratory infection

Contributing factors- chilling fatigue,poor nutrition, and not enough sleep

Rx- stay in bed, drink warm liquids and fruit juice, good nutrition

Good handwashing best prevention.

Also called an Upper Respiratory Infection (URI)

Slide25 l.jpg

Pharyngitis- cavities is the: red, inflammation throat

Laryngitis- Inflammation of the larynx or voice box

Symptoms- sore throat , hoarseness or loss of voice dysphagia (difficulty swallowing)

Slide26 l.jpg

Inflammation of the mucous membrane of the trachea and bronchi

Symptoms-cough, fever, substernal paina nd rales (raspy sound)

Chronic bronchitis-middle or old age, cigarette smoking most common cause.


Slide27 l.jpg

Viral infection bronchi of upper respiratory tract

Symptoms-Fever, mucopurulent discharge, muscular pain, extreme exhaustion

Rx – treat the symptoms

Influenza (Flu)

Slide28 l.jpg

Infection of the lung bronchi

Caused by bacteria or virus

Alveoli fill with thick fluid

Symptoms- chest pain, fever, chills dyspnea

Diagnosis- x-ray and listening to lungs

Rx- O2 and antibiotics


Tuberculosis l.jpg
Tuberculosis bronchi

Infectious bacterial lung disease

Tubercles (lesions) forms in the lungs

Symptoms: cough, low grade fever in the afternoon, weigh loss, night sweats

Diagnosis- TB skin test

If skin test positive-follow up with chest x-ray and sputum sample

RX- Antibiotic

Tb game l.jpg
TB Game bronchi

Terms to know:




Tuberculosis31 l.jpg
Tuberculosis bronchi

Due to the increase in immigration, homelessness and AIDS, the incidence of TB is increasing in the United States.


Slide32 l.jpg

Inflammatory airway obstruction bronchi

Caused by allergen or psychological stress

5% of Americans have asthma

Symptoms: difficulty exhaling, dyspnea, wheezing, tightness in chest

RX anti-inflammatory drugs, inhaled bronchodilator.


Slide33 l.jpg

Alveoli become over-dilated, lose their elasticity, bronchi can’t rebound, may eventually rupture

Air becomes trapped, can’t exhale-forced exhalation required

Reduced exchange of O2 and CO2

Dyspnea increases as disease progresses



RX – Alleviate the symptoms, decrease exposure to respiratory irritants, prevent infections, restructure activities to prevent need for O2

Test your gray matter34 l.jpg
Test your gray matter… bronchi



Common cold


Bacteria + Virus




Slide35 l.jpg

The most common cause of chronic bronchitis is: bronchi

Influenza is caused by a :


Cigarette Smoking
