Presentation Transcript

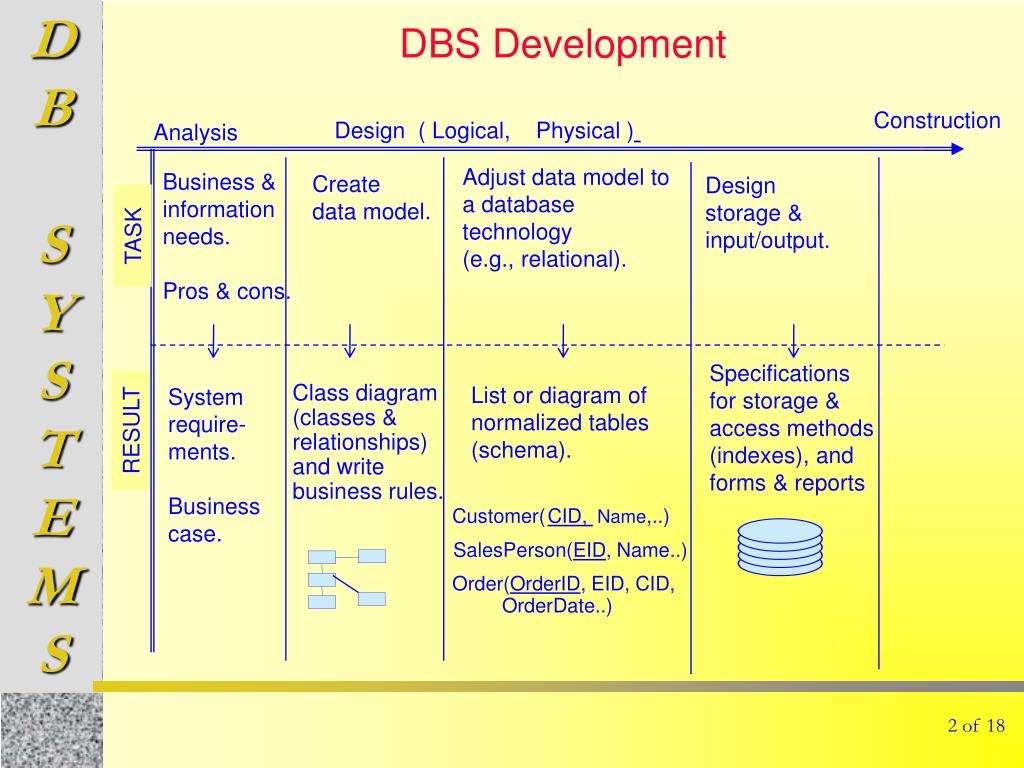

dbs development

Design ( Logical, Physical )

Analysis

Construction

Adjust data model to

a database

technology

(e.g., relational).

Business &

information

needs.

Pros & cons.

Create

data model.

Design

storage &

input/output.

Specifications for storage & access methods (indexes), and forms & reports

System

require-

ments.

Business

case.

Class diagram (classes & relationships) and write business rules.

List or diagram of normalized tables (schema).

Customer(

CID,

Name,..)

SalesPerson(EID, Name..)

Order(OrderID, EID, CID,

OrderDate..)

DBS Development

TASK

RESULT

unified modeling language uml

Class diagram

A static model of classes and their relationships

Use case diagram

Shows actors (users) and system functions.

Sequence diagram

Interactions among objects with a timeline indicated.

Activity diagrams

The steps within a function (or procedure, use case).

Implementation diagrams

The structure of the code or of the run-time modules.

Unified Modeling Language (UML)

Trendy notation for analyzing systems and often used with the

object orientation (OO) approach.

Contains specific sorts of diagrams:

  • The class diagram is most important for DB systems.
  • Similar to the old Entity-Relationship diagram (E-R diagram) but more compact.
class diagram concepts
Class Diagram – Concepts

Entity: The aspect of reality recorded in the system.

Class: Description of an entity, which includes its attributes (properties) and behavior (methods, procedures).

Object: One instance of a class with specific data; a record in a database.

Attribute:A data property of a class; an aspects of an entity.

Behavior: Procedures (methods, processes, functions) performed by the class.

Association: A connection between classes or between entities.

slide5

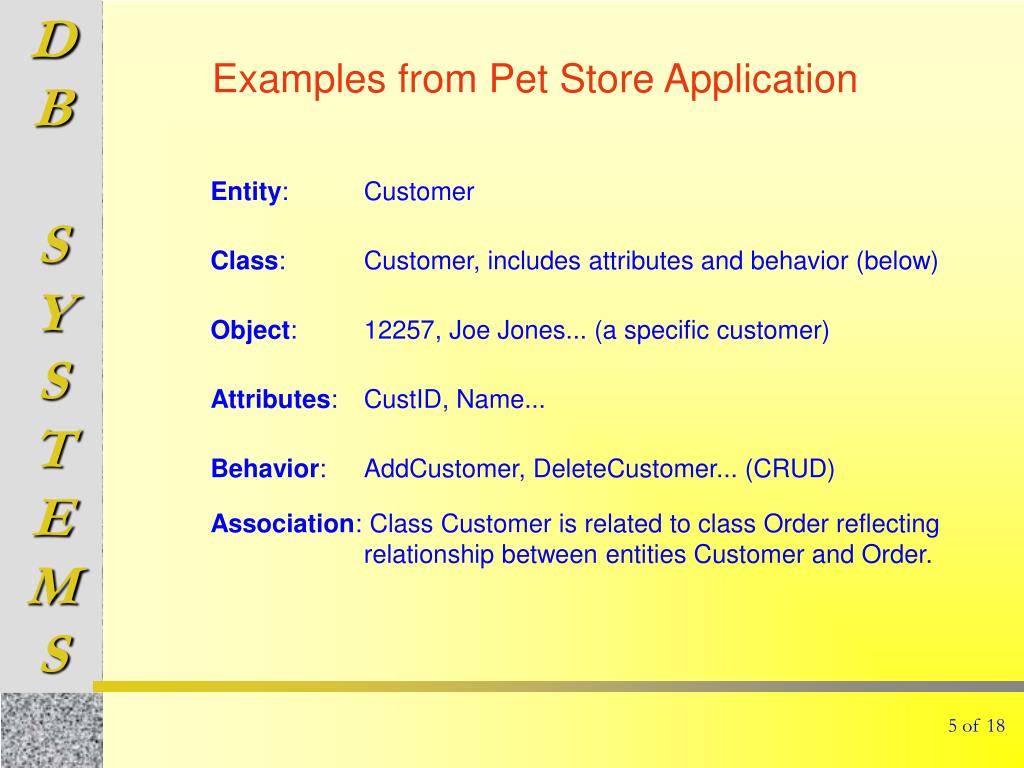

Examples from Pet Store Application

Entity: Customer

Class: Customer, includes attributes and behavior (below)

Object: 12257, Joe Jones... (a specific customer)

Attributes: CustID, Name...

Behavior: AddCustomer, DeleteCustomer... (CRUD)

Association: Class Customer is related to class Order reflecting relationship between entities Customer and Order.

associations

Customer

Associations
  • Associations (Relationships) reflect business specified in business rules*
    • Sometimes common-sense rules(Figure A)

(A)

Order

  • Sometimes rules unique to an organization (FigureB)

places 

(B)

Customer

Product Search Profile

 belongs to

NOTE: Assumed way of reading is left-right and top-down.

If the relationship is drawn that way, the arrowhead is not necessary.

Arrowheads needed when these rules are not followed (Figure B).

slide7

manages

worker

Employee

manager

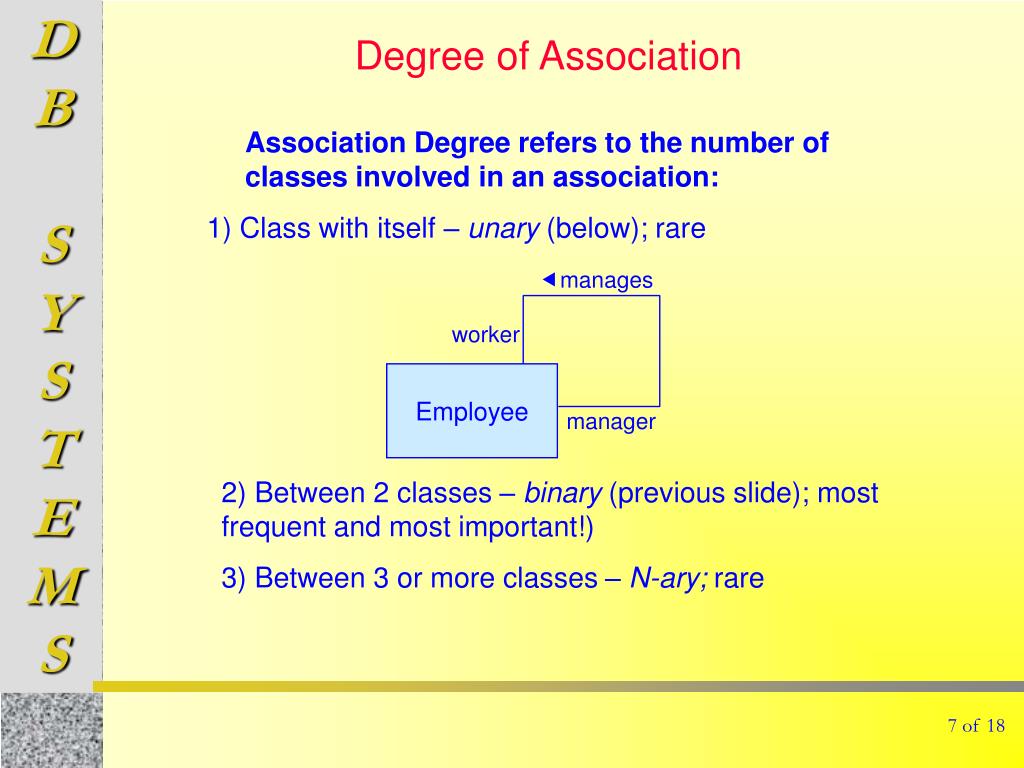

Degree of Association

Association Degree refers to the number of classes involved in an association:

1) Class with itself – unary (below); rare

2) Between 2 classes – binary (previous slide); most frequent and most important!)

3) Between 3 or more classes – N-ary; rare

slide8

Department

Employee

1..*

1..1

works in

Example: many-to-one (M:1) relationship

Department

Employee

*

1

works in

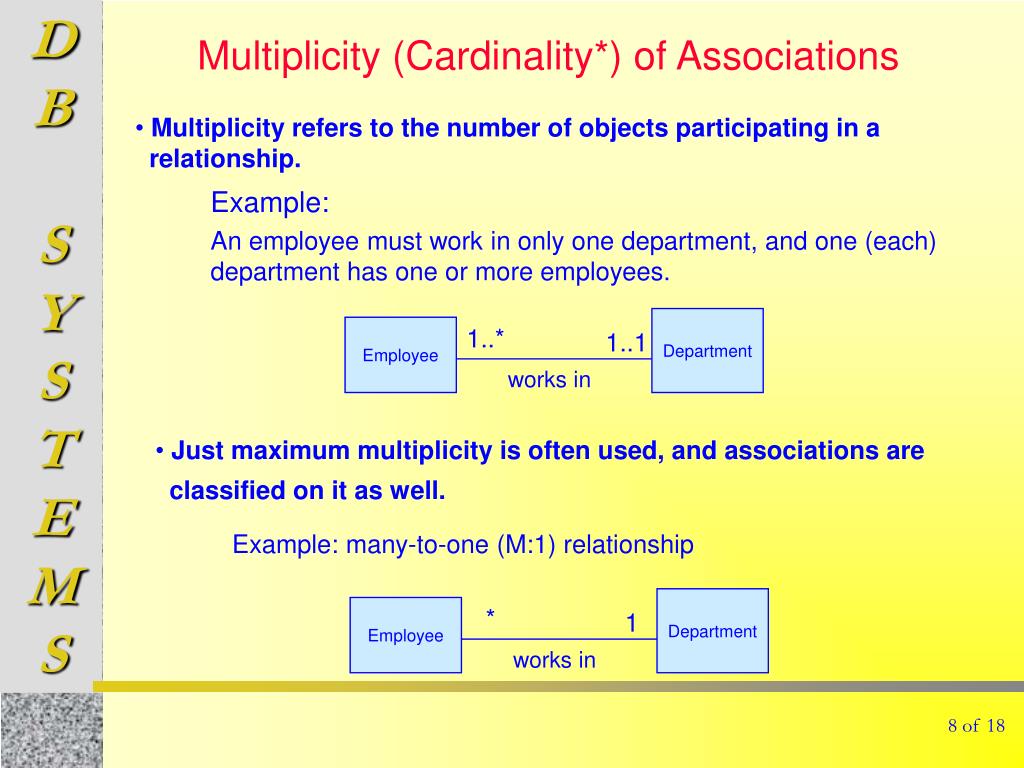

Multiplicity (Cardinality*) of Associations

  • Multiplicity refers to the number of objects participating in a

relationship.

Example:

An employee must work in only one department, and one (each) department has one or more employees.

  • Just maximum multiplicity is often used, and associations are

classified on it as well.

slide9

Types of Associations based on

Multiplicity

  • One-to-many (1:M)

- examples: Customer—Order, Client—Account

  • Many-to-many (M:N)

- examples: Order—Item, Student—Course

  • One-to-one (1:1)

- example: Customer—BillingAddress, Citizen-- SocaiInsuranceUser (IncomeTaxPayer…)

slide10

Procedure for Determining Multiplicity

(Form A question)

  • Ask the multiplicity question:

One (each) object on the left side of the association is

associated with how many objects on the right side?

Minimally, maximally?

Department

Employee

works in

Department

1 ..

1

Employee

works in

2. Write the numbers/asterisks on the right side.

And… 

slide11

3. Ask the same question from the other side of the relationship:

One (each) object on the right side of the association is associated with how many objects on the left side?

Minimally, maximally?

Department

Employee

1..1

<employs

Department

1..1

Employee

1..*

<employs

4. Write the numbers/asterisks on the

left side.

Note: You need to memorize the multiplicity question!

Or 

slide12

Department

Employee

1..*

1..1

works in 

Procedure for Determining Multiplicity

(Form B question)

1. How many objects on the left side are associated with

one (each) object on the right side?

2. Write the numbers/asterisks of the left side.

3. How many objects on the right side are associated with

one (each) object on the left side?

4. Write the numbers/asterisks on the right side.

Note: We usually need to ask just about maximum multiplicity.

notation for multiplicity
Multiplicity options:

0 (zero)

1 (one)

* (many); also labeled as M or N

specific number, if known (3, 10); e.g., in part-whole relationship

Customer

1..1

places

1..*

Order

0..*

Order_Item

contains

1..*

Item

.

Notation for Multiplicity

NOTE: Some imprecision in Fig. 2.8 p. 49 in 5th ed. (p. 46 4th ed.): “Order” is called “Sale” in sentence two.

business rules for cardinality read write
1) One customer can place one or more orders,

and each order is placed by

one

and only one customer.

2) Each order can contain one or more items,

and an item can be listed on no (0) order or on many orders. *

Customer

1..1

places

1..*

Order

0..*

contains

1..*

Item

.

Business Rules for Cardinality - Read/Write

Business Rules:

Order_Item

  • If min. multiplicity >= 1, association is mandatory;
  • If min. multiplicity = 0, association is optional.
n ary association
Degree of association => 3.

Components are assembled into Products by Employees. Simultaneous relationships. Try to read multiplicity.

Support to inventory scheduling, quality control, performance measurement.

But, the data model is not complete as shown!

*

Employee

*

*

Component

*

*

*

Product

N-ary Association

assembled by

assembles

assembled in

NOTE: Some imprecision in Fig. 2.9 on p. 49 in 5th ed. (p. 46 in 4th ed.). An association between Employee and Component missing; incorrect way of stating M:M multiplicity.

n ary association with associative class

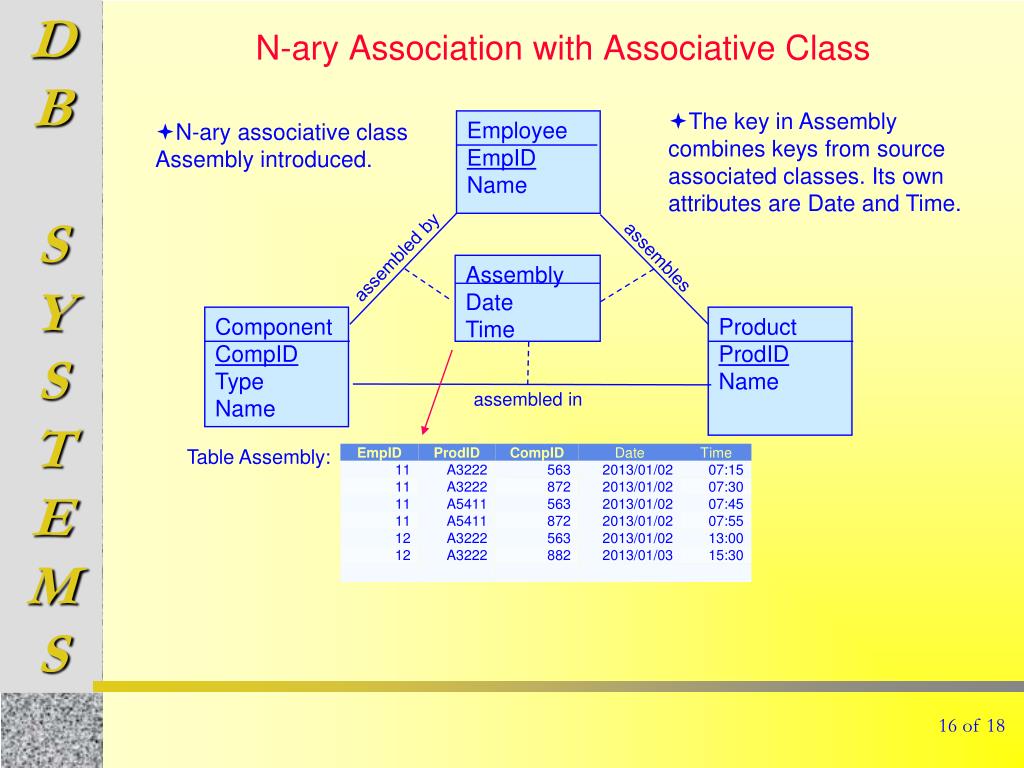

N-ary Association with Associative Class
  • The key in Assembly combines keys from source associated classes. Its own attributes are Date and Time.

Employee

EmpID

Name

  • N-ary associative class Assembly introduced.

assembles

assembled by

Assembly

Date

Time

Component

CompID

Type

Name

Product

ProdID

Name

assembled in

Table Assembly:

focus on keys generic vs unique
Focus on Keys: Generic vs. Unique
  • Product: specific model of car (ProdID is a generic key signifying a group of things, many instances)
  • Component: car door (CompID is a generic key)
  • Employee: assembly worker (EmpID is a unique key signifying a specific person, one and only one instance)
  • The design can use unique keys (e.g., serial numbers) for products and components.
