  1. Energy Management with the use of an Intelligent Building Management System

  2. Focus • Basic Concept of Intelligent Building Management System • How an intelligent BMS can be applied on Energy Management in large size commercial buildings

  3. Basic Concept of Intelligent Building Management System • What is BMS? (computer?) • Instruments • PC + software • Network • Controller

  4. Building Management System(Past, Present, Future) • Recorder • Information Technology System (ITS) • data monitoring, implementation & transfer • Artificial Intelligent System (ATS) • self-learning, diagnosis

  5. What is the duties of BMS ? • Reporting - information print out • Monitoring - provide message / signal /alarm • Prediction - cooling demand, energy • Control - program, schedule • Diagnosis - analysis

  6. Information Flow in BMS • signal • data • graphic • models • program • Y = mx + c • y = ao + a1x + a2x2

  7. Advantages in using BMS in Building Facilities Management • Operation • Centralize , Program, Automate, Remote • flexible, save operation & maintenance cost • Maintenance • reactive  proactive (monitor, keep checking) • increase services quality level (SQL) • Applicable to Energy Management

  8. Operation ON/OFF equipment by IR-sensor Signal - occupants zoning & scheduling by BMS program ON/OFF/reset output Automation Maintenance Fault identification of VAV boxes Signal - damper position, temperature abnormal data presented in BMS Output - message Manpower saving O&M Examples

  9. Energy Management in Building(how to use BMS in EM?)

  10. What is Energy Management Energy Audit Data Analysis Identify Energy Saving Opportunities Implementation Measurement & verification (M&V) Evaluation

  11. Energy Management & BMS • Energy audit • Data Analysis • Identify saving • Implementation • M&V • Evaluation

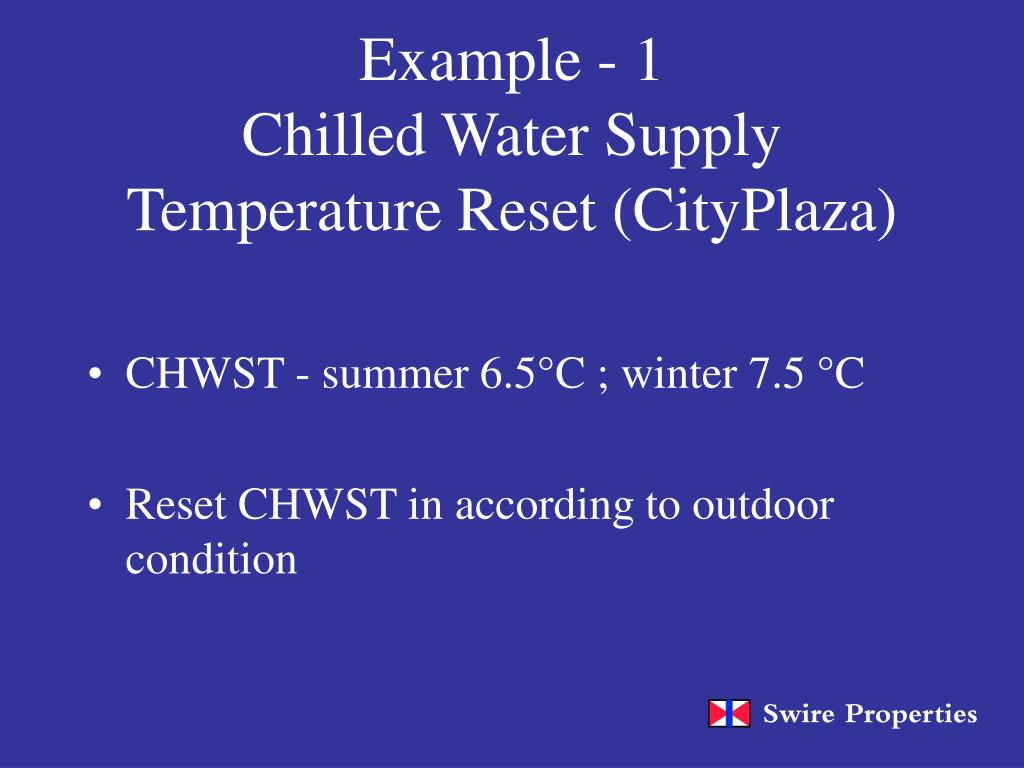

  12. Example - 1Chilled Water Supply Temperature Reset (CityPlaza) • CHWST - summer 6.5°C ; winter 7.5 °C • Reset CHWST in according to outdoor condition

  13. Idea

  14. Use of BMS • Data collect & analysis - outdoor temperature, chiller performance, CHW supply & return temperature • Algorithm programmed in BMS • Output - CHW supply temperature reset value • Verify the energy saving from data recorded in BMS

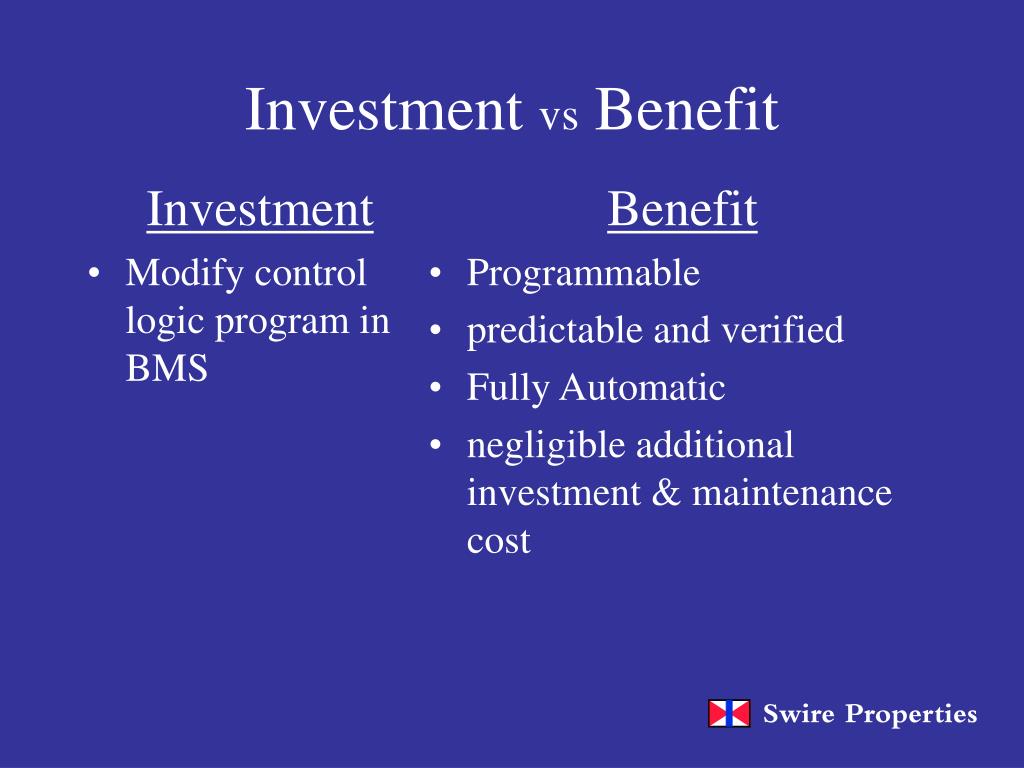

  15. Investment Modify control logic program in BMS Benefit Programmable predictable and verified Fully Automatic negligible additional investment & maintenance cost Investment vs Benefit

  16. Example 2Free Cooling by Outdoor Air (Taikoo Place) • Constant amount of outdoor air intake • Amount of outdoor air intake in according to the air temperature between outdoor & indoor

  17. Idea • Air temperature outdoor < indoor  extra cooling capacity • More Outdoor Air & Less Return Air • Cooler intake air before cooling coil  less cooling demand

  18. Control Strategy • Air temperature Outdoor < Indoor • Adjusting the dampers position of outdoor air and return air

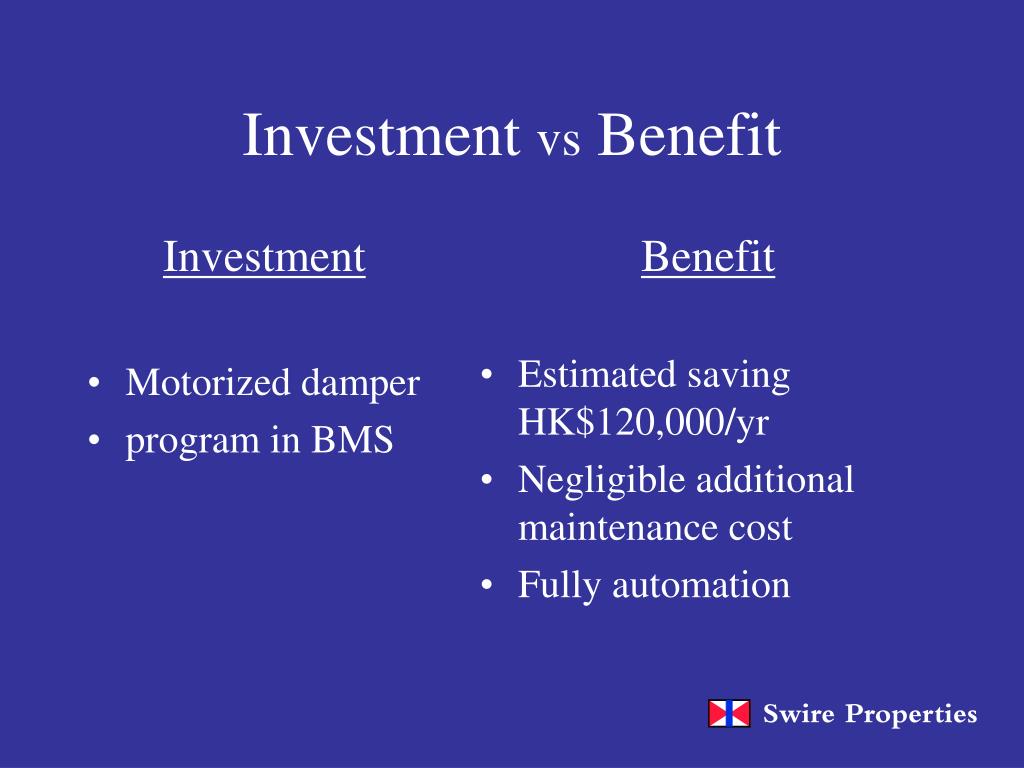

  19. Investment Motorized damper program in BMS Benefit Estimated saving HK$120,000/yr Negligible additional maintenance cost Fully automation Investment vs Benefit

  20. Example 3Carpark Ventilation Control Based on Actual CO level (CityPlaza) • Any air quality problem? • Fans are operated in 2 speed • High speed 7:00 – 23:00 • Low speed 23:00 – tomorrow 7:00

  21. Idea • Installation of CO monitoring system • BMS used to trend the CO conc. profile • EPD requirement vs actual CO conc. (gap) • Possibility to reduce fan speed

  22. Implementation Strategy(Original & 1st trail)

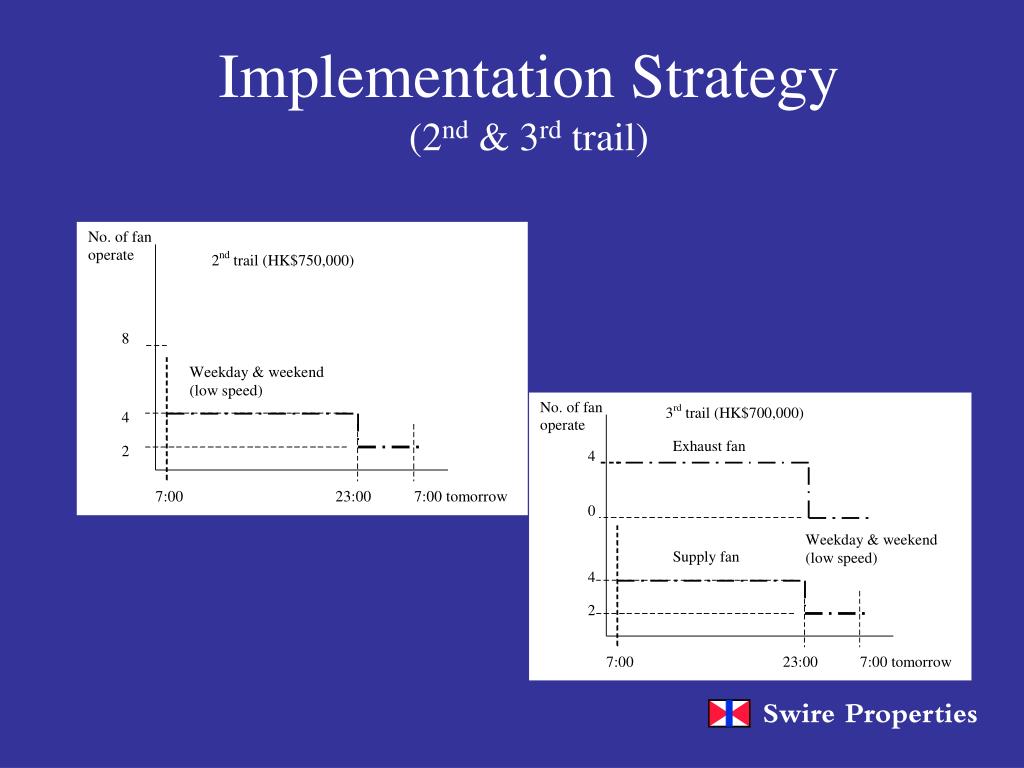

  23. Implementation Strategy(2nd & 3rd trail)

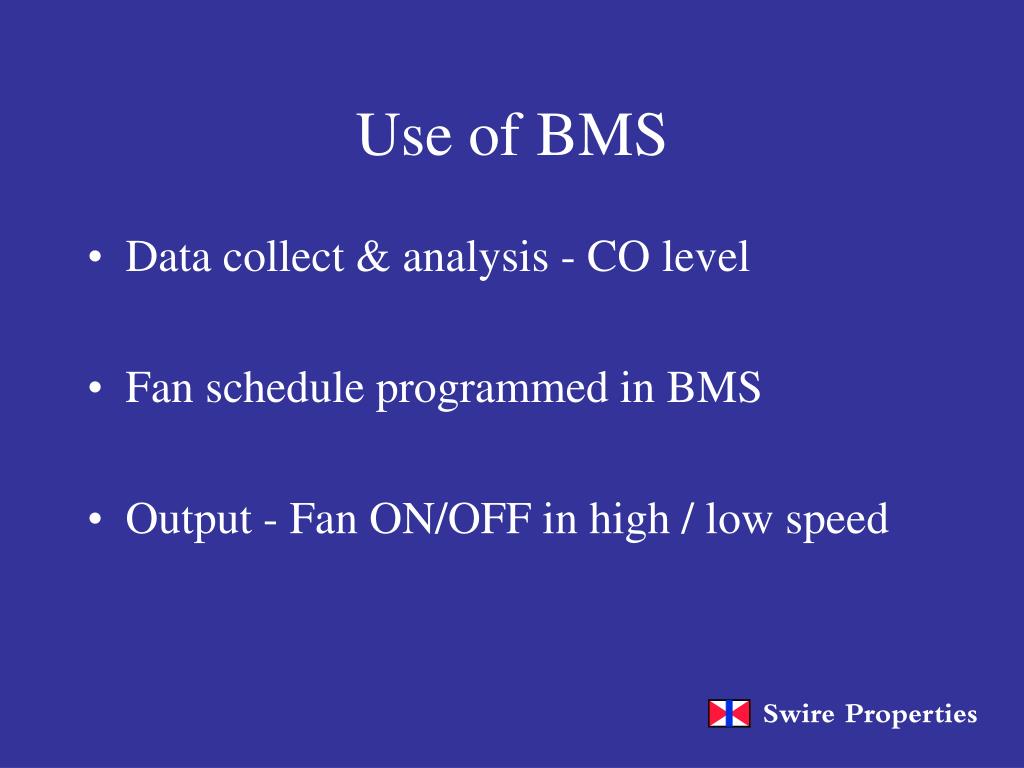

  24. Use of BMS • Data collect & analysis - CO level • Fan schedule programmed in BMS • Output - Fan ON/OFF in high / low speed

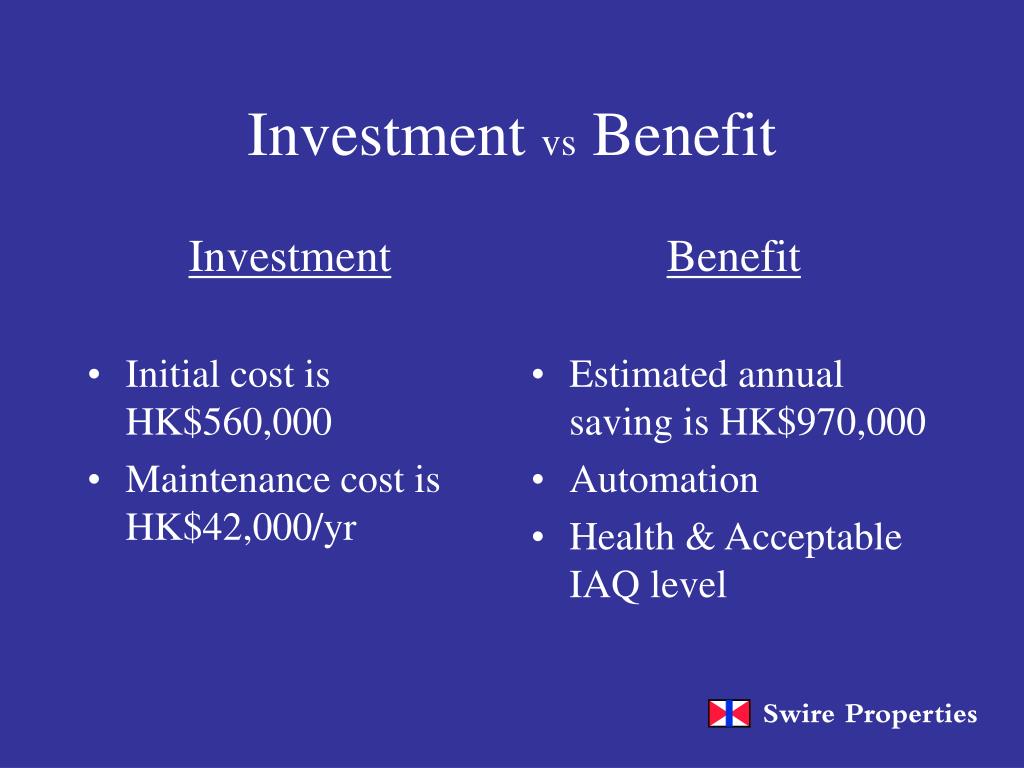

  25. Investment Initial cost is HK$560,000 Maintenance cost is HK$42,000/yr Benefit Estimated annual saving is HK$970,000 Automation Health & Acceptable IAQ level Investment vs Benefit

  26. Example 4Optimal AHU/PAU Start Up Time in A/C System

  27. Background • Office Tower A/C hour 08:00-19:00 • AHUs start at 07:00 / 07:30 for pre-cooling • PAUs start with AHU • BMS to control the A/C system

  28. Idea • PAU (Fresh Air) • Office hours usually start at 09:00 • Delay the PAU starting time? • AHU (Cooling) • Office space temp. vary with outdoor temp. • Desire the optimum start up time of AHU to just meet the cool down period?

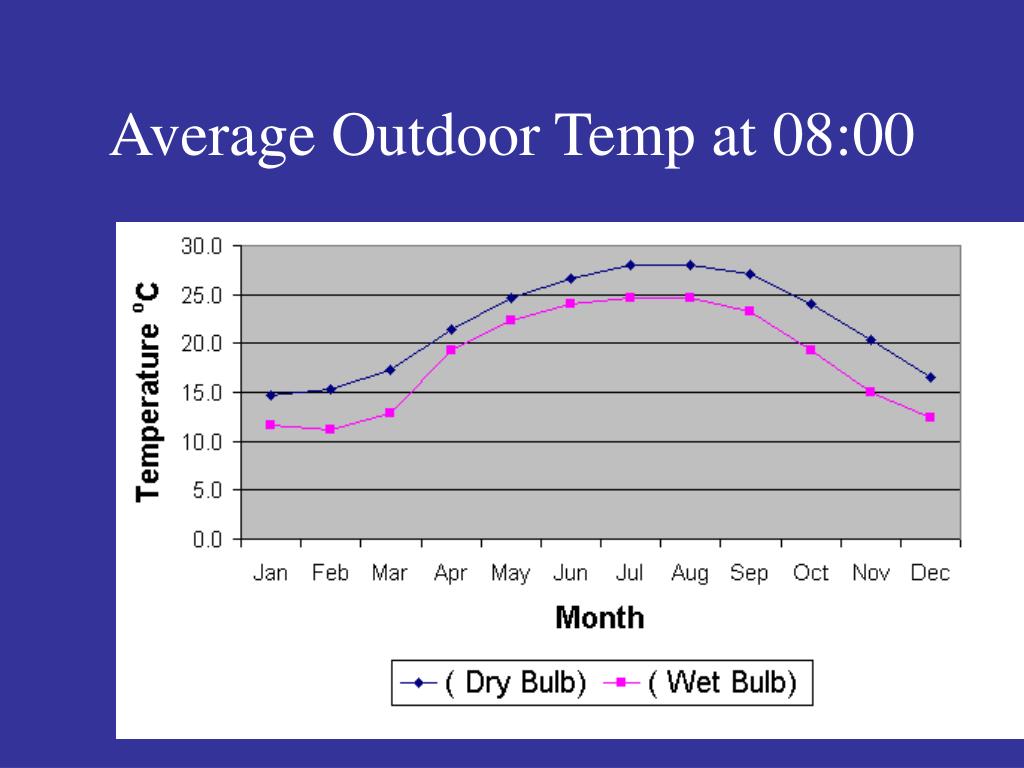

  29. Average Outdoor Temp at 08:00

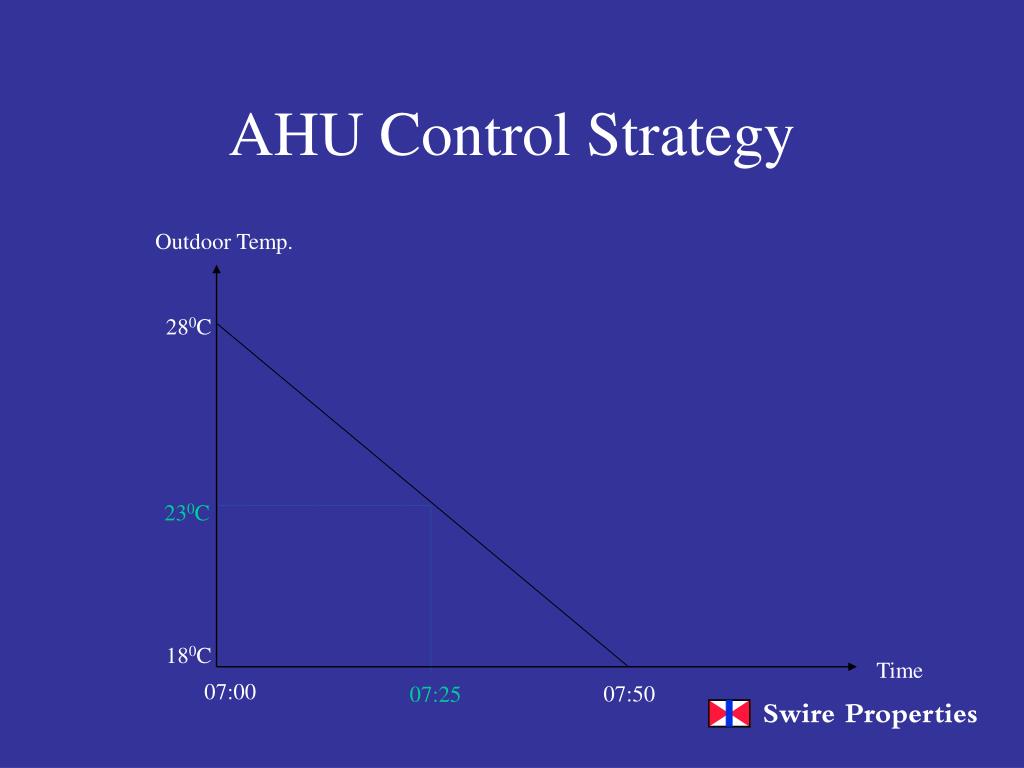

  30. Outdoor Temp. 280C 230C 180C Time 07:00 07:25 07:50 AHU Control Strategy

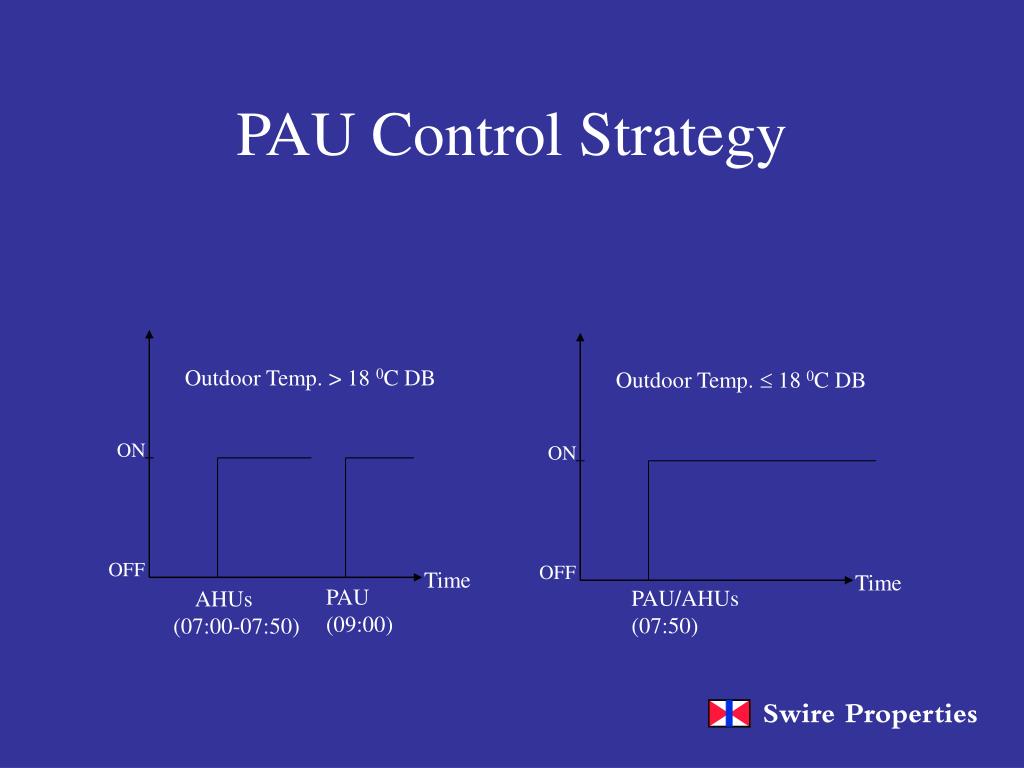

  31. Outdoor Temp. > 18 0C DB Outdoor Temp.  18 0C DB ON ON OFF Time OFF Time PAU (09:00) AHUs (07:00-07:50) PAU/AHUs (07:50) PAU Control Strategy

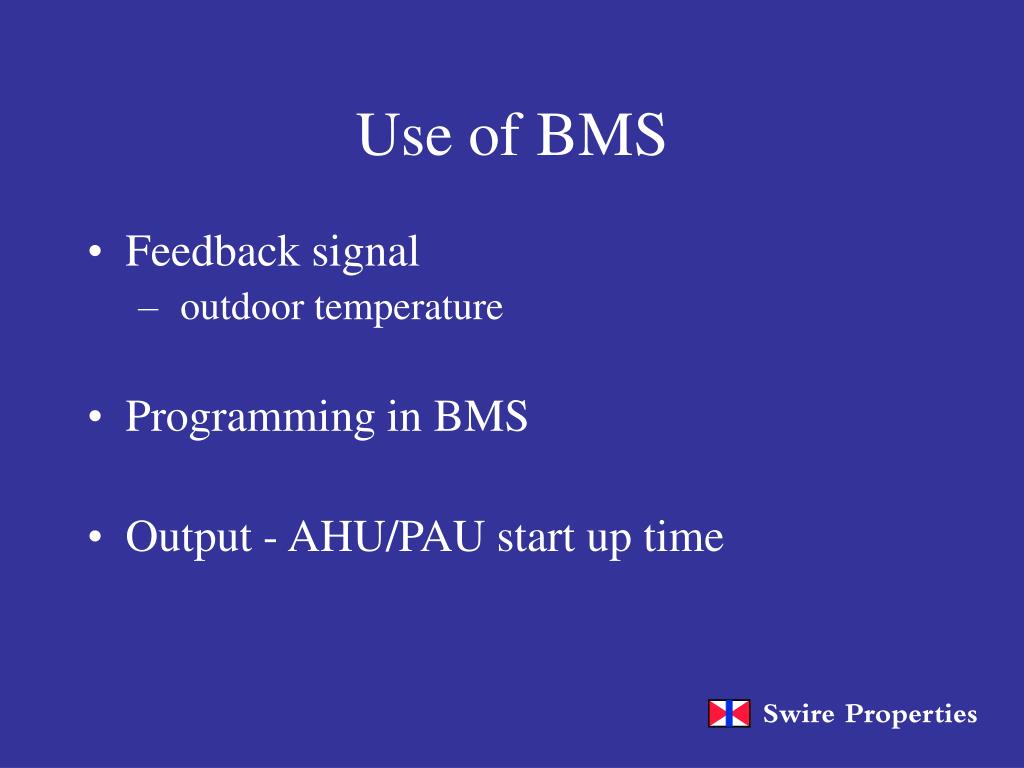

  32. Use of BMS • Feedback signal • outdoor temperature • Programming in BMS • Output - AHU/PAU start up time

  33. Investment • Hardware - None • Software • BMS contractor to write a program to incorporate into the PAU/AHU control • Initial cost - HK$11,600.00

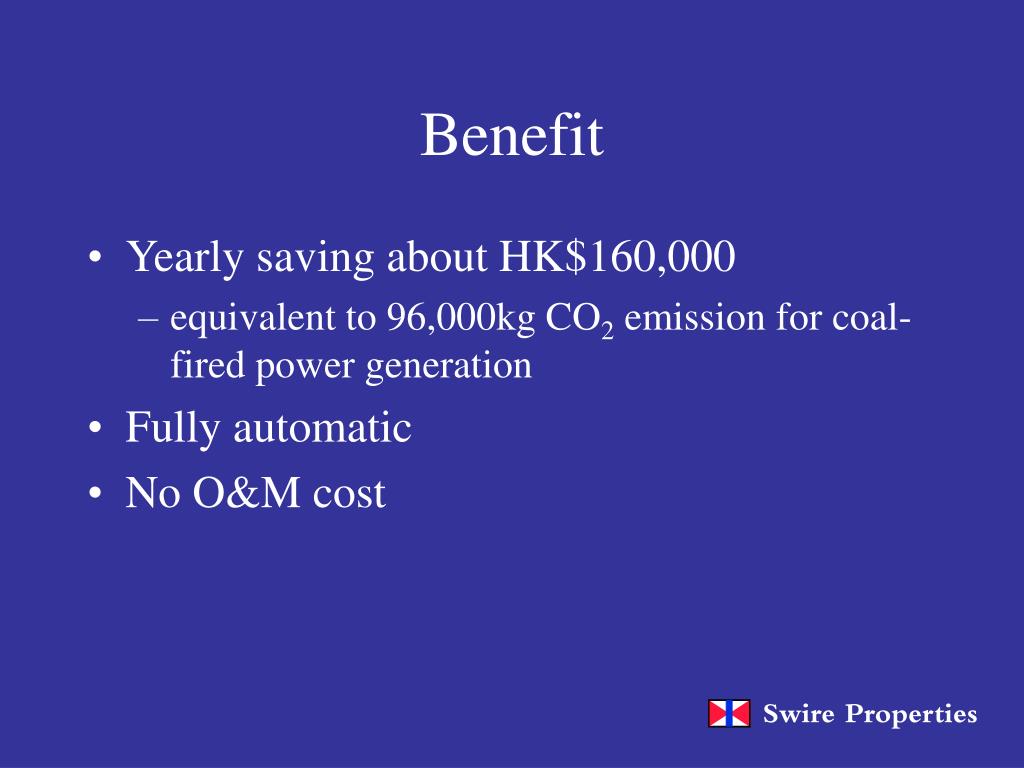

  34. Benefit • Yearly saving about HK$160,000 • equivalent to 96,000kg CO2 emission for coal-fired power generation • Fully automatic • No O&M cost

  35. Example 5Optimal Static Pressure Reset in Variable Air Volume A/C System 2002 Hong Kong Eco-Business Awards Green Innovative Practice ‘Gold’ Award

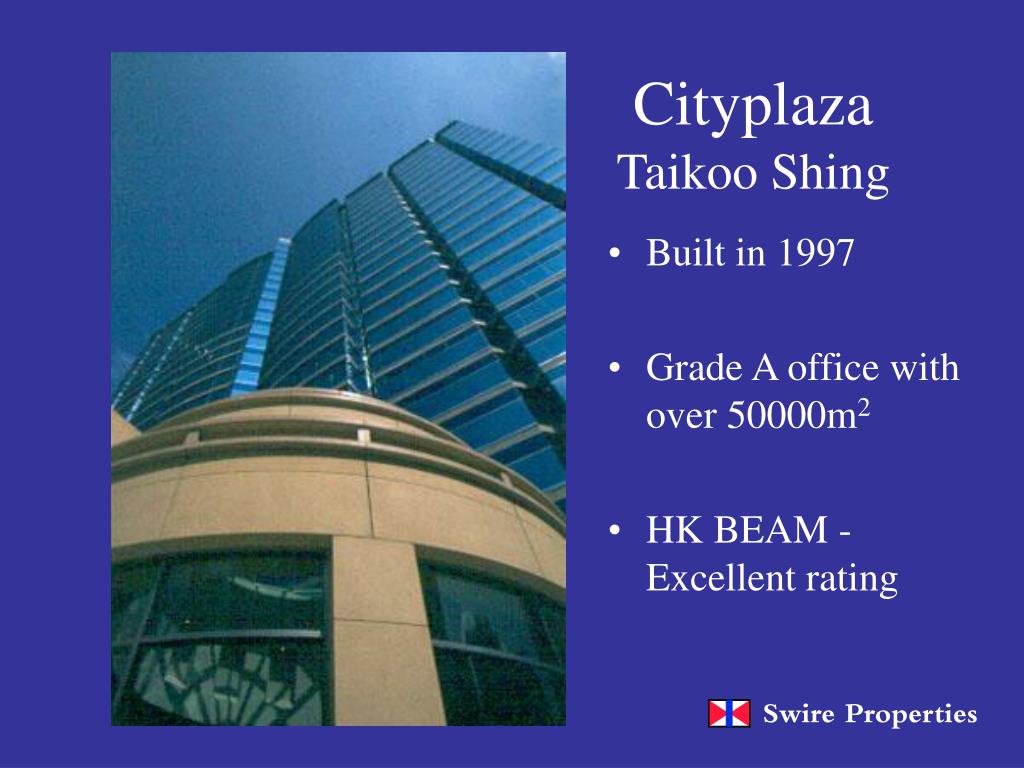

  36. CityplazaTaikoo Shing • Built in 1997 • Grade A office with over 50000m2 • HK BEAM -Excellent rating

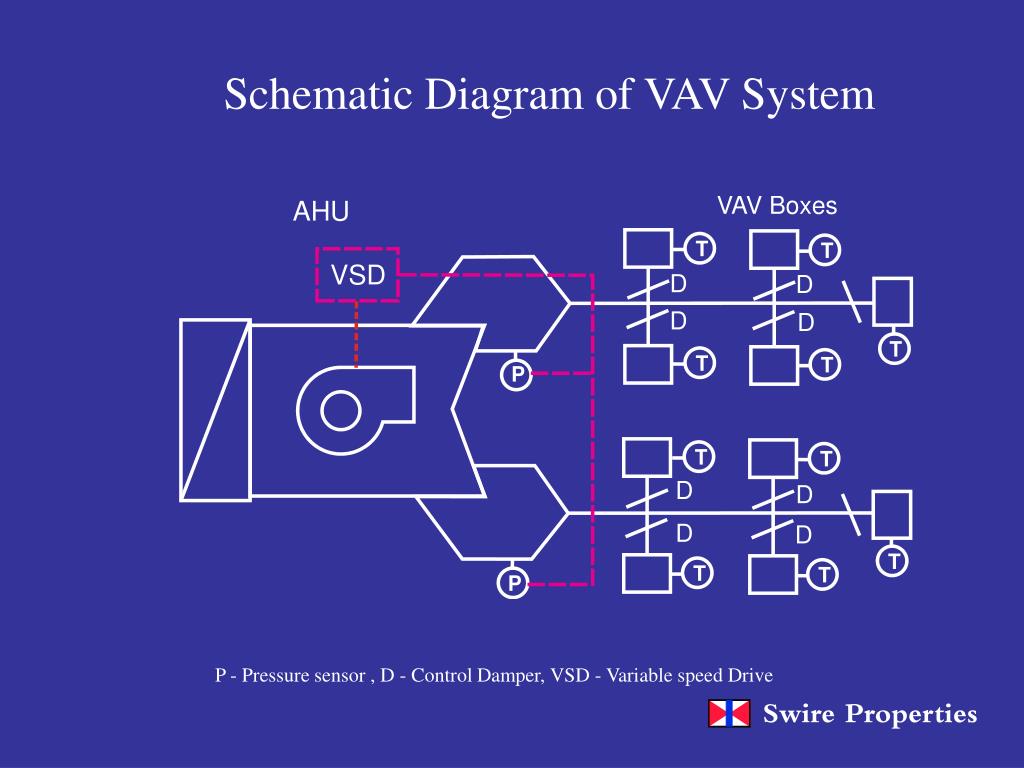

  37. Schematic Diagram of VAV System P - Pressure sensor , D - Control Damper, VSD - Variable speed Drive

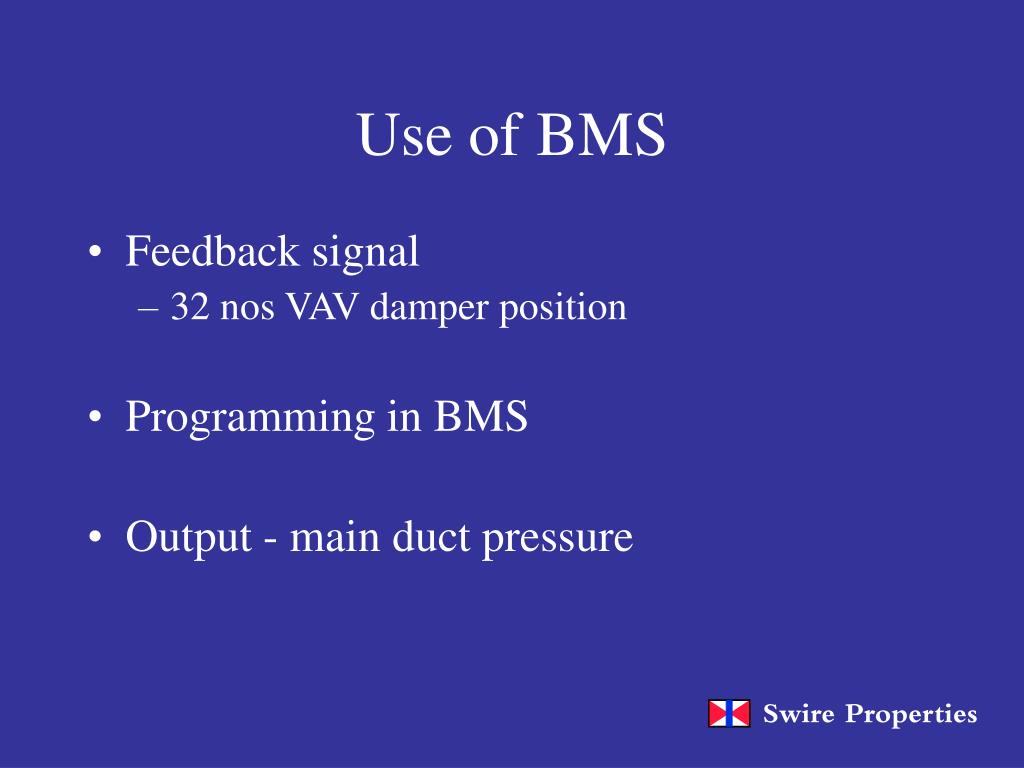

  38. Use of BMS • Feedback signal • 32 nos VAV damper position • Programming in BMS • Output - main duct pressure

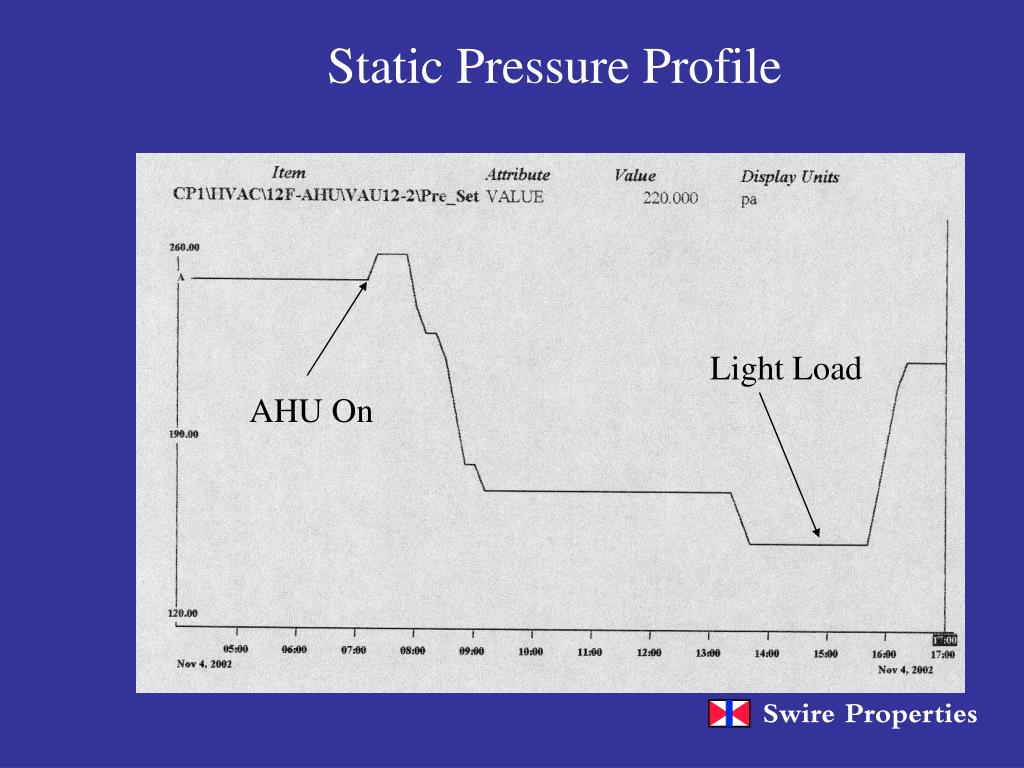

  39. Static Pressure Profile Light Load AHU On

  40. Investment • Hardware • added a control unit • Software • BMS contractor to write a program according to designed control logic • Initial cost - HK$69,400.00

  41. Benefit • Yearly saving is about HK$200,000 • equivalent to 120,000kg CO2 emission for coal-fired power generation • VAV boxes re-commissioned • noise reduced at part load • assist in VAV fault diagnosis • Fully automatic

  42. Future Development • Fruitful quality of information • Web base performance • Self learning • fault detection and diagnostic

  43. Thank You!
