Waterproof MINI AI MDVR JH0-AN Spec Sheet

ICARVISIONS introduced the new H.265 Mobile DVR JH0-AN (telematics system) that supports AI (ADAS & DSM &BSD), multiple scenarios with emphasis on IP67 Waterproof & Dustproof and its mini-sized design.

icarvisions
Download Presentation

Waterproof MINI AI MDVR JH0-AN Spec Sheet

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

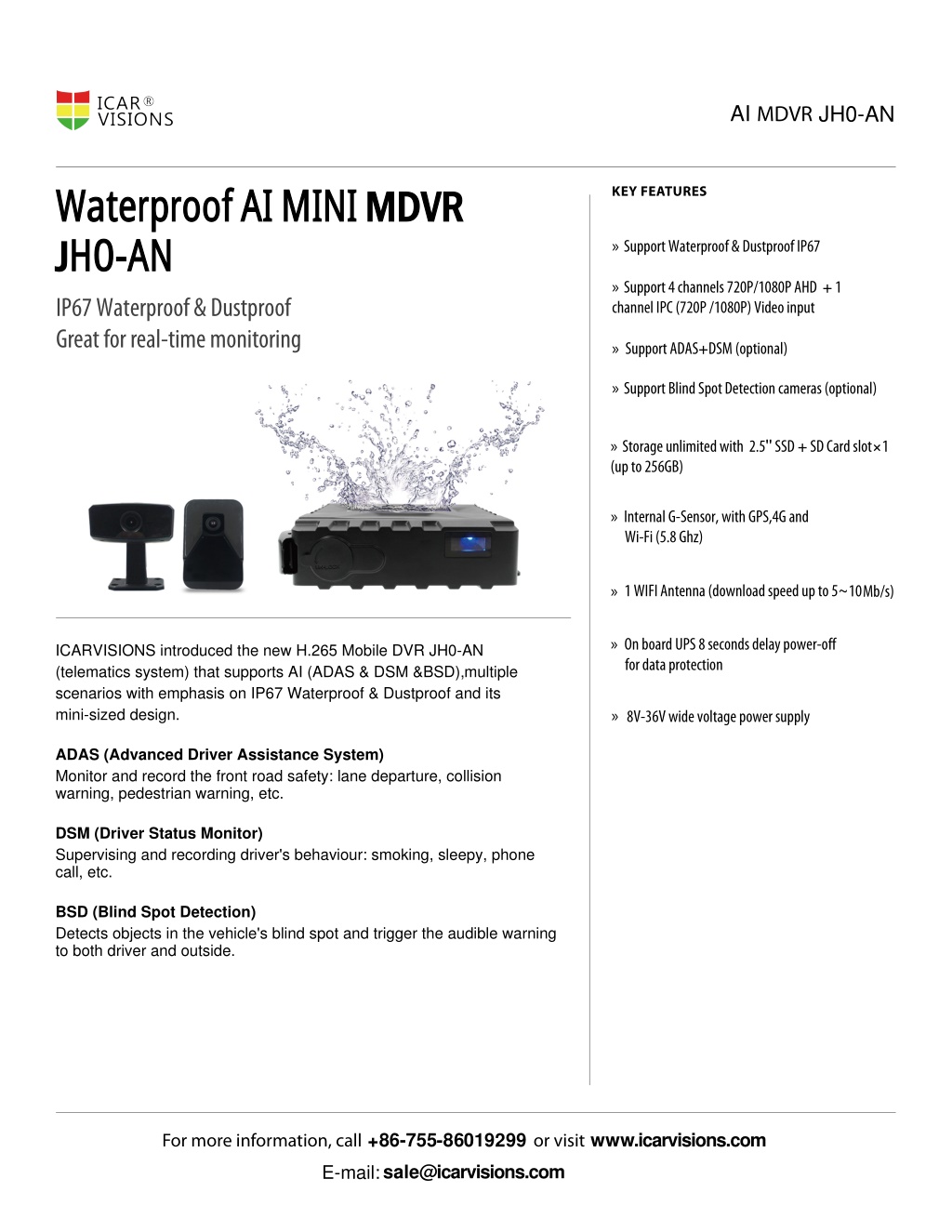

  1. AI MDVR JH0-AN Waterproof AI Waterproof AI J JH0- H0-AN AN IP67 Waterproof & Dustproof Great for real-time monitoring MINI MINI MDVR MDVR Key features » Support Waterproof & Dustproof IP67 + » channel IPC (720P /1080P) Video input Support 4 channels 720P/1080P AHD 1 Support ADAS+DSM (optional) » » Support Blind Spot Detection cameras (optional) Storage unlimited with 2.5'' SSD + SD Card slot×1 » (up to 256GB) » Internal G-Sensor, with GPS,4G and Wi-Fi (5.8 Ghz) 1 WIFI Antenna (download speed up to 5~10Mb/s) » » On board UPS 8 seconds delay power-off for data protection ICARVISIONS introduced the new H.265 Mobile DVR JH0-AN (telematics system) that supports AI (ADAS & DSM &BSD), scenarios with emphasis on IP67 Waterproof & Dustproof and its mini-sized design. multiple » 8V-36V wide voltage power supply ADAS (Advanced Driver Assistance System) Monitor and record the front road safety: lane departure, collision warning, pedestrian warning, etc. DSM (Driver Status Monitor) Supervising and recording driver's behaviour: smoking, sleepy, phone call, etc. BSD (Blind Spot Detection) Detects objects in the vehicle's blind spot and trigger the audible warning to both driver and outside. For more information, call +86-755-86019299 or visit www.icarvisions.com sale@icarvisions.com E-mail:

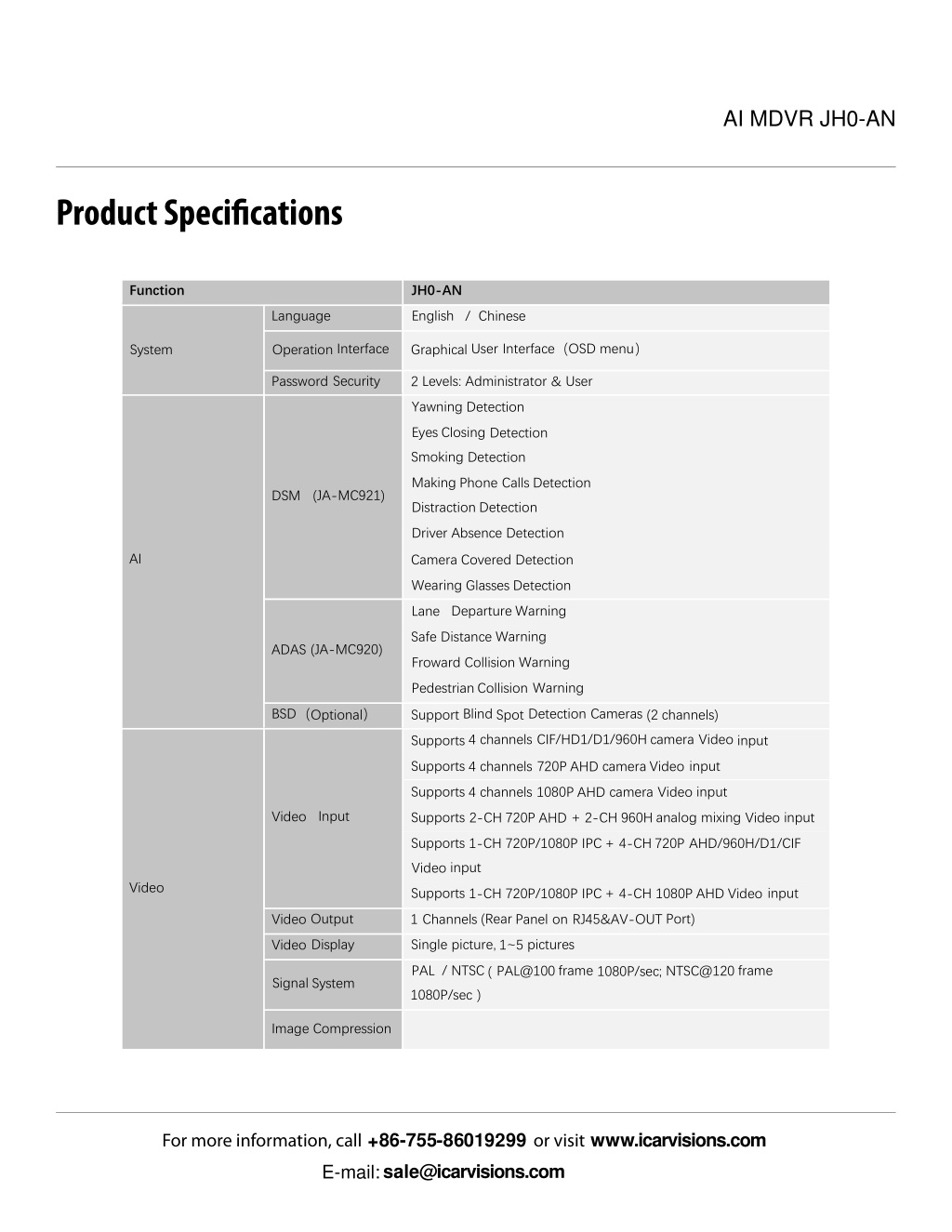

  2. AI MDVR JH0-AN Product Specifications Function JH0-AN Language English / Chinese Operation Interface Graphical User Interface（OSD menu） System Password Security 2 Levels: Administrator & User Yawning Detection Eyes Closing Detection Smoking Detection Making Phone Calls Detection DSM (JA-MC921) Distraction Detection Driver Absence Detection AI Camera Covered Detection Wearing Glasses Detection Lane Departure Warning Safe Distance Warning ADAS (JA-MC920) Froward Collision Warning Pedestrian Collision Warning BSD（Optional） Support Blind Spot Detection Cameras (2 channels) Supports 4 channels CIF/HD1/D1/960H camera Video input Supports 4 channels 720P AHD camera Video input Supports 4 channels 1080P AHD camera Video input Video Input Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input Supports 1-CH 720P/1080P IPC + 4-CH 720P AHD/960H/D1/CIF Video input Video Supports 1-CH 720P/1080P IPC + 4-CH 1080P AHD Video input Video Output 1 Channels (Rear Panel on RJ45&AV-OUT Port) Video Display Single picture, 1~5 pictures PAL / NTSC ( PAL@100 frame 1080P/sec; NTSC@120 frame Signal System 1080P/sec ) 　 Image Compression For more information, call +86-755-86019299 or visit www.icarvisions.com sale@icarvisions.com E-mail:

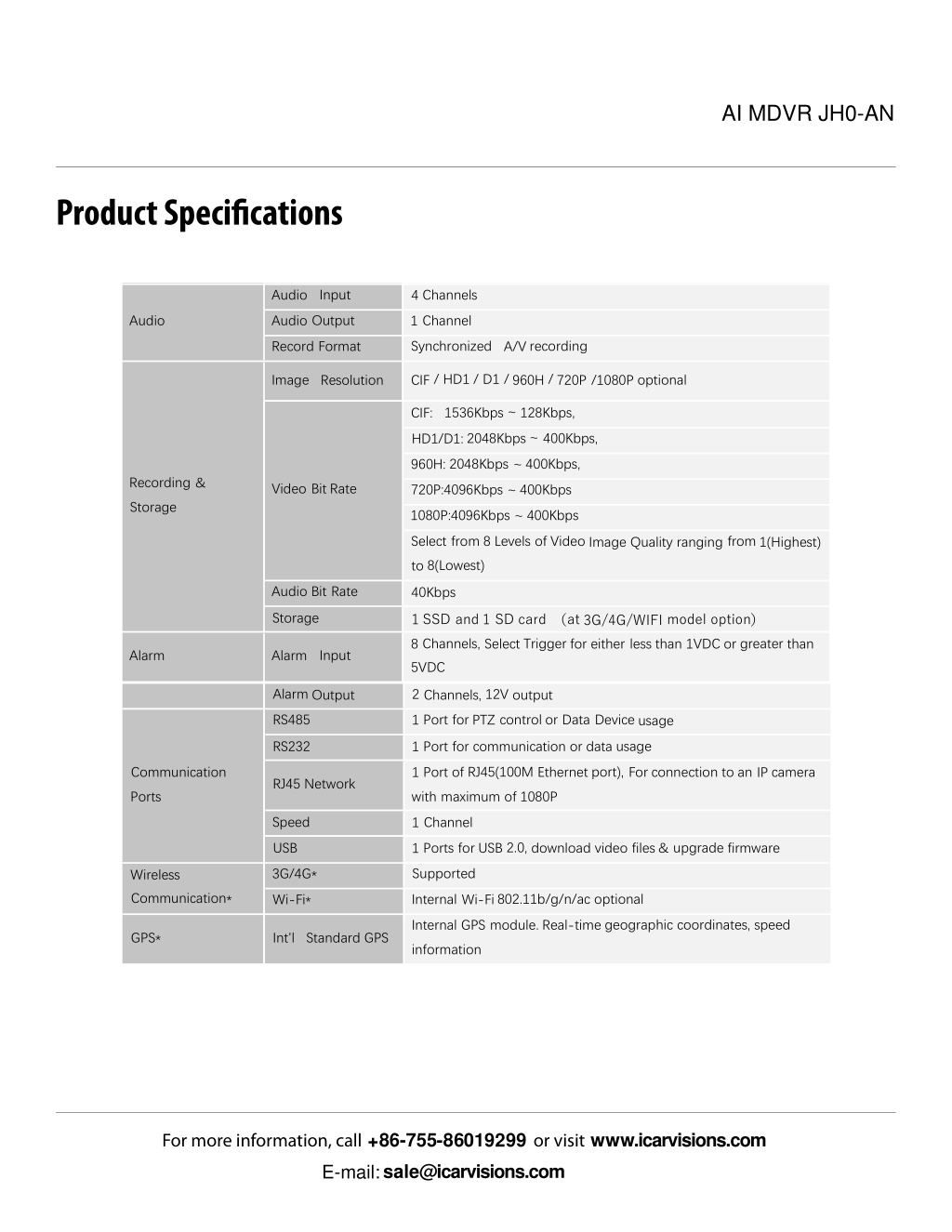

  3. AI MDVR JH0-AN Product Specifications Audio Input 4 Channels Audio Output Audio 1 Channel Synchronized A/V recording Record Format CIF / HD1 / D1 / 960H / 720P /1080P optional Image Resolution CIF: 1536Kbps ~ 128Kbps, HD1/D1: 2048Kbps ~ 400Kbps, 960H: 2048Kbps ~ 400Kbps, Recording & Video Bit Rate 720P:4096Kbps ~ 400Kbps Storage 1080P:4096Kbps ~ 400Kbps Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest) Audio Bit Rate 40Kbps Storage 1 SSD and 1 SD card （at 3G/4G/WIFI model option） 8 Channels, Select Trigger for either less than 1VDC or greater than Alarm Alarm Input 5VDC Alarm Output 2 Channels, 12V output RS485 1 Port for PTZ control or Data Device usage RS232 1 Port for communication or data usage Communication 1 Port of RJ45(100M Ethernet port), For connection to an IP camera RJ45 Network Ports with maximum of 1080P Speed 1 Channel USB 1 Ports for USB 2.0, download video files & upgrade firmware 3G/4G* Supported Wireless Communication* Internal Wi-Fi 802.11b/g/n/ac optional Wi-Fi* Internal GPS module. Real-time geographic coordinates, speed GPS* Int'l Standard GPS information For more information, call +86-755-86019299 or visit www.icarvisions.com sale@icarvisions.com E-mail:

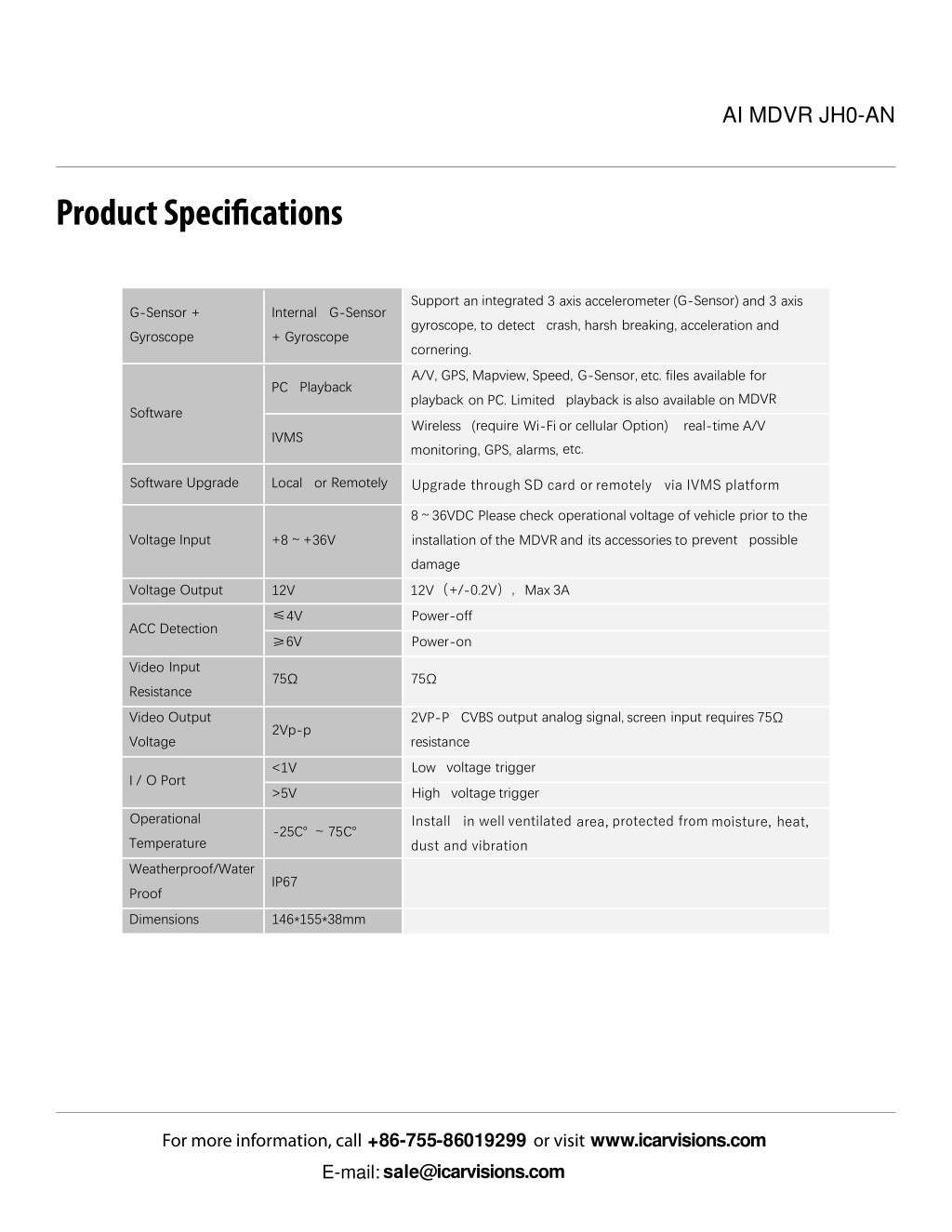

  4. AI MDVR JH0-AN Product Specifications Support an integrated 3 axis accelerometer (G-Sensor) and 3 axis G-Sensor + Internal G-Sensor gyroscope, to detect crash, harsh breaking, acceleration and Gyroscope + Gyroscope cornering. A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for PC Playback playback on PC. Limited playback is also available on MDVR Software Wireless (require Wi-Fi or cellular Option) real-time A/V IVMS monitoring, GPS, alarms, etc. Software Upgrade Local or Remotely Upgrade through SD card or remotely via IVMS platform 8～36VDC Please check operational voltage of vehicle prior to the +8～+36V Voltage Input installation of the MDVR and its accessories to prevent possible damage 12V（+/-0.2V），Max 3A Voltage Output 12V ≤4V Power-off ACC Detection ≥6V Power-on Video Input 75Ω 75Ω Resistance Video Output 2VP-P CVBS output analog signal, screen input requires 75Ω 2Vp-p Voltage resistance <1V Low voltage trigger I / O Port High voltage trigger >5V Operational Install in well ventilated area, protected from moisture, heat, -25℃ ~ 75℃ Temperature dust and vibration Weatherproof/Water 　 IP67 Proof 　 Dimensions 146*155*38mm For more information, call +86-755-86019299 or visit www.icarvisions.com sale@icarvisions.com E-mail:

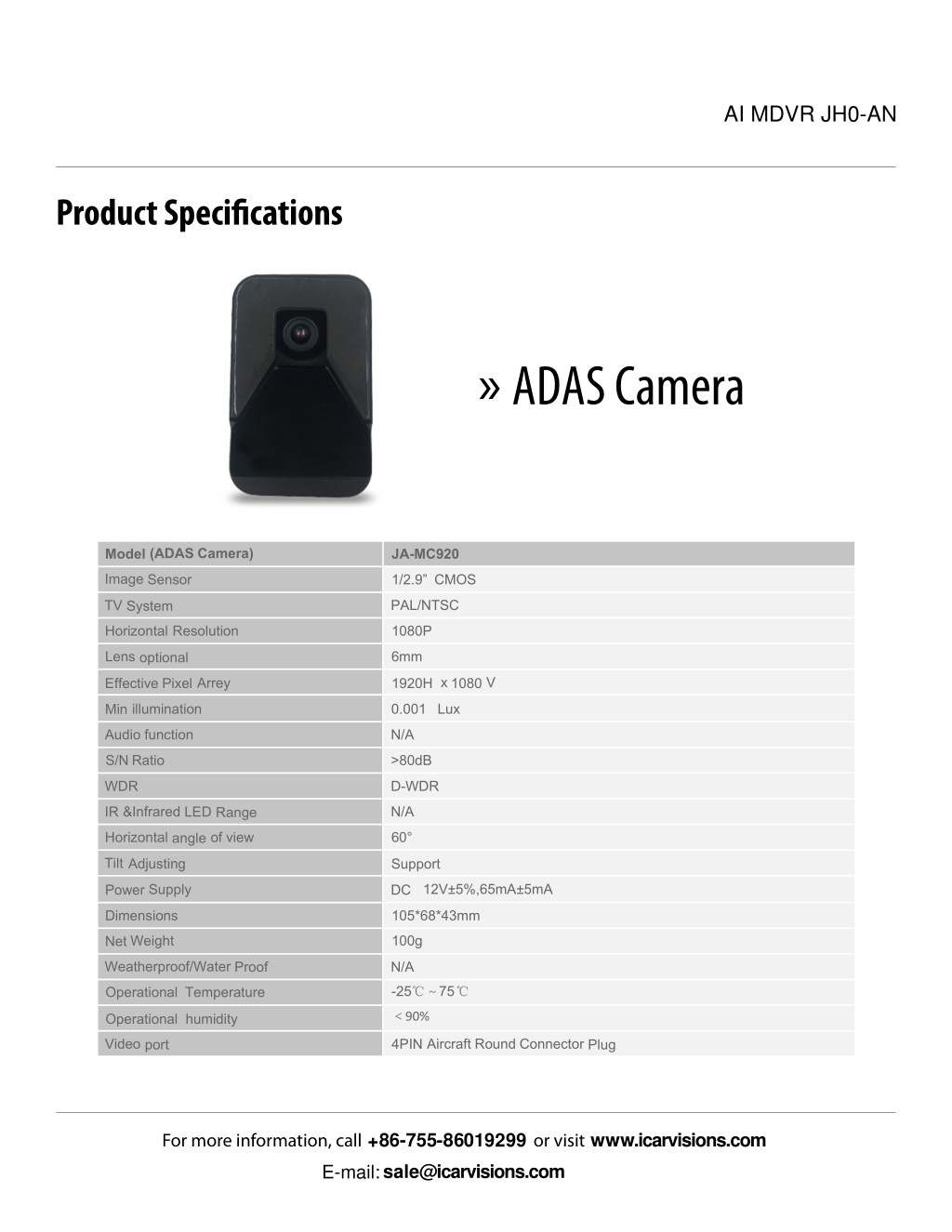

  5. AI MDVR JH0-AN Product Specifications »ADAS Camera Model (ADAS Camera) JA-MC920 Image Sensor 1/2.9” CMOS PAL/NTSC TV System Horizontal Resolution 1080P Lens optional 6mm Effective Pixel Arrey 1920H x 1080 V Min illumination 0.001 Lux Audio function N/A S/N Ratio >80dB WDR D-WDR IR &Infrared LED Range N/A Horizontal angle of view 60° Tilt Adjusting Support Power Supply DC 12V±5%,65mA±5mA 105*68*43mm Dimensions Net Weight 100g Weatherproof/Water Proof N/A -25℃～75℃ Operational Temperature ＜90% Operational humidity Video port 4PIN Aircraft Round Connector Plug For more information, call +86-755-86019299 or visit www.icarvisions.com sale@icarvisions.com E-mail:

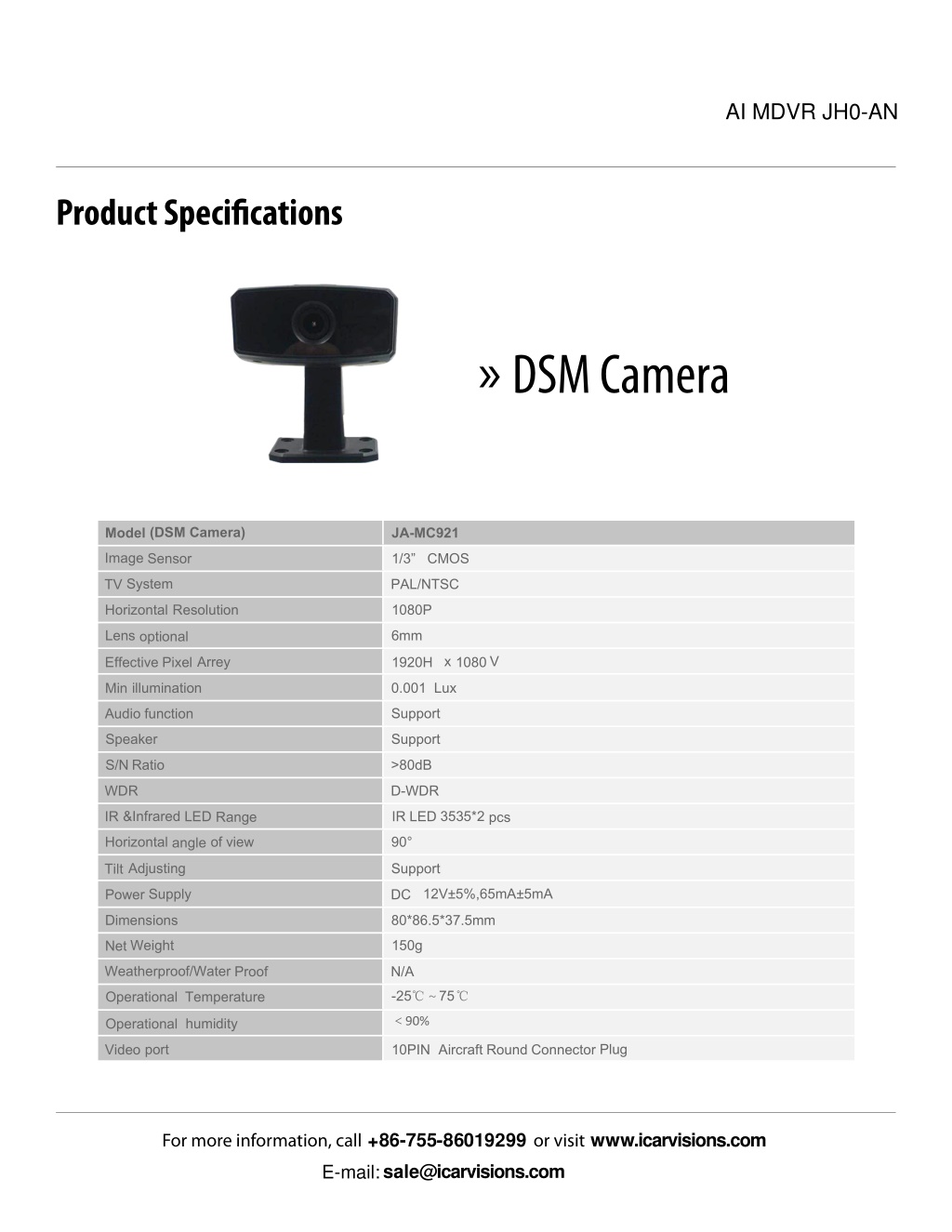

  6. AI MDVR JH0-AN Product Specifications »DSM Camera Model (DSM Camera) JA-MC921 Image Sensor 1/3” CMOS TV System PAL/NTSC Horizontal Resolution 1080P Lens optional 6mm Effective Pixel Arrey 1920H x 1080 V Min illumination 0.001 Lux Support Audio function Speaker Support S/N Ratio >80dB WDR D-WDR IR &Infrared LED Range IR LED 3535*2 pcs Horizontal angle of view 90° Tilt Adjusting Support DC 12V±5%,65mA±5mA Power Supply 80*86.5*37.5mm Dimensions Net Weight 150g Weatherproof/Water Proof N/A -25℃～75℃ Operational Temperature ＜90% Operational humidity Video port 10PIN Aircraft Round Connector Plug For more information, call +86-755-86019299 or visit www.icarvisions.com sale@icarvisions.com E-mail:

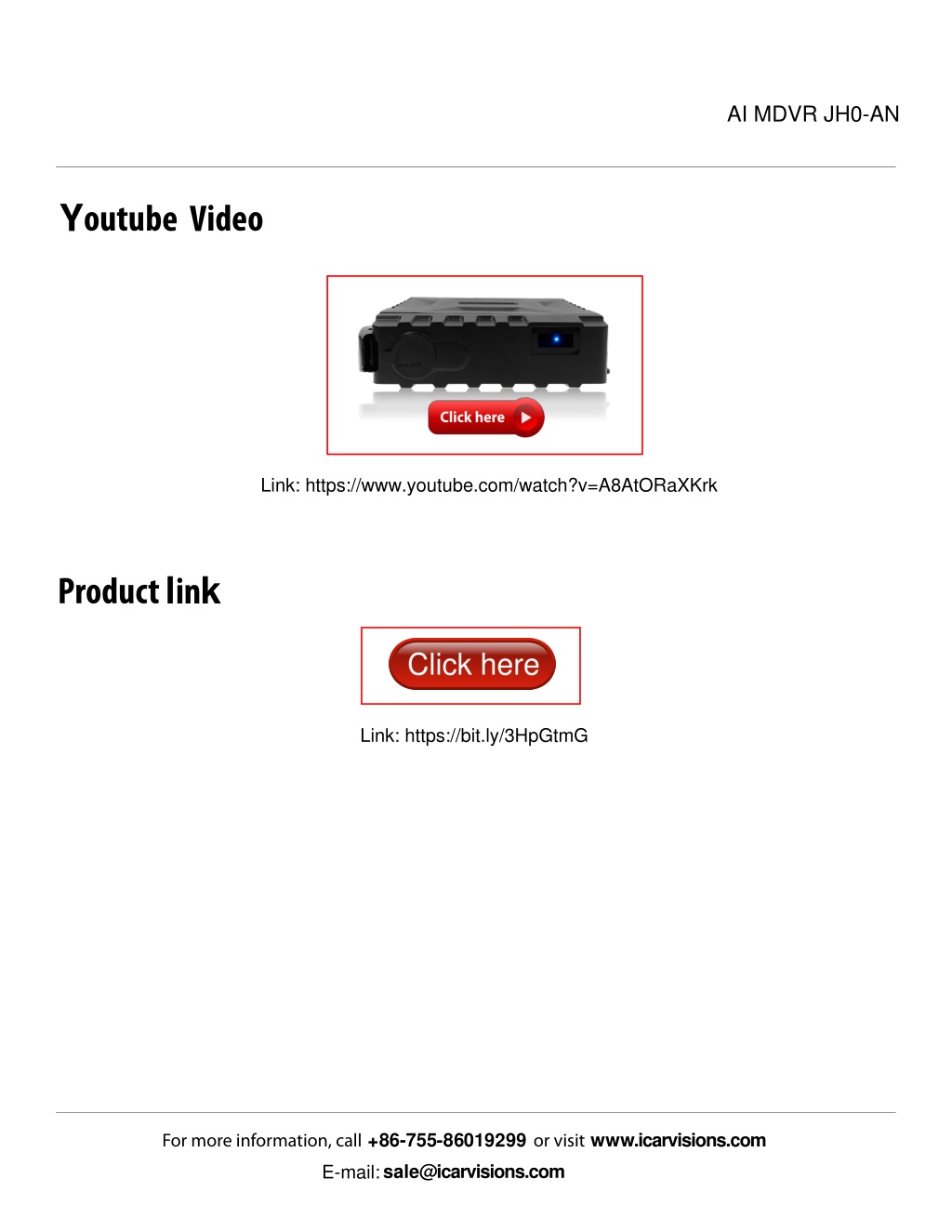

  7. AI MDVR JH0-AN Youtube Video Link: https://www.youtube.com/watch?v=A8AtORaXKrk Product link Link: https://bit.ly/3HpGtmG For more information, call +86-755-86019299 or visit www.icarvisions.com sale@icarvisions.com E-mail:

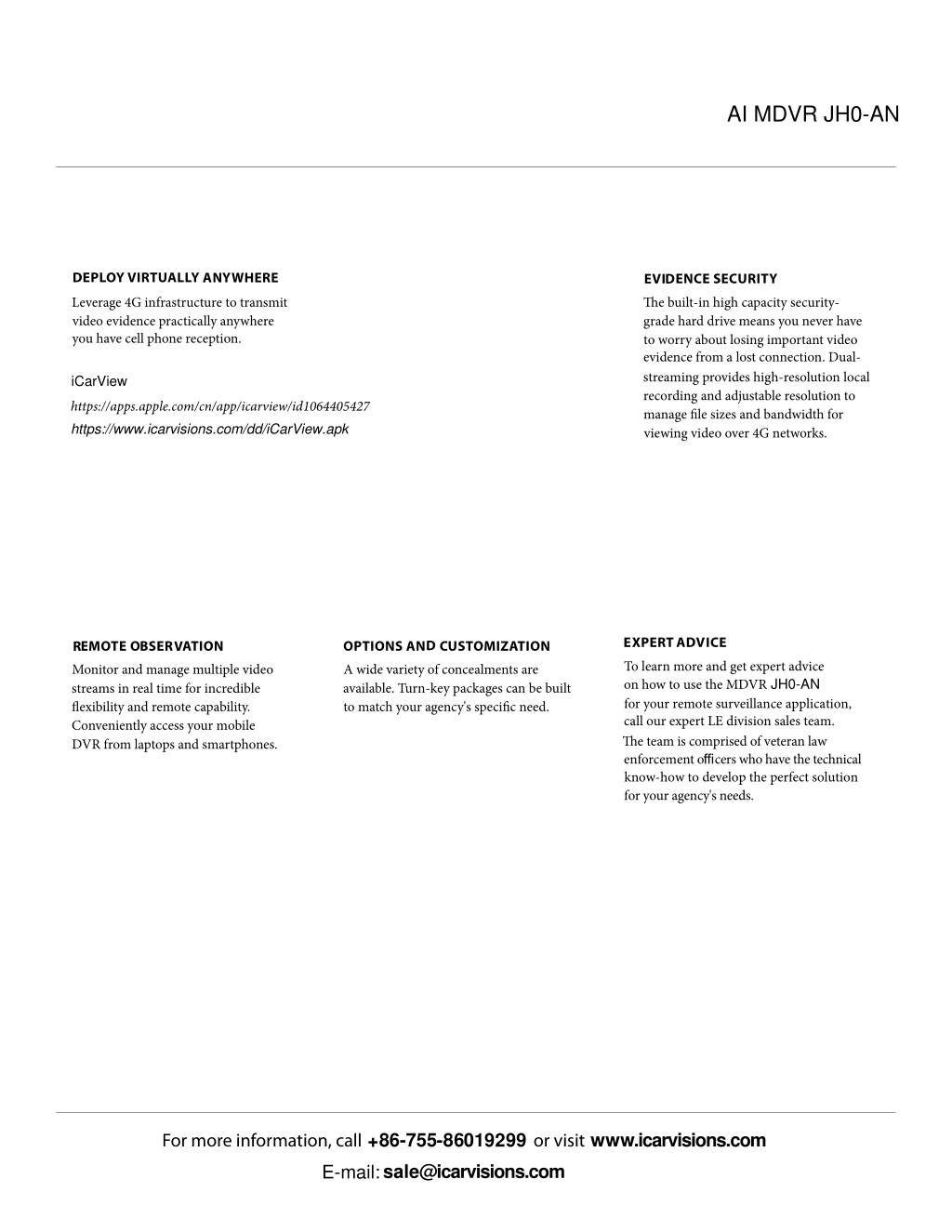

  8. AI MDVR JH0-AN Deploy Virtually anywhere eViDence security The built-in high capacity security- grade hard drive means you never have to worry about losing important video evidence from a lost connection. Dual- streaming provides high-resolution local recording and adjustable resolution to manage file sizes and bandwidth for viewing video over 4G networks. Leverage 4G infrastructure to transmit video evidence practically anywhere you have cell phone reception. iCarView https://apps.apple.com/cn/app/icarview/id1064405427 https://www.icarvisions.com/dd/iCarView.apk aDVice expert To learn more and get expert advice on how to use the MDVR for your remote surveillance application, call our expert LE division sales team. The team is comprised of veteran law enforcement officers who have the technical know-how to develop the perfect solution for your agency's needs. options anD customization A wide variety of concealments are available. Turn-key packages can be built to match your agency's specific need. remote obserVation Monitor and manage multiple video streams in real time for incredible flexibility and remote capability. Conveniently access your mobile DVR from laptops and smartphones. JH0-AN For more information, call +86-755-86019299 or visit www.icarvisions.com sale@icarvisions.com E-mail:
