Skin Layers. 2) DermisConnective tissue under the epidermisContains nerves, blood vessels, glands and hair follicles2 layersReticular layerThick deep layer providing collagen for strength elasticity and pliabilityPapillary layerPapilla or projections responsible for finger prints. Skin Laye
E N D

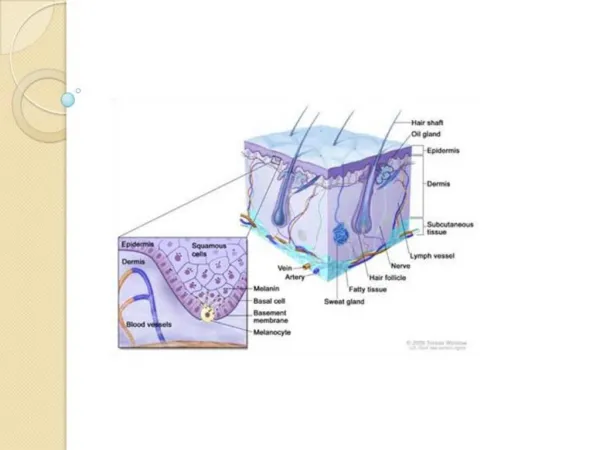

2. Skin Layers 1) Epidermis
5 strata
Stratum basale
Stratum spinosum
Stratum granulosum
Stratum lucidum
Stratum corneum
3. Skin Layers 2) Dermis
Connective tissue under the epidermis
Contains nerves, blood vessels, glands and hair follicles
2 layers
Reticular layer
Thick deep layer providing collagen for strength elasticity and pliability
Papillary layer
Papilla or projections responsible for finger prints
4. Skin Layers 3) Subcutaneous Layer
Not part of the skin
Function
Anchors the skin to deeper structures
Insulates and protects
Made of
Fat (adipose)
Loose connective tissue
5. Basal cell carcinoma Basal cell carcinoma
Carcinoma arising from the germinating basal cell layer of epithelial cells.
Slow growing tumor that rarely metastasizes
If left untreated can cause extensive local tissue destruction and slow death
6. Epidemiology Basal cell carcinoma constitutes approximately 80% of nonmelanoma skin cancer
Age-standardized yearly rates in the United States have been estimated at up to 407 cases of basal-cell carcinoma per 100,000 white men and 212 cases per 100,000 white women.
Rates are higher in elderly men however there is now an increasing trend in younger women
7. Risk Factors Fair, dry skin, blue or green eyes
history of sunburning
history of cigarette smoking
Sun exposure (sun exposure more important in squamous cell CA)
Immunosupression
previous BCC “10x increased risk”
age >60 at first presentation, male
8. Predisposing Conditions X-irradiation (including fluoroscopy)
BCC most often arises after irradiation of the head and neck
Arsenic ingestion Ţ usually multiple and found on trunk
Steroid use and other drugs following organ transplantation
9. Distribution
Lower trunk and arms and legs (15%)
Occur also in unusual site > axillae, breasts, perianal area, genitalia, palms and sole
Within the Head and neck most common sites are nose (25.5%) cheek (16%) periorbital region (14%), scalp (11%) and periauricular region (11%)
rare on hands, lower lip and penis
When located on hand, more commonly on dorsum Ţ can be mistaken for Paronychia when near nail bed
Malignant tumors of the upper lip are almost always basal cell CA and those of the lower lip are usually squamous cell CA
11. Types — all types may show ulceration, with rolled smooth pearly borders
Nodular well-defined “rodent ulcer”
Usually begin as a small pink ‘pearly’ papule
Develop a depression in the centre
Rolled edge
Overlying telangiectasia
12. Superficial BCC
Second most common type of BCC with highest recurrence rates
Usually found on the trunk
May be multiple
Flat red patches
13. Pigmented
resembles melanoma
14. Morpheform Type (sclerosing)
poorly defined borders
high recurrence rates
White or waxy
Always on face
Presents as a spontaneous ‘scar’
15. Differential Diagnosis squamous cell carcinoma
malignant melanoma (pigmented basal cell carcinoma)
melanocytic naevi (pigmented)
Bowen’s disease (especially superficial basal cell carcinoma)
psoriasis (superficial)
eczema (superficial)
sebaceous hyperplasia
molluscum contagiosum
16. Treatment Standard Surgical excision : Safe margin is 3 – 5 mm
Mohs Surgery
Chemotherapy: 5 fluorouracil
Topical cream : imiquimod
Cryosurgery : Liquid nitrogen
17. Preferred Treatment Nodular BCC
less 1cm diameter in non-high risk area (curettage, cryosurgery, excision)
greater than 1cm in non-high risk area (excision, cryosurgery, (for lesions <2cm) Mohs surgery (lesions >2cm)
in high risk area (Mohs surgery, excision with frozen section)
Superficial BCC
shave excision with curettage, curettage and electrodessection , cryosurgery, excision
Morpheaform BCC
Mohs surgery, excision with frozen section
BCC with aggressive growth
Mohs surgery, excision with frozen section
Recurrent BCC
Mohs surgery, excision with frozen section
Incompletely excised BCC
re-excision and frozen section, Mohs surgery
18. Following up Overall recurrence rate for BCC is around 5%
Thus patients are followed up for 2 years – at least 6 monthly
However risk of second primary – 5 years after excision 36% patients develop a second primary and 20% develop multiple new BCCs
19. Basal Cell nevus Syndrome (Gorlin’s Syndrome) autosomal dominant
typical nevus – red, brown papular and various size
76% transform into BCC
Syndrome features:
Multiple scattered BCC (face, neck and jaw)
jaw cysts
skeletal abnormalities (palmer and plantar pits)
20. Xeroderma Pigmentosum
First described in 1874 by Hebra and Kaposi.
XP is a rare disorder transmitted in an autosomal recessive manner.
It is characterized by
photosensitivity,
pigmentary changes,
premature skin aging, and
malignant tumor development.
These manifestations are due to a cellular hypersensitivity to ultraviolet (UV) radiation resulting from a defect in DNA repair.
21. Epidemiology In the US: 1 case per 250,000 population.
Internationally: 1 case per 250,000 population.
Mortality/Morbidity: . The mean patient age of skin cancer is 8 years in patients with XP compared to 60 years in the healthy population. Actinic damage occurs between 1 and 2 years of age.
Race: Cases of XP are reported in all races.
Sex: An equal incidence has been reported in males and females.
Age: The disease is usually detected at age 1 or 2 years.
22. Symptoms
Areas exposed to the sun such as the face show a reddening of the skin with scaling and freckling. Irregular dark spots may also begin to appear.
These skin changes progress the neck and lower legs. In severe cases the trunk may be involved.
23. Treatment There is no cure for XP. The main goal of treatment is to protect oneself from UV exposure and thus prevent the damaging effects it can have on the skin.
Yearly testing (through to age 20) for potential neurological problems.
24.
Any questions?
25. Cutaneous Squamous Cell Carcinoma Abdulrahman Saleh Alrashed
261015
26. Definition Malignant proliferation of the keratinocytes of the epidermis
27. Types
28. Epidemiology SCC is the second most common form of skin cancer.
Incidence: 200,000 cases per year (USA)
Sex: M>F
usually affects the elderly
2% of SCC metastasize
29. Risk factors UV light exposure
Ionizing radiation
Immunosuppression
Chronic inflammation
Scars & chronic wound (Marjolin’s ulcer)
Arsenic exposure
Family history
30. Precursor Lesions Bowen disease
Erythroplasia of Queyrat
Actinic keratosis
31. Bowen’s disease SCC in situ ( premalignant)
3- 11% progress to SCC
Associated with arsenic compound and HPV 16
It may occur anywhere on the mucocutaneous surface of the body.
presents as a slowly enlarging, erythematous, scaly patch or plaque
32. Erythroplasia of Queyrat SCC in situ
arises from the squamous epithelial cells of the glans penis or inner lining of the prepuce
seen exclusively in uncircumcised men and represents an in situ form of squamous cell carcinoma
33. Keratoacanthoma Tumor that originates in the pilosebaceous glands
Present as rapidly growing smooth firm nodule with central keratin plug
Many dermatopathologist will diagnose these lesions as squamous cell carcinoma
34. Clinical presentation head and neck (55 %), dorsum of the hands and forearms (18 %), legs (13 %)
Less frequent sites arms (3 %), shoulder or back (4 %), and chest or abdomen (4 %). Genital SCC lesions are rare
35. Invasive SCC Well-differentiated cutaneous SCCs usually appear as indurated or firm papules, plaques, or nodules with hyperkeratosis or ulceration.
36. Invasive SCC Poorly differentiated lesions are usually fleshy, soft, granulomatous papules or nodules, without the keratinization. In addition, poorly-differentiated tumors may have ulcerations, hemorrhage, or areas of necrosis.
37. DDx Actinic keratosis
BCC
Keratoacanthoma
Pyoderma gangrenosum
warts
38. Diagnosis The definitive diagnosis of SCC is confirmed by histologic examination of a biopsy or excision specimen
39. TNM
40. Sites of metastases regional lymph nodes
Lungs
Liver
Brain
Skin
Bone
41. Treatment
Cryotherapy
Electrosurgery (ie, curettage and electrodesiccation)
Topical treatment (5-fluorouracil, photodynamic therapy, or imiquimod)
Radiation therapy
Surgical excision
Mohs surgery
42. High risk lesions
43. Low-risk lesions Cutaneous SCCs that are small, do not invade into the subcutaneous tissue, arise from actinic keratoses or as a consequence of sun exposure, and do not have any of other high-risk features have a low frequency of recurrence and regional or distant metastases.
Excisional surgery, cryotherapy, electrosurgery, superficial RT, and topical chemotherapy are all highly effective in properly selected patients
44. High-risk lesions Aggressive treatment is required for high-risk lesions to maximize the likelihood of cure with the initial treatment. Surgery, using either conventional excision or the Mohs technique, is the primary approach in this setting. Postoperative RT is an important supplement when regional lymphatic spread is present or local excision cannot completely remove the primary lesion.
45. Surgical Excision Well differentiated tumors 2 cm in diameter or less ? a margin of 5mm around the clinical border of the lesion has been recommended to achieve 95% clearance
Tumors in high risk areas or larger than 2 cm ? 10 mm margin is recommended
46. Mohs surgery performed in the outpatient setting under local anesthesia and is generally well-tolerated. The tumor, together with a small rim of clinically normal-appearing tissue, is excised at an oblique angle in a series of stages, and microscopically evaluated by the surgeon. Histologic findings are then precisely correlated with the lesion through the use of a diagram (Mohs map) drawn by the surgeon following the stepwise excision of the tumor.
If microscopic margins are positive, their precise locations are noted on the Mohs map and another specimen is taken only from the involved areas. This tissue is evaluated in a similar fashion, and the process is repeated until all margins are negative for residual tumor.
48. Advantages Offers highest rates of cure for patients with high risk primary or recurrent SCC
technique of horizontal frozen sectioning provides a view of 100% of peripheral and deep margins
49. Prognosis The overall prognosis for patients with a primary cutaneous SCC is excellent, with an overall five-year cure rate of greater than 90 percent .In the United States, the estimated yearly disease-specific mortality rate is about 1 percent.
50. Prognostic factors Invasion
Histological grade
Site
Etiology
immunosupression
51. Follow up Follow up every 3-6 months for the first two years, then yearly thereafter.
inspection of the treated area for visible signs of recurrence and palpation of the skin and adjacent structures (including lymph nodes) to evaluate for possible deeper recurrence or regional metastasis
52. Summary SCC is a common skin malignancy
The primary risk factor for cutaneous SCC is UV light exposure
If treated early and properly, the cure rate for SCC is greater than 90 percent
SCC metastases are seen in 2%
53. Any Question?
