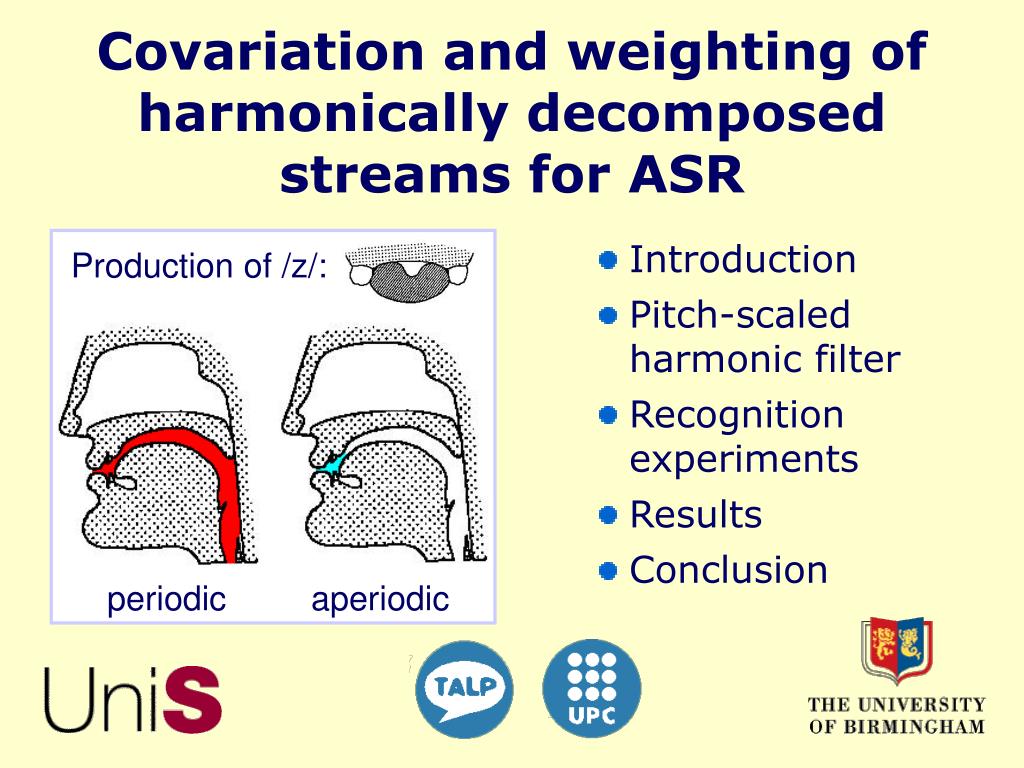

covariation and weighting of harmonically decomposed streams for asr
Covariation and weighting of harmonically decomposed streams for ASR
  • Introduction
  • Pitch-scaled harmonic filter
  • Recognition experiments
  • Results
  • Conclusion

Production of /z/:

periodic

aperiodic

motivation and aims
Motivation and aims
  • Most speech sounds are either voiced or unvoiced, which have very different properties:
    • voiced: quasi-periodic signal from phonation
    • unvoiced: aperiodic signal from turbulence noise
  • Do these properties allow humans to recognize speech in noise?

Maybe, we can use this information to help ASR...

by computing separate features for the two parts.

  • Are their two contributions complementary?

INTRODUCTION

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/

voiced and unvoiced parts of a speech signal
Voiced and unvoiced parts of a speech signal

Production of /z/:

periodic contribution

aperiodic contribution

INTRODUCTION

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/

pitch scaled harmonic filter

speech waveform

pitch extraction

optimised pitch

f0raw

Nopt

re-splicing

pitch optimisation

f0opt

^

^

u(n)

v(n)

Pitch-scaled harmonic filter

s(n)

time shifting

. . .

PSHF

PSHF

PSHF

aperiodic waveform

periodic waveform

METHOD

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/

decomposition example waveforms
Decomposition example (waveforms)

Original

Periodic

Aperiodic

METHOD

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/

decomposition ex spectrograms
Decomposition ex. (spectrograms)

Original

Periodic

Aperiodic

METHOD

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/

decomposition ex mfcc specs
Decomposition ex. (MFCC specs.)

Original

Periodic

Aperiodic

METHOD

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/

speech database aurora 2 0
Speech database: Aurora 2.0
  • From TIdigits database of connected English digit strings (male & female speakers), filtered with G.712 at 8 kHz.

TRAIN

TEST

METHOD

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/

description of the experiments
Description of the experiments
  • Baseline experiment: [base]
    • standard parameterisation of the original waveforms (i.e., MFCC,+Δ,+ΔΔ)
  • PCA experiments: [pca26, pca78, pca13 and pca39]
    • decorrelation of the feature vectors, and reduction of the number of coefficients
  • Split experiments: [split, split1]
    • adjustment of stream weights (periodic vs. aperiodic)

Caveat: pitch values were derived from clean speech files, for entire database!

METHOD

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/

parameterisations

waveform

features

BASE:

MFCC

+Δ, +Δ2

SPLIT1:

SPLIT:

MFCC

MFCC

+Δ, +Δ2

+Δ, +Δ2

PSHF

PSHF

cat

cat

PCA26:

MFCC

PSHF

+Δ, +Δ2

cat

PCA

PCA78:

MFCC

+Δ, +Δ2

PSHF

cat

PCA

PCA13:

MFCC

+Δ, +Δ2

PSHF

cat

PCA

PCA39:

MFCC

+Δ, +Δ2

PSHF

cat

PCA

Parameterisations

METHOD

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/

full sized pca results
Full-sized PCA results

RESULTS

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/

variance of principal components
Variance of Principal Components

PCA39

PCA26

• clean

+ multi

RESULTS

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/

summary of best pca results
Summary of best PCA results

RESULTS

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/

sample split results
Sample Split results

Note: same value of stream weights used in training as in testing, for Split.

RESULTS

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/

summary of pca split results
Summary of PCA & Split results

RESULTS

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/

conclusions
Conclusions
  • PSHF module split Aurora’s speech waveforms into two synchronous streams (periodic and aperiodic)
    • large improvements over the single-stream Baseline
  • Split was better than all PCA combinations:
    • PCA26/13 better than PCA 78/39, and PCA13 best
    • Split1 marginally better than Split
  • Periodic speech segments give robustness to noise.
  • Further work
    • Modeling: how best to combine the streams?
    • LVCSR: evaluate front end on TIMIT (phone recognition).
    • Robust pitch tracking

CONCLUSION

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/

slide20

COLUMBO PROJECT:

Harmonic decomposition applied to ASR

Philip J.B. Jackson 1 <p.jackson@surrey.ac.uk>

David M. Moreno 2 <davidm@talp.upc.es>

Javier Hernando 2 <javier@talp.upc.es>

Martin J. Russell 3 <m.j.russell@bham.ac.uk>

http://www.ee.surrey.ac.uk/Personal/P.Jackson/Columbo/
