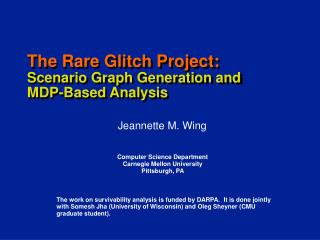

The Rare Glitch Project:Scenario Graph Generation andMDP-Based Analysis

Computer Science DepartmentCarnegie Mellon UniversityPittsburgh, PA

Jeannette M. Wing

The work on survivability analysis is funded by DARPA. It is done jointly with Somesh Jha (University of Wisconsin) and Oleg Sheyner (CMU graduate student).

overview of our method

(Network) Model

(Survivability) Property

Phase 1

Checker

Scenario Graph

Reliability Query,Cost Query, etc.

Analyzer

Phase 2

Scenario Set

Overview of Our Method
relation to aro proposal
Relation to ARO Proposal
  • Hypothesis: Our two-phase method and tool suite are applicable to analyzing embedded systems.
  • Rationale
    • Network model is simpler (bus-based, not end-to-end).
    • Reliability and cost are important factors in embedded systems design.
  • Our plan
    • Enrich and make current tool suite robust.
    • Apply method to embedded systems examples.
    • Pursue foundational issues wrt models for reliability and cost analyses.
survivable systems
Survivable Systems
  • What if
    • a terrorist hacker brings down the nation’s power grid?
    • an act of Mother Nature causes the international financial network to fail?
  • Critical infrastructures
    • Utilities: gas, electricity, nuclear, water, …
    • Communications: telephone, networks, …
    • Transportation: airlines, railways, highways, …
    • Medical: emergency services, hospitals, …
    • Financial: banking, trading, …
survivability
Survivability
  • A system is survivable if it can continue to provide end services despite the presence of faults.
modeling for survivability analysis
Modeling for Survivability Analysis
  • Our starting point
    • Handle both benign and malicious faults.
      • Throw out independence assumption.
    • Incorporate semantics of end service in model.
      • Do not necessarily treat nodes and links the same.
    • Include cost in the model from the start.
  • Steps in our approach
    • Model general network topology (nodes and links)
    • Analyze in two phases for
      • Functional behavior
      • Reliability, cost, etc.
phase 1
Phase 1

Network Model =

Survivability Property =

A set of concurrently executing Finite State Machines.

A predicate in CTL.

Model Checker = (modified) NuSMV

Scenario Graph =

A set of related examples.

simple example a banking system

FRB 1

Bank A

Bank B

Bank C

Simple Example: A Banking System

FRB 2

FRB 3

MC 2

MC 3

MC 1

b1

b2

c1

a1

a2

network model
Network Model
  • Processes
    • Nodes and links are processes (i.e., FSMs)
      • banks, money centers, federal reserve banks, and links
    • Communication via shared variables (i.e., finite queues)
      • representing channels, and hence interconnections.
  • Failures
    • Faults represented by special state variable
      • fault:{normal, failed, intruded}
    • Links and banks can fail at any time
      • Failed link blocks all traffic.
      • Failed bank routes all checks to an arbitrarily chosen money center.
    • Money centers and federal reserve banks do not fail.
survivability properties
Survivability Properties
  • Fault-related
    • Money never deposited into wrong account.
      • AG(error)
  • Service-related
    • A check issued eventually clears.
      • AG(checkIssued  AF(checkCleared))
scenario graphs
Scenario Graphs
  • Given a state machine, M, and a property, P, a scenario graph is a concise representation of the set of traces of M with respect to P.
    • P = fault property
      • A fault scenario graph represents all system traces that end in a state that does not satisfy P.
    • P = service property
      • A service success (fail) scenario graph represents all system traces in which an issued service successfully finishes (fails to finish).
fault scenario graph

Each path is a scenario of how a fault can occur.

Fault Scenario Graph
  • Intuition:
  • Each “counterexample” spit out by the model checker is a scenario.
  • Survivability property gives a slice of the model.
survivability properties13
Survivability Properties
  • Fault-related
    • Money never deposited into wrong account.
      • AG(error)
  • Service-related
    • A check issued eventually clears.
      • AG(checkIssued  AF(checkCleared))
a service success scenario graph

up(a2)

down(a2) & up(a1)

up(c1)

A Service Success Scenario Graph

issueCheck(A, C)

send(A, MC-2)

send(A, MC-1)

send(MC-2, FRB-1)

send(MC-1, FRB-2)

send(FRB-1, FRB-3)

send(FRB-2, FRB-3)

send(FRB-3, MC-3)

send(MC-3, C)

debitAccount

a service fail scenario graph
A Service Fail Scenario Graph

issueCheck(A, C)

down(A)

up(A)

pick(MC-2)

pick(MC-1)

down(c1)

FAIL

up(a2)

down(a2)

down(a1)

up(a1)

send(A, MC-2)

send(A, MC-1)

down(c1)

FAIL

down(c1)

FAIL

FAIL

overview of method

Annotations(e.g., probabilities, cost)

Overview of Method

Network Model

Survivability Property

Phase 1

Checker

Scenario Graph

Reliability Query,Cost Query, etc.

Analyzer

Phase 2

Scenario Set

phase 2 reliability analysis in a nutshell
Phase 2: Reliability Analysis (in a Nutshell)
  • Annotations = Probabilities
    • Use Bayesian Networks to model dependence of events.
  • Symbolic
    • Use symbolic probabilities
      • high, medium, low
    • Use NDFA theory to compute scenario set.
  • Continuous
    • Use numeric probabilities
      • [0.0, 1.0]
    • Use Markov Decision Processes to model both nondeterministic and probabilistic transitions.
phase 2 continuous analysis
Phase 2: Continuous Analysis
  • Use realvalues forprobabilities.
  • May leave probabilities of some events unspecified.
  • Markov Decision Processes
      • Mix of nondeterministic and probabilistic transitions
  • Why? System is not closed.
    • Hard to assign probabilities to some faults (e.g., intrusions).
    • Environment makes choice (i.e., decision) and can be demonic!
reliability analysis
Reliability Analysis

Goal of (malicious) environment: Devise an optimal policy to minimize reliability.

  • Assign to each state, s, a value, V(s), computed using a standard policy iteration algorithm from MDP literature.
  • Let V* be the value function after convergence. Then, for initial state of scenario graph, s0, V*(s0) computes worst-case probability of service eventually finishing.
a typical example

0.7

0.4

0.65

0.6

0.3

Good

Bad

A Typical Example

0.6

0.7

0.6

V(Bad) = 0.0

V(Good) = 1.0

bayesian network for bank example

P(c1) = 1/2

P(b2) = 1/2

P(b1) = 1/2

c1

b2

b1

P(a2 | a1) = 1/2

P(a2 | a1) = 1/4

Bayesian Network for Bank Example

P(a1) = 1/2

a1

a2

a service success scenario graph22

1/4

3/8

up(a2)

down(a2) & up(a1)

1/2

up(c1)

A Service Success Scenario Graph

issueCheck(A, C)

send(A, MC-2)

send(A, MC-1)

send(MC-2, FRB-1)

send(MC-1, FRB-2)

send(FRB-1, FRB-3)

send(FRB-2, FRB-3)

send(FRB-3, MC-3)

The worst case probability that a check issued by Bank A on Bank C is

(1/2 * 3/8) + (1/2 * 1/4) = 5/16

send(MC-3, C)

debitAccount

cost benefit analysis
Cost-Benefit Analysis

Goal: Choose a set of links to upgrade to achieve higher reliability, given my cost constraints (e.g., fixed budget).

  • Identify new actions that correspond to decisions an architect needs to make (e.g., upgrade a1).
  • Associate a cost with each action.
  • Define constraints on costs.
upgrade links in banking system

FRB1

?

?

?

Bank A

Bank B

Bank C

Upgrade Links in Banking System

FRB 2

FRB3

MC 2

MC 3

MC 1

b1

b2

c1

a1

a2

cost constraint example
Cost Constraint Example
  • Assume:
    • If we upgrade a1 and c1 then P(a1) and P(c1) both increase to 3/4 .
    • If a2 is upgraded, then P(a2) is:
      • P(a2|a1) = 3/4
      • P(a2| a1) = 3/8
  • Aim: Maximize the worst-case reliability subject to the constraint that at most two links can be upgraded. Solve this non-linear integer programming problem:
      • xa1 + xa2 + xc1< 2
  • Best option: Upgrade a1 and c1.

xa1 = 1 and xa2 = 1 7/16

xa1 = 1 and xc1 = 1 39/64

xa2 = 1 and xc3 = 1 9/16

constrained markov decision processes
Constrained Markov Decision Processes

<S, A, P, c, d>

  • S is a finite state space.
  • A is a finite set of actions.
  • P are transition probabilities. Psas’ is the probability of moving from state s to s’ if action a is chosen.
  • c: (S x A) is the immediate cost. c(s, a) is the cost of choosing action a at state s.
  • d:(S x A)kis a k-dimensional vector of immediate costs, captures additional cost constraints.
survivability case studies
Survivability Case Studies
  • Somesh Jha
    • Trading floor model of major investment bank (being “sanitized”)
      • 10K lines of NuSMV
      • half-million nodes in scenario graph
      • 50 threat scenarios
      • 45 found by system
      • 5 new threat scenarios found
      • With independence assumption, too many misses.
    • B2B e-commerce NYC start-up (Jha)
      • 50K lines of Statecharts
      • 2 million NuSMV beyond capability of tool
  • Oleg Sheyner
    • Intrusion detection (ongoing)
intrusion detection system case study
Intrusion Detection System Case Study
  • Done by Oleg Sheyner and Lincoln Labs.
  • Motivated by hand drawn poster of attack scenarios.
  • Illustrates only first part of method.
example of attack tree developed by a professional red team
Example of Attack Tree Developed by a Professional Red Team
  • Sandia Red Team “White Board” attack tree from DARPA CC20008 Information battle space preparation experiment
phase 1 example multistage network penetration

ip1

ftp

IDS

adversary

sshd

ipa

database

firewall

router

ip2

ftp

Detected

  • Attack Arsenal
  • Sshd buffer overflow - remotely get root
  • Ftp .rhosts file - establish trust between hosts
  • Remote login - exploit trust between hosts
  • Local buffer overflow - locally get root
Phase 1 Example:Multistage Network Penetration

Goal:Root access to host ip2

nusmv encoding
Network

1 attack host, 2 target hosts with services

3x3 connectivity matrix

existence of routing path

ability to connect to ftp and ssh services

3x3 trust matrix

Adversary

Privilege levels for each host

Attacks

4 attacks

some have multiple flavors

NuSMV Statistics

82 bits of state (282 states)

<40K representation nodes

~7000 reachable states

2 sec runtime on 1GHz Pentium III

8MB of memory used

NuSMV Encoding
scenario generating properties
Scenario-Generating Properties
  • Don’t care about detection
    • AG (adversary.privilege[2] < root)
  • Want stealth
    • AG ((adversary.privilege[2] < root) or (IDS.detected))
the rare glitch tool suite

Checkmate

Specification

Prism

Scenario graph

XML

XML2nuSMV

Counter-examples

Explanation Generator

Model

PVS

Abstraction/Refinement Processor

Symp

The Rare Glitch Tool Suite

Checkers and Provers

Analysis Engines

Specification and Modeling Languages

Reliability and Cost Analyzers

nuSMV

plan in relationship to the rare glitch project
Plan in Relationship to The Rare Glitch Project
  • Enrich and make current tool suite robust.
    • Integrate with other existing project tools.
  • Apply method to embedded systems examples.
    • Work with Clarke to add reliability analysis to automotive example.
  • Pursue foundational issues wrt models for reliability and cost analyses.
    • Understand relationship to other probabilistic models, hybrid models, etc.
