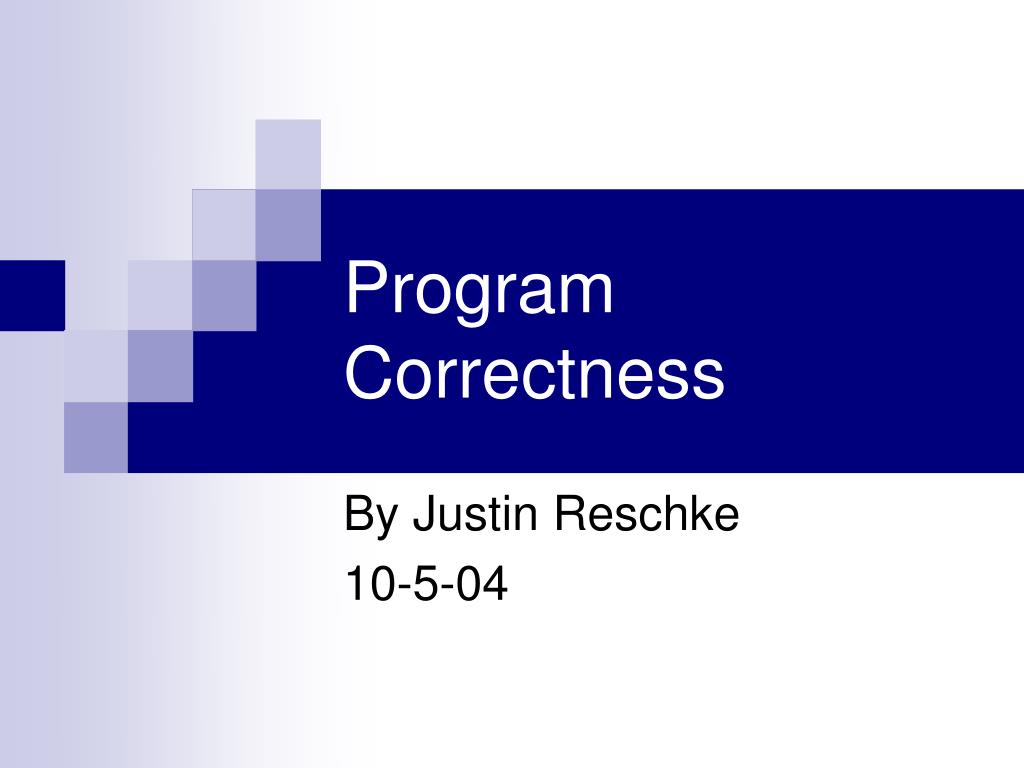

  1. Program Correctness By Justin Reschke 10-5-04

  2. Overview • Levels of Correctness • Deadly Sins of Programming • Importance of Correctness • Proof By Induction • Conclusion

  3. Levels of Correction • 1) No syntax errors • 2) No errors that can be detected at compile or run time • 3) There exists a set of test data for which the program will yield proper results • 4) For a typical set of test data the program will yield proper results • 5) For deliberately difficult sets of test data the program will yield proper results

  4. Levels of Correctness • 6) For all possible sets of test data that are valid according to the problem specification, the program will yields the correct answer. • 7) For all possible sets of valid test data, and for all likely conditions of erroneous input, the program gives a correct (or at least reasonable) answer • 8) For all possible input, the program gives correct or reasonable answers

  5. Levels of Correctness • Most programmers never mature beyond level 3 • Level of correctness is in the hands of the programmer • Ideally, the user would like level 8

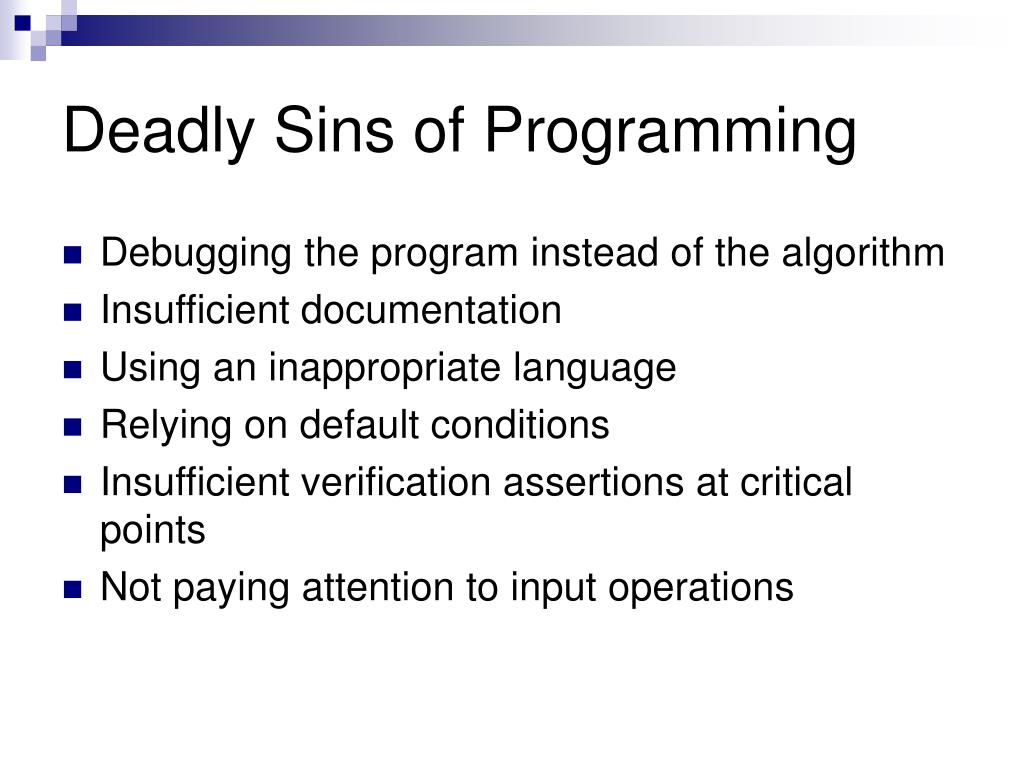

  6. Deadly Sins of Programming • Debugging the program instead of the algorithm • Insufficient documentation • Using an inappropriate language • Relying on default conditions • Insufficient verification assertions at critical points • Not paying attention to input operations

  7. Importance of Correctness • Saves Time • Time = Money • Critical Applications • Could mean life or death.

  8. Square function: sq(n) = n^2 sq(n) { S <- 0 i <- 0 while(i < n) { S <- S + n i <- i + 1 } return S } In general, n is added n times producing n^2 To prove, we must show that after going through the loop k times, S = k*n and i = k must hold. Proving By Induction

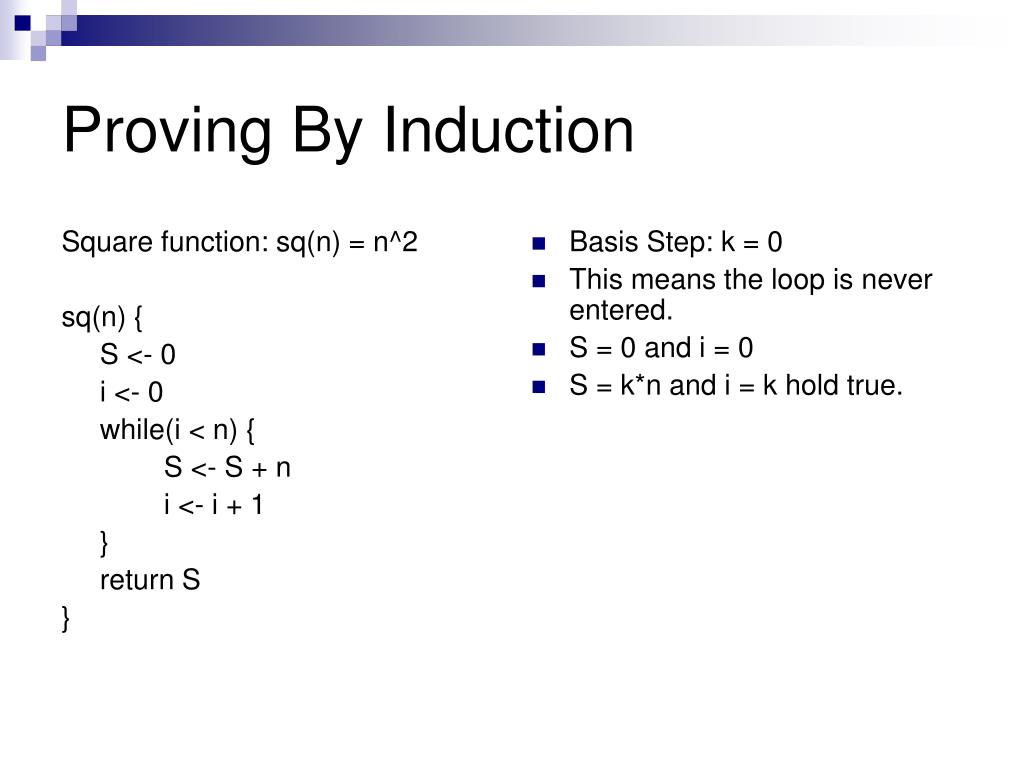

  9. Basis Step: k = 0 This means the loop is never entered. S = 0 and i = 0 S = k*n and i = k hold true. Square function: sq(n) = n^2 sq(n) { S <- 0 i <- 0 while(i < n) { S <- S + n i <- i + 1 } return S } Proving By Induction

  10. Induction Hypothesis: For an arbitrary value m of k, S = m * n and i = m hold after going through the loop m times Inductive Step: When the loop is entered the m+1-th time, currently, S = m * n and i = m (The Induction Hypothesis). After the next loop: S = m*n+n = (m+1)*n, i = m+1 Thus S = k*n and i = k hold for any natural number k. Square function: sq(n) = n^2 sq(n) { S <- 0 i <- 0 while(i < n) { S <- S + n i <- i + 1 } return S } Proving By Induction

  11. One more thing We must prove the algorithm will terminate for any input. Easy, i begins at 0 and increases by 1 each iteration of the loop and n is a natural number. Thus i will eventually be equal to n in a finite number of steps. Square function: sq(n) = n^2 sq(n) { S <- 0 i <- 0 while(i < n) { S <- S + n i <- i + 1 } return S } Proving By Induction

  12. Factorial: fact(n)=n! i <- 1 F <- 1 while i <= n { F <- F * i i <- i + 1 } return F Calculates factorial starting from 1. 1 * 2 * 3 * 4…. * n = n! To prove, we must show that after going through the loop k times, F = k! and i = k + 1 must hold. Proof By Induction

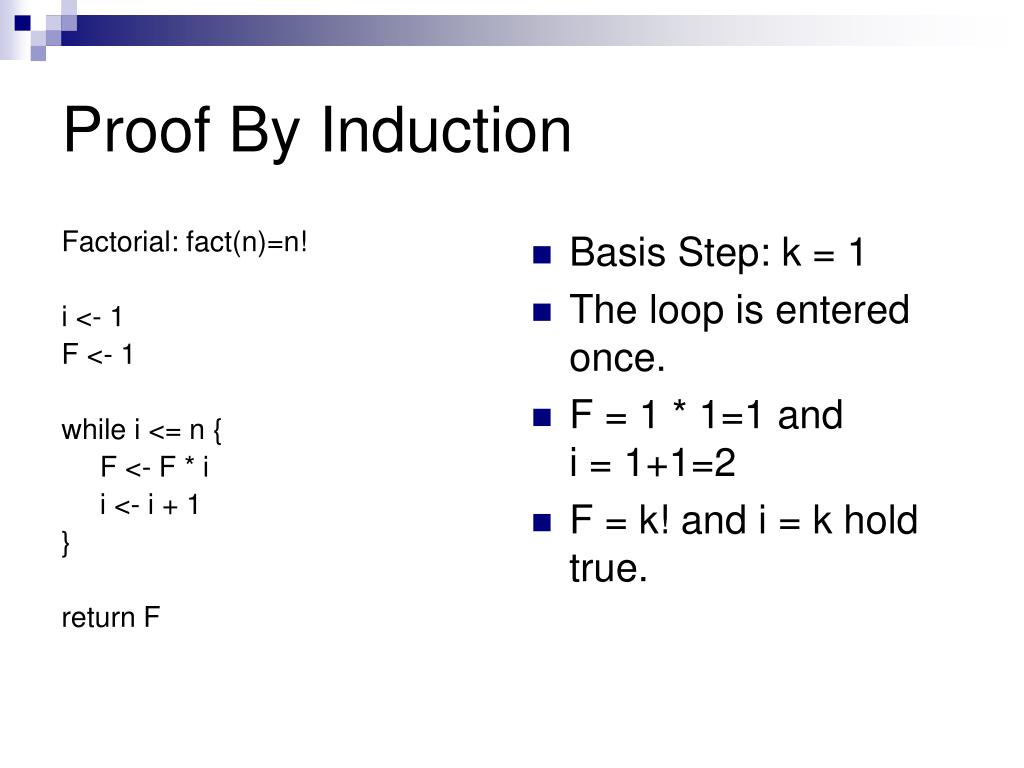

  13. Basis Step: k = 1 The loop is entered once. F = 1 * 1=1 andi = 1+1=2 F = k! and i = k hold true. Factorial: fact(n)=n! i <- 1 F <- 1 while i <= n { F <- F * i i <- i + 1 } return F Proof By Induction

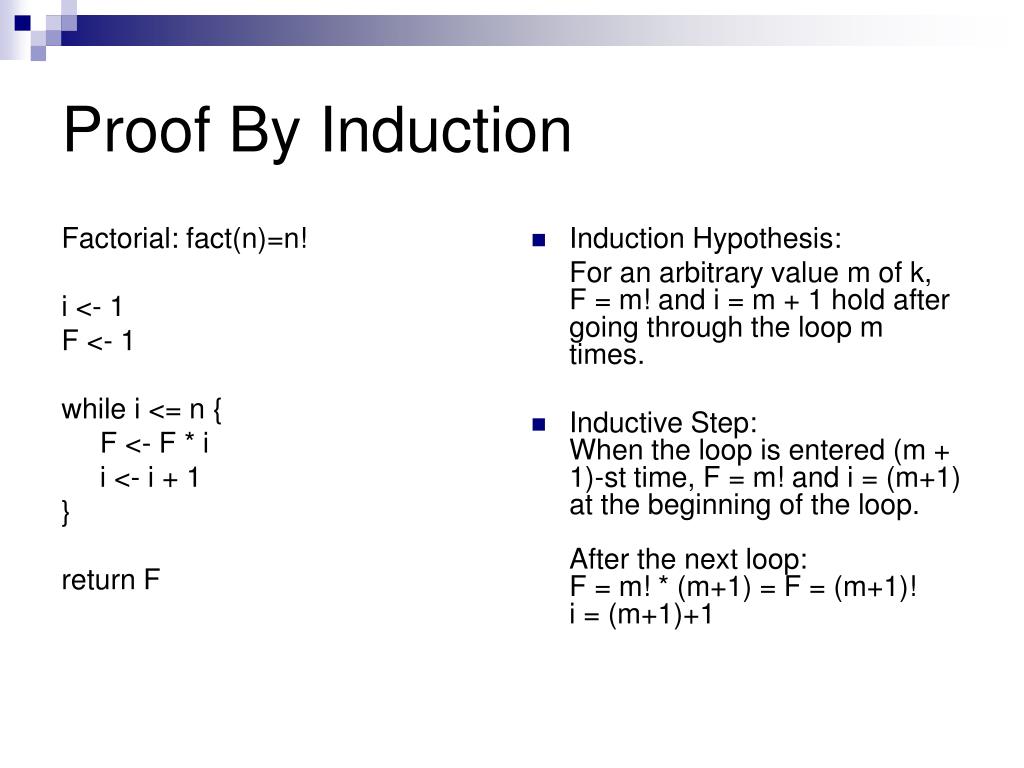

  14. Factorial: fact(n)=n! i <- 1 F <- 1 while i <= n { F <- F * i i <- i + 1 } return F Induction Hypothesis: For an arbitrary value m of k,F = m! and i = m + 1 hold after going through the loop m times. Inductive Step:When the loop is entered (m + 1)-st time, F = m! and i = (m+1) at the beginning of the loop. After the next loop:F = m! * (m+1) = F = (m+1)!i = (m+1)+1 Proof By Induction

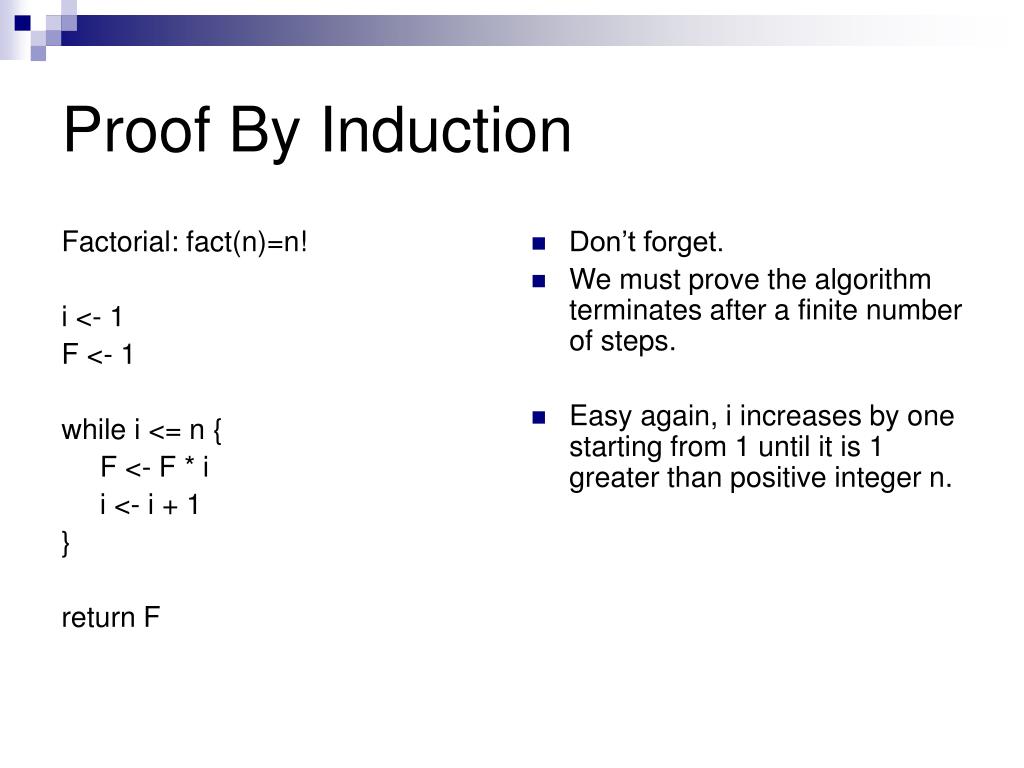

  15. Factorial: fact(n)=n! i <- 1 F <- 1 while i <= n { F <- F * i i <- i + 1 } return F Don’t forget. We must prove the algorithm terminates after a finite number of steps. Easy again, i increases by one starting from 1 until it is 1 greater than positive integer n. Proof By Induction

  16. Conclusion • Its good to be more correct. • Program errors can mean death • Induction is a useful way to prove correctness. • An algorithm is only as good as the programmer.

  17. References • Mathematical theory of program correctness, J. W. de Bakker • The New Turing Omnibus, A.K. Dewdney • Program Correctness using Induction, http://www.cs.odu.edu/~toida/nerzic/content/induction/use_of_induction_loop.html • Program Correctness, http://courses.cs.vt.edu/~cs2704/sum02/notes/A01.ProgCorrectness.pdf
