  1. What is Network Cabling? Everything You Need to Know About This Essential Technology houseofit.ph/blog/using-structured-cabling-to-rebuild-your-infrastructure

  2. If you've ever wondered what those colorful wires are behind your computer screen, you're not alone. Many people don't even know what is network cabling; but it's an essential part of keeping our world connected. It allows you to connect your computer and other devices to the internet and provides a way to share files and printers between computers.

  3. Network cabling is the process of installing networking cables throughout a building or campus in a structured cabling system to provide connectivity between devices with efficiency. This essential technology forms the backbone of any network infrastructure, and proper installation is critical for ensuring reliable performance.

  4. Internet Cable Types the Different Types Of Network Cables And Uses:

  5. There are different network cables used for various purposes. · These are Ethernet, fiber optic, and coaxial cable. · Ethernet cables are the most common type used to connect devices within a local area network (LAN). · Fiber optic cables are used for high-speed internet connections, transmit data over long distances, and offer superior data speeds and bandwidth.

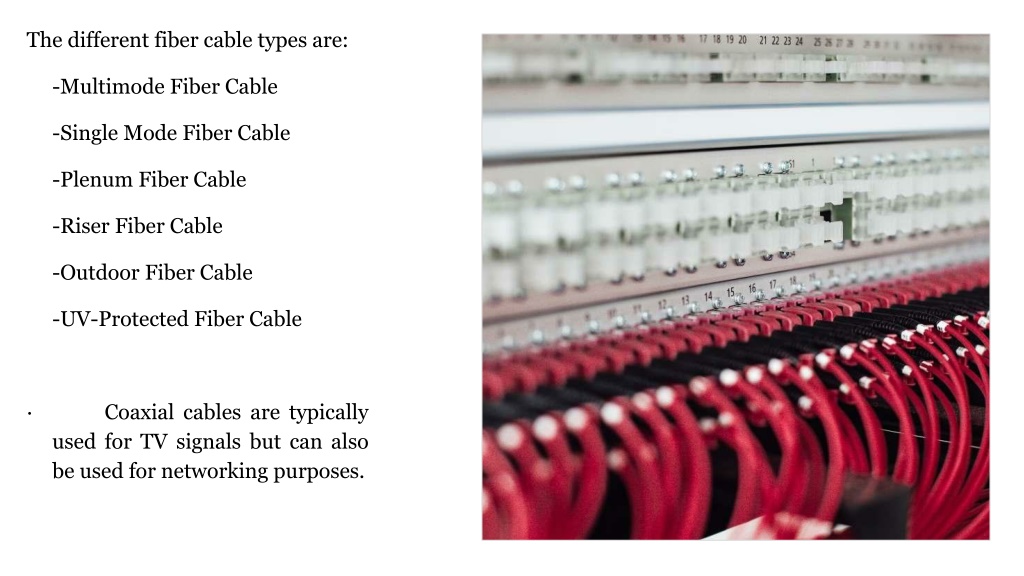

  6. The different fiber cable types are: -Multimode Fiber Cable -Single Mode Fiber Cable -Plenum Fiber Cable -Riser Fiber Cable -Outdoor Fiber Cable -UV-Protected Fiber Cable · Coaxial cables are typically used for TV signals but can also be used for networking purposes.

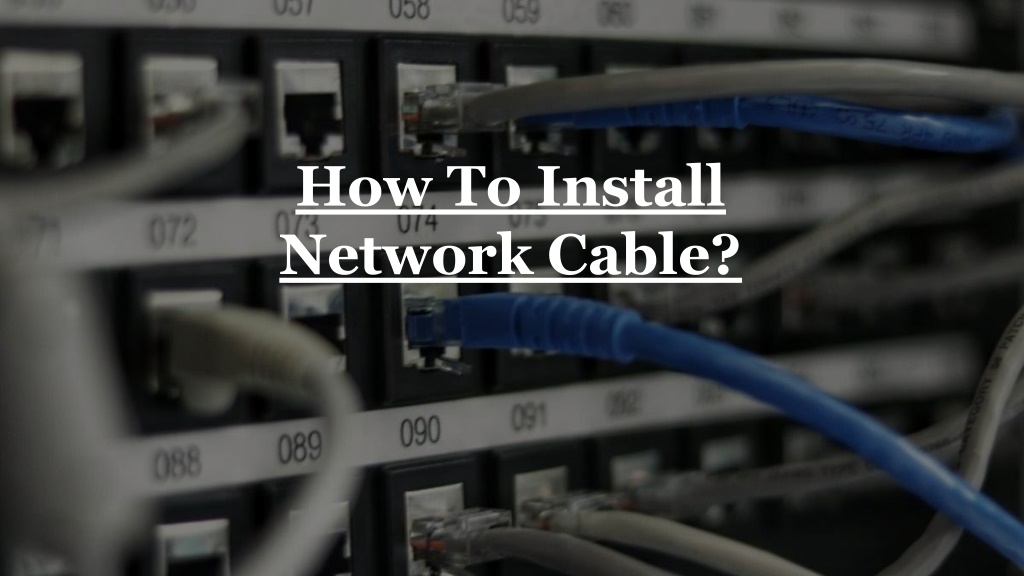

  7. How To Install Network Cable?

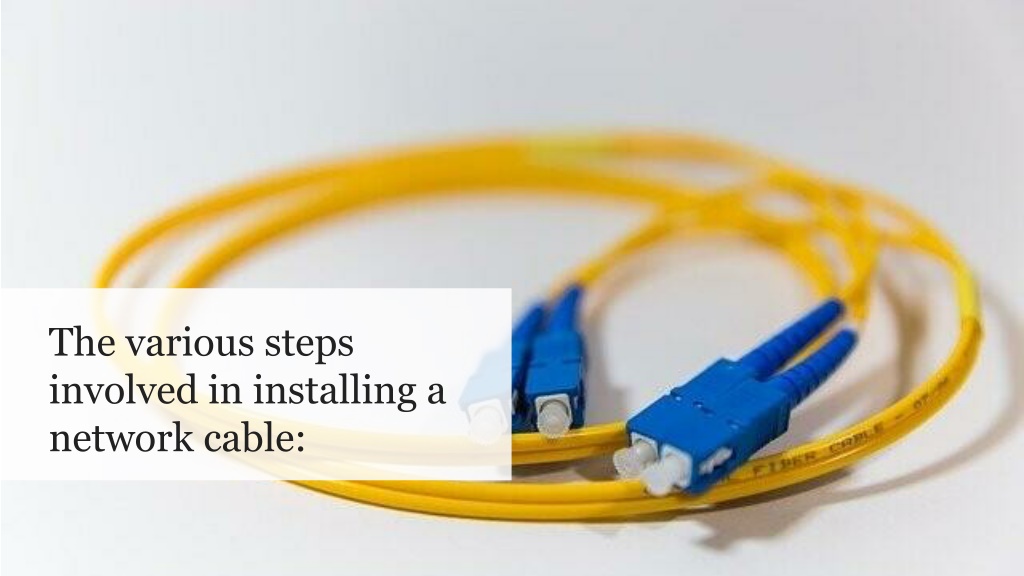

  8. The various steps involved in installing a network cable:

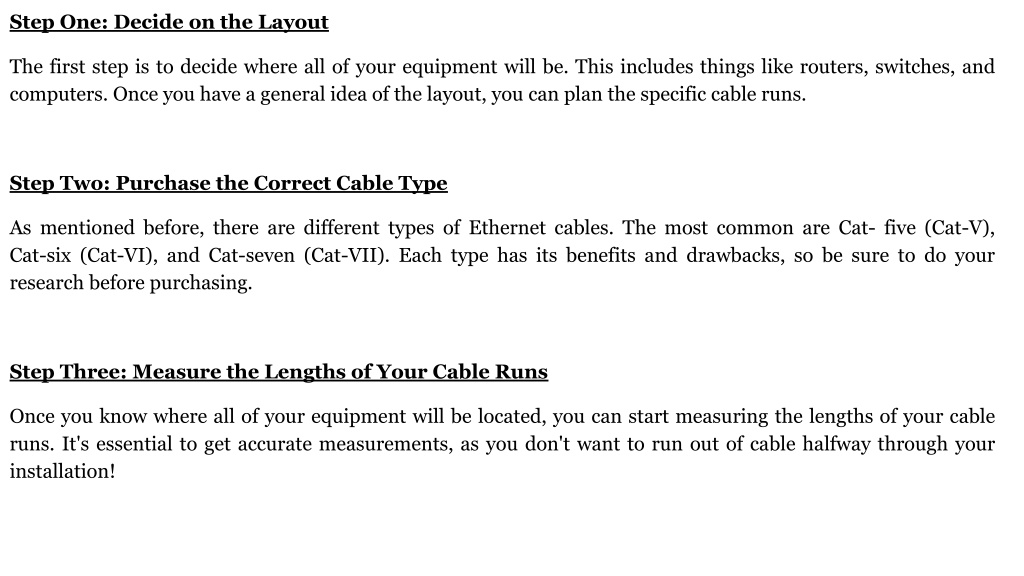

  9. Step One: Decide on the Layout The first step is to decide where all of your equipment will be. This includes things like routers, switches, and computers. Once you have a general idea of the layout, you can plan the specific cable runs. Step Two: Purchase the Correct Cable Type As mentioned before, there are different types of Ethernet cables. The most common are Cat- five (Cat-V), Cat-six (Cat-VI), and Cat-seven (Cat-VII). Each type has its benefits and drawbacks, so be sure to do your research before purchasing. Step Three: Measure the Lengths of Your Cable Runs Once you know where all of your equipment will be located, you can start measuring the lengths of your cable runs. It's essential to get accurate measurements, as you don't want to run out of cable halfway through your installation!

  10. Step Four: Install Your Cabling Now it's time to start installing your cabling. Depending on the type of network you're setting up, there are different ways to go about this. For example, if you're using Cat- five cables, you'll need to use a punch-down networkcableconnector to connect the wires to the jacks on your equipment. Step Five: Test Your Network Once your cabling is installed, it's time to test your network. This can be done with a network tester or simply by plugging in your devices and checking if they're connecting correctly. If everything looks good, you're ready to use the devices! Now that you know how to install network cabling, you can get started on setting up your very own home or office network. Be sure to consult with a professional if you encounter any problems during the installation process

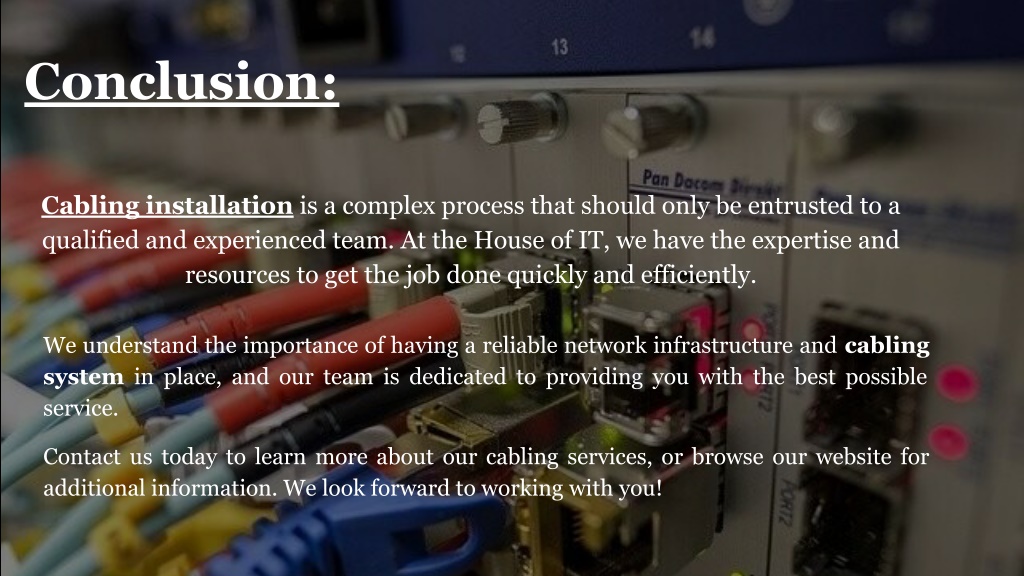

  11. Conclusion: Cabling installation is a complex process that should only be entrusted to a qualified and experienced team. At the House of IT, we have the expertise and resources to get the job done quickly and efficiently. We understand the importance of having a reliable network infrastructure and cabling system in place, and our team is dedicated to providing you with the best possible service. Contact us today to learn more about our cabling services, or browse our website for additional information. We look forward to working with you!

  12. Contact Us House of I.T At House of IT, the profound transformation of businesses and organizational functions and competencies matter to us. Address:3rd Flr., Centro Fortuna, 6014 A. S. Fortuna St, Mandaue City, Cebu, Philippines Phone: +63322655670 Website: https://houseofit.ph/
