virtual media center a generic architecture for distributed video on demand services

Department of Computer Science & Engineering

The Chinese University of Hong Kong

Master of Science in Computer Science

Virtual Media Center: A Generic Architecture for Distributed Video-On-Demand Services

Date: 30 April 2004

Presented by: Lee KaYan,Sunny

Supervisor: Prof. Michael R. Lyu

outline
Outline
  • Motivation
  • Related Work
  • Virtual Media Center (VMC) Services
  • Characteristics
  • Technologies Used: Web Service and CORBA
  • System Architecture
  • Implementation Details
  • Future Works and Enhancements
motivation
Motivation
  • VOD is a bandwidth demand, the capacity of concurrent users is limited at present network equipment and technologies. A simple and efficiency server selection mechanism is needed
  • Multimedia technologies such as compression, security and streaming protocol may change in the future. A framework to provide multimedia streaming service with the capability to adapting technologies change is needed
  • To implement a application called “Virtual Media Center” under this framework
related work

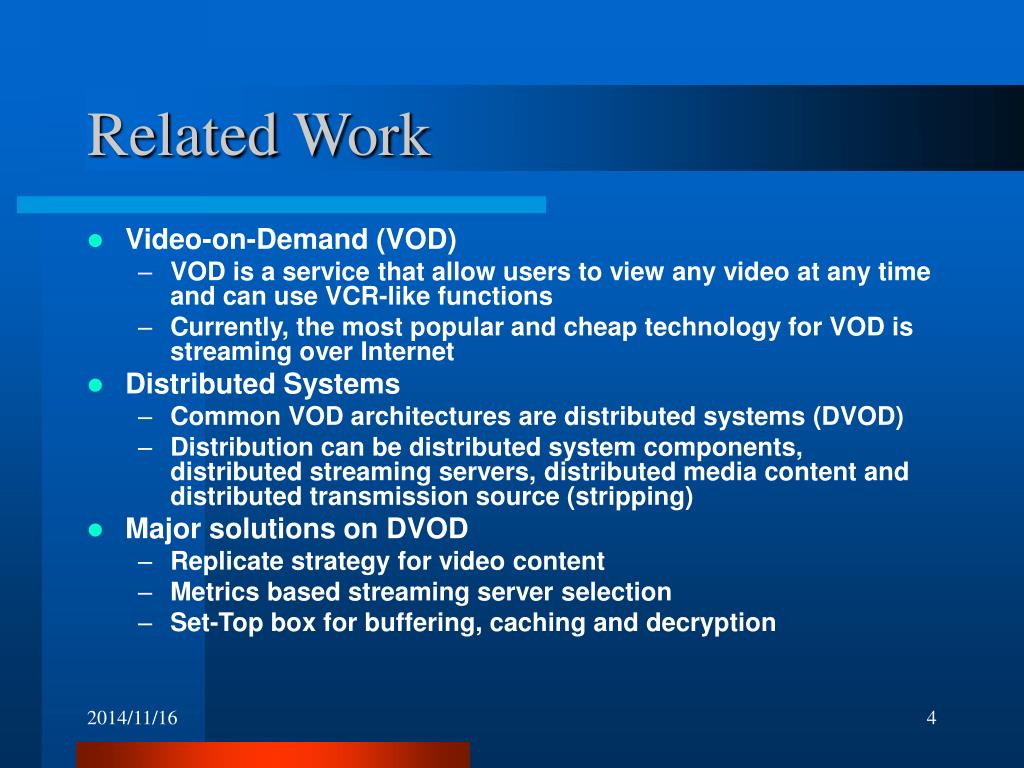

Related Work
  • Video-on-Demand (VOD)
    • VOD is a service that allow users to view any video at any time and can use VCR-like functions
    • Currently, the most popular and cheap technology for VOD is streaming over Internet
  • Distributed Systems
    • Common VOD architectures are distributed systems (DVOD)
    • Distribution can be distributed system components, distributed streaming servers, distributed media content and distributed transmission source (stripping)
  • Major solutions on DVOD
    • Replicate strategy for video content
    • Metrics based streaming server selection
    • Set-Top box for buffering, caching and decryption
virtual media center vmc services

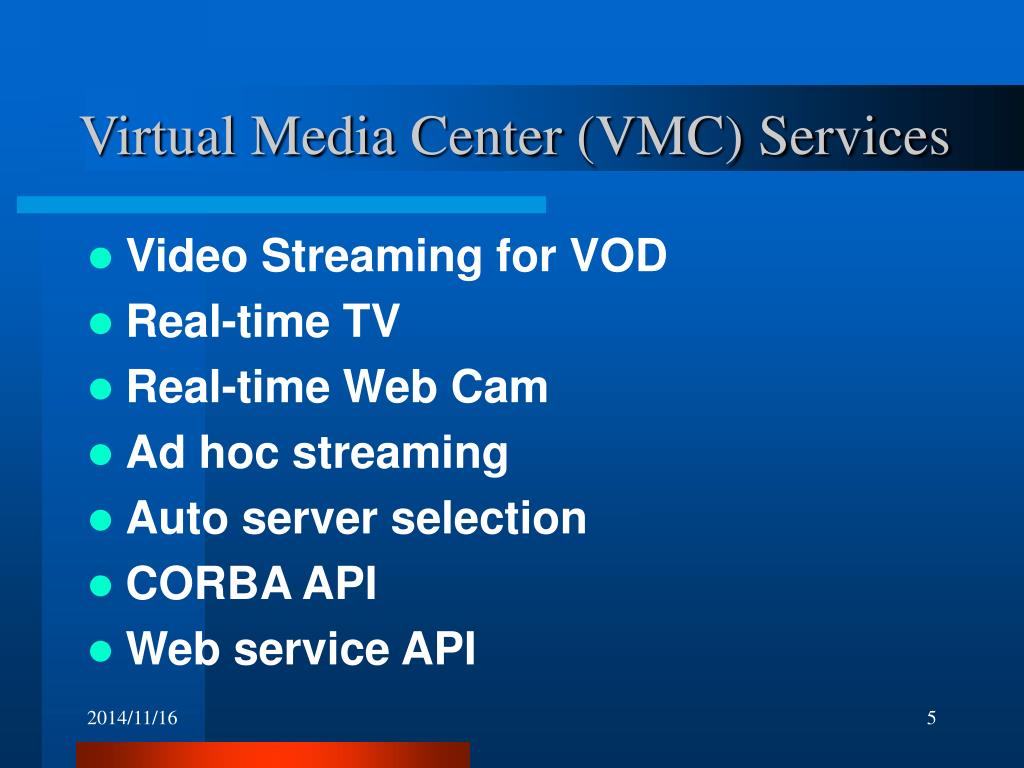

Virtual Media Center (VMC) Services
  • Video Streaming for VOD
  • Real-time TV
  • Real-time Web Cam
  • Ad hoc streaming
  • Auto server selection
  • CORBA API
  • Web service API
characteristics

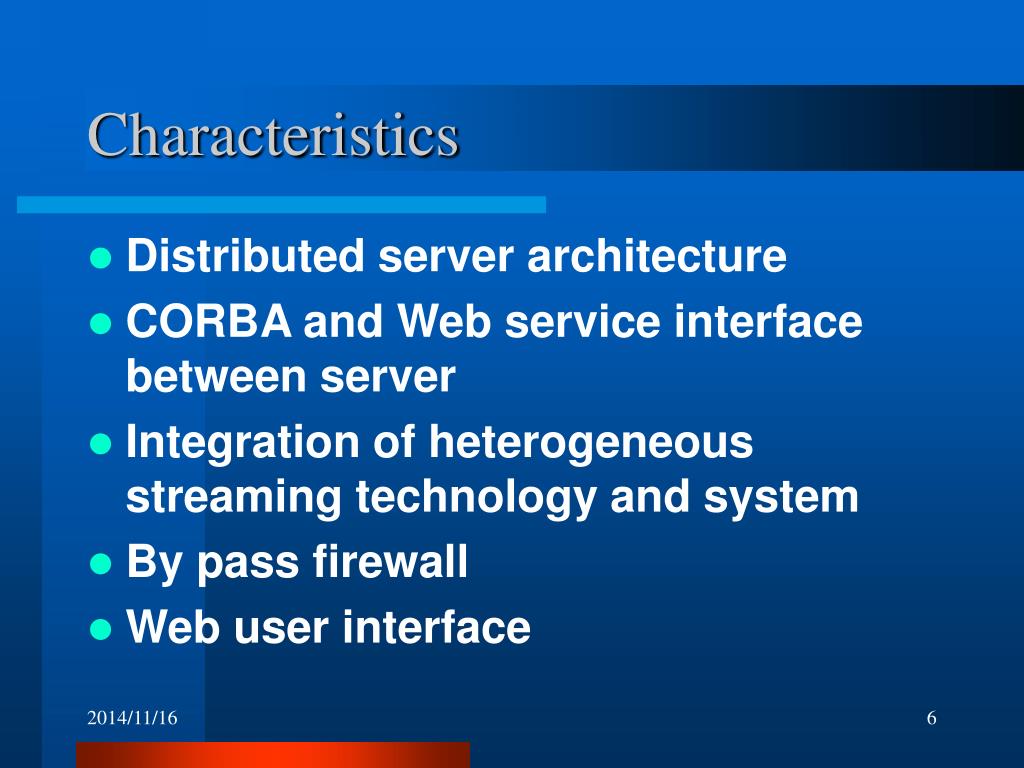

Characteristics
  • Distributed server architecture
  • CORBA and Web service interface between server
  • Integration of heterogeneous streaming technology and system
  • By pass firewall
  • Web user interface
technologies used web service and corba

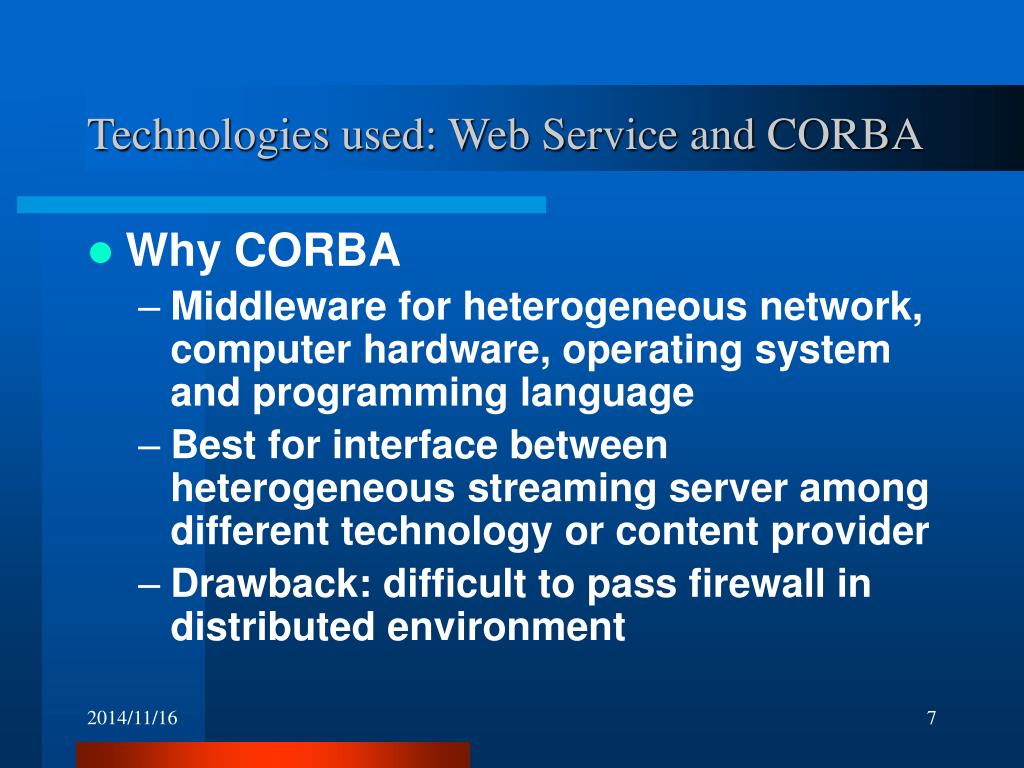

Technologies used: Web Service and CORBA
  • Why CORBA
    • Middleware for heterogeneous network, computer hardware, operating system and programming language
    • Best for interface between heterogeneous streaming server among different technology or content provider
    • Drawback: difficult to pass firewall in distributed environment
technologies used corba and web service

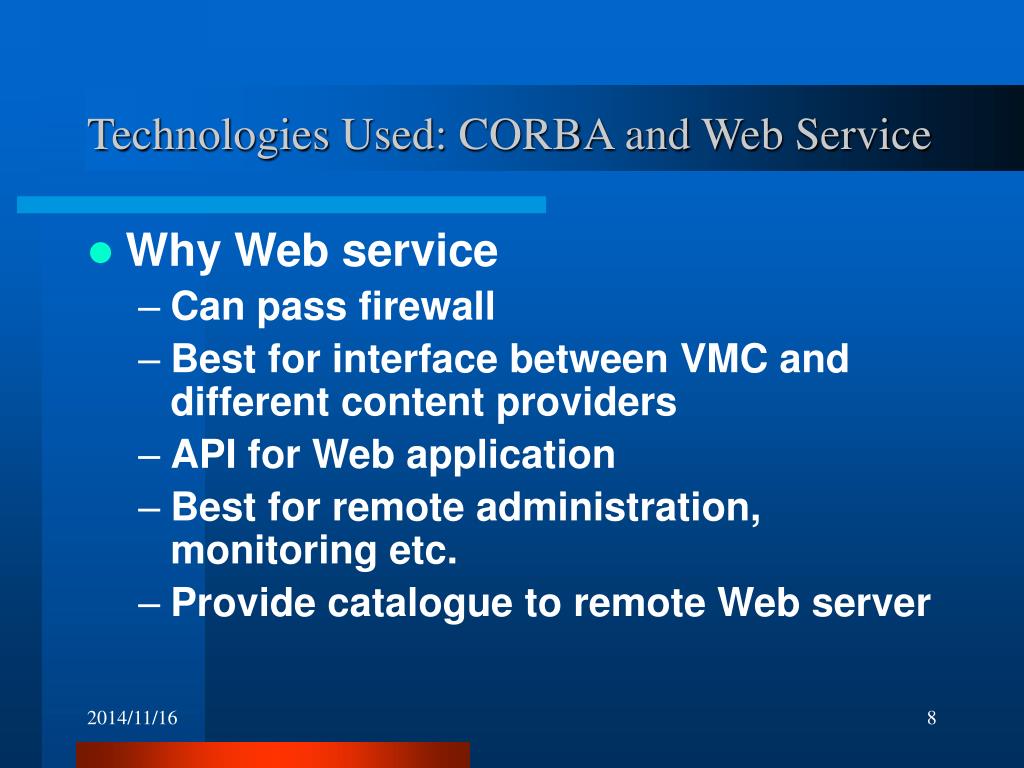

Technologies Used: CORBA and Web Service
  • Why Web service
    • Can pass firewall
    • Best for interface between VMC and different content providers
    • API for Web application
    • Best for remote administration, monitoring etc.
    • Provide catalogue to remote Web server
system architecture

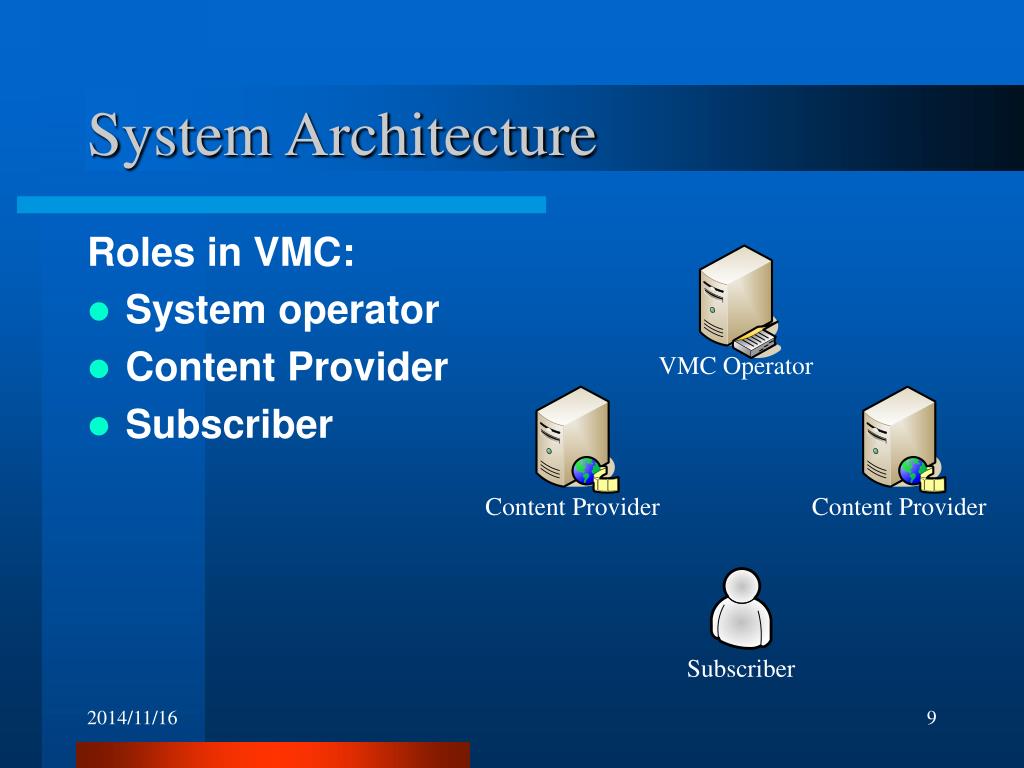

System Architecture

Roles in VMC:

  • System operator
  • Content Provider
  • Subscriber
system architecture1

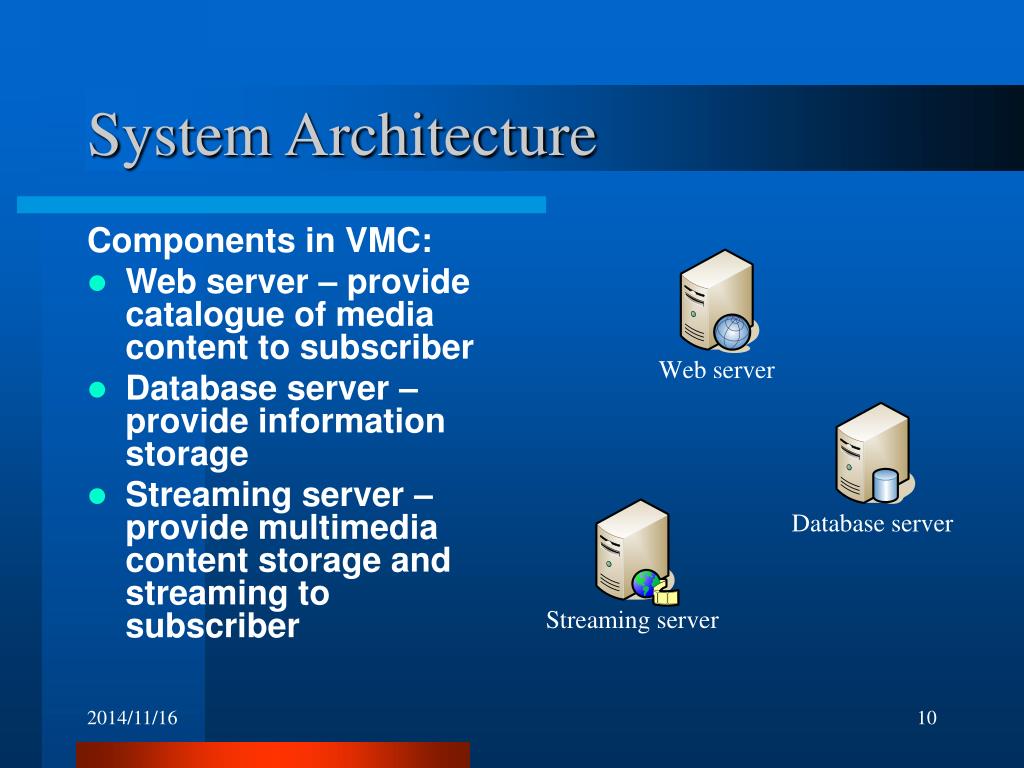

System Architecture

Components in VMC:

  • Web server – provide catalogue of media content to subscriber
  • Database server – provide information storage
  • Streaming server – provide multimedia content storage and streaming to subscriber
system architecture2

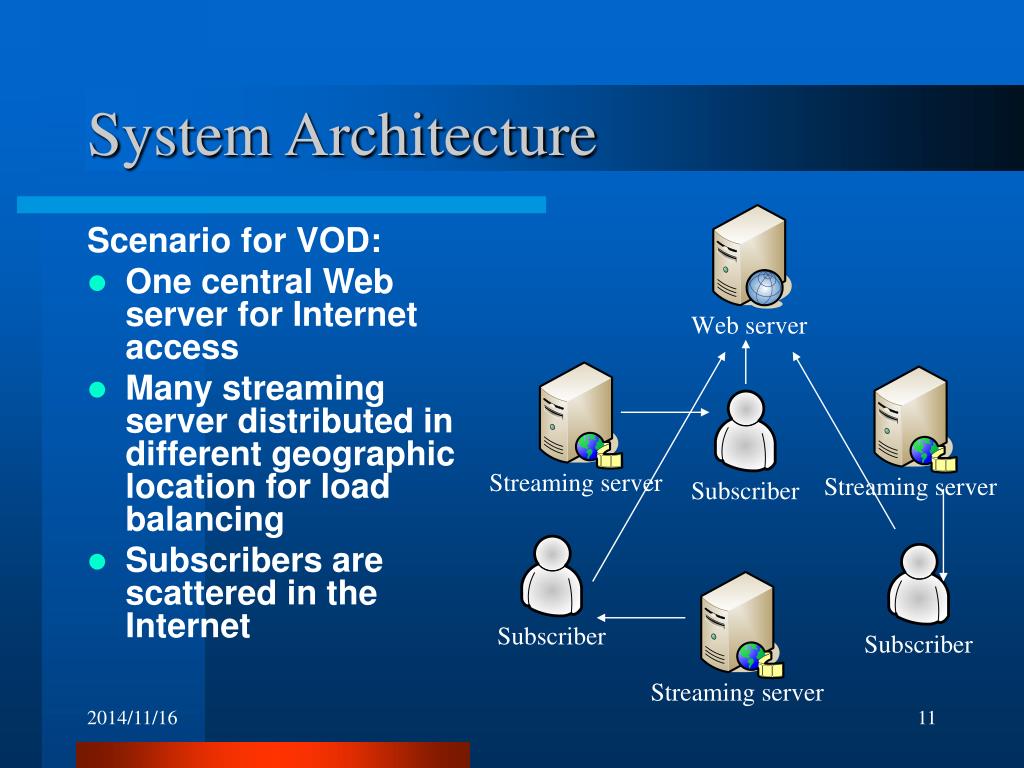

System Architecture

Scenario for VOD:

  • One central Web server for Internet access
  • Many streaming server distributed in different geographic location for load balancing
  • Subscribers are scattered in the Internet
system architecture3
System Architecture

Scenario for Real-time broadcast:

  • Use Audio/Video capture device such as Web Cam or TV turner card
  • Web Cam or TV turner card can directly connected to streaming server
system architecture4
System Architecture

Scenario for Mobile user:

  • Remote Web server for Mobile device
  • Consume catalogue from VMC through Web service API
  • Choice best streaming server to delivery content by Remote Web server
system architecture5

Web Service API

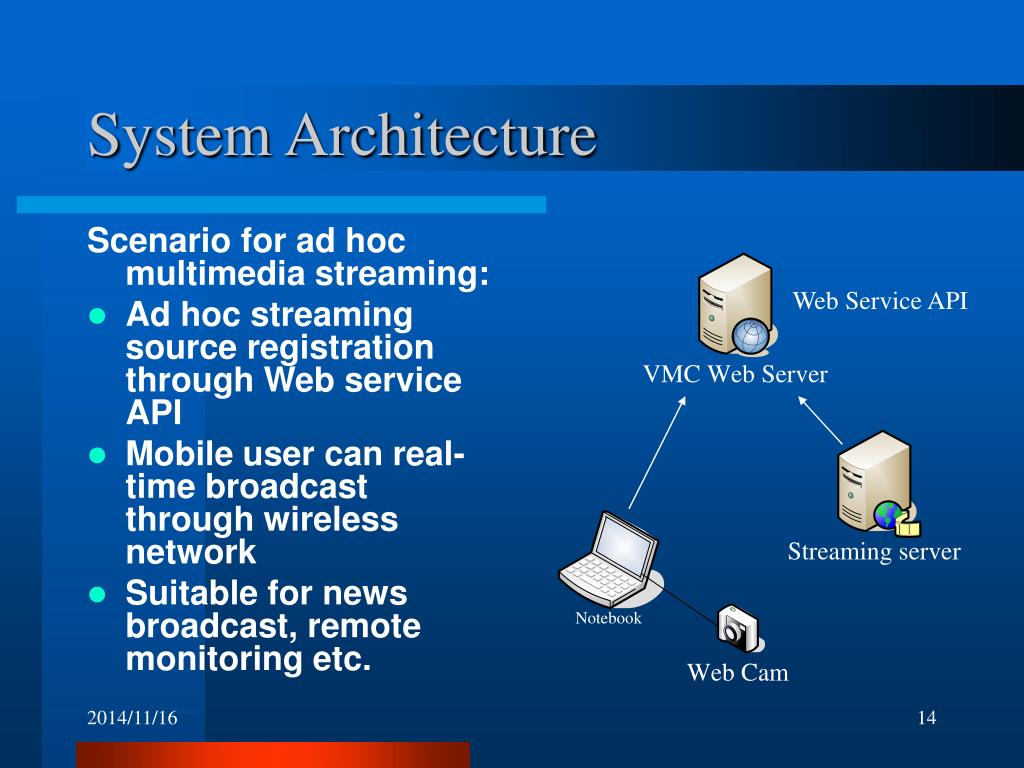

System Architecture

Scenario for ad hoc multimedia streaming:

  • Ad hoc streaming source registration through Web service API
  • Mobile user can real-time broadcast through wireless network
  • Suitable for news broadcast, remote monitoring etc.
system architecture6
System Architecture

Scenario for local and remote servers:

  • CORBA within firewall
  • Web service outside firewall
  • For distributed streaming servers
  • For independent content providers to contribute their own streaming servers

CORBA

Web Service

system architecture7

RTT Function Call

RTT Function Call

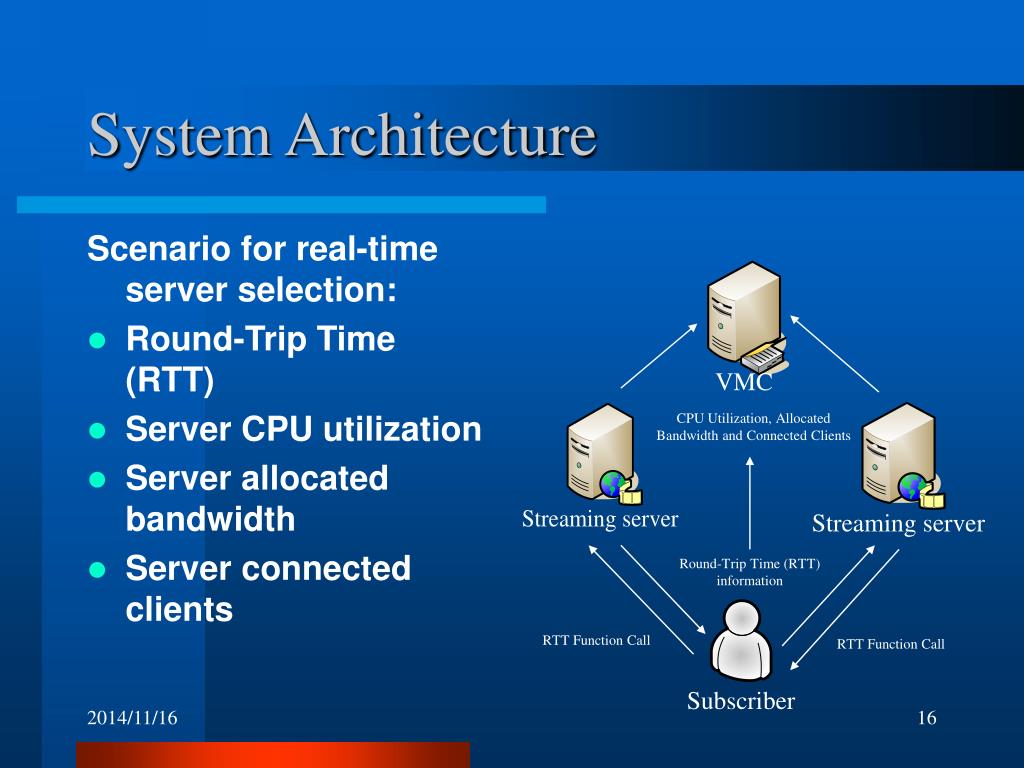

System Architecture

Scenario for real-time server selection:

  • Round-Trip Time (RTT)
  • Server CPU utilization
  • Server allocated bandwidth
  • Server connected clients

CPU Utilization, Allocated Bandwidth and Connected Clients

Round-Trip Time (RTT) information

system architecture8

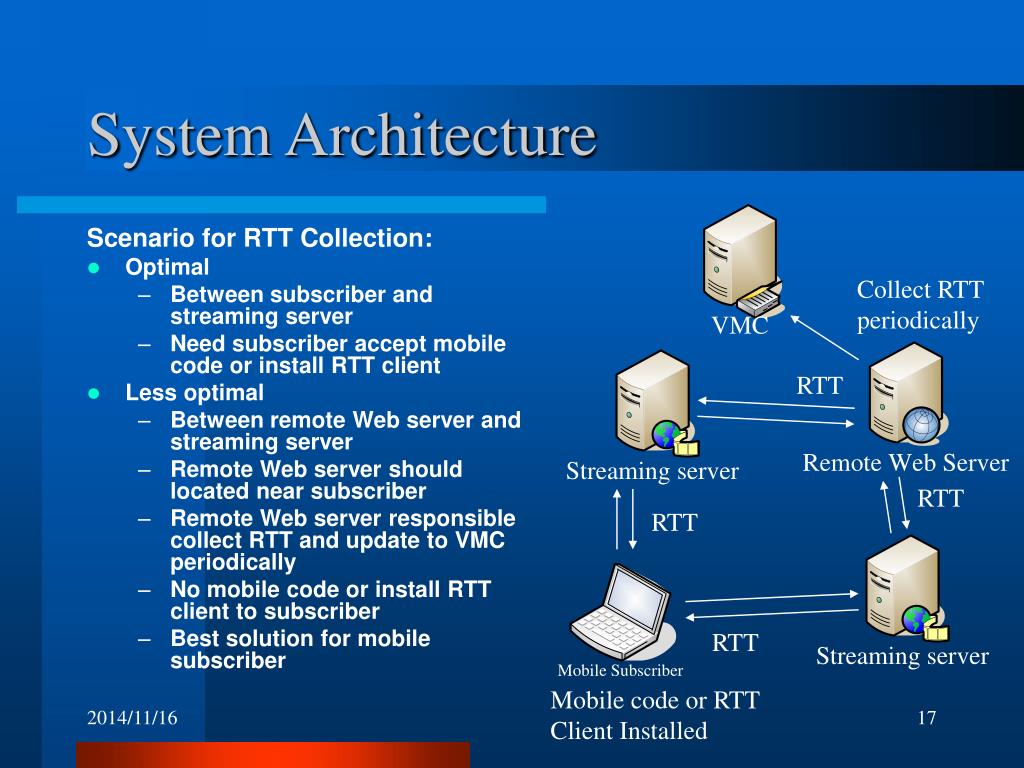

System Architecture

Scenario for RTT Collection:

  • Optimal
    • Between subscriber and streaming server
    • Need subscriber accept mobile code or install RTT client
  • Less optimal
    • Between remote Web server and streaming server
    • Remote Web server should located near subscriber
    • Remote Web server responsible collect RTT and update to VMC periodically
    • No mobile code or install RTT client to subscriber
    • Best solution for mobile subscriber

Collect RTT periodically

RTT

RTT

RTT

RTT

Mobile code or RTT Client Installed

system architecture9

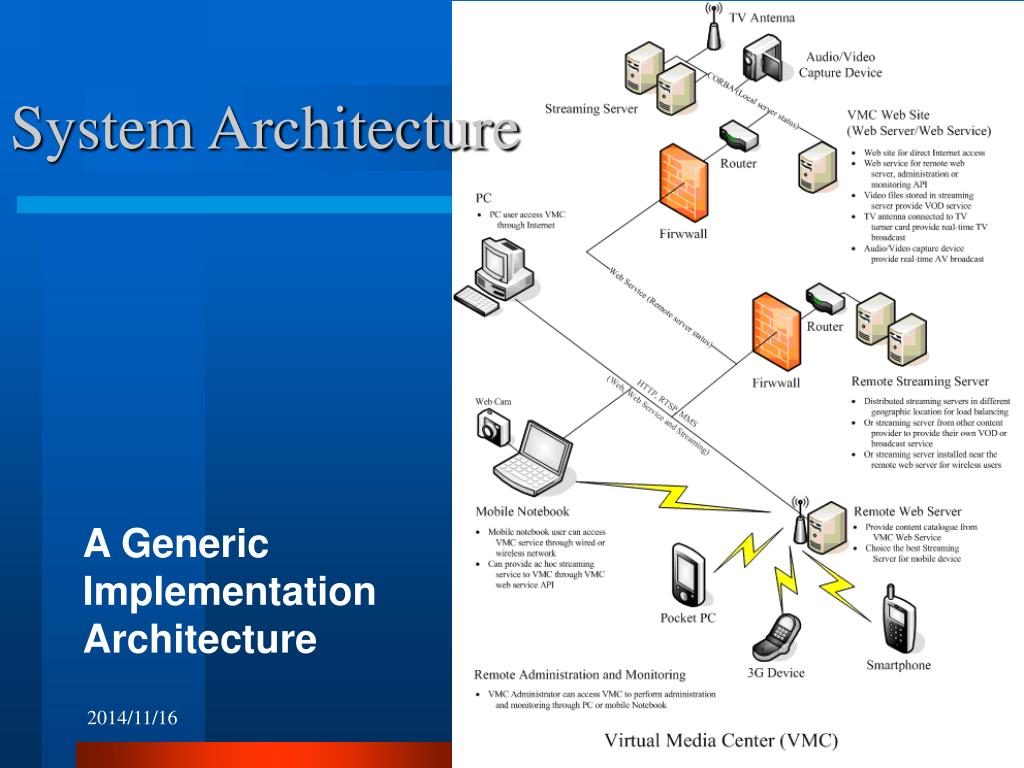

System Architecture

A Generic Implementation Architecture

system architecture10

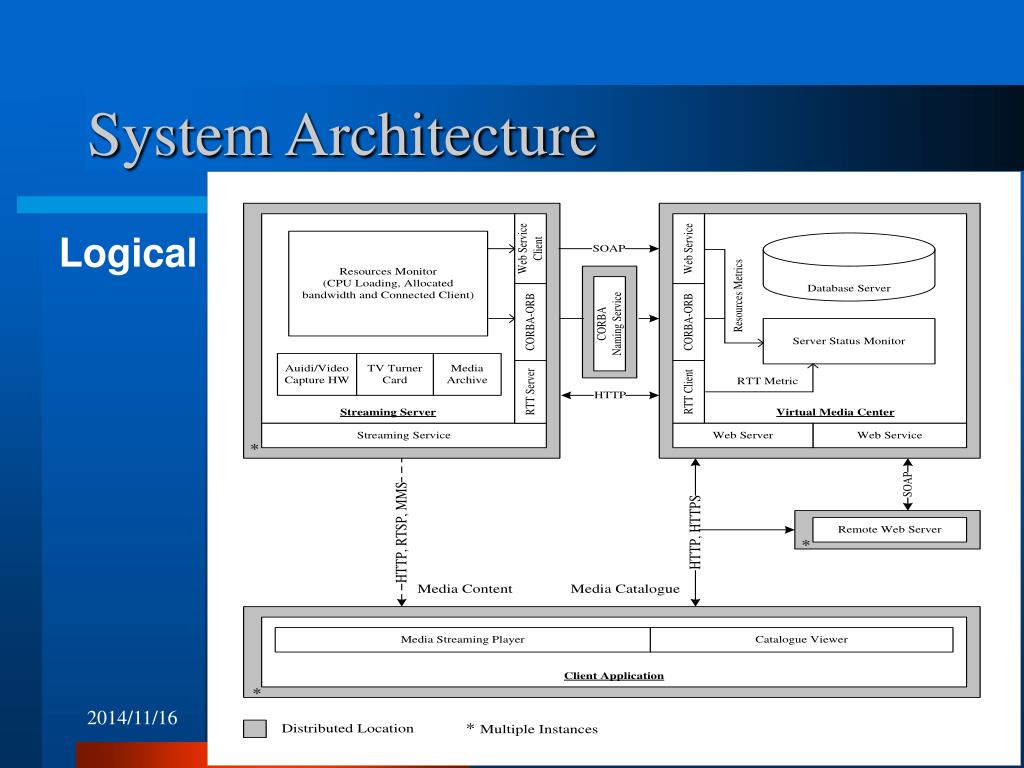

System Architecture

Logical Components

implementation details

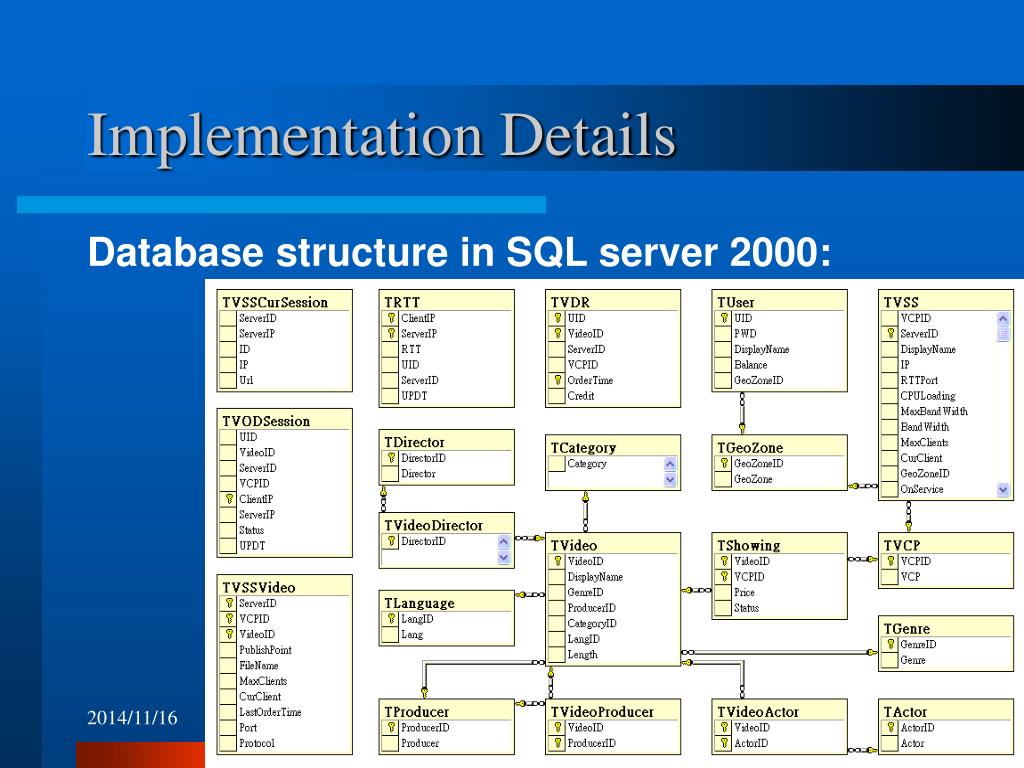

Implementation Details

Database structure in SQL server 2000:

implementation details1

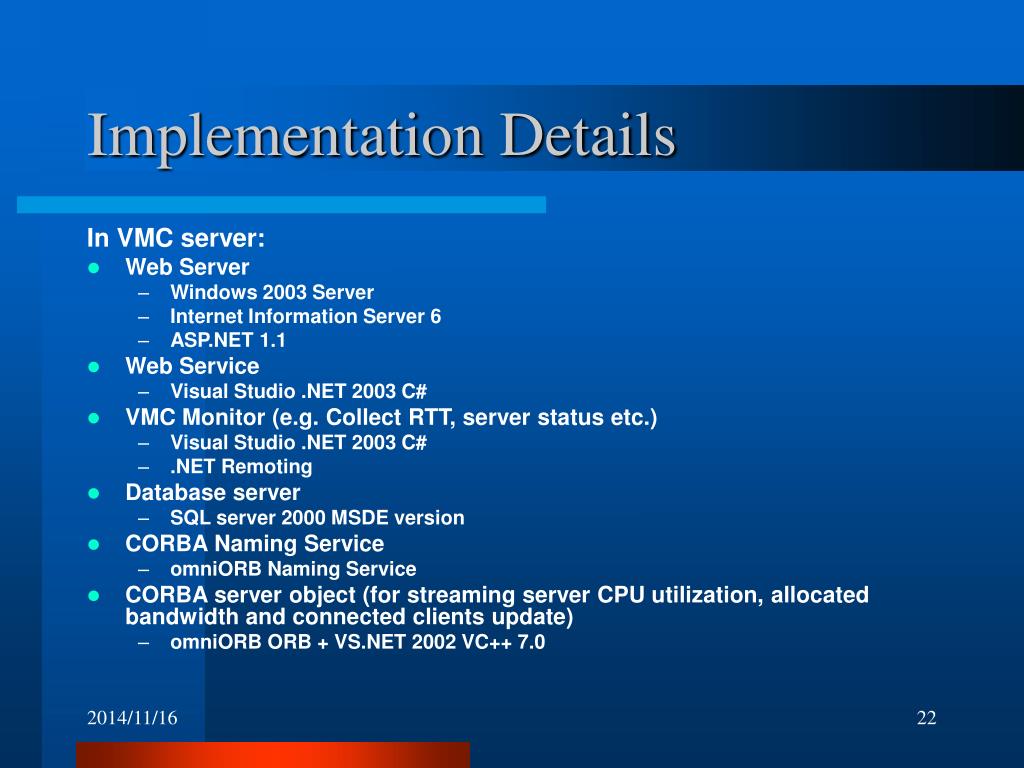

Implementation Details

In VMC server:

  • Web Server
    • Windows 2003 Server
    • Internet Information Server 6
    • ASP.NET 1.1
  • Web Service
    • Visual Studio .NET 2003 C#
  • VMC Monitor (e.g. Collect RTT, server status etc.)
    • Visual Studio .NET 2003 C#
    • .NET Remoting
  • Database server
    • SQL server 2000 MSDE version
  • CORBA Naming Service
    • omniORB Naming Service
  • CORBA server object (for streaming server CPU utilization, allocated bandwidth and connected clients update)
    • omniORB ORB + VS.NET 2002 VC++ 7.0
implementation details2

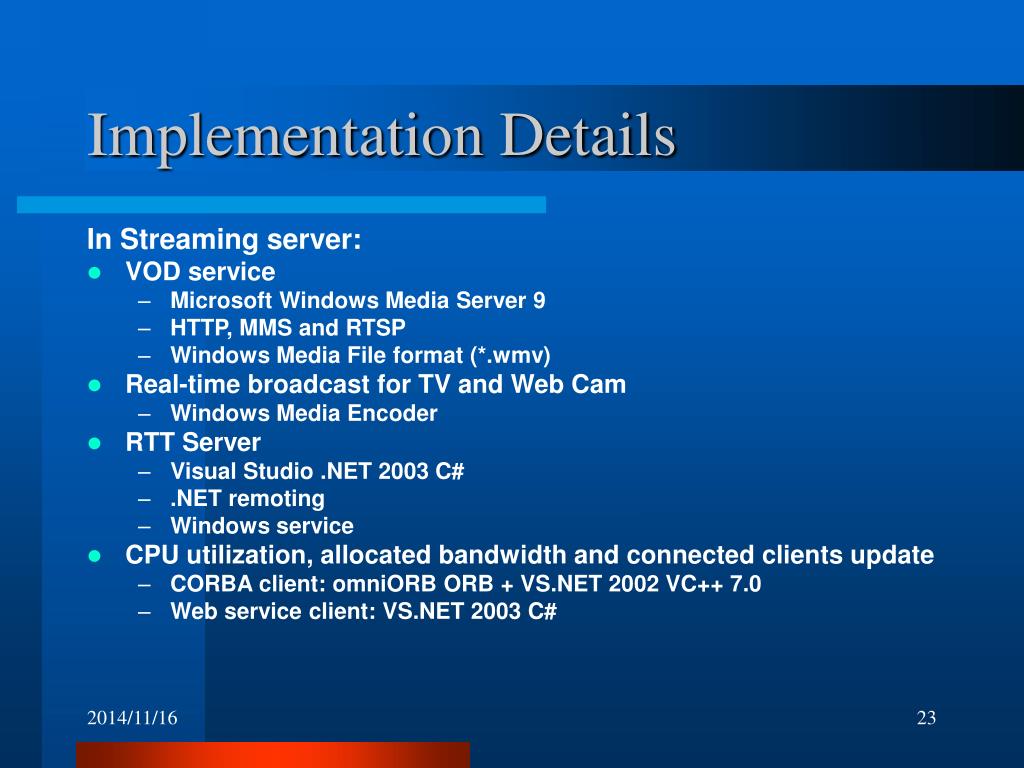

Implementation Details

In Streaming server:

  • VOD service
    • Microsoft Windows Media Server 9
    • HTTP, MMS and RTSP
    • Windows Media File format (*.wmv)
  • Real-time broadcast for TV and Web Cam
    • Windows Media Encoder
  • RTT Server
    • Visual Studio .NET 2003 C#
    • .NET remoting
    • Windows service
  • CPU utilization, allocated bandwidth and connected clients update
    • CORBA client: omniORB ORB + VS.NET 2002 VC++ 7.0
    • Web service client: VS.NET 2003 C#
implementation details3

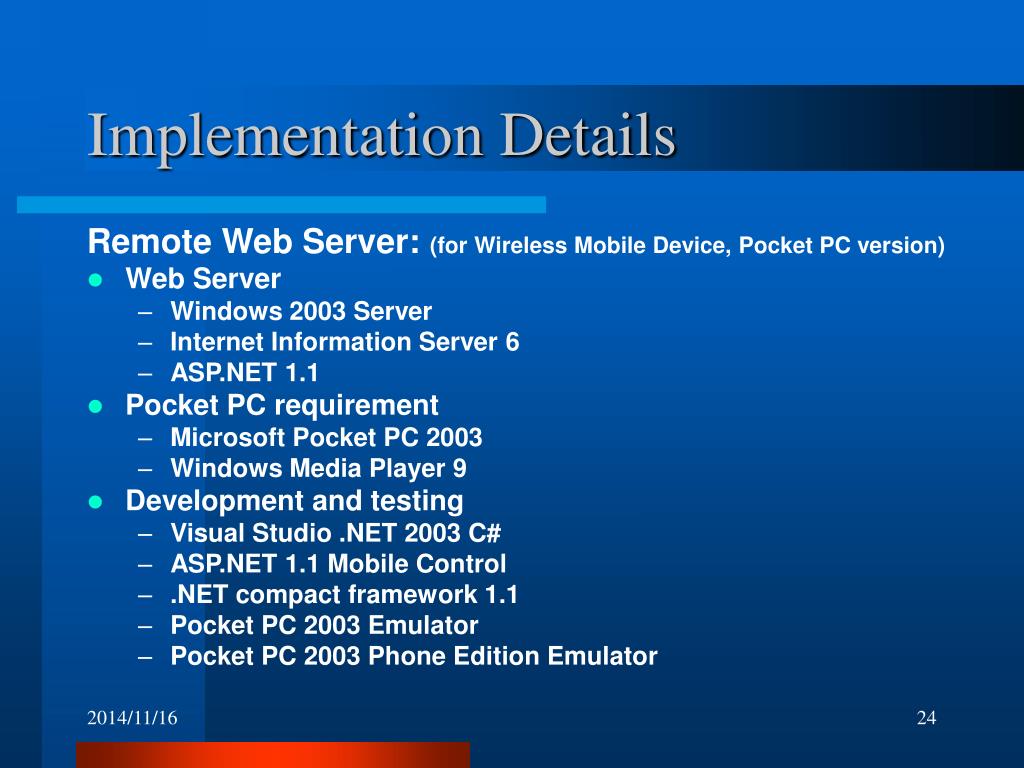

Implementation Details

Remote Web Server: (for Wireless Mobile Device, Pocket PC version)

  • Web Server
    • Windows 2003 Server
    • Internet Information Server 6
    • ASP.NET 1.1
  • Pocket PC requirement
    • Microsoft Pocket PC 2003
    • Windows Media Player 9
  • Development and testing
    • Visual Studio .NET 2003 C#
    • ASP.NET 1.1 Mobile Control
    • .NET compact framework 1.1
    • Pocket PC 2003 Emulator
    • Pocket PC 2003 Phone Edition Emulator
implementation details4
Implementation Details

Programs in VMC server:

  • omniNames
  • VMC_impl
  • VMCMonitor
implementation details5

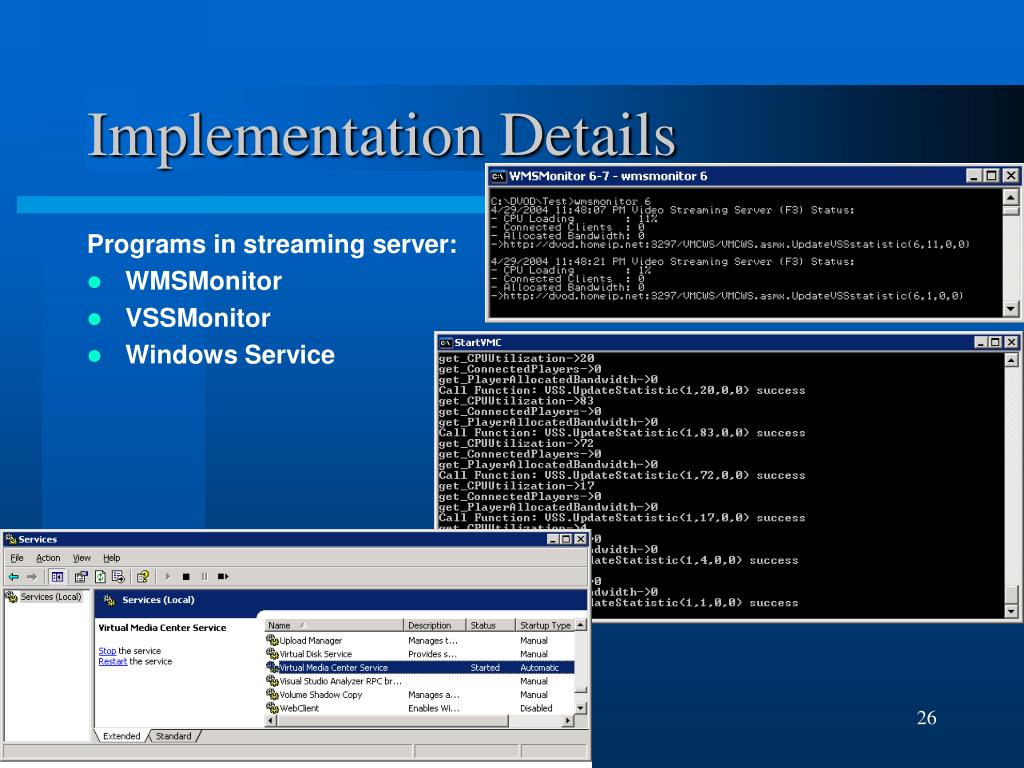

Implementation Details

Programs in streaming server:

  • WMSMonitor
  • VSSMonitor
  • Windows Service
implementation details6
Implementation Details

System Monitoring Tool:

  • S (s.exe)

Syntax:

s <serverid> [<serverip>]

e.g. s 0

(0 means display the run-time information for all servers)

implementation details7

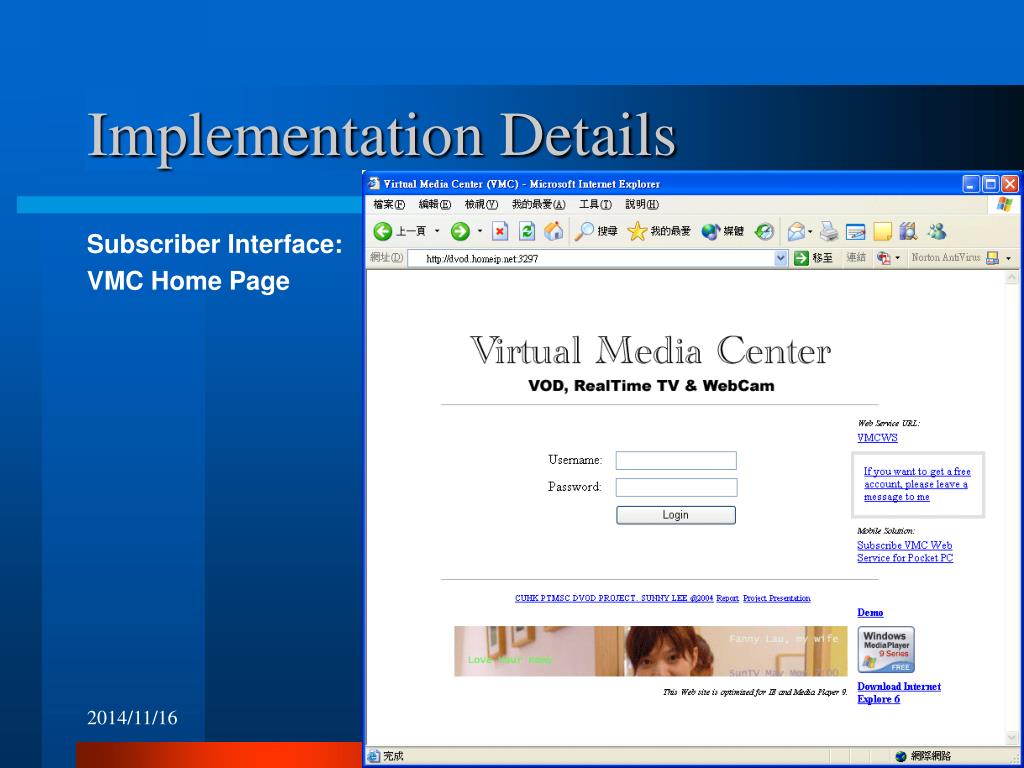

Implementation Details

Subscriber Interface:

VMC Home Page

implementation details8
Implementation Details

Subscriber Interface:

Catalogue Page

implementation details9
Implementation Details

Subscriber Interface:

Catalogue Page -

Filter Functions

implementation details10

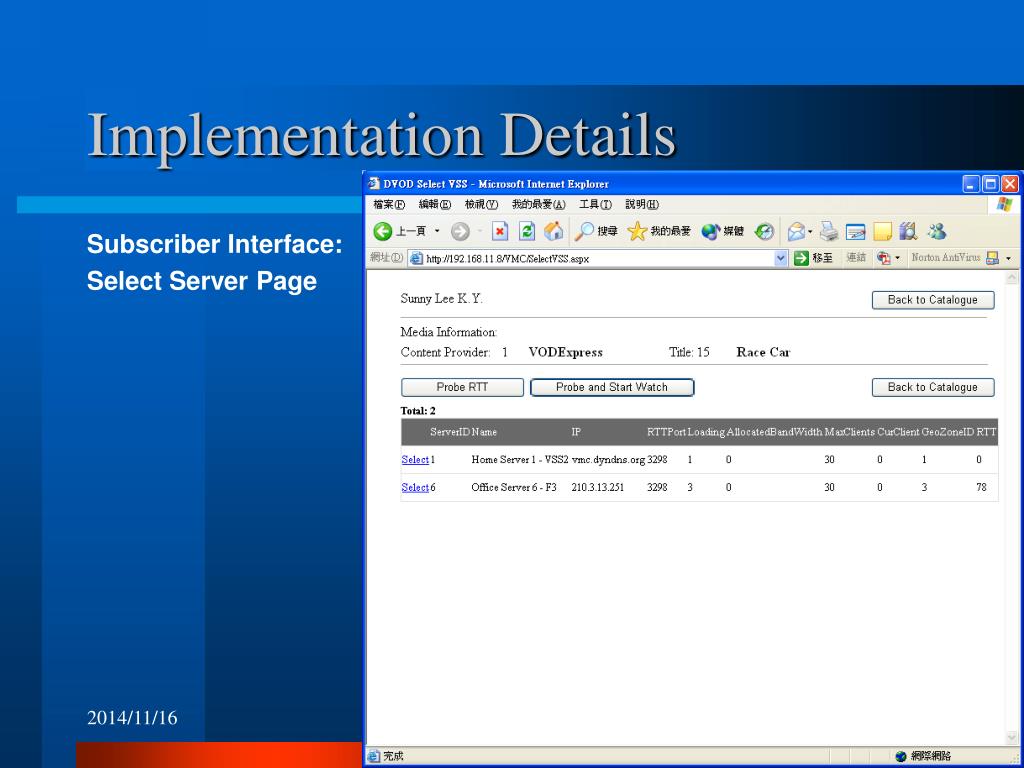

Implementation Details

Subscriber Interface:

Select Server Page

implementation details11

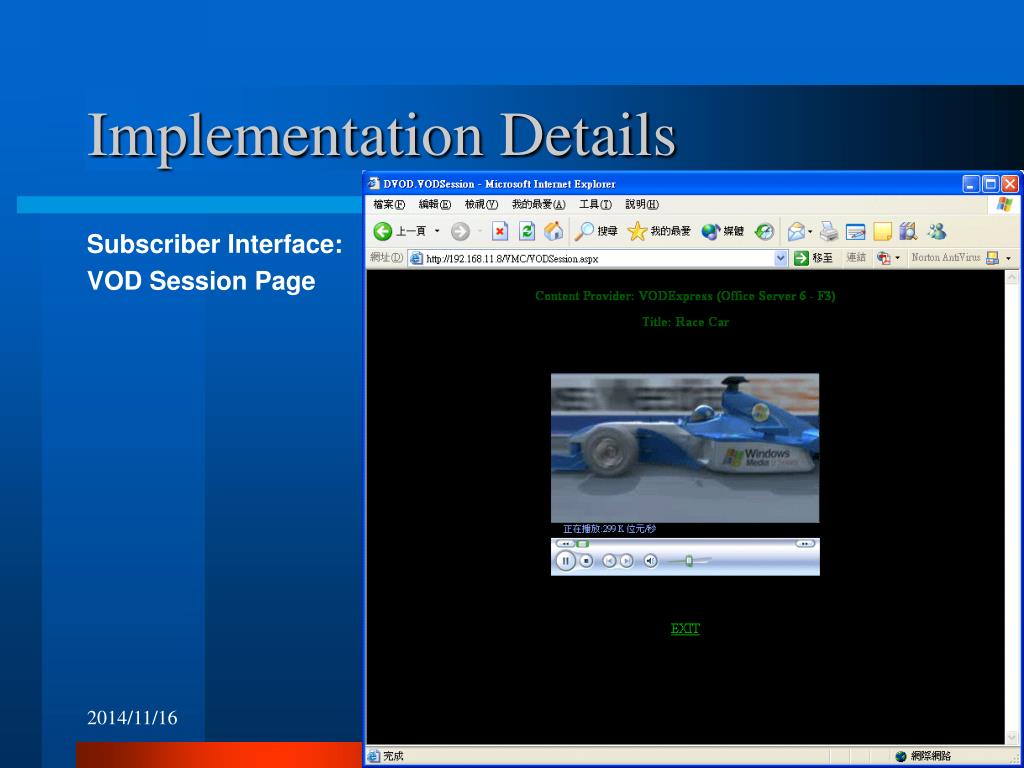

Implementation Details

Subscriber Interface:

VOD Session Page

advantage and disadvantage
Advantage and Disadvantage
  • Advantage
    • CORBA and Web Service are well defined standard
    • Independent to individual streaming technologies
    • Web Interface for multiple devices: PC, mobile notebook, Pocket, Palm, 3G phone or Smart phone etc.
    • Real-time server selection
    • RTT independent to any underlying network path selection algorithm and easy to implement
  • Disadvantage
    • Subscriber must installed a build in streaming player in Web browser to decode the target streaming
    • Remote Web server must located nearest to subscriber to obtain the best RTT estimation for subscriber
    • Streaming quality and concurrent connections are still limited to underlying bandwidth, compression technology and network equipment
future works and enhancements

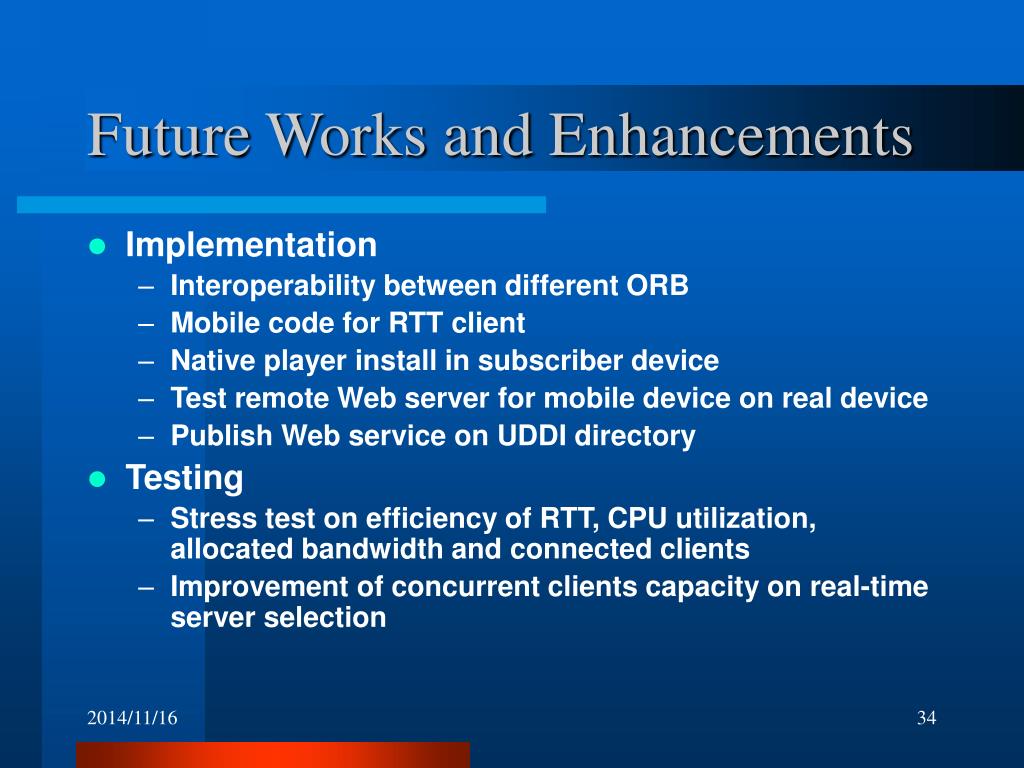

Future Works and Enhancements
  • Implementation
    • Interoperability between different ORB
    • Mobile code for RTT client
    • Native player install in subscriber device
    • Test remote Web server for mobile device on real device
    • Publish Web service on UDDI directory
  • Testing
    • Stress test on efficiency of RTT, CPU utilization, allocated bandwidth and connected clients
    • Improvement of concurrent clients capacity on real-time server selection
