  1. An elusive expansion at the FRDA locus Claire Healey, Andrew Purvis,Mohammed Kiron Kibria, Kara Gaffing, Fiona Coyne & Roger Mountford Cheshire and Merseyside Regional Molecular Genetics Laboratory, Liverpool Women’s Hospital

  2. Presentation Overview • Introduction: • Friedreich ataxia: • Clinical symptoms; • Molecular pathology • Case 1: • Diagnostic referral; • CAG repeat expansion testing; • Unusual TP-PCR result • Case 2: • Diagnostic referral; • Premutation plus GAA repeat expansion within the disease-causing size range • Case 3: • Carrier testing; • GAA repeat expansion undetected using standard analysis

  3. Friedreich Ataxia (FRDA) • Autosomal recessive neurodegenerative disorder; • Affects the spinal column and cerebellum; • Slowly progressive ataxia of the gait & limbs; • Onset: 10 – 15 years of age • Associated with: • Muscle weakness; • Spasticity in the lower limbs; • Absent lower limb reflexes; • Dysarthria; • Scoliosis; • Pes cavus; • Bladder dysfunction; • Loss of position and vibration sense

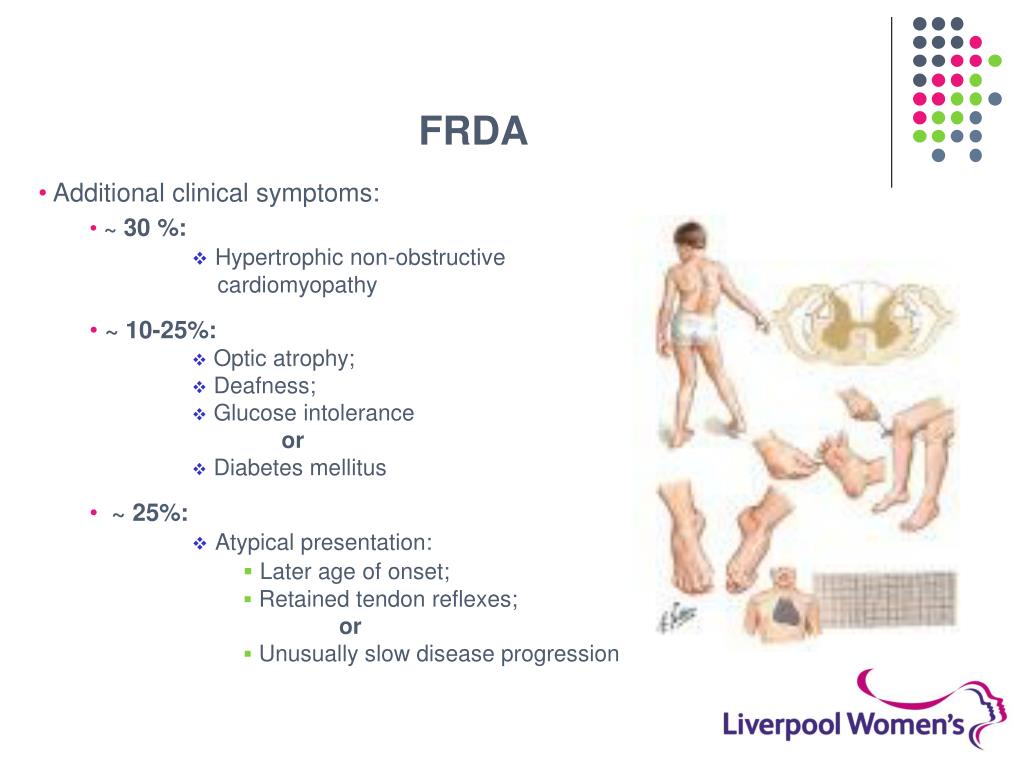

  4. FRDA • Additional clinical symptoms: • ~ 30 %: • Hypertrophic non-obstructive cardiomyopathy • ~ 10-25%: • Optic atrophy; • Deafness; • Glucose intolerance or • Diabetes mellitus • ~ 25%: • Atypical presentation: • Later age of onset; • Retained tendon reflexes; or • Unusually slow disease progression

  5. 1 2 3 4 5a Genetics of FRDA • Incidence of 2-4 per 100,000 – Europe, N. Africa, Middle East & S. Asia • Carrier frequency of ~ 1:100 • FRDA gene (Frataxin or X25) indentified in 1996: • Expansion of GAA triplet repeat within intron 1 = 98% mutations  aaaaaaaaaaaaaaagaagaagaagaagaagaagaaaataaaga • Normal alleles: 5-33 GAA repeats; • Alleles > 27 repeats rare; • Premutation alleles: 34-65 GAA repeats; • Expanded alleles: > 66 GAA repeats • Some alleles have interrupted sequences: GAAGGA or GAGGAA

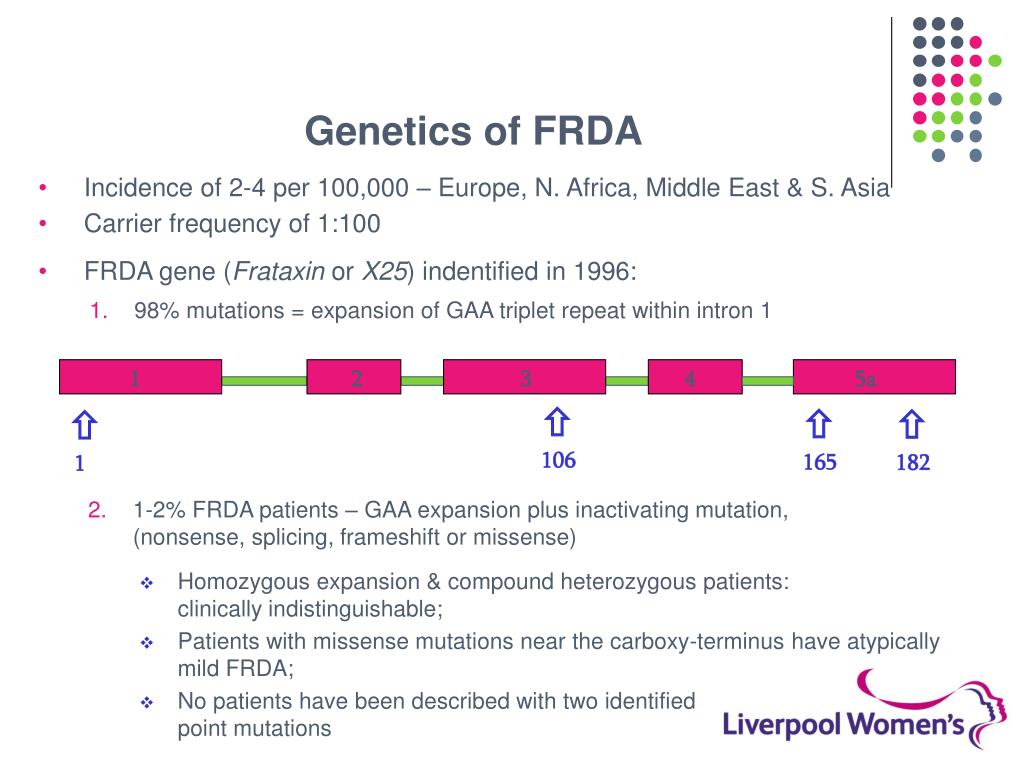

  6. Genetics of FRDA • Incidence of 2-4 per 100,000 – Europe, N. Africa, Middle East & S. Asia • Carrier frequency of 1:100 • FRDA gene (Frataxin or X25) indentified in 1996: • 98% mutations =expansion of GAA triplet repeat within intron 1 1 2 3 4 5a  106  165  182  1 • 1-2% FRDA patients – GAA expansion plus inactivating mutation, (nonsense, splicing, frameshift or missense) • Homozygous expansion & compound heterozygous patients: clinically indistinguishable; • Patients with missense mutations near the carboxy-terminus have atypically mild FRDA; • No patients have been described with two identified point mutations

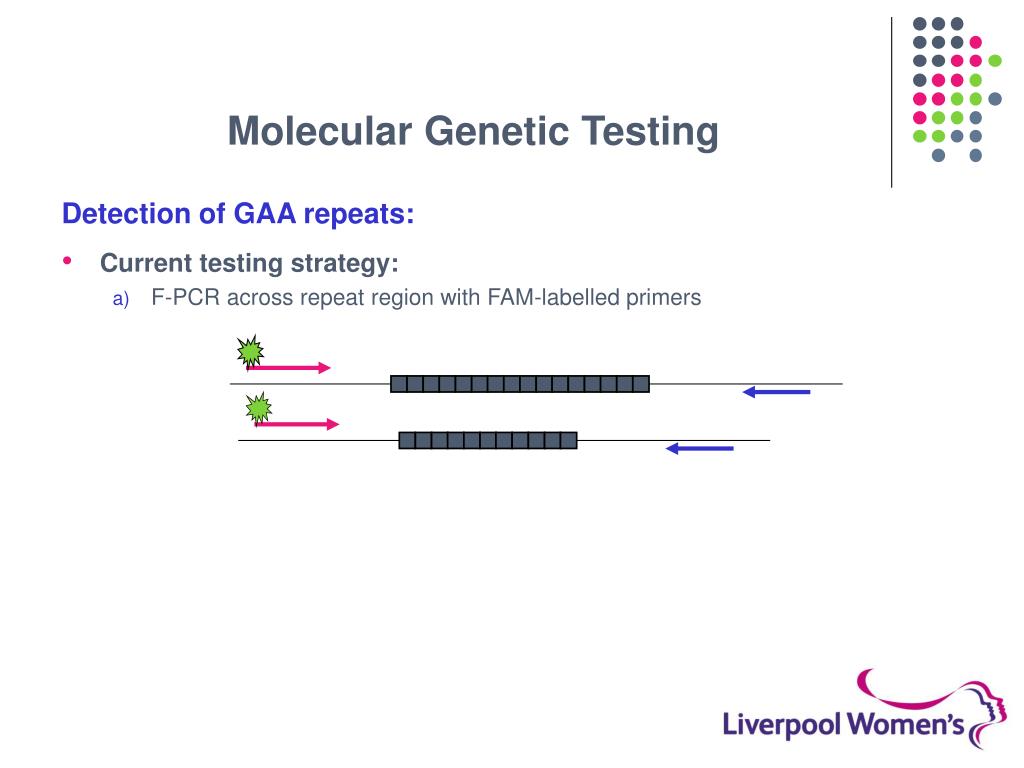

  7. Molecular Genetic Testing Detection of GAA repeats: • Current testing strategy: • F-PCR across repeat region with FAM-labelled primers

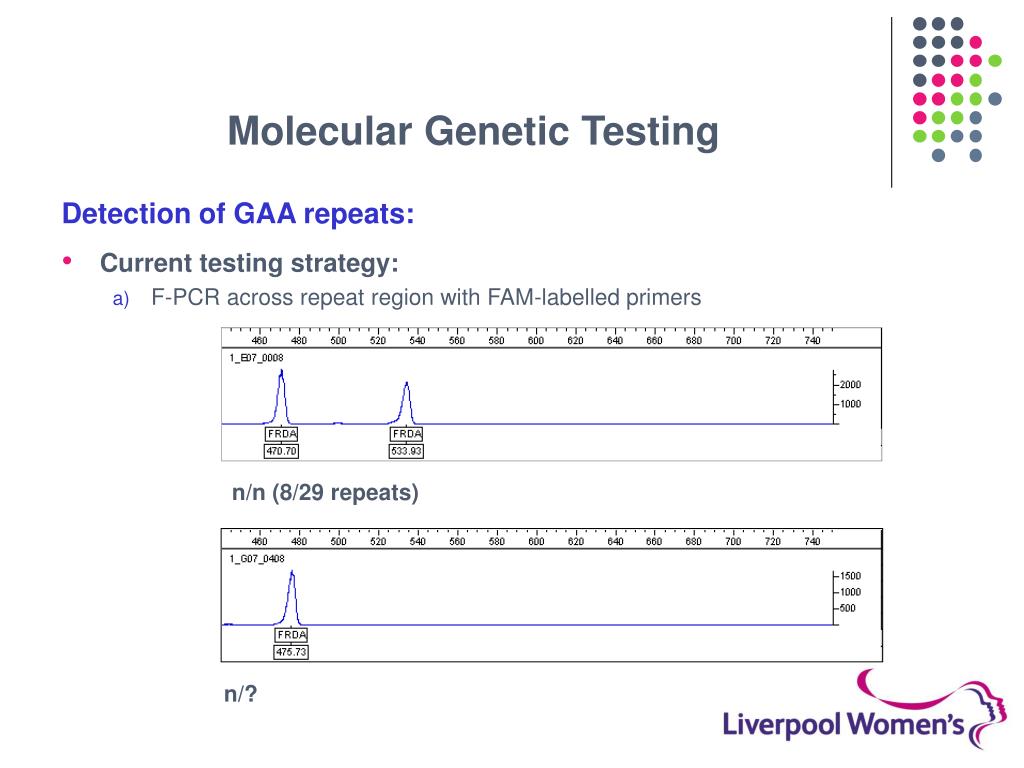

  8. Molecular Genetic Testing Detection of GAA repeats: • Current testing strategy: • F-PCR across repeat region with FAM-labelled primers n/n (8/29 repeats) n/?

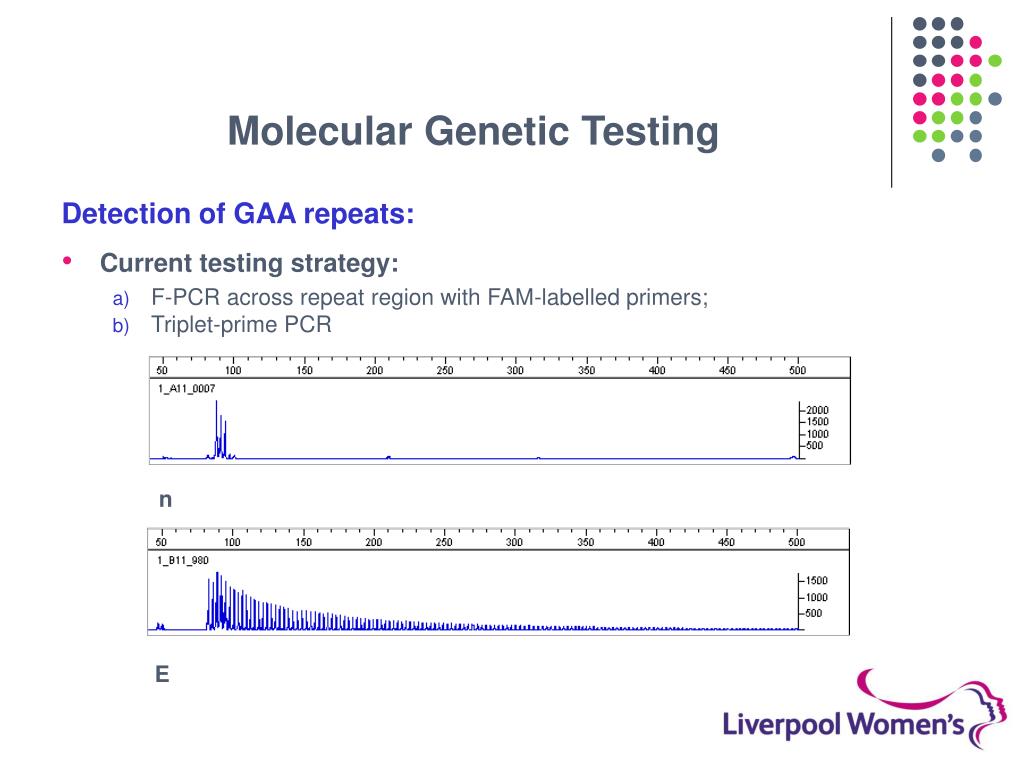

  9. Molecular Genetic Testing Detection of GAA repeats: • Current testing strategy: • F-PCR across repeat region with FAM-labelled primers; • Triplet-prime PCR n E

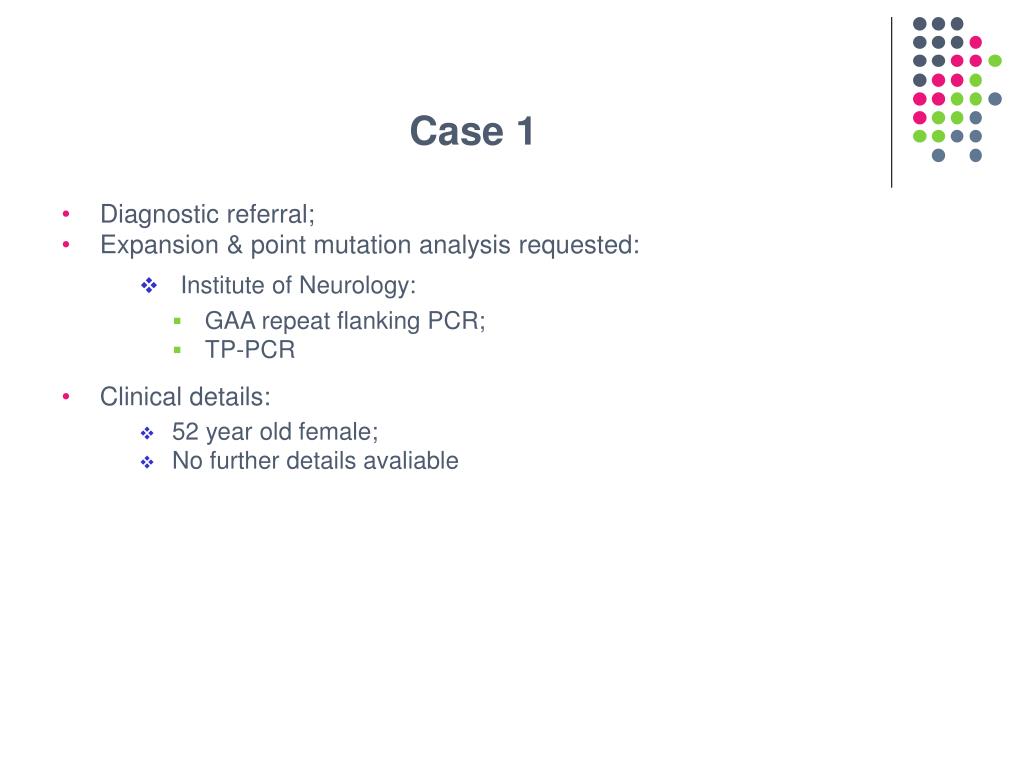

  10. Case 1 • Diagnostic referral; • Expansion & point mutation analysis requested: • Institute of Neurology: • GAA repeat flanking PCR; • TP-PCR • Clinical details: • 52 year old female; • No further details avaliable

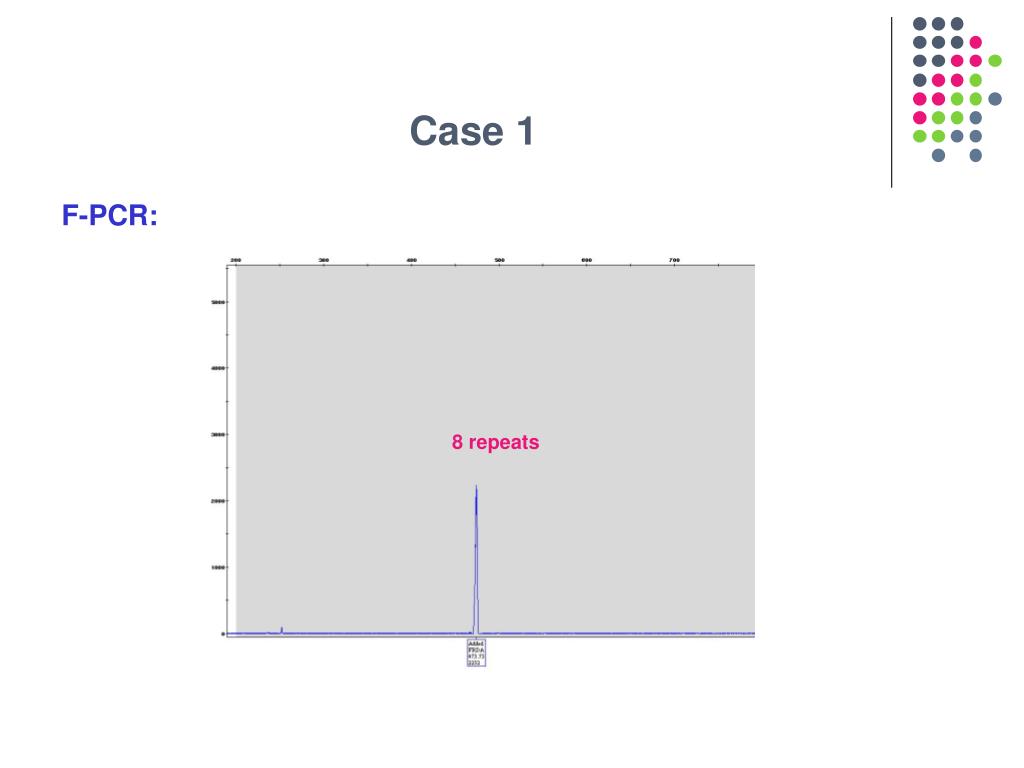

  11. Case 1 F-PCR: 8 repeats Patient 1. 31 rpt control 2. Expansion control 3. Hom & Het normal controls 4. & 5.

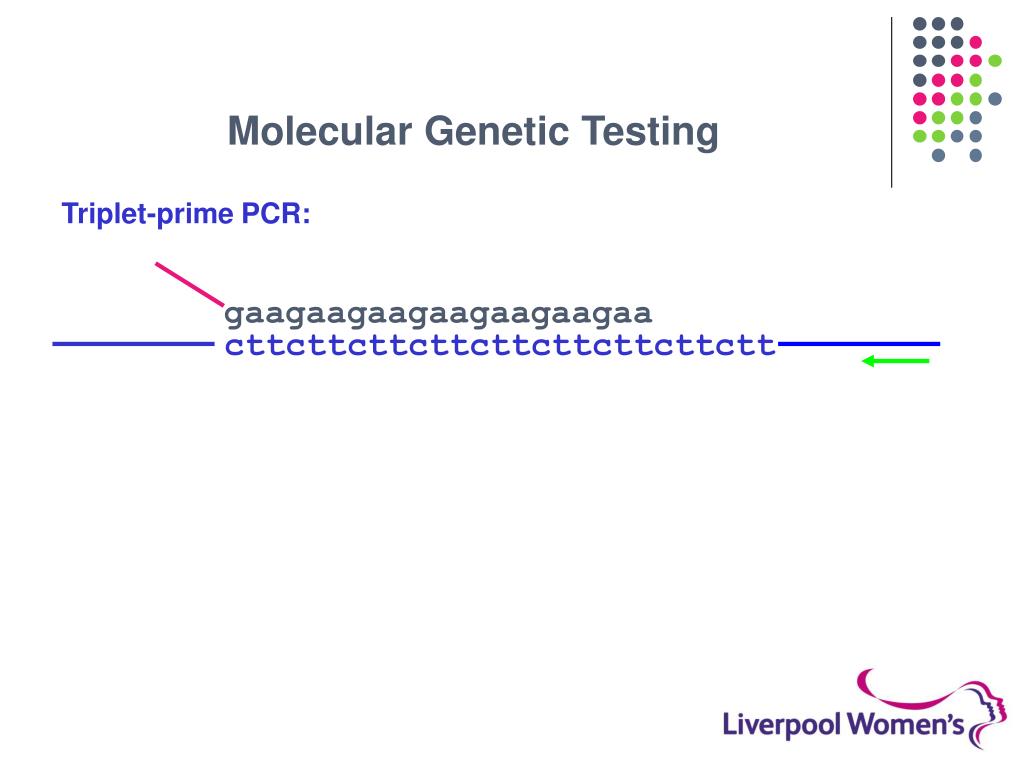

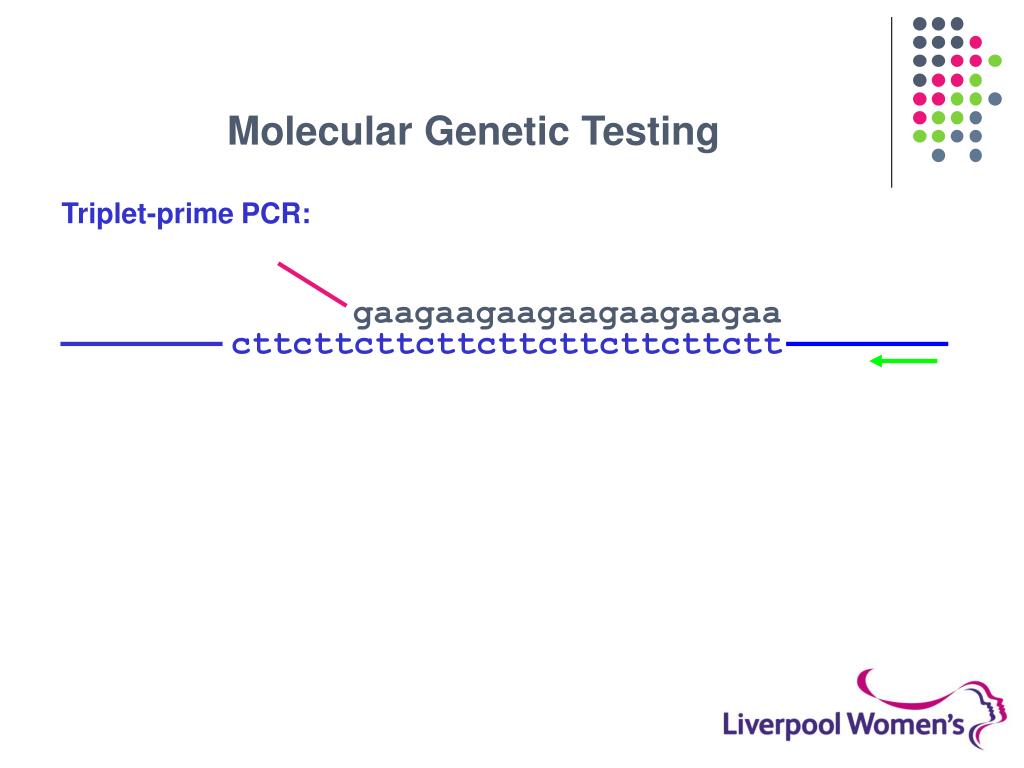

  12. Molecular Genetic Testing Triplet-prime PCR: gaagaagaagaagaagaagaa cttcttcttcttcttcttcttcttctt

  13. gaagaagaagaagaagaagaa cttcttcttcttcttcttcttcttctt Molecular Genetic Testing Triplet-prime PCR:

  14. Molecular Genetic Testing Triplet-prime PCR: gaagaagaagaagaagaagaa cttcttcttcttcttcttcttcttctt

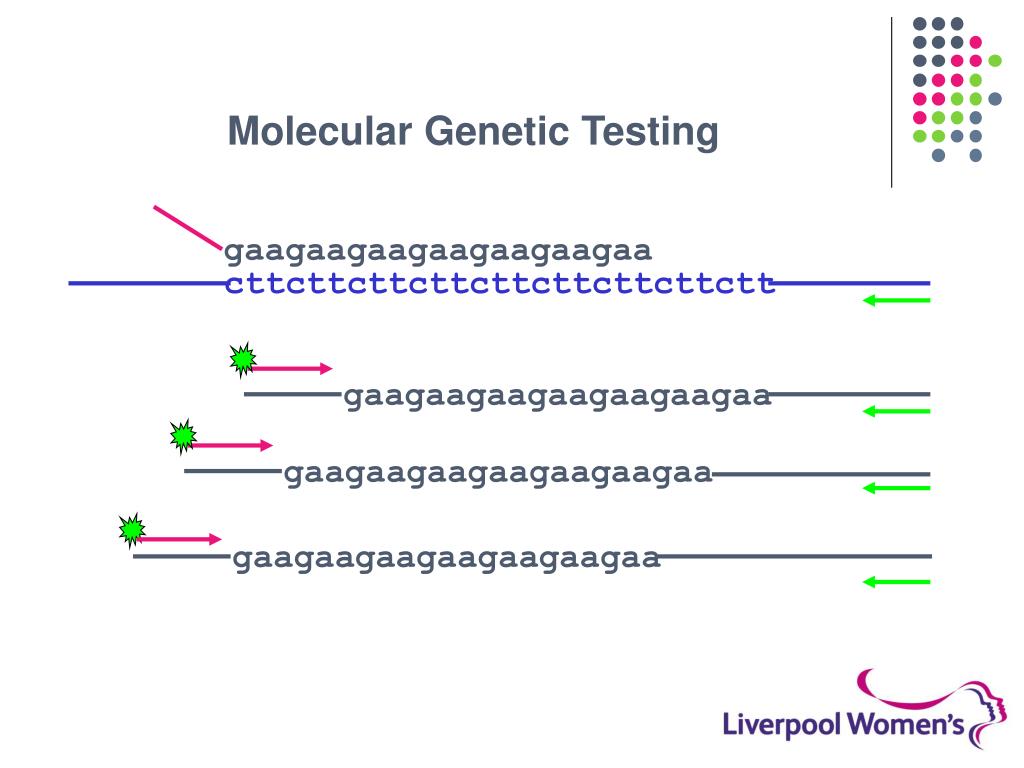

  15. gaagaagaagaagaagaagaa cttcttcttcttcttcttcttcttctt gaagaagaagaagaagaagaa gaagaagaagaagaagaagaa gaagaagaagaagaagaagaa Molecular Genetic Testing

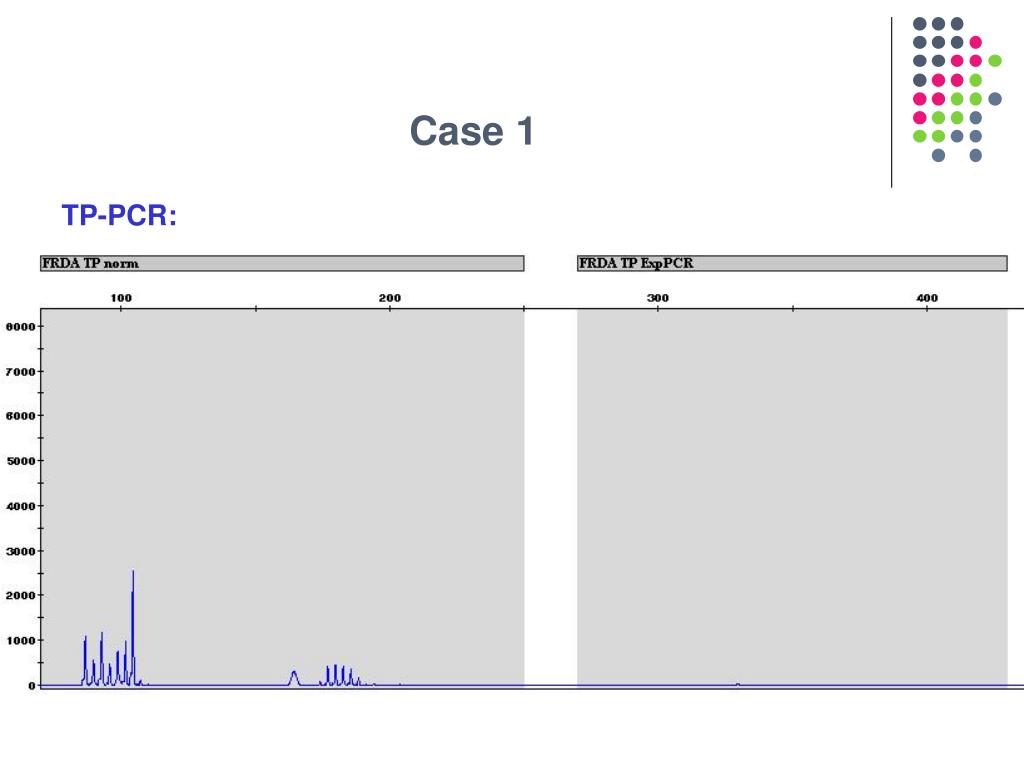

  16. Case 1 TP-PCR:

  17. Case 1 Modified TP-PCR: • Primers: • FATP-P3-F-FAM • FATP-P1-R • FATP-P4-F GAA Int + FATP-P4-F GAG Int

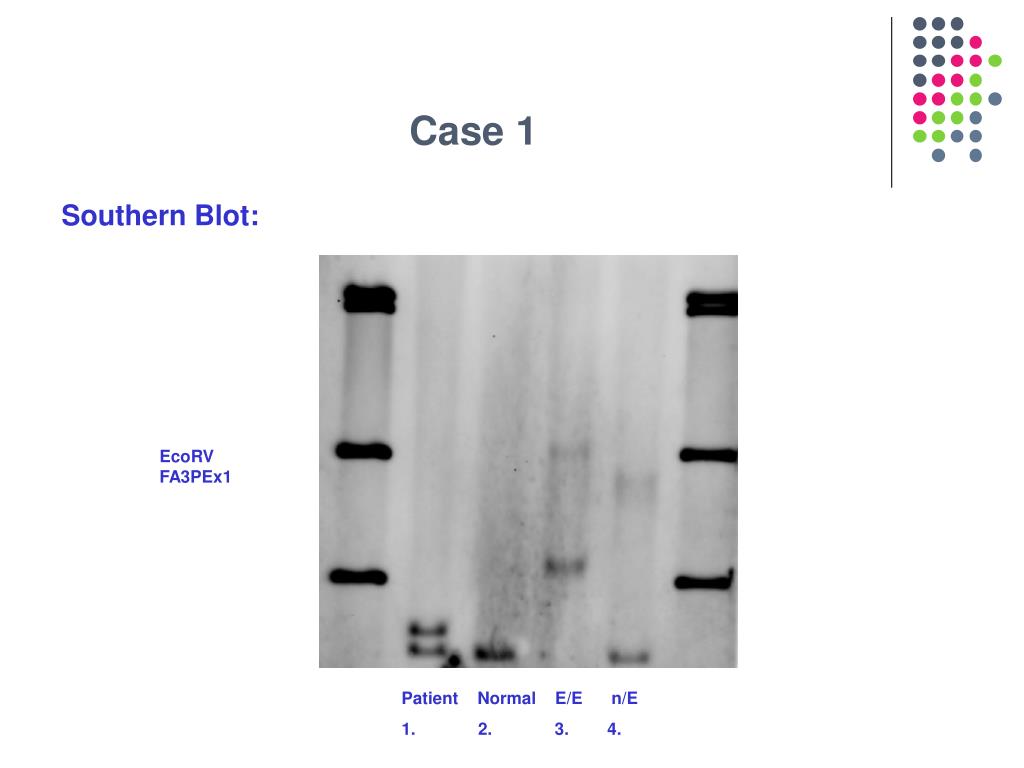

  18. Case 1 Southern Blot: EcoRV FA3PEx1 Patient Normal E/E n/E 1. 2. 3. 4.

  19. Case 1 ? Clinical Significance: • Long GAA repeats tracts form abnormal ‘sticky’ triplex DNA structures;

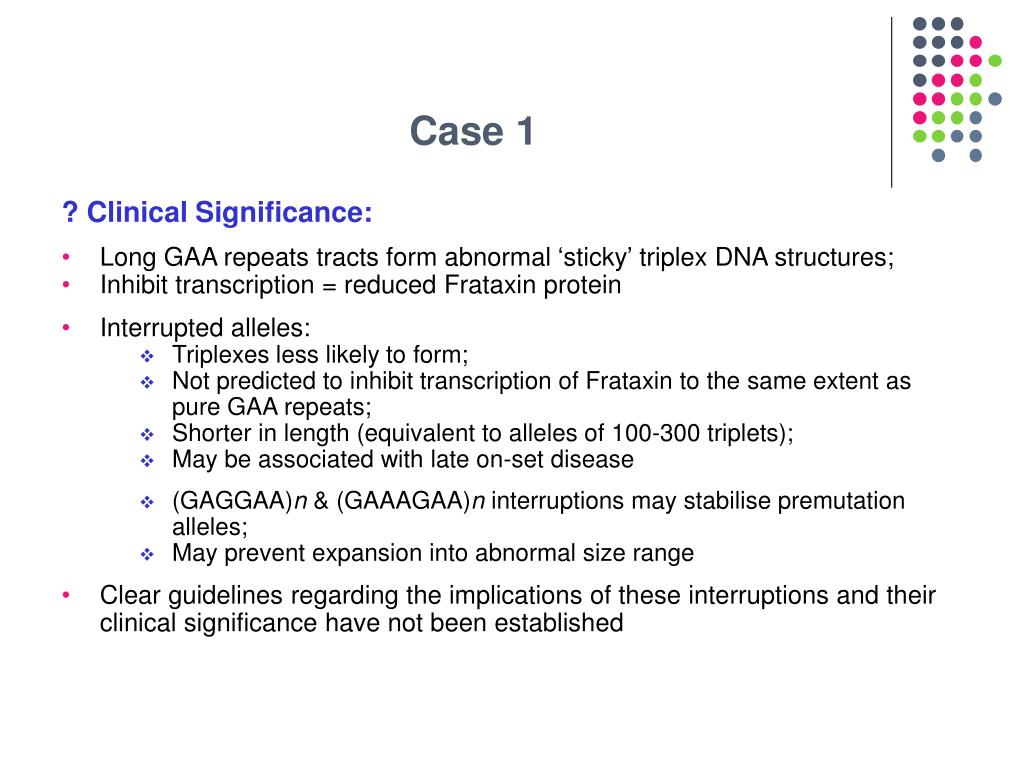

  20. Case 1 ? Clinical Significance: • Long GAA repeats tracts form abnormal ‘sticky’ triplex DNA structures; • Inhibit transcription = reduced Frataxin protein • Interrupted alleles: • Triplexes less likely to form; • Not predicted to inhibit transcription of Frataxin to the same extent as pure GAA repeats; • Shorter in length (equivalent to alleles of 100-300 triplets); • May be associated with late on-set disease • (GAGGAA)n & (GAAAGAA)n interruptions may stabilise premutation alleles; • May prevent expansion into abnormal size range • Clear guidelines regarding the implications of these interruptions and their clinical significance have not been established

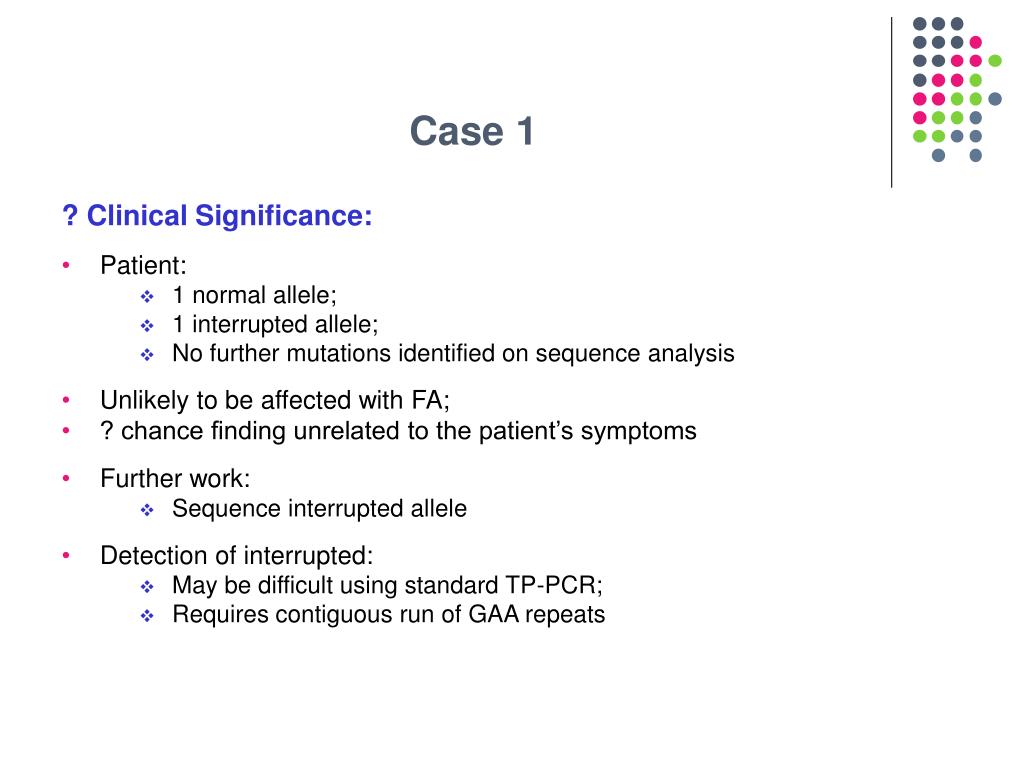

  21. Case 1 ? Clinical Significance: • Patient: • 1 normal allele; • 1 interrupted allele; • No further mutations identified on sequence analysis • Unlikely to be affected with FA; • ? chance finding unrelated to the patient’s symptoms • Further work: • Sequence interrupted allele • Detection of interrupted: • May be difficult using standard TP-PCR; • Requires contiguous run of GAA repeats

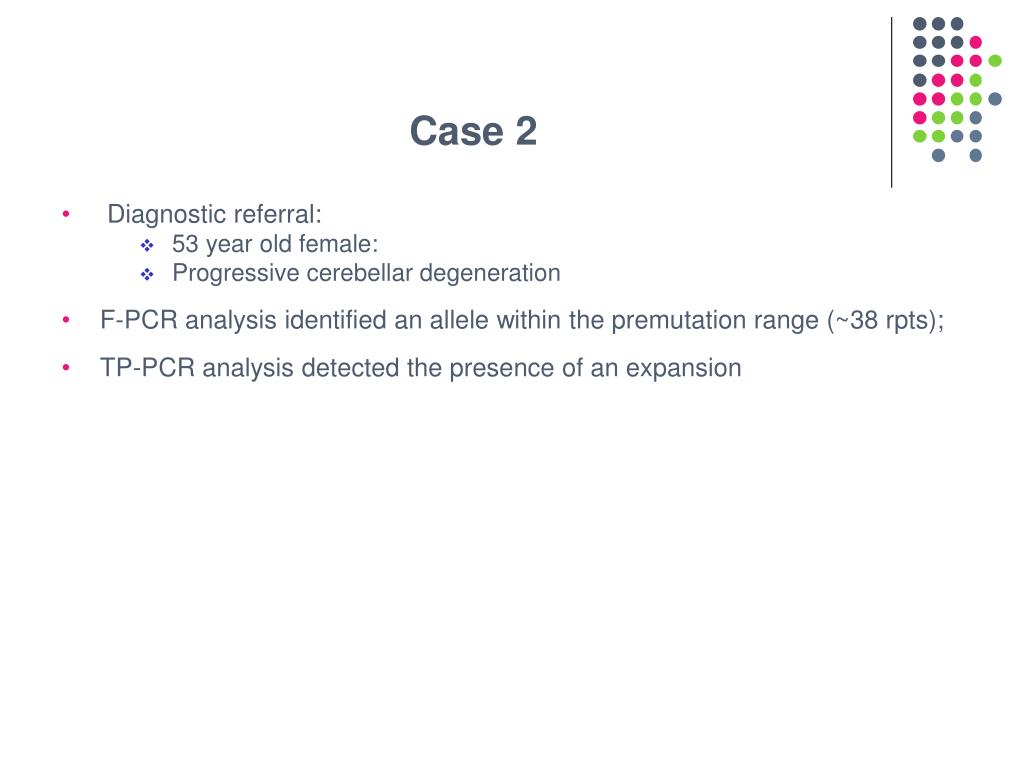

  22. Case 2 • Diagnostic referral: • 53 year old female: • Progressive cerebellar degeneration • F-PCR analysis identified an allele within the premutation range (~38 rpts); • TP-PCR analysis detected the presence of an expansion

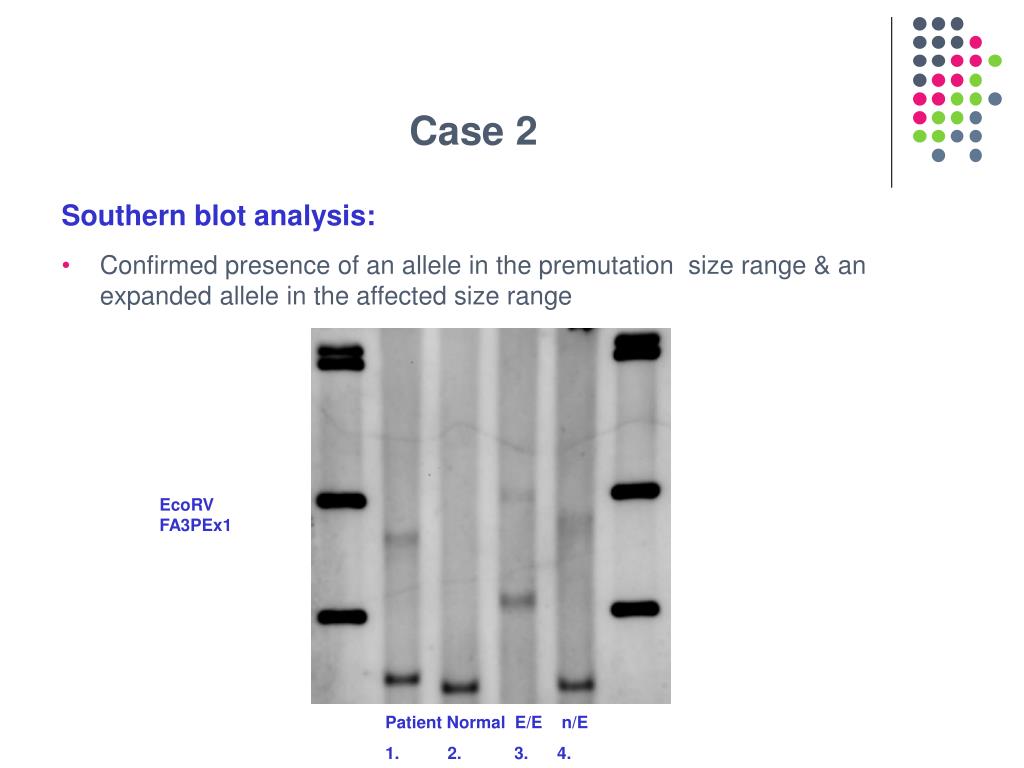

  23. Case 2 Southern blot analysis: • Confirmed presence of an allele in the premutation size range & an expanded allele in the affected size range EcoRV FA3PEx1 Patient Normal E/E n/E 1. 2. 3. 4.

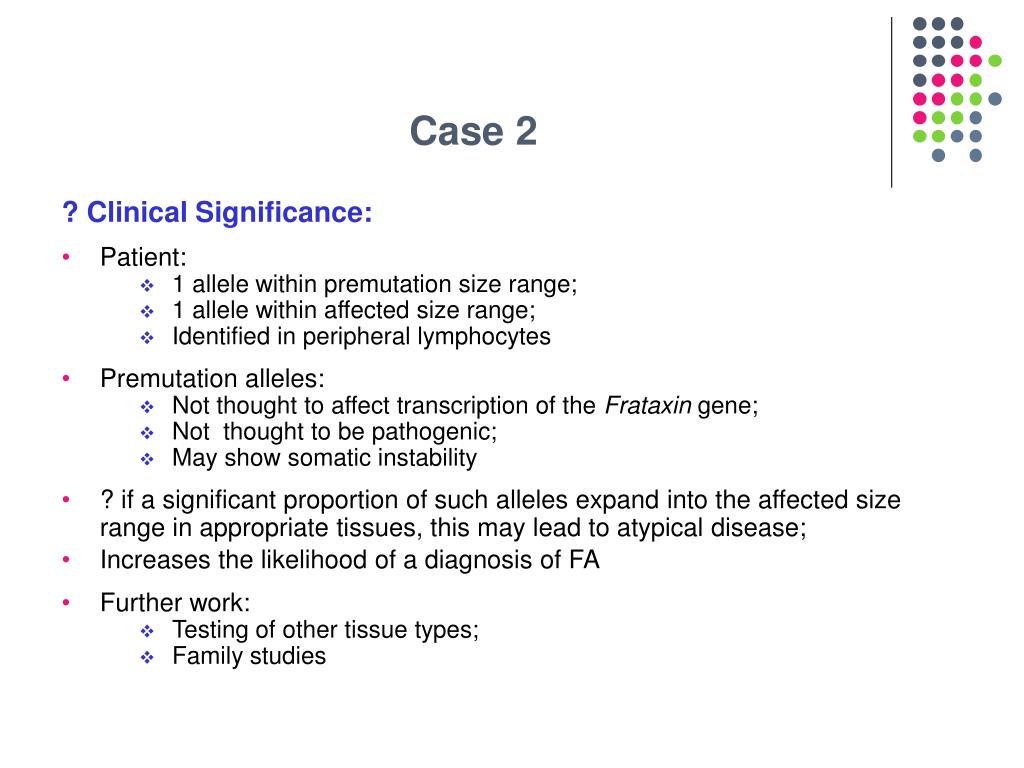

  24. Case 2 ? Clinical Significance: • Patient: • 1 allele within premutation size range; • 1 allele within affected size range; • Identified in peripheral lymphocytes • Premutation alleles: • Not thought to affect transcription of the Frataxin gene; • Not thought to be pathogenic; • May show somatic instability • ? if a significant proportion of such alleles expand into the affected size range in appropriate tissues, this may lead to atypical disease; • Increases the likelihood of a diagnosis of FA • Further work: • Testing of other tissue types; • Family studies

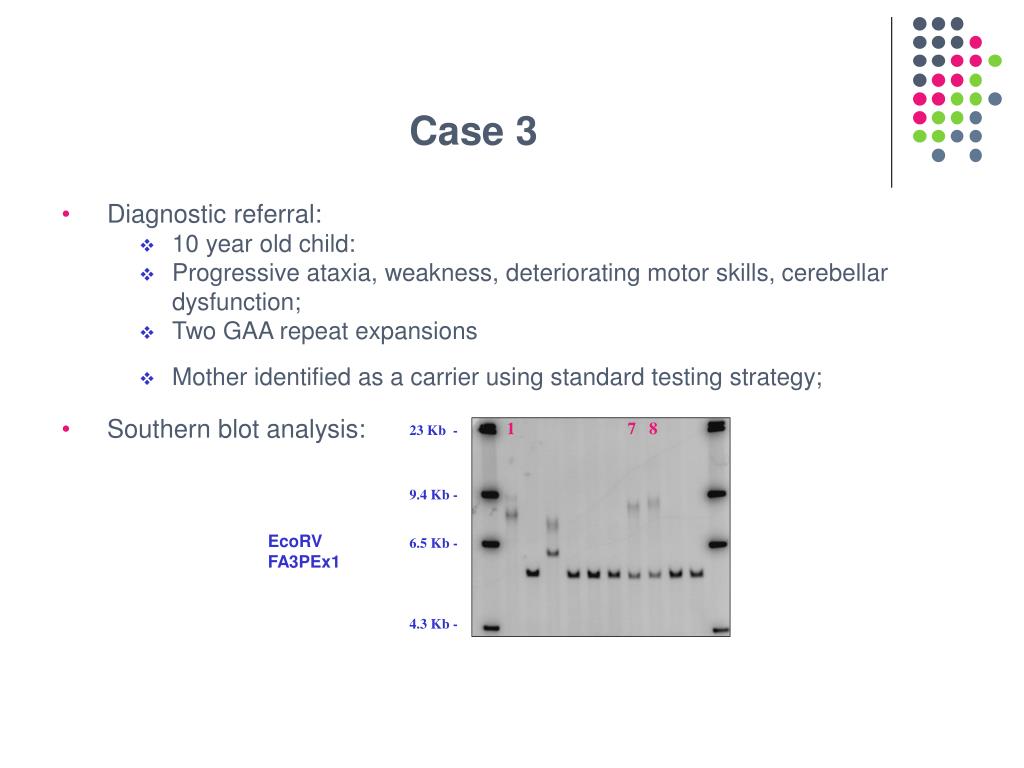

  25. Case 3 • Diagnostic referral: • 10 year old child: • Progressive ataxia, weakness, deteriorating motor skills, cerebellar dysfunction; • Two GAA repeat expansions • Mother identified as a carrier using standard testing strategy; • Southern blot analysis: EcoRV FA3PEx1 1 7 8 23 Kb - 9.4 Kb - 6.5 Kb - 4.3 Kb -

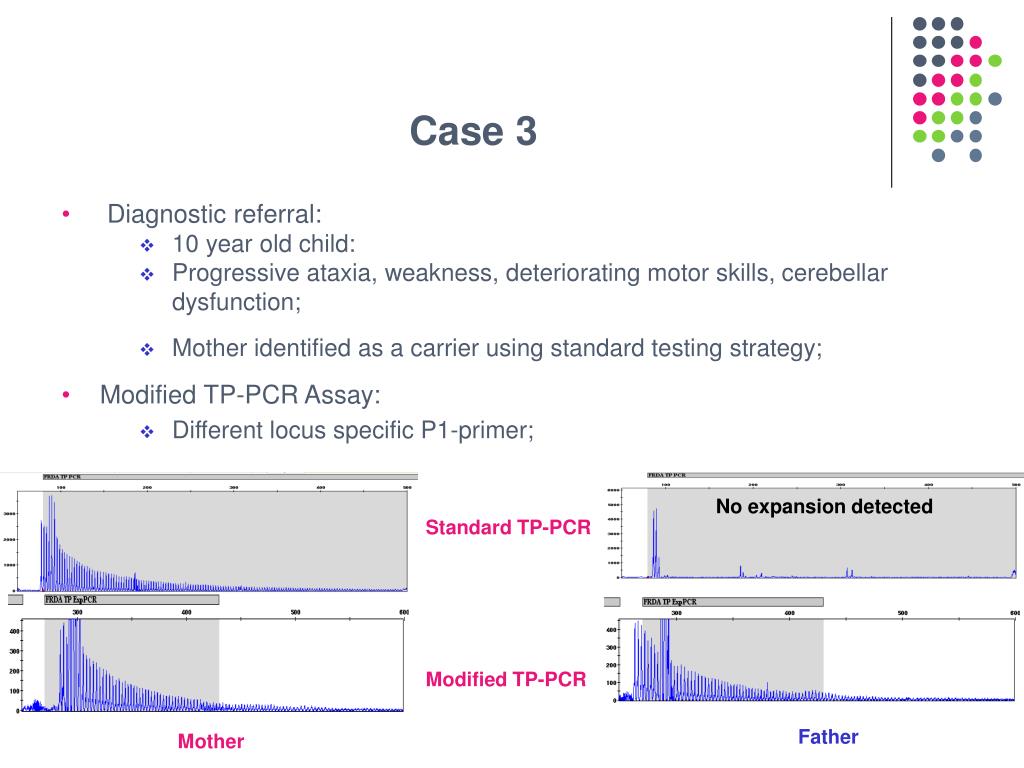

  26. No expansion detected Standard TP-PCR Modified TP-PCR Father Mother Case 3 • Diagnostic referral: • 10 year old child: • Progressive ataxia, weakness, deteriorating motor skills, cerebellar dysfunction; • Mother identified as a carrier using standard testing strategy; • Modified TP-PCR Assay: • Different locus specific P1-primer;

  27. Mother Father Break point Affected child Case 3 • DNA sequencing: • Primers flanking the standard P1 priming site • 30bp deletion: • Covering the whole of the standard TP-PCR P1 priming site in the patient’s father and the affected child; • Deletion present on the same allele as the expansion; • Explains why the expansion in the patient’s father could not be detected using standard TP-PCR • Summary: • Samples harbouring such a deletion would give results consistent with homozygosity for the same size normal allele using these assays; • Deletion would not be detected - potentially an expansion could be missed • 115 FA referrals with 1 allele in the normal range and no TP-PCR expansion were tested for the presence of this deletion • No further deletions were identified in this cohort • Likely that such a deletion is either very uncommon or private to this family

  28. Acknowledgements All within the molecular genetics laboratory Andrew Purvis Mohammed Kiron Kibria Kara Gaffing Fiona Coyne Roger Mountford

  29. Thank-you for listening
