  1. ME 350 – Lecture 6 – Chapter 10 FUNDAMENTALS OF METAL CASTING: • Overview of Casting Technology • Heating and Pouring • Solidification and Cooling

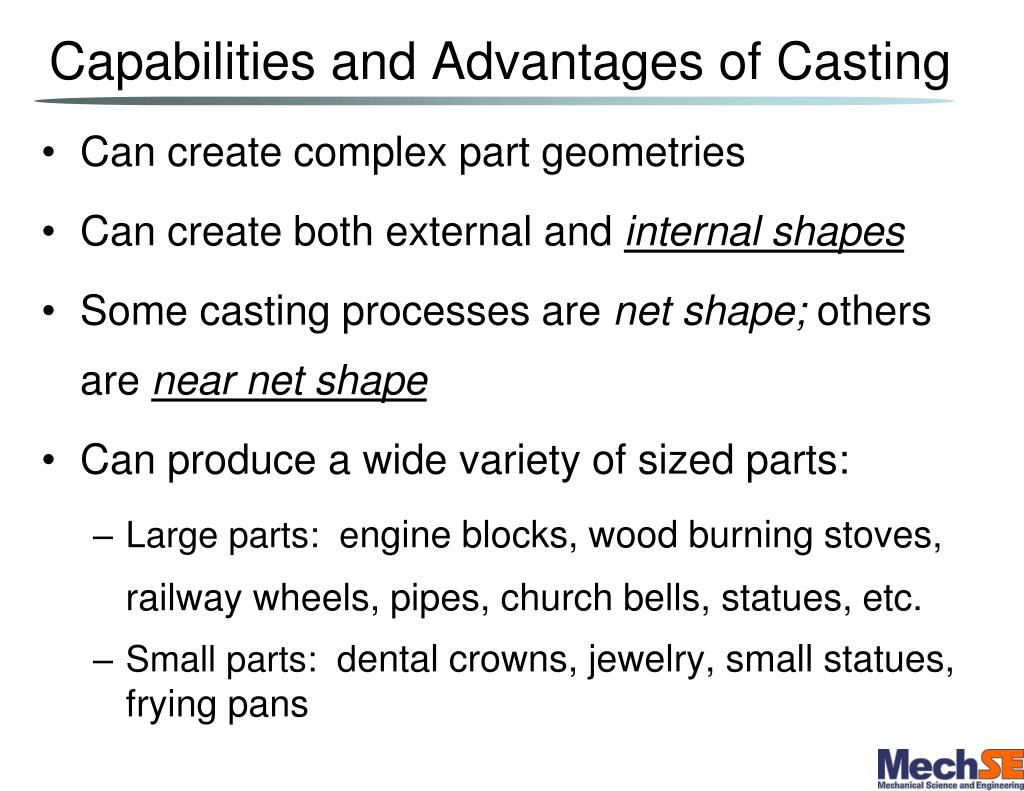

  2. Capabilities and Advantages of Casting • Can create complex part geometries • Can create both external and internal shapes • Some casting processes are net shape; others are near net shape • Can produce a wide variety of sized parts: • Large parts: engine blocks, wood burning stoves, railway wheels, pipes, church bells, statues, etc. • Small parts: dental crowns, jewelry, small statues, frying pans

  3. Limitations of Casting • Limitations on mechanical properties (cold working, heat treating, alloy segregation, etc.) • Poor dimensional accuracy and surface finish for some processes; e.g., sand casting • Safety hazards to workers due to hot molten metals

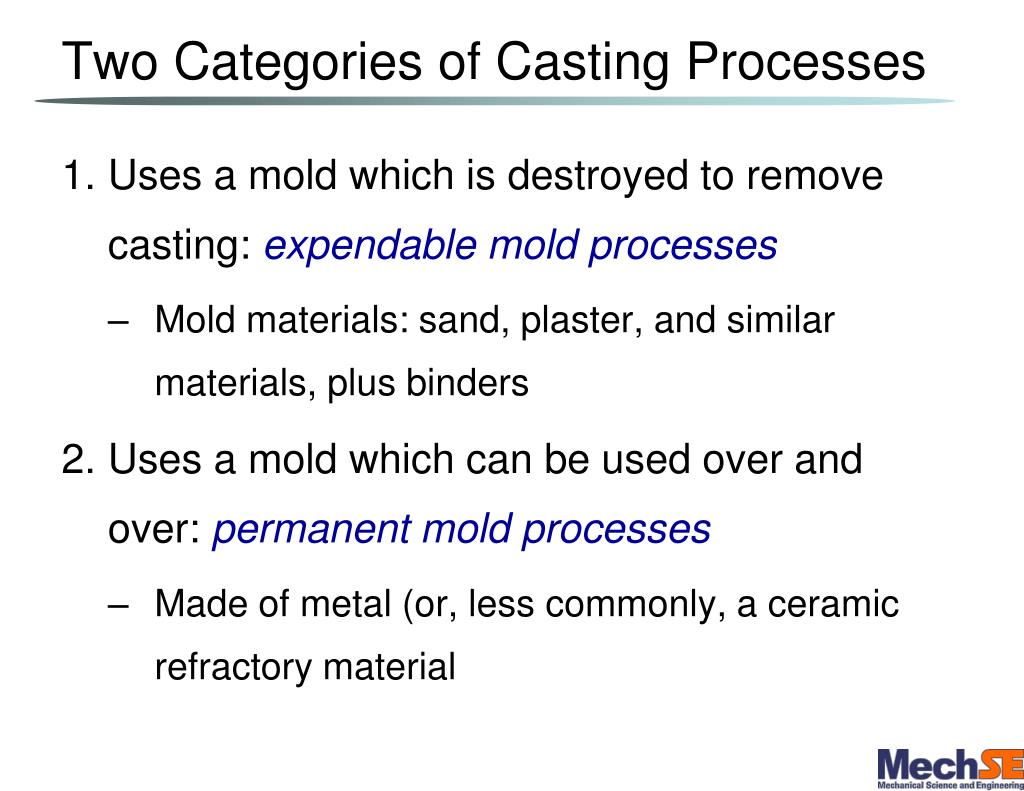

  4. Two Categories of Casting Processes • Uses a mold which is destroyed to remove casting: expendable mold processes • Mold materials: sand, plaster, and similar materials, plus binders • Uses a mold which can be used over and over: permanent mold processes • Made of metal (or, less commonly, a ceramic refractory material

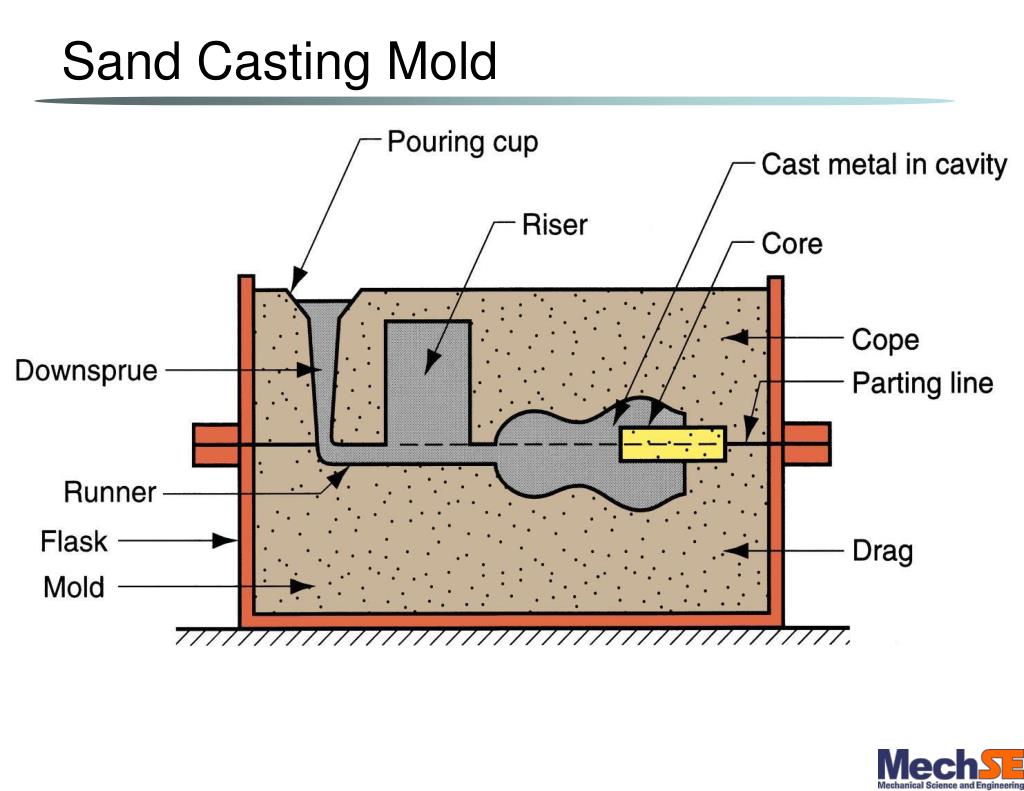

  5. Sand Casting Mold

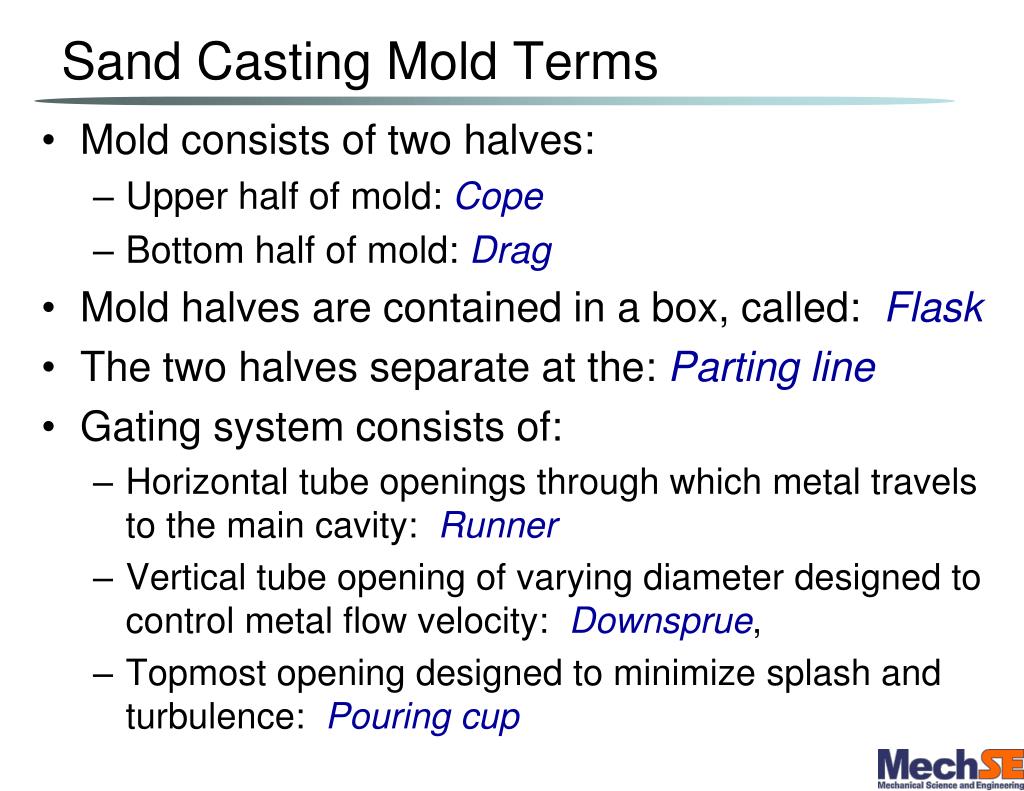

  6. Sand Casting Mold Terms • Mold consists of two halves: • Upper half of mold: Cope • Bottom half of mold: Drag • Mold halves are contained in a box, called: Flask • The two halves separate at the: Parting line • Gating system consists of: • Horizontal tube openings through which metal travels to the main cavity: Runner • Vertical tube opening of varying diameter designed to control metal flow velocity: Downsprue, • Topmost opening designed to minimize splash and turbulence: Pouring cup

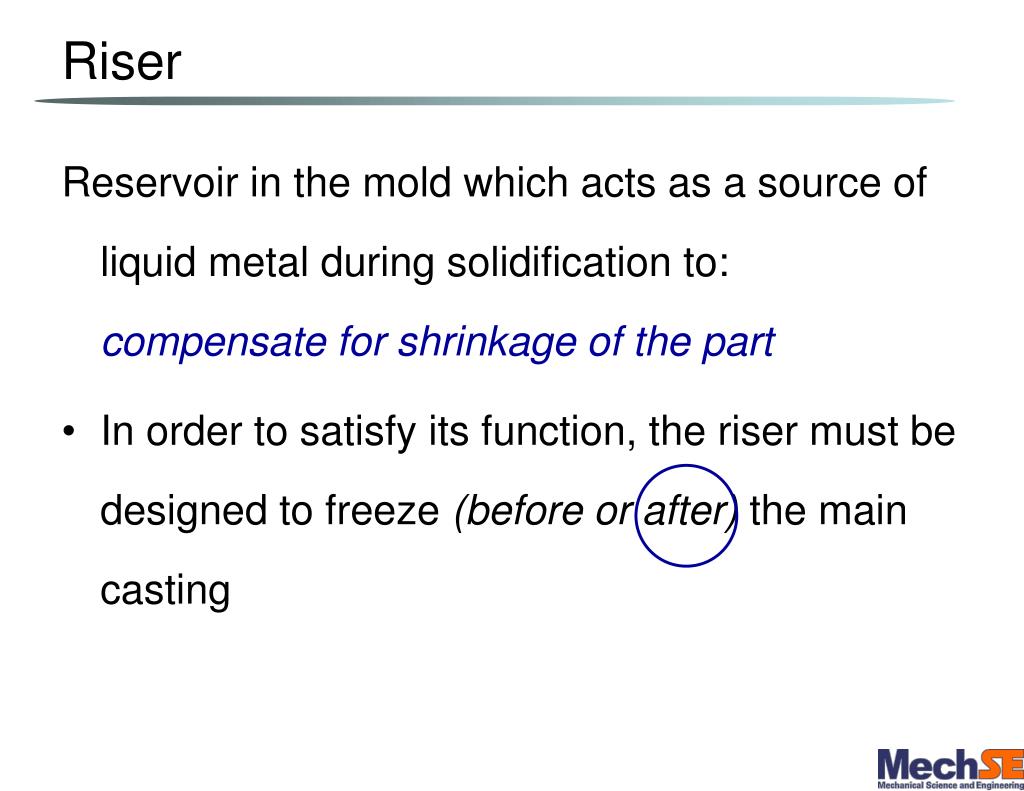

  7. Riser Reservoir in the mold which acts as a source of liquid metal during solidification to: compensate for shrinkage of the part • In order to satisfy its function, the riser must be designed to freeze(before or after) the main casting

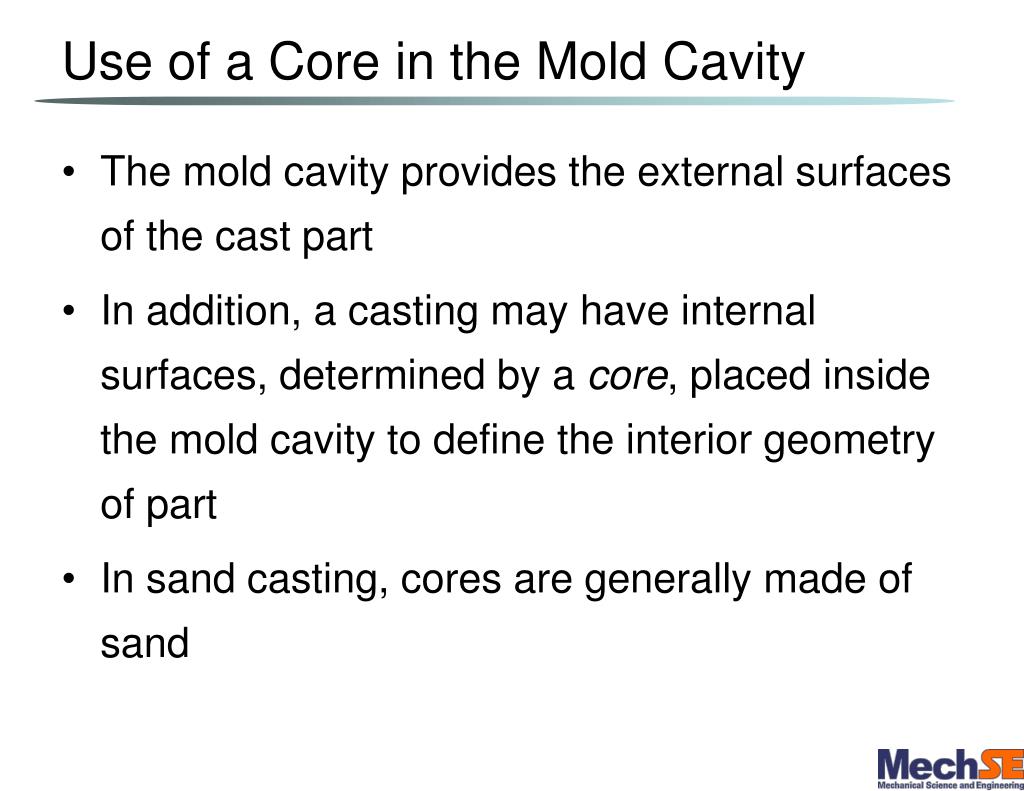

  8. Use of a Core in the Mold Cavity • The mold cavity provides the external surfaces of the cast part • In addition, a casting may have internal surfaces, determined by a core, placed inside the mold cavity to define the interior geometry of part • In sand casting, cores are generally made of sand

  9. Heating the Metal • The heat required is the sum of: • Heat to raise temperature to melting point • Heat of fusion to convert from solid to liquid • Heat to raise molten metal to desired temperature for pouring H = ρV{Cs∙(Tm-To) + Hf + Cl ∙(Tp- Tm)} Where, H = total heat for pouring (J) ρ = density (g/cm3) V = volume of metal being heated (cm3) Cs = weight specific heat of solid metal (J/g-C) Tm = melting temperature T0 = starting temperature Hf = Heat of fusion Cl = weight specific heat of liquid metal (J/g-C) Tp = pouring temperature

  10. Molten Metal Flow • Bernoulli’s Theorem – the sum of energies (head, pressure, kinetic, and friction) at any two points in a flowing liquid are equal where, h = head (cm); p = pressure (N/cm2); ρ = density(g/cm3); v = velocity (cm/s); g = gravity (981 cm/s2); F = head loss due to friction (cm) • Ignoring friction and assuming no applied pressure.

  11. Molten Metal Flow (cont’) • Solving for velocity at base of sprue assuming the velocity is negligible: in the pouring cup where, h = height of the sprue • Continuity of Flow Law – volume rate of flow is constant: where Q = volumetric flow rate (cm3/s) • Time to fill a mold cavity:

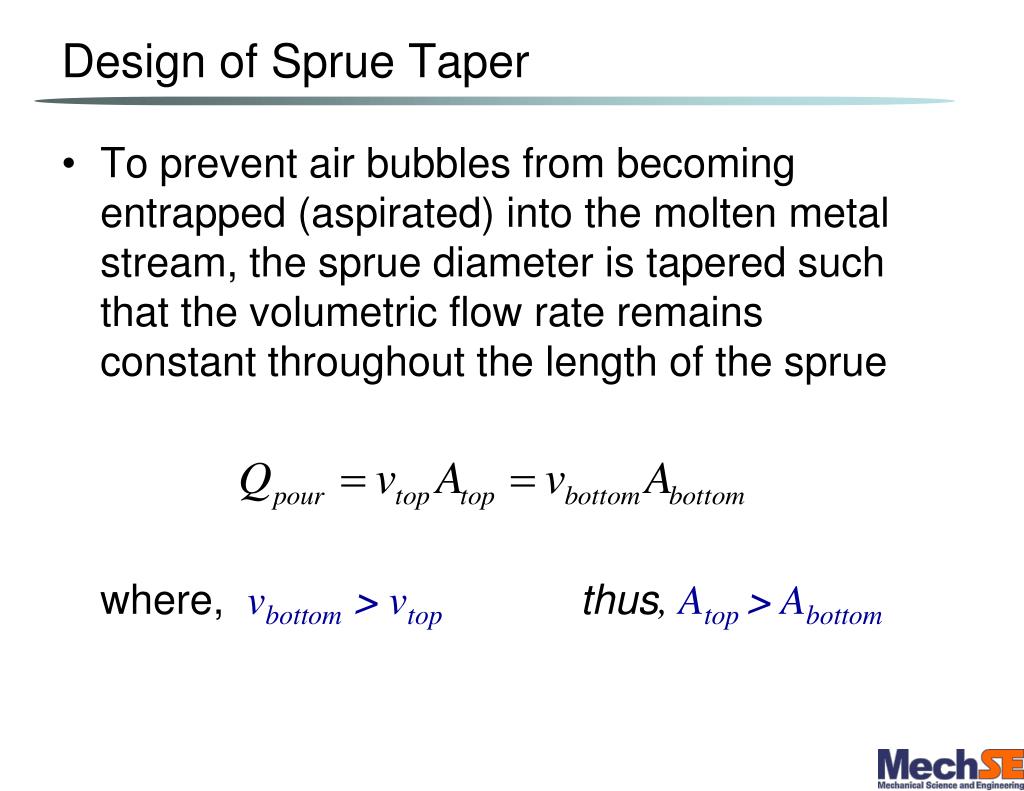

  12. Design of Sprue Taper • To prevent air bubbles from becoming entrapped (aspirated) into the molten metal stream, the sprue diameter is tapered such that the volumetric flow rate remains constant throughout the length of the sprue where, vbottom > vtopthus, Atop > Abottom

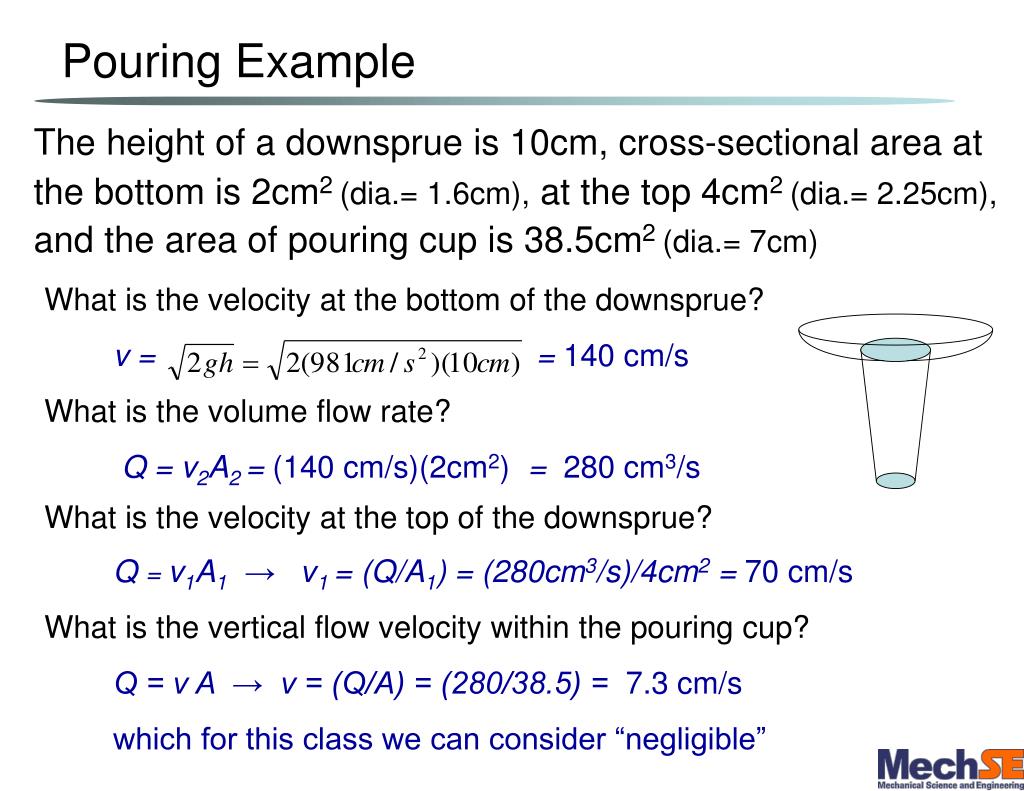

  13. Pouring Example The height of a downsprue is 10cm, cross-sectional area at the bottom is 2cm2 (dia.= 1.6cm), at the top 4cm2 (dia.= 2.25cm), and the area of pouring cup is 38.5cm2 (dia.= 7cm) What is the velocity at the bottom of the downsprue? v = = 140 cm/s What is the volume flow rate? Q = v2A2 = (140 cm/s)(2cm2) = 280 cm3/s What is the velocity at the top of the downsprue? Q = v1A1 → v1 = (Q/A1) = (280cm3/s)/4cm2 = 70 cm/s What is the vertical flow velocity within the pouring cup? Q = v A → v = (Q/A) = (280/38.5) = 7.3 cm/s which for this class we can consider “negligible”

  14. Turbulence • If the pouring rate is excessive, turbulence can become a serious problem. • A turbulent flow, i.e.: nonlaminar • Increases the amount of metal oxides incorporated in the mold • Causes mold erosion

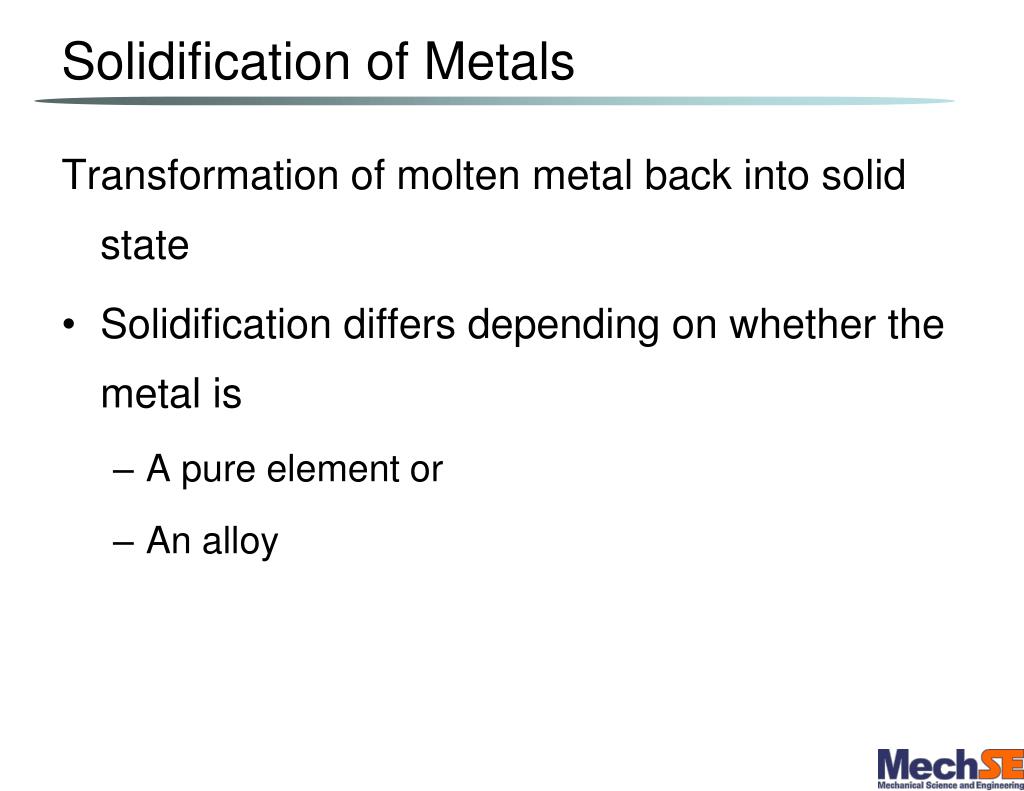

  15. Solidification of Metals Transformation of molten metal back into solid state • Solidification differs depending on whether the metal is • A pure element or • An alloy

  16. Cooling Curve for a Pure Metal

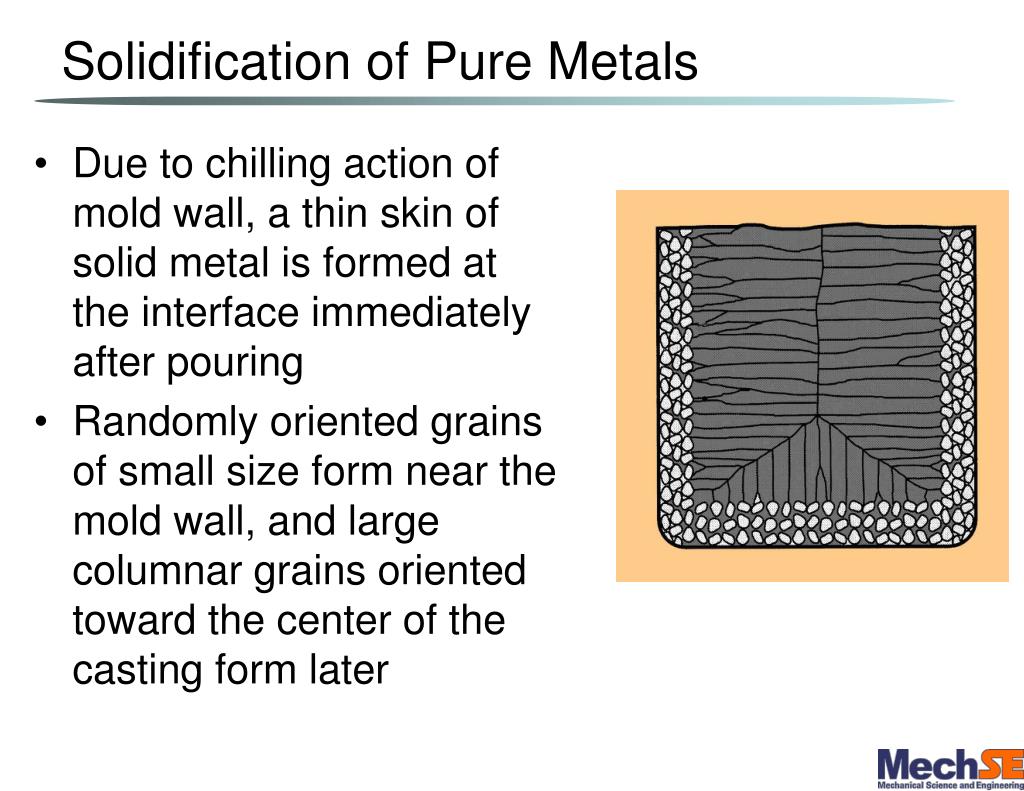

  17. Solidification of Pure Metals • Due to chilling action of mold wall, a thin skin of solid metal is formed at the interface immediately after pouring • Randomly oriented grains of small size form near the mold wall, and large columnar grains oriented toward the center of the casting form later

  18. Solidification of Alloys • Most alloys freeze over a temperature range rather than at a single temperature Phase diagram and cooling curve for 50%Ni‑50%Cu

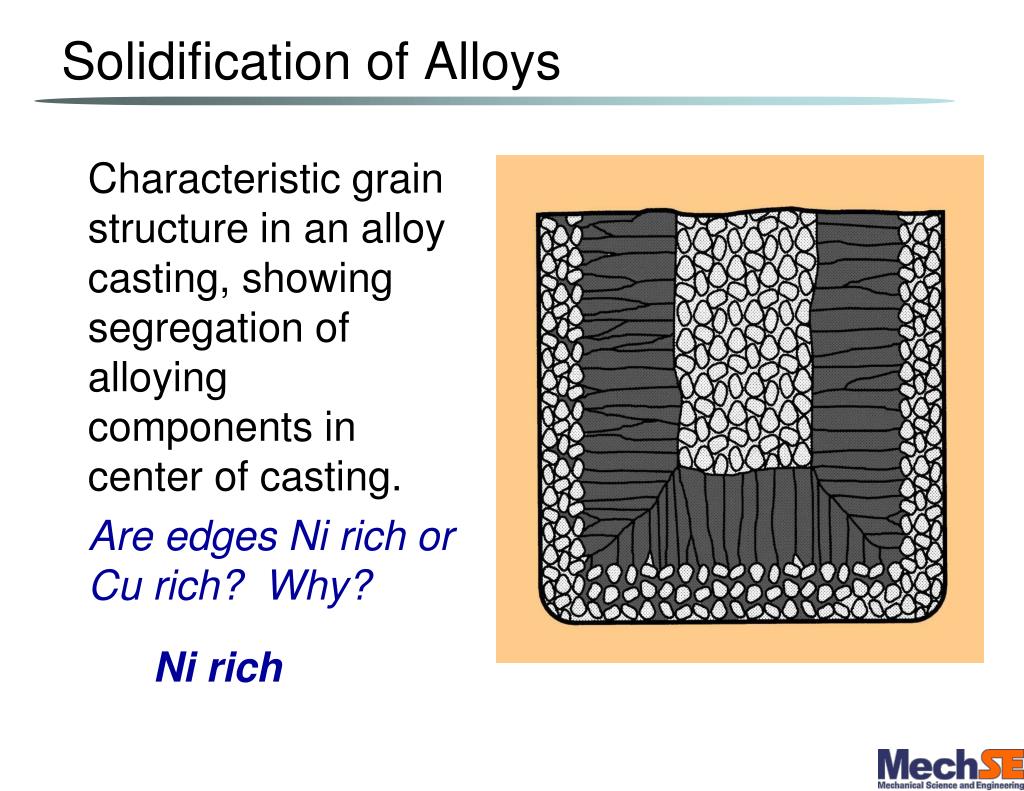

  19. Solidification of Alloys Characteristic grain structure in an alloy casting, showing segregation of alloying components in center of casting. Are edges Ni rich or Cu rich? Why? Ni rich

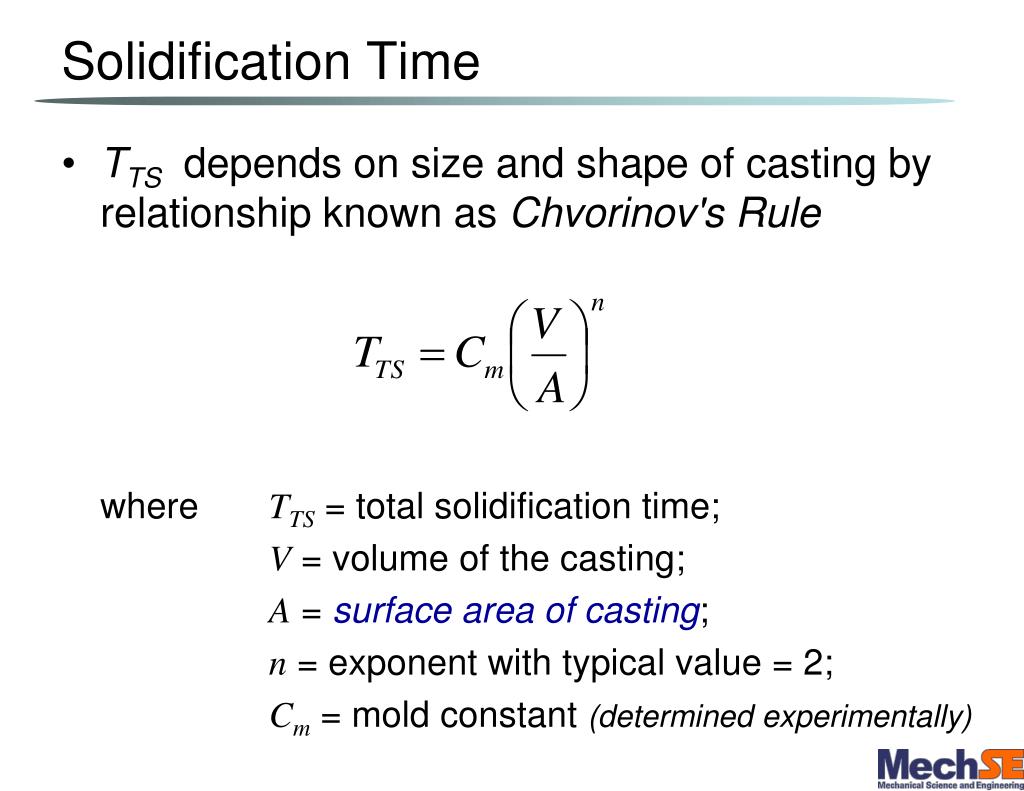

  20. Solidification Time • TTS depends on size and shape of casting by relationship known as Chvorinov's Rule where TTS = total solidification time; V = volume of the casting; A = surface area of casting; n = exponent with typical value = 2; Cm = mold constant(determined experimentally)

  21. Mold Constant in Chvorinov's Rule • Mold constant Cm depends on: • Mold material (sand permeability, etc.) • Thermal properties of casting metal • Pouring temperature relative to melting point • Value of Cm for a given casting operation can be based on experimental data from previous operations carried out using same mold material, metal, and pouring temperature, even though the shape of the part may be quite different

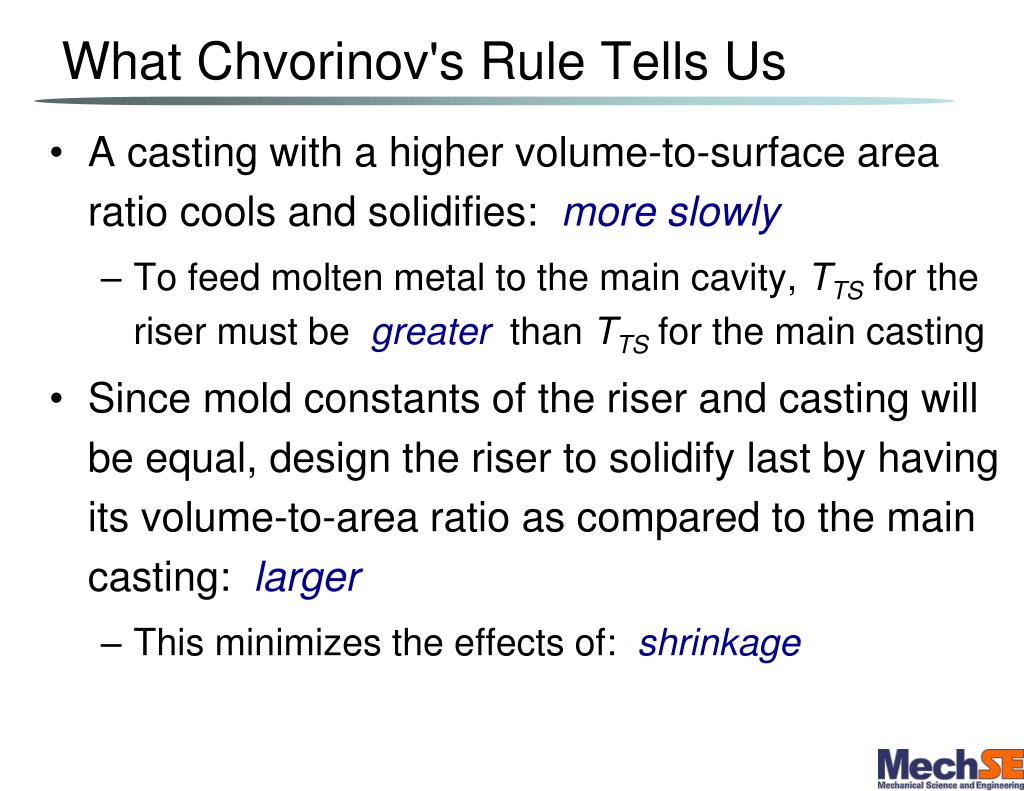

  22. What Chvorinov's Rule Tells Us • A casting with a higher volume‑to‑surface area ratio cools and solidifies: more slowly • To feed molten metal to the main cavity, TTS for the riser must be greater than TTS for the main casting • Since mold constants of the riser and casting will be equal, design the riser to solidify last by having its volume-to-area ratio as compared to the main casting: larger • This minimizes the effects of: shrinkage

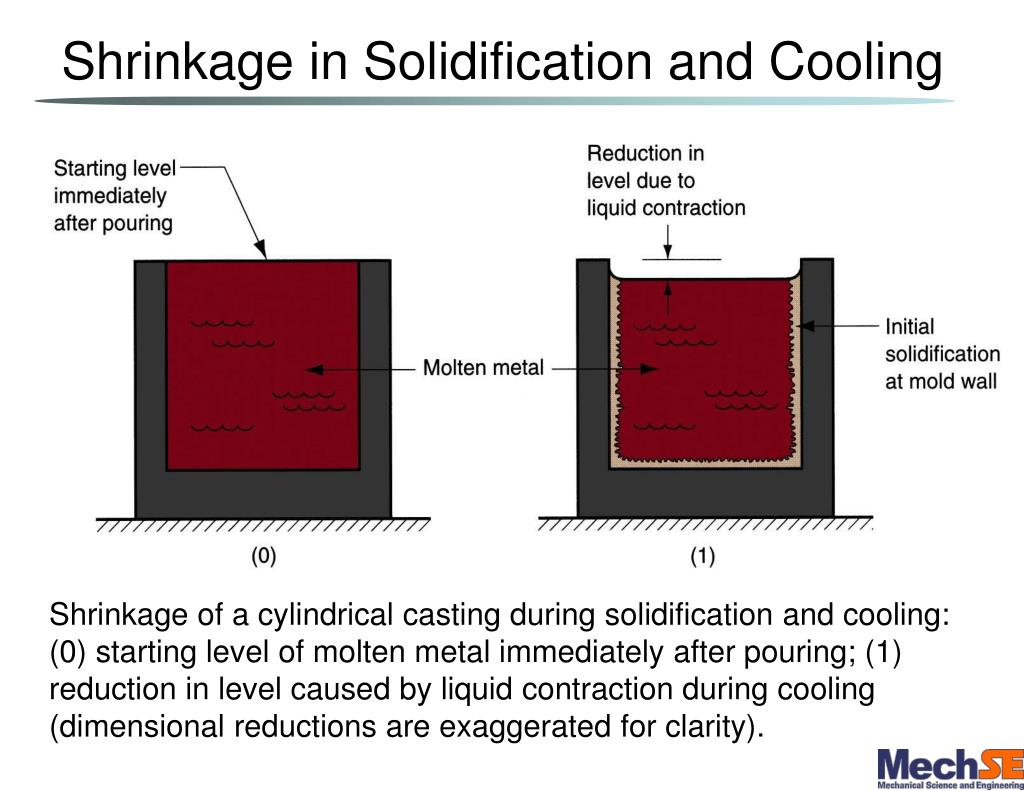

  23. Shrinkage in Solidification and Cooling Shrinkage of a cylindrical casting during solidification and cooling: (0) starting level of molten metal immediately after pouring; (1) reduction in level caused by liquid contraction during cooling (dimensional reductions are exaggerated for clarity).

  24. Shrinkage in Solidification and Cooling (2) reduction in height and formation of shrinkage cavity caused by solidification shrinkage; (3) further reduction in height and diameter due to thermal contraction during cooling of solid metal (dimensional reductions are exaggerated for clarity).

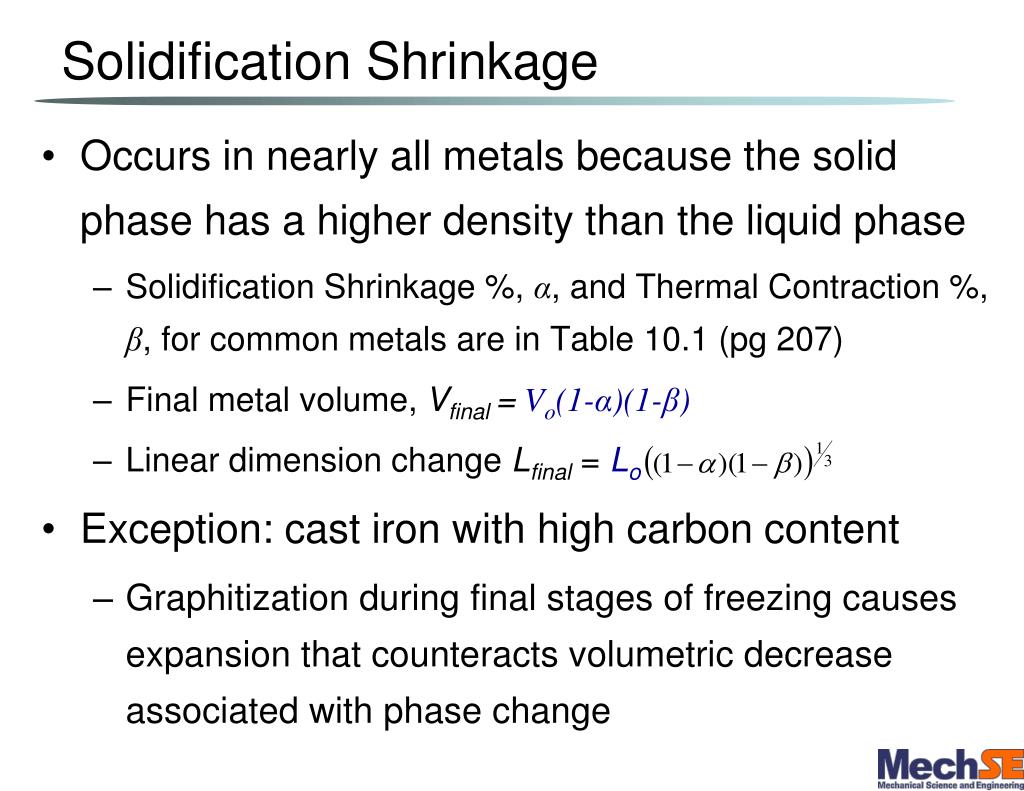

  25. Solidification Shrinkage • Occurs in nearly all metals because the solid phase has a higher density than the liquid phase • Solidification Shrinkage %, α, and Thermal Contraction %, β, for common metals are in Table 10.1 (pg 207) • Final metal volume,Vfinal =Vo(1-α)(1-β) • Linear dimension change Lfinal= Lo • Exception: cast iron with high carbon content • Graphitization during final stages of freezing causes expansion that counteracts volumetric decrease associated with phase change

  26. Shrinkage Allowance • Patternmakers account for solidification shrinkage and thermal contraction by making mold cavity oversized • Amount by which mold is made larger relative to final casting size is called pattern shrinkage allowance • Casting dimensions are expressed linearly, so allowances are applied accordingly

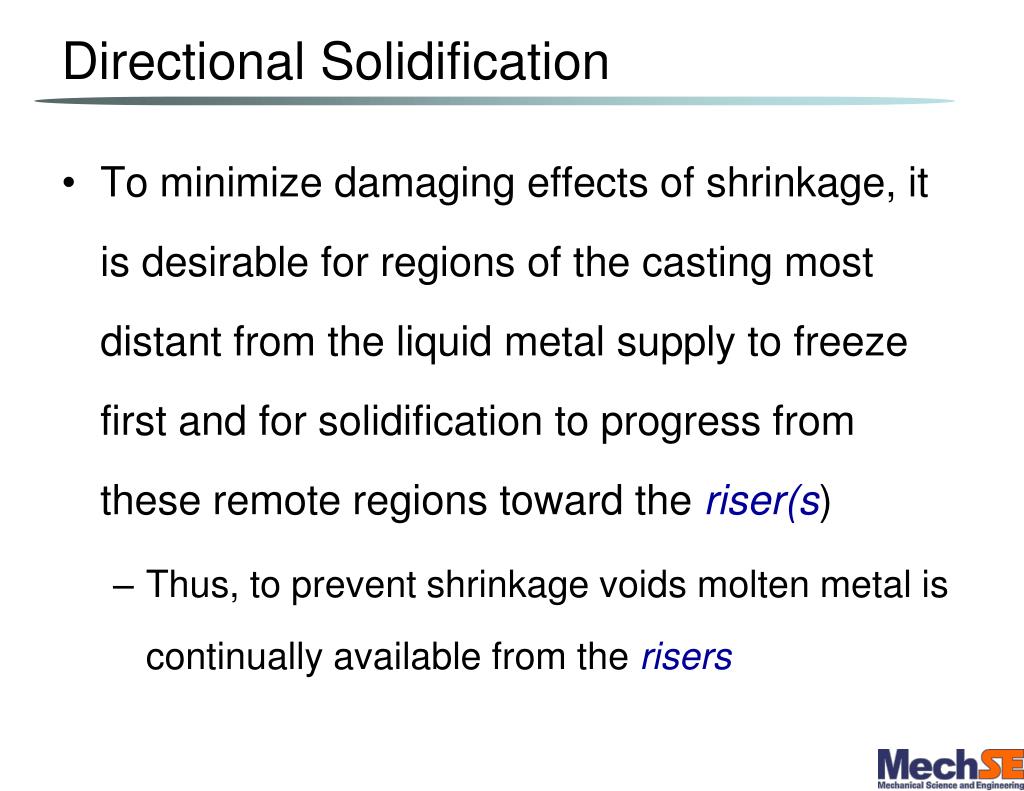

  27. Directional Solidification • To minimize damaging effects of shrinkage, it is desirable for regions of the casting most distant from the liquid metal supply to freeze first and for solidification to progress from these remote regions toward the riser(s) • Thus, to prevent shrinkage voids molten metal is continually available from the risers

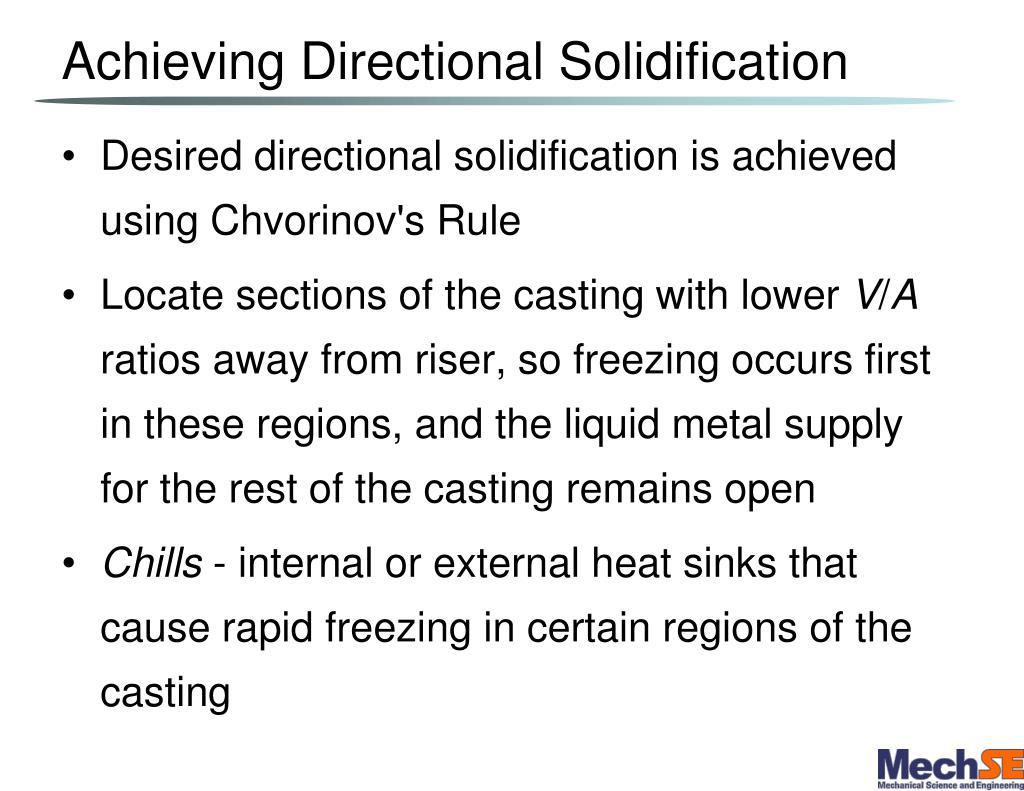

  28. Achieving Directional Solidification • Desired directional solidification is achieved using Chvorinov's Rule • Locate sections of the casting with lower V/A ratios away from riser, so freezing occurs first in these regions, and the liquid metal supply for the rest of the casting remains open • Chills ‑ internal or external heat sinks that cause rapid freezing in certain regions of the casting

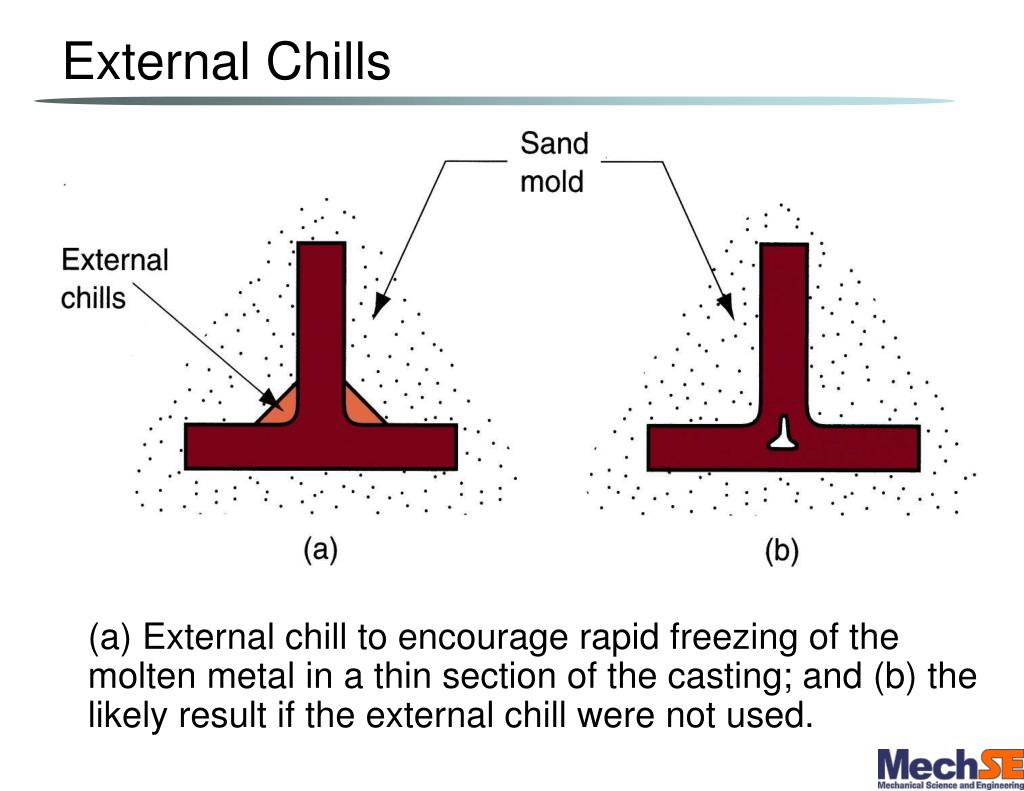

  29. External Chills (a) External chill to encourage rapid freezing of the molten metal in a thin section of the casting; and (b) the likely result if the external chill were not used.

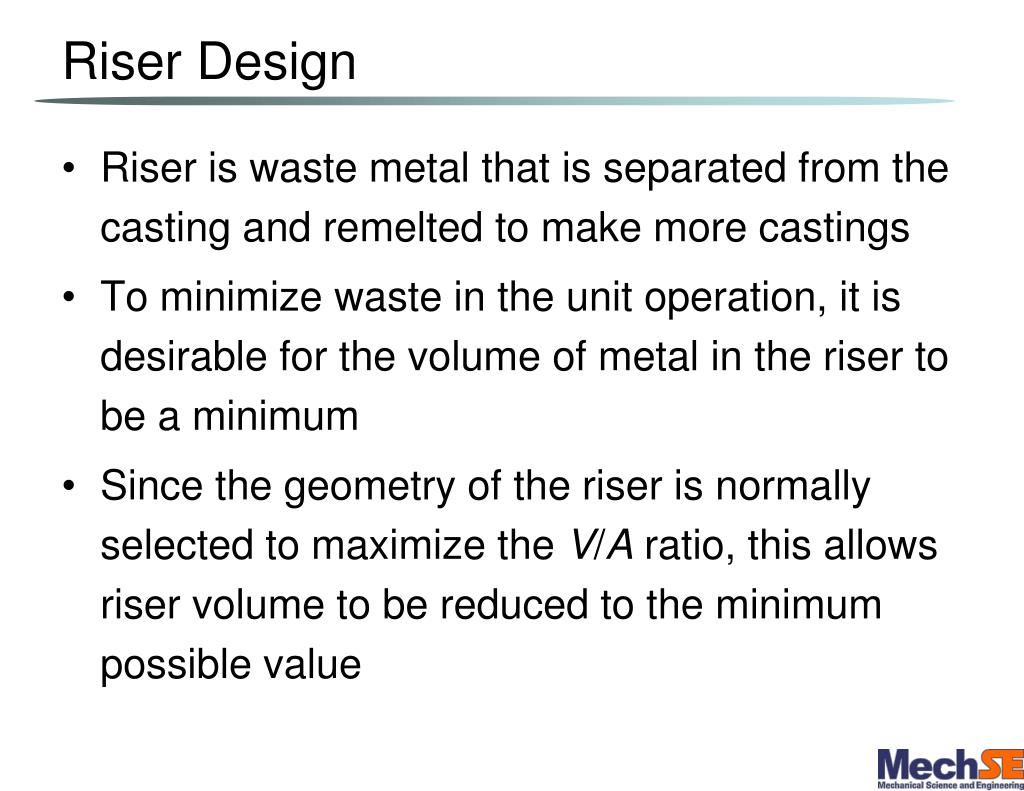

  30. Riser Design • Riser is waste metal that is separated from the casting and remelted to make more castings • To minimize waste in the unit operation, it is desirable for the volume of metal in the riser to be a minimum • Since the geometry of the riser is normally selected to maximize the V/A ratio, this allows riser volume to be reduced to the minimum possible value
