Toward an Optimization-Driven Framework for Designing and Generating Realistic Internet Topologies David Alderson, Stanford John Doyle, Caltech Ramesh Govindan, USC Walter Willinger, AT&T Labs-Research HotNets Conference, Princeton University October 28, 2002

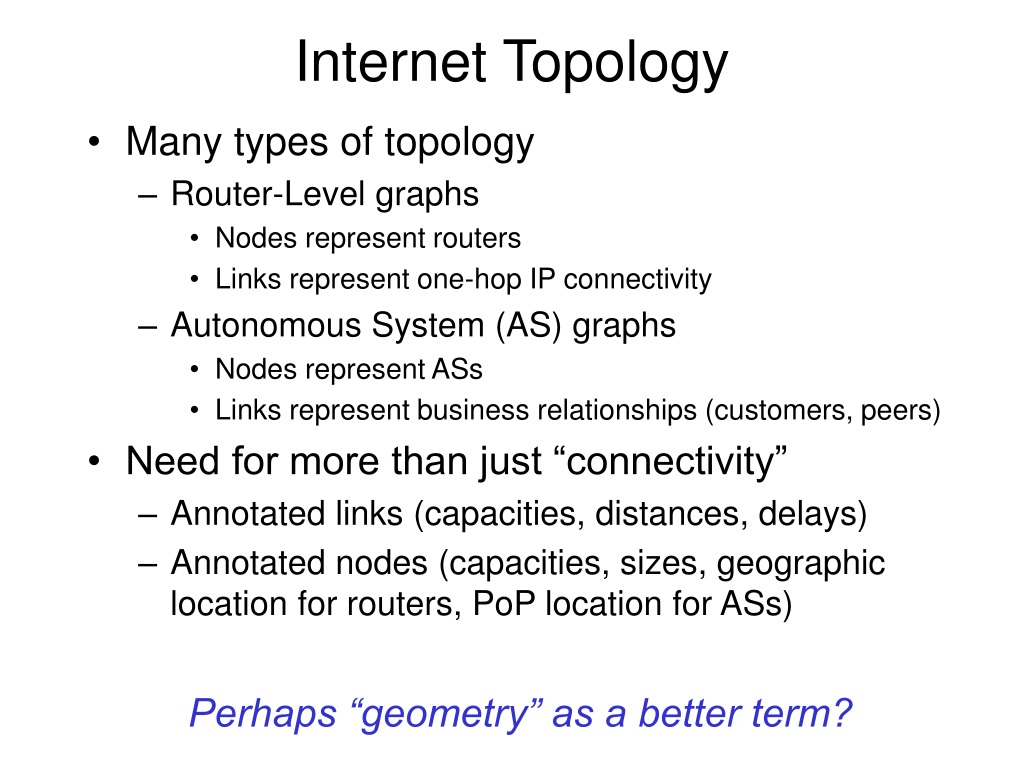

Internet Topology • Many types of topology • Router-Level graphs • Nodes represent routers • Links represent one-hop IP connectivity • Autonomous System (AS) graphs • Nodes represent ASs • Links represent business relationships (customers, peers) • Need for more than just “connectivity” • Annotated links (capacities, distances, delays) • Annotated nodes (capacities, sizes, geographic location for routers, PoP location for ASs) Perhaps “geometry” as a better term?
An Important Problem Understanding the topology of the current (and future) Internet is important for many reasons • Design and evaluation of networking protocols • Topology affects performance, not correctness • Understanding large-scale network behavior • Closed-loop feedback: topology design vs. protocols • Is the current design a result of the dominant routing protocols? • Or are the presently used routing protocols the result of some prevailing design principles? • Ability to study what-if scenarios • Operating policy shifts • Economic changes in the ISP market • Implications for tomorrow’s networks • Provisioning requirements, Traffic engineering, Operating and management policies
A Challenging Problem Since the decommissioning of the NSFNet in 1995, it has been difficult to obtain comprehensive knowledge about the topology of the Internet • The network has grown dramatically (number of hosts, amount of traffic, number of ISPs, etc.) • There have been economic incentives for ISPs to maintain secrecy about their topologies • Measurements about topology are possible/informative… • Traceroute data for router-level graph • BGP data for AS graph • …but not as clean and complete as one would hope • Traceroute: Mercator, Skitter, RocketFuel • BGP: Oregon RouteView, NLANR, RIPE
“Standard” Approach • Choose a sequence of well-understood metrics or observed featuresof interest, such as • hierarchy • node-degree distributions • clustering coefficients • Develop a method that matches these metrics • Pros: • Always possible to obtain a good “fit” on a chosen metric. • Cons: • Hard to choose the “right” metric. What is “right” is apt to vary, depending on the intended use of the topology. • A method that does a good job of matching the chosen metric often does not fit other metrics well. • No predictive power. • We call this approach descriptive (evocative) modeling.

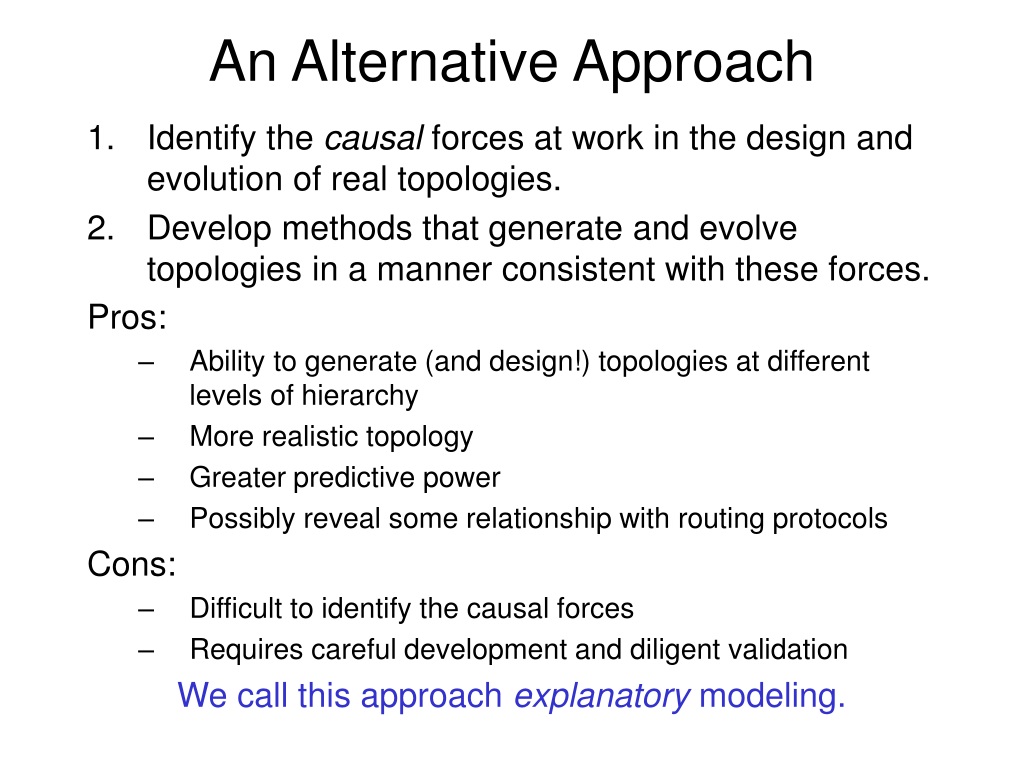

An Alternative Approach • Identify the causal forces at work in the design and evolution of real topologies. • Develop methods that generate and evolve topologies in a manner consistent with these forces. • Pros: • Ability to generate (and design!) topologies at different levels of hierarchy • More realistic topology • Greater predictive power • Possibly reveal some relationship with routing protocols • Cons: • Difficult to identify the causal forces • Requires careful development and diligent validation • We call this approach explanatory modeling.
Our Approach: Focus on the ISP • Capture and represent realistic drivers of Internet deployment and operation at the level of the single ISP • Many important networking issues are relevant at the level of the ISP (e.g. configuration, management, pricing, provisioning) • Common topologies represented in terms of ISPs • Router-level graphs connectivity within the ISP • AS graphs connectivity between ISPs • First-Order Objective: the ability to generate a “realistic, but fictitious” ISP topology at different levels of hierarchy
ISP Driving Forces • Economic Factors: • Cost of procuring, installing, and maintaining the necessary facilities and equipment • Limited budget for capital expenditures • Need to balance expenditures with revenue streams • Need to leverage investment in existing infrastructure • Location of customers • Technical Factors: • Hardware constraints (e.g. router speeds, limited # interfaces or line cards per router) • Level 2 Technologies (Sonet, ATM, WDM) • Existing legacy infrastructure • Location and availability of dark fiber
Mathematical Framework • Use combinatorial optimization to represent the problem and its constraints • Objectives (min cost, max profitability, satisfy demand) • Constraints (equip costs/capacities, legacy infrastructure) • Parameters (pricing, provisioning, facility location) • Study and explore how this framework allows for a range of ISP behavior • Effect of objectives and constraints are the most important • Part of a more general framework • Highly Optimized Tolerance (HOT), Carlson and Doyle, 1999 • We expect different formulations and solutions to problems at different levels of hierarchy • Illustrative toy example: Fabrikant et al, 2002

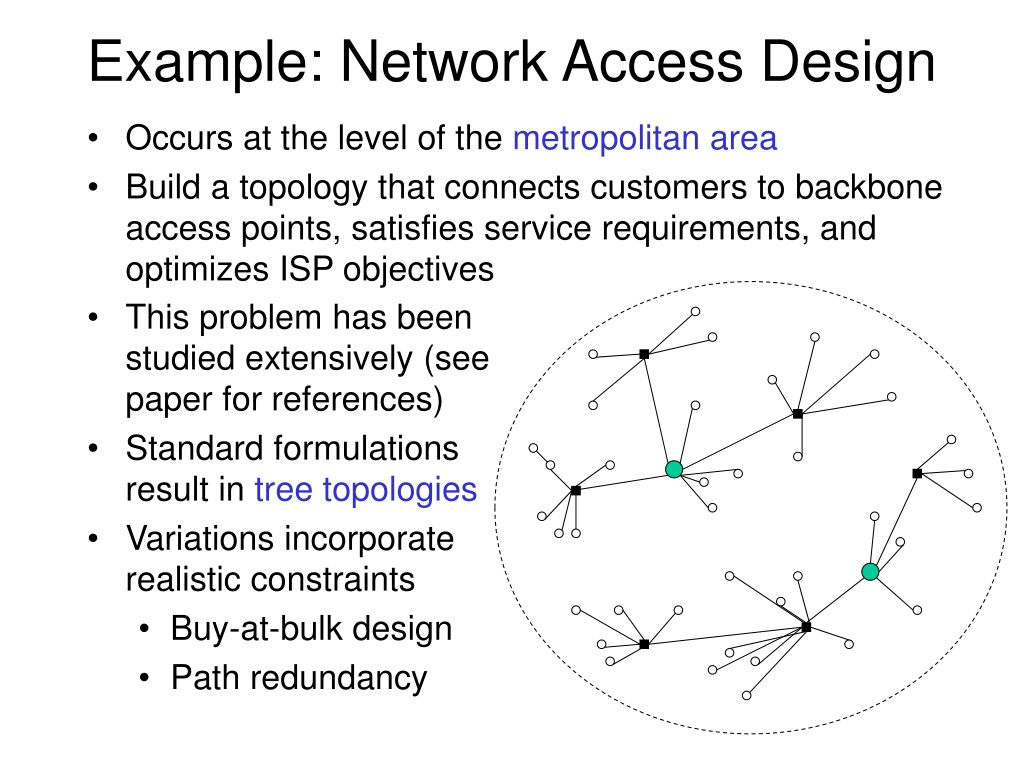

Example: Network Access Design • Occurs at the level of the metropolitan area • Build a topology that connects customers to backbone access points, satisfies service requirements, and optimizes ISP objectives • This problem has been studied extensively (see paper for references) • Standard formulations result in tree topologies • Variations incorporate realistic constraints • Buy-at-bulk design • Path redundancy

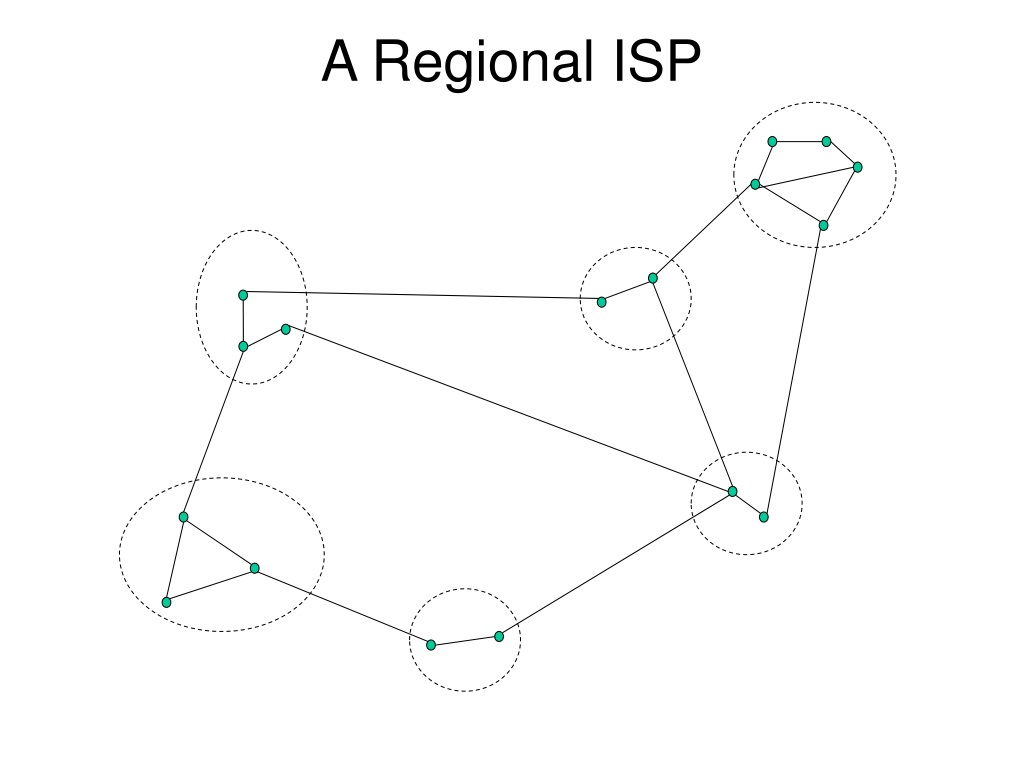

Hierarchical Optimization An appropriate optimization problem can be formulated at different levels within the network hierarchy • Local (metropolitan) access • Regional interconnectivity • Backbone design Consider the problem faced at the regional level in interconnecting the access points…

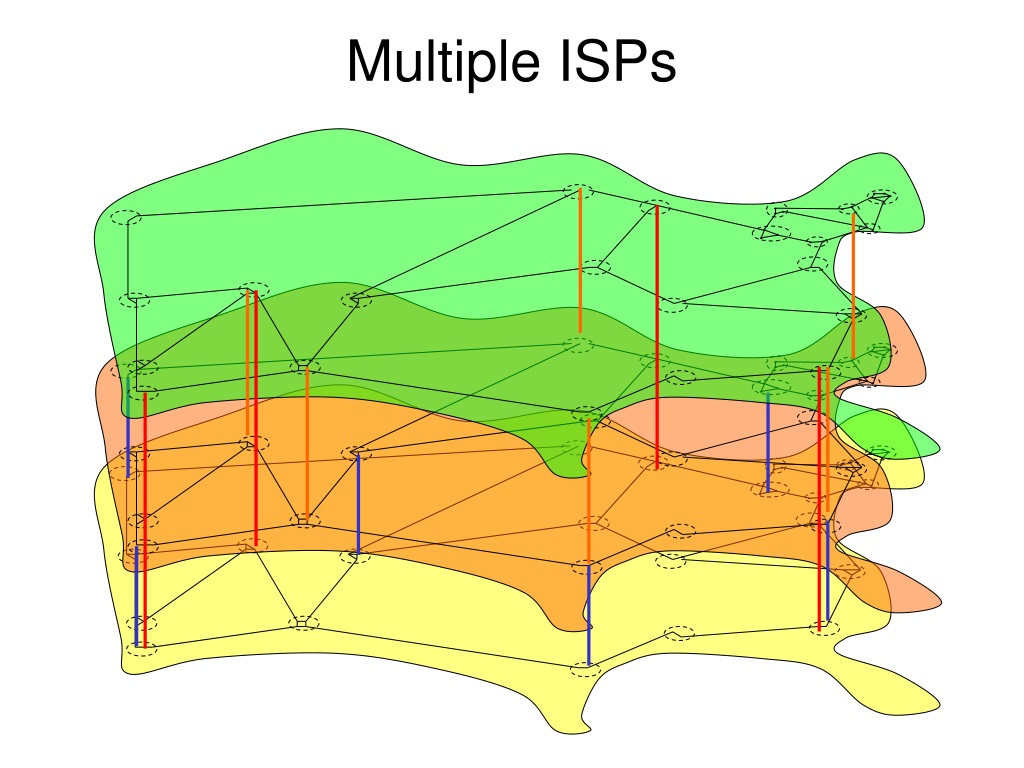

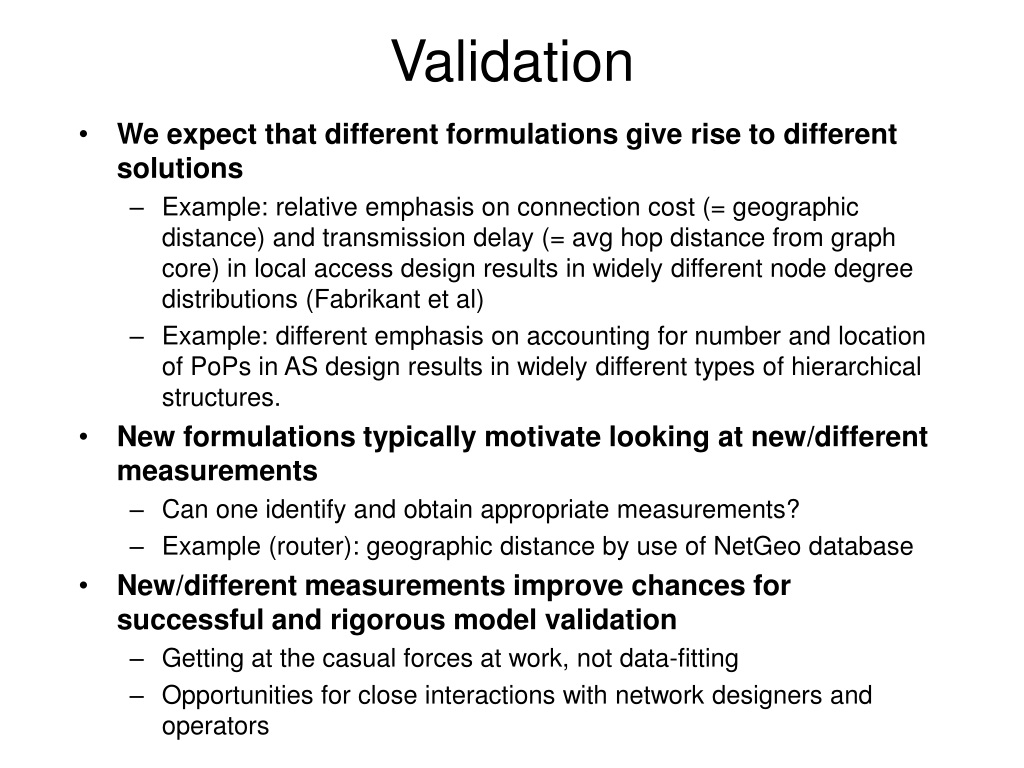

Validation • We expect that different formulations give rise to different solutions • Example: relative emphasis on connection cost (= geographic distance) and transmission delay (= avg hop distance from graph core) in local access design results in widely different node degree distributions (Fabrikant et al) • Example: different emphasis on accounting for number and location of PoPs in AS design results in widely different types of hierarchical structures. • New formulations typically motivate looking at new/different measurements • Can one identify and obtain appropriate measurements? • Example (router): geographic distance by use of NetGeo database • New/different measurements improve chances for successful and rigorous model validation • Getting at the casual forces at work, not data-fitting • Opportunities for close interactions with network designers and operators
Benefits • Generate realistic topologies • Annotated graphs suitable for use in simulation • Insight into drivers and constraints affecting topology growth • Predictive power • What-if scenario analysis • Insight into large-scale behavior • Rough understanding of basic interaction between network design and routing protocols • Address important economic questions • Pricing • Provisioning • Peering
Why It Might Not Work • The optimization framework may not adequately capture the economic and technical factors driving topological growth • The real decisions made by ISPs may be neither consistent nor rational, thus outside the realm of abstract mathematical representation We expect this approach at a minimum to yield insight into what ought to be done by ISPs in considering both economic and technical factors
Part of A Bigger Picture(http://netlab.caltech.edu) • This work is part of a larger effort to develop a rigorous, coherent, and reasonably complete mathematical theory for the Internet • This new theory addresses the performance and robustness of • the "horizontal" decentralized and asynchronous nature of congestion control (TCP/AQM), routing (IP), and design/provisioning (layer 2) • the "vertical" separation into the layers of the TCP/IP protocol stack from the application down to the link layer • Recent progress with "horizontal" treatment of TCP/AQM • view and formulate TCP/AQM as a distributed primal-dual algorithm to maximizing aggregate utility over possible rates • robustness and stability properties of TCP/AQM dynamics as by-products

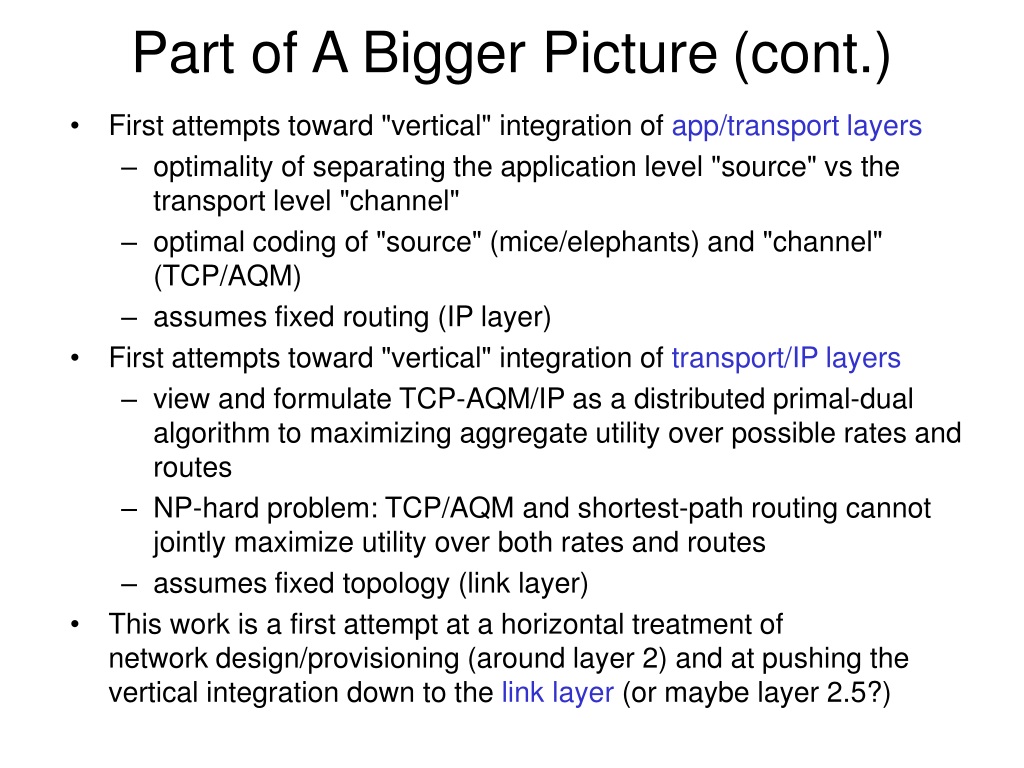

Part of A Bigger Picture(cont.) • First attempts toward "vertical" integration of app/transport layers • optimality of separating the application level "source" vs the transport level "channel" • optimal coding of "source" (mice/elephants) and "channel" (TCP/AQM) • assumes fixed routing (IP layer) • First attempts toward "vertical" integration of transport/IP layers • view and formulate TCP-AQM/IP as a distributed primal-dual algorithm to maximizing aggregate utility over possible rates and routes • NP-hard problem: TCP/AQM and shortest-path routing cannot jointly maximize utility over both rates and routes • assumes fixed topology (link layer) • This work is a first attempt at a horizontal treatment of network design/provisioning (around layer 2) and at pushing the vertical integration down to the link layer (or maybe layer 2.5?)
Thank You David Alderson, alderd@stanford.edu John Doyle, doyle@cds.caltech.edu Ramesh Govindan, ramesh@usc.edu Walter Willinger, walter@research.att.com
