CNC Machining Tolerances

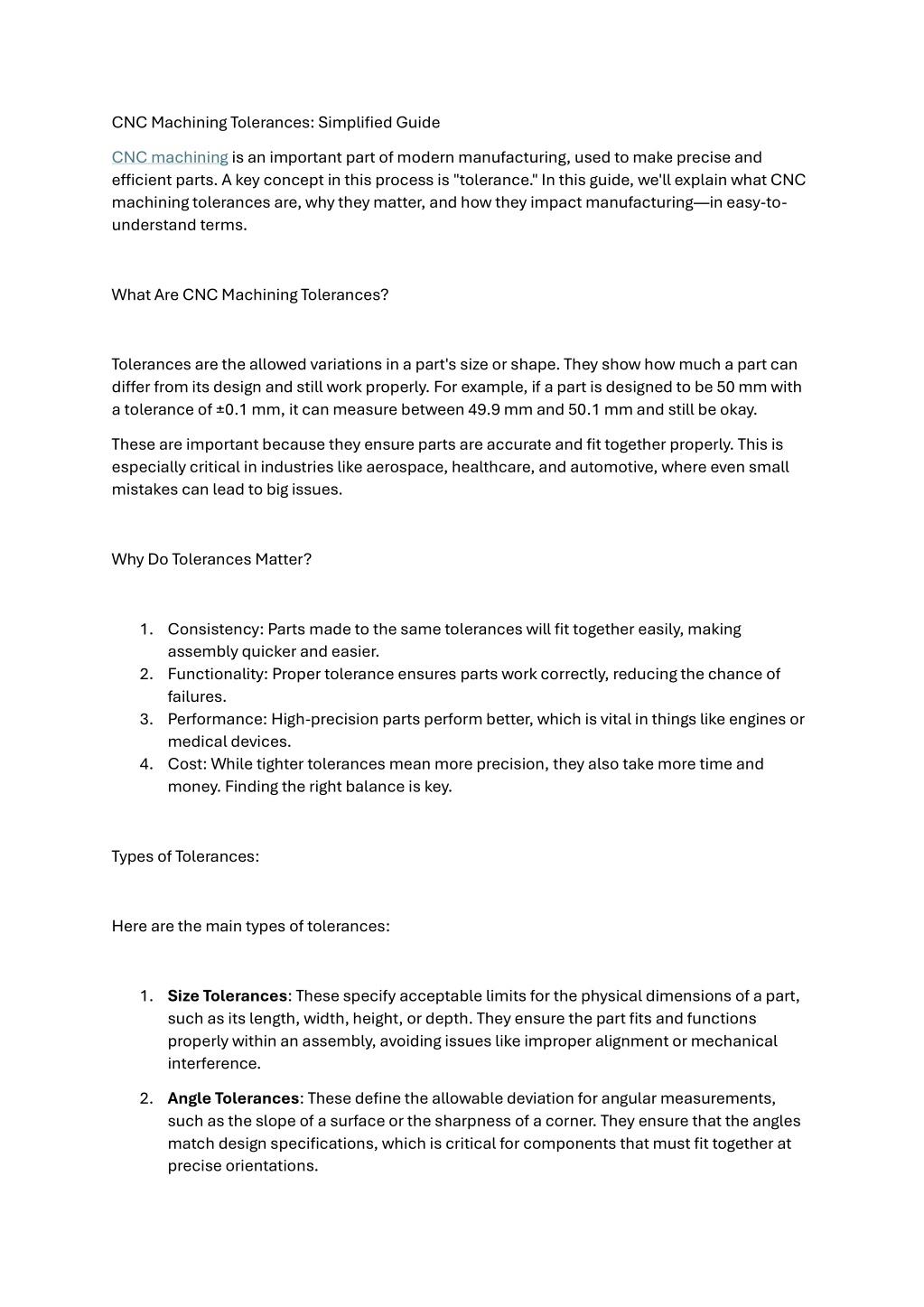

1. CNC Machining Tolerances: Simplified Guide CNC machining is an important part of modern manufacturing, used to make precise and efficient parts. A key concept in this process is "tolerance." In this guide, we'll explain what CNC machining tolerances are, why they matter, and how they impact manufacturing—in easy-to- understand terms. What Are CNC Machining Tolerances? Tolerances are the allowed variations in a part's size or shape. They show how much a part can differ from its design and still work properly. For example, if a part is designed to be 50 mm with a tolerance of ±0.1 mm, it can measure between 49.9 mm and 50.1 mm and still be okay. These are important because they ensure parts are accurate and fit together properly. This is especially critical in industries like aerospace, healthcare, and automotive, where even small mistakes can lead to big issues. Why Do Tolerances Matter? 1.Consistency: Parts made to the same tolerances will fit together easily, making assembly quicker and easier. 2.Functionality: Proper tolerance ensures parts work correctly, reducing the chance of failures. 3.Performance: High-precision parts perform better, which is vital in things like engines or medical devices. 4.Cost: While tighter tolerances mean more precision, they also take more time and money. Finding the right balance is key. Types of Tolerances: Here are the main types of tolerances: 1.Size Tolerances: These specify acceptable limits for the physical dimensions of a part, such as its length, width, height, or depth. They ensure the part fits and functions properly within an assembly, avoiding issues like improper alignment or mechanical interference. 2.Angle Tolerances: These define the allowable deviation for angular measurements, such as the slope of a surface or the sharpness of a corner. They ensure that the angles match design specifications, which is critical for components that must fit together at precise orientations.

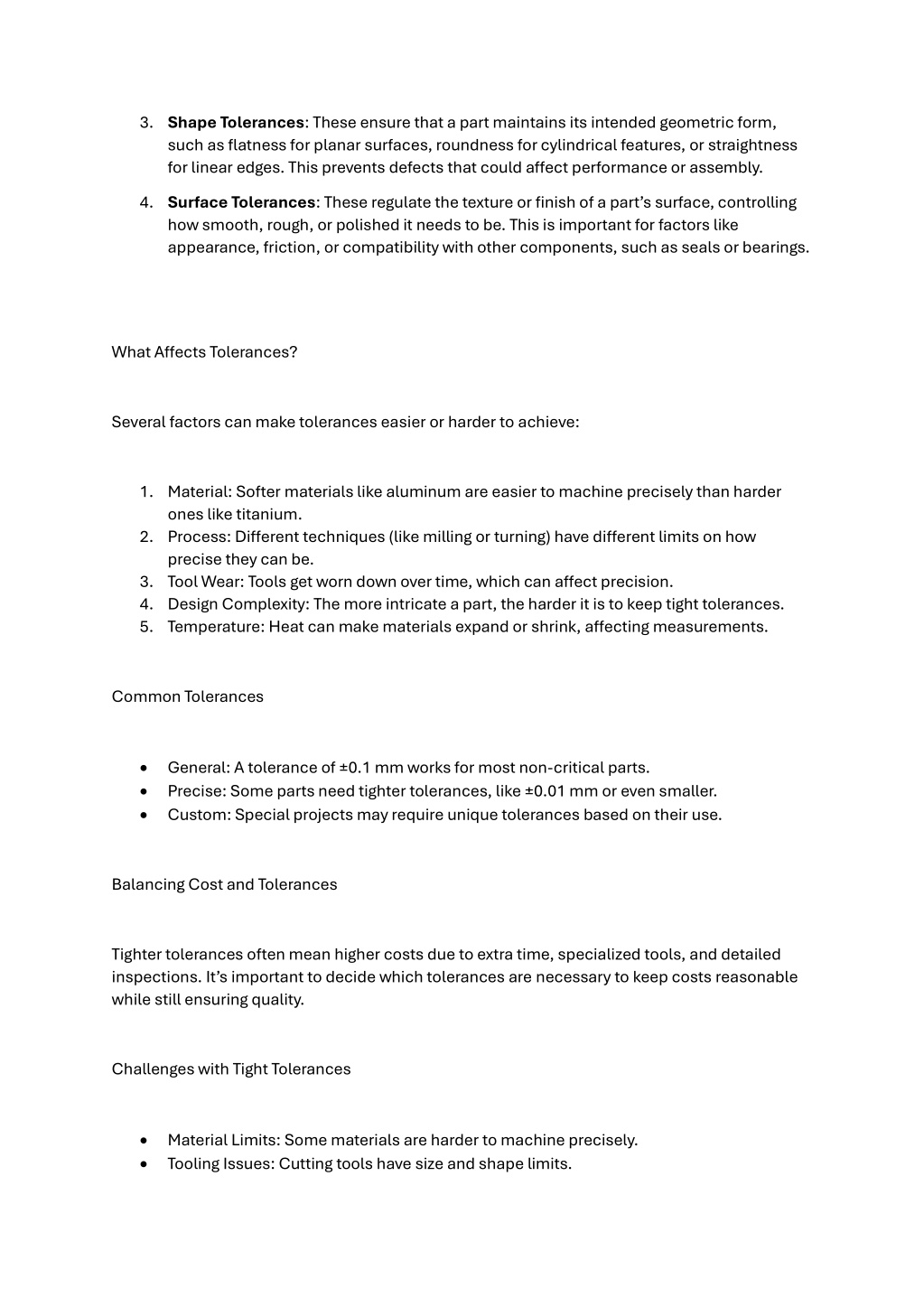

2. 3.Shape Tolerances: These ensure that a part maintains its intended geometric form, such as flatness for planar surfaces, roundness for cylindrical features, or straightness for linear edges. This prevents defects that could affect performance or assembly. 4.Surface Tolerances: These regulate the texture or finish of a part’s surface, controlling how smooth, rough, or polished it needs to be. This is important for factors like appearance, friction, or compatibility with other components, such as seals or bearings. What Affects Tolerances? Several factors can make tolerances easier or harder to achieve: 1.Material: Softer materials like aluminum are easier to machine precisely than harder ones like titanium. 2.Process: Different techniques (like milling or turning) have different limits on how precise they can be. 3.Tool Wear: Tools get worn down over time, which can affect precision. 4.Design Complexity: The more intricate a part, the harder it is to keep tight tolerances. 5.Temperature: Heat can make materials expand or shrink, affecting measurements. Common Tolerances •General: A tolerance of ±0.1 mm works for most non-critical parts. •Precise: Some parts need tighter tolerances, like ±0.01 mm or even smaller. •Custom: Special projects may require unique tolerances based on their use. Balancing Cost and Tolerances Tighter tolerances often mean higher costs due to extra time, specialized tools, and detailed inspections. It’s important to decide which tolerances are necessary to keep costs reasonable while still ensuring quality. Challenges with Tight Tolerances •Material Limits: Some materials are harder to machine precisely. •Tooling Issues: Cutting tools have size and shape limits.

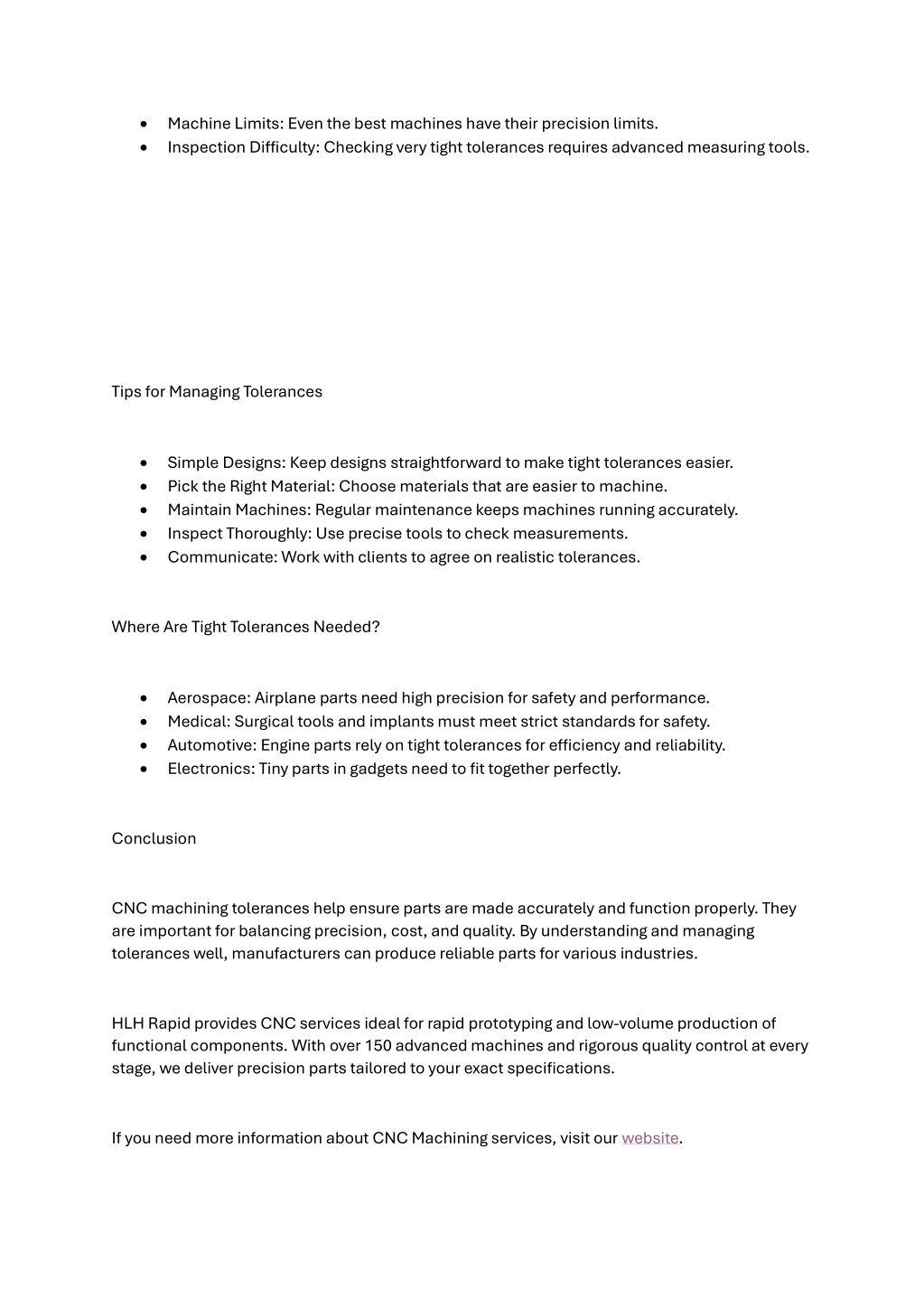

3. •Machine Limits: Even the best machines have their precision limits. •Inspection Difficulty: Checking very tight tolerances requires advanced measuring tools. Tips for Managing Tolerances •Simple Designs: Keep designs straightforward to make tight tolerances easier. •Pick the Right Material: Choose materials that are easier to machine. •Maintain Machines: Regular maintenance keeps machines running accurately. •Inspect Thoroughly: Use precise tools to check measurements. •Communicate: Work with clients to agree on realistic tolerances. Where Are Tight Tolerances Needed? •Aerospace: Airplane parts need high precision for safety and performance. •Medical: Surgical tools and implants must meet strict standards for safety. •Automotive: Engine parts rely on tight tolerances for efficiency and reliability. •Electronics: Tiny parts in gadgets need to fit together perfectly. Conclusion CNC machining tolerances help ensure parts are made accurately and function properly. They are important for balancing precision, cost, and quality. By understanding and managing tolerances well, manufacturers can produce reliable parts for various industries. HLH Rapid provides CNC services ideal for rapid prototyping and low-volume production of functional components. With over 150 advanced machines and rigorous quality control at every stage, we deliver precision parts tailored to your exact specifications. If you need more information about CNC Machining services, visit our website.
