1 / 10

Level Diagrams

Level Diagrams. Li. Rb. Na and Cs. He. Multi Level Atoms. States: n 2S+1 X J. X: S ( l =0) , P ( l =1) , D ( l =2). Magnetic Moments:. Matrix Elements:. Transition Probabilities. ColdAtoms Basics.

hisoki
Download Presentation

Level Diagrams

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Level Diagrams

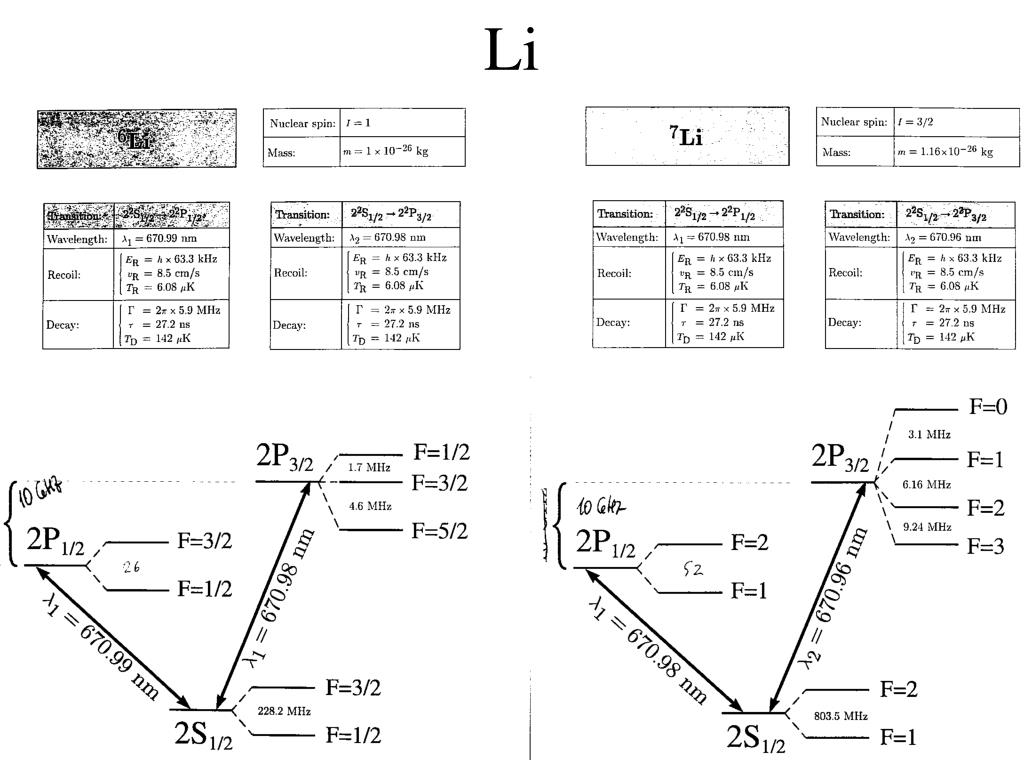

  2. Li

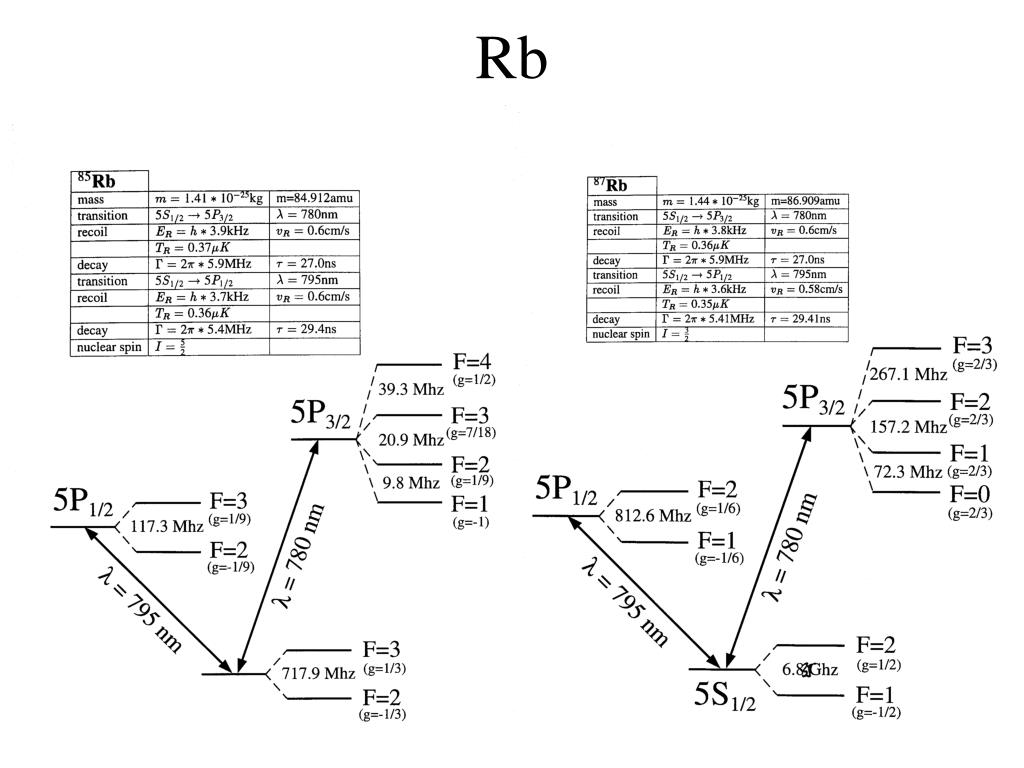

  3. Rb

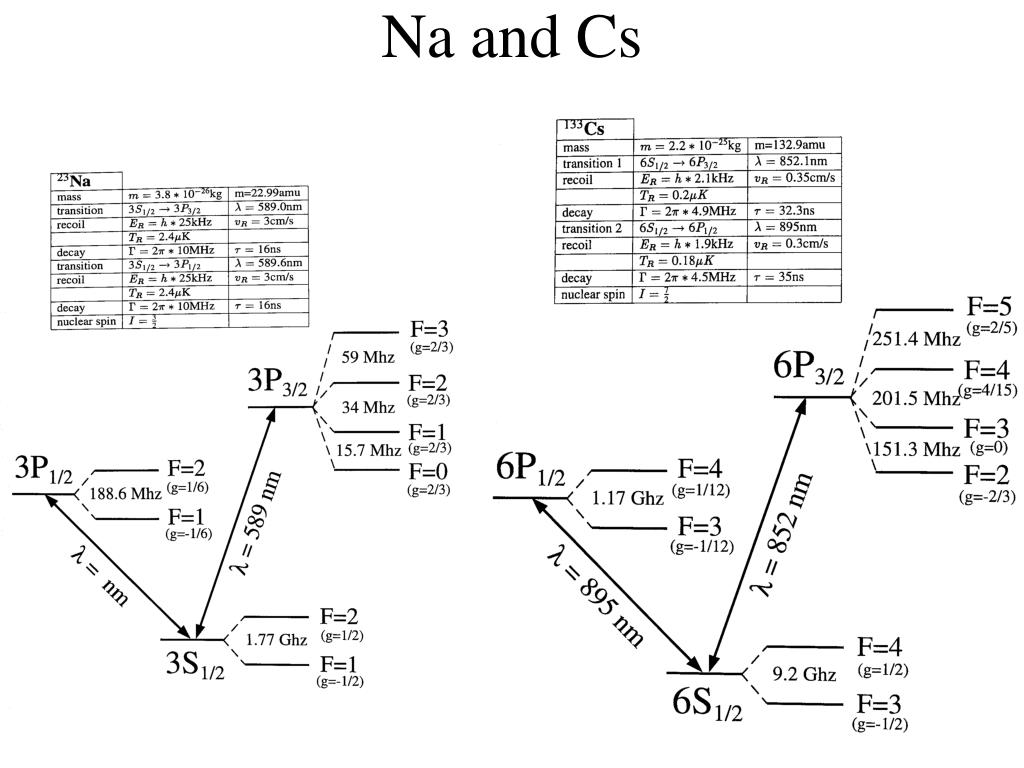

  4. Na and Cs

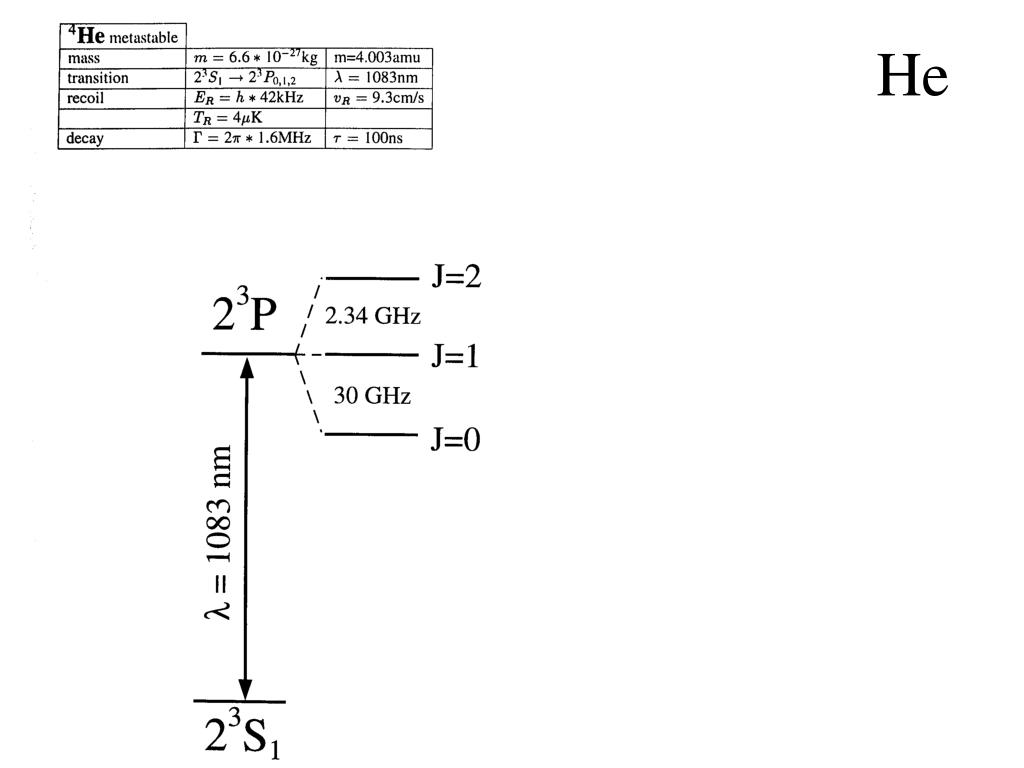

  5. He

  6. Multi Level Atoms States: n 2S+1XJ X: S(l=0), P(l=1), D(l=2) .... Magnetic Moments: Matrix Elements:

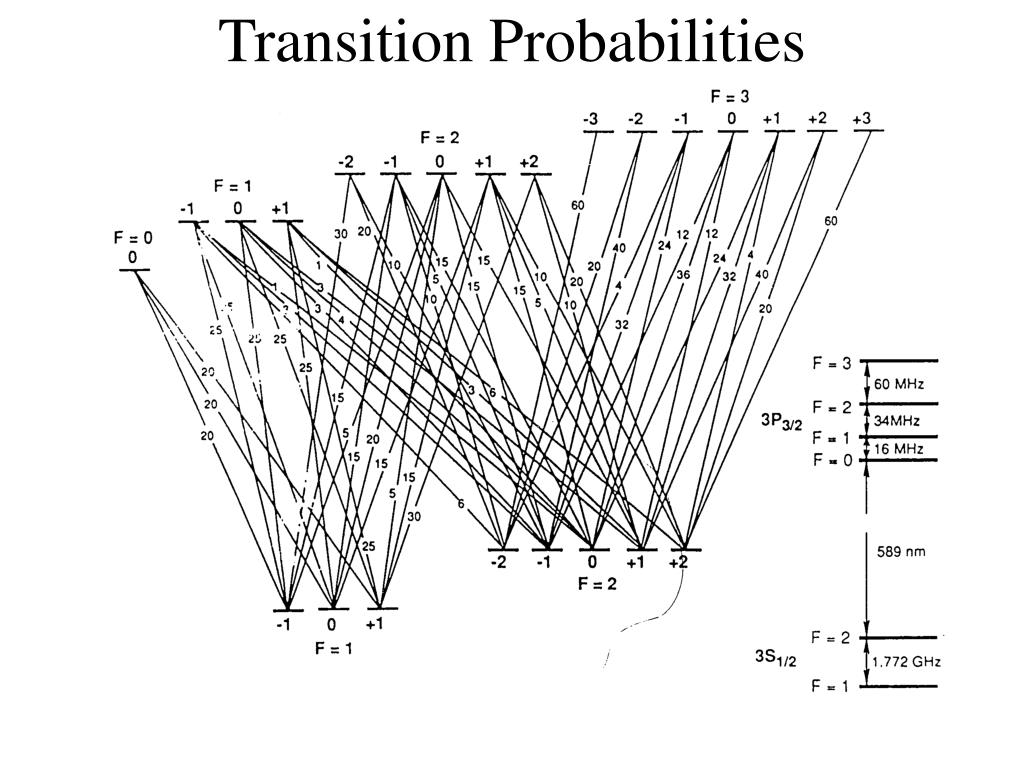

  7. Transition Probabilities

  8. ColdAtoms Basics

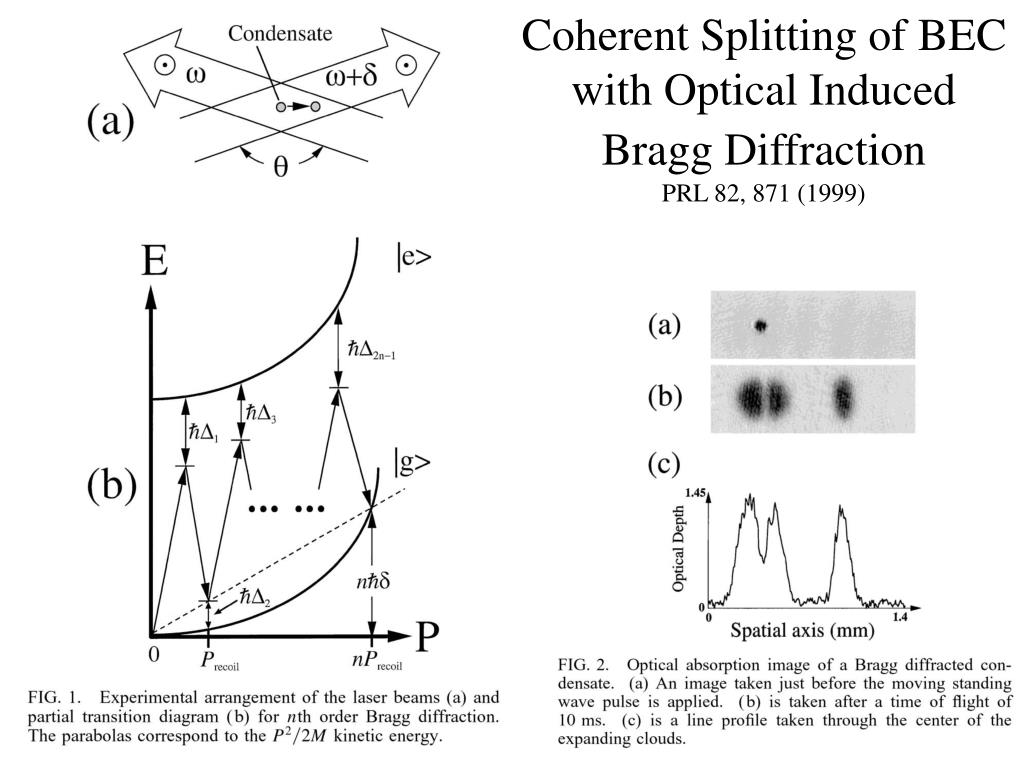

  9. Coherent Splitting of BEC with Optical Induced Bragg DiffractionPRL 82, 871 (1999)

  10. Coherent Splitting of BEC with Optical Induced Bragg DiffractionPRL 82, 871 (1999)
