  1. Model B1 19-inch Rack Static Transfer Switch

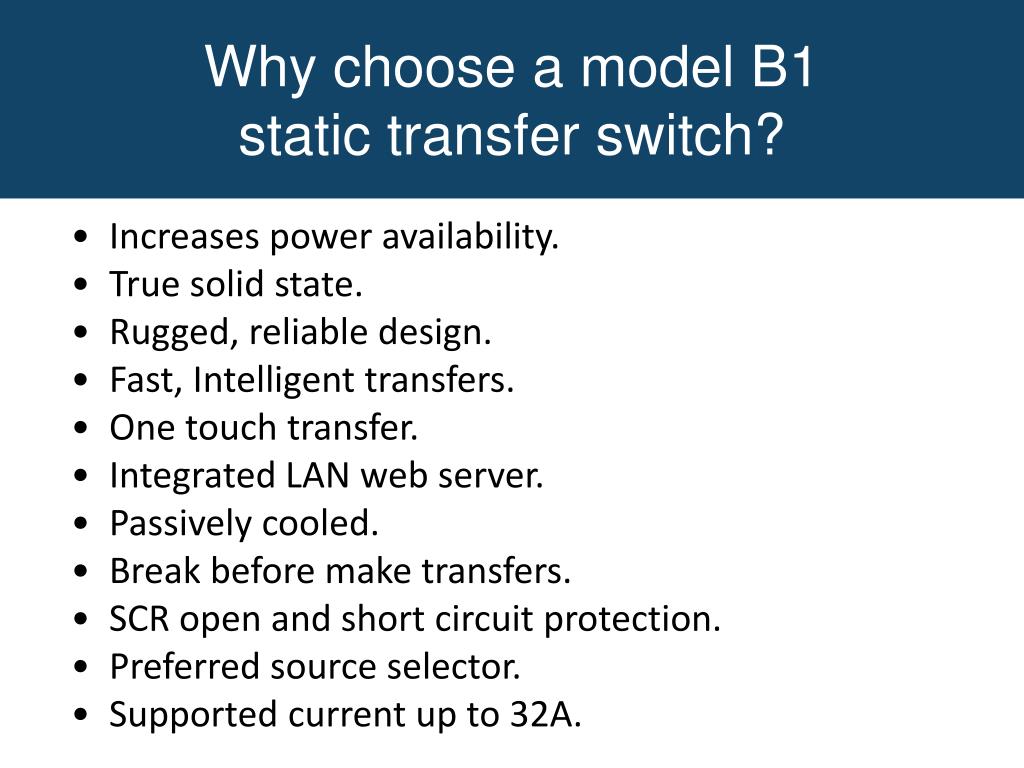

  2. Why choose a model B1static transfer switch? • Increases power availability. • True solid state. • Rugged, reliable design. • Fast, Intelligent transfers. • One touch transfer. • Integrated LAN web server. • Passively cooled. • Break before make transfers. • SCR open and short circuit protection. • Preferred source selector. • Supported current up to 32A.

  3. Features • Fast, reliable switching • Transparent transfer – less than ¼ cycle. • Solid state devices are far superior to their electro-mechanical equivalents. • Triple redundant internal power sources.

  4. Weight and Dimensions Width: 483mm, 19” Height: 1RU Depth: 400mm, 15.7” Weight (typical): 5.7Kg, 13 lb

  5. Features • Real time monitoring • Simple LED MIMIC status. • LCD Showing • input/output voltage and current. • List of recent events. • Ethernet Details. • override or the preferred supply being used. • Visual and audible alarms. • Ethernet web server. ALARM ETHERNET CONNECTOR LED MIMIC LCD

  6. Features • Multiple communications options • Ethernet (IEEE802.3 10BaseT) • Email alert. • 5 relay outputs. • 2 control inputs. ETHERNET CONNECTOR REMOTE CONNECTOR

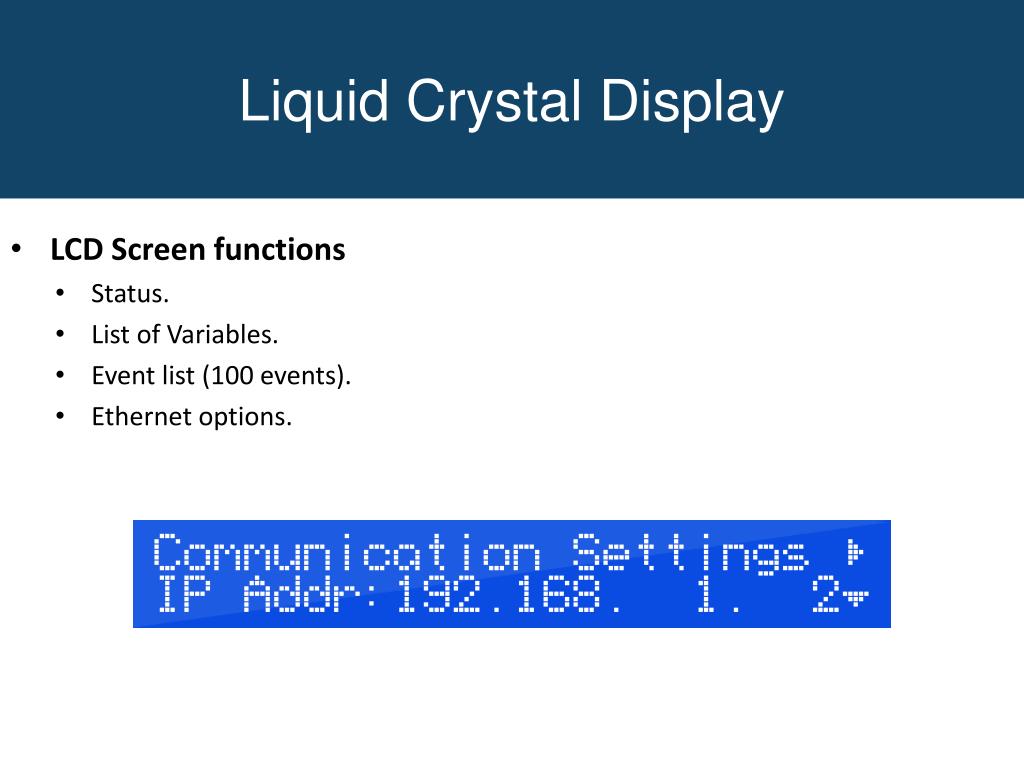

  7. Liquid Crystal Display • LCD Screen functions • Status. • List of Variables. • Event list (100 events). • Ethernet options.

  8. Liquid Crystal Display • LCD Screen functions • Status. • List of Variables. • Event list. • Settings. • Utilisation. • Diagnostics.

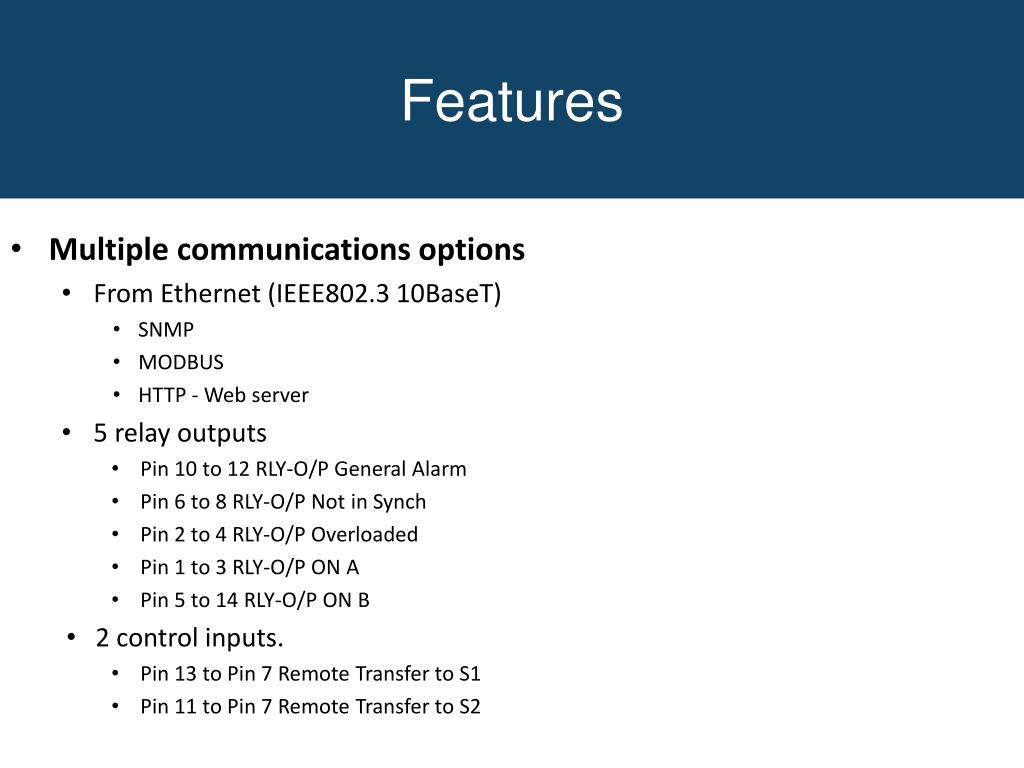

  9. Features • Multiple communications options • From Ethernet (IEEE802.3 10BaseT) • SNMP • MODBUS • HTTP - Web server • 5 relay outputs • Pin 10 to 12 RLY-O/P General Alarm • Pin 6 to 8 RLY-O/P Not in Synch • Pin 2 to 4 RLY-O/P Overloaded • Pin 1 to 3 RLY-O/P ON A • Pin 5 to 14 RLY-O/P ON B • 2 control inputs. • Pin 13 to Pin 7 Remote Transfer to S1 • Pin 11 to Pin 7 Remote Transfer to S2

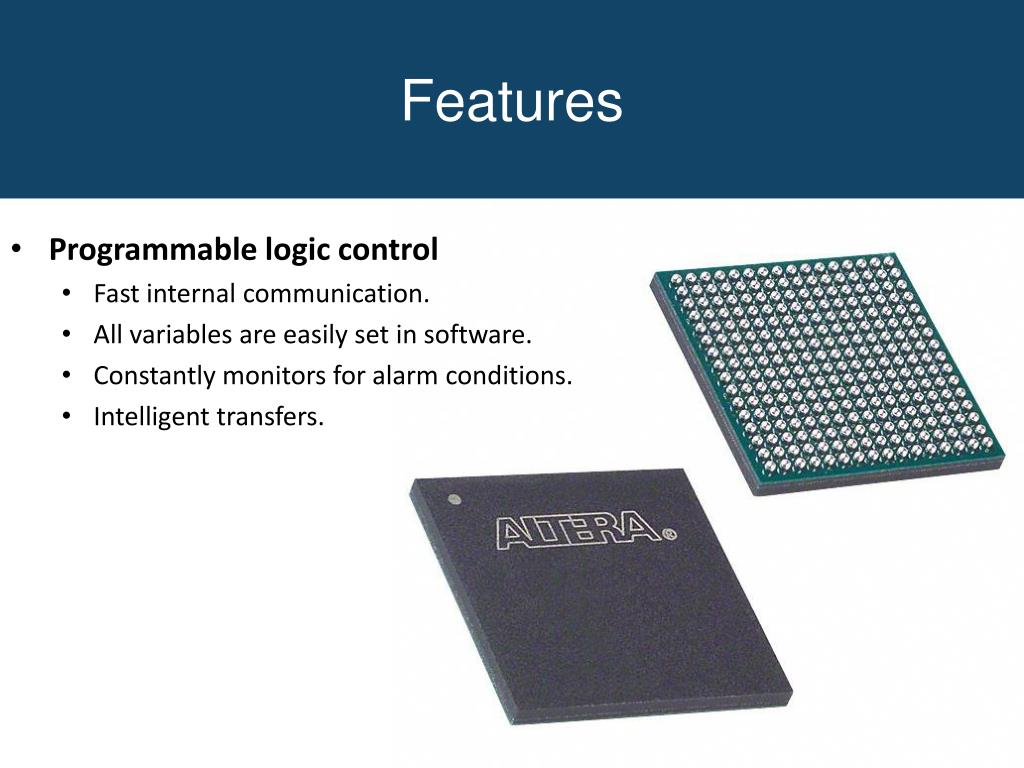

  10. Features • Programmable logic control • Fast internal communication. • All variables are easily set in software. • Constantly monitors for alarm conditions. • Intelligent transfers.

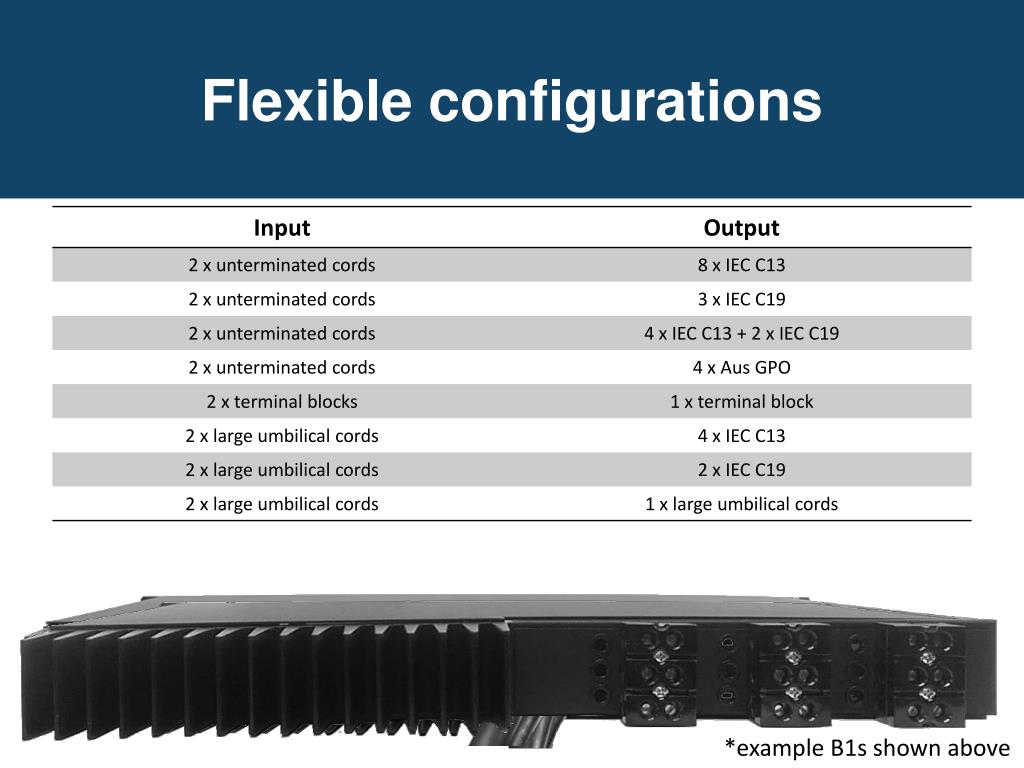

  11. Flexible configurations *example B1s shown above

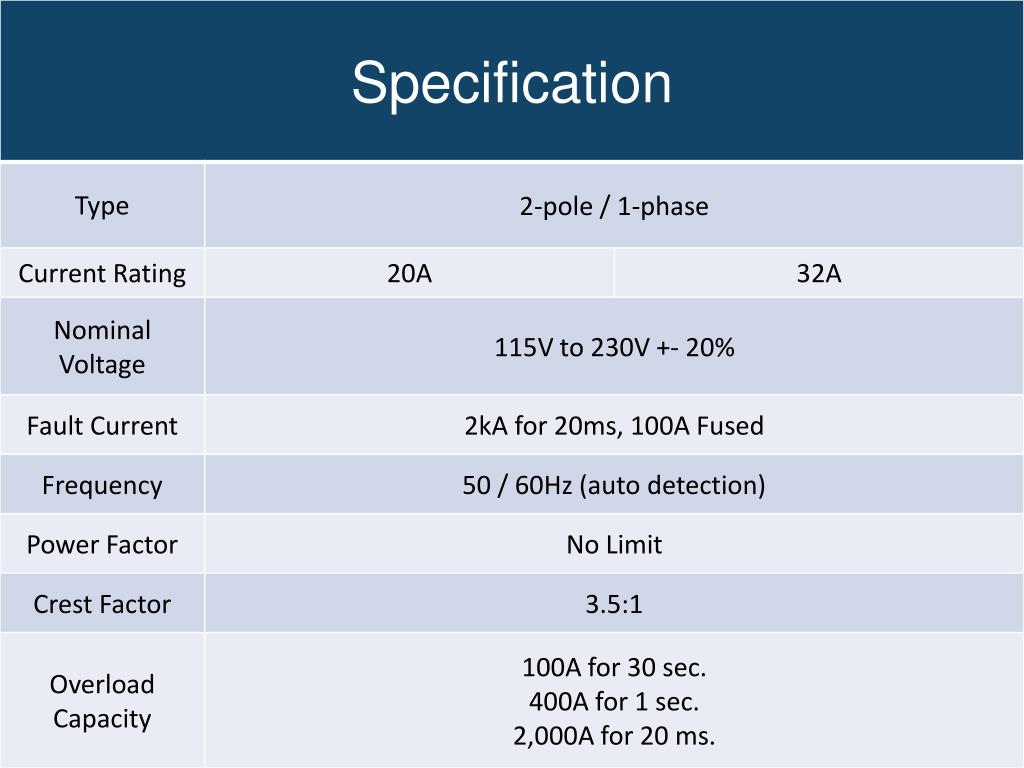

  12. Specification
