Requirements Overview

Requirements Overview. Boeing 2 Paul Merritt Matt O'Shaughnessey Jason Eager Sumera Saiyed Pavan Devatha. Project Goals. Ultimate goal of project To design the Operational Flight Program Builder Tool. Description. Design a graphical interface and the OFP for the Boeing Project

hiram-case
Download Presentation

Requirements Overview

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

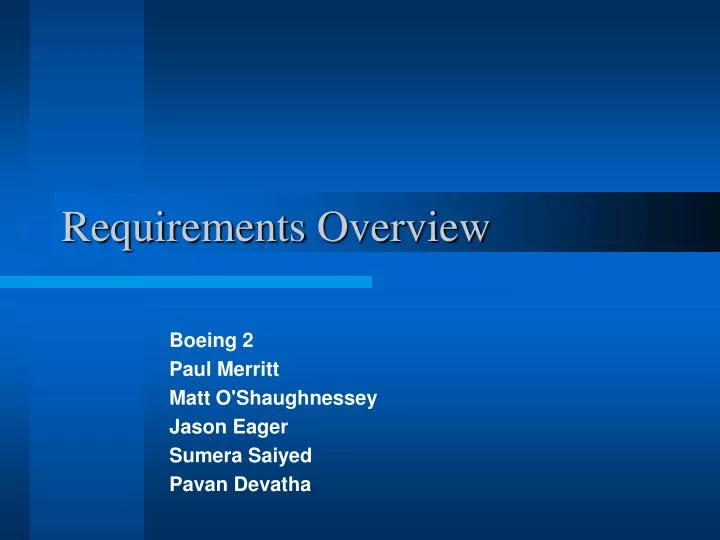

  1. Requirements Overview Boeing 2 Paul Merritt Matt O'Shaughnessey Jason Eager Sumera Saiyed Pavan Devatha

  2. Project Goals • Ultimate goal of project • To design the Operational Flight Program Builder Tool

  3. Description • Design a graphical interface and the OFP for the Boeing Project • The graphical interface will be used so that the engineers will be able to plug and play different hardware components • Allow different settings to be set for components • Generate the build files

  4. Use Case Diagram

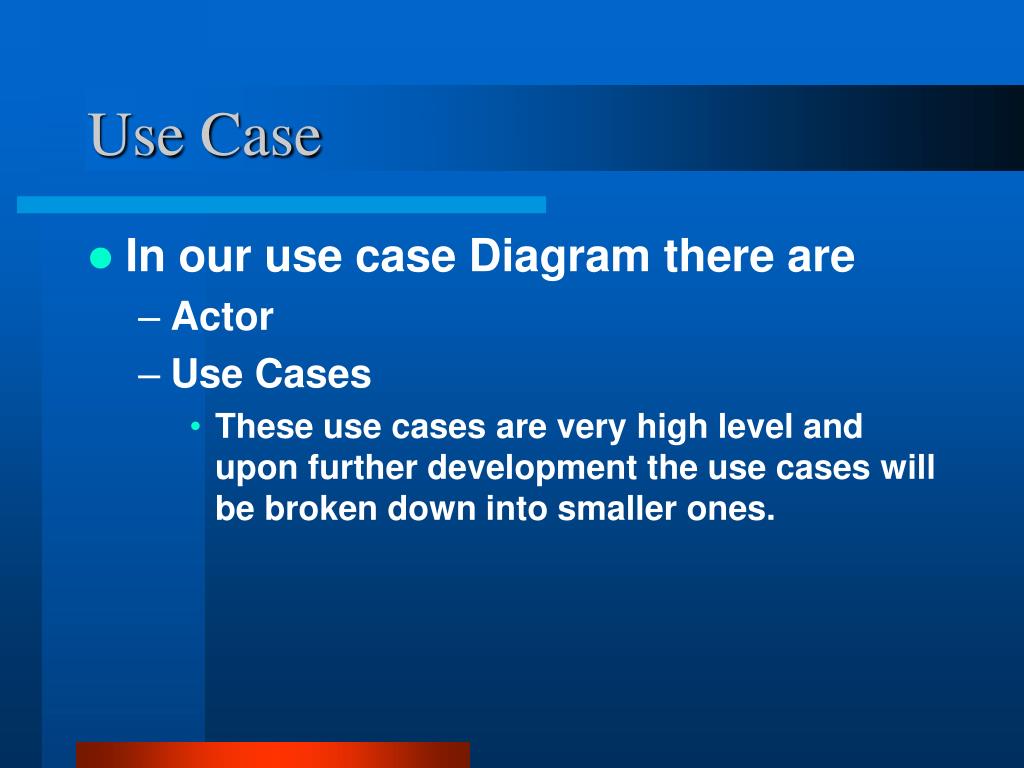

  5. Use Case • In our use case Diagram there are • Actor • Use Cases • These use cases are very high level and upon further development the use cases will be broken down into smaller ones.

  6. Conceptual Diagram

  7. Method • Object Oriented • For ease of use • This way we can show you the company a product in various stages

  8. Current Status • As of now we have developed the use cases and the conceptual diagram • Next, work on both and fine tune them and make the first cycle.

  9. Questions • Old examples of build files? • What exactly do you want in the build files? • Do you want everything? • Makefiles, executables, etc. • Any comments?
