Presentation Transcript
additional motifs of tertiary structure

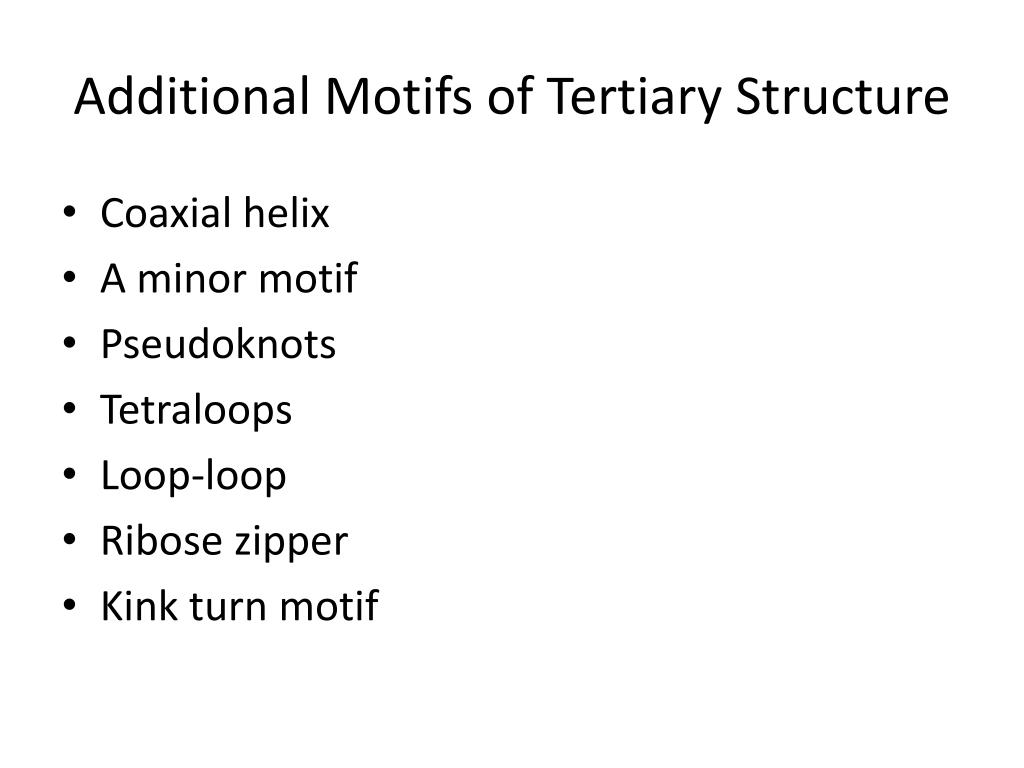

Additional Motifs of Tertiary Structure
  • Coaxial helix
  • A minor motif
  • Pseudoknots
  • Tetraloops
  • Loop-loop
  • Ribose zipper
  • Kink turn motif
coaxial helix
Coaxial helix
  • Two separate helical regions stack to form coaxial helices as a pseudo-continuous (quasi-continuous) helix.
  • Coaxial helices are highly stabilizing tertiary interactions and are seen in several large RNA structures, including tRNA, pseudoknots, the group I intron P4-P6 domain, and in the Hepatitis Delta Virus ribozyme.
a minor motif
A-minor motif
  • The A-minor motif involves the insertion of minor groove edges of adenines into the minor groove of neighboring helices.
  • It has four subtypes depending on the position of the adenine to the interacting Watson-Crick base pair.

ype 0: The N3 of the A (or other) residue is outside the O2' of the far strand of the receptor helix. Type I: The O2' and N3 atoms of the A residue are inside the minor groove of the receptor helix. The inserted base for the Type I interaction must be an adenine. Type II: The O2' of the A residue is outside the near strand O2' of the helix and the N3 of the A residue is inside the minor groove. The inserted base for the Type II interaction must be an adenine. Type III: The O2' and N3 of the A (or other) residue are outside the near strand O2' of the receptor helix.

ribose zipper
Ribose zipper
  • The ribose zipper is a tertiary interaction formed by consecutive hydrogen-bonding between the backbone ribose 2′-hydroxyls from two regions of the chain interacting in an anti-parallel manner.

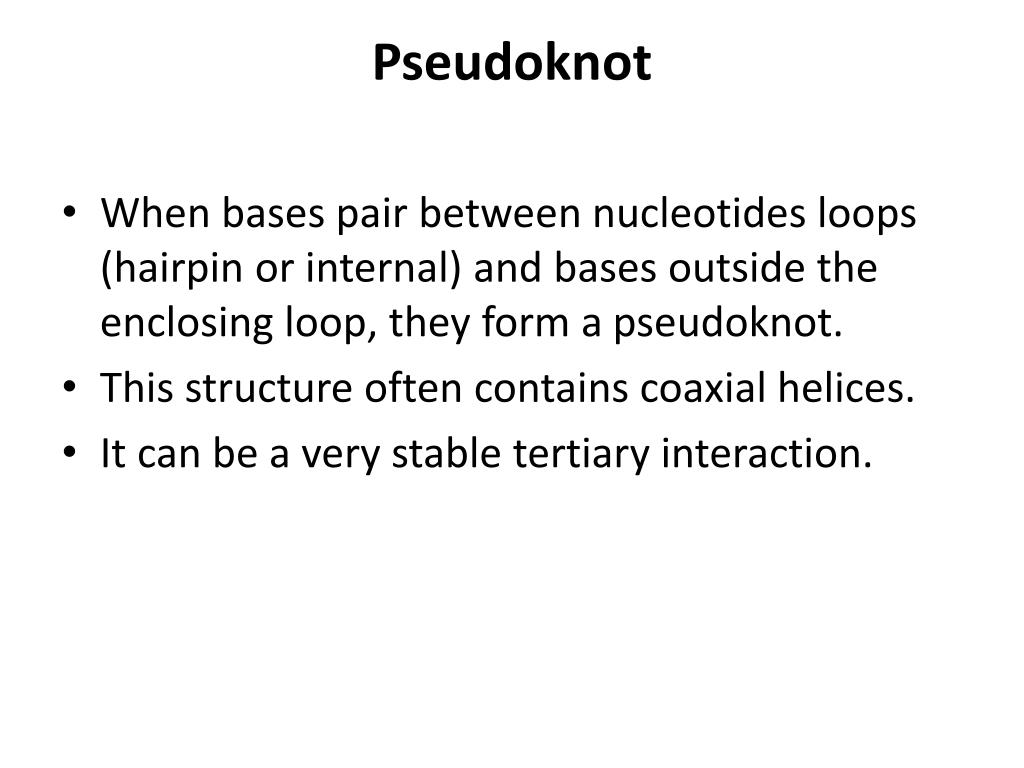

  • When bases pair between nucleotides loops (hairpin or internal) and bases outside the enclosing loop, they form a pseudoknot.
  • This structure often contains coaxial helices.
  • It can be a very stable tertiary interaction.
loop loop receptor

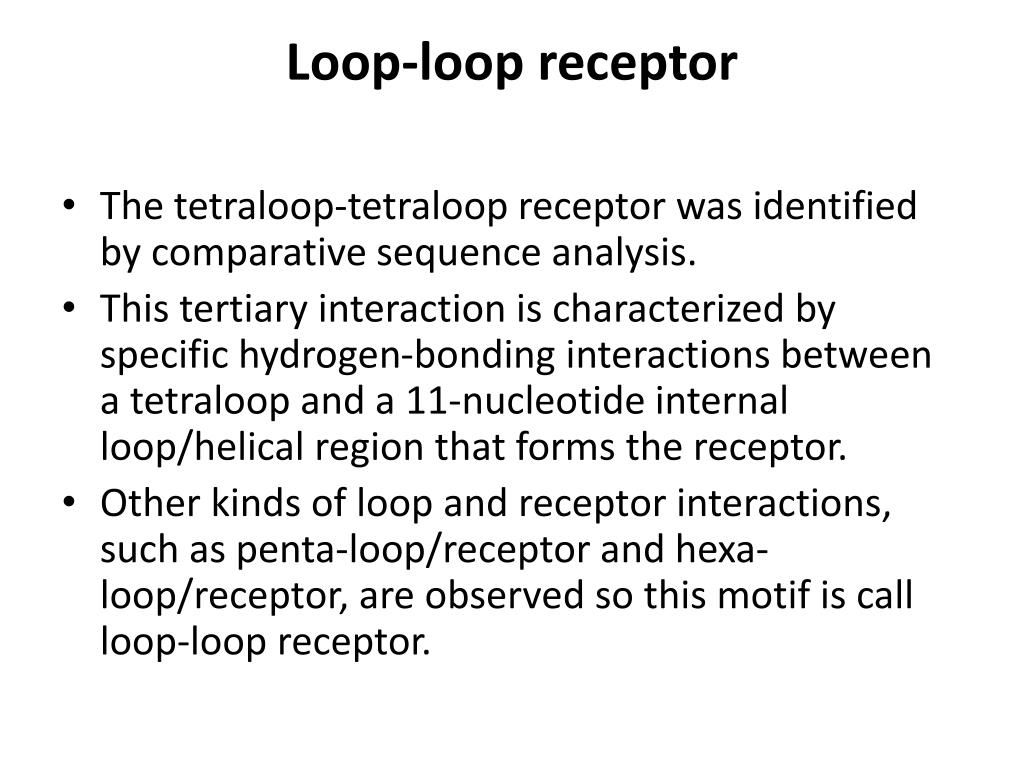

Loop-loop receptor
  • The tetraloop-tetraloop receptor was identified by comparative sequence analysis.
  • This tertiary interaction is characterized by specific hydrogen-bonding interactions between a tetraloop and a 11-nucleotide internal loop/helical region that forms the receptor.
  • Other kinds of loop and receptor interactions, such as penta-loop/receptor and hexa-loop/receptor, are observed so this motif is call loop-loop receptor.
trna d loop t loop

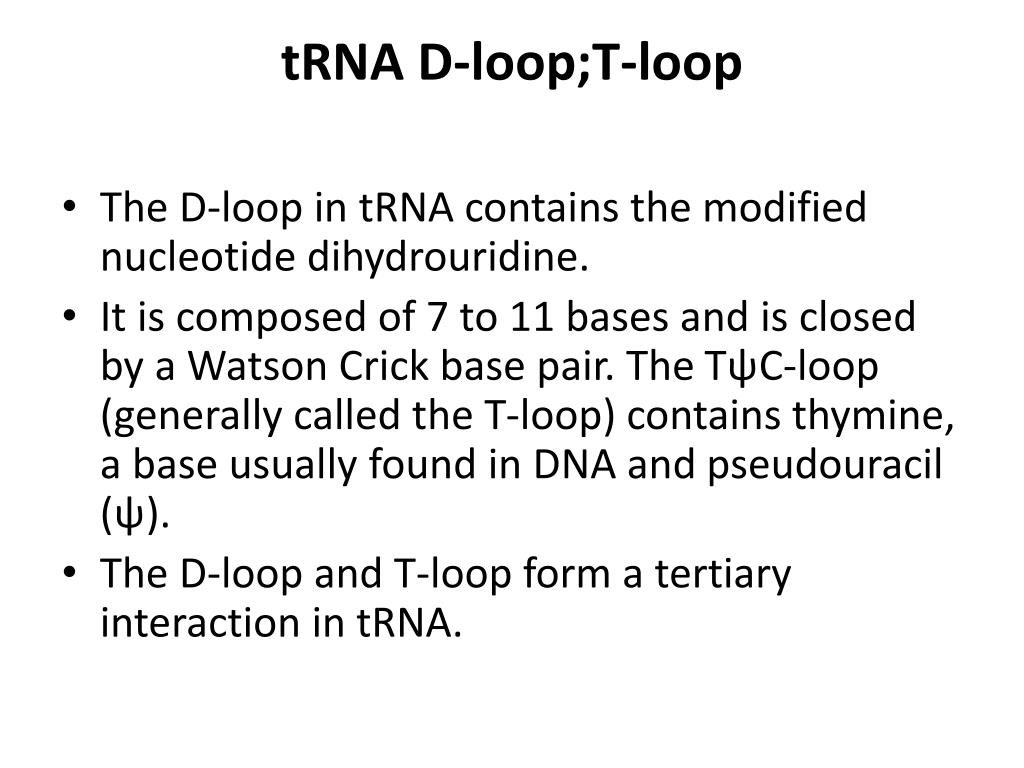

tRNA D-loop;T-loop
  • The D-loop in tRNA contains the modified nucleotide dihydrouridine.
  • It is composed of 7 to 11 bases and is closed by a Watson Crick base pair. The TψC-loop (generally called the T-loop) contains thymine, a base usually found in DNA and pseudouracil (ψ).
  • The D-loop and T-loop form a tertiary interaction in tRNA.
kissing hairpin
Kissing hairpin
  • The kissing hairpin complex is a tertiary interaction formed by base pairing between the single-stranded residues of two hairpin loops with complementary sequences
a new concept the ribozyme enzymic rna
A new concept:the Ribozyme - enzymic RNA
  • Exactly following the definition of an enzyme, the L-19 IVS RNA
      • accelerates the reaction by a factor of around .
      • is regenerated after each reaction each enzyme molecule can react with many substrate molecules.
ribozymes therapeutic applications
Ribozymes - Therapeutic Applications
  • Simple structure, site-specific cleavage activity and catalytic capability, make ribozymes effective modulators of gene expression.
  • Ribozyme-mediated gene modulation can target cancer cells, foreign genes that cause infectious diseases as well as other target sites (current research), and thereby alter the cellular pathology.
23S rRNA

peptidyl transfer reaction:

P-site tRNA


A-site tRNA

Ninety eight percent of the human genome

does not code for protein. What is its


how much of human transcribed rna results in proteins
How much of human transcribed RNAresults in proteins?
  • Of all RNA, transcribed in higher eukaryotes, 98% are never translated into proteins.
  • Of those 98%, about 50-70% are introns
  • 4% of total RNA is made of coding RNA
  • The rest originate from non-protein genes, including rRNA, tRNA and a vast number of other non-coding RNAs (ncRNAs)
  • Even introns have been shown to contain ncRNAs, for example snoRNAs
  • It is thought that there might be order of 10,000 different ncRNAs in mammalian genome
rna functions
RNA functions
  • Storage/transfer of genetic information
  • Structural
  • Catalytic
  • Regulatory
rna functions1

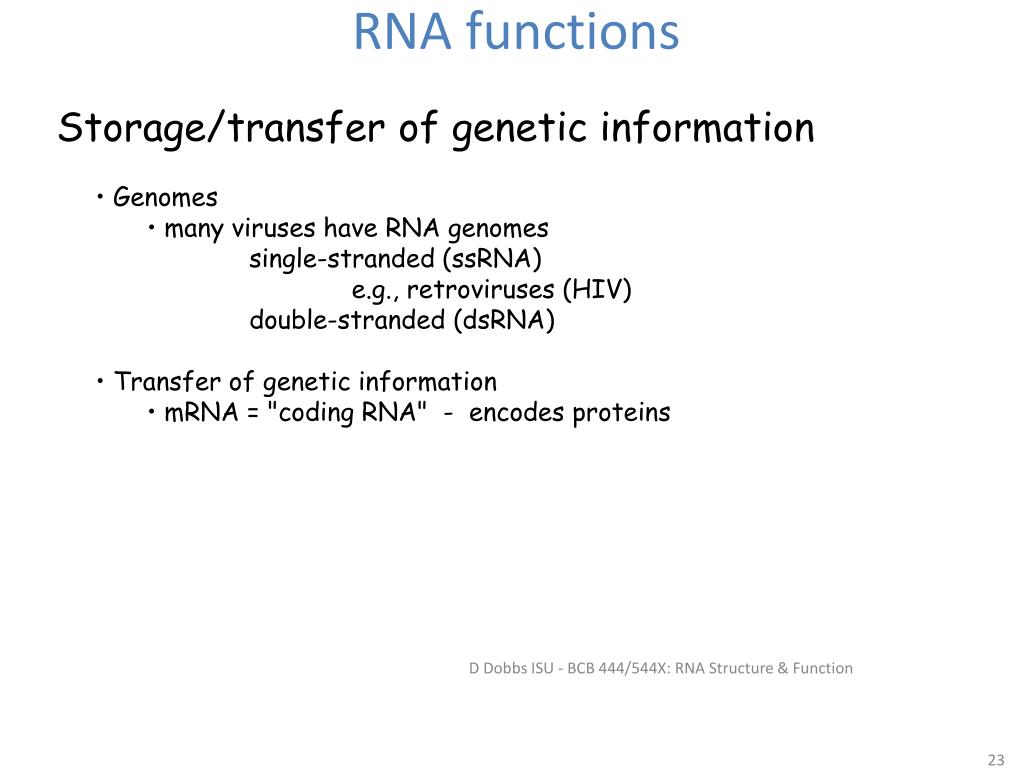

RNA functions
  • Storage/transfer of genetic information
    • Genomes
      • many viruses have RNA genomes
          • single-stranded (ssRNA)
          • e.g., retroviruses (HIV)
          • double-stranded (dsRNA)
    • Transfer of genetic information
      • mRNA = "coding RNA" - encodes proteins

D Dobbs ISU - BCB 444/544X: RNA Structure & Function

rna functions2

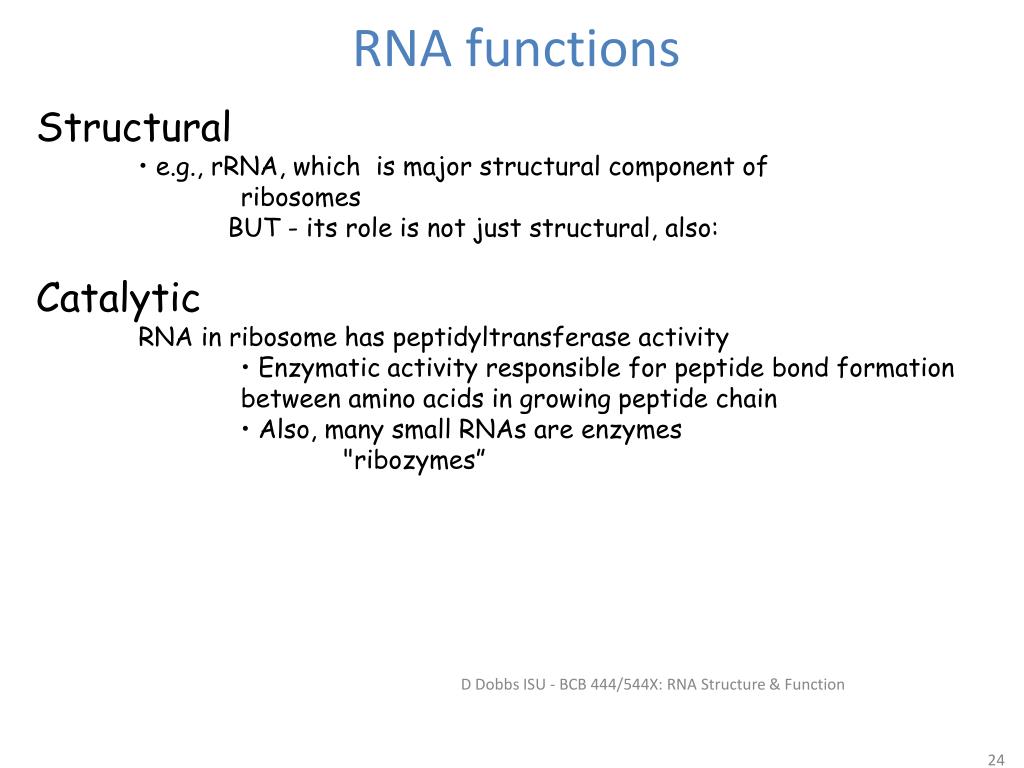

RNA functions
  • Structural
      • e.g., rRNA, which is major structural component of ribosomes
        • BUT - its role is not just structural, also:
  • Catalytic
  • RNA in ribosome has peptidyltransferaseactivity
          • Enzymatic activity responsible for peptide bond formation between amino acids in growing peptide chain
          • Also, manysmall RNAs are enzymes "ribozymes”

D Dobbs ISU - BCB 444/544X: RNA Structure & Function

rna functions3

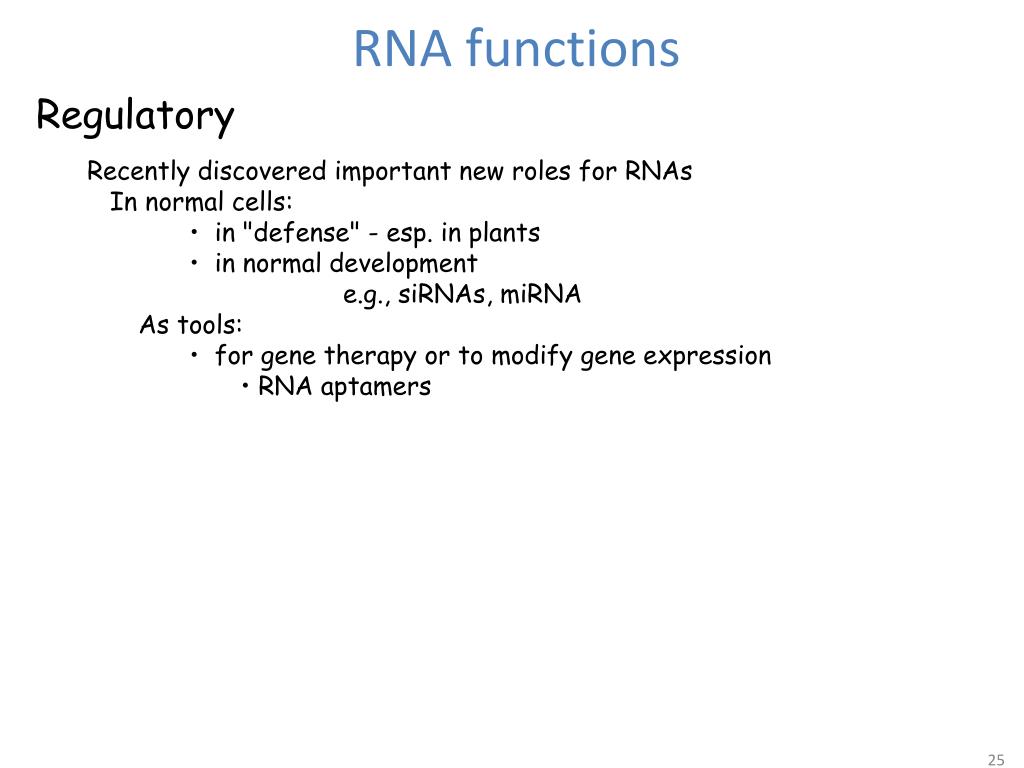

RNA functions
  • Regulatory
    • Recently discovered important new roles for RNAs
    • In normal cells:
        • in "defense" - esp. in plants
        • in normal development
        • e.g., siRNAs, miRNA
      • As tools:
        • for gene therapy or to modify gene expression
          • RNA aptamers
rna types functions
RNA types & functions

D Dobbs ISU - BCB 444/544X: RNA Structure & Function



ncRNA(non-coding RNA)

Transcribed RNA with a structural,

functional or catalytic role



Small nucleolar RNA

Found in nucleolus,

involved inmodification

of rRNA


Micro RNA

Small RNA involved

regulation of expression


Ribosomal RNA

Participate in

protein synthesis


Transfer RNA

Interface between

mRNA &

amino acids


Small nuclear RNA

-Incl. RNA that

form part of the



Including large RNA

with roles in

chromotin structure and



Small temporal RNA.

RNA with a role in

Developmental timing.


Small interfering RNA

Active molecules in

RNA interference

small nuclear rnas
Small Nuclear RNAs
  • One important subcategory of small regulatory RNAs consists of the molecules know n as small nuclear RNAs (snRNAs).
  • These molecules play a critical role in gene regulation by w ay of RNA splicing.
  • snRNAsare found in the nucleus and are typically tightly bound to proteins in complexes called snRNPs (small nuclear ribonucleoproteins, sometimes pronounced "snurps").
  • The most abundant of these molecules are the U1, U2, U5, and U4/U6 particles, w hich are involved in splicing pre-mRNA to give rise to mature mRNA
  • RNAs that are approximately 22 to 26 nucleotides in length.
  • The existence of miRNAs and their functions in gene regulation w ere initially discovered in the nematode C. Elegans .
  • Have also been found in many other species, including flies, mice, and humans. Several hundred miRNAs have been identified thus far, and many more may exist.
  • miRNAs have been show n to inhibit gene expression by repressing translation.
  • For example, the miRNAs encoded by C. elegans, lin-4 and let-7, bind to the 3' untranslated region of their target mRNAs, preventing functional proteins from being produced during certain stages of larval development.
  • Additional studies indicate that miRNAs also play significant roles in cancer and other diseases. For example, the species miR-155 is enriched in B cells derived from Burkitt's lymphoma, and its sequence also correlates w ith a know n chromosomal translocation (exchange of DNA between chromosomes).
small interfering rnas
Small Interfering RNAs
  • Although these molecules are only 21 to 25 base pairs in length, they also work to inhibit gene expression.
  • siRNAs were first defined by their participation in RNA interference (RNAi). They may have evolved as a defense mechanism against double-stranded RNA viruses.
  • siRNAs are derived from longer transcripts in a process similar to that by which miRNAs are derived, and processing of both types of RNA involves the same enzyme, Dicer .
  • The two classes appear to be distinguished by their mechanisms of repression, but exceptions have been found in which siRNAsexhibit behaviormore typical of miRNAs, and vice versa.
mirna challenges for computational biology
miRNA Challenges for Computational Biology

• Find the genes encoding microRNAs

• Predict their regulatory targets

• Integrate miRNAs into gene regulatory pathways & networks

Computational Prediction of MicroRNA Genes & Targets

Need to modify traditional paradigm of "transcriptional control" by protein-DNA interactions to include miRNA regulatory mechanisms

D Dobbs ISU - BCB 444/544X: RNA Structure & Function

C Burge 2005

c elegans lin 4 small regulatory rna

lin-4 precursor

lin-4 RNA

target mRNA

lin-4 RNA

“Translational repression”

V. Ambros lab

C. eleganslin-4 Small Regulatory RNA

We now know that there are hundreds of microRNA genes

(Ambros, Bartel, Carrington, Ruvkun, Tuschl, others)

D Dobbs ISU - BCB 444/544X: RNA Structure & Function

C Burge 2005
