practical high sensitivity lc ms

Practical High Sensitivity LC-MS

Fundamentals, Challenges, and Prospects

Gary A. Valaskovic, Ph.D.

New Objective, Inc.

main topics
Main Topics
  • Anatomy of Electrospray
  • Introduction to Nanospray
  • The Nanobore LC Advantage
  • Flow Splitting and Sample Injection
  • Nanobore LC to MS Interfacing
  • Keys to Success
anatomy of esi
Anatomy of ESI
  • Adapted from Kebarle & Tnag, Anal. Of Chem., 1993, 64, 972A
why use nanospray
Why Use Nanospray?
  • ESI-MS (as commonly implemented) is a concentration sensitive detector. There is little or no loss in signal/noise as you reduce the flow rate.

You can obtain the same S/N for most compounds from 1 mL/min to 10 nL/min (with the right equipment)!

Adapted From Cody, Appl. Elec. Mass. Spec., Pramanik, Ganguly, Gross Eds.

why use nanospray8
Why Use Nanospray?

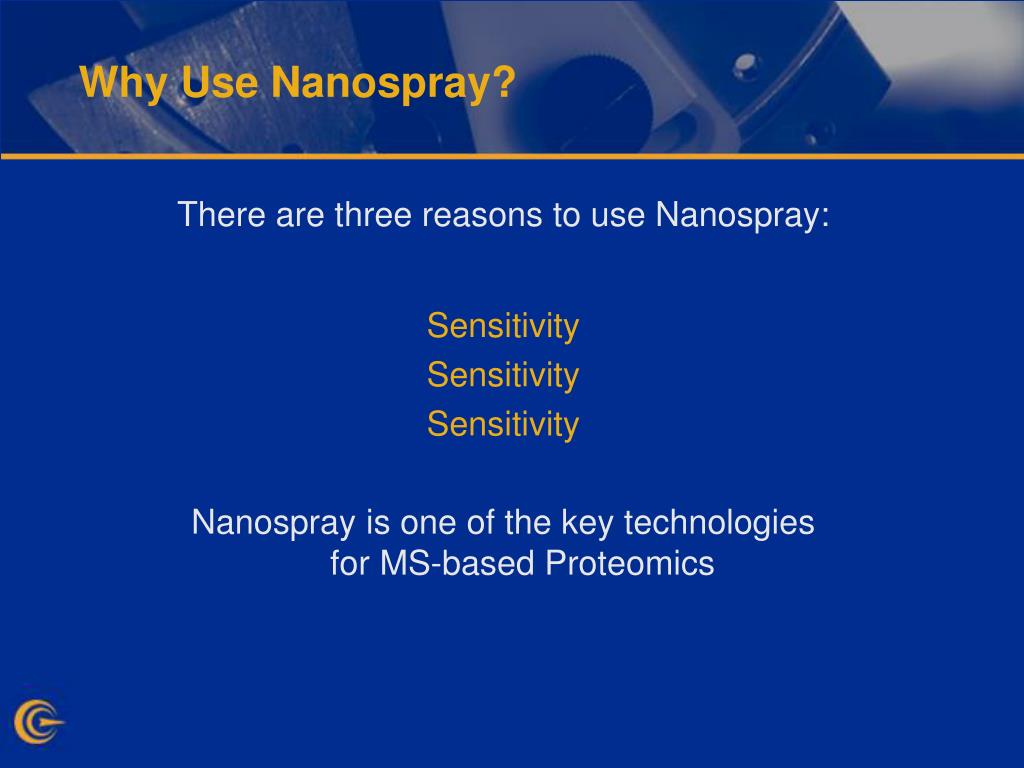

There are three reasons to use Nanospray:

  • Sensitivity
  • Sensitivity
  • Sensitivity
  • Nanospray is one of the key technologies for MS-based Proteomics
how does nanospray yield sensitivity
How Does Nanospray Yield Sensitivity?
  • Two ways to obtain sensitivity with Nanospray:
  • Off-line “Static” Nanospray
    • Extend the analysis time for a given sample
      • Sum spectra to increase S/N
      • Complete MS/MS or MSn possible
  • On-line LC-Nanospray
    • Analyze a small volume sample (1 µL or much less)
      • Concentrate your sample into as small a volume as possible
static nanospray methodology

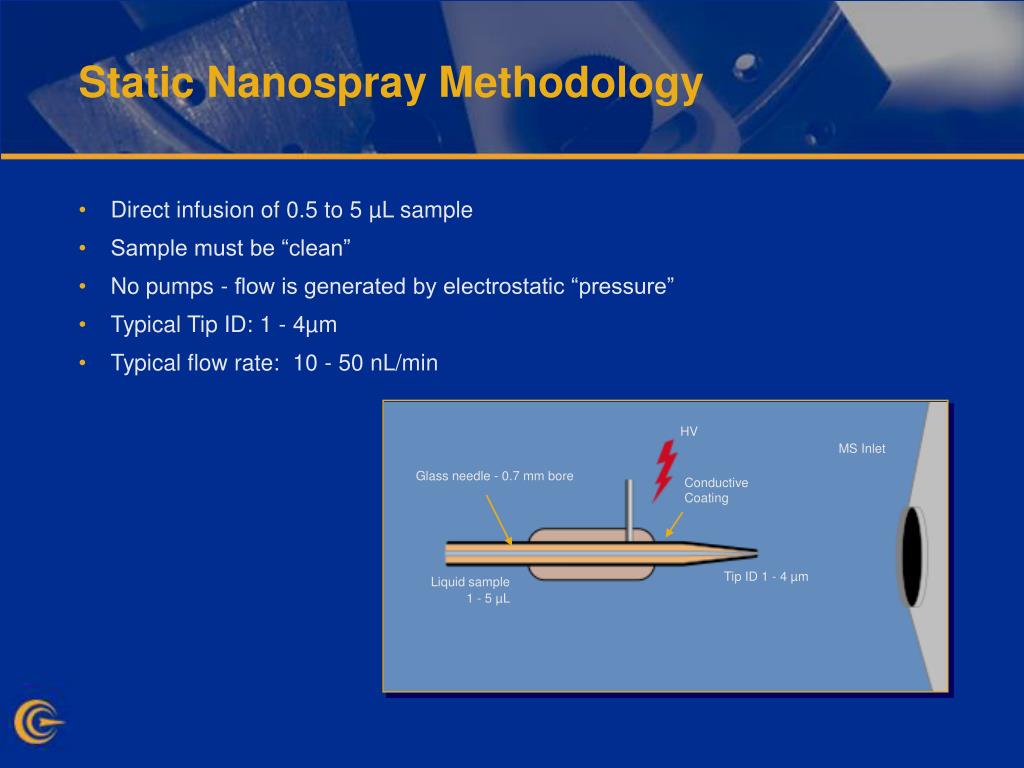

Static Nanospray Methodology
  • Direct infusion of 0.5 to 5 µL sample
  • Sample must be “clean”
  • No pumps - flow is generated by electrostatic “pressure”
  • Typical Tip ID: 1 - 4µm
  • Typical flow rate: 10 - 50 nL/min

HV

MS Inlet

Glass needle - 0.7 mm bore

Conductive Coating

Tip ID 1 - 4 µm

Liquid sample

1 - 5 µL

static nanospray extends analysis time
Static Nanospray Extends Analysis Time

Adapted From Corey & Pinto, Appl. Elec. Mass. Spec., Pramanik, Ganguly, Gross Eds.

static nanospray limitations
Static Nanospray Limitations
  • Sensitivity is good, but inferior to LC methods
    • Typically 10 -100 fmol proteins and peptides
  • Sample prep is not integral, sample must be clean and concentrated
    • Typically 100 nM to 10 µM
  • Limited utility on complex mixtures (OK on single bands but unable to handle “shotgun” methods)
  • Highly dependent on operator skill
  • Limited throughput
  • Automation is possible but $$$
on line nanospray with nanobore lc
“On-line” Nanospray with Nanobore LC
  • Integral sample clean-up
  • On-line injection of 1 - 20 µL
  • Gradient elution from split flow HPLC pump
  • Column ID ≤ 100 µm
  • Typical flow rate: 100 - 500 nL/min

Gradient pump

@ 200 µL/min

MS Inlet

In-line filter

Column

Tip

Micro-injection valve

(or autosampler)

Flow split

1000:1

why use nanospray lc

4.6 mm

50 µm

Why Use Nanospray LC?

Elute your sample into the smallest practical volume for the highest S/N!

why use nanobore lc
Why Use Nanobore LC?

The

Concentration Advantage!

Adapted From Tomer & Moseley, Mass. Spec. Rev., 1994, 13, 431

requirements for lc system
Requirements for LC System
  • Gradient Operation
    • Binary required; tertiary, quaternary preferred
  • Injection
    • 1 - 20 µL Typical
    • Accommodate sample trapping
  • Flow rate ≈ 100 to 1000 nL/min
    • Typically pre-column flow split from conventional pump
flow splitting methods
Flow Splitting Methods
  • Simple “T” Splitter (build)
    • Inexpensive! Easy to do. Split is non-linear but reproducible.
  • Balanced Flow Splitter (build or buy)
    • Good performance, inexpensive
  • High-Pressure Flow Splitter (buy)
    • Good performance, $$$
  • “Active” Mass Flow Control (buy)
    • Good performance, $$$
simple flow splitting

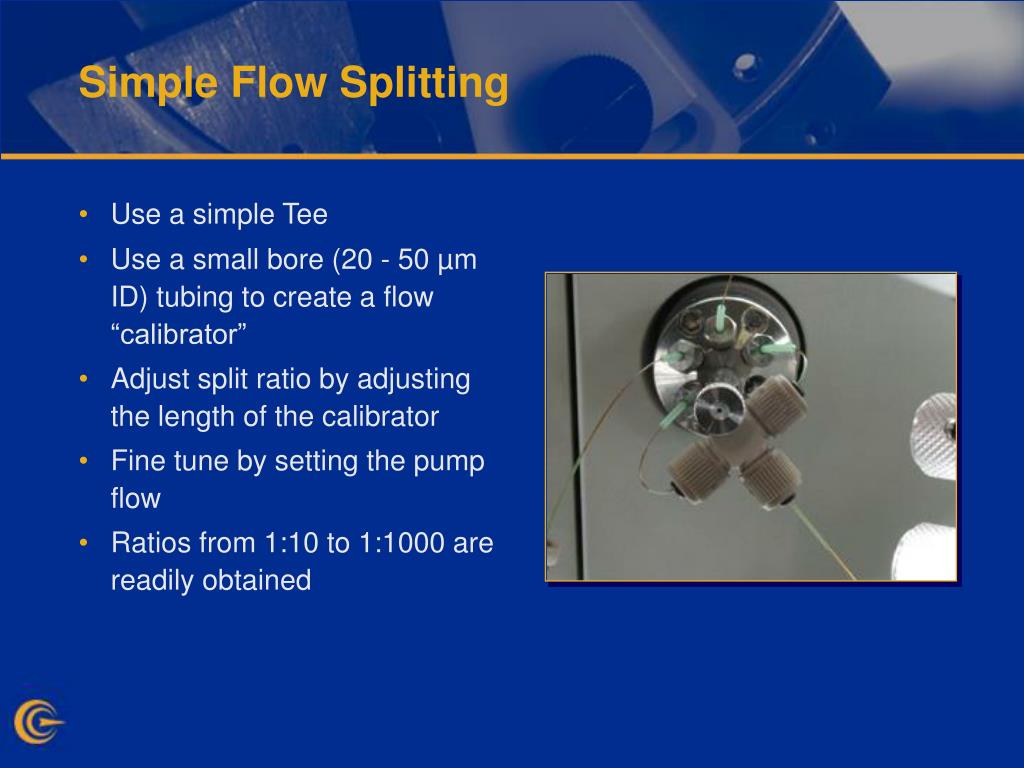

Simple Flow Splitting
  • Use a simple Tee
  • Use a small bore (20 - 50 µm ID) tubing to create a flow “calibrator”
  • Adjust split ratio by adjusting the length of the calibrator
  • Fine tune by setting the pump flow
  • Ratios from 1:10 to 1:1000 are readily obtained
nanospray source requirements
Nanospray Source Requirements
  • Mechanical requirements
    • XYZ Stage for tip positioning
    • Tip and spray imaging system
    • Junction and proximal HV contact
  • Tip requirements
    • ID of 10 - 30 µm
    • Typically fused-silica, 360 µm OD
    • Uncoated or coated
on line nanospray source

Objective Lens

Tip Holder

HV Contact

CCD Camera

XYZ Stage

Injection Valve

On-line Nanospray Source

www.newobjective.com

what about sample injection
What About Sample Injection?
  • Gradient elution in reverse phase enables sample stacking:
    • Large (1 - 20 µL) injection volumes are OK

If we ran isocratically, a 75 µm ID column would require a 10 - 20 nL injection volume!

injection strategies
Injection Strategies
  • On-column Injection (Pressure Bomb)
    • High sensitivity
    • Zero sample loss or waste
    • Time consuming (manual)
  • “Micro” Injection Valve
    • 0.1 - 5 µL
    • Easy to use
  • Sample Trapping
    • Faster injection of large volumes (5 - 20 µL)
    • Trap protects columns for increased lifetime
    • Some peptides lost during injection and analysis
bomb injection

To Column

Pressure Bomb

Gas In

Sample Vial

Bomb Injection
sample trapping

Fused Silica Column

Sample Trapping
  • Trap Cartridge/Column
    • 100 - 500 µm ID
    • 1 - 25 mm in length
  • Typically C18 or SCX
  • Loading rate 1 - 20 µL/min
  • Enable hundreds/thousands of injections on an analytical column
sample trapping26
Sample Trapping

Load Injection Loop

sample trapping27
Sample Trapping

Load Sample Trap & Wash

sample trapping28
Sample Trapping

Elute into Column

how do we interface
How Do We Interface?
  • Liquid sheath for make-up flow (The Early Days)
    • Generally not used, compromised sensitivity
  • “Direct Connect” interface with fused-silica tip
    • No “make-up” or sheath liquid
    • Reasonable sensitivity
    • Plumbing can be a challenge
  • Integration of LC column with emitter
    • Highest sensitivity
    • Robust interface
    • Greater ease of use

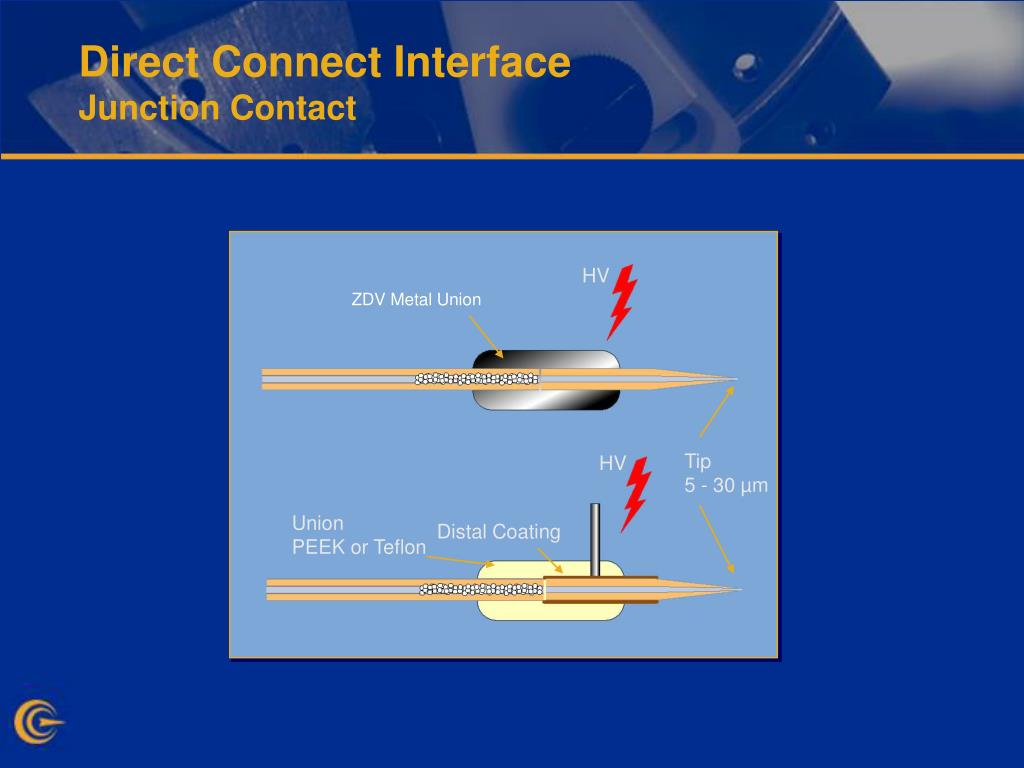

direct connect interface junction contact

HV

ZDV Metal Union

Tip

5 - 30 µm

HV

Union

PEEK or Teflon

Distal Coating

Direct Connect InterfaceJunction Contact
performance benchmark tryptic digest of bsa 125 fmol

SIC, 653.5 m/z

SIC, 653.5 75 µm ID, C18

Distal Coated 10 µm PicoTip™

Water/CH3CN/Formic Acid

45 Minute gradient

Micromass Q-TOF

Base Peak, RIC

Performance BenchmarkTryptic Digest of BSA - 125 fmol

Data courtesy Art Moseley, GlaxoSmithKline

direct connect interface common problems

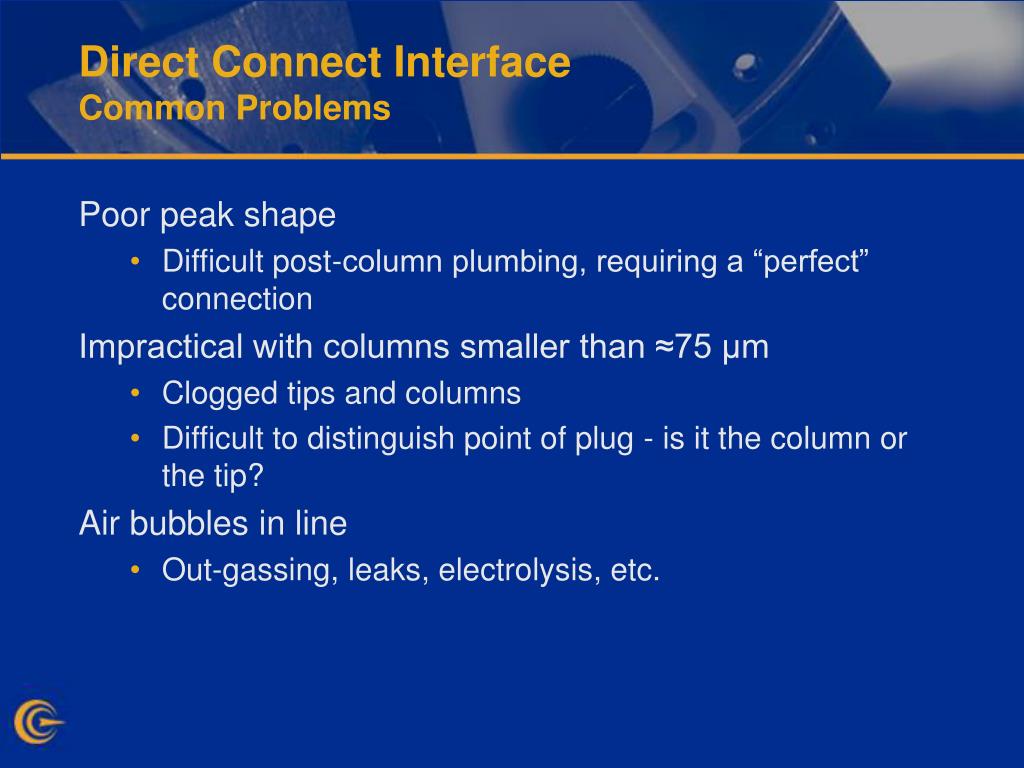

Direct Connect InterfaceCommon Problems
  • Poor peak shape
    • Difficult post-column plumbing, requiring a “perfect” connection
  • Impractical with columns smaller than ≈75 µm
    • Clogged tips and columns
    • Difficult to distinguish point of plug - is it the column or the tip?
  • Air bubbles in line
    • Out-gassing, leaks, electrolysis, etc.
picofrit packed tip performance

75 µm ID, C18

Frit

Tip: 8 - 15 µm

PicoFrit™ Packed Tip Performance

Pack the LC column directly into the tip!

“Zero” post column volume

Emmett & Caprioli, J. Am. Soc. Mass. Spec. 1994, 5, 605-613

picofrit packed tip approach

HV

Pt electrode

PEEK “T”

Packed C18

PicoFrit™ Packed Tip Approach
  • Junction style HV contact for robustness (arc immunity)
  • Junction can be far behind tip (10 cm or more)
  • Pre-column volume does not hurt chromatography
picofrit approach analytical advantages

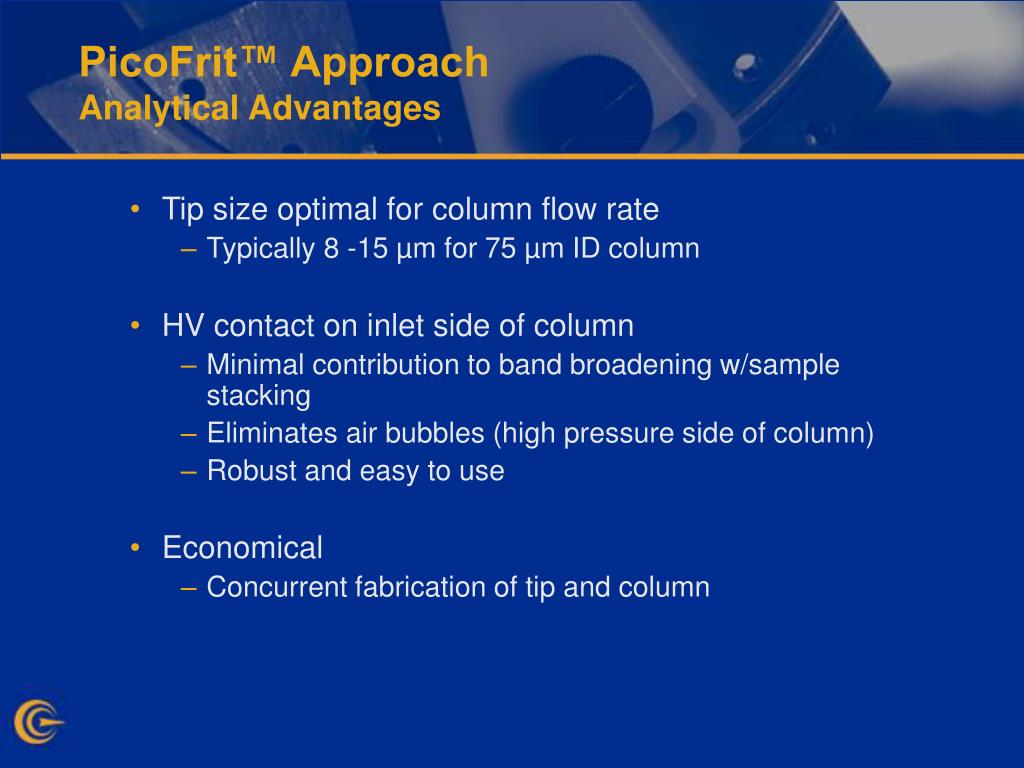

PicoFrit™ ApproachAnalytical Advantages
  • Tip size optimal for column flow rate
    • Typically 8 -15 µm for 75 µm ID column
  • HV contact on inlet side of column
    • Minimal contribution to band broadening w/sample stacking
    • Eliminates air bubbles (high pressure side of column)
    • Robust and easy to use
  • Economical
    • Concurrent fabrication of tip and column
packed tip appraoch analytical advantages

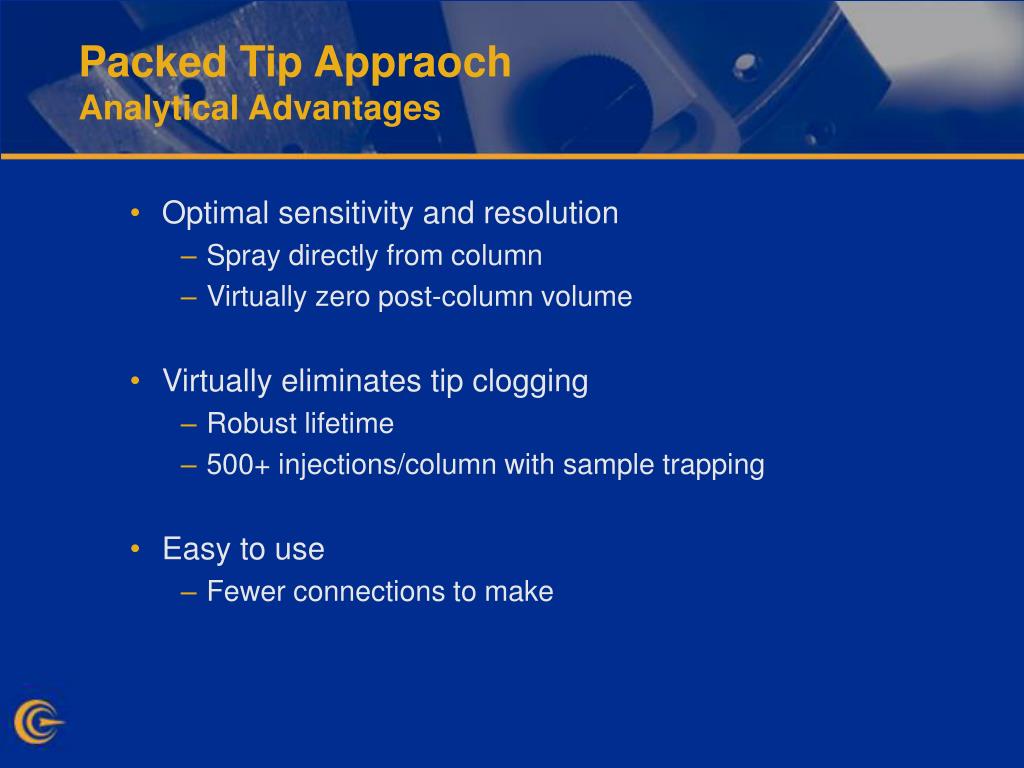

Packed Tip AppraochAnalytical Advantages
  • Optimal sensitivity and resolution
    • Spray directly from column
    • Virtually zero post-column volume
  • Virtually eliminates tip clogging
    • Robust lifetime
    • 500+ injections/column with sample trapping
  • Easy to use
    • Fewer connections to make
picofrit columns performance benchmark
PicoFrit™ ColumnsPerformance Benchmark

Data courtesy James P. Murphy III, Ph.D.

minimize particle contamination41
Minimize Particle Contamination

Contaminated Column Head

Clean Column Head

  • Mobile Phase Stocks
    • Change Stocks Regularly (weekly or better)
    • Use bottled water, preferrably distilled in glass
    • Avoid “ultrpure” meg-ohm water from in-house systems
      • These can contain high levels of carbon particulates

Poor quality water is the primary cause of clogged columns!

minimize particle contamination42
Minimize Particle Contamination
  • Fittings and Unions
    • Use PEEK or FEP adapter sleeves
    • Don’t over tighten fittings
    • Avoid graphitized ferrules (common in GC)
    • Discard contaminated fittings

OUCH!

minimize particle contamination43
Minimize Particle Contamination

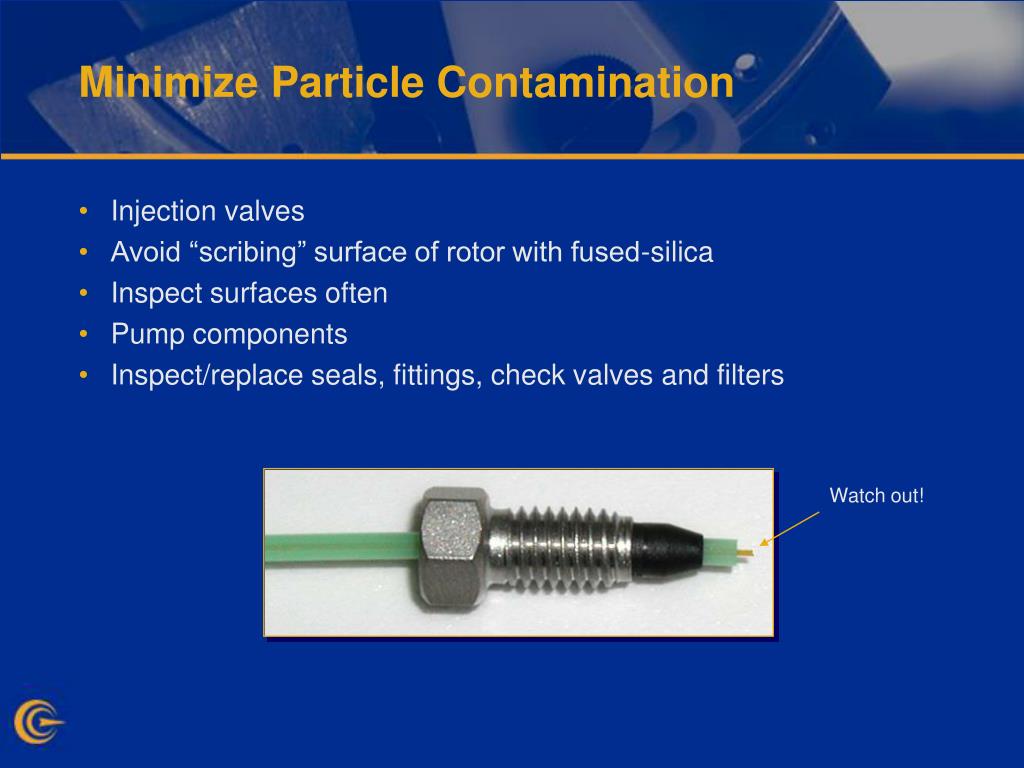

  • Injection valves
  • Avoid “scribing” surface of rotor with fused-silica
  • Inspect surfaces often
  • Pump components
  • Inspect/replace seals, fittings, check valves and filters

Watch out!

measuring column flow rate

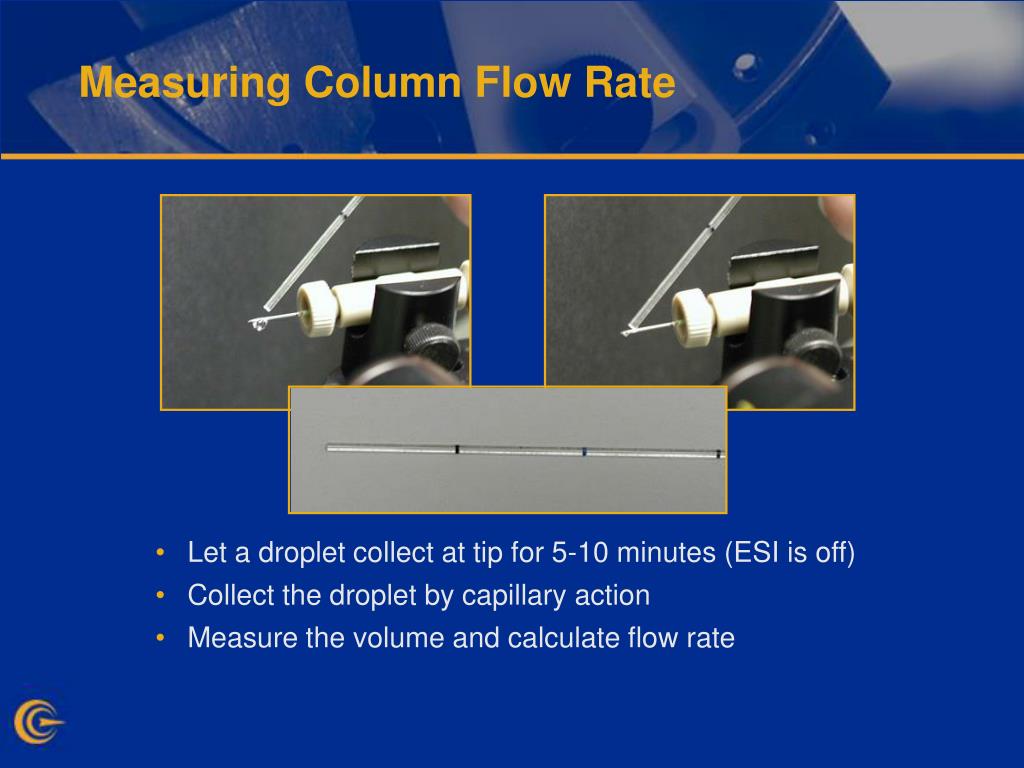

Measuring Column Flow Rate
  • Let a droplet collect at tip for 5-10 minutes (ESI is off)
  • Collect the droplet by capillary action
  • Measure the volume and calculate flow rate
source tuning go for the best spray
Source Tuning: Go For the Best Spray

850V Stream and Plume

50% ACN, 0.1% Formic Acid

500 nL/min, 15 µm Picofrit™ tip, LCQ™ Deca XP Inlet

source tuning go for the best spray46

1150V Stream and Plume

Source Tuning: Go For the Best Spray

850V Stream and Plume

50% ACN, 0.1% Formic Acid

500 nL/min, 15 µm Picofrit™ tip, LCQ™ Deca XP Inlet

source tuning go for the best spray47

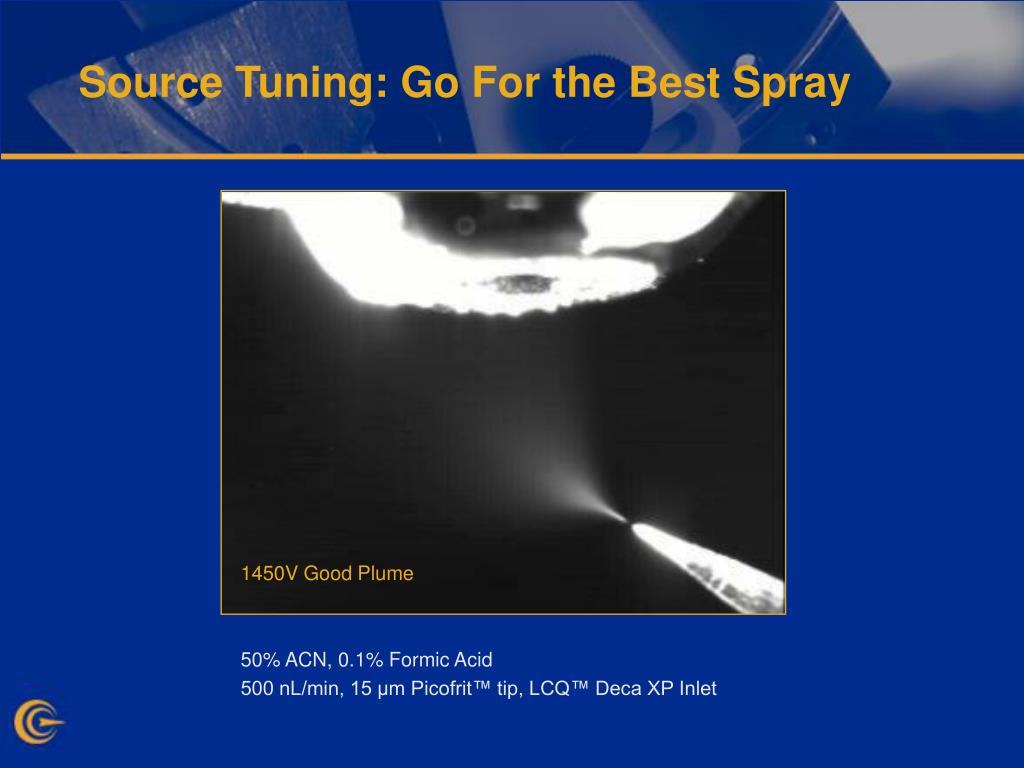

1450V Good Plume

Source Tuning: Go For the Best Spray

850V Stream and Plume

50% ACN, 0.1% Formic Acid

500 nL/min, 15 µm Picofrit™ tip, LCQ™ Deca XP Inlet

source tuning go for the best spray48

1850V Optimal Plume

Source Tuning: Go For the Best Spray

850V Stream and Plume

50% ACN, 0.1% Formic Acid

500 nL/min, 15 µm Picofrit™ tip, LCQ™ Deca XP Inlet

source tuning go for the best spray49

2050V Split Plume

Source Tuning: Go For the Best Spray

850V Stream and Plume

50% ACN, 0.1% Formic Acid

500 nL/min, 15 µm Picofrit™ tip, LCQ™ Deca XP Inlet

spray morphology composition
Spray Morphology: Composition

5% ACN

50% ACN

95% ACN

1700V

1900V

2100V

2300V

2500V

30 µm Tip @ 500 nL/min

0.1% Formic Acid

3100V

source tuning challenges
Source Tuning: Challenges
  • Spray characteristics are sensitive to:
    • Emitter size, shape, distance
    • Flow rate
    • Voltage
    • Mobile phase composition
      • Optimal results require a changing voltage!
  • Bottom line: Tune your spray under “eluting conditions”
performance benchmarks
Performance Benchmarks
  • Cell mapping project at McGill University
  • Daniel Boismenu,
  • Montréal Network for Pharmaco-Proteomics and Structural Genomics
  • Exhaustive proteomic analysis of cell organelles
  • Determine elation between protein function and location

Total of 1350 1-D lanes for cell map:

93 slices per lane

Total of 125,550 slices

1 hour of HPLC-MS/MS per gel slice

5231 days of instrument time = 14 years

performance benchmarks robustness
Performance BenchmarksRobustness

Injection #31: Plasma membrane challenged with insulin.In gel digestion of slice no 30 of 64

75 µm x 10 cm C18 PicoFrit™ column, with 300 µm x 1 mm C18 Trap Cartridge on Micromass Q-TOF

Data courtesy Daniel Boismenu, McGill University

performance benchmarks robustness54
Performance BenchmarksRobustness

Injection #881: Smooth endoplasmic reticulum, aqueous phase.In gel digestion of slice no 45 of 92(Over 1 month of continuous, 24 hr, 7 days/week operation)

… and still going!

Data courtesy Daniel Boismenu, McGill University

keys to success with nanobore lc ms
Keys to Success with Nanobore LC-MS
  • Clean mobile phase
    • Minimize particulate contamination
    • Use multiple high quality in-line filters
  • Know your flow rate
    • Monitor through column flow periodically
  • Use the right injection scheme for your samples
  • Throughput vs. sensitivity
  • Minimize (or eliminate) post-column plumbing
    • Use special care with post-column connections
    • Use a tip-column (PicoFrit™) format
  • Optimize electrospray conditions
    • Stabilize spray with voltage
    • Maximize S/N with emitter position
    • Match tip size to flow rate
