Presentation Transcript
overview
IntroductionOverview

This short presentation gives some applications of NORSAR-3D ray tracing.

  • Survey aperture
  • Fold and Amplitude, Planned v Modelled
  • Survey offset and azimuth
  • Migration aperture
  • Effect of Overburden
  • S.R.M.E. Aperture
simple slope model
IntroductionSimple Slope Model

A simple model was used to demonstrate the technique. The model contains a variable velocity field overlying a reflector with a cosine dip region in the center.

aperture study all azimuth survey
IntroductionAperture Study, All Azimuth Survey

The survey used here is a “Wide Azimuth” survey. In the illustration, the closely spaced shot lines are shown, together with the receiver boundary square for the shot location marked with the cross. The receiver pattern moves as the shot location moves.

Shot Pattern

Receiver boundary for indicated shot

aperture study area of interest
IntroductionAperture Study: Area of Interest

Having ray traced the survey, the Hit Count attribute is plotted in the reflection point domain.

This shows where the reflection points are and the density.

The display shows the attribute after masking it to a 4km x 2km area of interest.

aperture study shots contributing
IntroductionAperture Study: Shots Contributing

Down dip extension

An alternative domain for display is the shot domain.

This display shows the shots that contributed only to the area of interest on the target.

Clearly, the survey needs to be extended in the down-dip direction.

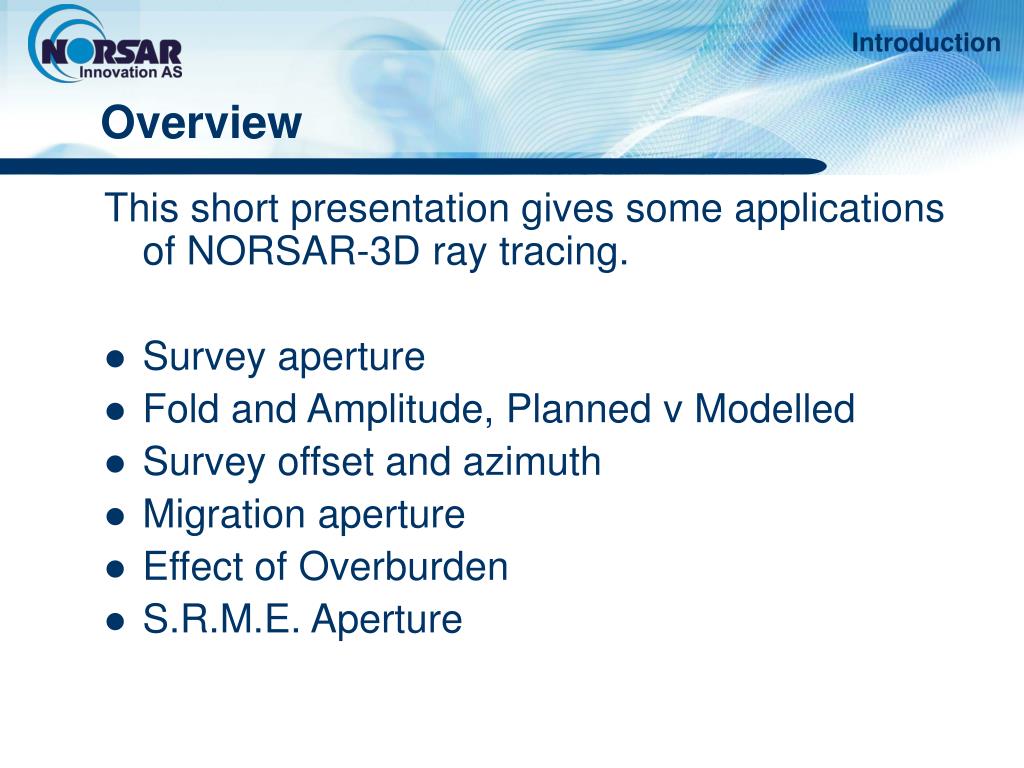

overview1
IntroductionOverview

This short presentation gives some applications of NORSAR-3D ray tracing.

  • Survey aperture
  • Fold and Amplitude, Planned v Modelled
  • Survey offset and azimuth
  • Migration aperture
  • Effect of Overburden
  • S.R.M.E. Aperture
hit map e to w direction
IntroductionHit Map, E to W Direction

Hit map for E-W

The central part of the map, the attribute is striped. This is caused by the dip of the reflector.

hit map alternating directions
IntroductionHit Map, Alternating Directions

This map was made using the same model and survey parameters as the previous map except that the sail line directions alternate.

This alters the hit count pattern

sma 20hz e to w directions
IntroductionSMA 20Hz, E to W Directions

Would this appear in migrated seismic data?

Plot the migration amplitude using SMA

The stripes persist.

sma 20hz alternating directions
IntroductionSMA 20Hz, Alternating Directions

This shows the Simulated Migration Amplitude llumination for the survey shot in alternating directions.

overview2
IntroductionOverview

This short presentation gives some applications of NORSAR-3D ray tracing.

  • Survey aperture
  • Fold and Amplitude, Planned v Modelled
  • Survey offset and azimuth
  • Migration aperture
  • Effect of Overburden
  • S.R.M.E. Aperture
illumination in seg salt model
IntroductionIllumination in SEG Salt Model

The SEG/EAGE salt model was used to illustrate this topic. The salt model consists of a salt body in a sedimentary velocity field.

A plane, horizontal target has been added.

hit map e w survey 6km streamer
IntroductionHit Map, E-W Survey, 6km Streamer

This is the hit count attribute plotted for an east-west survey using a 6km streamer array.

Away from the salt, the reflection count is continuous.

Underneath the salt, the reflection count varies because of the focusing effects of the salt.

Under the southwest corner of the salt there is an illumination hole.

hit map n s survey 6km streamer
IntroductionHit Map, N-S Survey, 6km Streamer

This is the hit count attribute plotted for a north-south survey using a 6km streamer array.

Under the southwest corner of the salt, the illumination hole persists but the details are different.

If one had a particular prospect location in mind, a choice might be made between the east-west and north-south surveys.

maximum offset 10km streamer
IntroductionMaximum Offset, 10km Streamer

For each image point, this attribute shows the maximum offset that contributed to that image point.

It confirms that for most of the target, 7km streamers are enough.

Only in a few places below the salt would a longer streamer contribute to the image.

shooting from target
IntroductionShooting from target

In the previous SEG/EAGE salt model examples, non of the acquisition geometries filled the illumination hole.

An efficient alternative analysis for these local trouble spots is the flower plot display.

A shot is placed in the illumination hole at the target. One-way rays are propagated from the shot up to an array of receivers on the surface.

Dense set of receivers.

Shot point placed in the shadow zone

shooting from target flower plot

Azimuth

Offset

Best acquisitiondirection

Introduction

Shooting from target: Flower Plot

Rays with equal departure inclination and opposite azimuth are paired and plotted

The figure shows that the east-west and north-south azimuths would not produce any ray pairs. However, the northwest-southeast direction produces ray pairs at long offsets.

hit map for the new survey
IntroductionHit map for the new survey

Repeating the streamer survey using a northwest southeast sailing direction does indeed fill the illumination hole.

N125

Complete illumination

overview3
IntroductionOverview

This short presentation gives some applications of NORSAR-3D ray tracing.

  • Survey aperture
  • Fold and Amplitude, Planned v Modelled
  • Survey offset and azimuth
  • Migration aperture
  • Effect of Overburden
  • S.R.M.E. Aperture
max cmp crp 10km streamer
IntroductionMax. CMP-CRP, 10km Streamer

Again using the SEG/EAGE salt model, the CMP-CRP distance attribute is plotted in the reflection point domain.

Away from the salt the CMP-CRP distance is effectively zero, indicating that small apertures are required for imaging reflections.

However, significant apertures are needed under the salt.

overview4
IntroductionOverview

This short presentation gives some applications of NORSAR-3D ray tracing.

  • Survey aperture
  • Fold and Amplitude, Planned v Modelled
  • Survey offset and azimuth
  • Migration aperture
  • Effect of Overburden
  • S.R.M.E. Aperture
total illumination amplitude
IntroductionTotal Illumination Amplitude

The illumination map here was made using the SEG/EAGE salt model and a streamer survey. All rays that reflected from the target were used, no matter what part of the model they had traveled through.

illumination amplitude no salt
IntroductionIllumination Amplitude, No Salt

This illumination map was made in the same way as the previous one, except that any ray that had passed through the salt was rejected.

It shows the image that requires only sedimentary ray paths, and can be called the “high confidence” image, because it is not subject to uncertainties in the salt model.

overview5
IntroductionOverview

This short presentation gives some applications of NORSAR-3D ray tracing.

  • Survey aperture
  • Fold and Amplitude, Planned v Modelled
  • Survey offset and azimuth
  • Migration aperture
  • Effect of Overburden
  • S.R.M.E. Aperture
surface bounce points
IntroductionSurface Bounce Points

Bounce

Bounce

The SRME method estimates the multiple by using the surface bounce. The 2D SRME method can be used when the surface bounce occurs within the streamer array. Ray tracing can be used to see if this is a valid assumption.

Surface Bounce Points

Streamer Array

salt top multiple
IntroductionSalt Top Multiple

If the surfaces generating the multiple are approximately horizontal, then the bounce points will occur within the streamer array.

This extreme example illustrates ray paths for the top salt multiple from a single shot.

salt multiple surface bounce points
IntroductionSalt Multiple, Surface Bounce Points

The surface bounce points for the top salt multiple from the single shot are depicted in red.

Clearly the bounce points are not contained within the streamer array, indicating that a 3D SRME technique would be necessary.

model components
IntroductionModel Components
  • Generated internally
  • Imported surfaces
    • Depth/time grids
    • GoCAD trimeshes
    • GoCAD model
  • Imported properties
    • SEGY property field
norsar 3d work flow1

Build Model

Depth

Model

Introduction

NORSAR-3D Work Flow

Surfaces

Properties

Survey

surveys
IntroductionSurveys
  • Simple Surveys Internally
    • Marine streamer
    • Ocean Bottom Sensor
  • Complex surveys import
    • P1/90
    • SPS
    • ASCII (for VSP)
norsar 3d work flow2

Build Model

Depth

Model

Ray Trace

Introduction

NORSAR-3D Work Flow

Surfaces

Properties

Survey

Ray Code

3d wavefront construction
Introduction3D Wavefront Construction

Direct wavefront

Shot point and streamer array.

Salt

Reflected wavefront returning to surface.

3d wavefront construction1
Introduction3D Wavefront Construction

This shows the result of the ray traced shot represented as the more conventional ray diagram.

norsar 3d work flow3

Map

Illumination

Build Model

Make

Seismogram

Map

Depth

Model

Ray Trace

Export

Attributes

ASCII

Table

Seismogram

Events

Toolkit

Processing

User

Format

Introduction

NORSAR-3D Work Flow

Surfaces

Properties

Survey

Ray Code

summary
IntroductionSummary
  • A variety of import formats for NORSAR-3D models and surveys.
  • Wavefront Construction is fast and robust
  • Variety of survey analysis tools in NORSAR-3D
ask for a demonstration to see how norsar 3d can benefit your project

Ask for a demonstration to see how NORSAR-3D can benefit your project

…Insight through modelling
