  1. MSE 141 Electronic Materials Electrical Conduction in Materials Dr. Benjamin O. Chan Associate Professor January 2012

  2. Electrons in a Crystal • How are the electrons distributed among the available energy levels? • Probabilistic distribution expected • We can never specify the location and kinetic energy of each individual electron (out of ~ 1022 cm-3) • Fermi Distribution • Applies to fermions • Pauli Exclusion Principle applies • Bosons require Bose-Einstein distribution

  3. Fermi Distribution Function • kB = Boltzmann’s constant = 8.616 x 10-5eV/K • EF = Fermi energy • Metals: Highest occupied energy at T = 0 K • Semiconductors: energy level with a 0.5 probability of occupation • chemical potential • T = absolute temperature

  4. Fermi Distribution Function (T=0 K) • Ground State • T = 0 K • E = EF • Satisfactory for Metals • For semiconductors, EF is usually in the energy gap: these energies have no chance of being occupied!

  5. Fermi Distribution Function (T>0 K) • At room temperature, DE~1% • For E >> EF • Boltzmann tail

  6. Density of States • Distribution of energy levels over a band • Consider lower part of valence band (e.g. 4s for Cu) • Electrons essentially free • Assume electrons are confined in a square potential well • where nx, ny and nz are the principal quantum numbers and a is now the length of the crystal

  7. Quantum Number Space • nx, ny and nz specify an energy state En • If we take n to be the radius of a sphere containing quantum numbers • The surface of the sphere will contain states yielding the same En

  8. Number of Quantum States • All points inside sphere represent states with E < En • Number of states  with E  En is proportional to the volume of the sphere with radius n • Only the positive octant and integral values of nx, ny and nz are allowed

  9. DOS Z(E) within a Band • Density of states (DOS) = number of energy states per unit energy • where V = a3 is the volume occupied by the electrons

  10. Some notes on DOS • E vs Z(E) graph • Not the usual Z vs E ! • Parabolic graph • Lower end of the band has fewer available E values compared to higher energies • Area within the curve = number of states with E  En • Element area d = Z(E)dE

  11. Population Density • Pauli exclusion principle • 2 electrons of opposite spin per state • Number of electrons per unit energy N(E) • Where F(E) is the Fermi distribution function • N(E) = population density

  12. Population Density N(E) • As T0 and E<EF, N(E)=2Z(E) • T0 and E<EF, N(E) is smeared out • Area within the curve = number of electrons, N*, that have an energy E<En • For an energy interval E to E + dE

  13. Calculating EF • For T0 and E<EF • Defining N’= number of electrons per unit volume and solving for EF, we get • Note: N* does not change with T

  14. Crystal DOS Z(E) within a Band

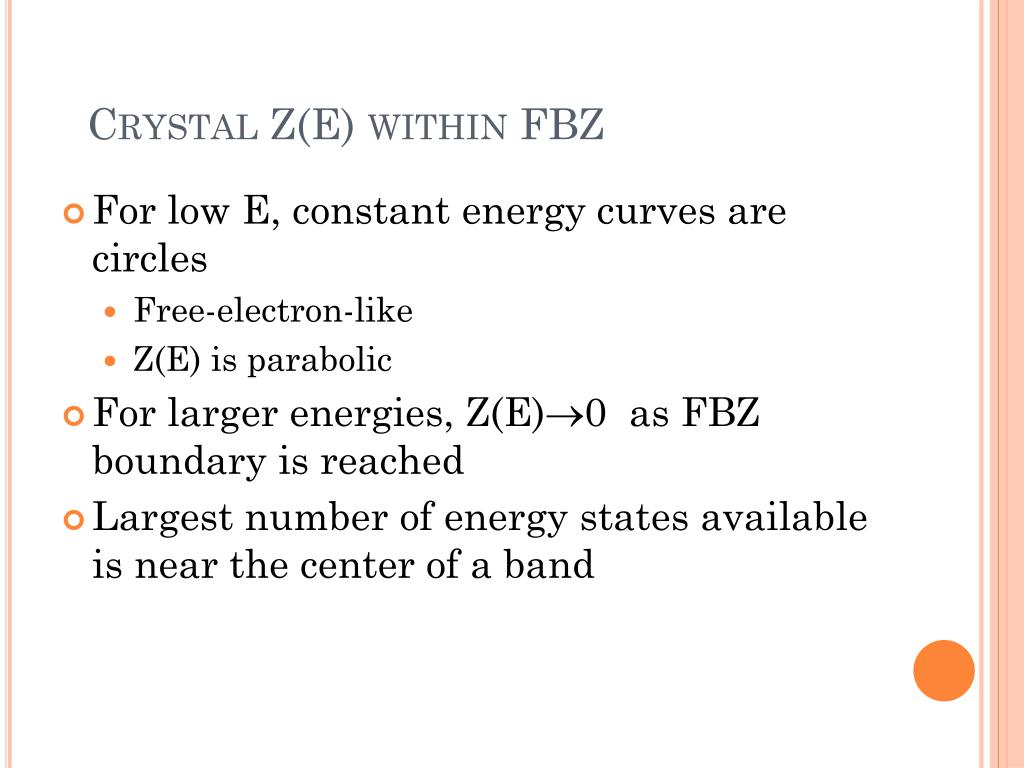

  15. Crystal Z(E) within FBZ • For low E, constant energy curves are circles • Free-electron-like • Z(E) is parabolic • For larger energies, Z(E)0 as FBZ boundary is reached • Largest number of energy states available is near the center of a band

  16. Simplified Energy Bands

  17. Consequences of Band Model • Solids in which the highest filled band is completely occupied by electrons are insulators • Including s-band? • Alkali metals (monovalent) have half-filled valence band • Bivalent metals should be insulators • Closed s-shell • Semiconductor • 4 valence electrons: valence band full!

  18. Bivalent Metal

  19. Bivalent Metal • Is it insulating or conducting? • p band overlaps with s band • Weak binding forces of valence electrons on their atomic nuclei • Upper s band electrons empty into low levels of p band • Partially filled energy bands: metal! • Semi-metal • Are alkali metals more conducting than bivalent metals?

  20. Effective Mass • Empirical evidence shows that mass of electron in a crystal can be larger or smaller compared to the mass of a free electron • We’ll call this the effective mass m* of the electron • m*/mo describes deviation from mo • Usually bigger than 1 (so what?) • Determine an expression for m*

  21. Velocity of an electron in an energy band • Wave packet velocity given angular velocity w and wavenumber k • Acceleration a • For a free electron • This gives us

  22. Effective Mass • Substituting, • Applying Newton’s Second Law • Comparing the two previous equations • m* is inversely proportional to the curvature of the energy band!!

  23. Energy Band Structures Revisited • High curvature = low mass • Low curvature = high mass • Usually at the center or boundary of a BZ • m*/mo can be as low as 1% • Multiple curves for same k leads to multiple values for effective mass • More than one type of carrier available!

  24. Al Band Structure

  25. Cu Band Structure

  26. Si Band Structure

  27. GaAs Band Structure

  28. More Notes on Energy Band Diagrams • Ideal electron band within FBZ • Calculate first derivative and reciprocal of second derivative • m* is small and positive near center of FBZ and increases for larger values of k • Electrons in the upper part have a negative mass • Defect electron/ electronhole • Particle travels opposite to an electron under an applied electric field • Important in semiconductors • Effective mass is a tensor!

  29. Problem Set 2 • Hummel, 3rd edition • Chapter 6 • 5, 8, 12 • Chapter 7 • 1, 3, 8, 9 • Due Jan. 26, 2012

  30. Electrical Conduction in Metals and Alloys • Electrical Conductivity • The ability of materials to let charge carriers move through it • Units: Siemens/m = 1/Wm • Resistivity is the inverse (Wm) • Insulators/Dielectrics • Unable to conduct electricity • High resistivity

  31. Room Temperature Conductivity

  32. Current Density and Electric Field • Current Density • Flow of charge per unit time per unit area • Units: A/m2 • Electric Field • Region of influence of a charge carrier • Units: V/m • In general, the relationship between the current density j across a material to the applied electric field e across it is • Where s is called the conductivity of the material • This equation does not assume s to be constant!

  33. Ohm’s Law • If s is constant, we get the general form of Ohm’s Law • Hey, nothing changed!! • It’s true the equation did not change externally, but s suffered a transformation, from being a function to becoming constant

  34. A l Ohm’s Law • Consider the material to be a cylinder of length l and cross-sectional area A • Substituting into Ohm’s law equation, • Solving for I,

  35. Conductance G • Defining the conductance G to be • Ohm’s Law becomes • If we set G=1/R, R being the resistance of the material, we get • Or, the more familiar form is

  36. Resistance and Resistivity • The resistance R of the material is then defined as • with r=1/s, the resistivity of the material • R is due to collisions with lattice atoms • Crystal defects tend to increase R • More collisions take place! • Particle Picture

  37. Wave Picture of R • R is due to scattering of charge carriers by atoms • Atoms absorb energy of incoming wave and re-emit them in the form of spherical waves • Treat atoms as oscillators • Periodic structures: waves propagating in the forward direction are “in-phase” (constructive interference) • electron wave passes without hindrance through crystal (coherent scattering) • Non-periodic structures: incoherent scattering

  38. CAUTION! • R, G, r and s (while being constant) are temperature dependent! • R tends to increase (G decreases) with increasing T • What exceptions can you think of?

  39. Classical Electrical Conduction Theory • Pre-QM period • Drude: consider the valence electrons (in a metal) as a gas or plasma • Monovalent atoms contribute one electron per atom • Na=number of atoms=number of charge carriers=N • Where No is Avogadro’s number, d the density of the material and M is the atomic mass (monatomic crystal)

  40. Free Electron Motion • Electrons are accelerated by an applied electric field • For constant e, acceleration is constant • v builds up to infinity! • When e=0, v = constant • This can happen only in superconductors! • This is not what we observe…

  41. Electron Path Through the Conductor • Electrons suffer intermittent collisions with lattice ions

  42. Effect of Collisions • Drag: let g = damping coefficient • Steady state case dv/dt = 0 where vf = drift velocity

  43. Electron Velocity • Modified Differential Equation • Solution • Average time between collisions t

  44. Conductivity and t • Current density • Conductivity • Conductivity is large for large N and t • Mean free path l

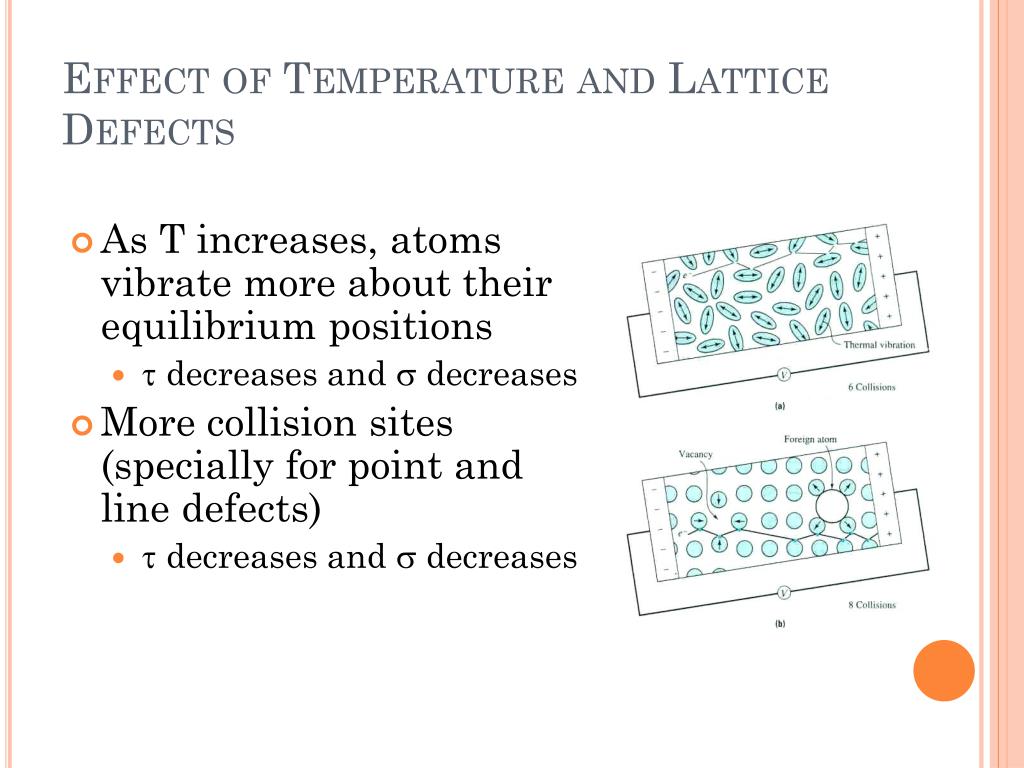

  45. Effect of Temperature and Lattice Defects • As T increases, atoms vibrate more about their equilibrium positions • t decreases and s decreases • More collision sites (specially for point and line defects) • t decreases and s decreases

  46. Quantum Mechanical Considerations • Plot velocities in velocity space • Momentum space • k-space • Since there is no preferential velocity, the range of velocities form a disk with radius vF • vF = Fermi velocity, the maximum velocity the electrons can assume • In 3-D, the velocity distribution forms a sphere, the surface of which we call a Fermi surface

  47. Velocity Distribution of Electrons

  48. More on Velocity… • At equilibrium, all points inside the Fermi sphere are occupied • Velocities cancel each other out resulting in zero net velocity for the whole group • Under an applied electric field, the Fermi sphere is displaced opposite the field direction • Net velocity gain results • Great majority of electrons still cancel each other pair-wise • Uncompensated electrons cause the observed current

  49. So? • Not all conduction electrons contribute to current • Their drift velocity is very close to the Fermi velocity (which is relatively high!) • Classical Mechanics assumes that all conduction electrons contribute to current and move with a modest velocity • How do you compare vf and vF?

  50. Population Density • There are more electrons near EF • Only a little energy DE is needed to raise a substantial number of electrons into slightly higher states • Velocity of excited electrons only slightly higher than vF • Mean velocity remains vF
