Lesson 6-3

Rectangles. Lesson 6-3. Rectangles. Definition:. A rectangle is a parallelogram with four right angles. Opposite sides are parallel. Opposite sides are congruent. Opposite angles are congruent. Consecutive angles are supplementary. Diagonals bisect each other.

herman
Download Presentation

Lesson 6-3

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

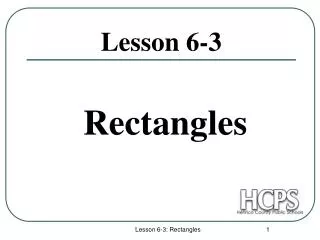

  1. Rectangles Lesson 6-3 Lesson 6-3: Rectangles

  2. Rectangles Definition: A rectangle is a parallelogram with four right angles. • Opposite sides are parallel. • Opposite sides are congruent. • Opposite angles are congruent. • Consecutive angles are supplementary. • Diagonals bisect each other. A rectangle is a special type of parallelogram. Thus a rectangle has all the properties of a parallelogram. Lesson 6-3: Rectangles

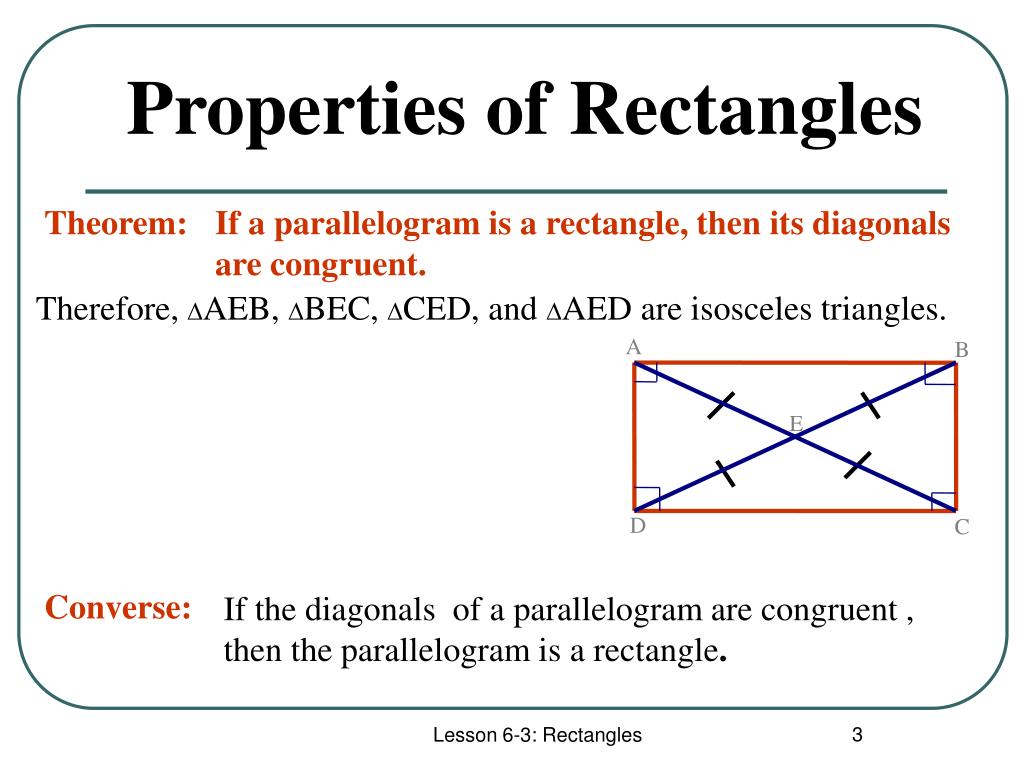

  3. A B E D C Properties of Rectangles Theorem: If a parallelogram is a rectangle, then its diagonals are congruent. Therefore, ∆AEB, ∆BEC, ∆CED, and ∆AED are isosceles triangles. Converse: If the diagonals of a parallelogram are congruent , then the parallelogram is a rectangle. Lesson 6-3: Rectangles

  4. A B 2 3 1 E 4 5 6 D C Examples……. • If AE = 3x +2 and BE = 29, find the value of x. • If AC = 21, then BE = _______. • If m<1 = 4x and m<4 = 2x, find the value of x. • If m<2 = 40, find m<1, m<3, m<4, m<5 and m<6. x = 7 units 10.5 units x = 18 units m<1=50, m<3=40, m<4=80, m<5=100, m<6=40 Lesson 6-3: Rectangles
