slide1

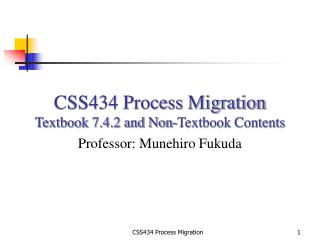

CSS434 Process Migration

Textbook 7.4.2 and Non-Textbook Contents

Professor: Munehiro Fukuda

CSS434 Process Migration

outline
Outline
  • Degree of mobility
  • Implementation Issues in Process Migration
    • State capturing
    • Address transfer mechanisms
    • Message forwarding mechanisms
  • Mobile agents
    • D’Agent
    • IBM Aglets
    • UWAgents

CSS434 Process Migration

degrees of mobility
Degrees of Mobility

CSS434 Process Migration

system examples
System Examples

CSS434 Process Migration

remote execution

Control

Function/object

transfer

Function

Object

f( )

Argument transfer

Return value

Remote Execution
  • Procedure code is sent together with arguments.
  • Server behaves like a general cycle server.
  • Server can evolve itself.

Client

Server

Main

Program

Dispatcher

Function

Object

Remote

execution

Arguments

CSS434 Process Migration

code on demand

Control

Request a remote function/object

Function

Object

Function/object itself

is returned.

Locally executed

Code on Demand
  • Server behaves like a general remote object server.
  • A remote function/object is sent back as a return value.
  • Client executes the function/object locally.
  • Client execution control stays in local while suspended upon a request to a server.

Client

Server

Main

Program

func( )

Dispatcher

Remote

Function

Object

CSS434 Process Migration

process migration

Time

Source Site

Destination Site

Process P1

:

:

:

:

Execution

suspended

Freezing

time

Transfer of

control

Execution

Resumed

:

:

:

:

Process P1

Process Migration
  • Selecting a process to be migrated
  • Selecting the destination node
  • Suspending the process
  • Capturing the process state
  • Sending the state to the destination
  • Resuming the process
  • Forwarding future messages to the destination

CSS434 Process Migration

process migration benefits
Process MigrationBenefits
  • Better response time and execution speed-up
    • Dynamic load balancing among multiple nodes
    • Using a faster CPU
  • Higher throughput and Effective resource utilization
    • Migrating I/O and CPU-bound processes to file and cycle servers.
  • Reducing network traffic
    • Migrating processes closer to the resources they are using most heavily.
  • Improving system reliability
    • Migrating processes from a site in failure to more reliable sites
    • Replicating and migrating critical processes to a remote.

CSS434 Process Migration

process migration state capturing
Process MigrationState Capturing
  • CPU registers
    • Captured upon a freeze
  • Address space
    • Difficult to restore pointers
  • I/O state:
    • Fast I/O Operations
      • Completed before a process migration
    • Durable I/O Operations like files and user interactions
      • Difficult to carry files in use and to freeze/restore system calls.
      • Necessity to maintain a connection with I/O established at the source node.
      • Some popular files available at the destination node

CSS434 Process Migration

process migration address transfer mechanisms
Process MigrationAddress Transfer Mechanisms

Pretransferring

Transfer-on-reference

Total Freezing

Source

node

Source

node

Source

node

Destination

node

Destination

node

Destination

node

Suspended

Migration

decision

Migration

decision

Migration

decision

Suspended

Freezing

time

Transfer of

address space

On-demand

transfer

Transfer of

address space

resumed

Freezing

time

Suspended

Freezing

time

resumed

resumed

Merits: quick migration

Demerits: large memory latency

Merits: easy implementation

Demerits: long delay time

Merits: freezing time reduce

Demerits: total time extended

CSS434 Process Migration

process migration message forwarding mechanisms

Origin

Receiver

Sender

Resend

Migrate

Dest 1

Resend again

Migrate again

Dest 2

Process MigrationMessage Forwarding Mechanisms

Resending messages

Ask origin site

Origin

Receiver

Sender

Send

Send

Migrate

Forward

Dest 1

Migrate again

Dest 2

CSS434 Process Migration

process migration message forwarding mechanisms cont d

Link

Link

Process MigrationMessage Forwarding Mechanisms (Cont’d)

Link traversal

Link Update

Origin

Origin

Receiver

Sender

Receiver

Sender

Send

Send

New location

Forward

Send

Migrate

Migrate

Send

Dest 1

Dest 1

New location

Forward

Migrate again

Send

Migrate again

Current location

Dest 2

Dest 2

CSS434 Process Migration

process migration heterogeneous systems
Process MigrationHeterogeneous Systems
  • Using external data representation
  • Floating-point data
    • External data representation must have at least as much space as the longest floating-point data representation
    • Process migration is restricted to only the machines that can avoid the over/underflow and the loss of precision.
  • Architectural-dependent data representation
    • Singed-infinity and singed-zero
  • In general, process migration over heterogeneous systems are too expensive
    • Conversion work
    • Architectural-dependent representation handling
  • Always interrupting external data representation
    • Java

CSS434 Process Migration

mobile agents paradigm
Mobile AgentsParadigm

Conventional Approach

server

client

Network

Mobile Agent Approach

client

agent

client

agent

server

Network

CSS434 Process Migration

mobile agents benefits
Mobile AgentsBenefits
  • Low network traffic and latency
    • Agents-server communication takes place locally.
  • Encapsulation
    • All code and data are carried with an agent.
  • Autonomous and asynchronous navigation
    • Agent disconnect communication with their client and visits servers as their own.
  • Run-time adaptability
    • Agents can dynamically load new objects as they migrate over network.
  • Robustness
    • Agents are active to get out of faulty nodes.

CSS434 Process Migration

mobile agents execution model omg masif
Mobile AgentsExecution Model - OMG/MASIF -

HW/OS

HW/OS

HW/OS

Region

Agent System

Agent System

Agent System

Place

Place

Place

Agent

Agent

Agent

Place

Place

Place

Agent

Agent

Agent

Agent

Agent

Agent

Communication

infrastructure

Communication

infrastructure

Communication

infrastructure

CSS434 Process Migration

mobile agents definition of agents and places
Mobile AgentsDefinition of Agents and Places
  • Agents:
    • State: Execution state to be resumed upon a migration
    • Implementation: Architectural independent code
    • Interface: Facility to communicate with places and other agents
    • Identifier: Agent identifier
    • Authority/Principal: The owner of agent
  • Places:
    • Engine: Place to execute agents
    • Resource: CPU, memory, database, etc.
    • Location: IP + logical location id
    • Principal: The owner of place

CSS434 Process Migration

mobile agents d agent strong migration example
Mobile AgentsD’Agent: Strong Migration Example

proc who machine { // agent spawned from its parent

global agent

set list “”

foreach m $machines {

if ( [catch {agent_jump $m} result] } { // jump to a remote machine

append list “$m: nunable to JUMP here ($result)nn”// jump failed

} else {

set users [exec who] // jump in success, execute who

append list “$agent(local-server): n$usersnn”

}

}

agent_send $agent( root ) 0 $list // send a list to its parent agent

exit

}

The list of machines

New line

CSS434 Process Migration

mobile agents ibm agelts weak migration example

run

dispatch

onDispatching

onArrival

run

Mobile AgentsIBM Agelts: Weak Migration Example

Public class DispatchingExample extends Aglet {

boolean remoteAgent = false;

public void onCreation( object init ) {

addMobilityListener(

new MobilityAdapter( ) {

public void onDispatching( MobilityEvent e ) {

System.out.println( “The parent agent dispatched a child agent” );

}

public void onArrival( MobilityEvent e ) {

remoteAgent = true;

System.out.println( “The child agent arrived at the destination” );

}

}

);

}

public void run( ) {

if ( !remoteAgent ) {

try {

URL destination = new URL( (String)getAgletContext( ).getProperty( “uw1-320-lab” );

dispatch( destination );

} catch ( Exception e ) {

System.out.println( e.getMessage( ) );

}

} else {

System.out.println( “The child starts run( ) at the destination” );

}

}

}

Source

Destination

CSS434 Process Migration

mobile agents uw messengers what former css499 students developed
Mobile AgentsUW Messengers: What Former CSS499 Students Developed

public class MyAgent extends UWAgent implements Serializable {

MyAgent( ) {

}

MyAgent( String[] args ) {

}

void init( ) {

String[] args = new String[2];

args[0] = Integer.toString( 10 );

args[1] = Integer.toString( 3 );

hop( “uw1-320-01”, “power”, String[] funcArgs );

}

void power( String[] args ) {

base = Integer.parseInt( args[0] );

exp = Integer.parseInt( args[1] );

for ( int j = 0; j < exp; j++ );

pow += base;

System.out.println( “host =” + getInetAddress( ) + “power =” + pow );

hop( “uw1-320-02”, “factorial”, String[] args );

}

void factorial( String[] arg ) {

base = Integer.parseInt( args[0] );

fact = 1;

for ( int j = base; j > 0; j== )

fact *= j;

System.out.println( “host =“ + getInetAddress( ) + “fact =“ + fact );

}

uw1-320-lab: ~css434/hw3/uwagent

hop( )

hop( )

MyAgent

power( )

MyAgent

init( )

MyAgent

Factorial( )

Uw1-320-02

Uw1-320-01

Uw1-320-00

CSS434 Process Migration

system comparison
System Comparison
  • D’Agent
  • IBM Aglets
  • Ara
  • Mole
  • Discussions:
    • Which systems use strong migration? How has strong migration been implemented?
    • Which systems use weak migration? Why did they end up with weak migration?
    • Which system uses the concept of agent proxy? What is the agent proxy?
    • Which system uses allowance? What is it?

CSS434 Process Migration

exercises no turn in
Exercises (No turn-in)
  • What are items to be taken into consider when migration decision is made?
  • Why is address space transfer so difficult when pointers are involved? What is necessary to transfer data structures on memory to the destination?
  • Why do mobile agents have more security concerns than process migration.
  • What made it possible to implement java-based mobile agents?
  • Why do java-based mobile agents need to take weak migration?

CSS434 Process Migration
