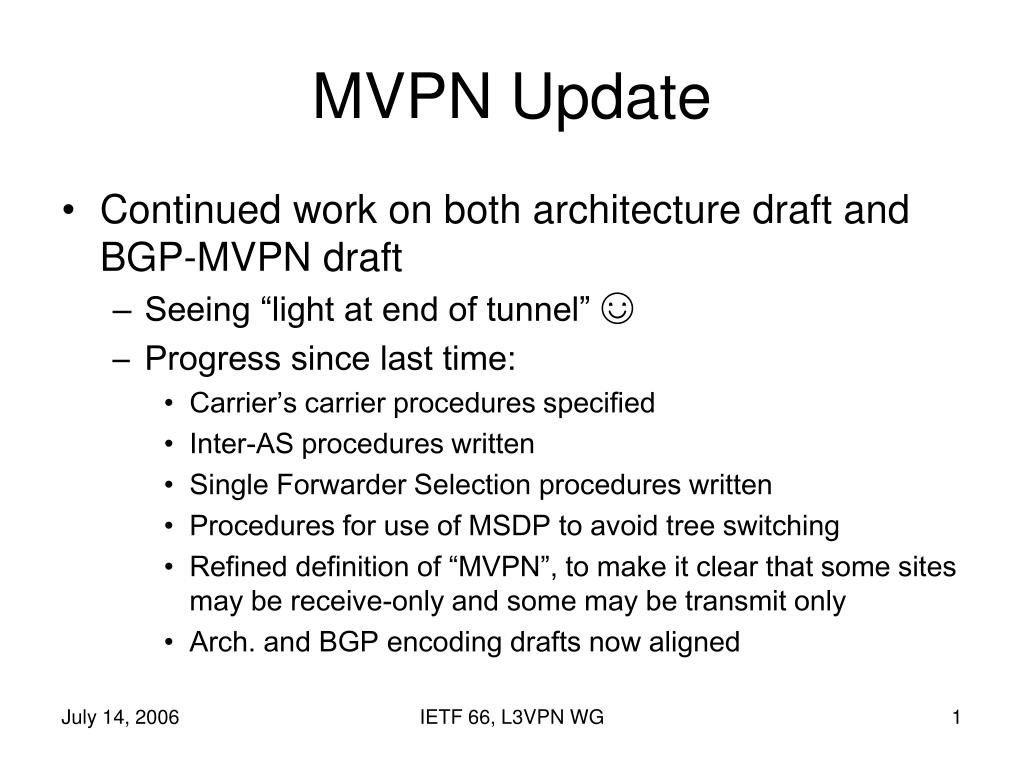

  1. MVPN Update • Continued work on both architecture draft and BGP-MVPN draft • Seeing “light at end of tunnel” ☺ • Progress since last time: • Carrier’s carrier procedures specified • Inter-AS procedures written • Single Forwarder Selection procedures written • Procedures for use of MSDP to avoid tree switching • Refined definition of “MVPN”, to make it clear that some sites may be receive-only and some may be transmit only • Arch. and BGP encoding drafts now aligned IETF 66, L3VPN WG

  2. Issues to be Discussed Today • Change: Eliminating (S,G,R) prunes • New (work in progress): • Support of C-bidir trees • Use of MP2MP P-LSPs IETF 66, L3VPN WG

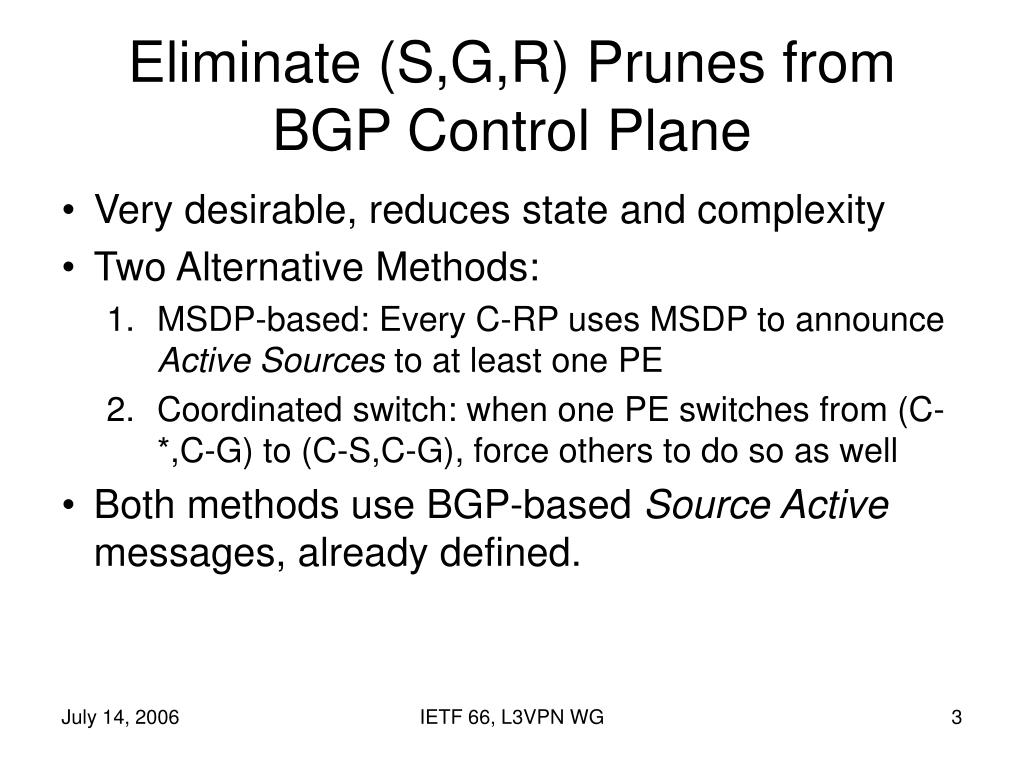

  3. Eliminate (S,G,R) Prunes from BGP Control Plane • Very desirable, reduces state and complexity • Two Alternative Methods: • MSDP-based: Every C-RP uses MSDP to announce Active Sources to at least one PE • Coordinated switch: when one PE switches from (C-*,C-G) to (C-S,C-G), force others to do so as well • Both methods use BGP-based Source Active messages, already defined. IETF 66, L3VPN WG

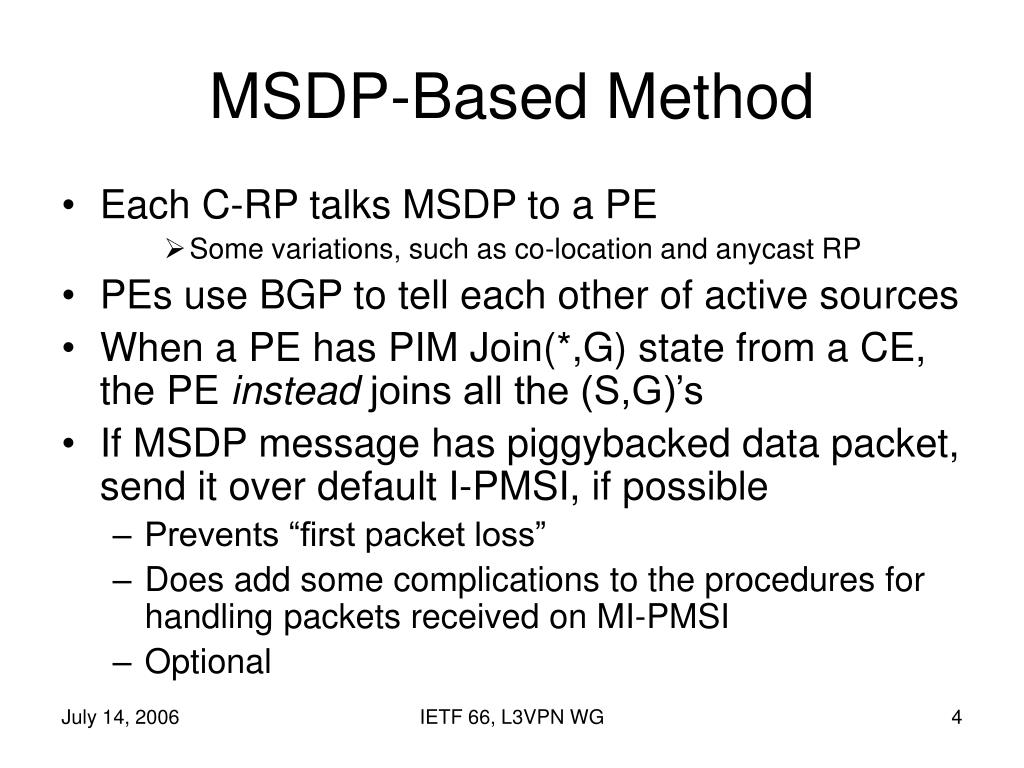

  4. MSDP-Based Method • Each C-RP talks MSDP to a PE • Some variations, such as co-location and anycast RP • PEs use BGP to tell each other of active sources • When a PE has PIM Join(*,G) state from a CE, the PE instead joins all the (S,G)’s • If MSDP message has piggybacked data packet, send it over default I-PMSI, if possible • Prevents “first packet loss” • Does add some complications to the procedures for handling packets received on MI-PMSI • Optional IETF 66, L3VPN WG

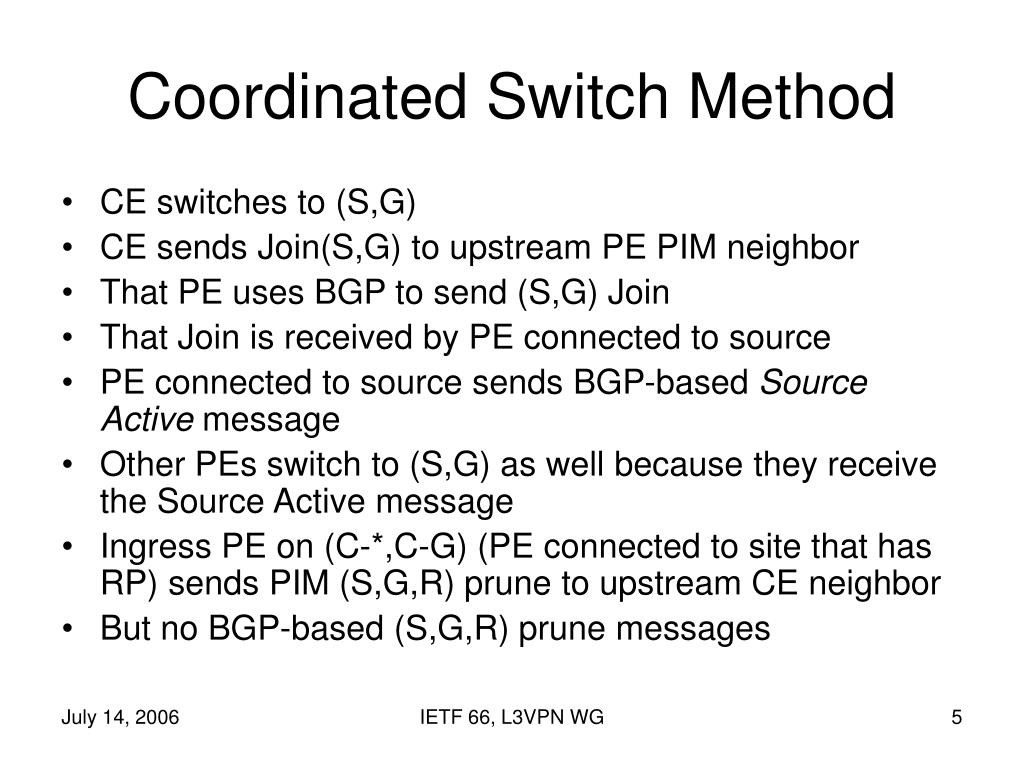

  5. Coordinated Switch Method • CE switches to (S,G) • CE sends Join(S,G) to upstream PE PIM neighbor • That PE uses BGP to send (S,G) Join • That Join is received by PE connected to source • PE connected to source sends BGP-based Source Active message • Other PEs switch to (S,G) as well because they receive the Source Active message • Ingress PE on (C-*,C-G) (PE connected to site that has RP) sends PIM (S,G,R) prune to upstream CE neighbor • But no BGP-based (S,G,R) prune messages IETF 66, L3VPN WG

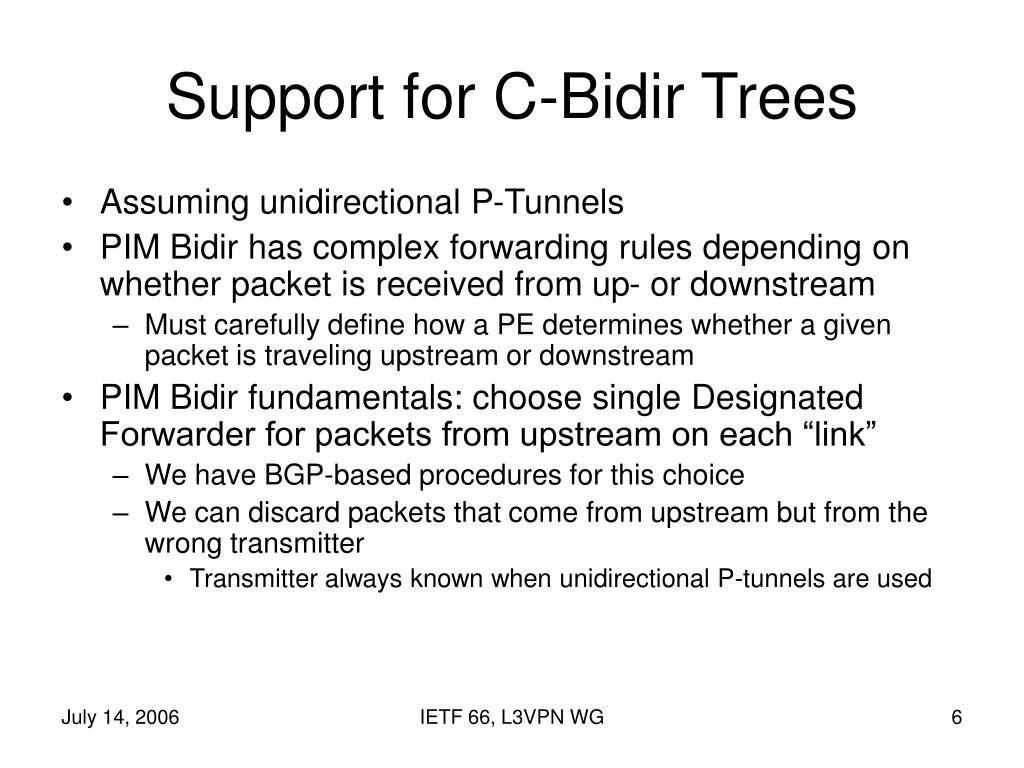

  6. Support for C-Bidir Trees • Assuming unidirectional P-Tunnels • PIM Bidir has complex forwarding rules depending on whether packet is received from up- or downstream • Must carefully define how a PE determines whether a given packet is traveling upstream or downstream • PIM Bidir fundamentals: choose single Designated Forwarder for packets from upstream on each “link” • We have BGP-based procedures for this choice • We can discard packets that come from upstream but from the wrong transmitter • Transmitter always known when unidirectional P-tunnels are used IETF 66, L3VPN WG

  7. Choose one Ingress PE • For this slide, assume everything is intra-AS • Choose one PE to be ingress PE for the C-tree • Procedures already defined • Other PEs must not transmit packets arriving from upstream • If some wrong PE does do so, PEs receiving packets arriving from upstream from wrong PE must discard them • As long as P-trees are unidirectional, can always tell who transmitted a given packet, can discard if transmitter is “wrong” IETF 66, L3VPN WG

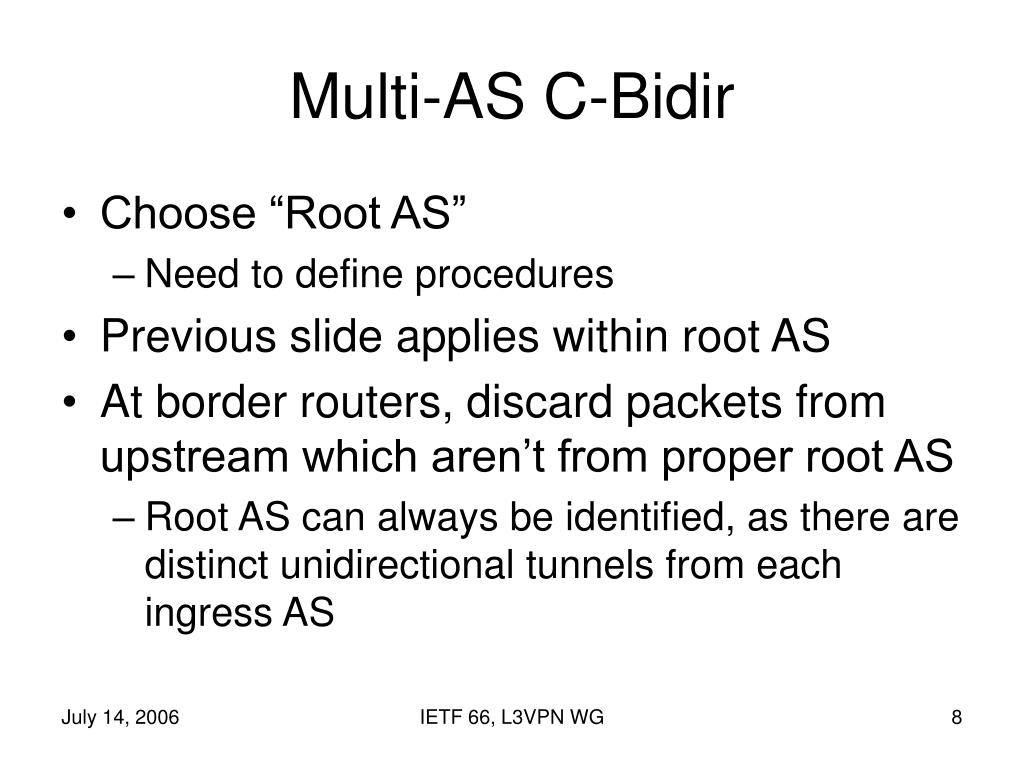

  8. Multi-AS C-Bidir • Choose “Root AS” • Need to define procedures • Previous slide applies within root AS • At border routers, discard packets from upstream which aren’t from proper root AS • Root AS can always be identified, as there are distinct unidirectional tunnels from each ingress AS IETF 66, L3VPN WG

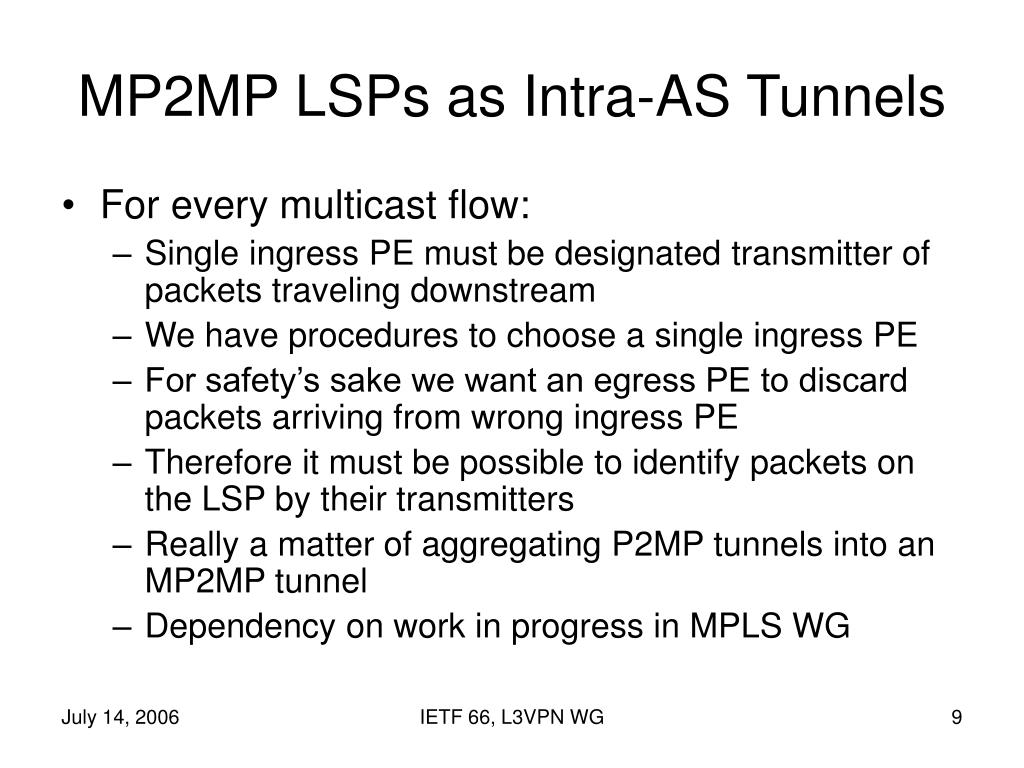

  9. MP2MP LSPs as Intra-AS Tunnels • For every multicast flow: • Single ingress PE must be designated transmitter of packets traveling downstream • We have procedures to choose a single ingress PE • For safety’s sake we want an egress PE to discard packets arriving from wrong ingress PE • Therefore it must be possible to identify packets on the LSP by their transmitters • Really a matter of aggregating P2MP tunnels into an MP2MP tunnel • Dependency on work in progress in MPLS WG IETF 66, L3VPN WG

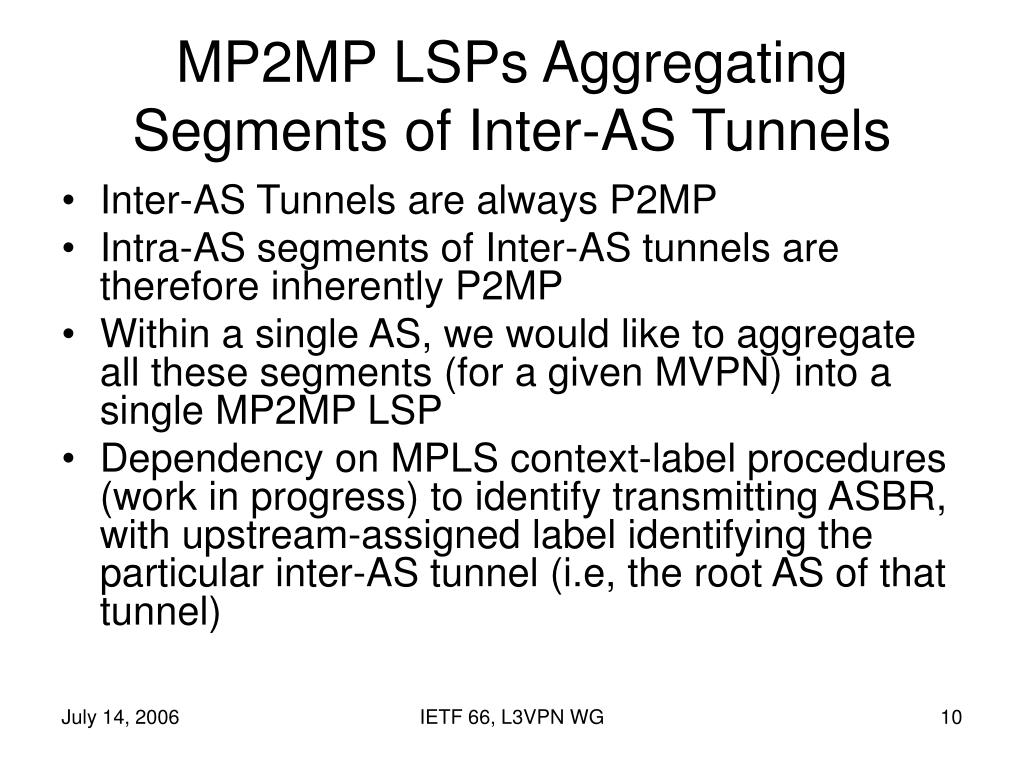

  10. MP2MP LSPs Aggregating Segments of Inter-AS Tunnels • Inter-AS Tunnels are always P2MP • Intra-AS segments of Inter-AS tunnels are therefore inherently P2MP • Within a single AS, we would like to aggregate all these segments (for a given MVPN) into a single MP2MP LSP • Dependency on MPLS context-label procedures (work in progress) to identify transmitting ASBR, with upstream-assigned label identifying the particular inter-AS tunnel (i.e, the root AS of that tunnel) IETF 66, L3VPN WG

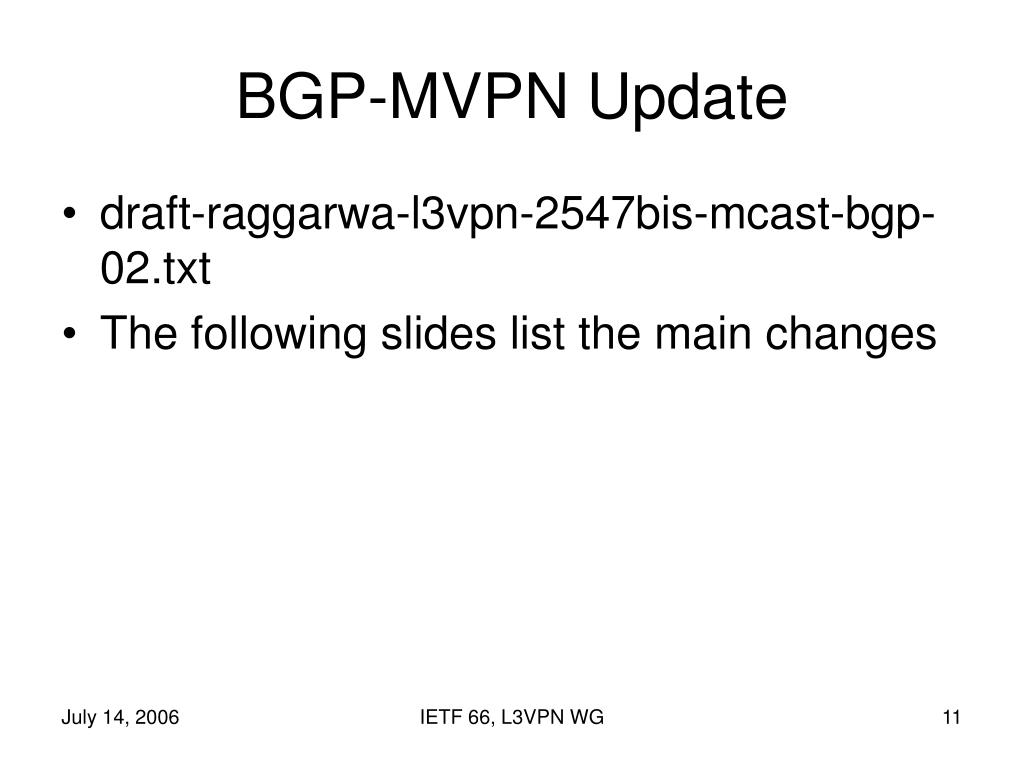

  11. BGP-MVPN Update • draft-raggarwa-l3vpn-2547bis-mcast-bgp-02.txt • The following slides list the main changes IETF 66, L3VPN WG

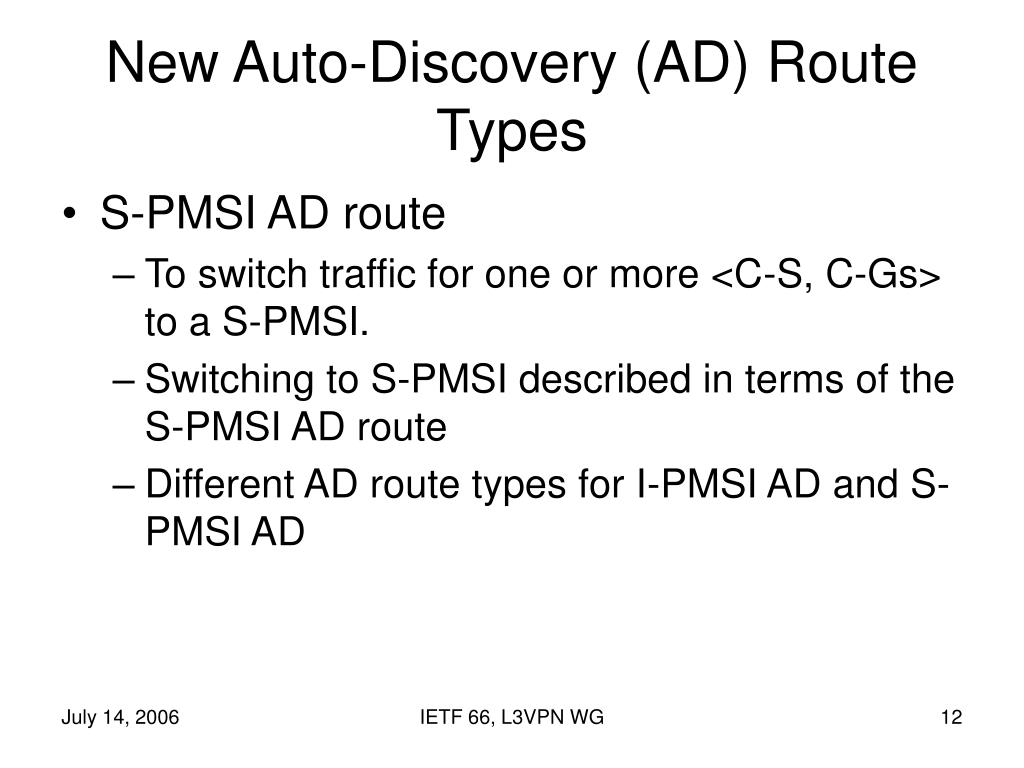

  12. New Auto-Discovery (AD) Route Types • S-PMSI AD route • To switch traffic for one or more <C-S, C-Gs> to a S-PMSI. • Switching to S-PMSI described in terms of the S-PMSI AD route • Different AD route types for I-PMSI AD and S-PMSI AD IETF 66, L3VPN WG

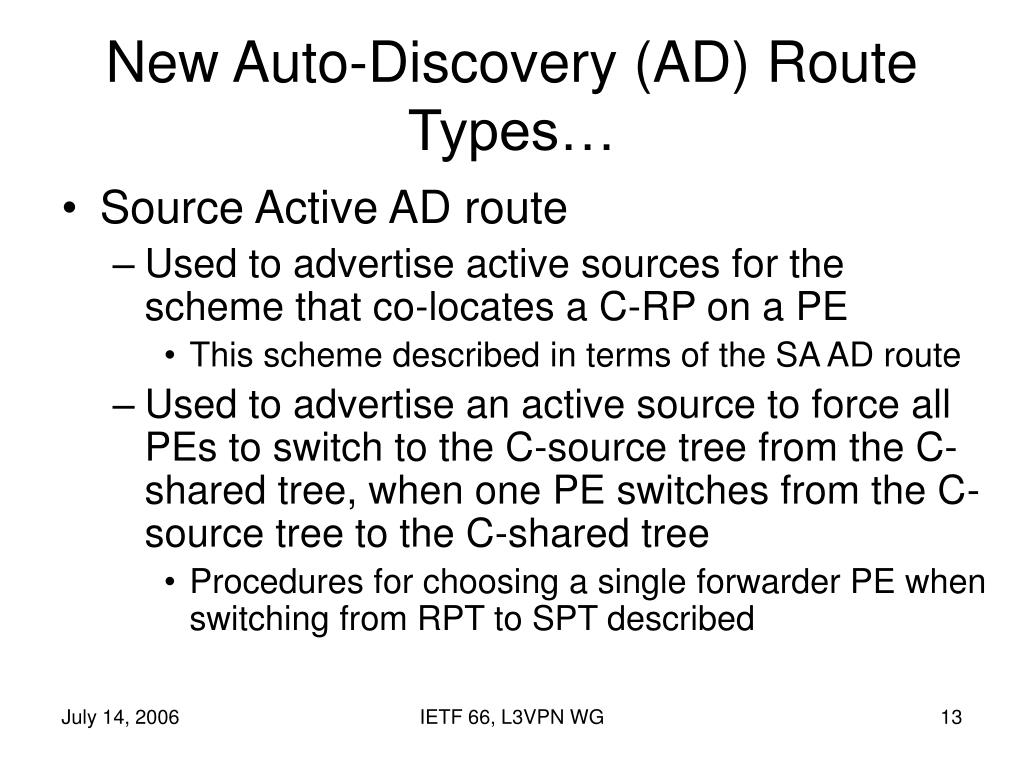

  13. New Auto-Discovery (AD) Route Types… • Source Active AD route • Used to advertise active sources for the scheme that co-locates a C-RP on a PE • This scheme described in terms of the SA AD route • Used to advertise an active source to force all PEs to switch to the C-source tree from the C-shared tree, when one PE switches from the C-source tree to the C-shared tree • Procedures for choosing a single forwarder PE when switching from RPT to SPT described IETF 66, L3VPN WG

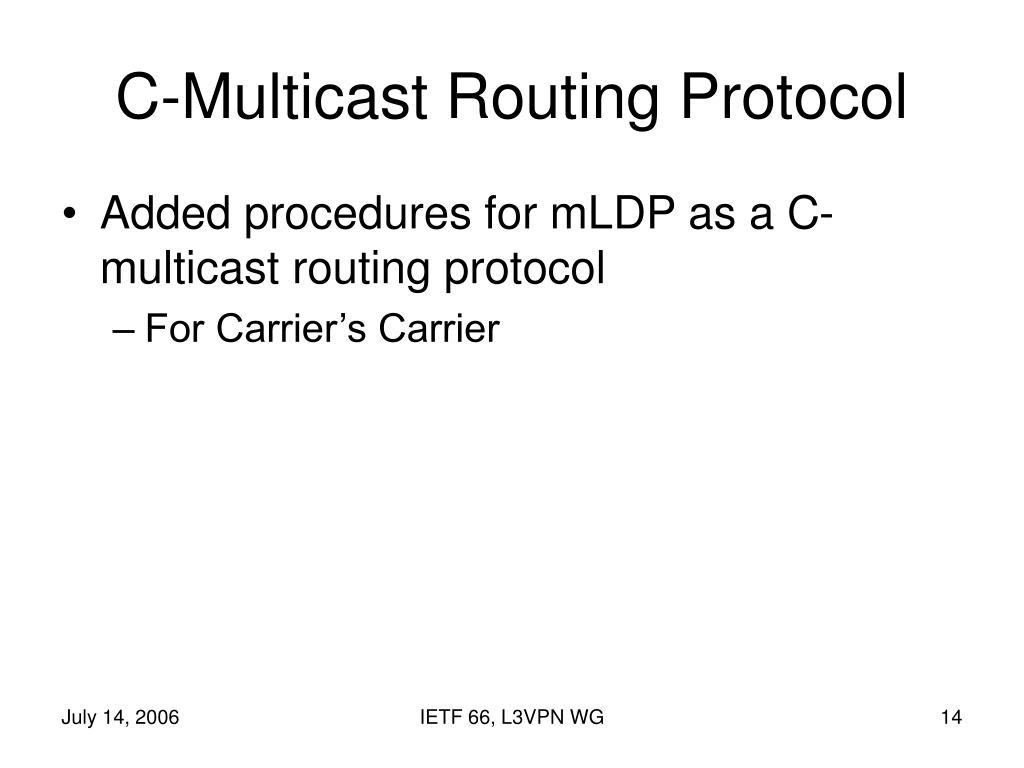

  14. C-Multicast Routing Protocol • Added procedures for mLDP as a C-multicast routing protocol • For Carrier’s Carrier IETF 66, L3VPN WG

  15. C-Multicast Routes • C-multicast route dampening • Dampening of C-mcast prunes • May cause a PE to receive unwanted traffic • Dampening of C-mcast joins • May result in join latency for the first join • Dampening of leaf AD routes • C-multicast route aggregation • Clarified C-multicast route aggregation by RR and also by an ASBR IETF 66, L3VPN WG

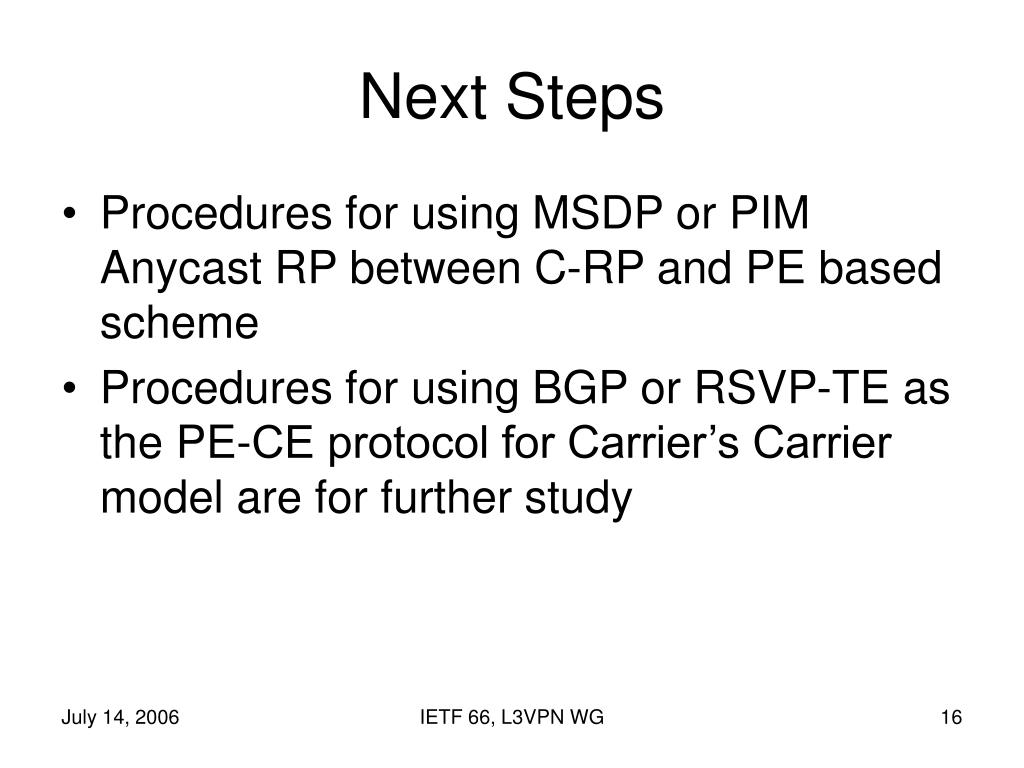

  16. Next Steps • Procedures for using MSDP or PIM Anycast RP between C-RP and PE based scheme • Procedures for using BGP or RSVP-TE as the PE-CE protocol for Carrier’s Carrier model are for further study IETF 66, L3VPN WG
