value based software engineering motivation and key practices

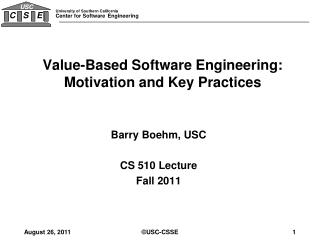

Value-Based Software Engineering:Motivation and Key Practices

Barry Boehm, USC

CS 510 Lecture

Fall 2011

©USC-CSSE

outline
Outline
  • Value-based software engineering (VBSE) motivation, examples, and definitions
  • VBSE key practices
    • Benefits realization analysis
    • Stakeholder Win-Win negotiation
    • Business case analysis
    • Continuous risk and opportunity management
    • Concurrent system and software engineering
    • Value-based monitoring and control
    • Change as opportunity
  • Conclusions and references

©USC-CSSE

software testing business case
Software Testing Business Case
  • Vendor proposition
    • Our test data generator will cut your test costs in half
    • We’ll provide it to you for 30% of your test costs
    • After you run all your tests for 50% of your original cost, you are 20% ahead
  • Any concerns with vendor proposition?

©USC-CSSE

software testing business case1
Software Testing Business Case
  • Vendor proposition
    • Our test data generator will cut your test costs in half
    • We’ll provide it to you for 30% of your test costs
    • After you run all your tests for 50% of your original cost, you are 20% ahead
  • Any concerns with vendor proposition?
    • 34 reasons in 2004 ABB experience paper
      • Unrepresentative test coverage, too much output data, lack of test validity criteria, poor test design, instability due to rapid feature changes, lack of preparation and experience (automated chaos yields faster chaos), …
      • C. Persson and N. Yilmazturk, Proceedings, ASE 2004
    • But one more significant reason

©USC-CSSE

software testing business case2
Software Testing Business Case
  • Vendor proposition
    • Our test data generator will cut your test costs in half
    • We’ll provide it to you for 30% of your test costs
    • After you run all your tests for 50% of your original cost, you are 20% ahead
  • Any concerns with vendor proposition?
    • Test data generator is value-neutral*
    • Assumes every test case, defect is equally important
    • Usually, 20% of test cases cover 80% of business case

* As are most current software engineering techniques

©USC-CSSE

20 of features provide 80 of value focus testing on these bullock 2000
20% of Features Provide 80% of Value: Focus Testing on These (Bullock, 2000)

100

80

% of

Value

for

Correct

Customer

Billing

60

Automated test

generation tool

- all tests have equal value

40

20

5

10

15

Customer Type

©USC-CSSE

value based testing provides more net value
Value-Based Testing Provides More Net Value

60

Value-Based Testing

(30, 58)

40

Net

Value

NV

(100, 20)

20

20

40

60

80

100

0

Percent of tests run

-20

Test Data Generator

-40

©USC-CSSE

slide8

Value-Based Reading (VBR) Experiment— Keun Lee, ISESE 2005

  • Group A: 15 IV&V personnel using VBR procedures and checklists
  • Group B 13 IV&V personnel using previous value-neutral checklists
    • Significantly higher numbers of trivial typo and grammar faults

©USC-CSSE

motivation for value based se
Motivation for Value-Based SE
  • Current SE methods are basically value-neutral
    • Every requirement, use case, object, test case, and defect is equally important
    • Object oriented development is a logic exercise
    • “Earned Value” Systems don’t track business value
    • Separation of concerns: SE’s job is to turn requirements into verified code
    • Ethical concerns separated from daily practices
  • Value – neutral SE methods are increasingly risky
    • Software decisions increasingly drive system value
    • Corporate adaptability to change achieved via software decisions
    • System value-domain problems are the chief sources of software project failures

©USC-CSSE

slide11
The “Separation of Concerns” Legacy
  • “The notion of ‘user’ cannot be precisely defined, and therefore has no place in CS or SE.”

- Edsger Dijkstra, ICSE 4, 1979

  • “Analysis and allocation of the system requirements is not the responsibility of the SE group but is a prerequisite for their work”

- Mark Paulk at al., SEI Software CMM* v.1.1, 1993

*Capability Maturity Model

©USC-CSSE

slide12

I wonder when

they'll give us our

requirements?

SOFTWARE

AERO.

ELEC.

G & C

MGMT.

MFG.

COMM

PAYLOAD

Resulting Project Social Structure

©USC-CSSE

20 of fires cause 80 of property loss focus fire dispatching on these
20% of Fires Cause 80% of Property Loss:Focus Fire Dispatching on These?

100

80

% of

Property Loss

60

40

20

20 40 60 80 100

% of Fires

©USC-CSSE

missing stakeholder concerns fire dispatching system
Missing Stakeholder Concerns:Fire Dispatching System
  • Dispatch to minimize value of property loss
    • Neglect safety, least-advantaged property owners
  • English-only dispatcher service
    • Neglect least-advantaged immigrants
  • Minimal recordkeeping
    • Reduced accountability
  • Tight budget; design for nominal case
    • Neglect reliability, safety, crisis performance

©USC-CSSE

key definitions
Key Definitions
  • Value (from Latin “valere” – to be worth
    • A fair or equivalent in goods, services, or money
    • The monetary worth of something
    • Relative worth, utility or importance
  • Software validation (also from Latin “valere”)
    • Validation: Are we building the right product?
    • Verification: Are we building the product right?

©USC-CSSE

conclusions so far
Conclusions So Far
  • Value considerations are software success-critical
  • “Success” is a function of key stakeholder values
    • Risky to exclude key stakeholders
  • Values vary by stakeholder role
  • Non-monetary values are important
    • Fairness, customer satisfaction, trust
  • Value-based approach integrates ethics into daily software engineering practice

©USC-CSSE

outline1
Outline
  • Value-based software engineering (VBSE) motivation, examples, and definitions
  • VBSE key practices
    • Benefits realization analysis
    • Stakeholder Win-Win negotiation
    • Business case analysis
    • Continuous risk and opportunity management
    • Concurrent system and software engineering
    • Value-based monitoring and control
    • Change as opportunity
  • Conclusions and references

©USC-CSSE

slide18

DMR/BRA* Results Chain

Order to delivery time is

an important buying criterion

ASSUMPTION

INITIATIVE

OUTCOME

Contribution

OUTCOME

Contribution

Reduced order processing cycle

(intermediate outcome)

Implement a new order

entry system

Increased sales

Reduce time to process order

Reduce time to deliver product

*DMR Consulting Group’s Benefits Realization Approach

©USC-CSSE

slide20

The Model-Clash Spider Web: Master Net

- Stakeholder value propositions (win conditions)

©USC-CSSE

projecting yourself into others win situations
Projecting Yourself Into Others’ Win Situations

Counterexample: The Golden Rule

  • Do unto others

.. As you would have others do unto you

©USC-CSSE

projecting yourself into others win situations1
Projecting Yourself Into Others’ Win Situations

Counterexample: The Golden Rule

  • Build computer systems to serve users and operators

.. Assuming users and operators like to write programs, and know computer science

  • Do unto others
  • .. As you would have others do unto you
  • Computer sciences world (compilers, OS, etc.)
    • Users are programmers
  • Applications world
    • Users are pilots, doctors, tellers

©USC-CSSE

slide24

Red cells indicate lack of consensus.

Oral discussion of cell graph reveals unshared information, unnoticed assumptions, hidden issues, constraints, etc.

©USC-CSSE

slide25

Example of Business Case Analysis

ROI= Present Value [(Benefits-Costs)/Costs]

Option B

3

Return on

Investment

2

Option A

1

Time

-1

©USC-CSSE

slide26

Example of Business Case Analysis

ROI= Present Value [(Benefits-Costs)/Costs]

Option B-Rapid

Option B

3

Return on

Investment

2

Option A

1

Time

-1

©USC-CSSE

examples of utility functions response time

Value

Value

Time

Time

Mission Planning,

Competitive Time-to-Market

Real-Time Control; Event Support

Value

Time

Event Prediction

- Weather; Software Size

Examples of Utility Functions: Response Time

Critical Region

Value

Time

Data Archiving

Priced Quality of Service

©USC-CSSE

slide28

How Much Testing is Enough?- Early Startup: Risk due to low dependability - Commercial: Risk due to low dependability - High Finance: Risk due to low dependability- Risk due to market share erosion

Sweet Spot

©USC-CSSE

value based defect reduction example goal question metric gqm approach
Value-Based Defect Reduction Example:Goal-Question-Metric (GQM) Approach

Goal: Our supply chain software packages have too many defects. We need to get their defect rates down

Question: ?

©USC-CSSE

value based gqm approach i
Q: How do software defects affect system value goals?

ask why initiative is needed

Order processing

Too much downtime on operations critical path

Too many defects in operational plans

Too many new-release operational problems

G: New system-level goal: Decrease

software-defect-related losses in operational

effectiveness

With high-leverage problem areas above as specific subgoals

New Q: ?

Value-Based GQM Approach – I

©USC-CSSE

value based gqm approach ii
New Q: Perform system problem-area root cause analysis:

ask why problems are happening via models

Example: Downtime on critical path

Value-Based GQM Approach – II

Validate

items in stock

Schedule packaging,

delivery

Produce status reports

Prepare delivery packages

Validate

order

Order

Deliver

items

order

  • Where are primary software-defect-related delays?
  • Where are biggest improvement-leverage areas?
    • Reducing software defects in Scheduling module
    • Reducing non-software order-validation delays
    • Taking Status Reporting off the critical path
    • Downstream, getting a new Web-based order entry system
  • Ask “why not?” as well as “why?”

©USC-CSSE

value based gqm results
Defect tracking weighted by system-value priority

Focuses defect removal on highest-value effort

Significantly higher effect on bottom-line business value

And on customer satisfaction levels

Engages software engineers in system issues

Fits increasing system-criticality of software

Strategies often helped by quantitative models

COQUALMO, iDAVE

Value-Based GQM Results

©USC-CSSE

outline2
Outline
  • Value-based software engineering (VBSE) motivation, examples, and definitions
  • VBSE key practices
    • Benefits realization analysis
    • Stakeholder Win-Win negotiation
    • Business case analysis
    • Continuous risk and opportunity management
    • Concurrent system and software engineering
    • Value-based monitoring and control
    • Change as opportunity
  • Conclusions and references

©USC-CSSE

is this a risk
Is This A Risk?
  • We just started integrating the software
    • and we found out that COTS* products A and B just can’t talk to each other
  • We’ve got too much tied into A and B to change
  • Our best solution is to build wrappers around A and B to get them to talk via CORBA**
  • This will take 3 months and $300K
  • It will also delay integration and delivery by at least 3 months

*COTS: Commercial off-the-shelf

**CORBA: Common Object Request Broker Architecture

©USC-CSSE

is this a risk1
We just started integrating the software

and we found out that COTS* products A and B just can’t talk to each other

We’ve got too much tied into A and B to change

*******

No, it is a problem

Being dealt with reactively

Risks involve uncertainties

And can be dealt with pro-actively

Earlier, this problem was a risk

Is This A Risk?

©USC-CSSE

earlier this problem was a risk
Earlier, This Problem Was A Risk
  • A and B are our strongest COTS choices
    • But there is some chance that they can’t talk to each other
    • Probability of loss P(L)
  • If we commit to using A and B
    • And we find out in integration that they can’t talk to each other
    • We’ll add more cost and delay delivery by at least 3 months
    • Size of loss S(L)
  • We have a risk exposure of

RE = P(L) * S(L)

©USC-CSSE

how can risk management help you deal with risks
How Can Risk Management Help You Deal With Risks?
  • Buying information
  • Risk avoidance
  • Risk transfer
  • Risk reduction
  • Risk acceptance

©USC-CSSE

risk management strategies buying information
Risk Management Strategies:- Buying Information
  • Let’s spend $30K and 2 weeks prototyping the integration of A and B’s HCI’s
  • This will buy information on the magnitude of P(L) and S(L)
  • If RE = P(L) * S(L) is small, we’ll accept and monitor the risk
  • If RE is large, we’ll use one/some of the other strategies

©USC-CSSE

other risk management strategies
Other Risk Management Strategies
  • Risk Avoidance
    • COTS product C is almost as good as B, and its HCI is compatible with A
    • Delivering on time is worth more to the customer than the small performance loss
  • Risk Transfer
    • If the customer insists on using A and B, have them establish a risk reserve.
    • To be used to the extent that A and B have incompatible HCI’s to reconcile
  • Risk Reduction
    • If we build the wrapper right now, we add cost but minimize the schedule delay
  • Risk Acceptance
    • If we can solve the A and B HCI compatibility problem, we’ll have a big competitive edge on the future procurements
    • Let’s do this on our own money, and patent the solution

©USC-CSSE

is risk management fundamentally negative
Is Risk Management Fundamentally Negative?
  • It usually is, but it shouldn’t be
  • As illustrated in the Risk Acceptance strategy, it is equivalent to Opportunity Management

Opportunity Exposure OE = P(Gain) * S(Gain) = Expected Value

  • Buying information and the other Risk Strategies have their Opportunity counterparts
    • P(Gain): Are we likely to get there before the competition?
    • S(Gain): How big is the market for the solution?

©USC-CSSE

what else can risk management help you do
What Else Can Risk Management Help You Do?
  • Determine “How much is enough?” for your products and processes
    • Functionality, documentation, prototyping, COTS evaluation, architecting, testing, formal methods, agility, discipline, …
    • What’s the risk exposure of doing too much?
    • What’s the risk exposure of doing too little?
  • Tailor and adapt your life cycle processes
    • Determine what to do next (specify, prototype, COTS evaluation, business case analysis)
    • Determine how much of it is enough
    • Examples: Risk-driven spiral model and extensions (win-win, anchor points, RUP, MBASE, CeBASE Method)
  • Get help from higher management
    • Organize management reviews around top-10 risks

©USC-CSSE

example large system risk analysis how much architecting is enough
Example Large-System Risk Analysis:How Much Architecting is Enough?
  • Large system involves subcontracting to over a dozen software/hardware specialty suppliers
  • Early procurement package means early start
    • But later delays due to inadequate architecture
    • And resulting integration rework delays
  • Developing thorough architecture specs reduces rework delays
    • But increases subcontractor startup delays

©USC-CSSE

slide43
How Soon to Define Subcontractor Interfaces?Risk exposure RE = Prob(Loss) * Size(Loss)-Loss due to rework delays

Many interface defects: high P(L)

Critical IF defects: high S(L)

RE =

P(L) * S(L)

Few IF defects: low P(L)

Minor IF defects: low S(L)

Time spent defining & validating architecture

©USC-CSSE

slide44

How Soon to Define Subcontractor Interfaces?

- Loss due to rework delays- Loss due to late subcontact startups

Many interface defects: high P(L)

Critical IF defects: high S(L)

Many delays: high P(L)

Long delays: high S(L)

RE =

P(L) * S(L)

Few delays: low P(L)

Short Delays: low S(L)

Few IF defects: low P(L)

Minor IF defects: low S(L)

Time spent defining & validating architecture

©USC-CSSE

slide45

How Soon to Define Subcontractor Interfaces?

- Sum of Risk Exposures

Many interface defects: high P(L)

Critical IF defects: high S(L)

Many delays: high P(L)

Long delays: high S(L)

RE =

P(L) * S(L)

Sweet

Spot

Few delays: low P(L)

Short delays: low S(L)

Few IF defects: low P(L)

Minor IF defects: low S(L)

Time spent defining & validating architecture

©USC-CSSE

slide46

How Soon to Define Subcontractor Interfaces?

  • Very Many Subcontractors

Higher P(L),

S(L): many more IF’s

Many-Subs

Sweet

Spot

Mainstream

Sweet

Spot

RE =

P(L) * S(L)

Time spent defining & validating architecture

©USC-CSSE

slide47

How Much Architecting Is Enough?

  • A COCOMO II Analysis

10000

KSLOC

Percent of Project Schedule Devoted to Initial Architecture and Risk Resolution

Added Schedule Devoted to Rework

(COCOMO II RESL factor)

Total % Added Schedule

Sweet Spot

100 KSLOC

Sweet Spot Drivers:

Rapid Change: leftward

High Assurance: rightward

10 KSLOC

©USC-CSSE

outline3
Outline
  • Value-based software engineering (VBSE) motivation, examples, and definitions
  • VBSE key practices
    • Benefits realization analysis
    • Stakeholder Win-Win negotiation
    • Business case analysis
    • Continuous risk and opportunity management
    • Concurrent system and software engineering
    • Value-based monitoring and control
    • Change as opportunity
  • Conclusions and references

©USC-CSSE

slide49

Sequential Engineering Neglects Risk

$100M

Arch. A:

Custom

many cache processors

$50M

Arch. B:

Modified

Client-Server

Original Spec

After Prototyping

5

3

1

2

4

Response Time (sec)

©USC-CSSE

change as opportunity agile methods
Change As Opportunity: Agile Methods
  • Continuous customer interaction
  • Short value - adding increments
  • Tacit interpersonal knowledge
    • Stories, Planning game, pair programming
    • Explicit documented knowledge expensive to change
  • Simple design and refactoring
    • Vs. Big Design Up Front

©USC-CSSE

five critical decision factors
Five Critical Decision Factors
  • Represent five dimensions
  • Size, Criticality, Dynamism, Personnel, Culture

Personnel

(% Level 1B)

(% Level 2&3)

40

15

20

30

20

25

Criticality

Dynamism

(Loss due to impact of defects)

10

30

(% Requirements

-

change/month)

0

35

Many

1

5

Lives

Single

Essential

10

Life

Discretionary

Funds

30

Comfort

Funds

50

3

Agile

90

10

70

30

Plan-driven

50

100

30

300

Culture

Size

10

(% thriving on chaos vs. order)

(# of personnel)

©USC-CSSE

slide52

Conclusions

  • Marketplace trends favor transition to VBSE paradigm
    • Software a/the major source of product value
    • Software the primary enabler of adaptability
  • VBSE involves 7 key elements
    • Benefits Realization Analysis
    • Stakeholders’ Value Proposition Elicitation and Reconciliation
    • Business Case Analysis
    • Continuous Risk and Opportunity Management
    • Concurrent System and Software Engineering
    • Value-Based Monitoring and Control
    • Change as Opportunity
  • Processes for implementing VBSE emerging
    • ICM, Lean Development, DMR/BRA, Balanced Scorecard, Quality Economics, Agile Methods

©USC-CSSE

slide53

References

C. Baldwin & K. Clark, Design Rules: The Power of Modularity, MIT Press, 1999.

B. Boehm, “Value-Based Software Engineering,” ACM Software Engineering Notes, March 2003.

B. Boehm, C. Abts, A.W. Brown, S. Chulani, B. Clark, E. Horowitz, R. Madachy, D. Reifer, and B. Steece, Software Cost Estimation with COCOMO II, Prentice Hall, 2000.

B. Boehm and L. Huang, “Value-Based Software Engineering: A Case Study, Computer, March 2003, pp. 33-41.

B. Boehm & K. Sullivan, “Software Economics: A Roadmap,” The Future of Software Economics, A. Finkelstein (ed.), ACM Press, 2000.

B. Boehm and R. Turner, Balancing Agility and Discipline: A Guide for the Perplexed, Addison Wesley, 2003 (to appear).

J. Bullock, “Calculating the Value of Testing,” Software Testing and Quality Engineering, May/June 2000, pp. 56-62.

S. Faulk, D. Harmon, and D. Raffo, “Value-Based Software Engineering (VBSE): A Value-Driven Approach to Product-Line Engineering,” Proceedings, First Intl. Conf. On SW Product Line Engineering, August 2000.

©USC-CSSE

slide54
R. Kaplan & D. Norton, The Balanced Scorecard: Translating Strategy into Action, Harvard Business School Press, 1996.

C. Persson and N. Yilmazturk, “Establishment of Automated Regression Testing at ABB,” Proceedings, ASE 2004, August 2004, pp. 112-121.

D. Reifer, Making the Software Business Case, Addison Wesley, 2002.

K. Sullivan, Y. Cai, B. Hallen, and W. Griswold, “The Structure and Value of Modularity in Software Design,” Proceedings, ESEC/FSE, 2001, ACM Press, pp. 99-108.

J. Thorp and DMR, The Information Paradox, McGraw Hill, 1998.

Economics-Driven Software Engineering Research (EDSER) web site: www.edser.org

MBASE web site : sunset.usc.edu/research/MBASE

©USC-CSSE
