  1. Modelling and Assimilation of Atmospheric Composition (II) Antje Inness Contributions from: Angela Benedetti, Richard Engelen, Johannes Flemming, Johannes Kaiser & SebastienMassart Environmental Monitoring

  2. Outline • Introduction • Reactive gases data assimilation • Aerosol data assimilation • Greenhouse gases data assimilation • Concluding remarks Environmental Monitoring

  3. Introduction • Since June 2010, ECMWF’s amended convention includes objectives to “develop, and operate on a regular basis, global models and data-assimilation systems for the dynamics, thermodynamics and compositionof the Earth’s fluid envelope and interacting parts of the Earth-system”. • We are providing near-real-time analyses and forecasts of atmospheric composition as well as reanalyses of past years (2003- 2012) in the MACC project for: • Global reactive gases (O3, CO, NO2, SO2, HCHO, …..) • Aerosols • Greenhouse gases (CO2, CH4) • Not principally different from meteorological DA but several new challenges Environmental Monitoring

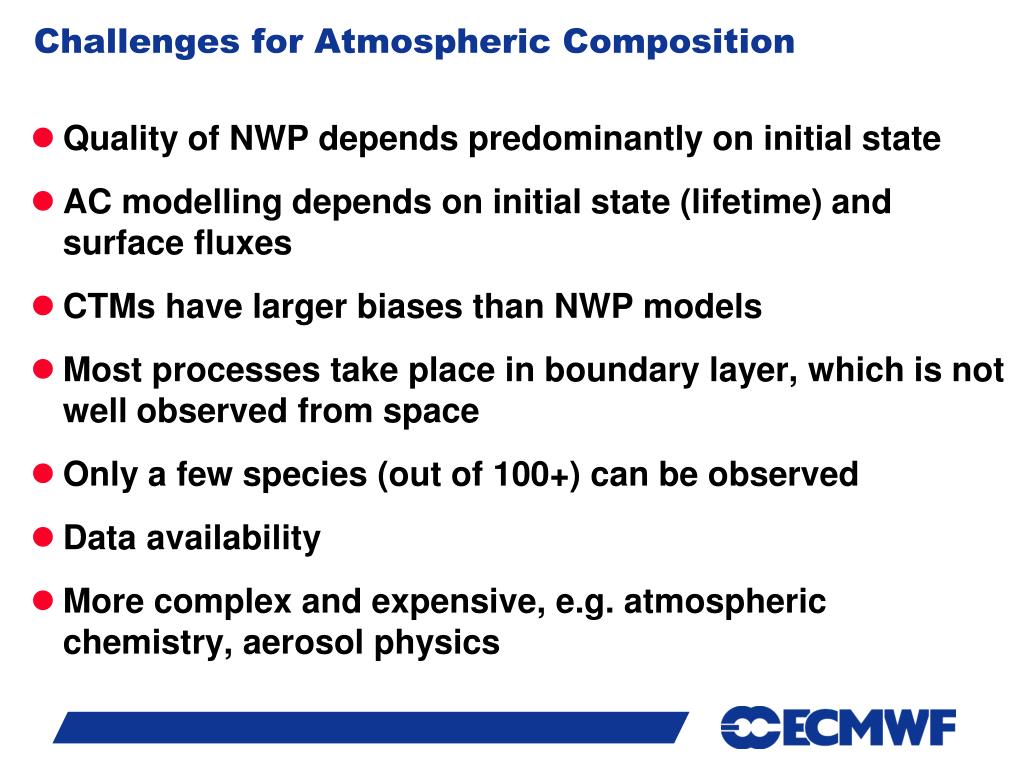

  4. Challenges for Atmospheric Composition • Quality of NWP depends predominantly on initial state • AC modelling depends on initial state (lifetime) and surface fluxes • CTMs have larger biases than NWP models • Most processes take place in boundary layer, which is not well observed from space • Only a few species (out of 100+) can be observed • Data availability • More complex and expensive, e.g. atmospheric chemistry, aerosol physics

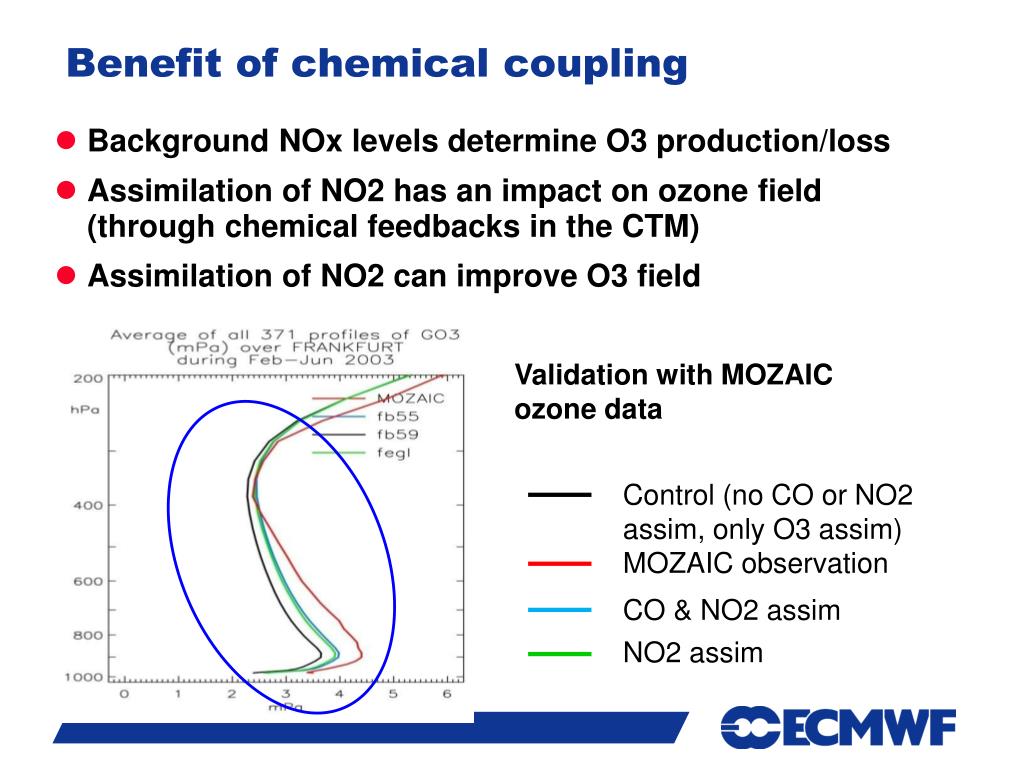

  5. Benefit of chemical coupling • Background NOx levels determine O3 production/loss • Assimilation of NO2 has an impact on ozone field (through chemical feedbacks in the CTM) • Assimilation of NO2 can improve O3 field Validation with MOZAIC ozone data Control (no CO or NO2 assim, only O3 assim) MOZAIC observation CO & NO2 assim NO2 assim

  6. O3, OMI, KNMI/NASA Satellite observations SO2, GOME-2, SACS, BIRA/DLR/EUMETSAT Aerosol Optical Depth, MODIS, NASA NO2, OMI, KNMI/NASA Atmospheric composition observations traditionally come from UV/VIS measurements. This limits the coverage to day-time only. Infrared/microwave are now adding more and more to this spectrum of observations (MOPITT, AIRS, IASI, MLS, MIPAS …)

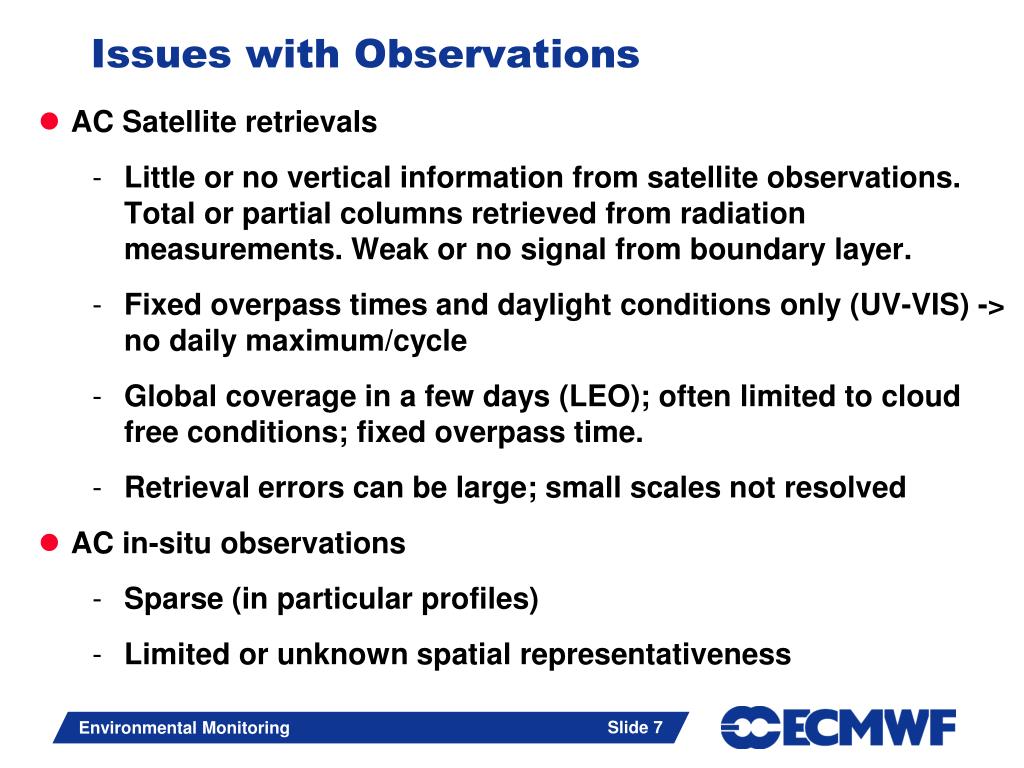

  7. Issues with Observations • AC Satellite retrievals • Little or no vertical information from satellite observations. Total or partial columns retrieved from radiation measurements. Weak or no signal from boundary layer. • Fixed overpass times and daylight conditions only (UV-VIS) -> no daily maximum/cycle • Global coverage in a few days (LEO); often limited to cloud free conditions; fixed overpass time. • Retrieval errors can be large; small scales not resolved • AC in-situ observations • Sparse (in particular profiles) • Limited or unknown spatial representativeness Environmental Monitoring

  8. NRT data coverage for reactive gases Ozone SCIA SBUV/2 NOAA-17 SBUV/2 NOAA-18 CO MOPITT IASI OMI MLS SO2 NO2 OMI GOME-2 OMI SCIA GOME-2

  9. Data used in MACC NRT analysis

  10. Reactive gases Data assimilation Environmental Monitoring

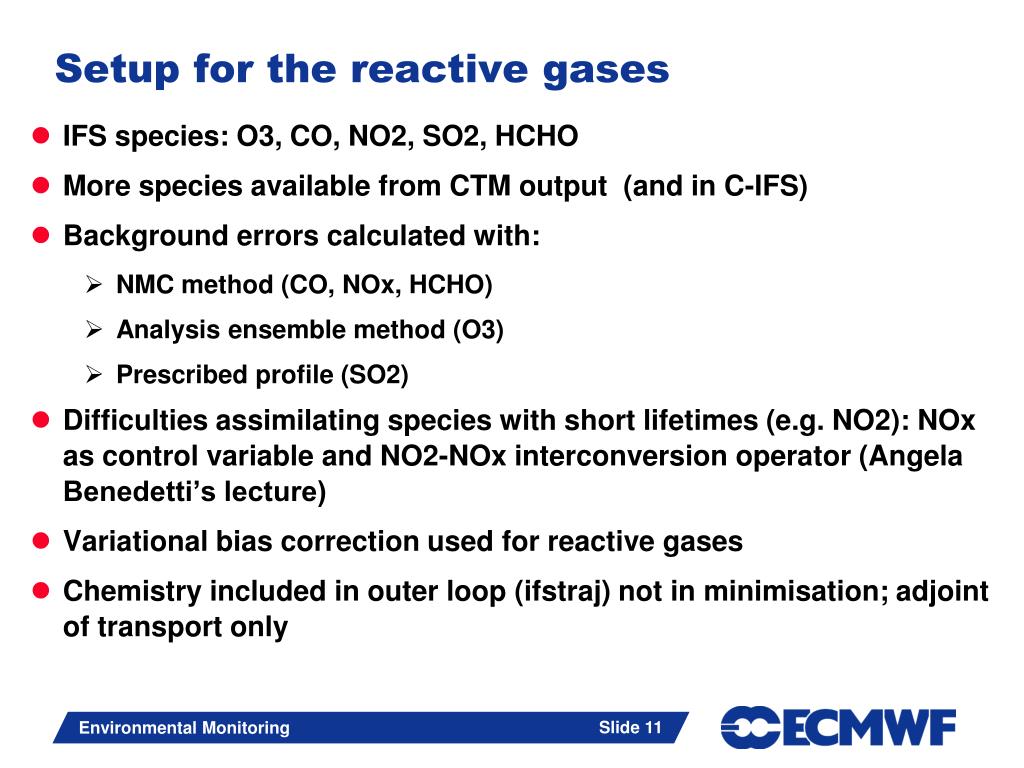

  11. Setup for the reactive gases • IFS species: O3, CO, NO2, SO2, HCHO • More species available from CTM output (and in C-IFS) • Background errors calculated with: • NMC method (CO, NOx, HCHO) • Analysis ensemble method (O3) • Prescribed profile (SO2) • Difficulties assimilating species with short lifetimes (e.g. NO2): NOx as control variable and NO2-NOx interconversion operator (Angela Benedetti’s lecture) • Variational bias correction used for reactive gases • Chemistry included in outer loop (ifstraj) not in minimisation; adjoint of transport only Environmental Monitoring

  12. MACC Reanalysis: Carbon Monoxide [1018 molec/cm2] Biomass burning GFEDV3 and GFASv1.0 South America 2010 2003 1997 2010 Africa S. America Indonesia J. Kaiser Indonesian fires 2006 Assimilation of CO from MOPITT and IASI leads to CO reanalysis field that captures interannual variability well.

  13. Importance of height resolved observations Impact of a single observation in 3D-Var (for model variable at a gridpoint) • xa: analysis value • xb: background value • y: observation • o2: observation variance • b2: background covariance • B: column of background error covariance matrix • Analysis increment is proportional to a column of B-matrix • B-matrix determines how increment is spread out from a • single observation to neighbouring gridpoints/ levels

  14. Increment from a single TCO3 observation Ozone background errors Vertical correlations Increment created by a single O3 obs Standard deviation Horizontal correlations Ozone observation of 247 DU, 66 DU lower than background Profile data are important to obtain a good vertical analysis profiles

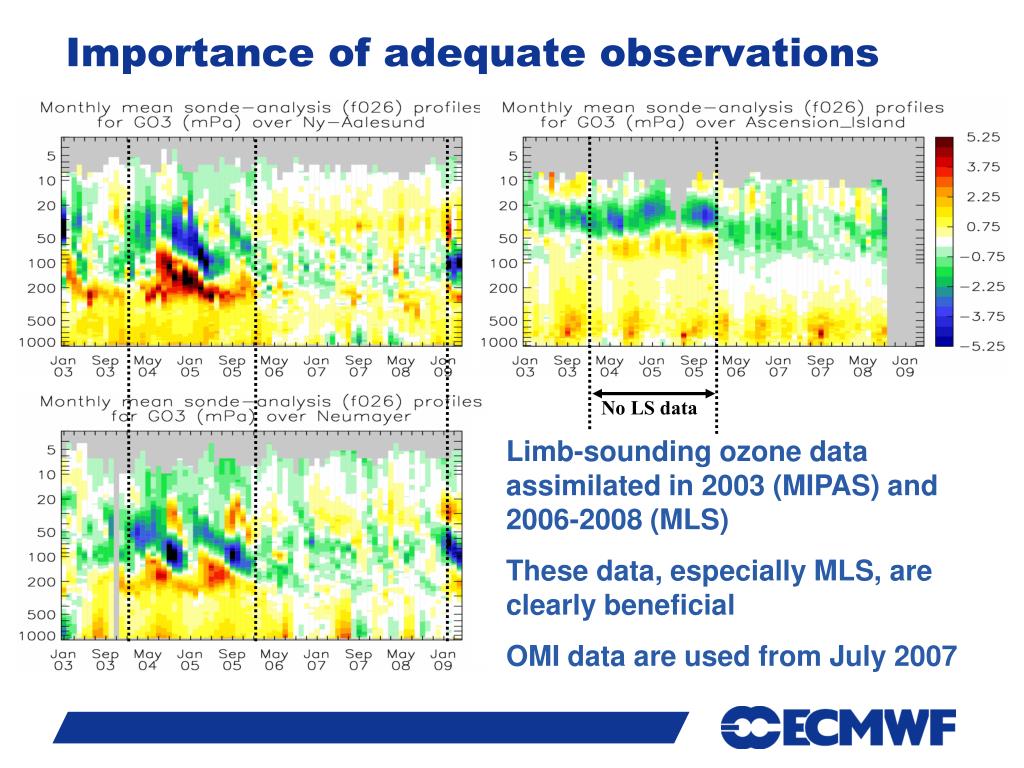

  15. No LS data Limb-sounding ozone data assimilated in 2003 (MIPAS) and 2006-2008 (MLS) These data, especially MLS, are clearly beneficial OMI data are used from July 2007 Importance of adequate observations

  16. Assimilation Control 70S Ozone hole in GEMS reanalysis: Cross section along 8E over South Pole, 4 Oct 2003 Oct 2004

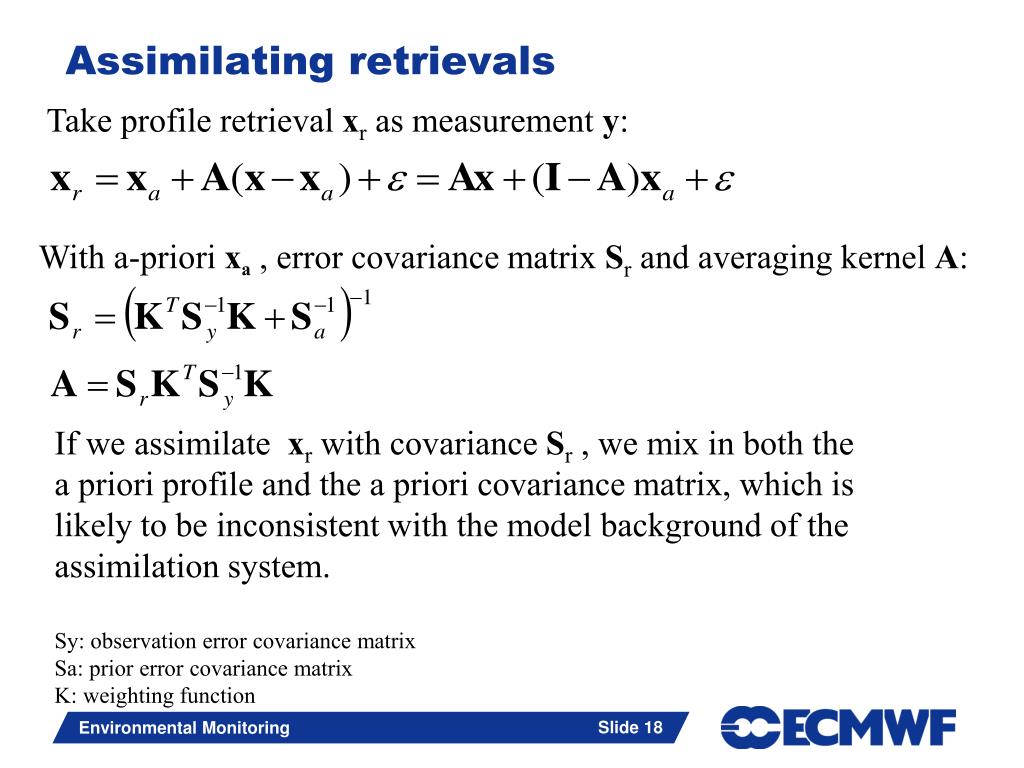

  17. Assimilating retrievals Take profile retrieval xr as measurement y: With a-priori xa , error covariance matrix Sr and averaging kernel A: If we assimilate xr with covariance Sr , we mix in both the a priori profile and the a priori covariance matrix, which is likely to be inconsistent with the model background of the assimilation system. Sy: observation error covariance matrix Sa: prior error covariance matrix K: weighting function Environmental Monitoring

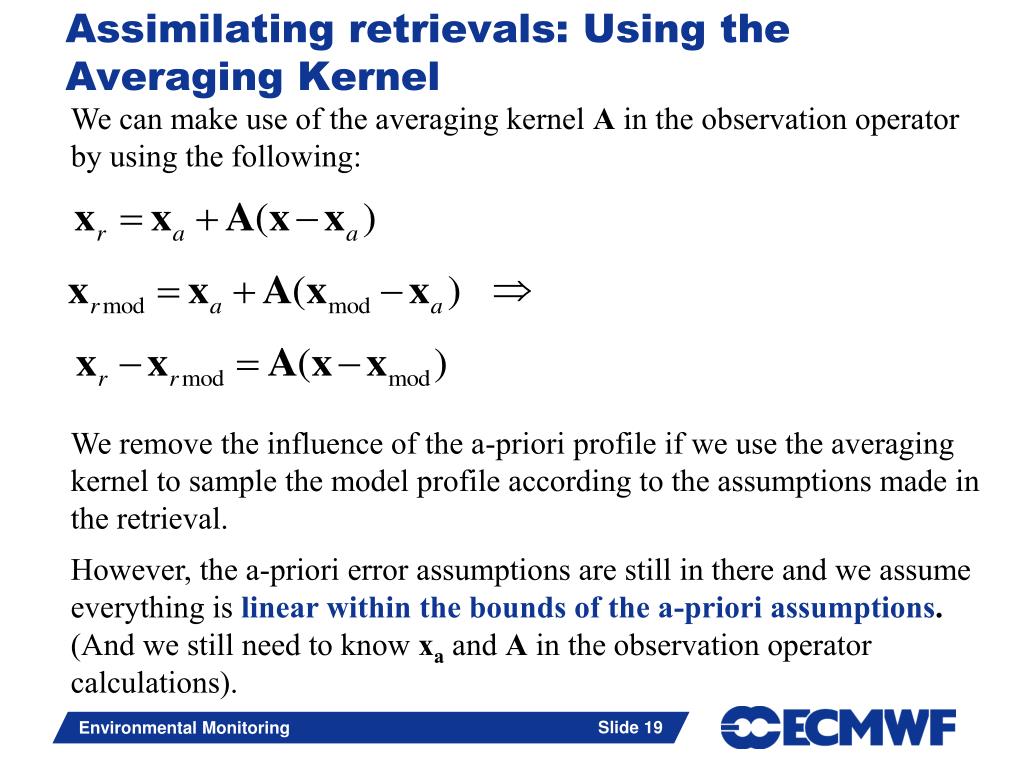

  18. Assimilating retrievals: Using the Averaging Kernel We can make use of the averaging kernel A in the observation operator by using the following: We remove the influence of the a-priori profile if we use the averaging kernel to sample the model profile according to the assumptions made in the retrieval. However, the a-priori error assumptions are still in there and we assume everything is linear within the bounds of the a-priori assumptions. (And we still need to know xa and A in the observation operator calculations). Environmental Monitoring

  19. Effect of a-priori on retrieval product MOPITT CO shows changes from one version to another. Part of these changes are caused by changing prior information. V4 V4-V3 Jan 2003 V3

  20. Example MOPITT CO Averaging Kernels day night From: Deeter et al. (2003) JGR • Diurnal variations of Tsurf affect retrieval over land. • CO near surface more detectable during day, AKs shift downwards • Diurnal variability of AKs largest over e.g. deserts, smallest over sea • If AKs are not used this can introduce an artificial diurnal CO cycle in the analysis Environmental Monitoring

  21. Issues Total column retrievals come with integrated averaging kernels; some information is lost Profile retrievals with full averaging kernels and retrieval errors can become difficult to handle Not all retrieval methods allow the estimation of an averaging kernel; e.g., neural networks Not all data providers use the same definition of averaging kernel in their data files Many different versions of the observation operator needed to deal with all variations We use: • Reactive gases: Profiles, columns with and without averaging kernels, profiles with averaging kernels being tested • Aerosols: Columns without averaging kernels, profiles being tested • Greenhouse gases: Radiances and columns with averaging kernels

  22. Aerosol DATA assimilation Environmental Monitoring

  23. 4D-Var assimilation system for aerosols Aerosol assimilation is difficult because: • There are numerous unknowns (depending on the aerosol model) and very little observations to constrain them • The concentrations vary hugely with for instance strong plumes of desert dust in areas with very little background aerosol, which makes it difficult to estimate the background error covariance matrix Environmental Monitoring

  24. The aerosol prediction system: Forward model • 12 aerosol-related prognostic variables: • * 3 bins of sea-salt (0.03 –0.5 – 0.9 – 20 µm) • * 3 bins of dust (0.03 –0.55 – 0.9 – 20 µm) • * Black carbon (hydrophilic and –phobic) • * Organic carbon (hydrophilic and –phobic) • * SO2 -> SO4 • Physical processes include: • emission sources (some updated in NRT, i.e. fires, J. Flemming’s talk), • horizontal and vertical advection by dynamics • vertical advection by vertical diffusion and convection • aerosol specific parameterizations for • dry deposition, sedimentation, wet deposition by large-scale and convective precipitation, and hygroscopicity (SS, OM, BC, SU) fine mode coarse mode

  25. The aerosol prediction system: Analysis • Assimilated observations are the 550nm MODIS Aerosol Optical Depths (AODs) over land and ocean, and the fine mode AODs over ocean. • Control variable is formulated in terms of the total aerosol mixing ratio. • To come dual mode control variable: aerosol control variables are thefine mode (<1 µm diameter) and coarse mode aerosol mixing ratio. Analysis increments are repartitioned into the species according to their fractional contribution to the fine/coarse mode mixing ratio. • Background error statistics were computed using forecasts errors as in the NMC method (48h-24h forecast differences). • Observation errors are prescribed fixed values. • Variational bias corrections are applied to both total and fine mode AOD. • Improvements of dual mode control variable are especially seen in fine mode AOD

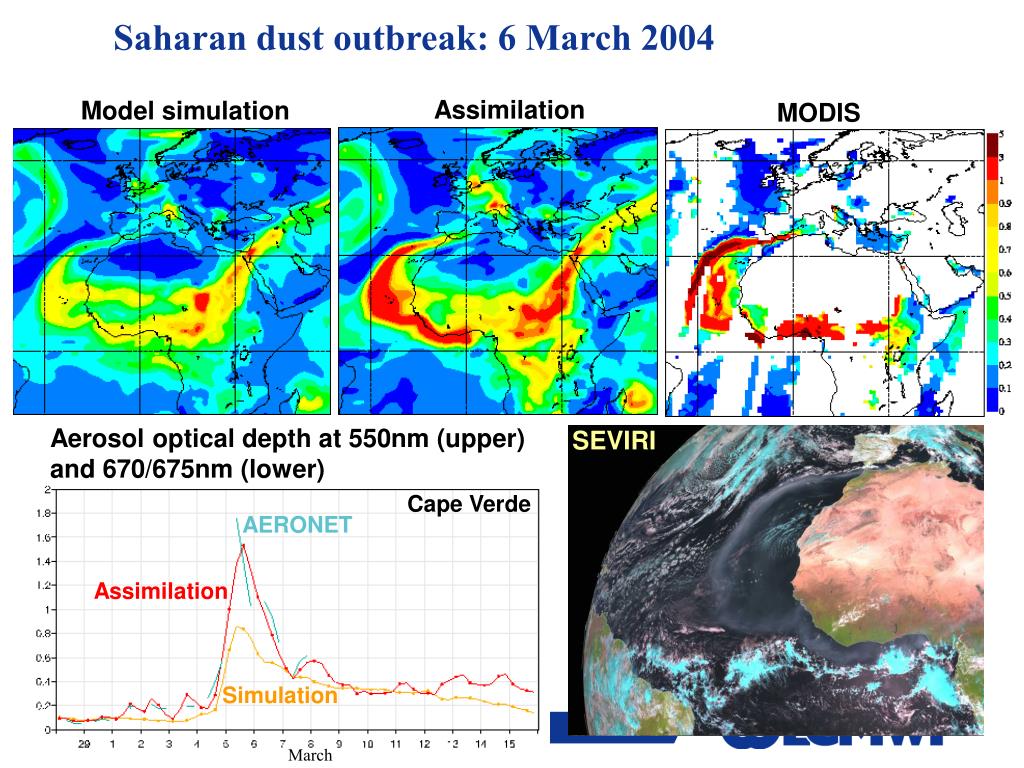

  26. Saharan dust outbreak: 6 March 2004 Cape Verde AERONET Assimilation Simulation March Assimilation Model simulation MODIS Aerosol optical depth at 550nm (upper) and 670/675nm (lower) SEVIRI

  27. Example for wrong aerosol attribution Eruption of the Nabro volcano in 2011 put a lot of fine ash into the stratosphere. This was observed by AERONET stations and the MODIS instrument. sulphate biomass ICIPE-Mbita - AERONET sea salt dust The MACC aerosol model does not contain stratospheric aerosol yet, so the observed AOD was wrongly attributed to the available aerosol types. MACC AOD analysis AERONET total AOD AERONET fine mode AOD

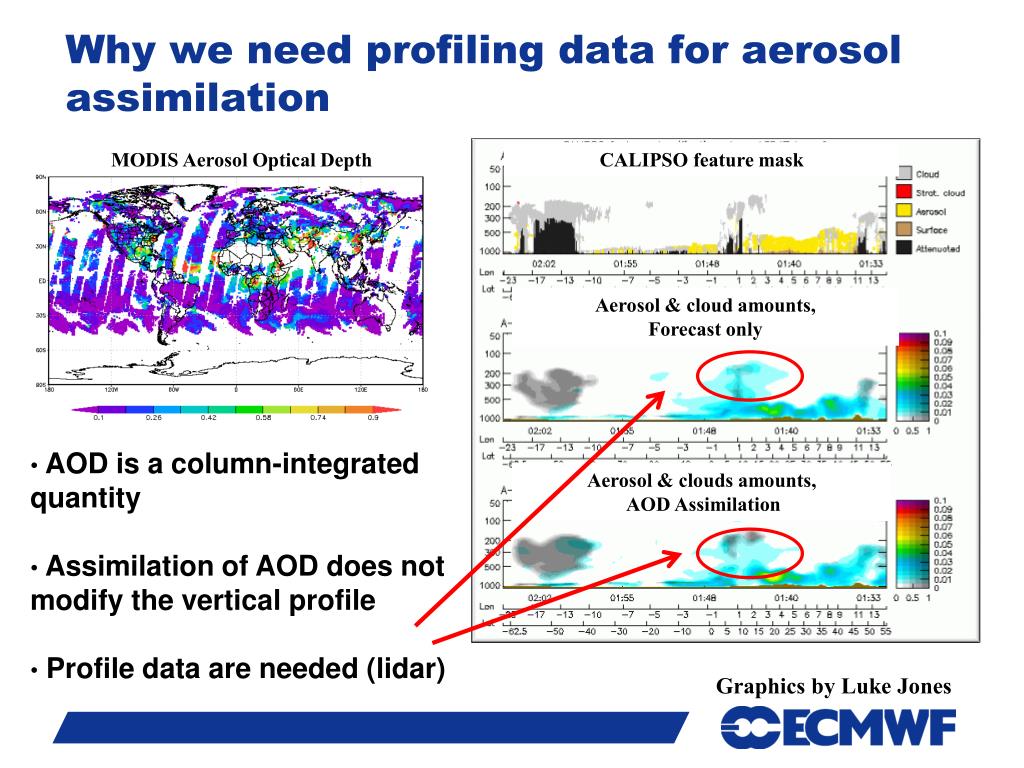

  28. Why we need profiling data for aerosol assimilation MODIS Aerosol Optical Depth CALIPSO feature mask Aerosol & cloud amounts, Forecast only • AOD is a column-integrated quantity • Assimilation of AOD does not modify the vertical profile • Profile data are needed (lidar) Aerosol & clouds amounts, AOD Assimilation Graphics by Luke Jones

  29. Towards lidar assimilation • NRT CALIPSO level 1.5 product available since mid-2011 • Mean Attenuated aerosol backscatter at 532 nm (cloud cleared) • Aimed at operational NWP centres (ECMWF, US Naval Research Lab, JMA,…) • Developed through close collaboration with NASA LaRCCALIPSOTeam • Lidar observation operator in place and performing well • Regional bias, particular over desert regions, is currently under investigation. • Possible explanations: • still too much aerosol mass in the fine mode or not enough removal over the sources • use of spherical particle assumption for the calculation of the dust optical properties • To be included in MACC NRT analysis soon Level 800-850hPa FG Departures for spheroids (left) versus spheres (right) Acknowledgements: Dave Winker, Chip Trepte, Jason Tackett

  30. GreenHOUSE GAS assimilation Environmental Monitoring

  31. CH4 and CO2 assimilation • CH4: • Delayed mode analysis and reanalysis (2003-2012). • GOSAT and IASI retrievals used for delayed mode. SCIAMACHY used in reanalysis. • CO2: • AIRS and IASI radiance assimilation difficult. Used in GEMS reanalysis, but problems in MACC reanalysis because of variational bias correction. • Assimilation tests with GOSAT retrievals coming soon • NRT high resolution CO2 forecast Environmental Monitoring

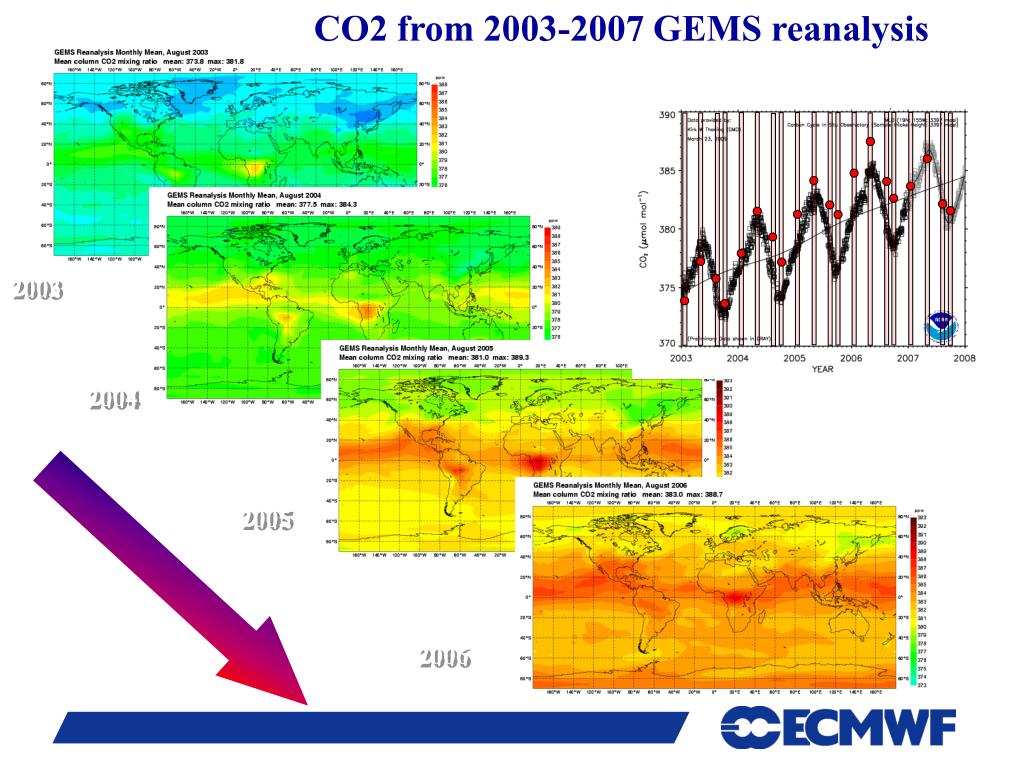

  32. CO2 from 2003-2007 GEMS reanalysis 2003 2004 2005 2006

  33. CH4 measurement from space Example of data distribution for October 2011 SCIAMACHY/ENVISAT TANSO/GOSAT IASI/METOP-A

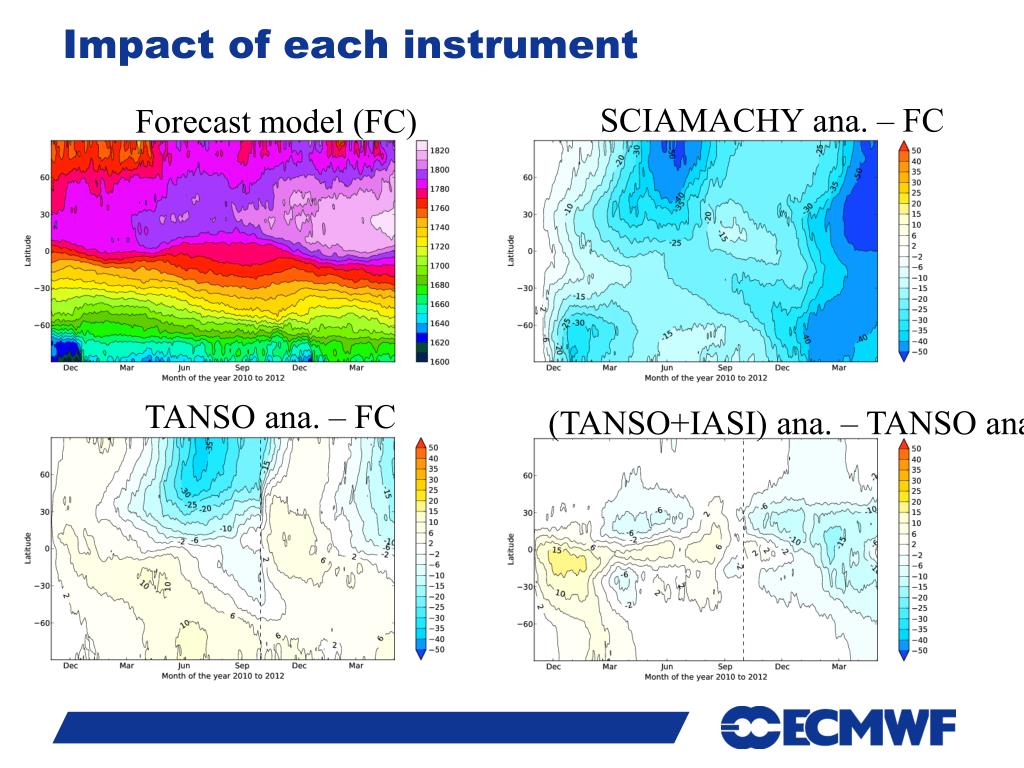

  34. Impact of each instrument SCIAMACHY ana. – FC Forecast model (FC) TANSO ana. – FC (TANSO+IASI) ana. – TANSO ana.

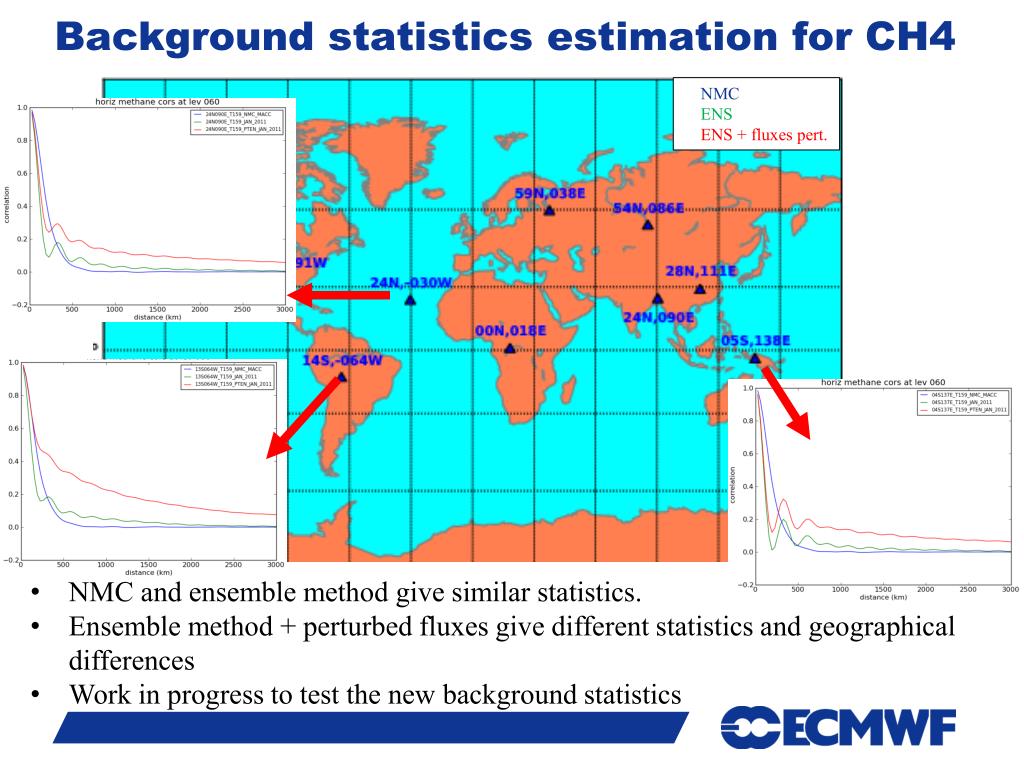

  35. Background statistics estimation for CH4 NMC ENS ENS + fluxes pert. • NMC and ensemble method give similar statistics. • Ensemble method + perturbed fluxes give different statistics and geographical differences • Work in progress to test the new background statistics

  36. Concluding remarks • IFS has been extended to include fields of atmospheric composition: Reactive gases, greenhouse gases, aerosols • We mainly assimilate retrievals at present (apart from CO2) • Extra challenges for DA of atmospheric composition compared to NWP (but also extra benefits through chemical coupling and potential impact on NWP) • Still work in progress (C-IFS, AER lidar assimilation, GHG assimilation, revision of background errors, volcanic SO2, …) • We are providing near-real time analyses and forecasts of atmospheric composition as well as reanalyses (2003-2012) for reactive gases, greenhouse gases, and aerosols as part of the MACC project Environmental Monitoring

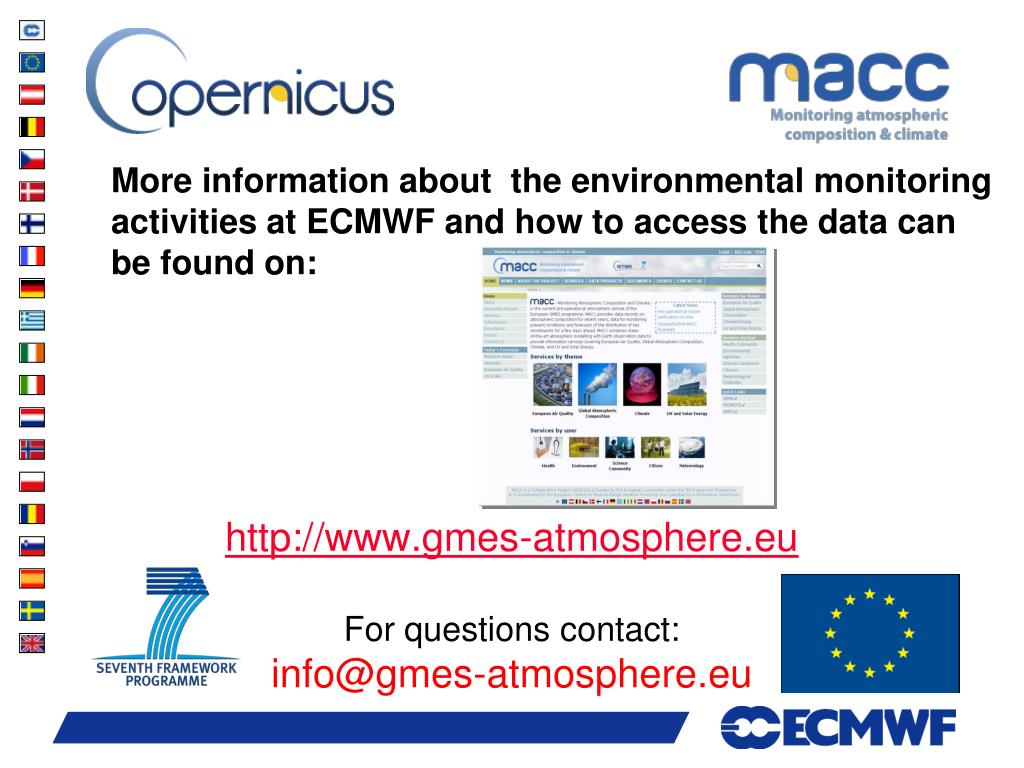

  37. More information about the environmental monitoring activities at ECMWF and how to access the data can be found on: http://www.gmes-atmosphere.euFor questions contact:info@gmes-atmosphere.eu
