Johnson Controls Building Efficiency 2014 Distributor Meeting. Heat Pumps - One solution. Bjarne Elo Christophersen Sales Manager / Sabroe Factory Bernard Philippe Product & Technology / Industrial Refrigeration EA. Vienna, 26-27 th February 2014. Heat Pumps One solution.

Download Presentation

Johnson Controls Building Efficiency 2014 Distributor Meeting

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Johnson Controls Building Efficiency 2014 Distributor Meeting Heat Pumps - One solution Bjarne Elo ChristophersenSales Manager / Sabroe Factory Bernard Philippe Product & Technology / Industrial Refrigeration EA Vienna, 26-27th February 2014

  2. Heat PumpsOne solution

  3. Johnson Controls Heat Pumps solutions overview We do have a wide range of industrial heat pumps for several capacities & at different temperature levels

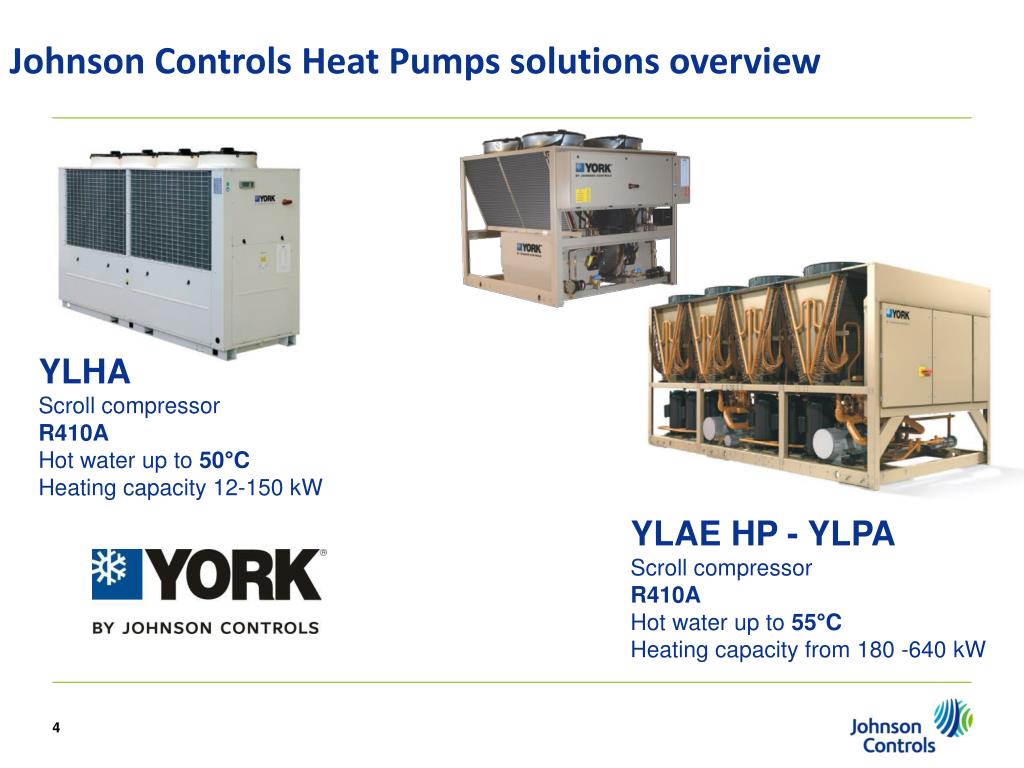

  4. Johnson Controls Heat Pumps solutions overview YLHA Scrollcompressor R410A Hot water up to 50°C Heatingcapacity 12-150 kW YLAE HP - YLPA Scrollcompressor R410A Hot water up to 55°C Heatingcapacityfrom 180 -640 kW

  5. Johnson Controls Heat Pumps solutions overview YMWA scrollcompressor R410A Hot water up to 55°C Heatingcapacity 20-190 kW YCSE screwcompressor R407C Hot water up to 55°C Heatingcapacity 134-320 kW YCWL scroll compressor R410A Hot water up to 52°C Heatingcapacity 188-580 kW

  6. Johnson Controls Heat Pumps solutions overview YLCS Water-cooledtwin-screw heatpump R134a Hot water up to 70°C Heatingcapacityfrom 400-2000 kW YVWA screwcompressor R134a Hot water up to 65°C Heatingcapacity 650-1250 kW

  7. Johnson Controls Heat Pumps solutions overview HeatPACRecip variable-speed drive R717 (max. 48 kg charge) Hot water up to 70°C Heating capacity up to 1200 kW at 40°C source

  8. Johnson Controls Heat Pumps solutions overview HeatPAC Screw variable-speed drive R717 Hot water up to 90°C Heating capacity up to 1600 kW at 40°C source

  9. Johnson Controls Heat Pumps solutions overview HeatPAC Custom Two-stage cascade variable-speed drive R717 Hot water up to 90°C with screw • Hot water up to 70°C with recip • Heating capacity up to +3000 kW at 40°C source

  10. Johnson Controls Heat Pumps solutions overview SHP • screwcompressor variable-speed R134a Hot water up to 80°C Heatingcapacityfrom 700-3000 kW

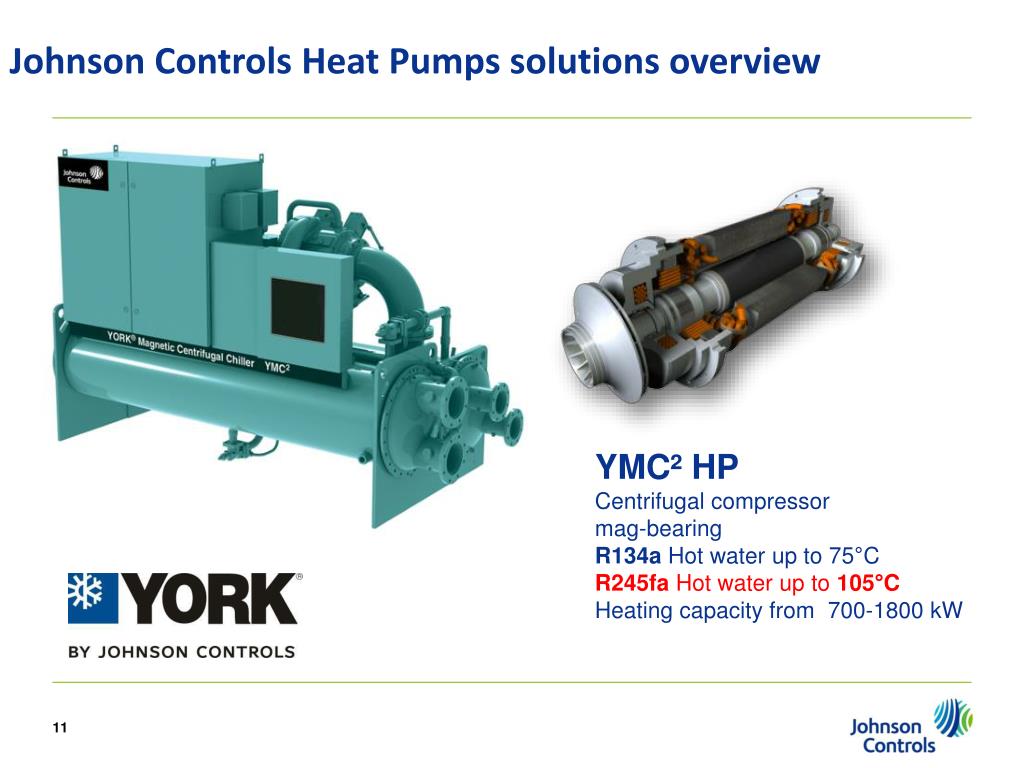

  11. Johnson Controls Heat Pumps solutions overview YMC² HP Centrifugalcompressor mag-bearing • R134a Hot water up to 75°C R245fa Hot water up to 105°C Heatingcapacityfrom 700-1800 kW

  12. Johnson Controls Heat Pumps solutions overview YK HP Compound centrifugalcompressor R134a Hot water up to 50°C (Std) & 70°C (HP) Heatingcapacityfrom 1000-9000 kW CYK HP Compound centrifugalcompressor R134a Hot water up to 70°C Heatingcapacityfrom 2500-7000 kW

  13. Johnson Controls Heat Pumps solutions overview Titan OM HP centrifugal multi stage R134a Hot water up to 90°C Heatingcapacityfrom 5000-20000 kW

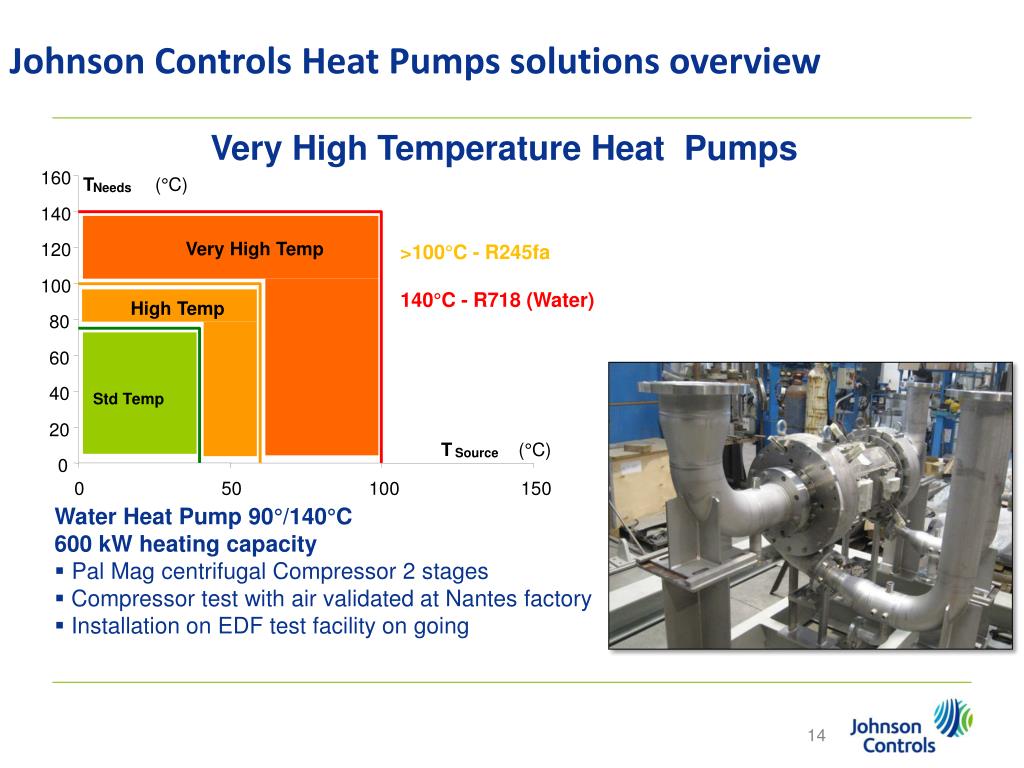

  14. 160 T (°C) Needs 140 Very High Temp 120 100 High Temp 80 60 40 StdTemp 20 T (°C) Source 0 0 50 100 150 Johnson Controls Heat Pumps solutions overview Very High Temperature Heat Pumps >100°C - R245fa 140°C - R718 (Water) • Water Heat Pump 90°/140°C • 600 kW heating capacity • Pal Mag centrifugal Compressor 2 stages • Compressor test with air validated at Nantes factory • Installation on EDF test facility on going

  15. Heat Pumps Application examples

  16. Large-scale heat pump applications

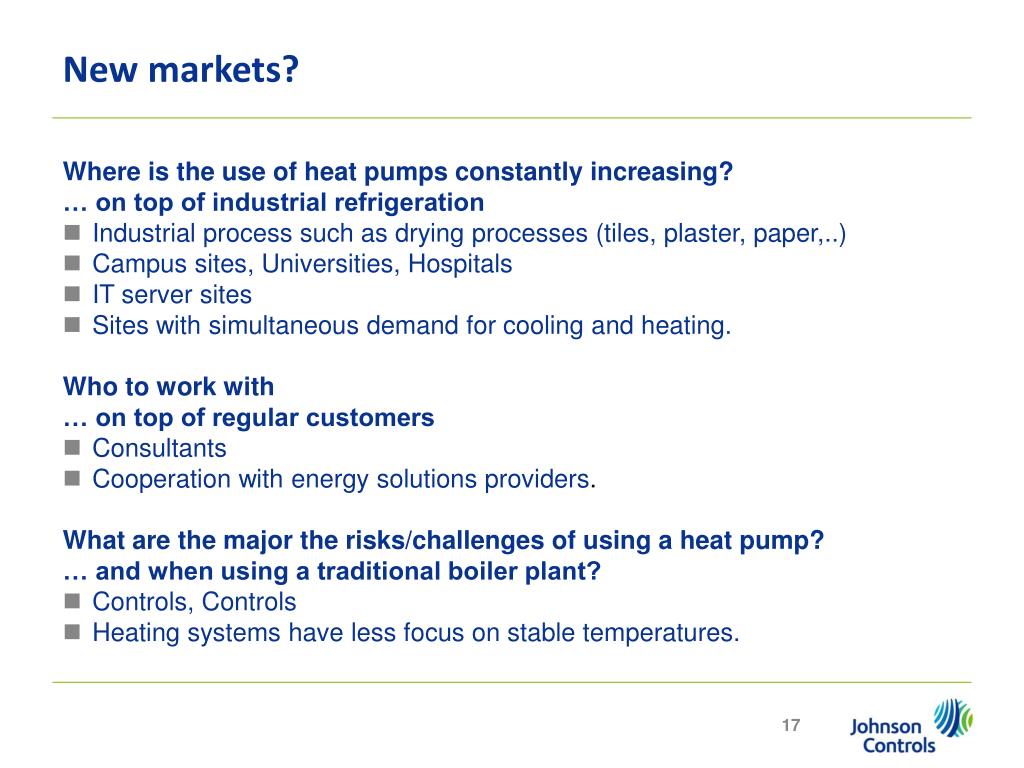

  17. New markets? • Where is the use of heat pumps constantly increasing? • … on top of industrial refrigeration • Industrial process such as drying processes (tiles, plaster, paper,..) • Campus sites, Universities, Hospitals • IT server sites • Sites with simultaneous demand for cooling and heating. • Who to work with • … on top of regular customers • Consultants • Cooperation with energy solutions providers. • What are the major the risks/challenges of using a heat pump? • … and when using a traditional boiler plant? • Controls, Controls • Heating systems have less focus on stable temperatures.

  18. Example : Hospital • Heatpumps coveringbothcooling and heating. • Coolingdemand (AC / coldstorage / freezers) = heatsource • Basicprinciple for operation: • Coolingdemandwillallways cover total heatingdemand – ensured by energyefficientbuilding design and buffer tank for variations. • Installation: • 3 pcstwo-stage heatpumps (SAB 157 HP / SMC 116L) • Coolingcapacity 3 x 1,5 MW – heatingcapacity 3 x 2 MW • All existingcooling installations converted to watercooledcondensers forconnection to common system (previousaircooled) • Buffertank for heatstorage – 3000 cum • Dry coolers for excess heat in summer and freecooling in winter

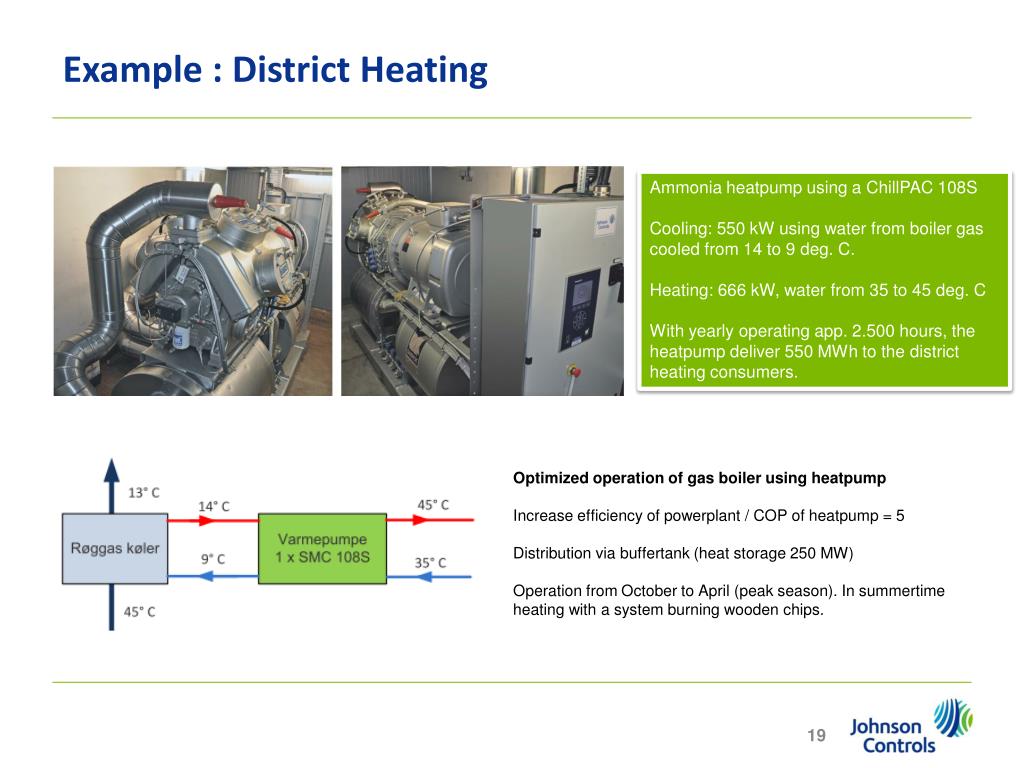

  19. Example : District Heating Ammonia heatpump using a ChillPAC 108S Cooling: 550 kW usingwater from boiler gas cooled from 14 to 9 deg. C. Heating: 666 kW, water from 35 to 45 deg. C With yearly operating app. 2.500 hours, the heatpump deliver 550 MWh to the districtheatingconsumers. Optimized operation of gas boilerusing heatpump Increaseefficiency of powerplant / COP of heatpump = 5 Distribution via buffertank (heat storage 250 MW) Operation from October to April (peakseason). In summertime heatingwith a system burningwooden chips.

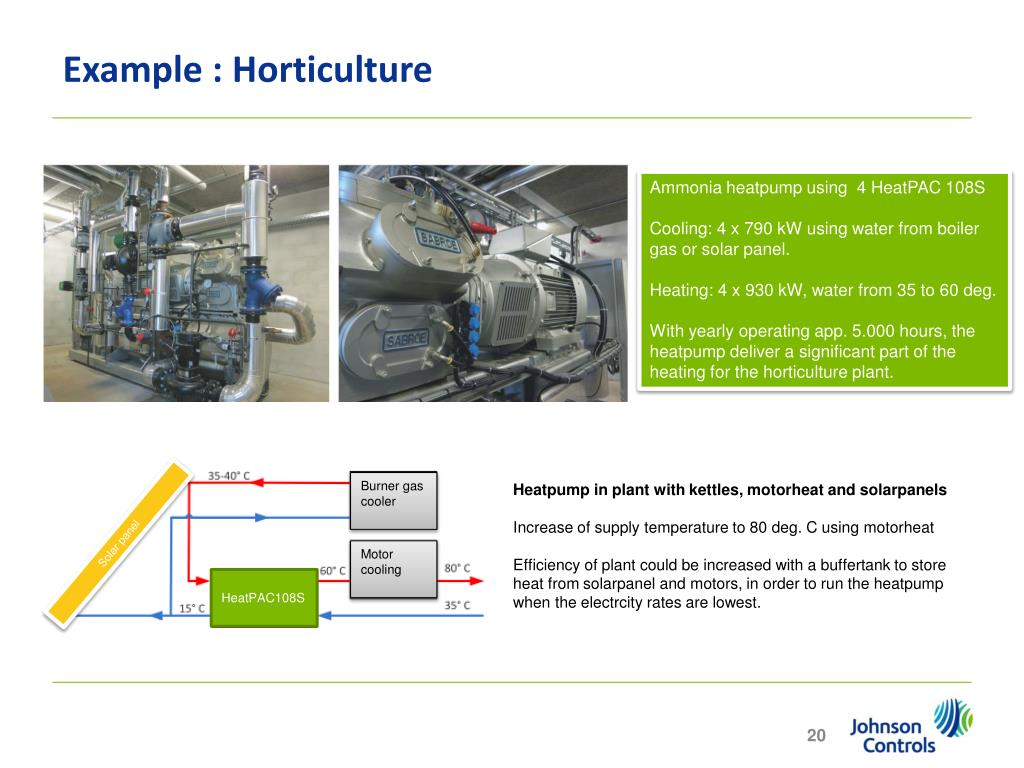

  20. Example : Horticulture Ammonia heatpump using 4 HeatPAC 108S Cooling: 4 x 790 kW usingwater from boiler gas or solar panel. Heating: 4 x 930 kW, water from 35 to 60 deg. With yearly operating app. 5.000 hours, the heatpump deliver a significant part of the heating for the horticulture plant. Burner gas cooler Heatpump in plant withkettles, motorheat and solarpanels Increase of supplytemperature to 80 deg. C using motorheat Efficiency of plant couldbeincreasedwith a buffertank to store heat from solarpanel and motors, in order to run the heatpump when the electrcity rates arelowest. Solar panel Motor cooling HeatPAC108S

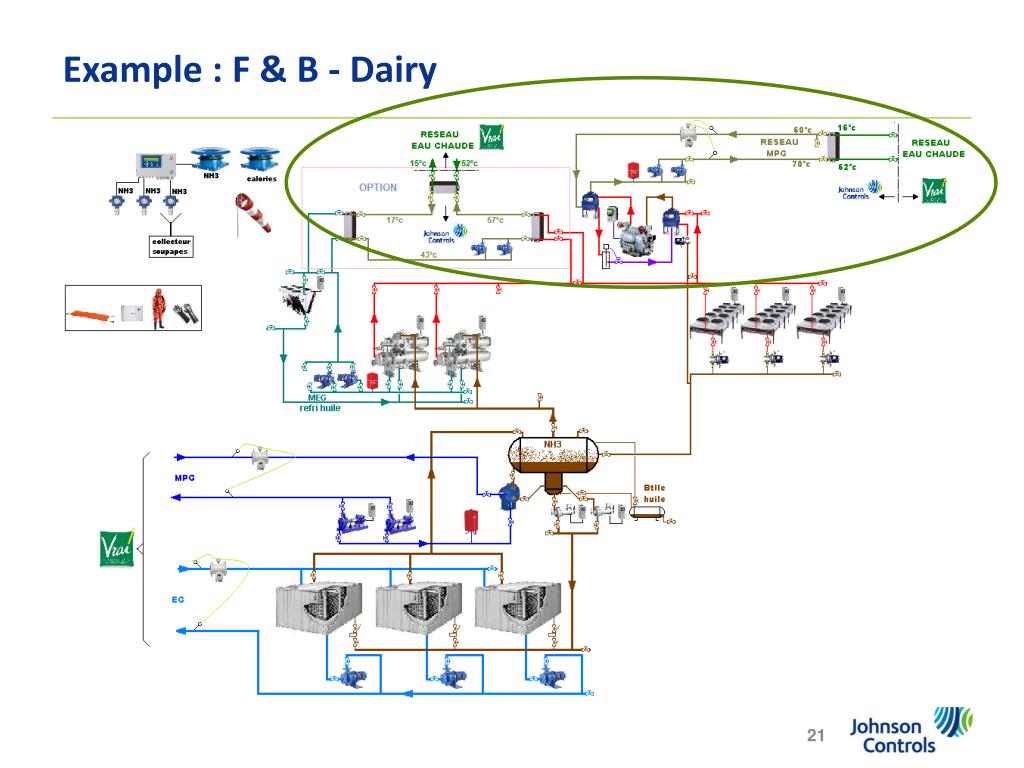

  21. Example : F & B - Dairy

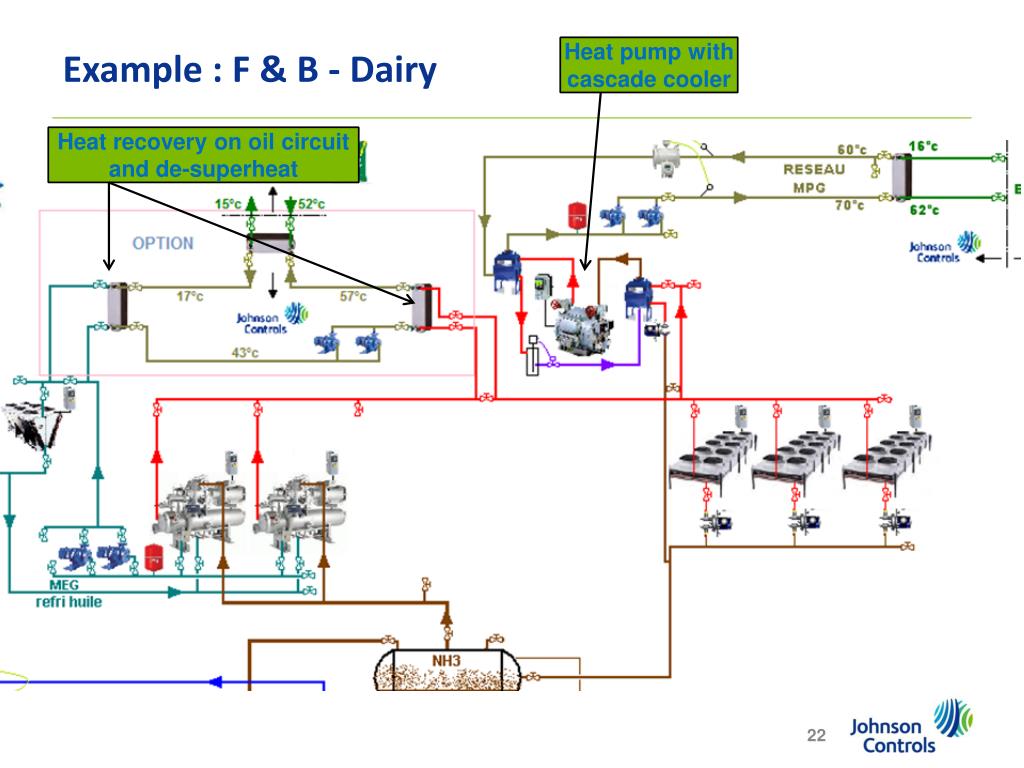

  22. Example : F & B - Dairy Heat pump with cascade cooler Heat recovery on oil circuit and de-superheat

  23. Heat Pumps Tips & Tricks

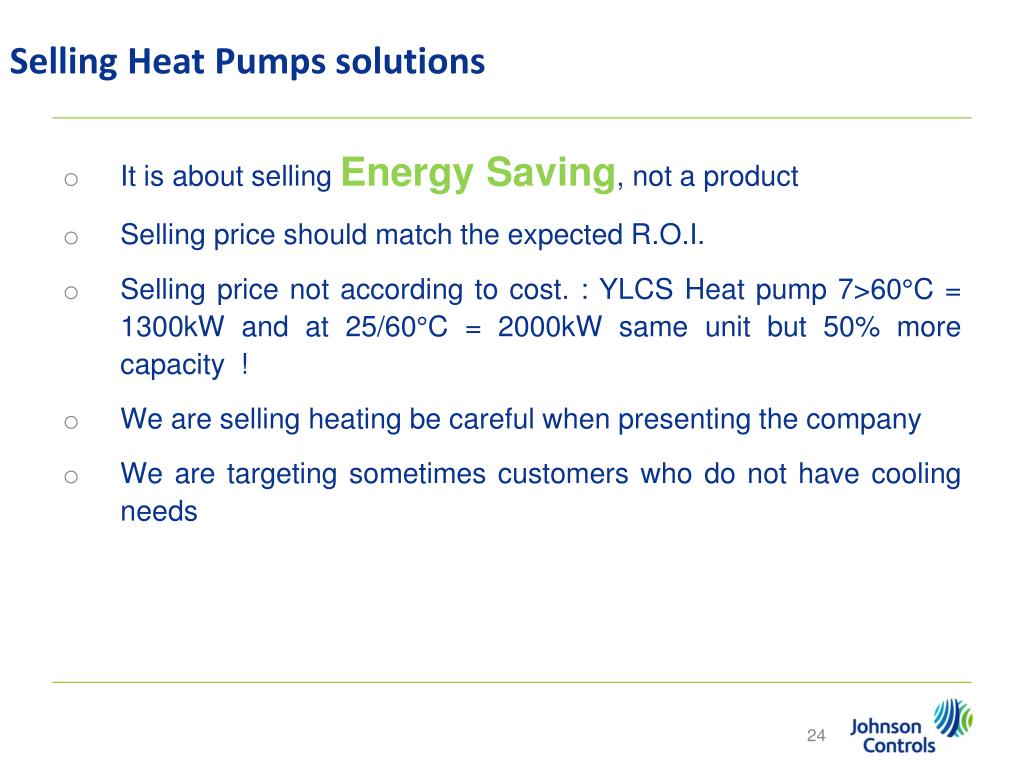

  24. Selling Heat Pumps solutions • It is about selling Energy Saving, not a product • Selling price should match the expected R.O.I. • Selling price not according to cost. : YLCS Heat pump 7>60°C = 1300kW and at 25/60°C = 2000kW same unit but 50% more capacity ! • We are selling heating be careful when presenting the company • We are targeting sometimes customers who do not have cooling needs

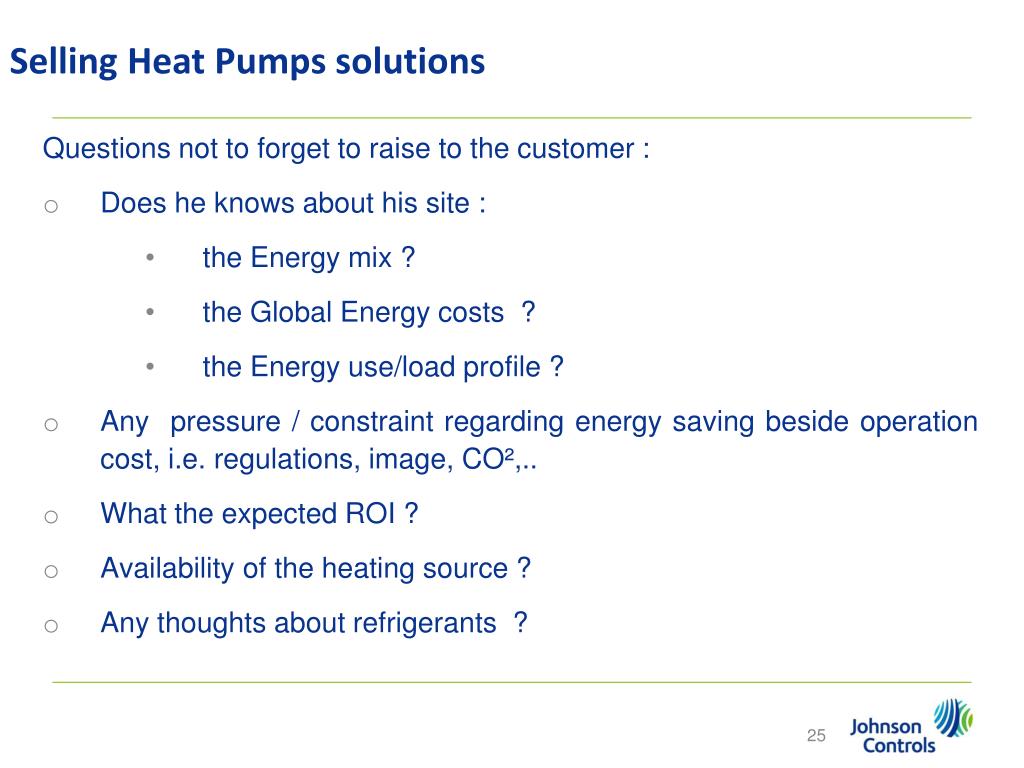

  25. Selling Heat Pumps solutions • Questions not to forget to raise to the customer : • Does he knows about his site : • the Energy mix ? • the Global Energy costs ? • the Energy use/load profile ? • Any pressure / constraint regarding energy saving beside operation cost, i.e. regulations, image, CO²,.. • What the expected ROI ? • Availability of the heating source ? • Any thoughts about refrigerants ?

  26. Customer benefits Why customers should choose Johnson Controls heat pump solutions

  27. Customer benefits

  28. QUESTIONS ?

  29. Johnson Controls confidential. For internal use only
