RFF Middle School

This plan outlines the structured approach to the networking setup across our middle school campus. It includes a standardized color scheme for MDFs (Main Distribution Frames) and IDFs (Intermediate Distribution Frames), with guidance on drops for each building. Each connection is labeled using a four-part system: (Building Number)(Quadrant Letter)(Drop Panel Number)(Wire Number), ensuring clarity and ease of maintenance. For instance, "5A23" identifies a drop in the sixth-grade building, while security cameras will be designated with quadrant "Z", like "1Z31" for the administration building.

hazel
Download Presentation

RFF Middle School

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. RFF Middle School Networking plan

  2. Whole Campus

  3. Color Scheme

  4. MDF’s IDF’s

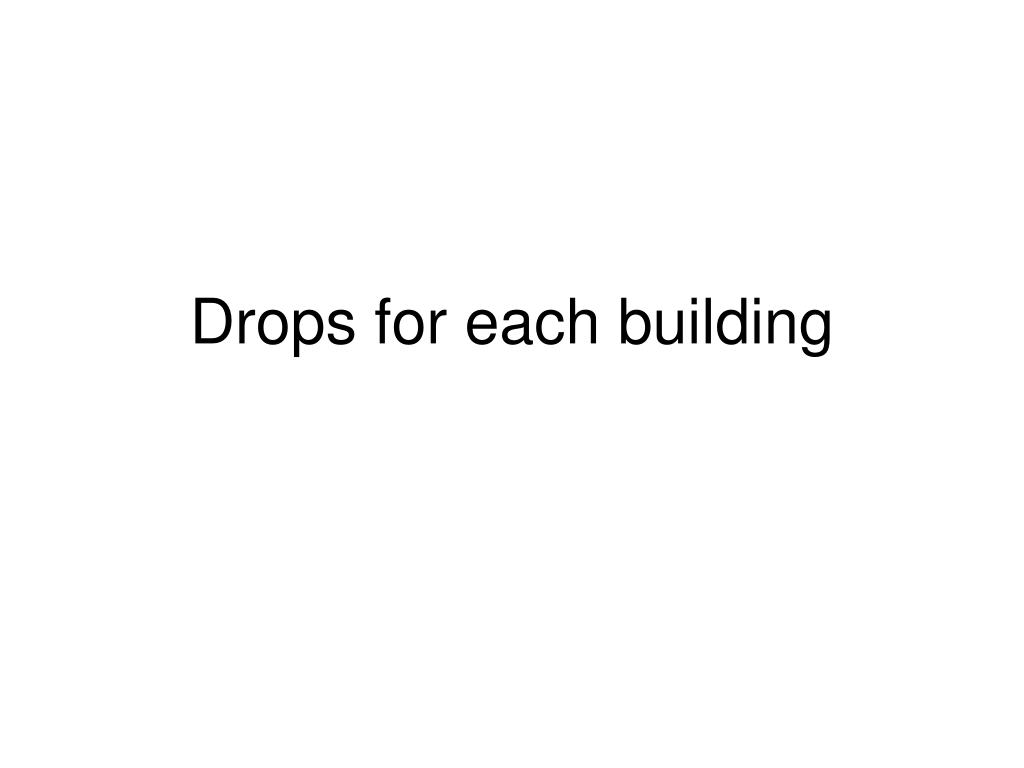

  5. Drops for each building

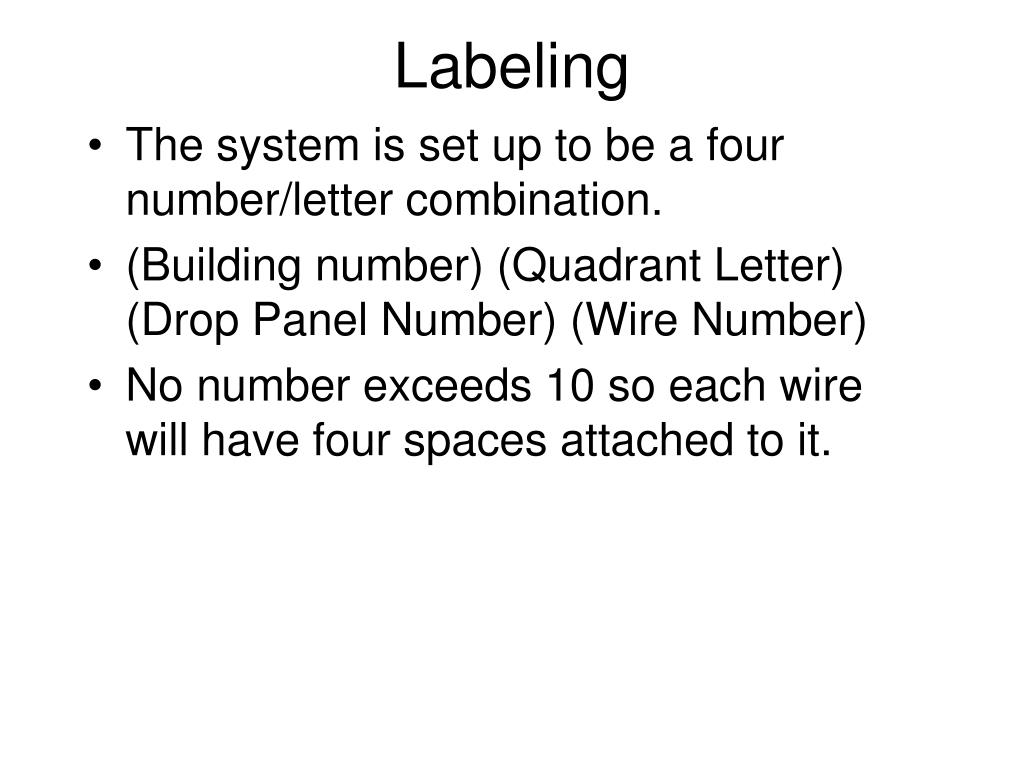

  6. Labeling • The system is set up to be a four number/letter combination. • (Building number) (Quadrant Letter) (Drop Panel Number) (Wire Number) • No number exceeds 10 so each wire will have four spaces attached to it.

  7. Example: 5A23 • the number five stands for the sixth grade building • the letter A signifies the classroom all the way to the left • the number two is the drop panel that contains the four ports • the number 3 signifies which port on the panel • All security cameras will be assigned to a quadrant letter of Z • Example:1Z31 • Administration building security camera located at the third panel wired to port 1.
