Presentation Transcript

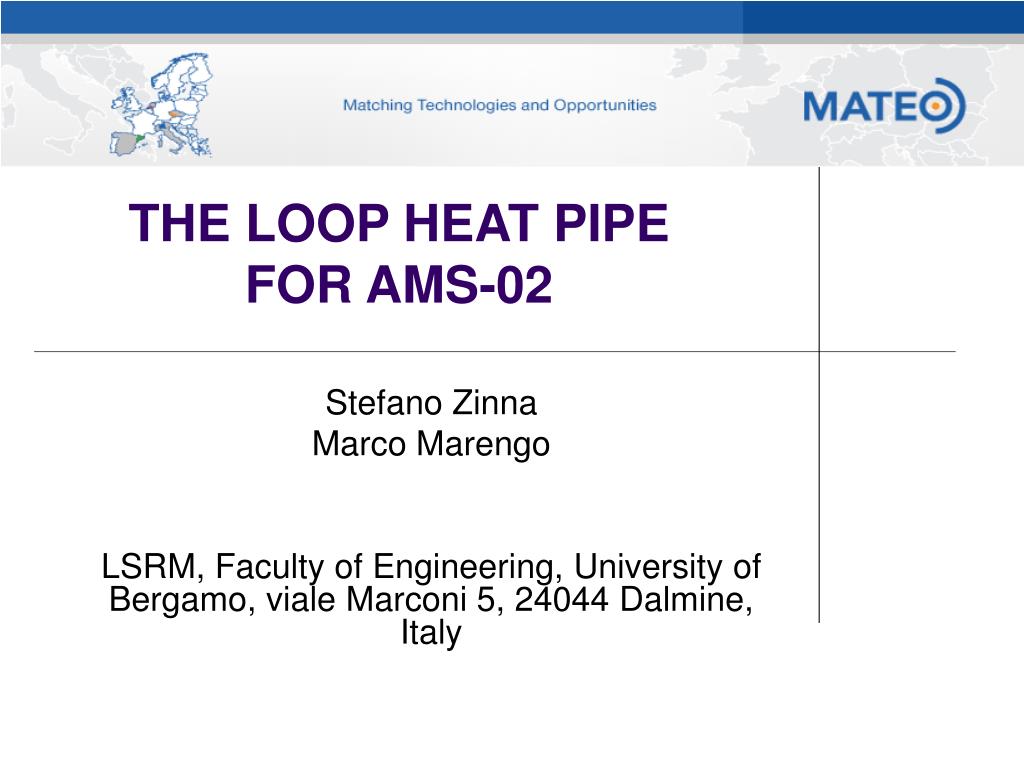

  1. THE LOOP HEAT PIPE FOR AMS-02 Stefano Zinna Marco Marengo LSRM, Faculty of Engineering, University of Bergamo, viale Marconi 5, 24044 Dalmine, Italy

  2. Inside ANTASME • OBTAINED RESULTS • 8.1 The LHP for AMS is built and run for orbital conditions • 8.2 The ground LHP for AMS is built and stationary results are compared with LHP model in microgravity • 8.3 The construction of the thermal chamber in China is delayed (cancelled) • 8.4 A simplified model of the LHP is carried out in order to be implemented in multidisciplinary codes • 9.3 The LHP model has been run by including the FEM results about valve

  3. INDEX • Simulation of the LHP prototype in the thermal chamber (ground test) (deliverable 8.2) • Definition of data input and output structures for future implementation in general multidisciplinary codes (deliverable 8.4) • Implementation of the FEM data in the SINDA/FLUINT network scheme (deliverable 9.3)

  4. Deliverable - 8.2 Simulation of the LHP prototype in the thermal chamber (ground test)

  5. Ground LHP results • The ground propylene LHP has been implemeted: The model has different correlation for pressure drop and condensation in the two-phase part (condenser) • The reservoir temperature (TCC) and subcooling temperature (TS) are compared with microgravity model • Stationary mode is run with power from 30 W to 90 W • The 1G results have temperature lower than mG while the power is increasing • The temperature difference is about 2° for 90W TCC TS CONDENSER

  6. m-G/1G PRESSURE DROP m-G • Bubbly/Slug flow: McAdam’s formulation for homogeneous flow • The annular regime: Lockhart-Martinelli correlation (Zhao L. Rezkallah K.S., 1995. Pressure drop in gas-liquid flow at microgravity conditions. Int. J. Multiphase Flow 21, 837-849) 1G • The predicted pressure drops is based on the Muller-Steinhagen and Heck correlation (John R. Thome, Wolverine Engineering Data Book III, 2006) The factors A and B are the frictional pressure gradients for all the flow liquid and all the flow vapour

  7. 1G Model SLIP FLOW • The Tabular connector device allows users to specify flow rate versus head (or pressure drop) relationships in tabular (array) formats • The gravitational forces are independent of the velocity while the friction and the acceleration forces are function of the square of the flow rate • These coefficient are inserted in the equation for the fluid path while the vapour path is set in order to satisfy the slip flow model chosen

  8. m-G/1G pressure drop differences • The Clausius–Clapeyron correlation is used to calculate the temperature difference in the two-phase part of the condenser • THE TEMPERATURE DIFFERENCE IS WEAKLY RELATED TO THE PRESSURE DROP

  9. m-G/1G CONDENSATION m-G • The condensation heat transfer coefficient for two-phase flow is based on Shah’s correlation (Po-Ya Abel Chuang, An improved steady-state model of loop heat pipes on experimental and theoretical analyses. 2003, Phd Thesis) 1G • The correlation is based on Dobson and Chato method. (Soliman transition criterion) (John R. Thome, Wolverine Engineering Data Book III, 2006) • The annular correlation: • The stratified-wavy correlation:

  10. GRAVITY FLOW PATTERN • The Soliman transition criterion for predicting the transition from annular flow to stratified-wavy flow was used • The G is always lower than 500: G (30W)=9.3; G (60W)=18.7; G (90W)=28 • The transition from stratified to annular is with quality between 0.6 and 0.8 depending on the temperature ANNULAR STRATIFIED

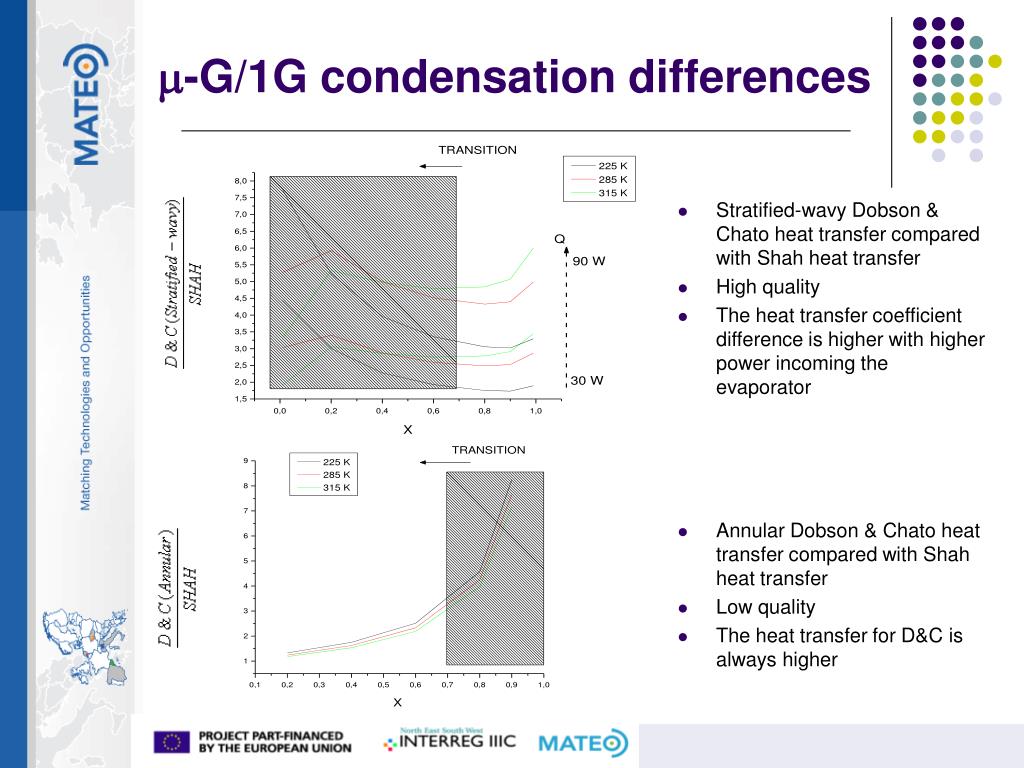

  11. m-G/1G condensation differences • Stratified-wavy Dobson & Chato heat transfer compared with Shah heat transfer • High quality • The heat transfer coefficient difference is higher with higher power incoming the evaporator • Annular Dobson & Chato heat transfer compared with Shah heat transfer • Low quality • The heat transfer for D&C is always higher

  12. CONCLUSIONS • The gravity model temperatures are lower than the microgravity model and the difference is increasing while the power incoming in the evaporator is increasing • The pressure drop has a negligible influence on the temperature drop in the two-phase condenser • Wider two-phase lenght for high power • Higher difference in the heat transfer for high power

  13. Deliverable - 8.4 Definition of data input and uotput structures for future implementation in general multidisciplinary codes

  14. ANALYTICAL MODEL(Evaporator balance) • To test the SINDA/FLUINT results and to understand which are the most important parameters that influence the LHP in order to set the input/output structures • The heat absorbed from the cryoo-cooler crosses from the evaporator wall to the solid wick and it is shared between Fluid wick and Reservoir: • The pressure in the end of the liquid line is close to the saturation pressure & the liquid flow rate depends on the power and the evaporation enthalpy at saturation temperature (Tsat): UW Gback

  15. ANALYTICAL MODEL(Radiator balance) • The temperature changes depends only on the axial conductances with the evaporator wall and can be considered negligible while the pressure drop has a small influence on the enthalpy: • The power rejected from the radiator (Qout) is due to the radiation towards the external environmental

  16. ALGEBRAIC SYSTEM • The algebraic system has now 5 parameters: UWB, QCRYO, Qflux, Grad, Tsink: • The results are shown in the graphic for the steady state operating temperature: (a) Qflux=70 [W], Uwb=25/3 (b) Qflux=0 [W], Uwb =25/3 (c ) Qflux=70 [W], Uwb=25/6. For all the cases the radiative conductance Grad is 5.010-9 [W/T^4] and the Tsink is 170K.

  17. CONDENSER TEMPERATURE • The initial part of the pipe is near the end. The high temperature of the incoming two-phase fluid causes a important heat transfer to the outgoing fluid, the TS increases and consequently the TCC is higher. • Another heat flux is exchanged between two parts of the same condenser in the middle of the radiator and leads to the first maximum in figure.

  18. Input/output structures • Where Lo is a system operator, t is time, x(t) is the state of the system, u(t) is its input, w(t) is some external or internal disturbance, and l is a parameter that defines the system. Each one of these quantities belongs to a suitable set or vector space and there are a large number of possibilities • y: the steady state operating temperature and subcooling temperature; u: the power coming in the evaporator; w: the boundary conditions (the external fluxes in the radiator, the radiative conductance and the sink temperature for the radiator); l: the ratio between the conductance inside the wick and the conductance from the wick to the reservoir, and the radiator area. SYSTEM OUTPUT INPUT BOUNDARY

  19. CONCLUSIONS • An analytical model is carried out in order to achieve a simplified model: good approximation of the SINDA results for high power • The input/output structures are defined: the solver Lo could be by the analytical model (Lo-> an algebraic operator ) or the sinda model SINDA ANALYTICAL MODEL

  20. Deliverable - 9.3 Implementation of the FEM data in the SINDA/FLUINT network scheme

  21. LHP-VALVE • Temperature requirements: • WORST CONDITIONS (Coldest environment, nominal working (2LHP), minimum power (61W)) : 226K< TCRYO <230K CRYO-COOLER Q TCRYO TCC EVAPORATOR VALVE L H P OPEN MODE CLOSE MODE RADIATOR TRAD EXTERNAL AMBIENT

  22. Implementation of the FEM data • The information about the valve come from FEM ANALYSIS (Speetjens M. & Rindt, C. 2006 Numerical analysis of the bypass valve in aloop heat pipe, INTERREG IIIC MATEO-ANTASME Deliverable 9.2. ) • The solver is only sinda (NO analytical model) • The pressure drop : VALVE SINDA

  23. CC CC 1 set point • OPEN MODE: TCRYO<263 • CLOSE MODE: TCRYO>263 • The temperature in the cryo react quickly to the open mode • The temperature in the cryo reachs 262.7

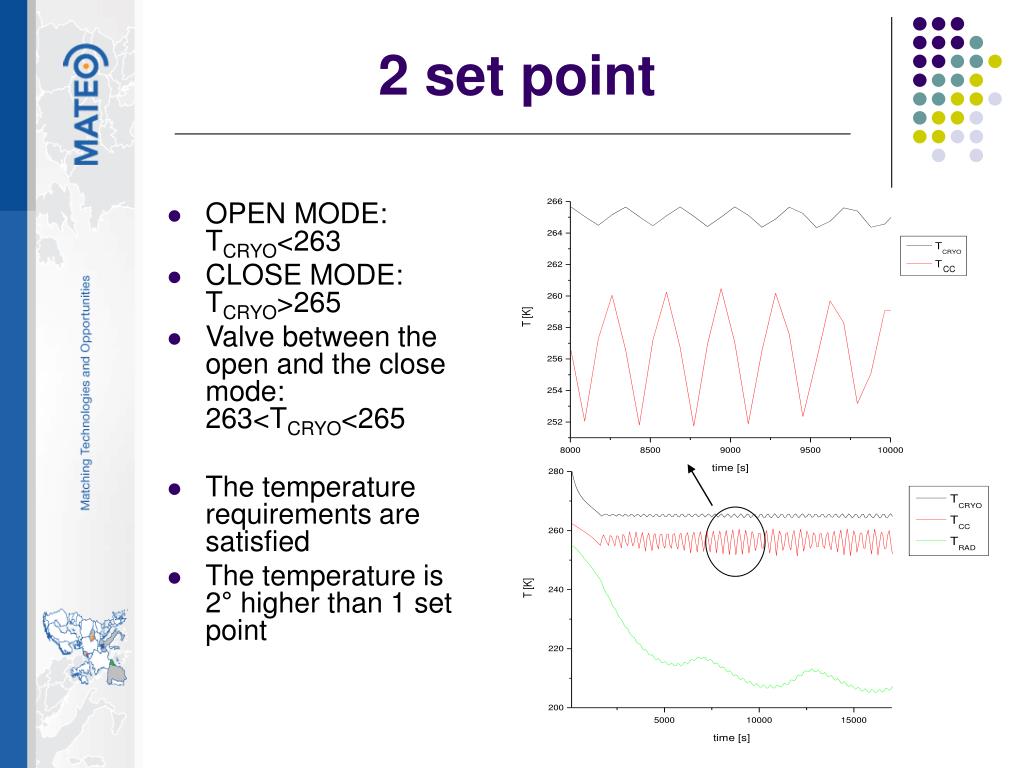

  24. CC 2 set point • OPEN MODE: TCRYO<263 • CLOSE MODE: TCRYO>265 • Valve between the open and the close mode: 263<TCRYO<265 • The temperature requirements are satisfied • The temperature is 2° higher than 1 set point

  25. CONCLUSIONS • The FEM data are inserted in the sinda model and two cases are run depending on 1/2 set points • There is a little inertia between the compensation chamber and the cryo • a higher set point should be chosen • 2 set point should be definied
