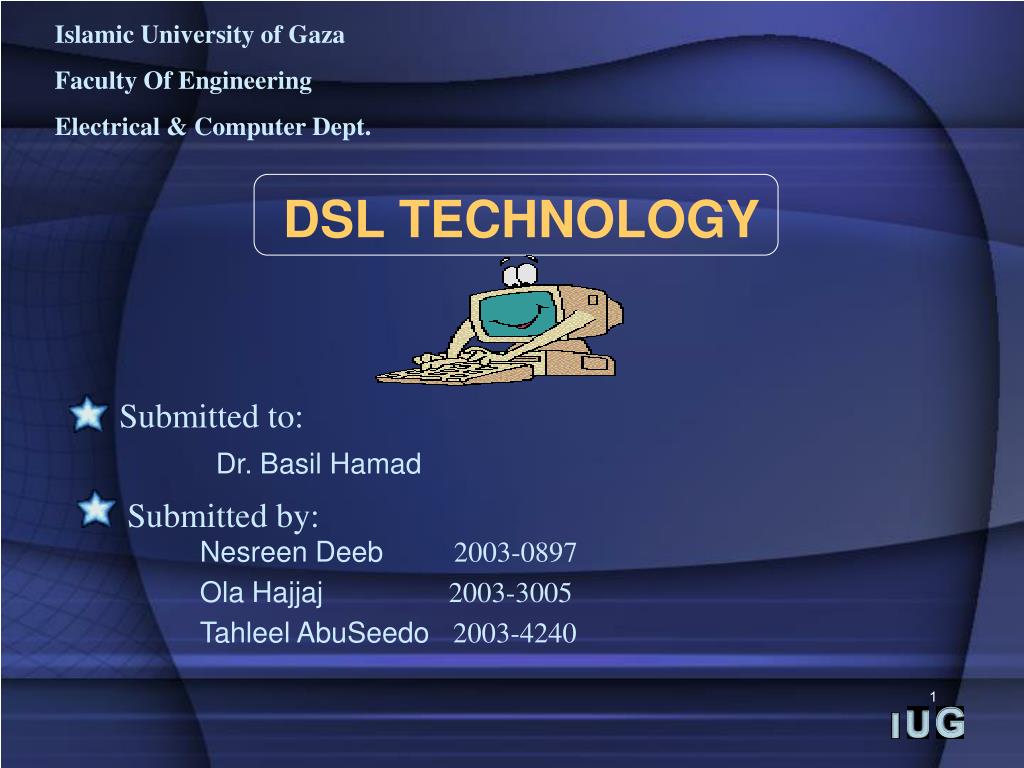

Islamic University of Gaza Faculty Of Engineering Electrical & Computer Dept. DSL TECHNOLOGY Submitted to: Dr. Basil Hamad Submitted by: Nesreen Deeb 2003-0897 Ola Hajjaj 2003-3005 Tahleel AbuSeedo 2003-4240
Introduction High speed of data transmission and cheap cost are the most important demands for internet users . To achieve these demands, many approaches have been developed. Digital Subscriber Line (DSL) technology was introduced as the solution for home users or dial-up users.
How can the internet? I access 1-Dial-up 2-ISDN 3-T1 Technology 4-Cable 5-DSL

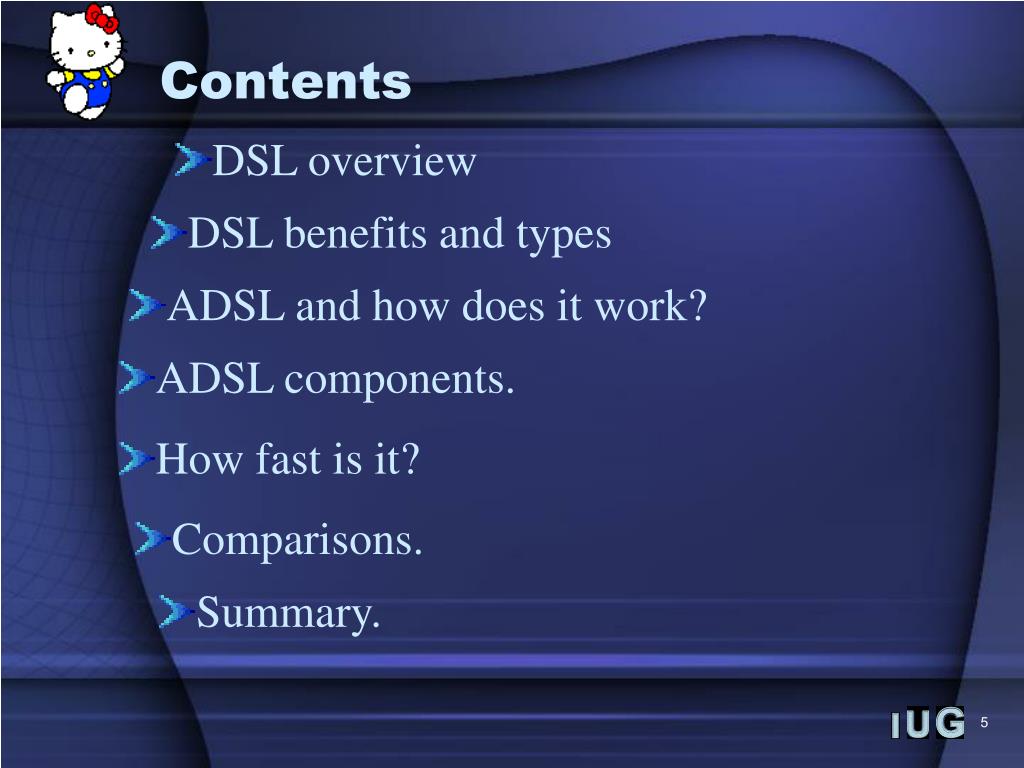

Contents • DSL overview • DSL benefits and types • ADSL and how does it work? • ADSL components. • How fast is it? • Comparisons. • Summary.

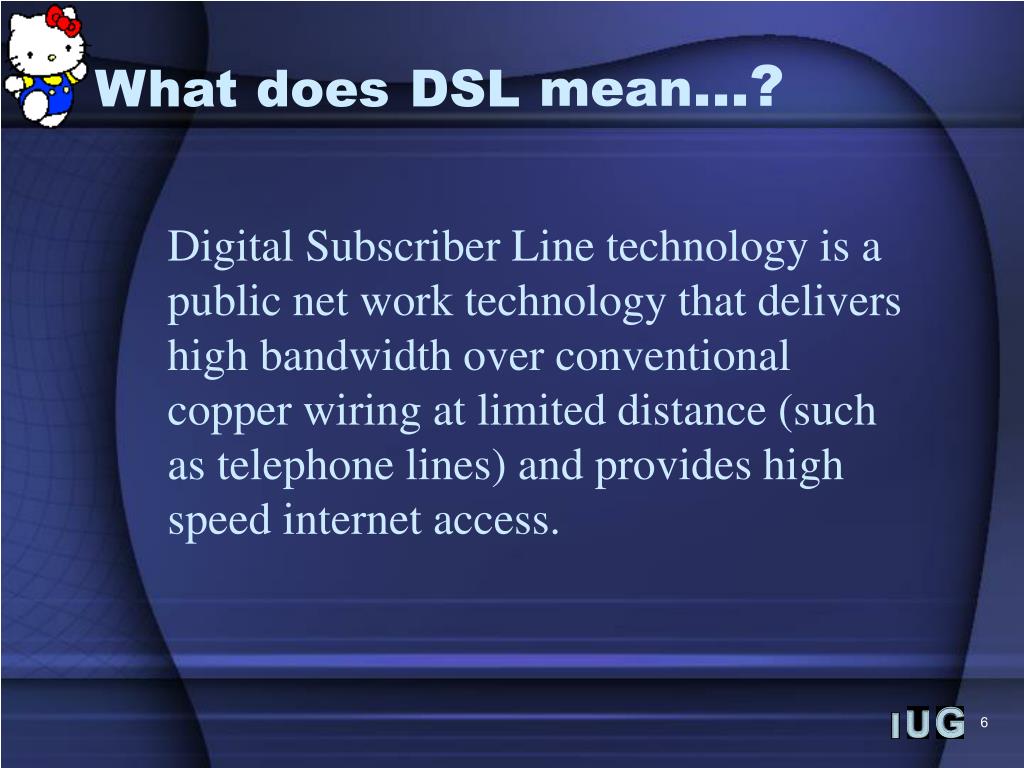

mean…? What does DSL Digital Subscriber Line technology is a public net work technology that delivers high bandwidth over conventional copper wiring at limited distance (such as telephone lines) and provides high speed internet access.
DSL Components • ADSL Modem. • Local Loop. • Service provider. • Internet. ADSL modem PC Service provider Internet

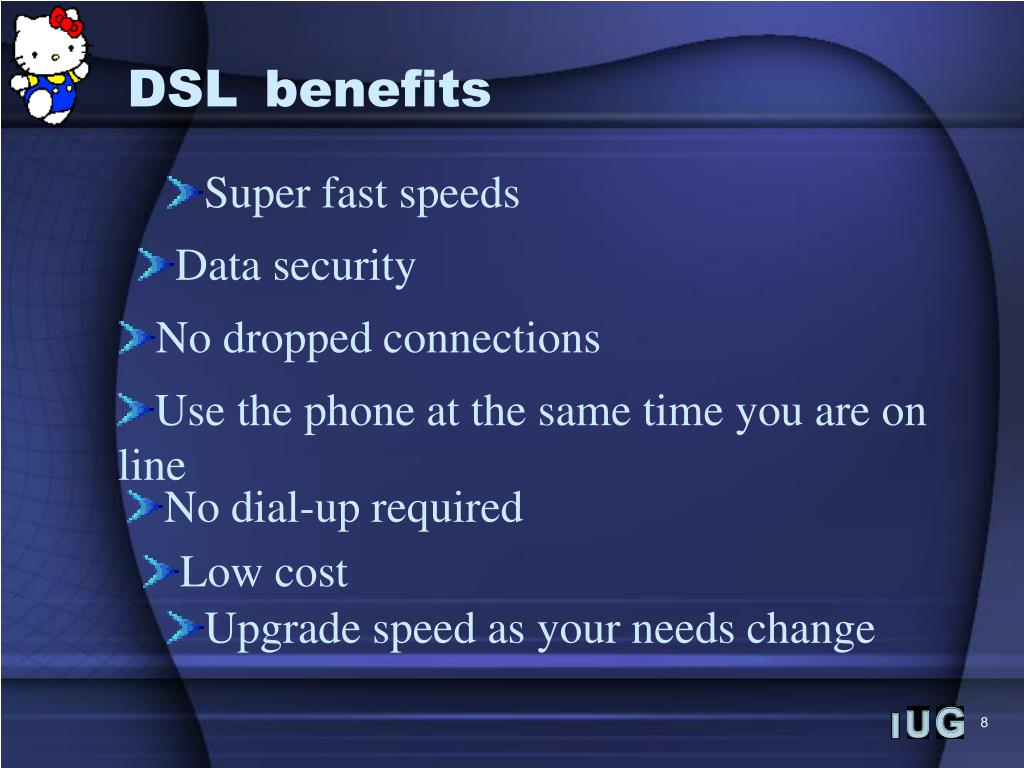

DSL benefits • Super fast speeds • Data security • No dropped connections • Use the phone at the same time you are on line • No dial-up required • Low cost • Upgrade speed as your needs change
DSL Types • Asymmetric DSL(ADSL) • Synchronous DSL (SDSL) • Receiving data faster than sending data. • Download speed from 256KB/Sec up to 1.5MB/Sec. • Upload speed from 128KB to 384 KB. • Low cost. • The same up and download speed. • The same service of (T1) and more expensive • Not as widely deployed as ADSL • Good option for heavy on line business.
How does work? ADSL ADSL works by splitting the phone line into two frequency ranges. The frequencies below 4KHz are reserved for voice and the range above that is used for data .so using the phone at the same time is possible.

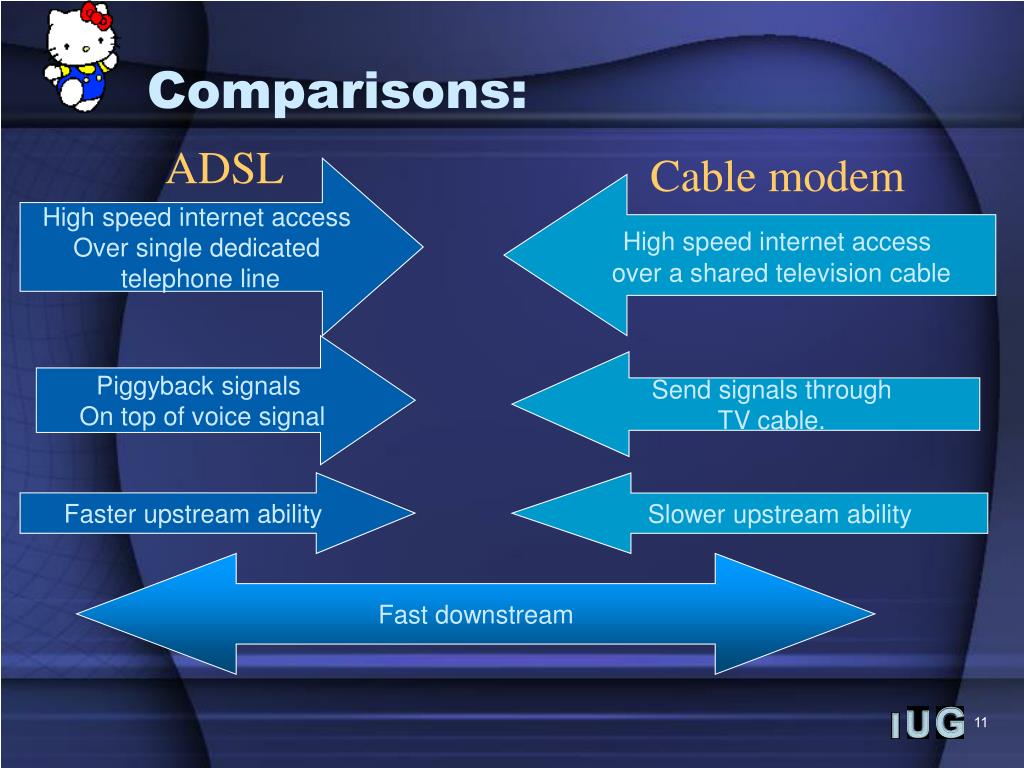

Comparisons: ADSL Cable modem High speed internet access Over single dedicated telephone line High speed internet access over a shared television cable Piggyback signals On top of voice signal Send signals through TV cable. Faster upstream ability Slower upstream ability Fast downstream
Why Choice? should be your ADSL first • Always On,24hrs a day • Use the phone at the same time you are on line • Does not need any computer equipment • Can be shared among two or more PCs • No second phone line • Flat rate billing
How fast is it? Range of download speed from 256KB/sec up to 1.5 MB/sec. Faster than modem 25 times. ADSL modem piggyback signals on top of voice signal.
Broadband ADSL Regional Shares ADSL around the world

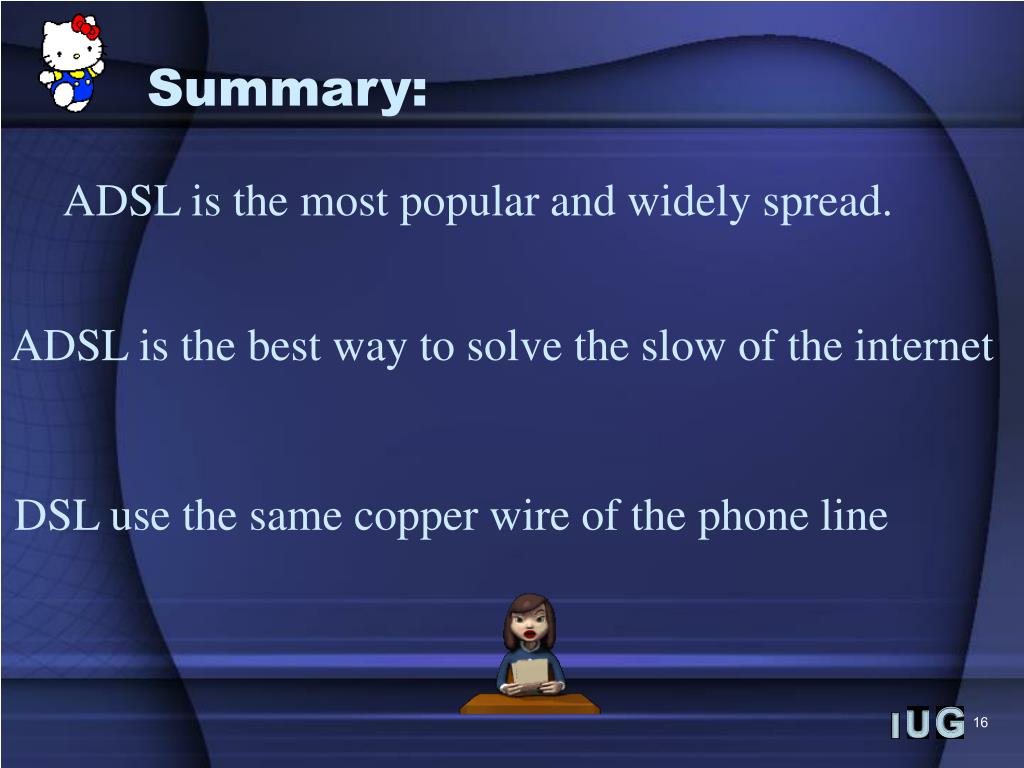

Summary: ADSL is the most popular and widely spread. ADSL is the best way to solve the slow of the internet DSL use the same copper wire of the phone line
